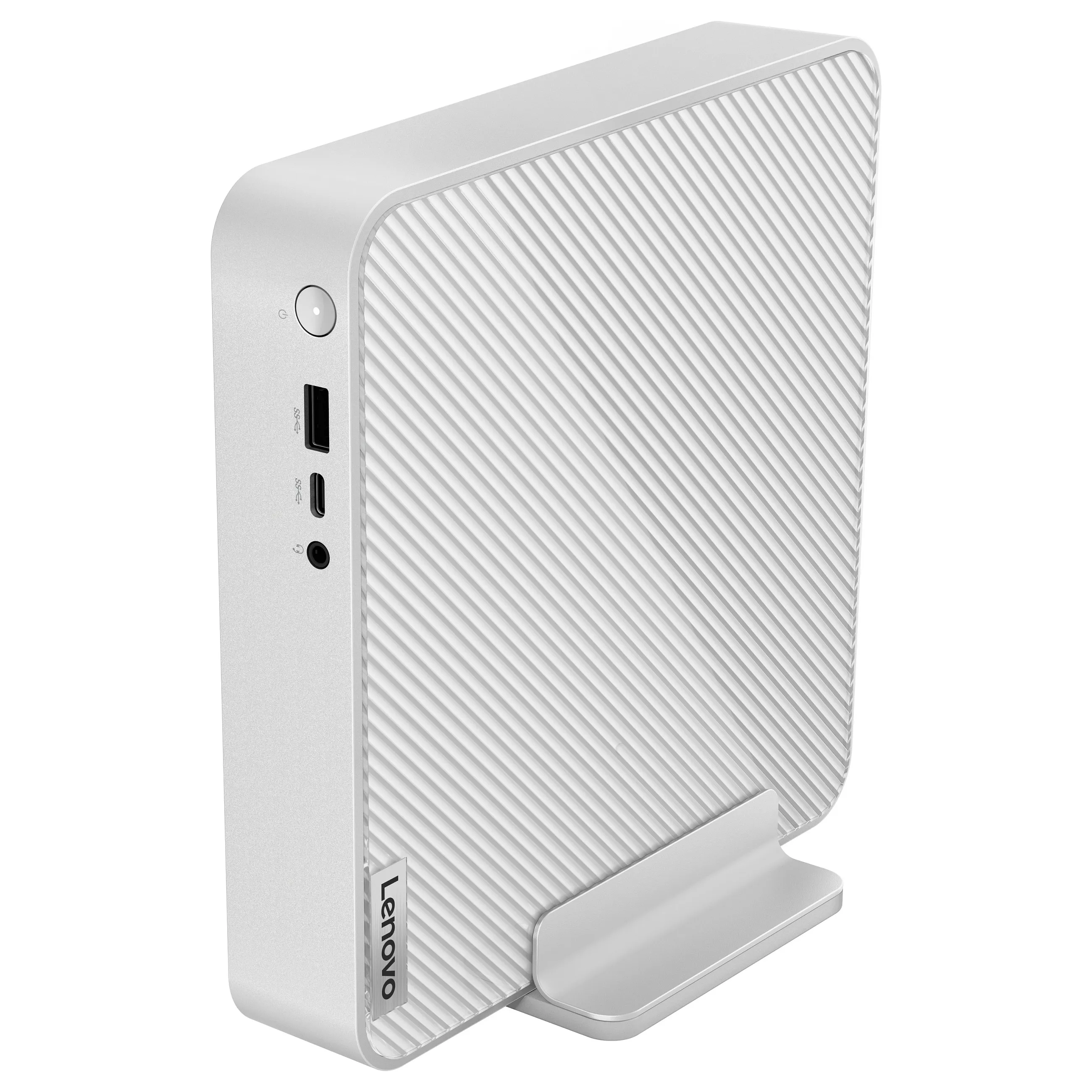

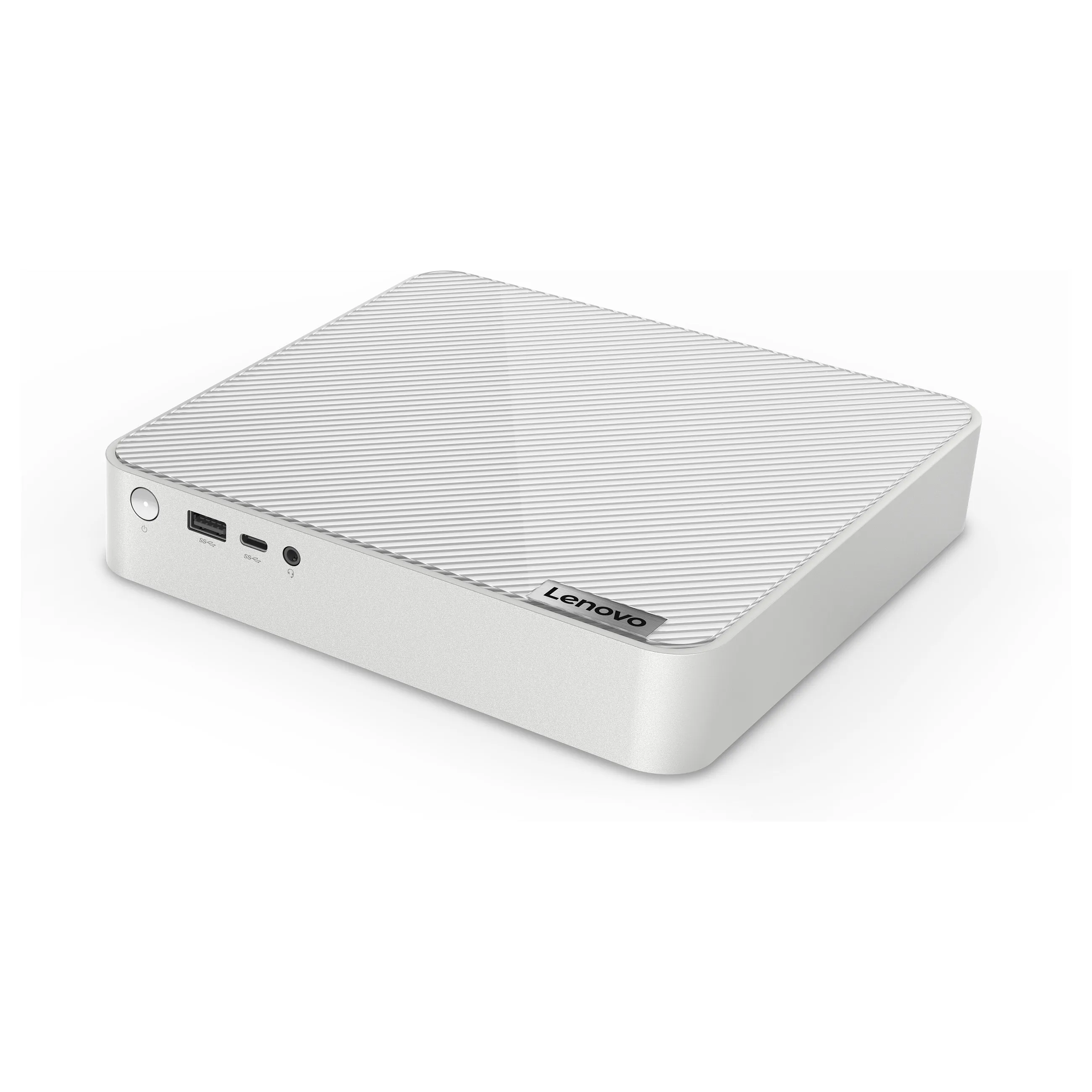

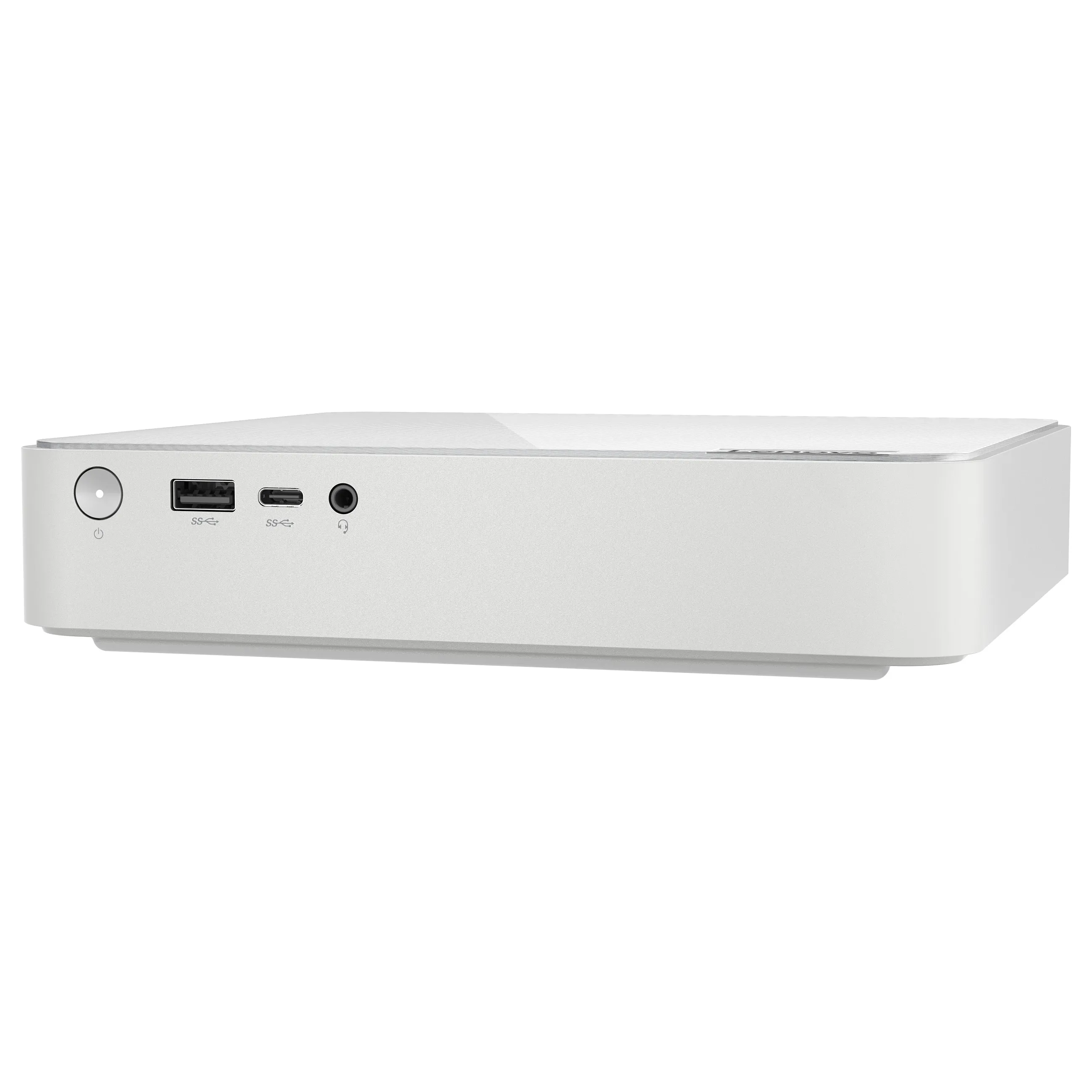

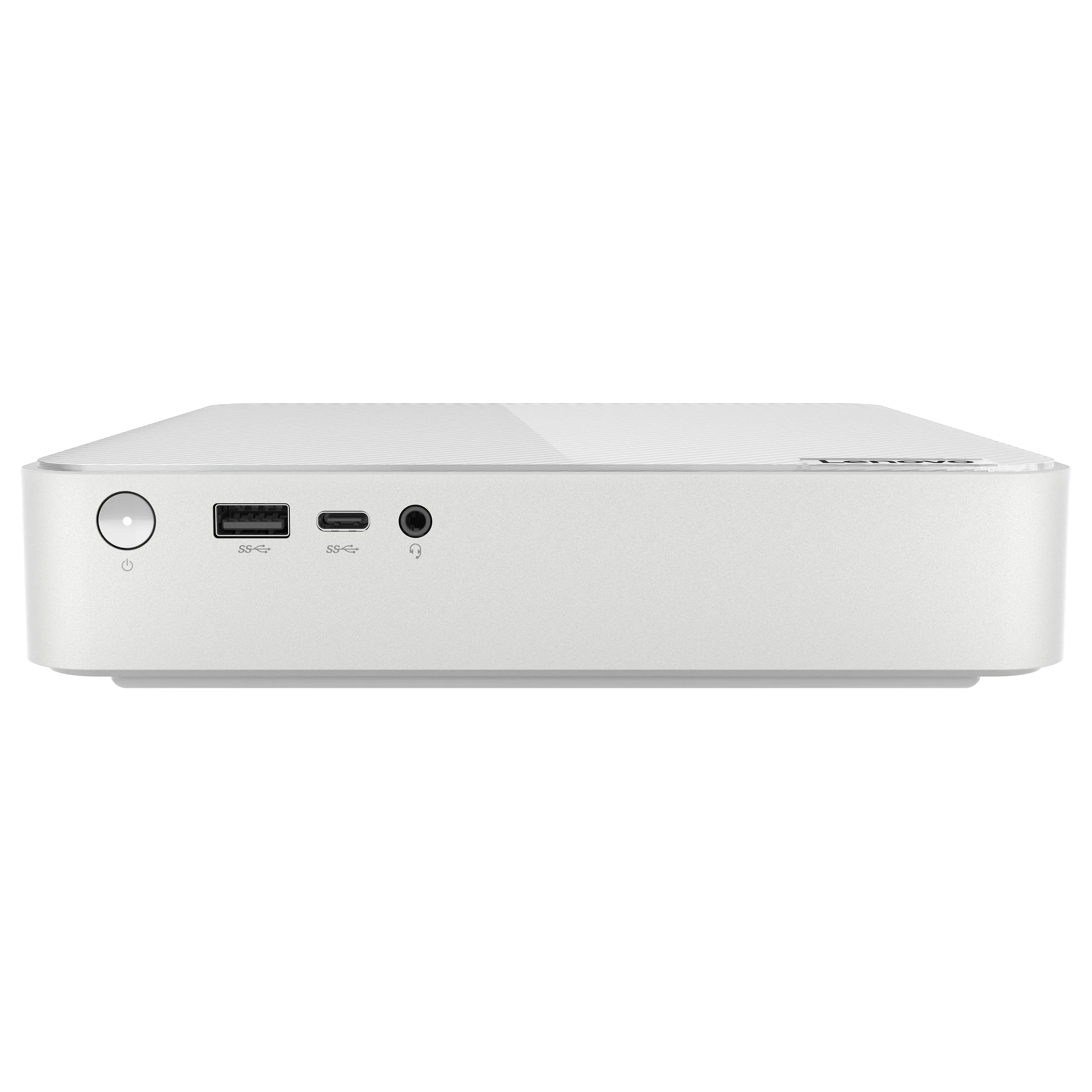

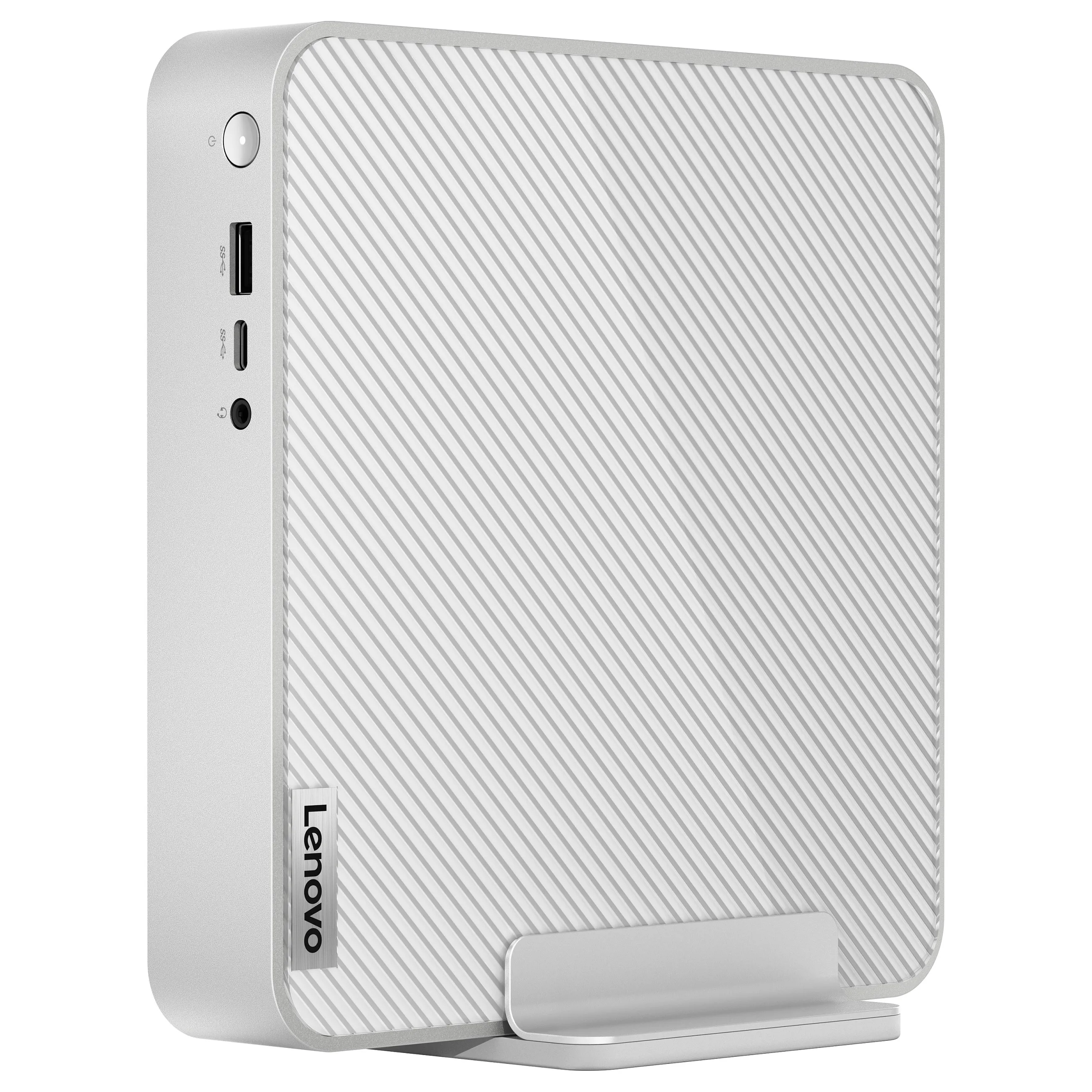

Lenovo IdeaCentre Mini 01IRH8. Processor family: Intel® Core™ i5, Processor model: i5-13420H. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 150 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.8 kg. Product colour: Grey
Processor
Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: 13th gen Intel® Core™ i5
Processor model: i5-13420H
Processor cores: 8
Processor threads: 12
Processor boost frequency: 4.6 GHz
Performance cores: 4
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.6 GHz
Efficient-core Max Turbo Frequency: 3.4 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor base power: 45 W
Maximum turbo power: 95 W
Neural processor unit (NPU)
Neural processor unit (NPU): No
Memory
Internal memory: 16 GB
Maximum internal memory: 32 GB
Internal memory type: DDR4-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 3200 MHz
Storage
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics
Performance
Motherboard chipset: Intel SoC
Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Antenna type: 2×2
Feature: Bluetooth
Bluetooth version: 5.2

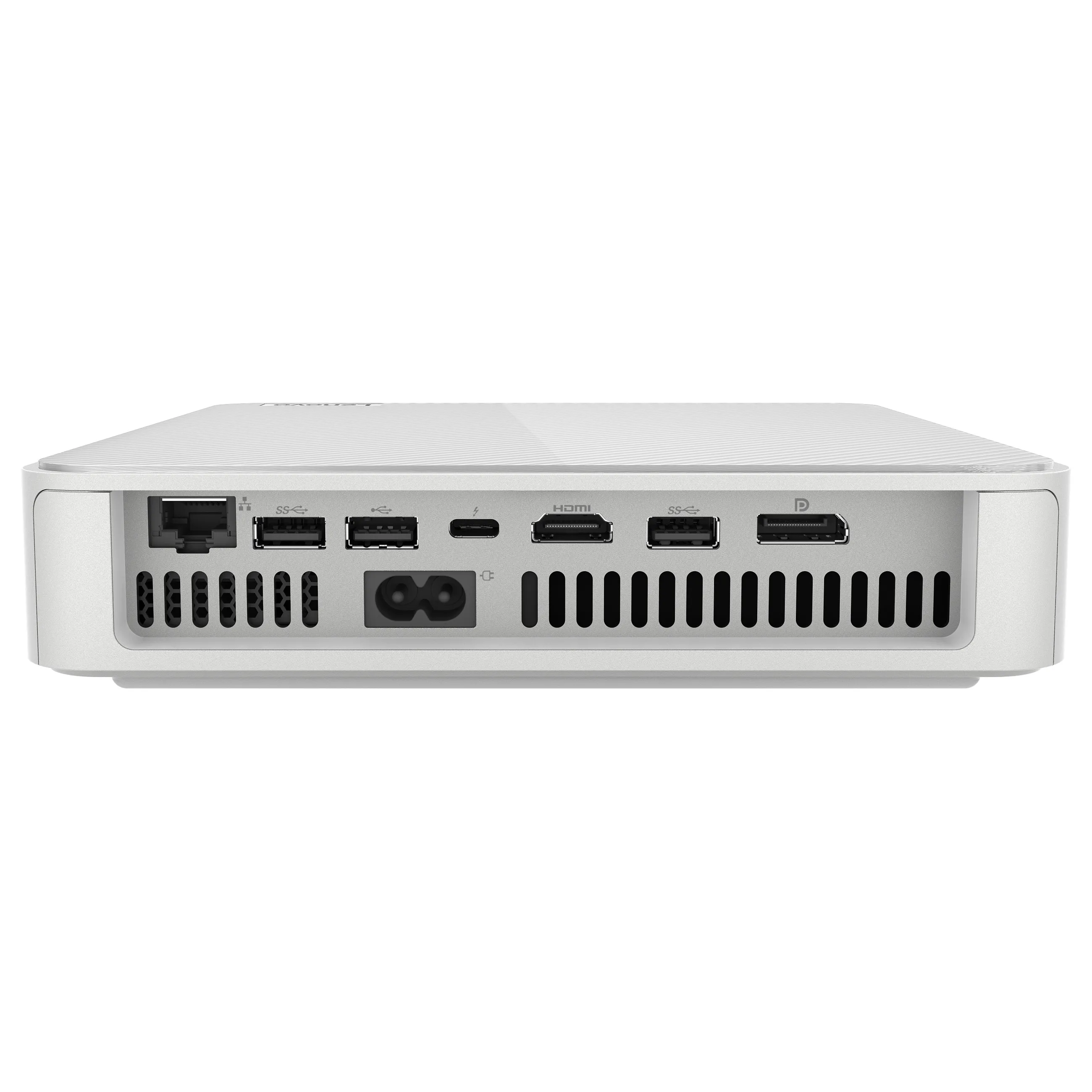

Ports & interfaces
USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 1
DisplayPorts quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Power
Power supply: 150 W
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Design
Chassis type: Mini PC
Colour name: Cloud Grey
Volume: 1 L
Product colour: Grey
Software
Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro
Audio
Audio chip: Realtek ALC256
Audio system: High Definition Audio
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Operating altitude: 0 – 3048 m
Non-operating altitude: 0 – 12192 m
Weight & dimensions
Width: 191.4 mm
Depth: 195 mm
Height: 39 mm
Weight: 1.8 kg
Certificates
Certification: ENERGY STAR,RoHS
Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: 13th gen Intel® Core™ i5
Processor model: i5-13420H
Processor cores: 8
Processor threads: 12
Processor boost frequency: 4.6 GHz
Performance cores: 4
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.6 GHz
Efficient-core Max Turbo Frequency: 3.4 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor base power: 45 W
Maximum turbo power: 95 W
Neural processor unit (NPU)
Neural processor unit (NPU): No
Memory
Internal memory: 16 GB
Maximum internal memory: 32 GB
Internal memory type: DDR4-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 3200 MHz
Storage
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics
Performance
Motherboard chipset: Intel SoC
Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Antenna type: 2×2
Feature: Bluetooth
Bluetooth version: 5.2
Ports & interfaces
USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 1
DisplayPorts quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Power
Power supply: 150 W
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Design
Chassis type: Mini PC
Colour name: Cloud Grey
Volume: 1 L
Product colour: Grey
Software
Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro
Audio
Audio chip: Realtek ALC256
Audio system: High Definition Audio
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Operating altitude: 0 – 3048 m
Non-operating altitude: 0 – 12192 m
Weight & dimensions
Width: 191.4 mm
Depth: 195 mm
Height: 39 mm
Weight: 1.8 kg
Certificates
Certification: ENERGY STAR,RoHS
