LANCOM 1803VA-5G (EU). Product colour: Black, Number of fans: 1 fan(s). Antenna type: External, Antenna connector type: SMA, Antenna gain level (max): 2 dBi. Management protocols: SNMPv1,v2c,v3, Supported network protocols: Ethernet over GRE-Tunnel (EoGRE), L2TPv3, ARP-Lookup, LLDP, DHCP option 82,…, VoIP protocols: SIP ALG. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.1Q, IEEE 802.3az, Mobile network generation: 5G. Security algorithms: 3DES, AES, FIPS 140, SHA-1, SHA-256, SHA-384, SHA-512, Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2

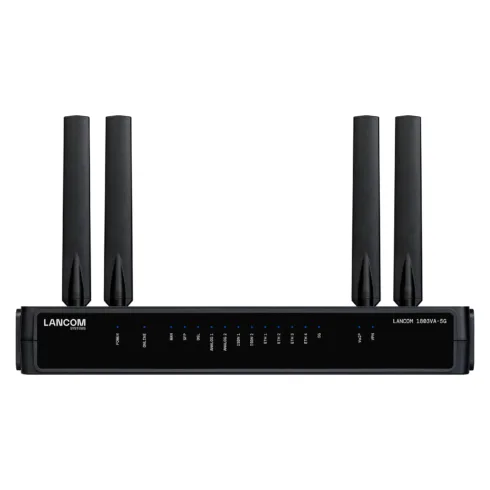

Highest availability and best bandwidths on all lines: The SD-WAN gateway LANCOM 1803VA-5G offers a wide range of interfaces with VDSL, fiber optics, and 5G, allowing you to reliably connect small and medium-sized business sites. The option to use multiple Internet lines in parallel ensures ideal load distribution and maximum flexibility, even for business-critical applications and higher data volumes. The connection of telephony components as well as mobile employees and other locations to the corporate network via VPN is done in no time at all with the LANCOM 1803VA-5G. In combination with the LANCOM Management Cloud (LMC), you benefit from automated and centralized network management that saves you resources such as money and time.
LANCOM SD-WAN – Next-level networking
With LANCOM SD-WAN you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway gives you all the options for an automated setup of secure VPN connections (Auto-VPN) between sites, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you a significant plus in scalability and efficiency for a large number of branches and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the available total bandwidth. With Dynamic Path Selection and Dynamic Traffic Steering, applications are also dynamically routed via the best connection at any given time.
Fully future-proof with 5G
Thanks to high-performance 5G technology, the LANCOM 1803VA-5G is ideal for intelligent backup scenarios, primary operation, or parallel operation in active/active mode with other access types. Highest availability and best bandwidths for the use of real-time applications such as video streaming or augmented reality (AR) in combination with lowest latencies make the branch router the ideal node in environments with high data traffic.
WAN connectivity with VDSL Supervectoring
The LANCOM 1803VA-5G offers full VDSL Supervectoring support and is also backwards compatible with VDSL2 and ADSL2+. Data rates of up to 300 Mbps are possible on existing copper lines.
Product colour: Black
LED indicators: Yes
Number of fans: 1 fan(s)
Features
Antenna type: External
Antenna connector type: SMA
Antenna gain level (max): 2 dBi
Antennas quantity: 4
Protocols
Management protocols: SNMPv1,v2c,v3
Feature: DHCP server
Feature: DHCP client
VoIP protocols: SIP ALG
Feature: DMZ support
Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3az
Mobile network generation: 5G
Data network: 3G, 4G, 5G
Feature: Dynamic DNS (DDNS)
Security
Feature: Access Control List (ACL)
Feature: MAC address filtering
Security algorithms: 3DES, AES, FIPS 140, SHA-1, SHA-256, SHA-384, SHA-512
Firewall security: Yes
Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2
Feature: VLAN support
Feature: Network address translation (NAT)
Number of VLANs: 4096
Feature: Password protection
Ports & interfaces
USB 2.0 ports quantity: 1
Feature: SIM card slot
SIM card type: MicroSIM + NanoSIM
Ethernet LAN (RJ-45) ports: 5
WAN connection: Ethernet (RJ-45)
Feature: DC-in jack
Management features
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: Syslog
Feature: Multicast support
Power
Power consumption (max): 34 W
Power consumption (idle): 13 W
Heat dissipation: 136 BTU/h
Weight & dimensions
Width: 293 mm
Depth: 190 mm
Height: 44 mm
Weight: 810 g
Packaging data
Package width: 210 mm
Package depth: 320 mm
Package height: 110 mm
Packaging content
Feature: AC adapter included
Feature: Manual
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 0 – 95%
Logistics data
Country of origin: Germany
Customs product code (TARIC): 85176200
