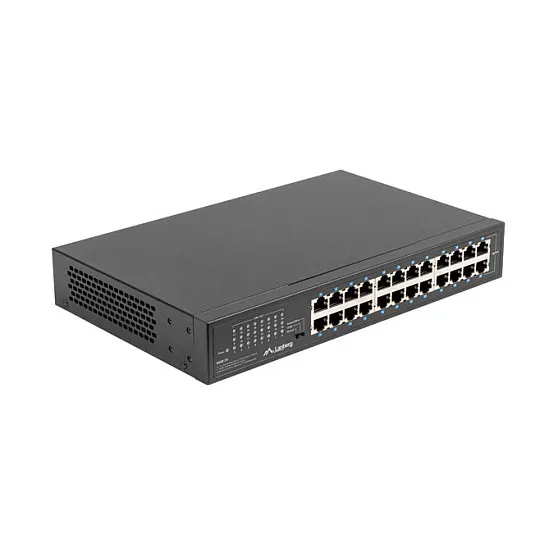

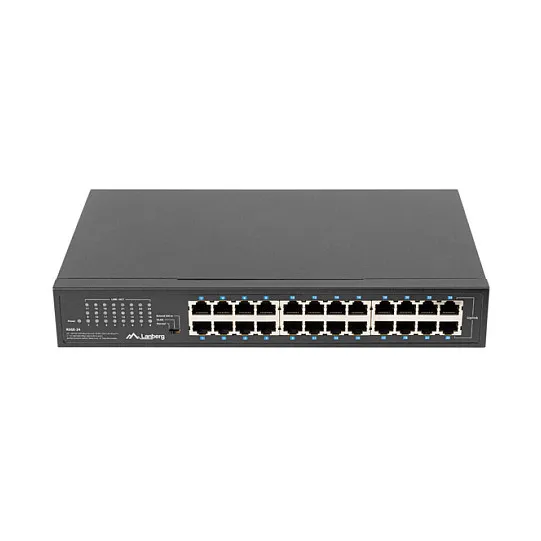

Lanberg RSGE-24 network switch

EXTEND MODE UP TO 250 METERS
By default, the standard switches ensure that the devices can operate at distances of up to 100 m on a single Ethernet cable. However, sometimes, it turns out that a unique solution beyond the standard is required when developing cabling and network structure due to the extensive core network and complex environment. In the case of surveillance systems, this is quite a common problem, resulting from the too-long distance between the distribution device and the end-device.
Lanberg switches have a feature that enables data transmission (max. 10 Mbps) to 250 m on a single cable section. Just toggle the switch position to „Extend 250 m” on the housing to ensure the long-distance operation.
The solution has been introduced for surveillance, IP, and access control systems, especially if the power equipment is located outside without the possibility of installing additional network distribution points.

PORT ISOLATION FEATURE – VLAN
VLAN is a function with a wide range of possibilities, from isolating or combining several logical networks within another, larger physical network to separating ports among themselves. This feature is mainly used in configurable switches is rarely found in budget models and even more so in unmanageable solutions.
Lanberg switches have a feature to isolate all standard ports between them (1 ~ 22) while allowing every each of them to transmit only with Uplink ports (23 ~ 24). Just toggle the switch position to „VLAN” on the housing to ensure port separation.
The manufacturer introduced the solution to ensure effective protection of devices in surveillance, alarm, and access control systems, particularly in places where security is always the top priority.

2 kV ESD PROTECTION
The switch itself, as well as the devices connected to it, are repeatedly exposed to various dangers, including electrostatic discharges that can flow through both the power and network cables.
With the safety of both the devices and their users in mind, Lanberg has equipped the switch with an integrated discharge protection system that guarantees 2 kV protection for all ports, effectively reducing their damage due to a surge in voltage.
Under standard conditions, the network operation will continue without interruptions, just like the switch. At the same time, the user gains the safety of the device and infrastructure.

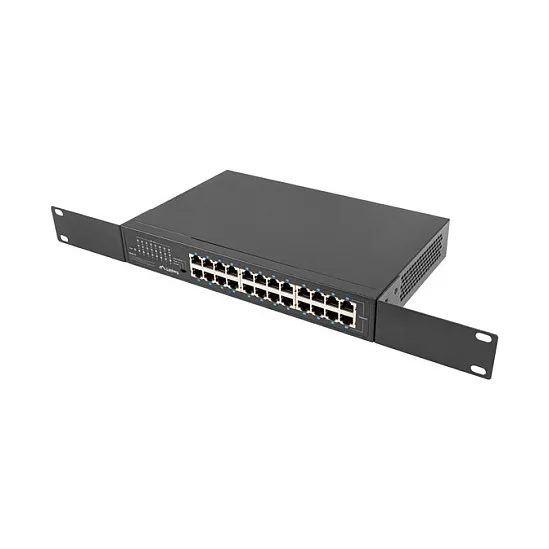

INSTALLATION KIT INCLUDED – RACKMOUNT EARS FOR 19″ CABINETS
The series of RS switches is characterized not only by the quality of manufacturing, simplicity of use, the functionality of the device but also by complementarity in installation and supplied accessories.

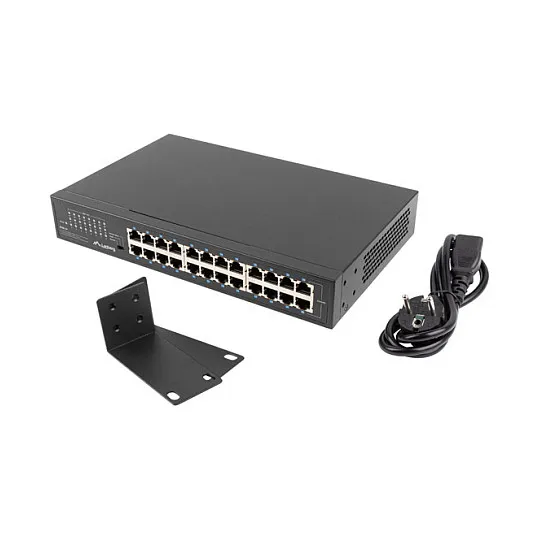

Lanberg added a set of accessories for flexible installation of the switches. The RSGE-24 has been provided with separate mounting ears for 19″ Rack cabinets, as well as a healthy supply of screws (except for M6). This enables a wider range of applications and greater freedom of installation of the RS series switches.
