Kolink VOID WHITE. Form factor: Midi Tower, Type: Server, Product colour: Black, White. Supported power supply form factors: ATX. Front fans installed: 3x 120 mm, Front fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 190 mm, Depth: 400 mm, Height: 430 mm
KOLINK VOID: EXQUISITE DESIGN MEETS HIGH PERFORMANCE

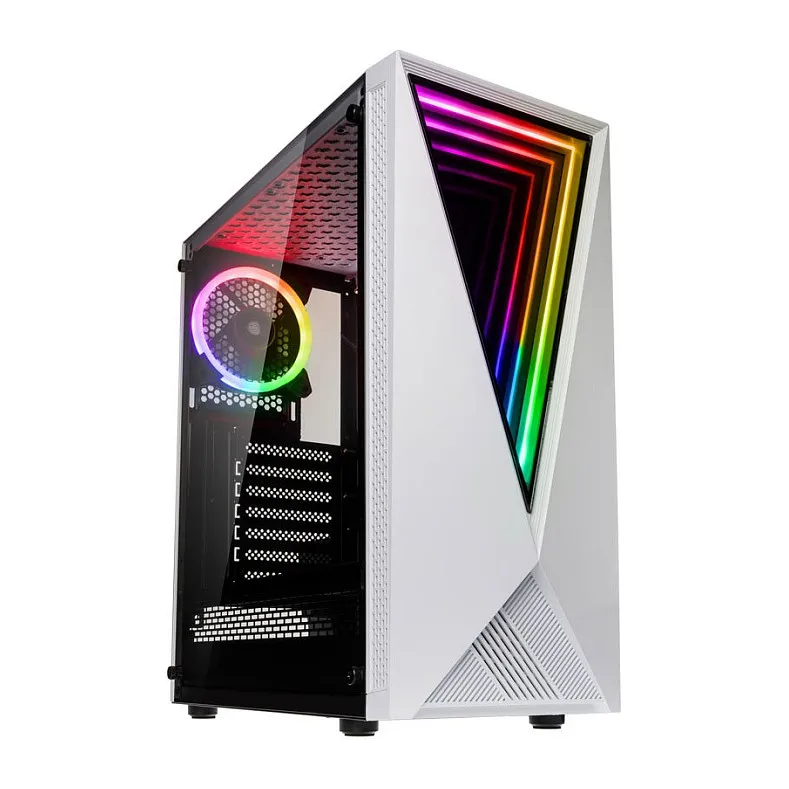

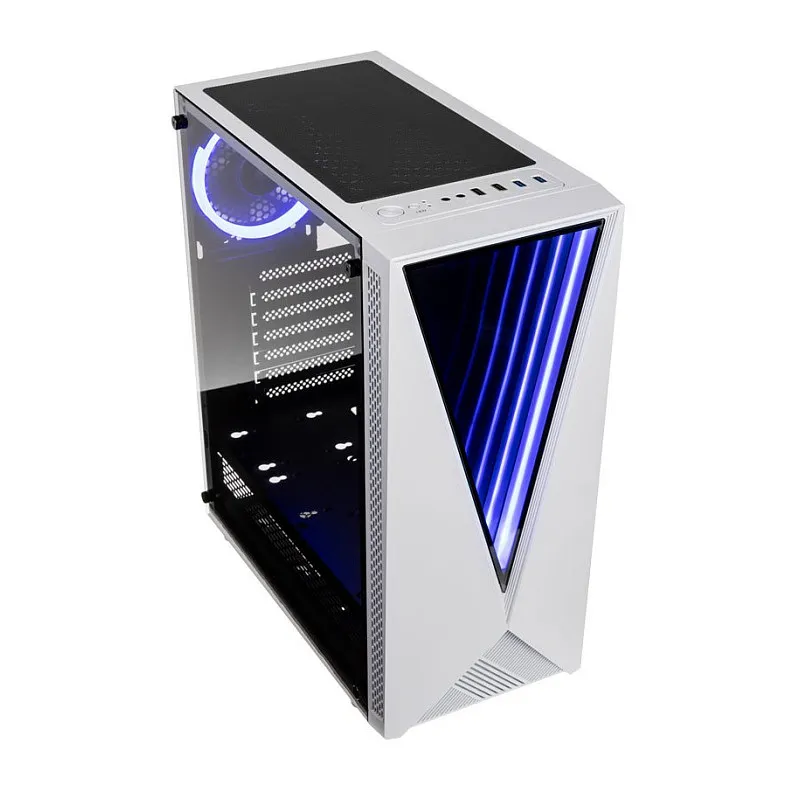

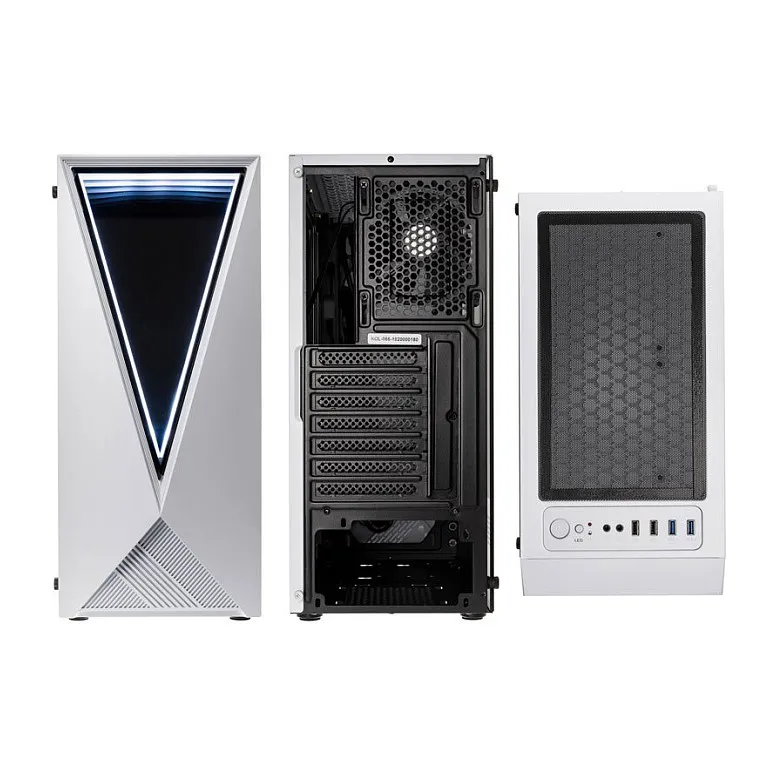

The digitally addressable RGB-LED strips, the effect of which is heightened with Kolink’s bold move to integrate a kind of infinity mirror effect into the case, can be controlled via a switch on the I/O panel. This also holds true for the rear-mounted 120mm fan that comes pre-installed. Alternatively, the strips and the fans can be hooked up and controlled using a compatible motherboard thanks to its use of a standard 3-pin (5VDG) connector. This then allows the RGB-LED button to be used as a reset button instead. The tempered glass side panel allows users to enjoy a panoramic view of the lighting used inside the Kolink Void.

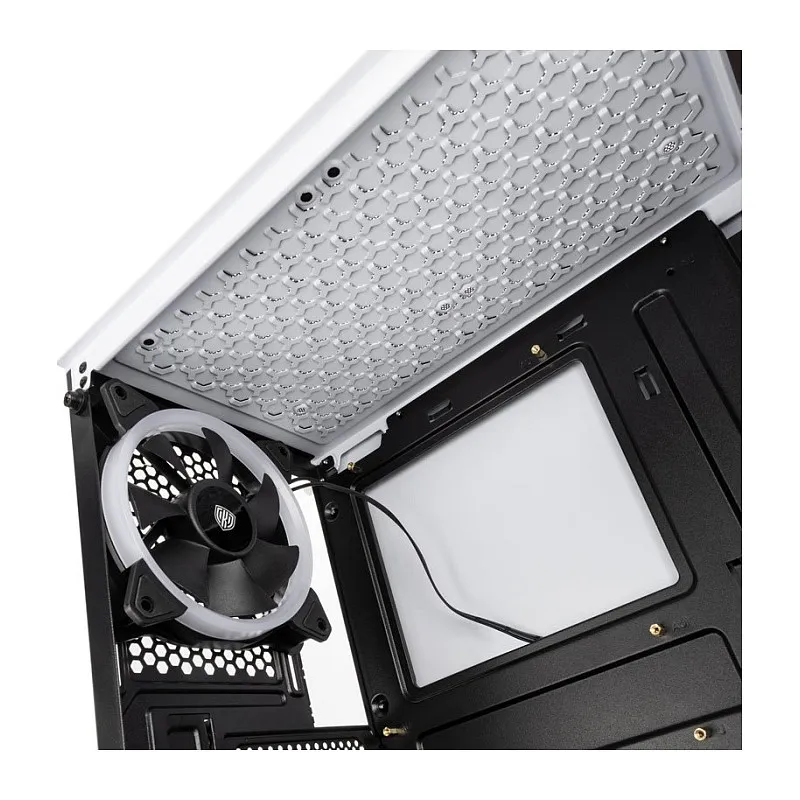

Aside from the pre-installed fans, users are also free to install five more 120mm fans, three of which can be installed in the front and two more in the roof. This is where a magnetic dust filter can be found installed on the honeycomb-style mesh. The side-facing air inlets on the front and in the PSU shroud also contribute to the excellent airflow of the case. As an alternative to fans, users are free to install a 240 mm radiator in the front.
THE KOLINK VOID: MORE THAN ENOUGH SPACE FOR HARDWARE

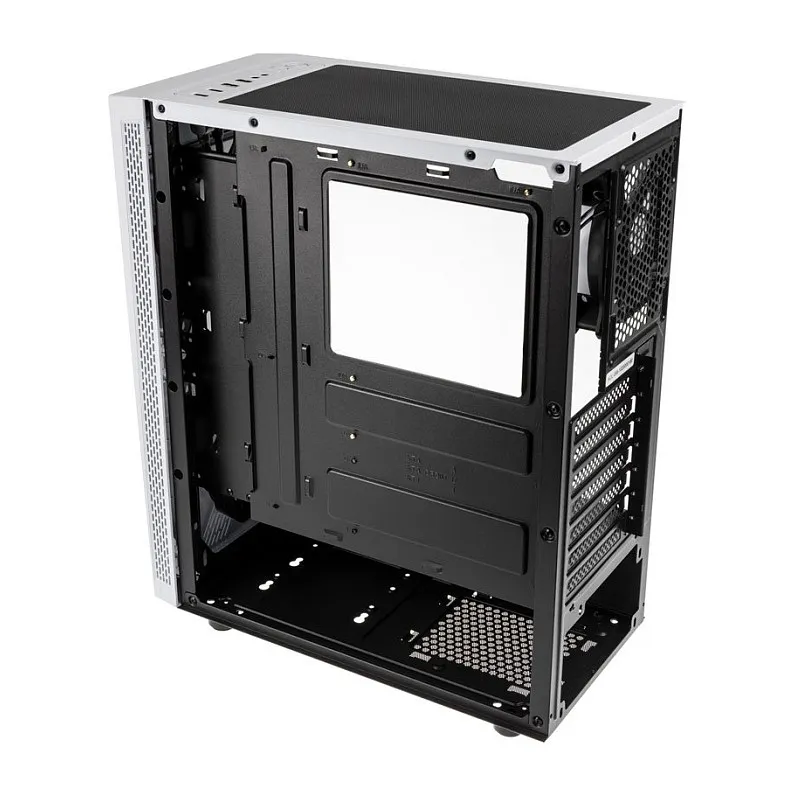

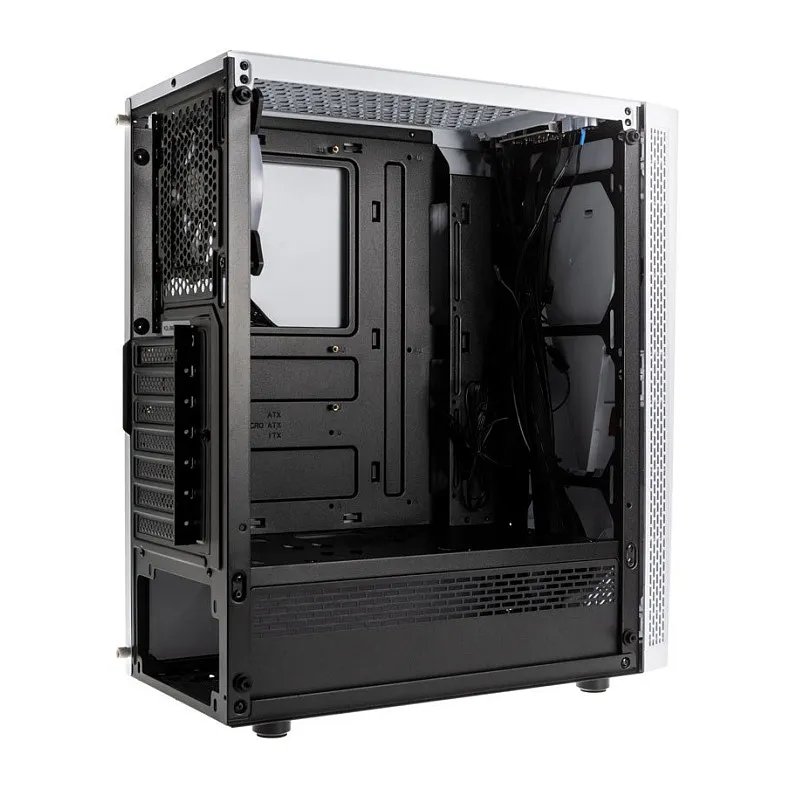

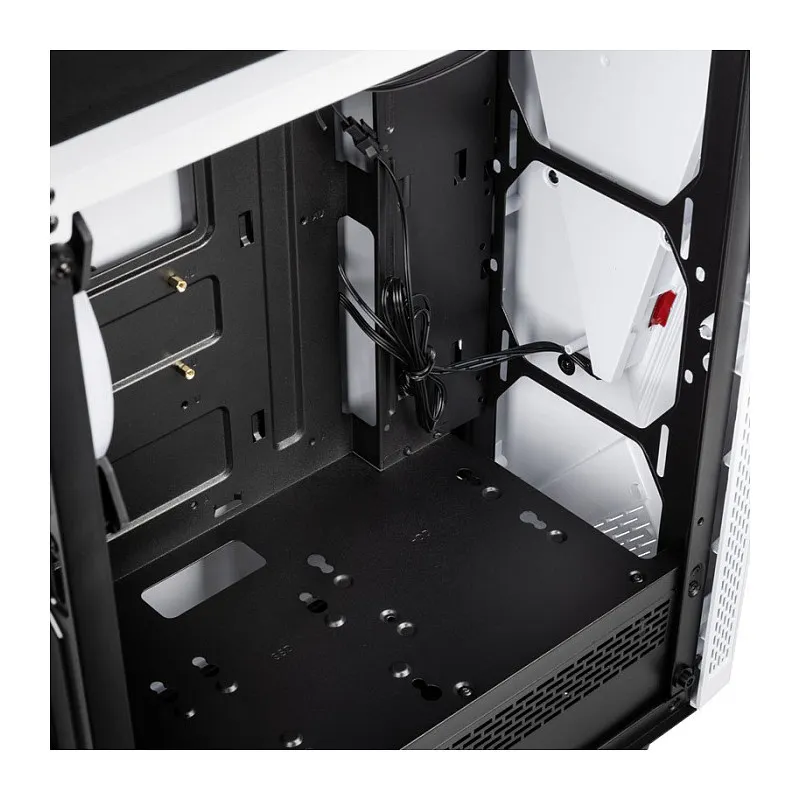

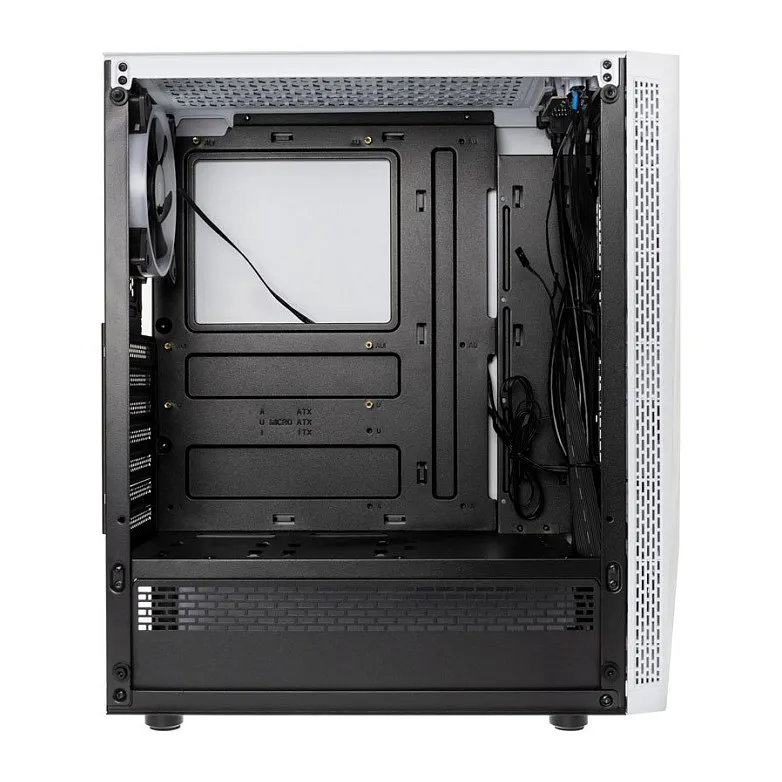

The interior comes entirely in black, with a PSU shroud that only adds to the sleek and unobtrusive look. Behind the shroud is where users will find space for a pair of 3.5″ HDD’s, using a ‘drop and lock’ system to secure. Alternatively, 2.5″ SSD’s can be installed here, or directly on top of the PSU shroud. The motherboard tray and PSU shroud both offer numerous openings for optimum cable management. Underneath the case is a removable dust filter appropriate to an ATX-form factor PSU, which can itself be up to 18 cm in length.

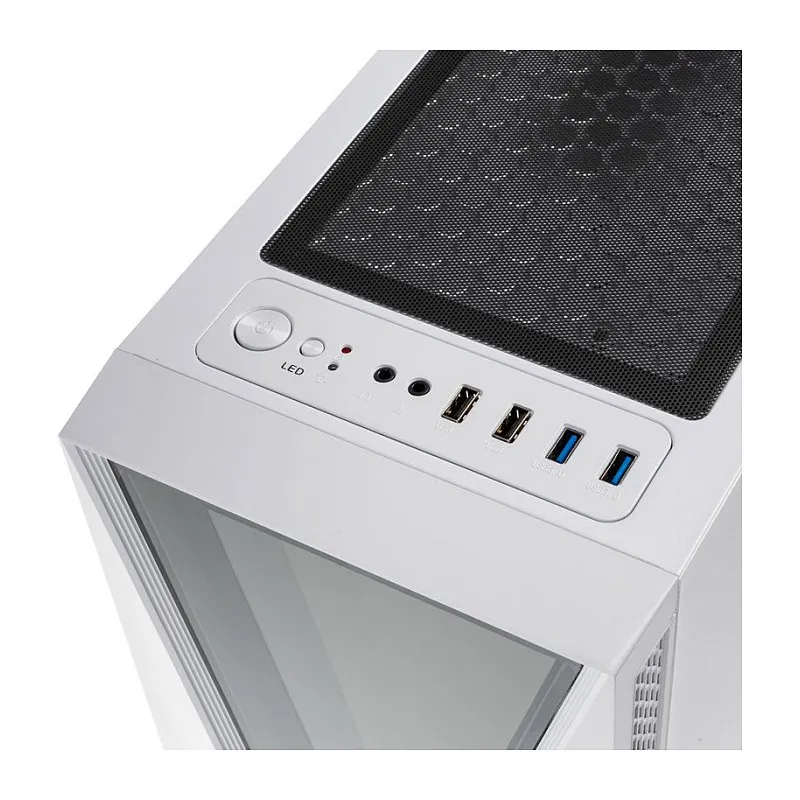

Graphics cards can be up to 31 cm long and CPU coolers up to 16 cm tall. Additionally, the I/O panel located at the front possesses two USB 2.0 ports as well as two USB 3.0 Type-A ports.
Material: Plastic, Steel, Tempered glass
Form factor: Midi Tower
Type: Server
Product colour: Black, White
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5″ bays: 2
Number of 2.5″ bays: 2
Number of internal 3.5″ bays: 2
Number of expansion slots: 7
Feature: Side window
Feature: Illumination
Illumination colour: Blue, Green, Red
Feature: Tempered glass panel(s)
Feature: Reset button
Feature: On/off button
Feature: RGB control button
LED indicators: Yes
Maximum CPU cooler height: 16 cm
Maximum graphics card length: 31 cm
Maximum PSU length: 18 cm
Power supply
Supported power supply form factors: ATX
Ports & interfaces
Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Front fans installed: 3x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Top fans installed: 2x 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120 mm
Front radiator sizes supported: 240 mm
Storage
Supported HDD sizes: 2.5,3.5″
Number of HDDs supported: 2
Weight & dimensions
Width: 190 mm
Depth: 400 mm
Height: 430 mm
Weight: 5.9 kg
Packaging data
Package width: 273 mm
Package depth: 481 mm
Package height: 492 mm
