Kingston Technology KSM64R52BD4-96MC. Component for: Server, Internal memory: 96 GB, Memory layout (modules x size): 1 x 96 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 52, ECC

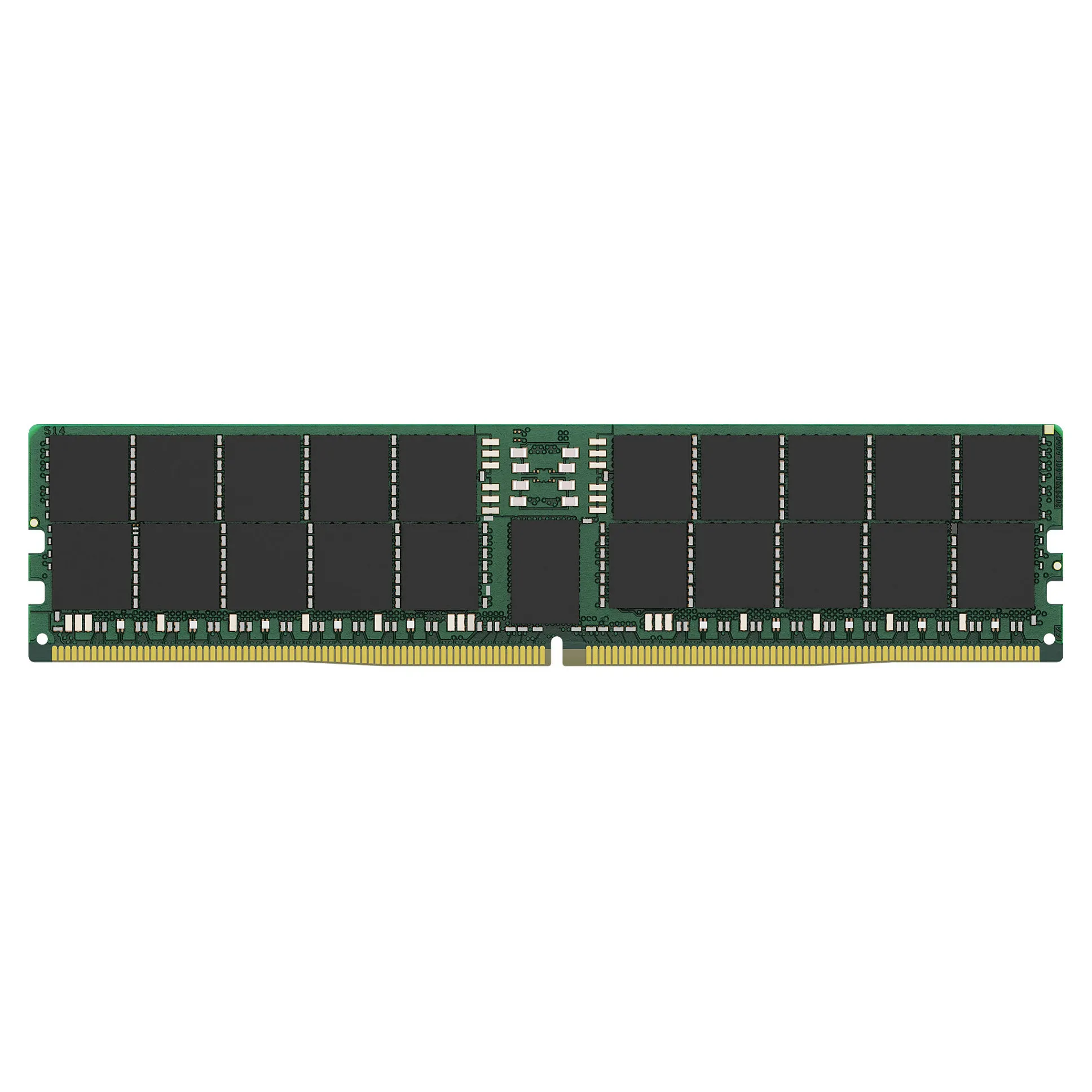

Kingston’s KSM64R52BD4-96MC is a 12G x 80-bit (96GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Features
Feature: On-Die ECC
CAS latency: 52
Internal memory: 96 GB
Memory layout (modules x size): 1 x 96 GB
Internal memory type: DDR5
Memory data transfer rate: 6400 MT/s
Component for: Server
Memory form factor: 288-pin DIMM
Feature: ECC
Buffered memory type: Registered (buffered)
Memory ranking: 2
Memory voltage: 1.1 V
Row cycle time: 48 ns
Refresh row cycle time: 410 ns
Row active time: 32 ns
Row Precharge Time (TRP): 16
Feature: JEDEC standard
Operational conditions
Operating temperature (T-T): 0 – 95 °C
Operating relative humidity (H-H): -55 – 100%
Sustainability
Compliance certificates: RoHS
Weight & dimensions
Height: 31.2 mm
Other features
Doesn’t contain: Halogen
Feature: On-Die ECC
CAS latency: 52
Internal memory: 96 GB
Memory layout (modules x size): 1 x 96 GB
Internal memory type: DDR5
Memory data transfer rate: 6400 MT/s
Component for: Server
Memory form factor: 288-pin DIMM
Feature: ECC
Buffered memory type: Registered (buffered)
Memory ranking: 2
Memory voltage: 1.1 V
Row cycle time: 48 ns
Refresh row cycle time: 410 ns
Row active time: 32 ns
Row Precharge Time (TRP): 16
Feature: JEDEC standard
Operational conditions
Operating temperature (T-T): 0 – 95 °C
Operating relative humidity (H-H): -55 – 100%
Sustainability
Compliance certificates: RoHS
Weight & dimensions
Height: 31.2 mm
Other features
Doesn’t contain: Halogen
