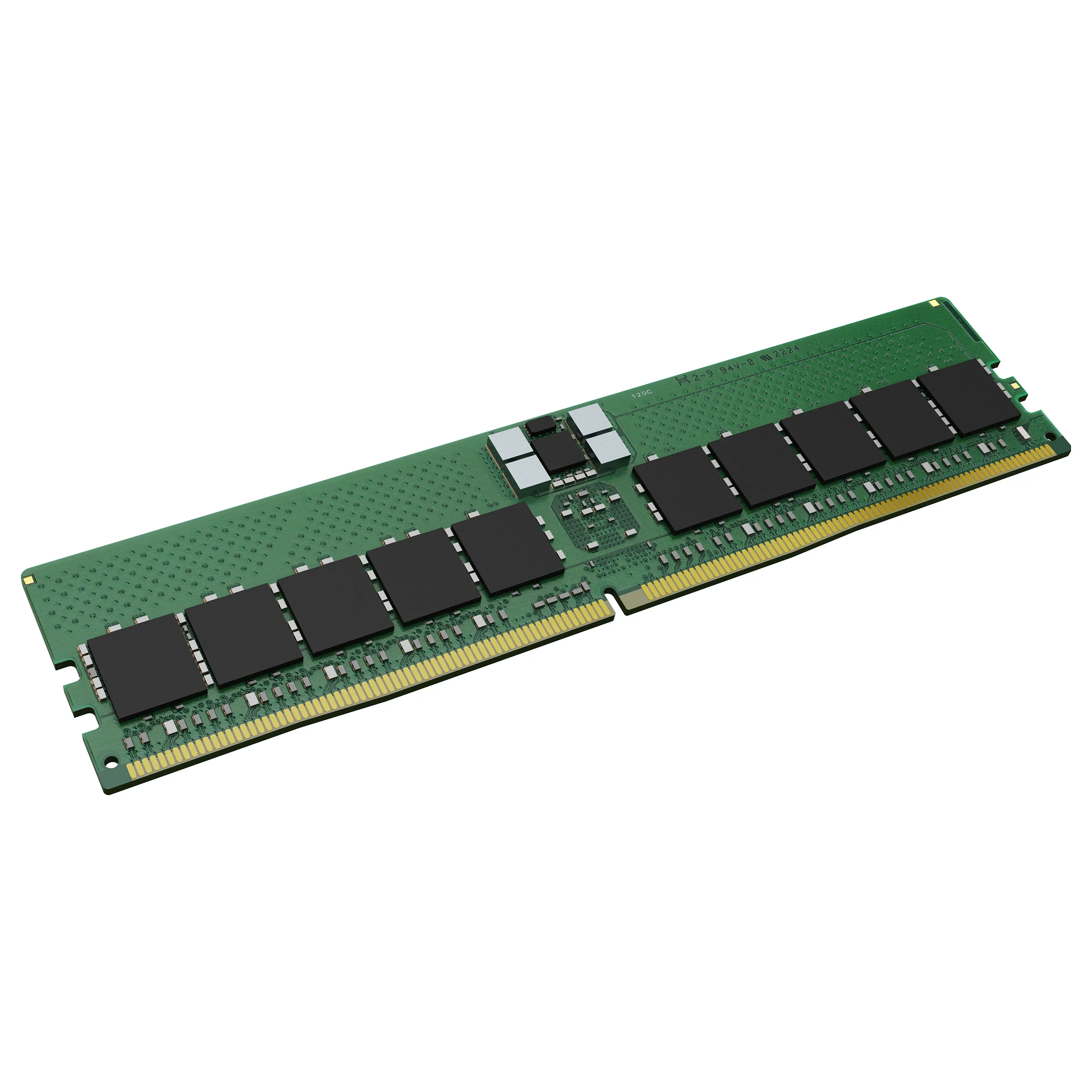

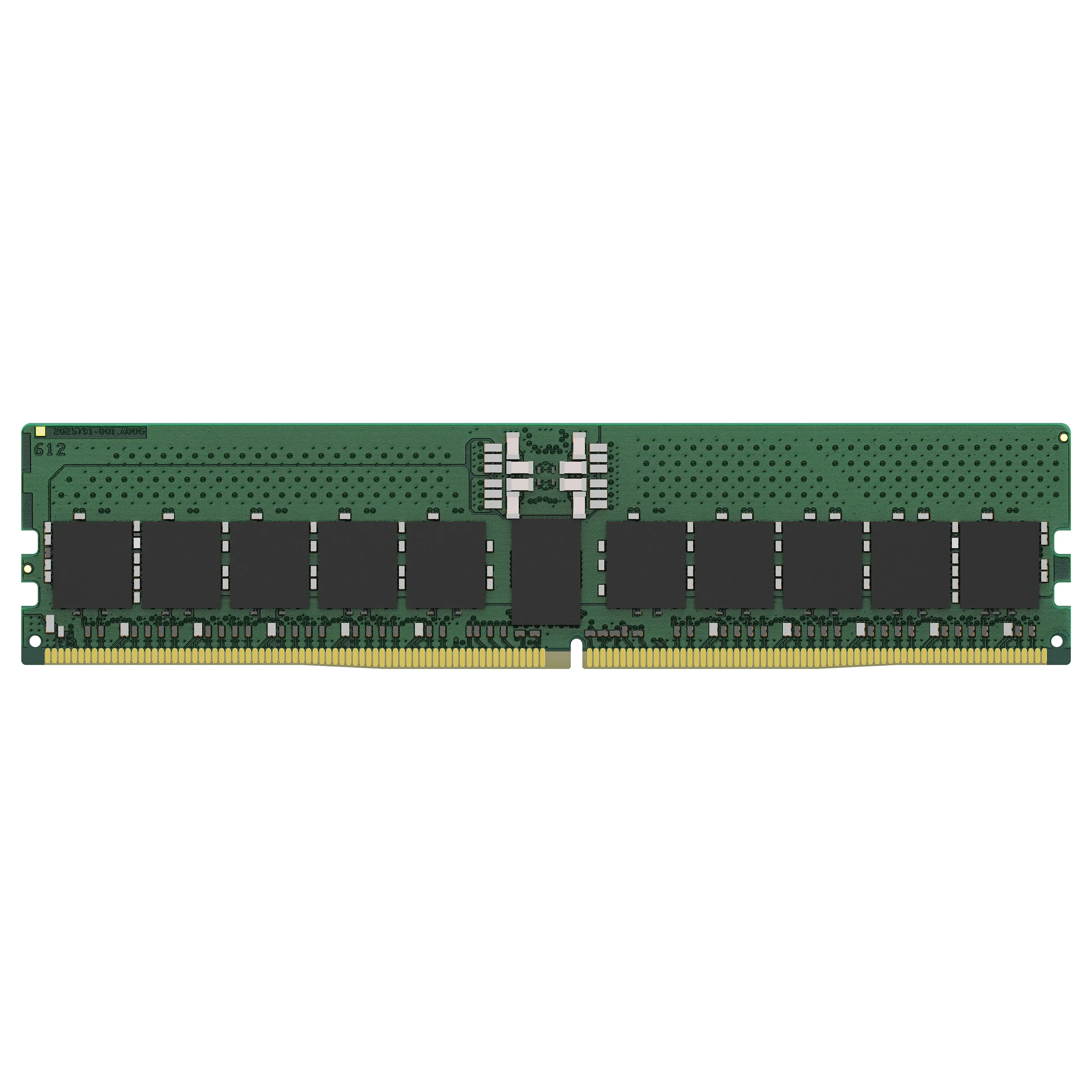

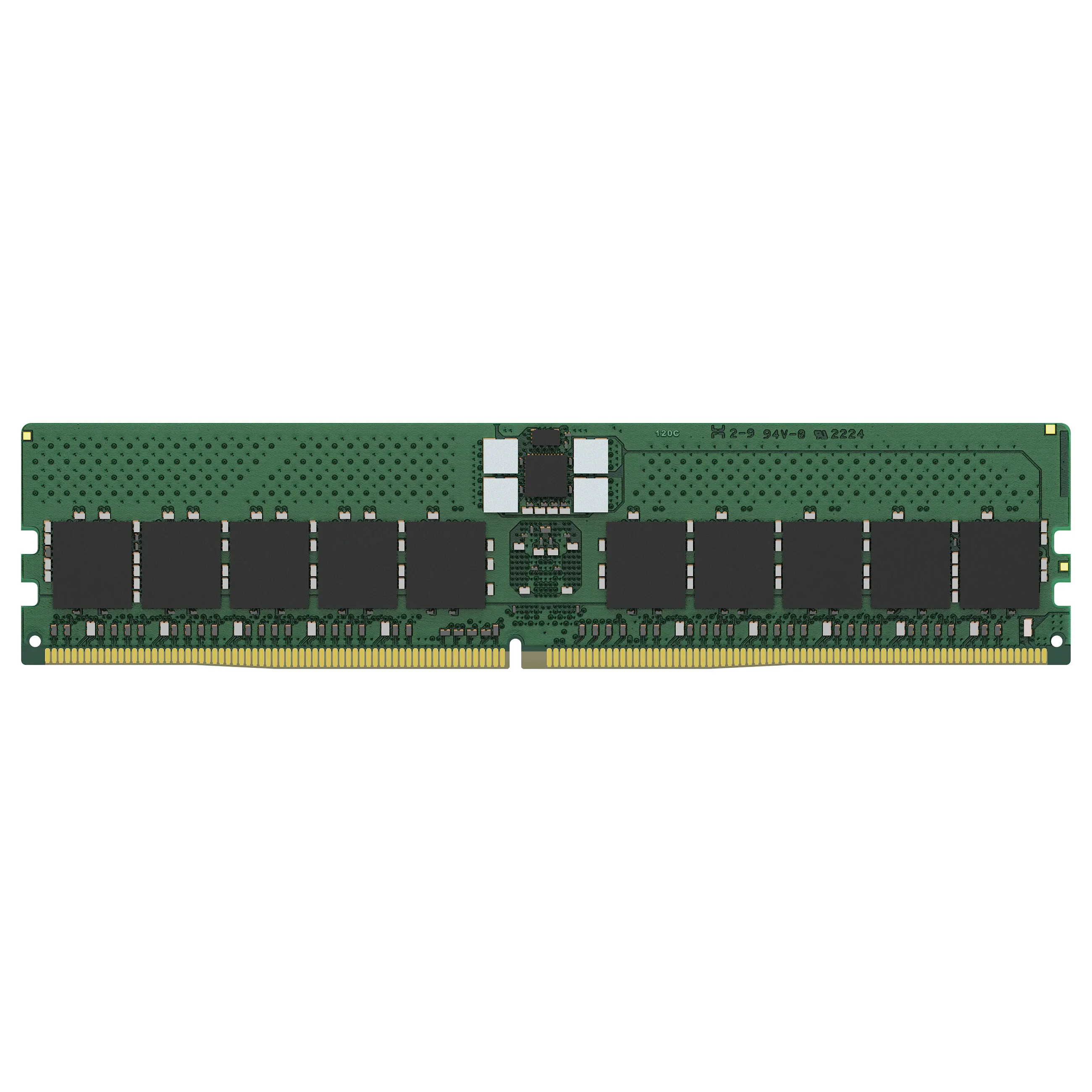

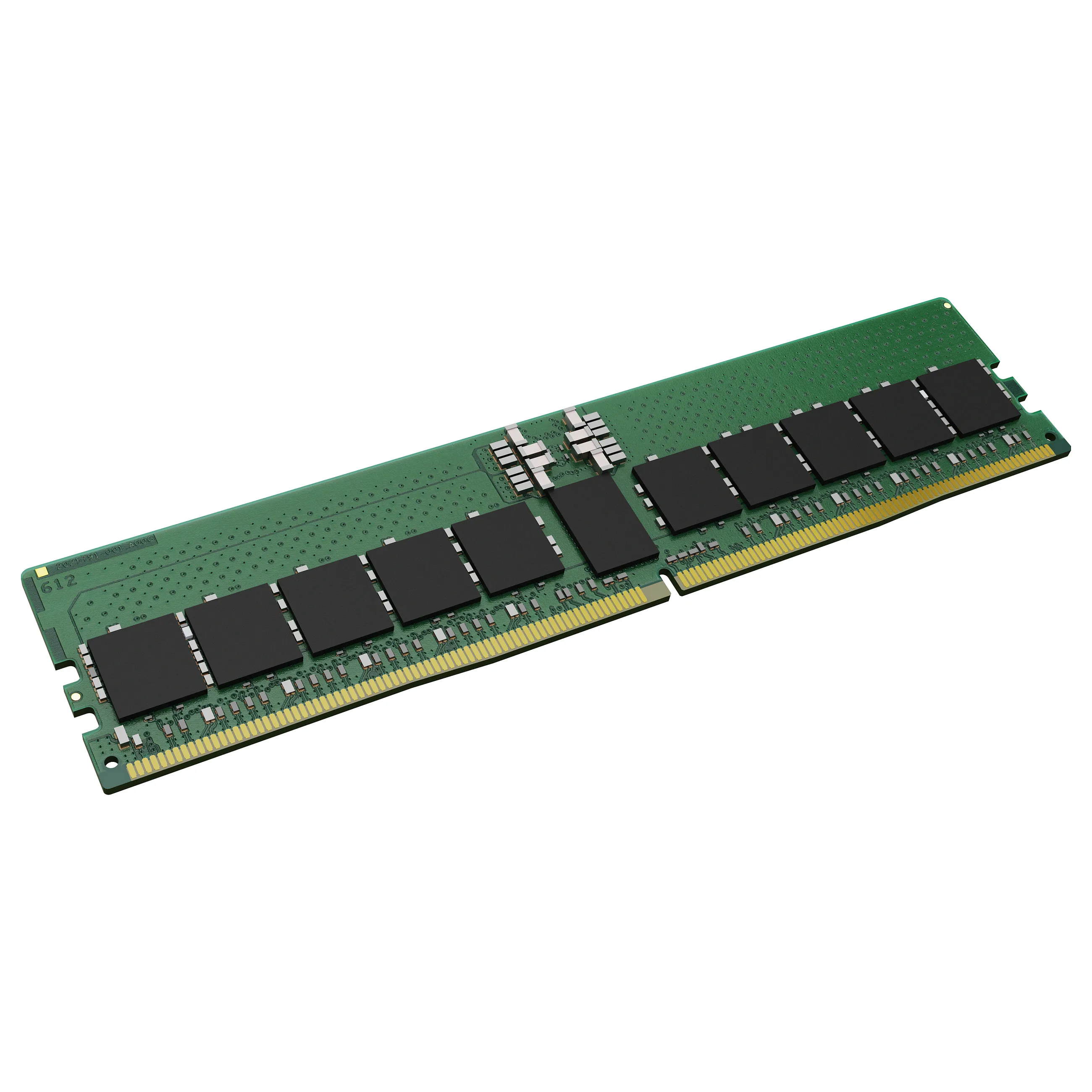

Kingston Technology KSM56R46BD8-32HA. Component for: PC/Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46
Kingston memory is designed, manufactured and rigorously tested to meet the exact specifications of each brand name system.
Features
Buffered memory type: Registered (buffered)
Feature: On-Die ECC
CAS latency: 46
Internal memory: 32 GB
Memory layout (modules x size): 1 x 32 GB
Internal memory type: DDR5
Memory data transfer rate: 5600 MT/s
Component for: PC/Server
Memory form factor: 288-pin DIMM
Memory ranking: 2
Memory voltage: 1.1 V
Module configuration: 4096M x 80
Row cycle time: 48 ns
Refresh row cycle time: 295 ns
Row active time: 32 ns
Row Precharge Time (TRP): 16
Feature: SPD profile
Lead plating: Gold
Feature: JEDEC standard
Operational conditions
Operating temperature (T-T): 0 – 95 °C
Storage temperature (T-T): -55 – 100 °C
Technical details
Compliance certificates: RoHS
Sustainability
Doesn’t contain: Halogen
Weight & dimensions
Width: 133.3 mm
Height: 31.2 mm
Buffered memory type: Registered (buffered)
Feature: On-Die ECC
CAS latency: 46
Internal memory: 32 GB
Memory layout (modules x size): 1 x 32 GB
Internal memory type: DDR5
Memory data transfer rate: 5600 MT/s
Component for: PC/Server
Memory form factor: 288-pin DIMM
Memory ranking: 2
Memory voltage: 1.1 V
Module configuration: 4096M x 80
Row cycle time: 48 ns
Refresh row cycle time: 295 ns
Row active time: 32 ns
Row Precharge Time (TRP): 16
Feature: SPD profile
Lead plating: Gold
Feature: JEDEC standard
Operational conditions
Operating temperature (T-T): 0 – 95 °C
Storage temperature (T-T): -55 – 100 °C
Technical details
Compliance certificates: RoHS
Sustainability
Doesn’t contain: Halogen
Weight & dimensions
Width: 133.3 mm
Height: 31.2 mm
