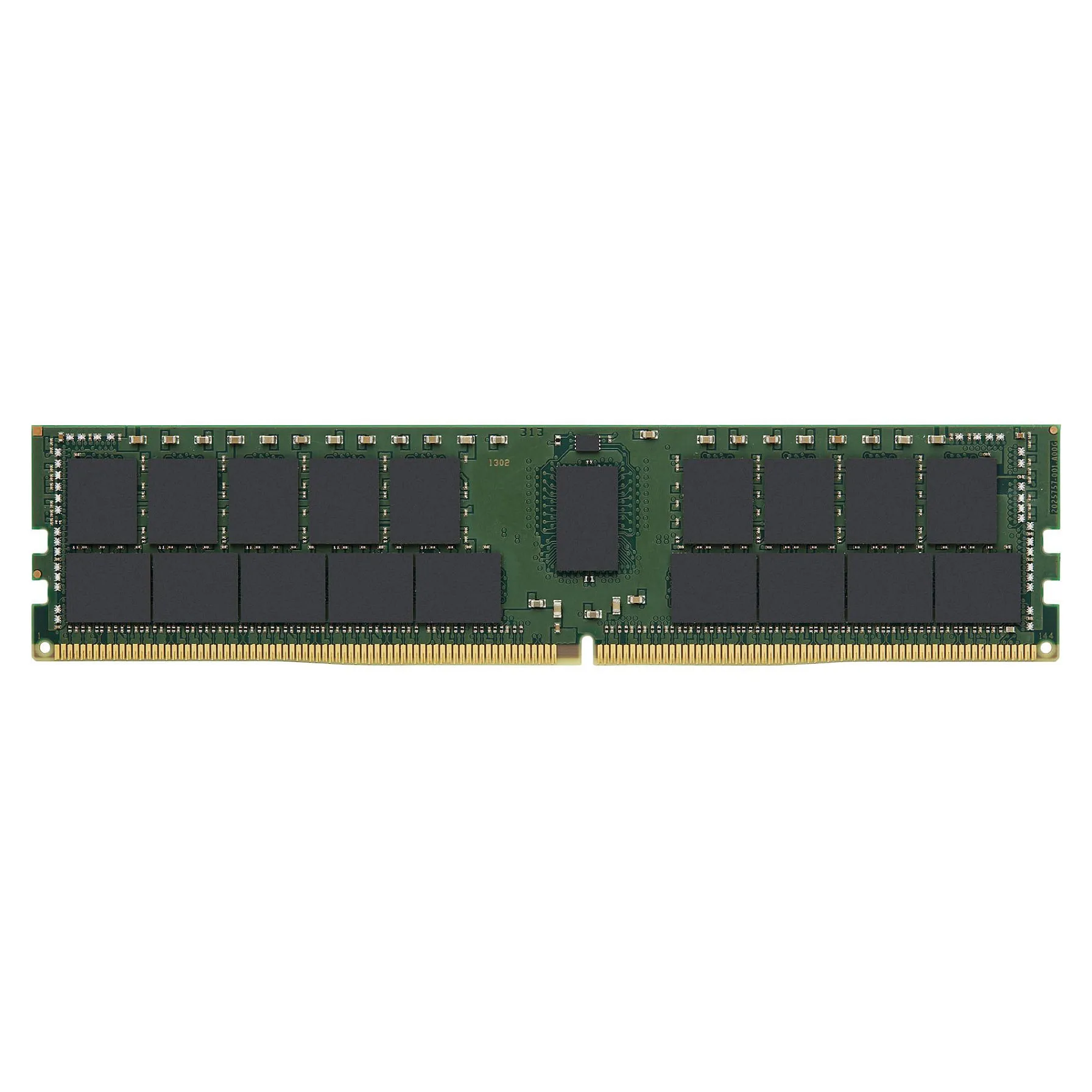

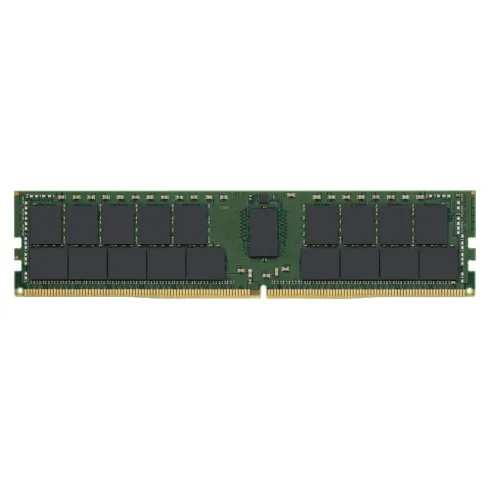

Kingston Technology KSM32RD4/64HD. Component for: Server, Internal memory: 64 GB, Memory layout (modules x size): 1 x 64 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22, ECC
Kingston’s KSM32RD4/64HD is a 8G x 72-bit (64GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx4, ECC, memory module, based on thirty-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
parity, 2Rx4, ECC, memory module, based on thirty-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Features
CAS latency: 22
Internal memory: 64 GB
Memory layout (modules x size): 1 x 64 GB
Internal memory type: DDR4
Memory data transfer rate: 3200 MT/s
Component for: Server
Memory form factor: 288-pin DIMM
Feature: ECC
Buffered memory type: Registered (buffered)
Memory ranking: 2
Memory voltage: 1.2 V
Module configuration: 8192M x 72
Row cycle time: 45.75 ns
Row active time: 32 ns
Feature: SPD profile
Programming power voltage (VPP): 2.5 V
Feature: JEDEC standard
Operational conditions
Operating temperature (T-T): 0 – 85 °C
Storage temperature (T-T): -55 – 100 °C
Sustainability
Compliance certificates: RoHS
Weight & dimensions
Width: 133.3 mm
Height: 31.2 mm
CAS latency: 22
Internal memory: 64 GB
Memory layout (modules x size): 1 x 64 GB
Internal memory type: DDR4
Memory data transfer rate: 3200 MT/s
Component for: Server
Memory form factor: 288-pin DIMM
Feature: ECC
Buffered memory type: Registered (buffered)
Memory ranking: 2
Memory voltage: 1.2 V
Module configuration: 8192M x 72
Row cycle time: 45.75 ns
Row active time: 32 ns
Feature: SPD profile
Programming power voltage (VPP): 2.5 V
Feature: JEDEC standard
Operational conditions
Operating temperature (T-T): 0 – 85 °C
Storage temperature (T-T): -55 – 100 °C
Sustainability
Compliance certificates: RoHS
Weight & dimensions
Width: 133.3 mm
Height: 31.2 mm
