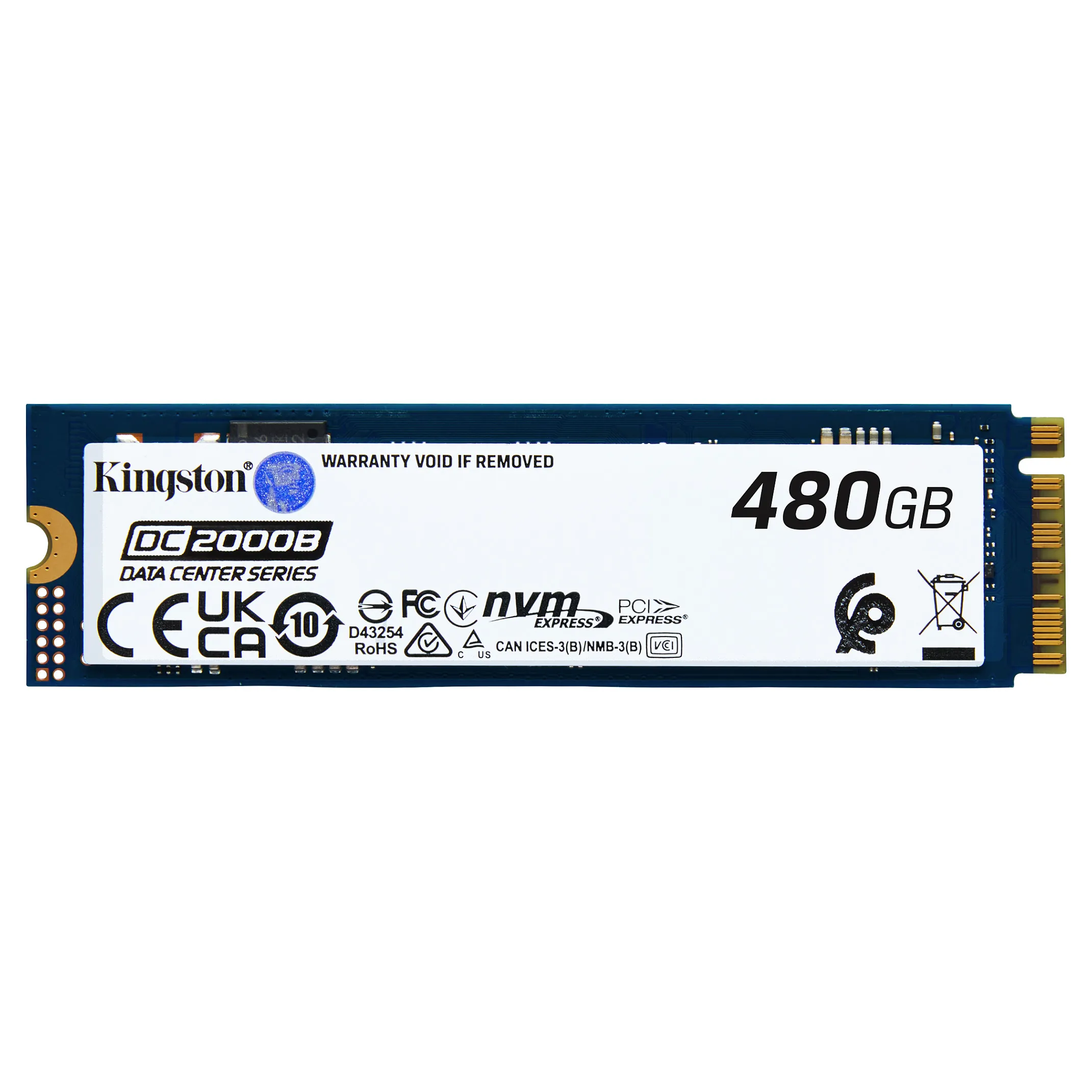

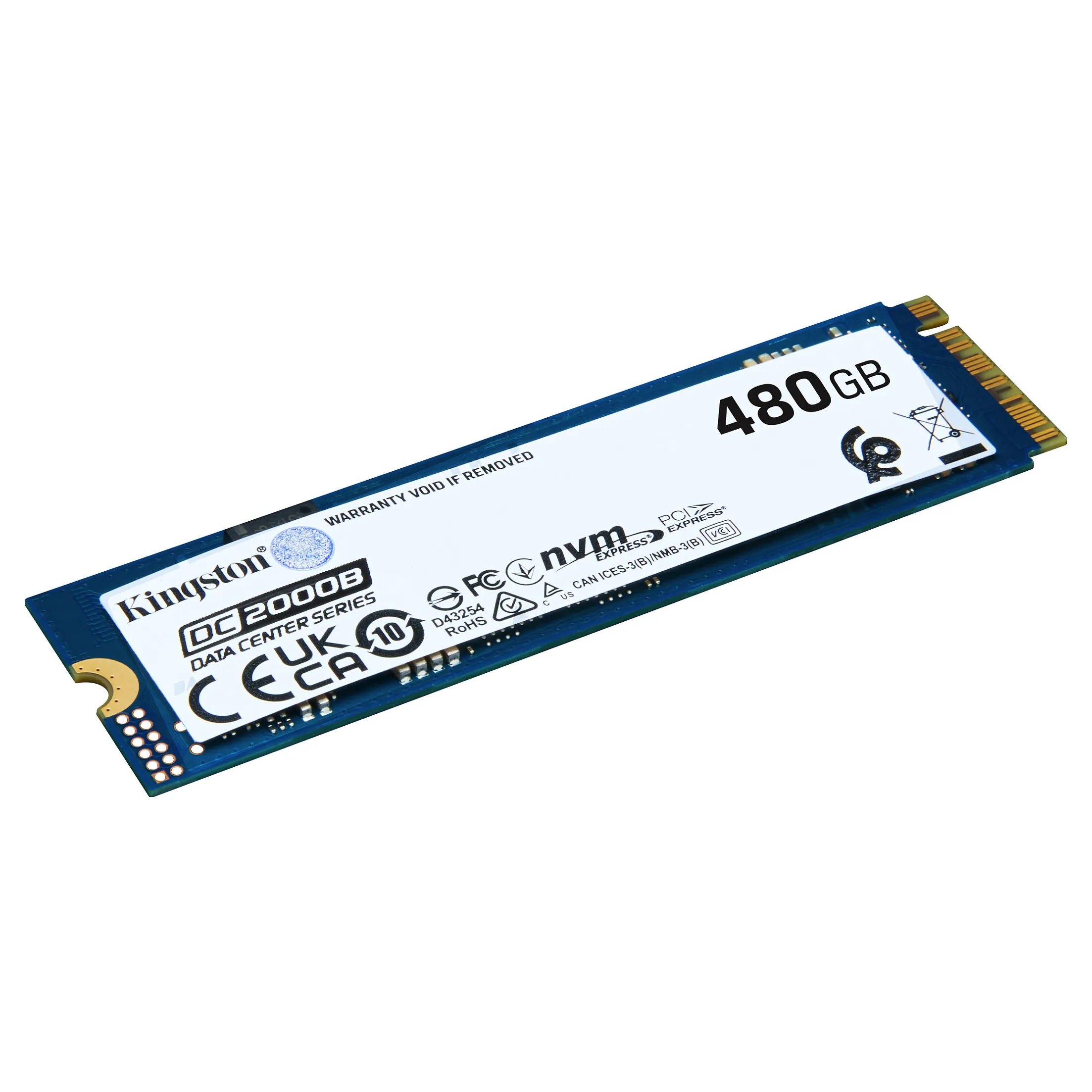

Kingston Technology 480G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD. SSD capacity: 480 GB, SSD form factor: M.2, Read speed: 7000 MB/s, Write speed: 800 MB/s, Component for: Server
Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4×4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it’s ideal for enterprise server boot and caching applications.

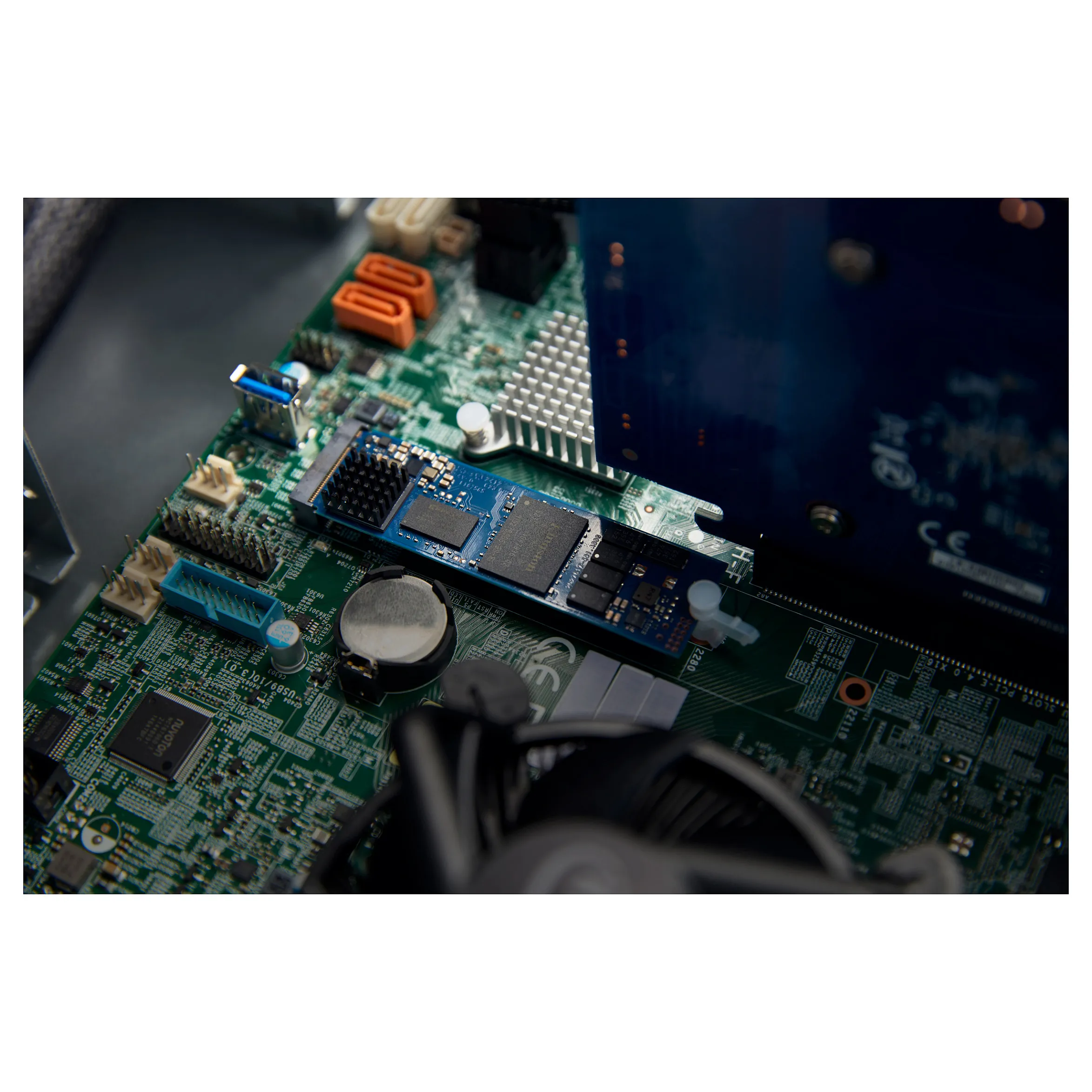

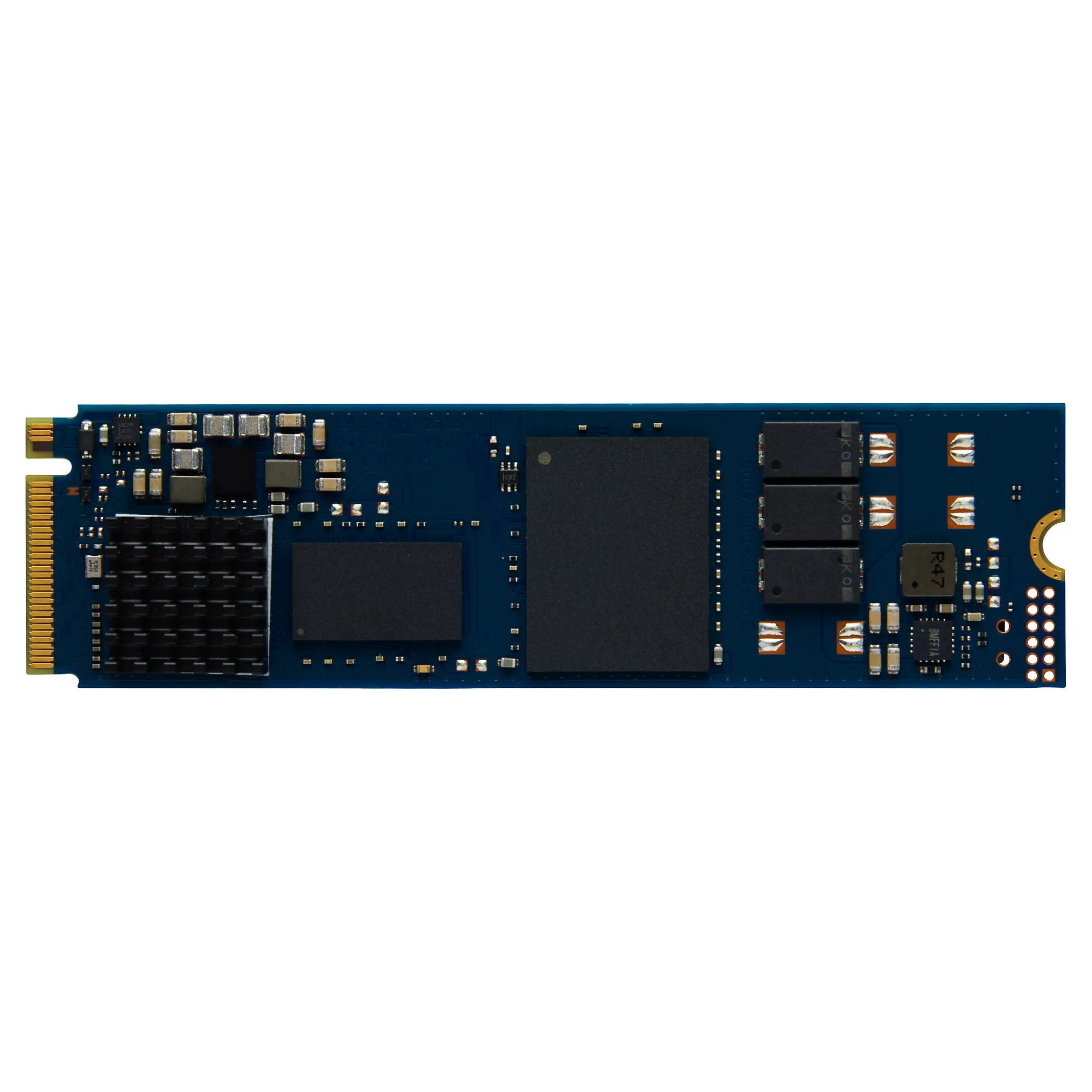

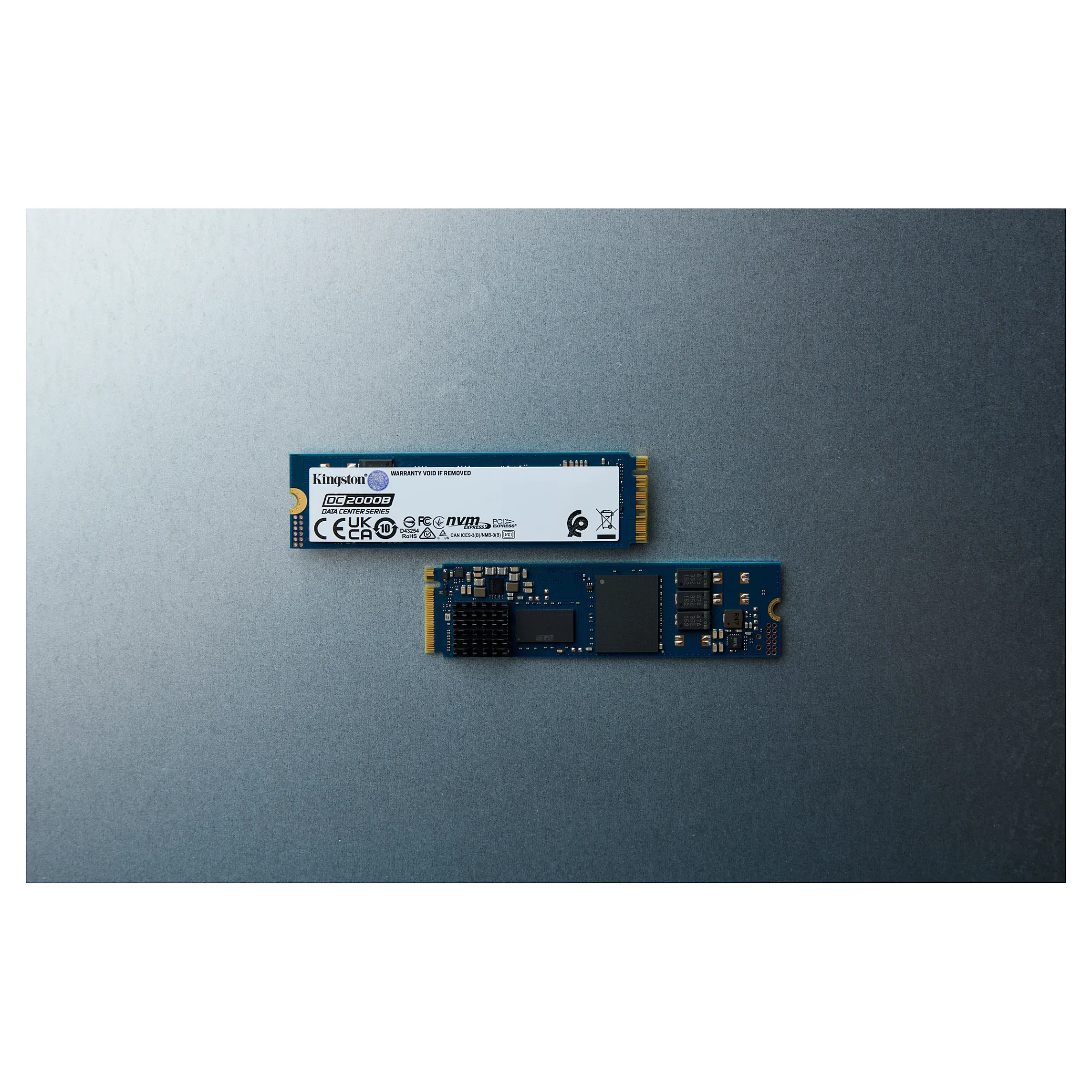

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4×4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty.”
PCIe 4.0 NVMe performance
Utilises PCIe Gen 4×4 lanes for high-performance speeds.
On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.
Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.
Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.
SSD capacity: 480 GB
SSD form factor: M.2
Interface: PCI Express 4.0
Feature: NVMe
Memory type: 3D TLC
Component for: Server
M.2 SSD size: 2280 (22 x 80 mm)
Read speed: 7000 MB/s
Write speed: 800 MB/s
Random read (4KB): 530000 IOPS
Random write (4KB): 32000 IOPS
Read latency: 70 µs
Write latency: 29 µs
PCI Express interface data lanes: x4
Feature: S.M.A.R.T. support
Feature: H/W PLP function
Mean time between failures (MTBF): 2000000 h
Drive writes per day (DWPD): 0.4
TBW rating: 350
Use conditions: Server/Enterprise
Power
Power consumption (read): 3.29 W
Power consumption (write): 5.77 W
Average power consumption (read): 3.22 W
Average power consumption (write): 5.6 W
Weight & dimensions
Width: 22 mm
Depth: 80 mm
Height: 8.9 mm
Weight: 10 g
Packaging data
Package width: 129.5 mm
Package depth: 14.2 mm
Package height: 184.2 mm
Package weight: 33.77 g
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 85 °C
Non-operating vibration: 20 G
Other features
Cooling type: Heatsink
Logistics data
Country of origin: China, Taiwan
Master (outer) case width: 135.9 mm
Master (outer) case length: 203.2 mm
Master (outer) case height: 69.8 mm
Master (outer) case gross weight: 280.62 g
Products per master (outer) case: 6 pc(s)
