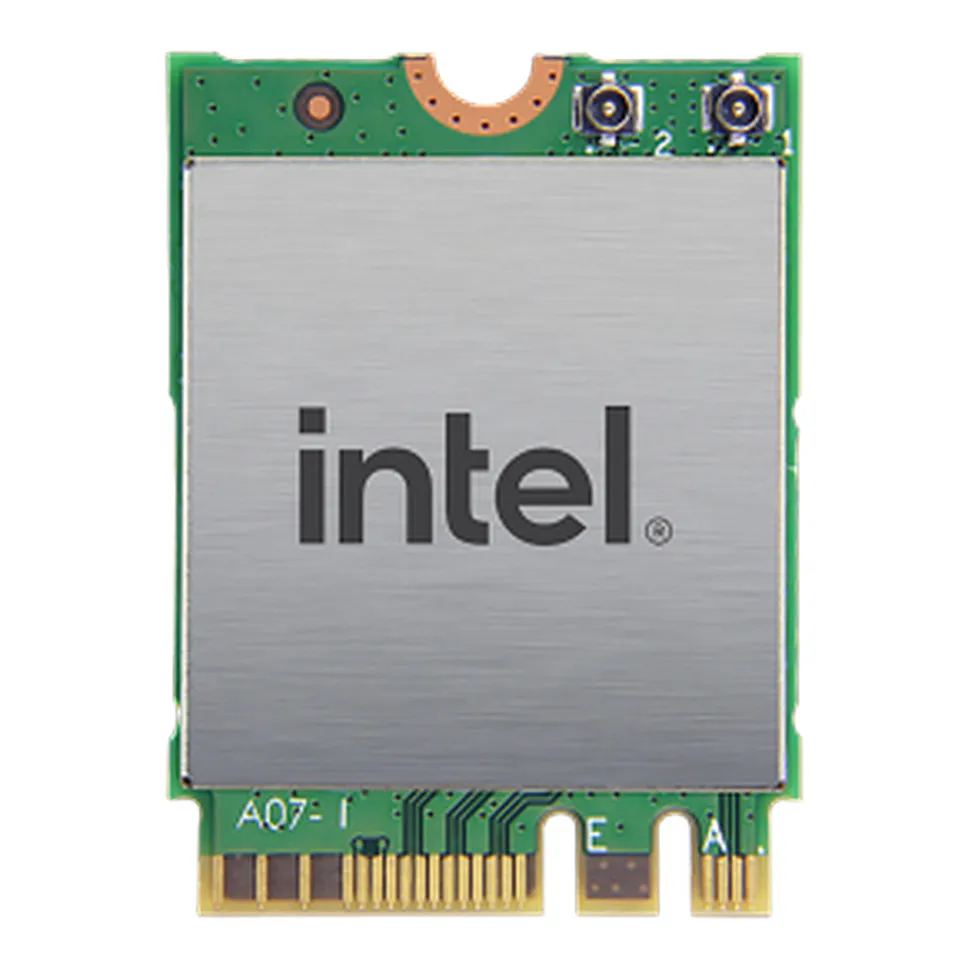

Intel Wi-Fi 6 AX200 (Gig+). Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN. Maximum data transfer rate: 2400 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Antenna type: 2×2
Orthogonal Frequency-Division Multiple Access (OFDMA)
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low-data-rate transmission from several users.
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low-data-rate transmission from several users.
Ports & interfaces
Connectivity technology: Wireless
Host interface: PCI Express
Interface: WLAN
Network
Maximum data transfer rate: 2400 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w
Wi-Fi: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Security algorithms: 64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
MU-MIMO: Yes
Bluetooth: Yes
Bluetooth version: 5
Design
Component for: PC/Laptop
Internal: Yes
Antenna type: 2×2
Package size: 22 x 30 x 2.4 mm
System requirements
Compatible operating systems: Windows 10, 64-bit*|Linux*
Windows operating systems supported: Windows 10 x64
Linux operating systems supported: Yes
Other operating systems supported: ChromeOS
Operational conditions
Operating temperature (T-T): 0 – 80 °C
Weight & dimensions
Width: 22 mm
Depth: 30 mm
Height: 2.4 mm
Weight: 2.83 g
Logistics data
Harmonized System (HS) code: 85176990
Other features
Minimum operating temperature: 0 °C
Maximum operating temperature: 80 °C
Supported Under vPro: Yes
Interface type: Wi-Fi(PCIe), BT(USB)
Launch date: Q2’19
Product brief URL: https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf
Product type: Wireless
Status: Launched
Processor family: Intel Wi-Fi 6 Products
Export Control Classification Number (ECCN): 5A992CN3
Commodity Classification Automated Tracking System (CCATS): G165483
Compliance: FIPS, FISMA
Product series: Intel® Wireless Products
Product codename: Cyclone Peak
Connectivity technology: Wireless
Host interface: PCI Express
Interface: WLAN
Network
Maximum data transfer rate: 2400 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w
Wi-Fi: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Security algorithms: 64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
MU-MIMO: Yes
Bluetooth: Yes
Bluetooth version: 5
Design
Component for: PC/Laptop
Internal: Yes
Antenna type: 2×2
Package size: 22 x 30 x 2.4 mm
System requirements
Compatible operating systems: Windows 10, 64-bit*|Linux*
Windows operating systems supported: Windows 10 x64
Linux operating systems supported: Yes
Other operating systems supported: ChromeOS
Operational conditions
Operating temperature (T-T): 0 – 80 °C
Weight & dimensions
Width: 22 mm
Depth: 30 mm
Height: 2.4 mm
Weight: 2.83 g
Logistics data
Harmonized System (HS) code: 85176990
Other features
Minimum operating temperature: 0 °C
Maximum operating temperature: 80 °C
Supported Under vPro: Yes
Interface type: Wi-Fi(PCIe), BT(USB)
Launch date: Q2’19
Product brief URL: https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf
Product type: Wireless
Status: Launched
Processor family: Intel Wi-Fi 6 Products
Export Control Classification Number (ECCN): 5A992CN3
Commodity Classification Automated Tracking System (CCATS): G165483
Compliance: FIPS, FISMA
Product series: Intel® Wireless Products
Product codename: Cyclone Peak
