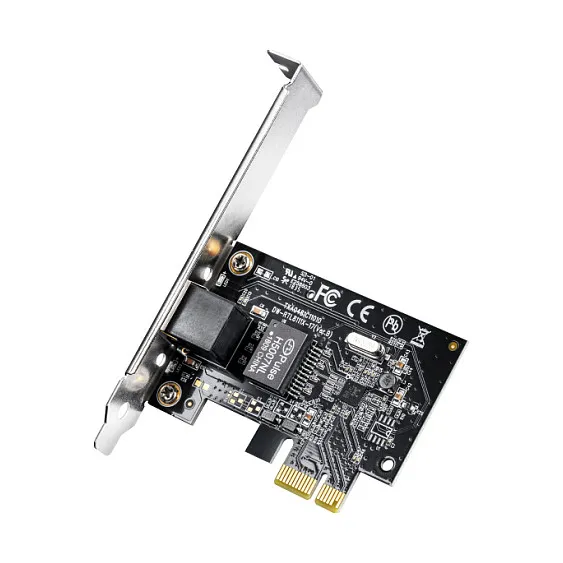

Cudy PE10. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s
Experience ultra-fast gigabit speeds for seamless downloads, server hosting, and smooth media editing on NAS. PE10 ensures reliable, high-performance connectivity with auto-negotiation across 10/100/1000 Mbps for demanding tasks.
Standard/Low-Profile Bracket for different chassis
Compatible with different PCI-E slots
Saves Power Automatically
EEE (Energy-Efficient Energy) feature automatically set adapter into a low-power idle state when there is little or no data traffic.
Flow Control
Prevents packet loss and data drops when transmission rates reach 2.5 Gbps, crucial for maintaining reliability in server operations and surveillance systems.
Wake on LAN
Allows user to wake up their PC or server remotely via network with Wake on LAN.
Standard/Low-Profile Bracket
Suitable for standard towered PC, low-profile server, and rack-mounted server installation.
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
Network
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Mobile network generation: Not supported
Design
Component for: PC
Feature: Internal
Compatible products: PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X
System requirements
Windows operating systems supported: Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11 Home
Mac operating systems supported: No
Other operating systems supported: Linux
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 64 mm
Depth: 56 mm
Height: 15 mm
Weight: 33.8 g
Packaging data
Package width: 140 mm
Package depth: 123 mm
Package height: 29 mm
Package weight: 111.9 g

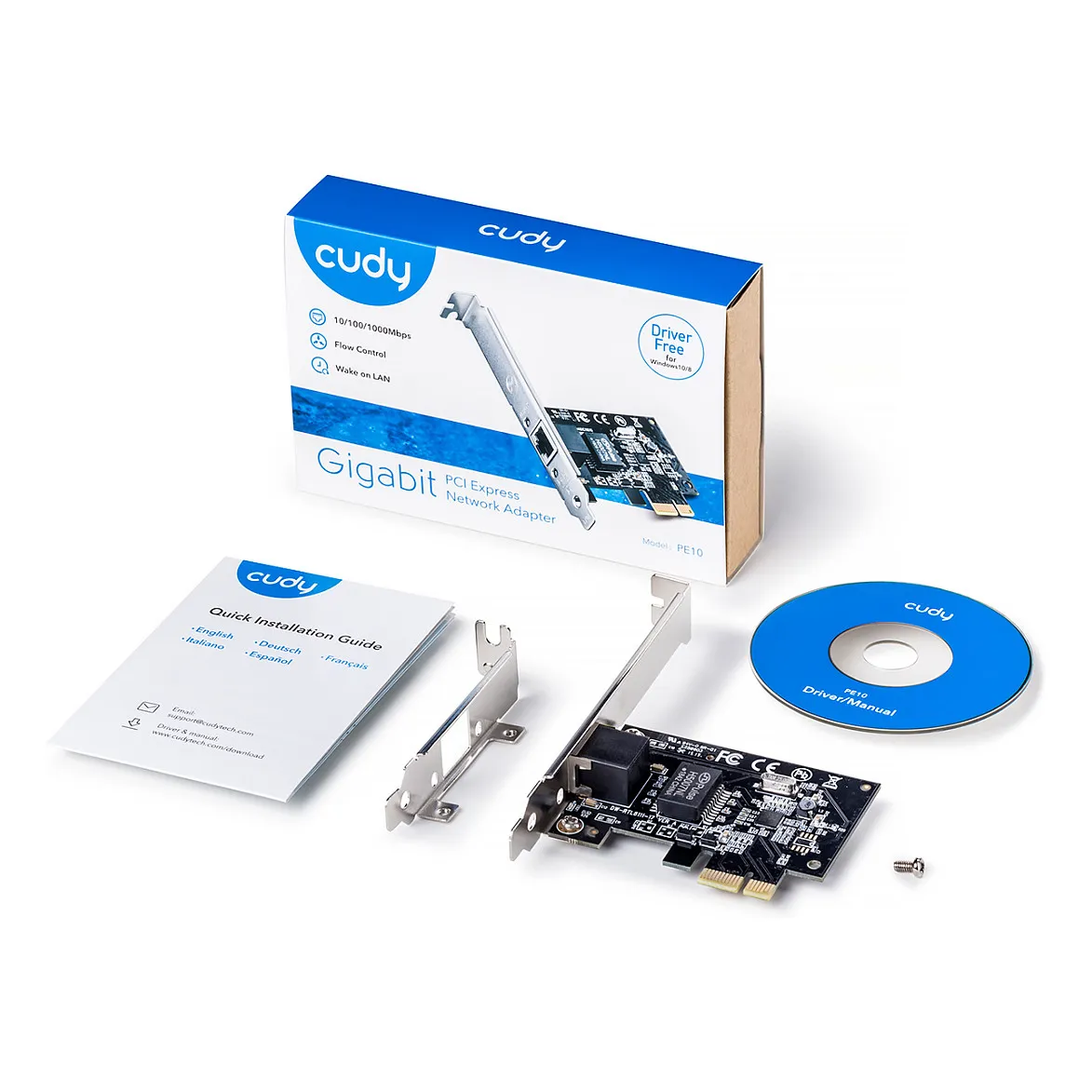

Packaging content
Feature: Mounting brackets included
Feature: Manual
Packaging content: PE10Low-Profile BracketInstallation Guide
Technical details
Warranty period: 1 year(s)
Logistics data
Products per shipping (inner) case: 80 pc(s)
Other features
Feature: Quick start guide
