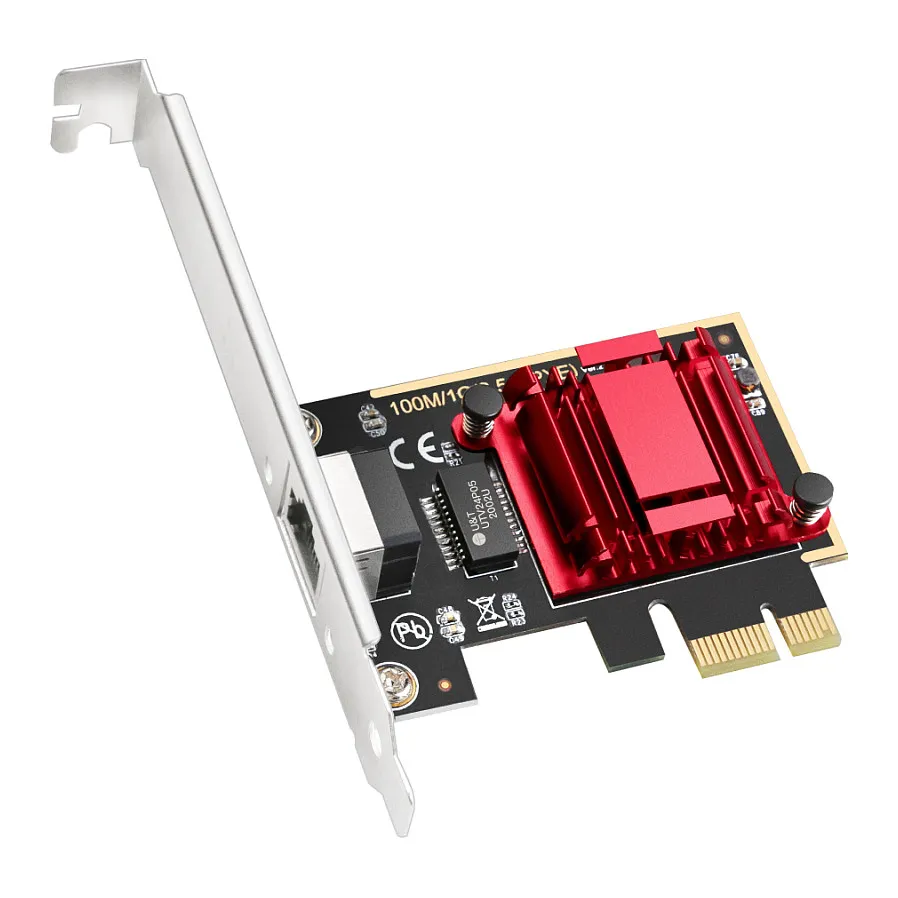

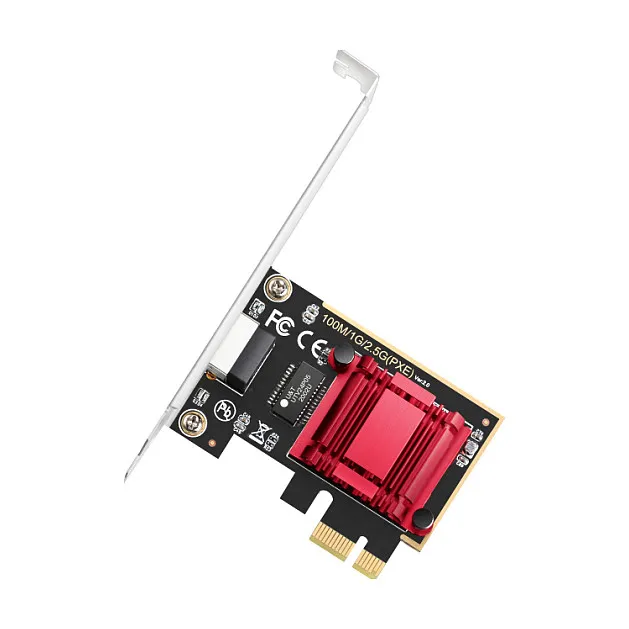

Cudy PE25. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s
Experience ultra-fast 2.5G speeds for seamless downloads, server hosting, and smooth media editing on NAS. PE25 supports auto-negotiation across 10/100/1000/2.5G, delivering reliable, high-performance connectivity for demanding tasks.
Upgrade in One Step to 2.5G Lightning-Fast Network
Requires a PCI-E x4/x8/x16 Slot
Saves Power Automatically
EEE (Energy-Efficient Energy) feature automatically set adapter into a low-power idle state when there is little or no data traffic.
Flow Control
Prevents packet loss and data drops when transmission rates reach 2.5 Gbps, crucial for maintaining reliability in server operations and surveillance systems.
Wake on LAN
Allows user to wake up their PC or server remotely via network with Wake on LAN.
Standard/Low-Profile Bracket
Suitable for standard towered PC, low-profile server, and rack-mounted server installation.
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI Card form factor: Full-height (low-profile)
Network
Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Cabling technology: 2.5GBase-T
Copper ethernet cabling technology: 10BASE-T, 1000BASE-TX
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
LAN controller: Realtek RTL8125-BG
Design
Component for: PC/Server
Feature: Internal
LED indicators: Activity, Link, Speed
Mean time between failures (MTBF): 376212 h
System requirements
Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 11
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2012, Windows Server 2022
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 64 mm
Depth: 56 mm
Height: 15 mm
Weight: 37.2 g
Packaging data
Feature: Low-profile bracket
Package type: Box

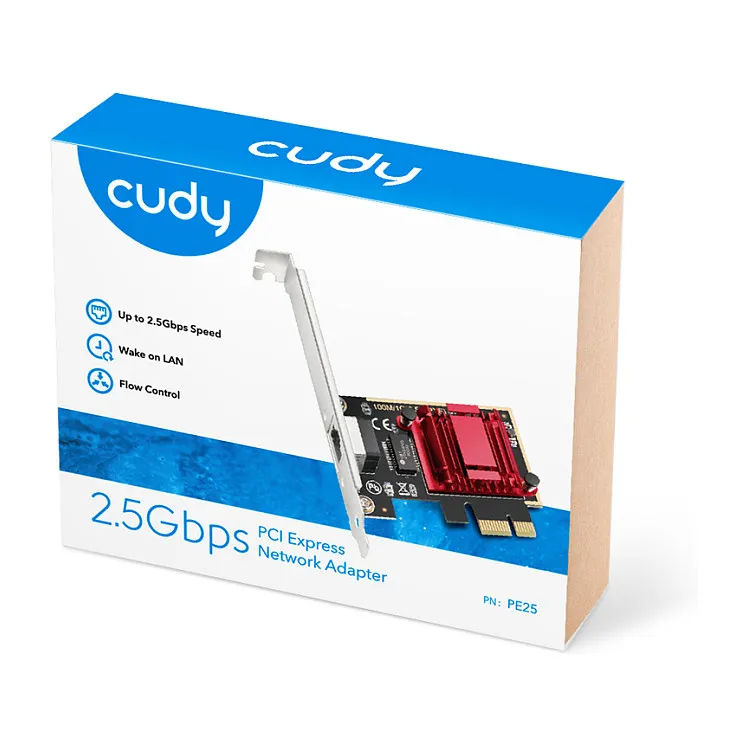

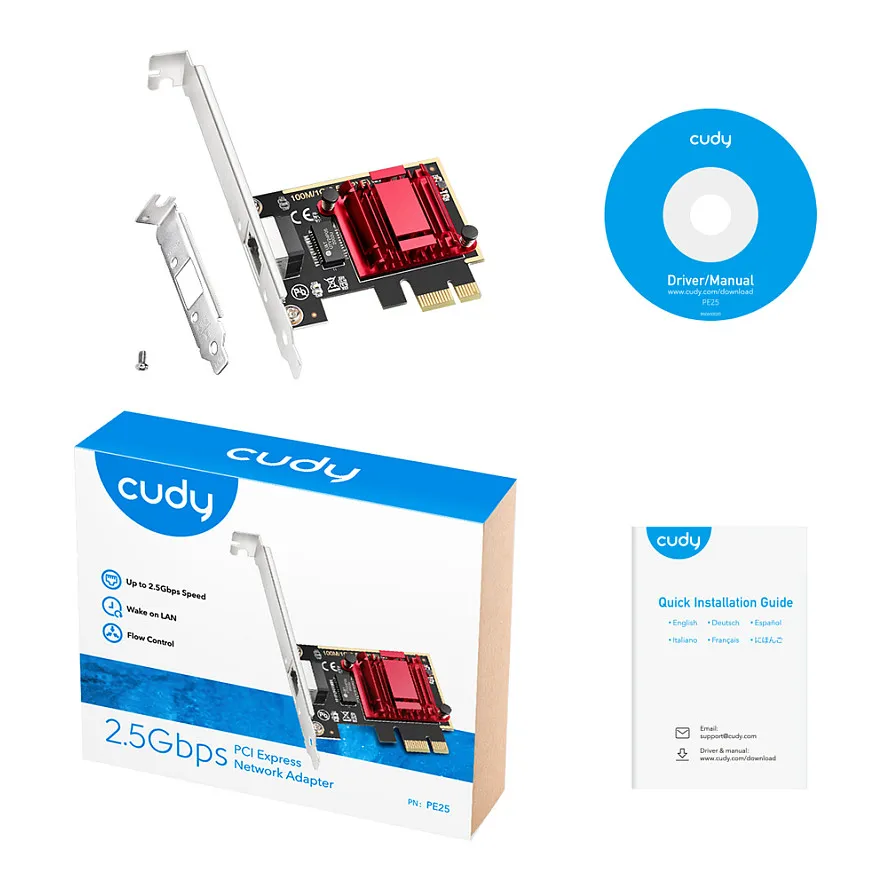

Packaging content
Feature: Mounting brackets included
Feature: Resource CD
Feature: Quick installation guide
Other features
Feature: Flow control support
