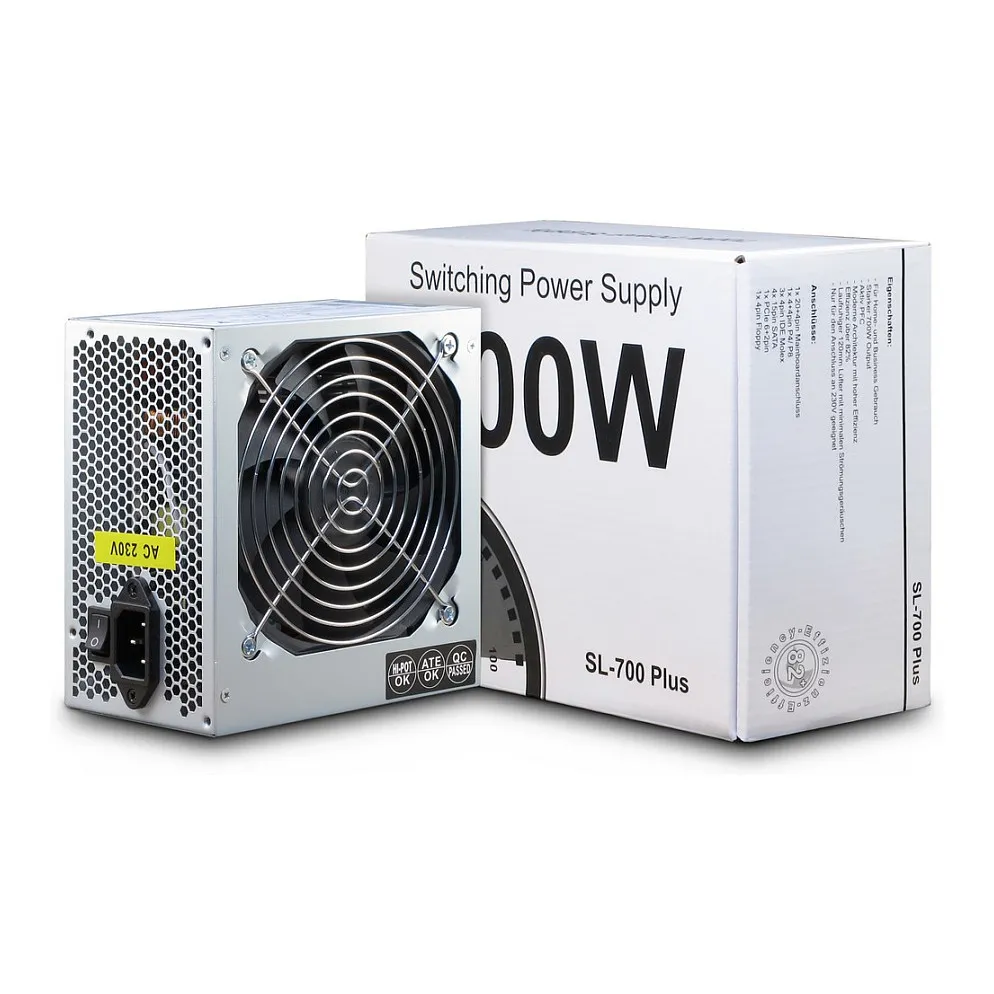

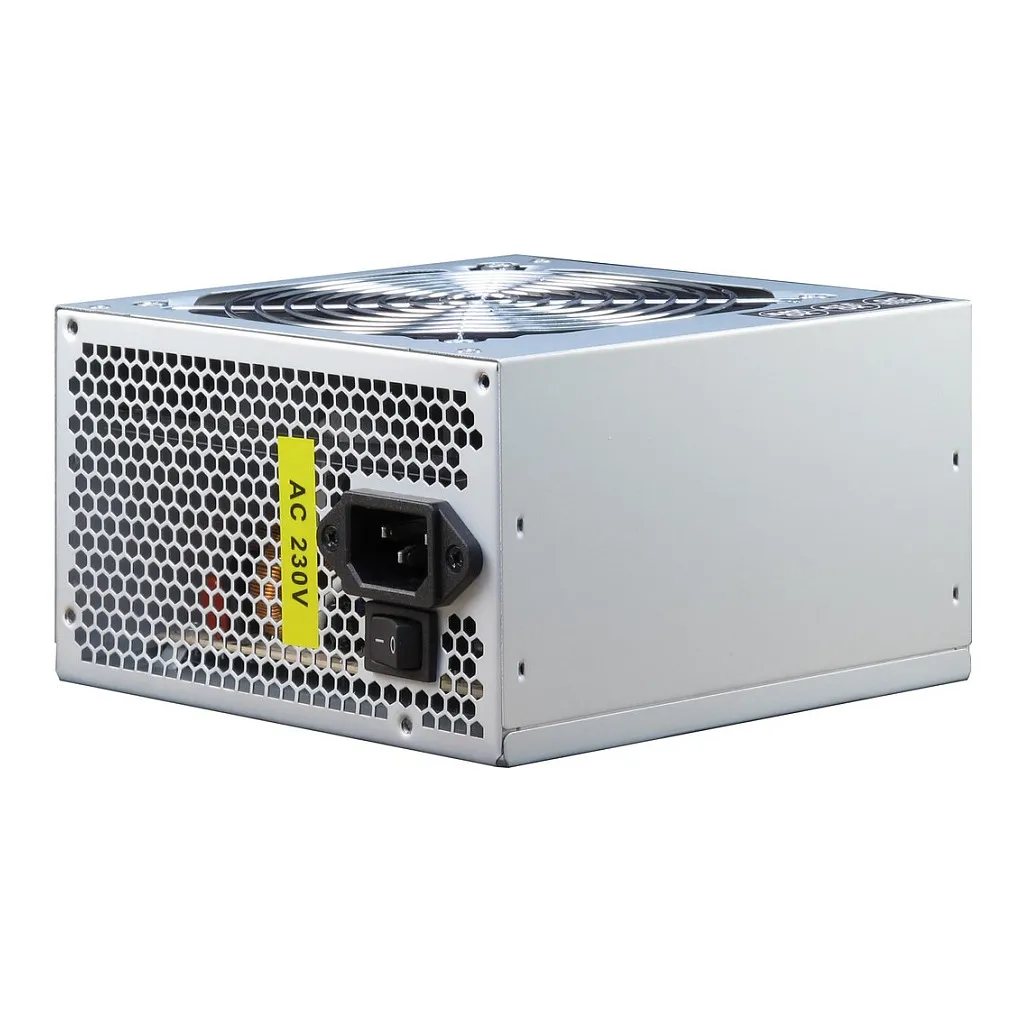

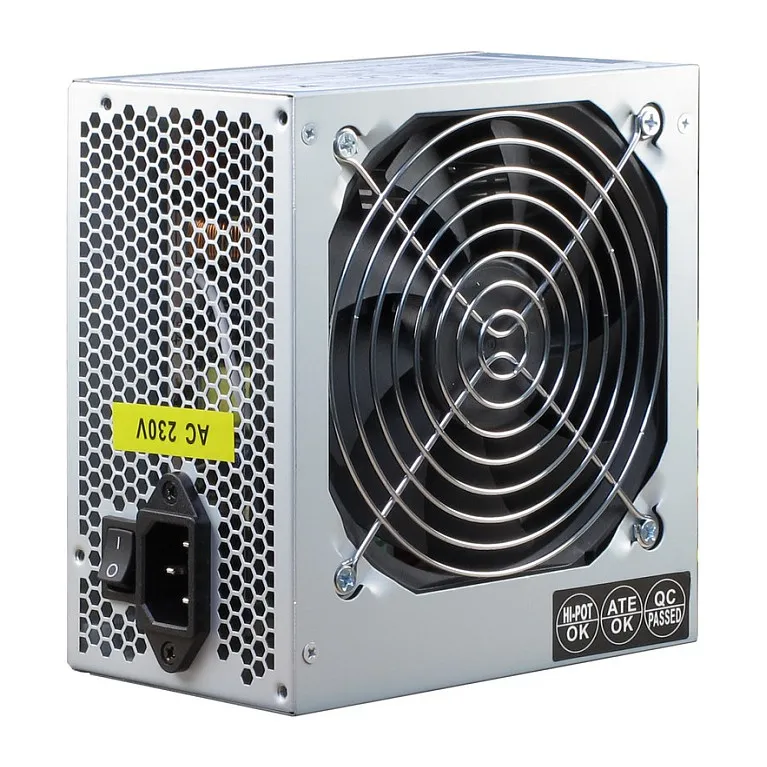

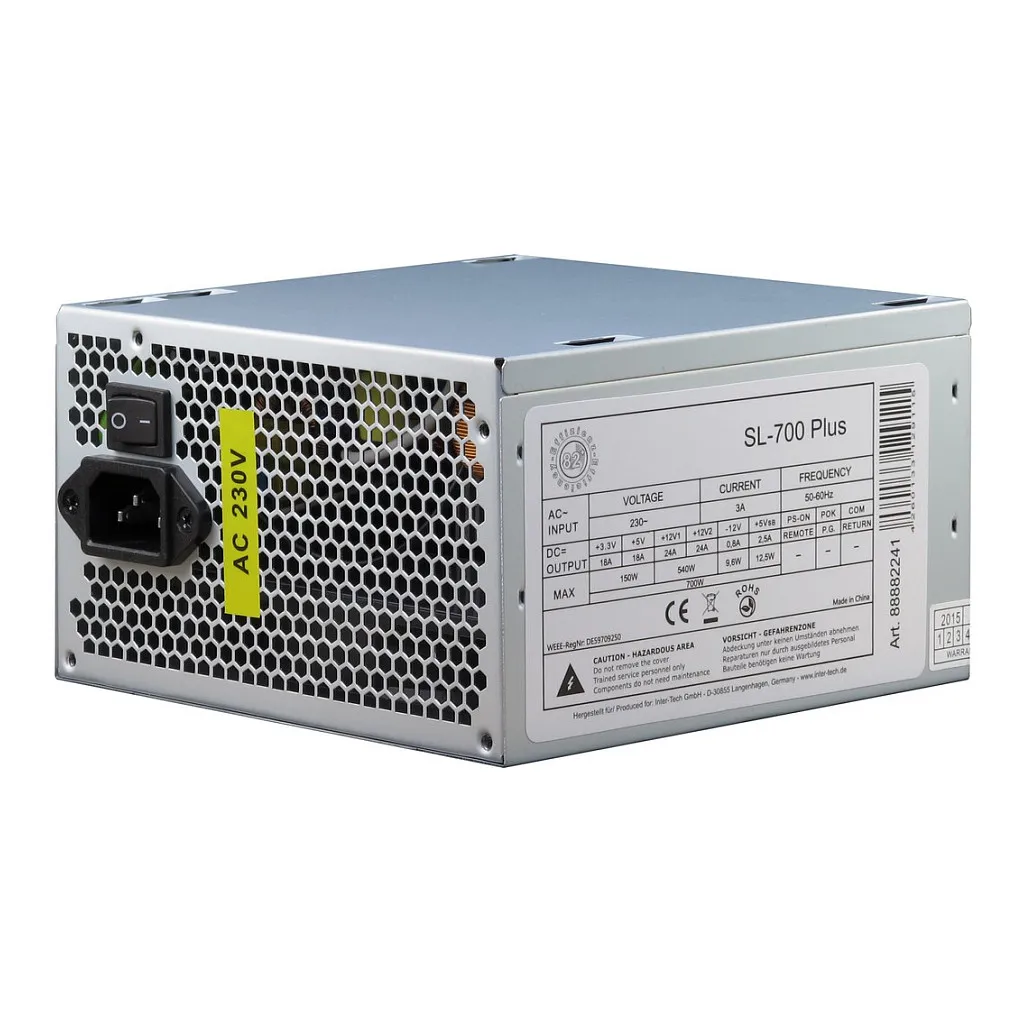

Inter-Tech SL-700 Plus. Total power: 700 W, AC input voltage: 230 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, Noise level: 25 dB. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
The SL-700 PLUS provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet.
With four S-ATA- and three Molex-connectors, PCIe 6+2pin, 4+4pin- and 20+4pin- connectors the power supply offers a lot of options for configuration. The SL-700 PLUS finds its usage in older and new computer systems.
Power
Total power: 700 W
AC input voltage: 230 V
AC input frequency: 50 – 60 Hz
Input current: 3 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 150 W
Combined power (+12V): 540 W
Combined power (+5V): 150 W
Combined power (-12V): 9.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 18 A
Max output current (+12V1): 24 A
Max output current (+12V2): 24 A
Max output current (+5V): 18 A
Max output current (-12V): 0.8 A
Max output current (+5Vsb): 2.5 A
Efficiency: 82%
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Cabling type: Non-Modular
Performance
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Noise level: 25 dB
Design
Product colour: Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.07 kg
Packaging data
Feature: Manual
Package width: 215 mm
Package depth: 165 mm
Package height: 90 mm
Package weight: 1.36 kg
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
Other features
Feature: Warranty card
Total power: 700 W
AC input voltage: 230 V
AC input frequency: 50 – 60 Hz
Input current: 3 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 150 W
Combined power (+12V): 540 W
Combined power (+5V): 150 W
Combined power (-12V): 9.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 18 A
Max output current (+12V1): 24 A
Max output current (+12V2): 24 A
Max output current (+5V): 18 A
Max output current (-12V): 0.8 A
Max output current (+5Vsb): 2.5 A
Efficiency: 82%
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Cabling type: Non-Modular
Performance
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Noise level: 25 dB
Design
Product colour: Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.07 kg
Packaging data
Feature: Manual
Package width: 215 mm
Package depth: 165 mm
Package height: 90 mm
Package weight: 1.36 kg
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
Other features
Feature: Warranty card
