Inter-Tech SC-4100. Form factor: Rack, Type: Server, Product colour: Black. Front fans diameters supported: 40 mm, Rear fans installed: 1x 80 mm, Rear fans diameters supported: 80 mm. Supported HDD sizes: 2.5,3.5". Width: 194 mm, Depth: 200 mm, Height: 270 mm. Package width: 315 mm, Package depth: 245 mm, Package height: 237 mm

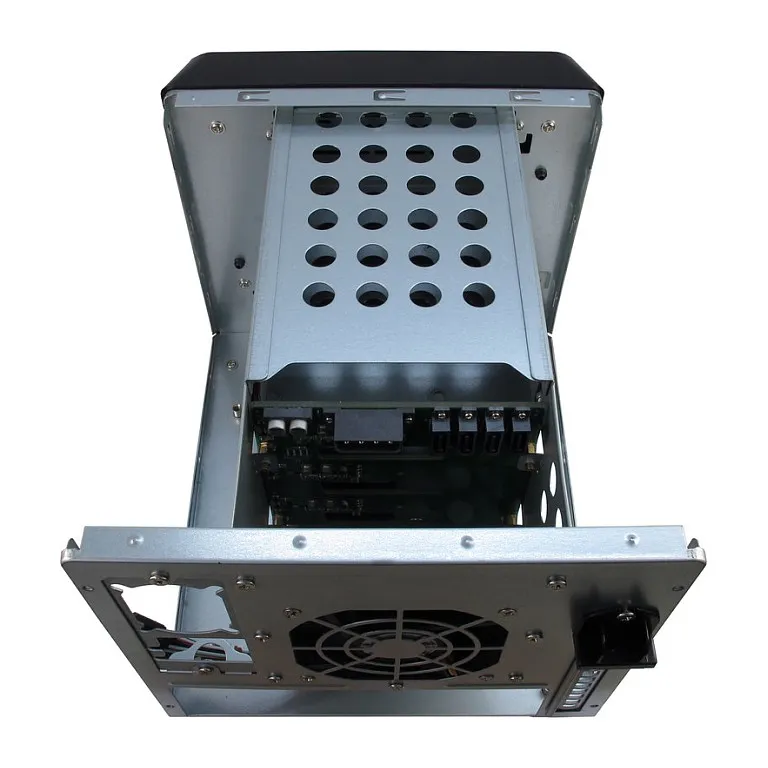

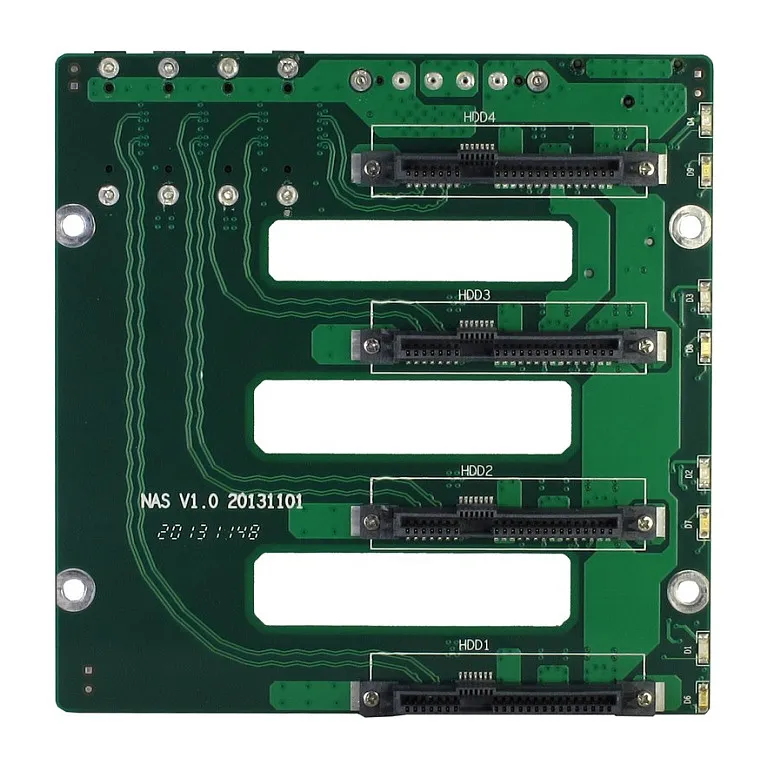

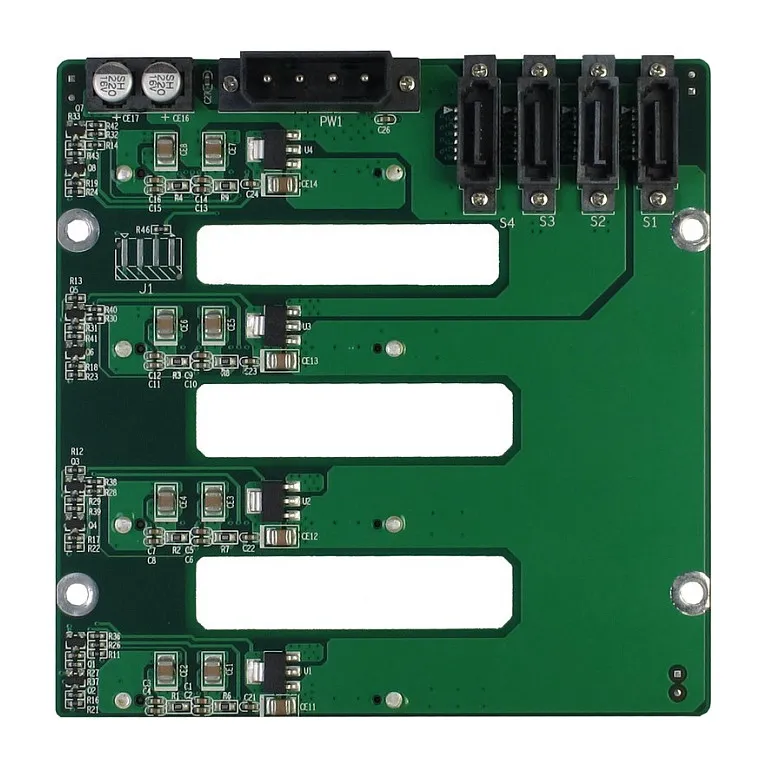

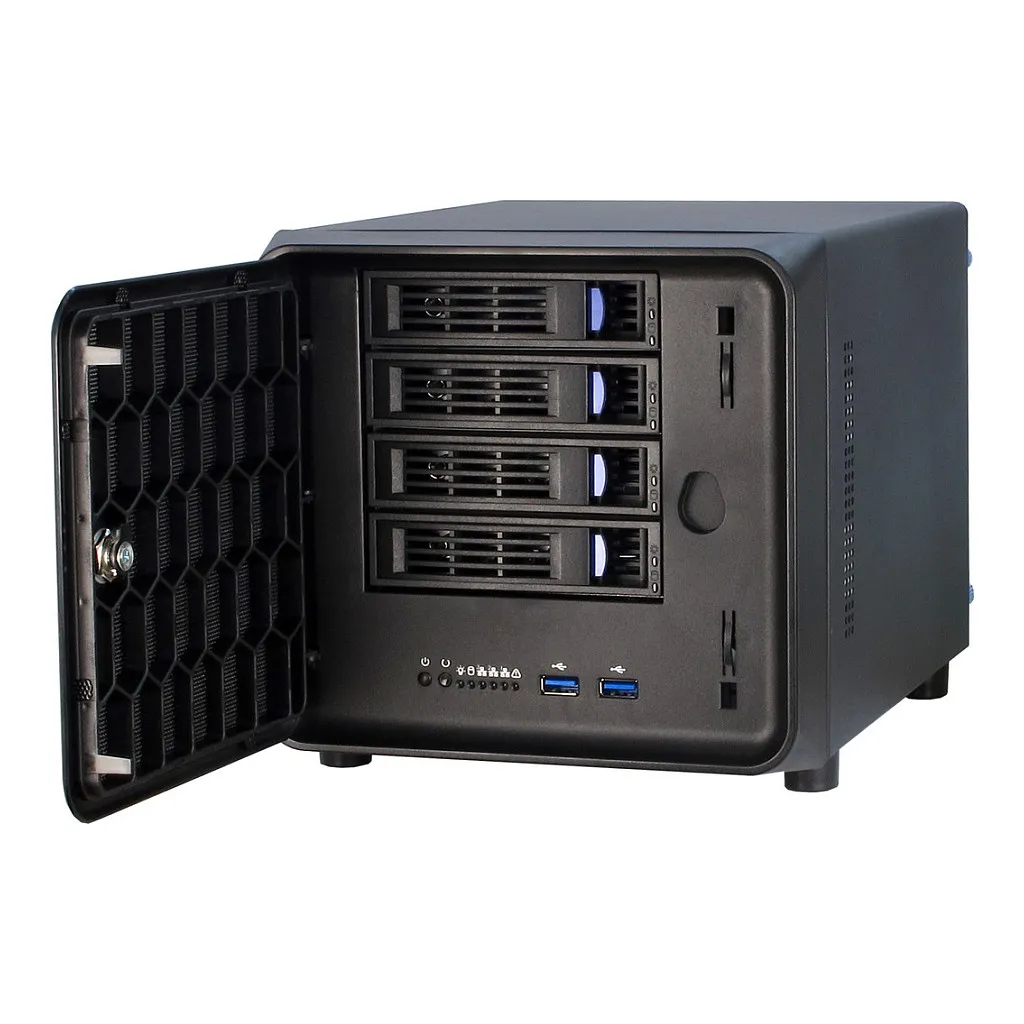

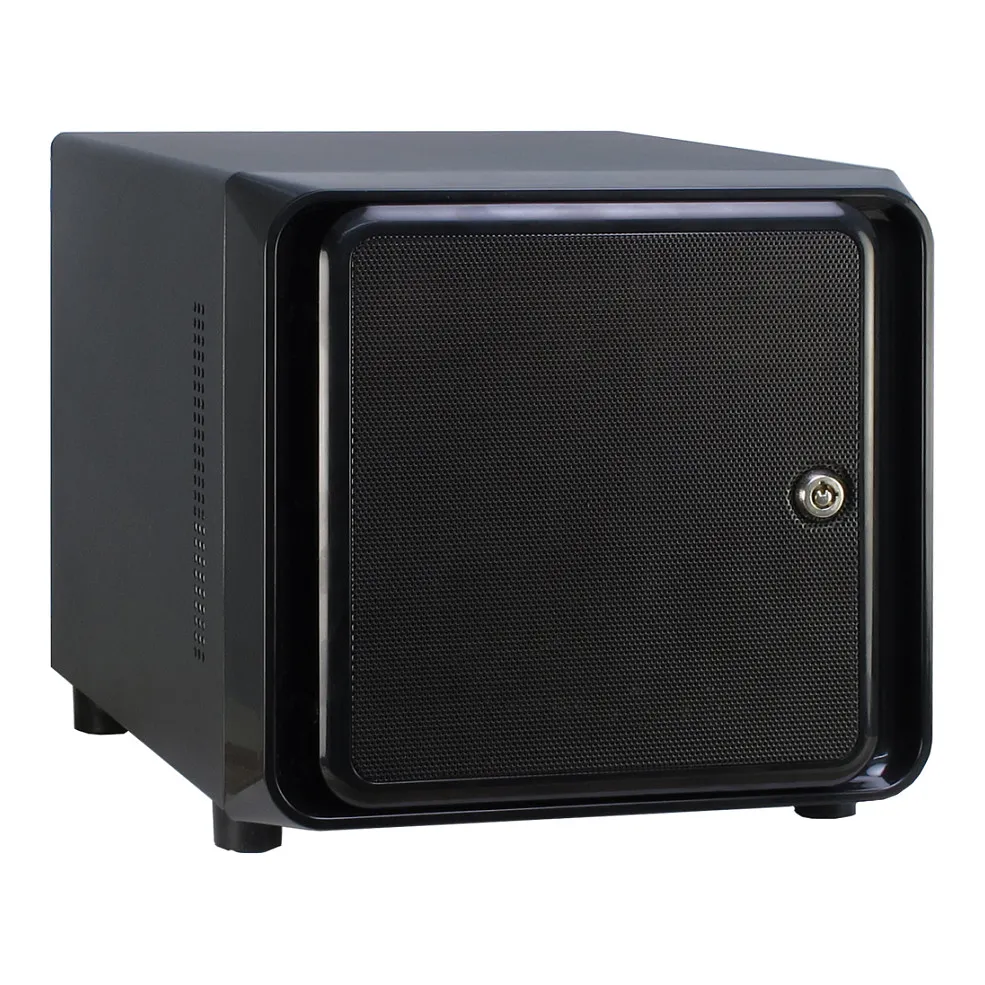

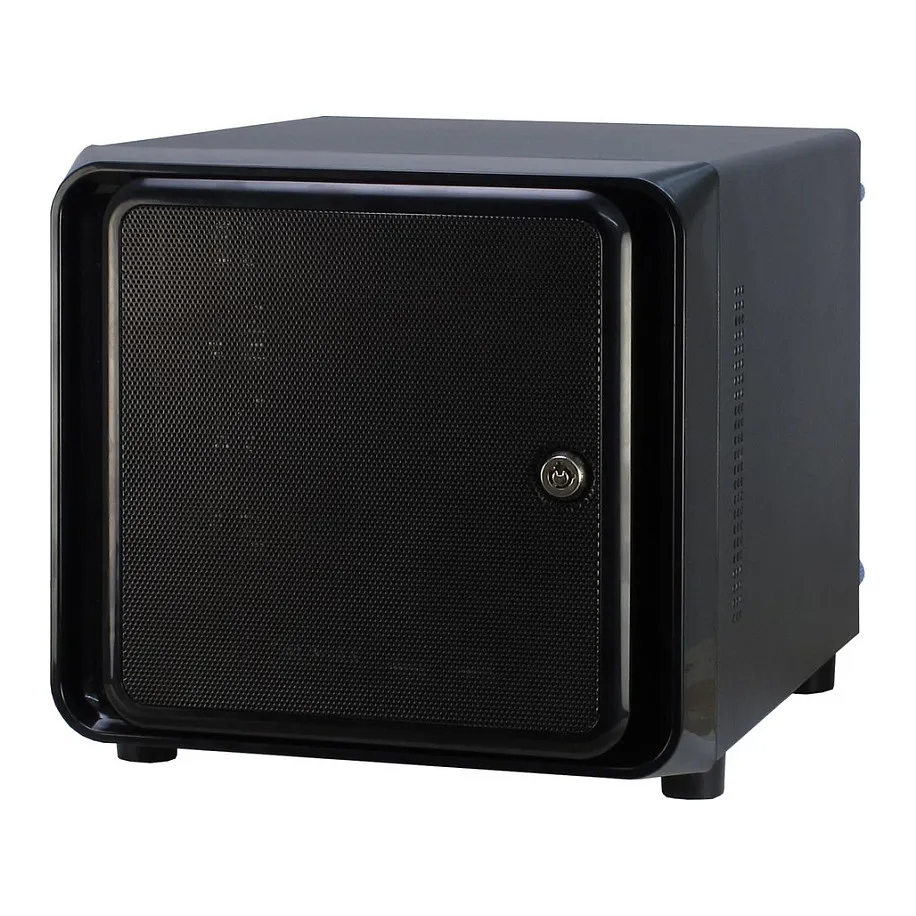

The IPC SC-4100 is a case for Mini ITX Mainboards with a quadruple Hot-Swap rack for hard drives.

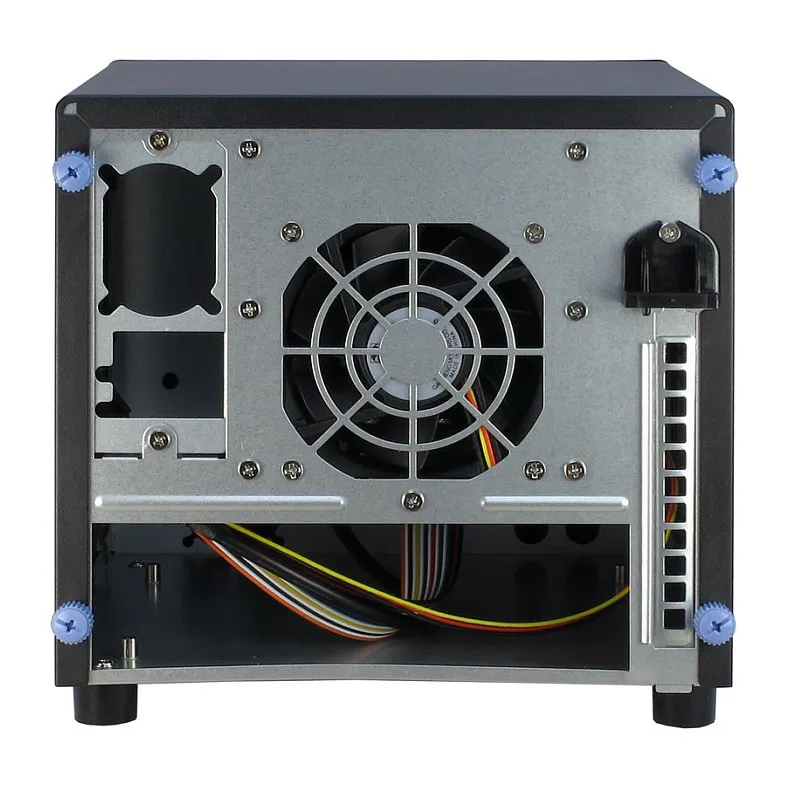

One included 80mm fan, as well as an optional 40mm fan, cares for clean air and therefore for an impeccable cooling system.
One Flex ATX or 1HU server power supply can be mounted. The slot opening is suitable for the mounting of a short flat graphic card. One 2.5″ hard drive or one SSD can also be mounted. One lockable door completes this total package.
Design
Material: Steel
Form factor: Rack
Type: Server
Product colour: Black
Supported motherboard form factors: Mini-ITX
Number of 3.5″ bays: 4
Feature: Rack mounting
Rack capacity: 1U
Feature: Reset button
LED indicators: Yes
Ports & interfaces
Audio input: No
Audio output: No
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Cooling
Number of front fans supported (max): 1
Front fans diameters supported: 40 mm
Rear fans installed: 1x 80 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 80 mm
Storage
Supported HDD sizes: 2.5,3.5″
Feature: Hot-swap
Weight & dimensions
Width: 194 mm
Depth: 200 mm
Height: 270 mm
Weight: 2.66 kg
Material thickness: 1 mm
Packaging data
Package width: 315 mm
Package depth: 245 mm
Package height: 237 mm
Package weight: 3.08 kg
Logistics data
Harmonized System (HS) code: 84733080
Products per pallet: 4 pc(s)
Material: Steel
Form factor: Rack
Type: Server
Product colour: Black
Supported motherboard form factors: Mini-ITX
Number of 3.5″ bays: 4
Feature: Rack mounting
Rack capacity: 1U
Feature: Reset button
LED indicators: Yes
Ports & interfaces
Audio input: No
Audio output: No
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Cooling
Number of front fans supported (max): 1
Front fans diameters supported: 40 mm
Rear fans installed: 1x 80 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 80 mm
Storage
Supported HDD sizes: 2.5,3.5″
Feature: Hot-swap
Weight & dimensions
Width: 194 mm
Depth: 200 mm
Height: 270 mm
Weight: 2.66 kg
Material thickness: 1 mm
Packaging data
Package width: 315 mm
Package depth: 245 mm
Package height: 237 mm
Package weight: 3.08 kg
Logistics data
Harmonized System (HS) code: 84733080
Products per pallet: 4 pc(s)
