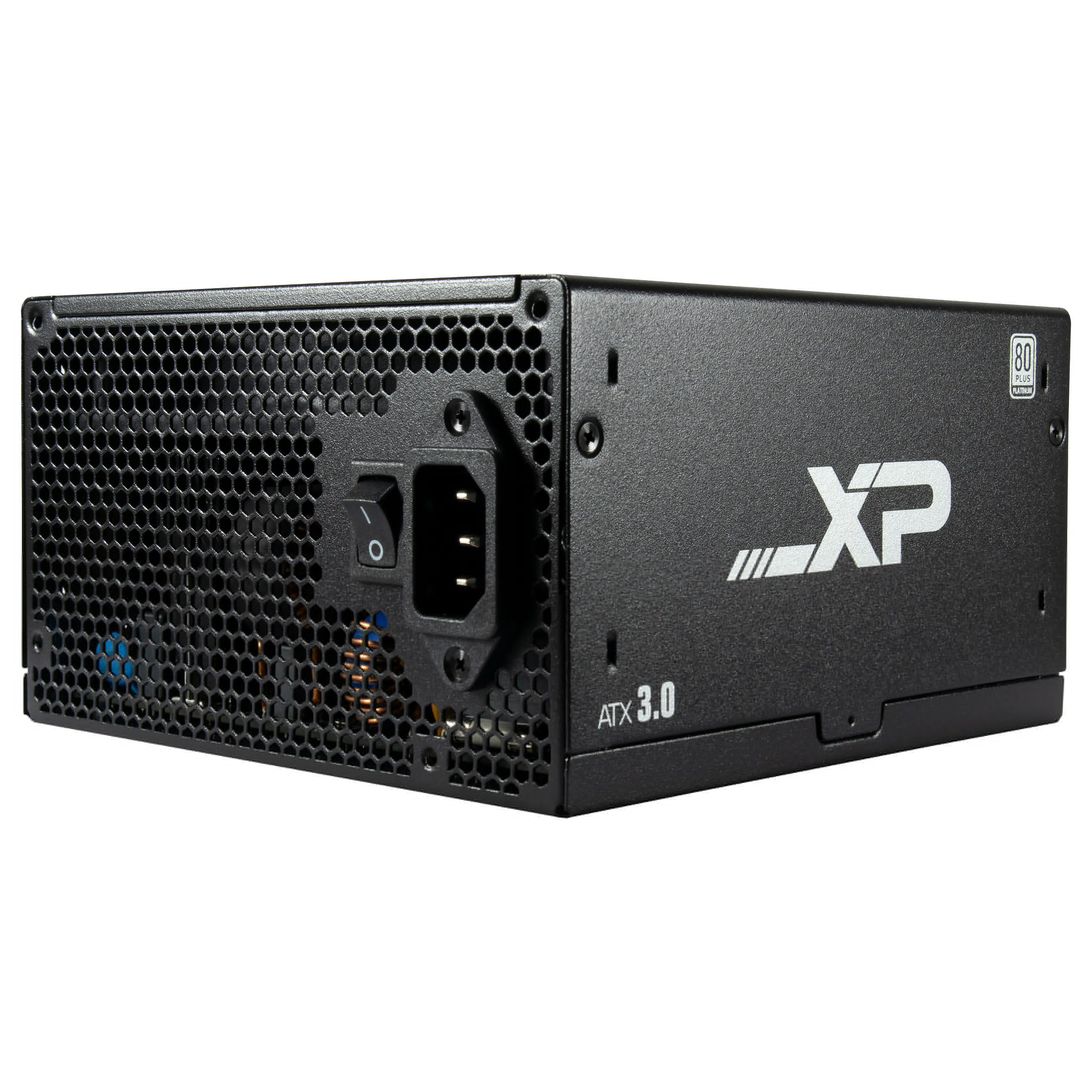

Inter-Tech SAMA XPH-850A. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Width: 150 mm, Depth: 155 mm, Height: 86 mm
The SAMA XPH series is the most innovative series from Inter-Tech. The very good efficiency is achieved by the 80 PLUS® Platinum certificate – up to 93.90% is a word. In addition to the outstanding efficiency, the XPH series also has an intelligent fan control (IFC) which ensures that the 120mm fan of the power supply is controlled between 0 and 1600 rpm depending on the temperature. This achieves the best balance between essential cooling and pleasantly quiet operation.
The power supply unit is equipped for both the new PCIe 5.0 GPUs and the tried-and-tested GPUs with PCIe 6+2 connections. This makes the new XPH series the first choice for anyone looking for a reliable power supply for current and future GPU generations. A 5-year full warranty provides security.
Total power: 850 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 8/10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 849.6 W
Combined power (+5V): 100 W
Combined power (-12V): 4.8 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.4 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over voltage, Short circuit, Under voltage
Ports & interfaces

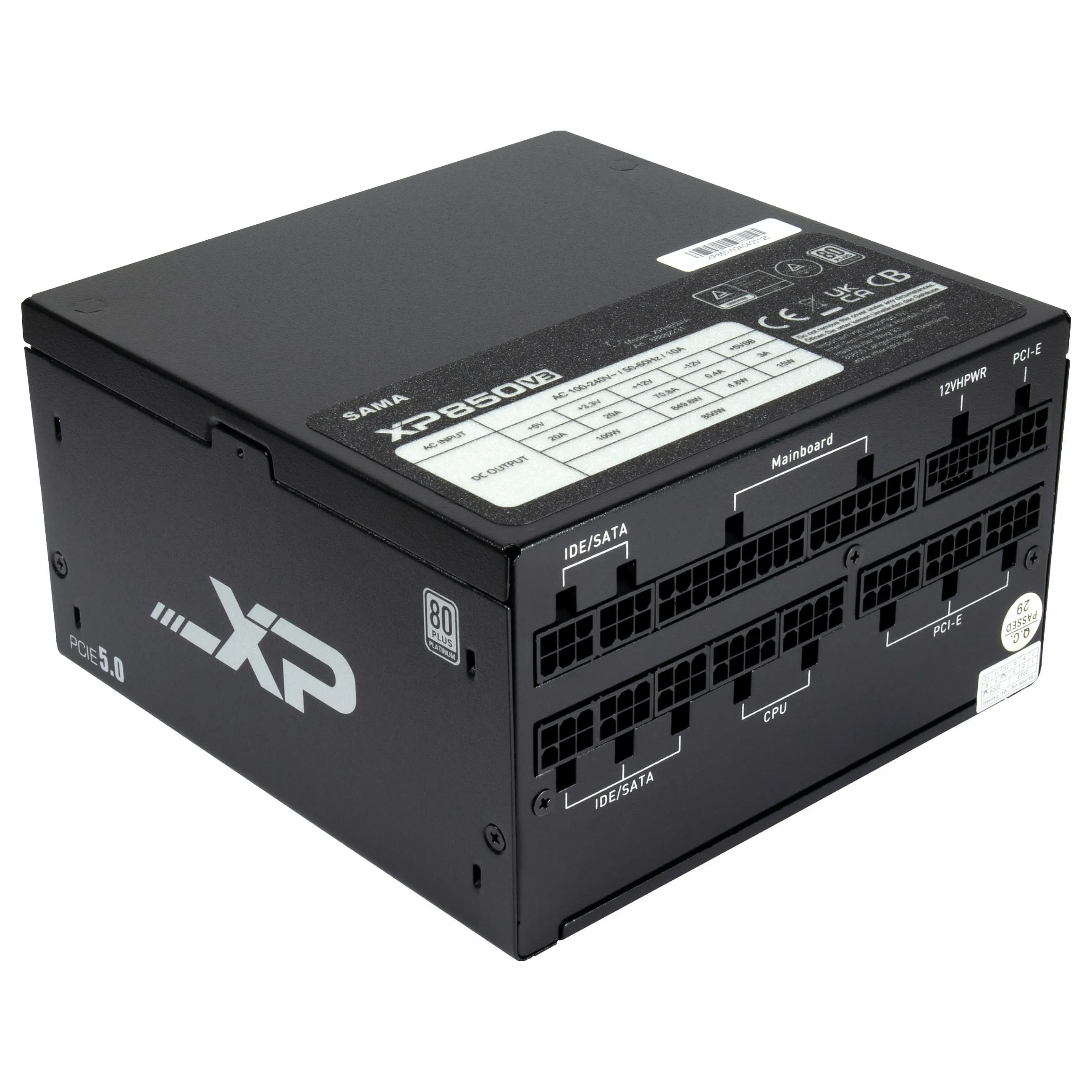

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 4
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 3
Feature: ATX power connector (20+4 pin)
Number of EPS connectors: 2
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Design
Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)

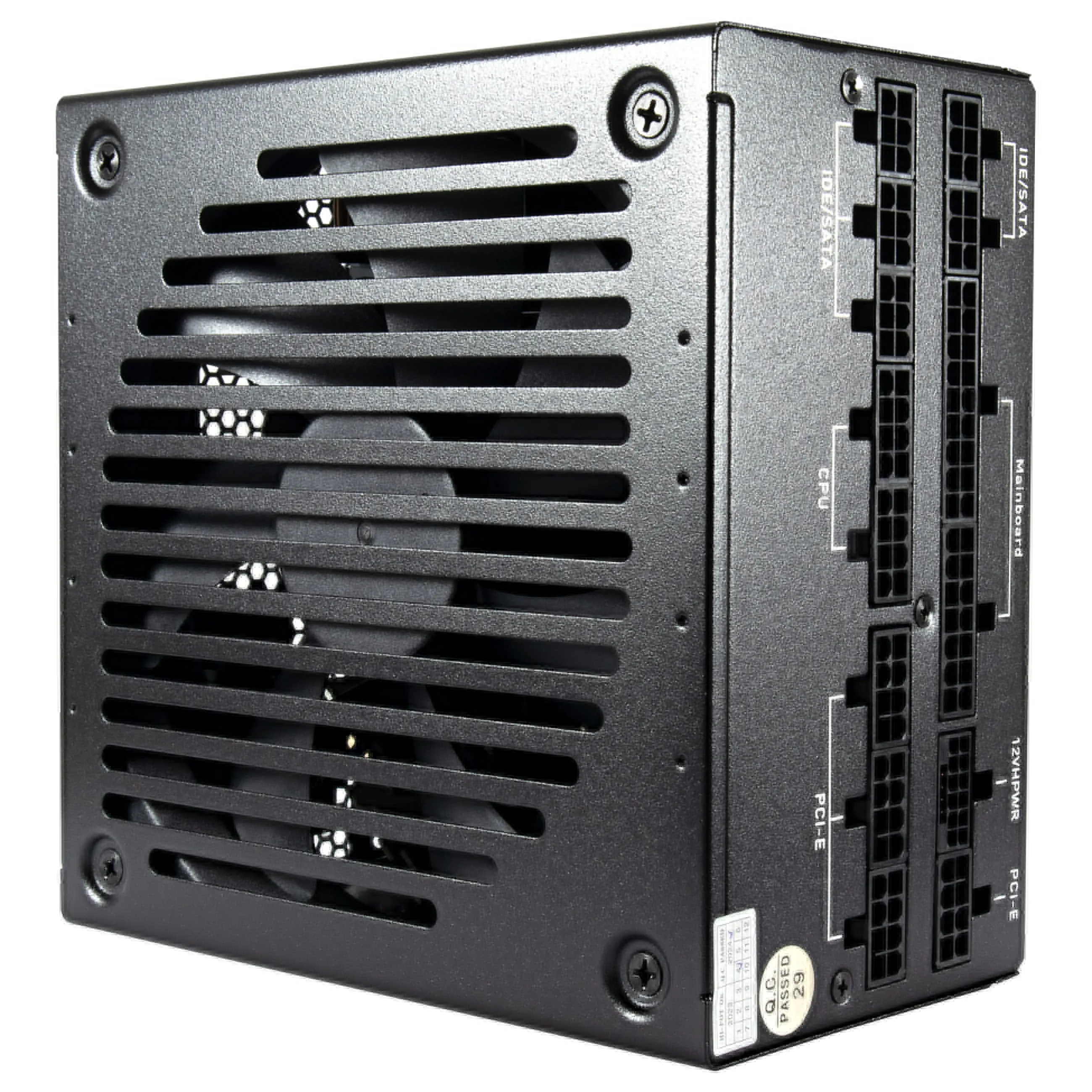

Fan location: Top
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 50 – 95%
Weight & dimensions
Width: 150 mm
Depth: 155 mm
Height: 86 mm
Weight: 2.5 kg
Packaging data
Package weight: 2.94 kg
Package type: Box
