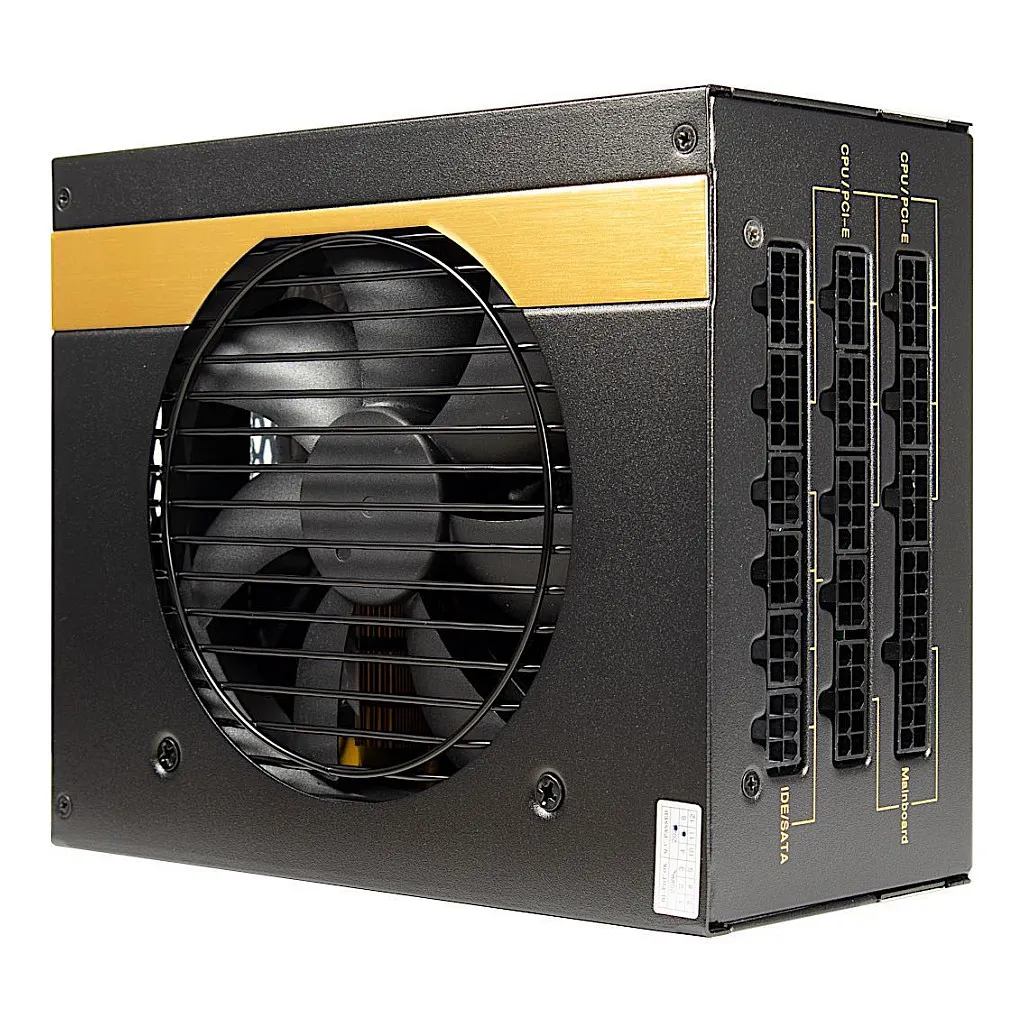

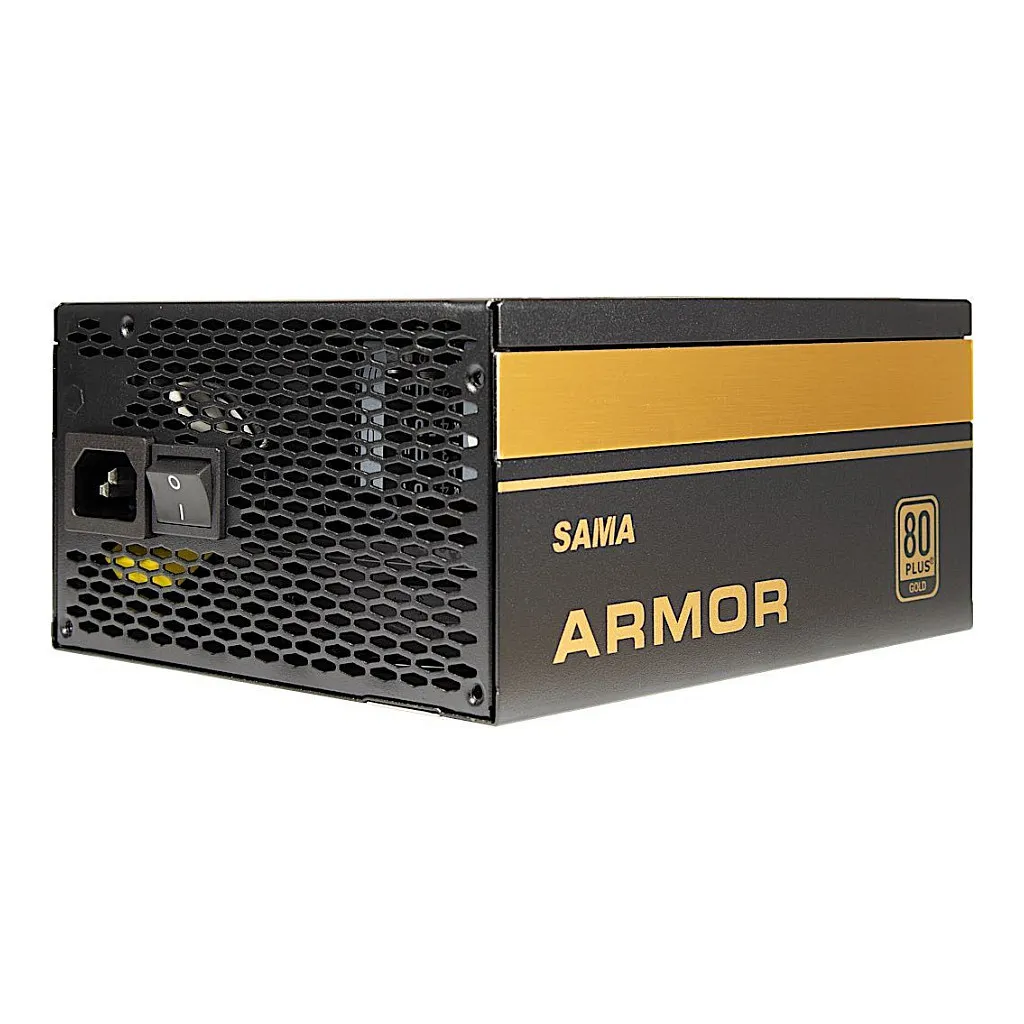

Inter-Tech SAMA FTX-850-B ARMOR. Total power: 850 W, AC input voltage: 110 – 240 V, Peak power: 850 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 57 cm, SATA power cable length: 150,530 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: AC
The 850W powerful power supply from SAMA is 80PLUS Gold certified and equipped with the latest technology! The DC/DC technology ensures maximum efficiency and stable voltages. With the +12V single-rail technology, a full 69A is also available for power-hungry graphics cards. 105°C-certified A+ premium capacitors from Nichicon Japan offer maximum reliability for well over 100.000 operating hours (MTBF) with over 90% efficiency.

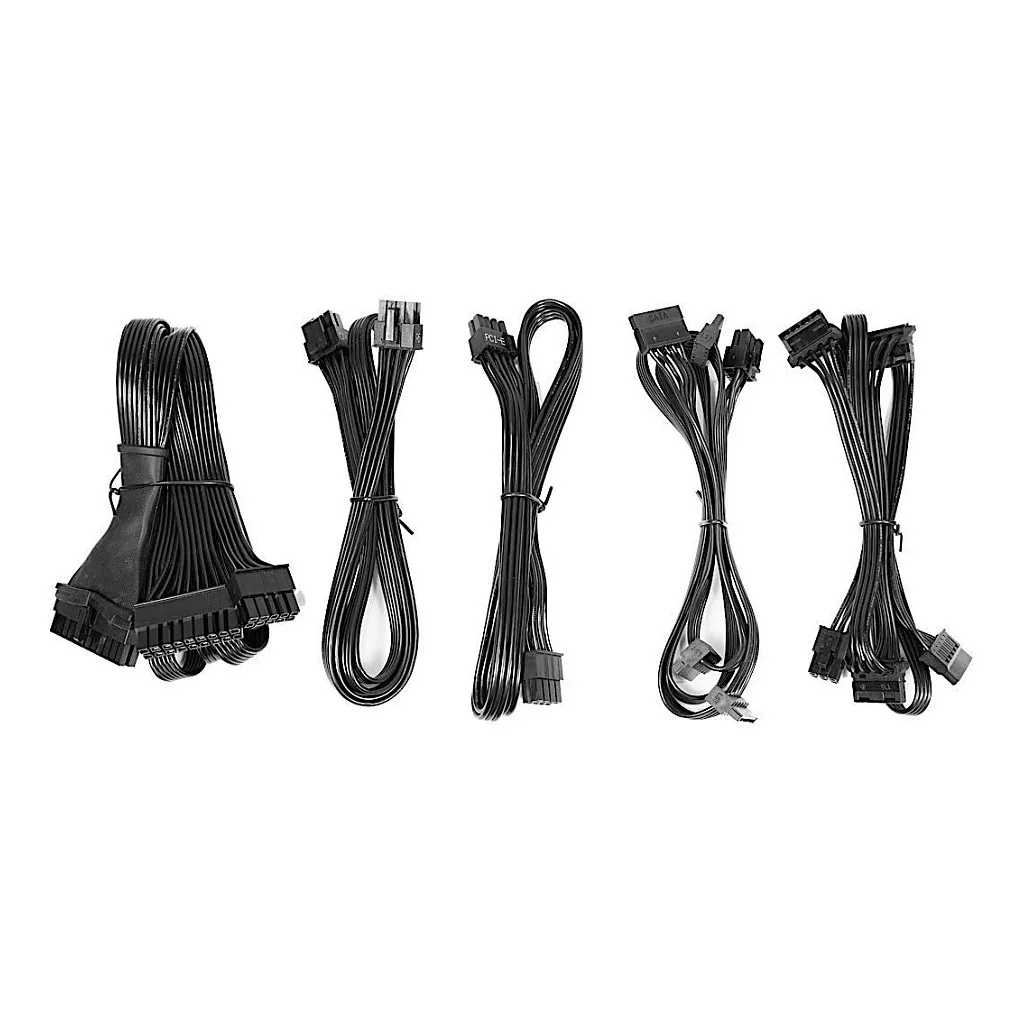

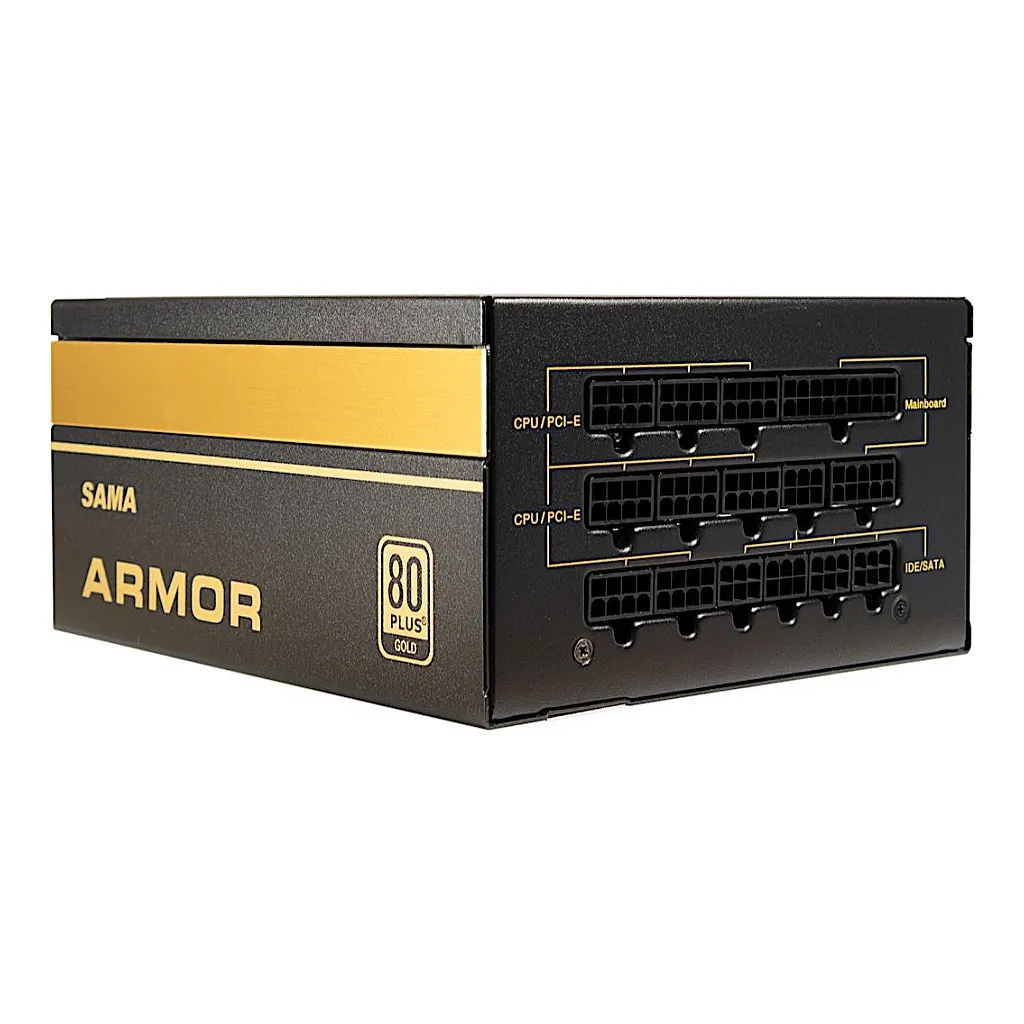

The fully modular cable design offers a free choice in terms of connections. In addition to two 4+4-pin connections for dual-CPU systems, the SAMA FTX-850-B Armor has nine S-ATA, three Molex and four PCIe 6+2-pin connections, all of which have a flat-cable design, which contributes to a clean cable management in the case.
The smooth-running, temperature-controlled 120mm fan, which reliably cools the inner workings of the power supply, sits in the high-quality power supply housing, which has been provided with golden aluminum applications. A 60 month manufacturer’s guarantee rounds off the overall package and underlines the high quality of the SAMA FTX-850-B Armor.
Total power: 850 W
Peak power: 850 W
AC input voltage: 110 – 240 V
AC input frequency: 47 – 63 Hz
Input current: 6 – 15 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 828 W
Combined power (+5V): 100 W
Combined power (-12V): 2.4 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 69 A
Max output current (+5V): 20 A
Max output current (-12V): 0.2 A
Max output current (+5Vsb): 3 A
Efficiency: 88.63%
Power protection features: Over power, Short circuit
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 57 cm
Number of SATA power connectors: 9
SATA power cable length: 150,530 mm
Peripheral (Molex) power connectors (4-pin): 3
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 67 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Noise level: 22 dB
Design
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Packaging content
Cables included: AC
Weight & dimensions
Width: 150 mm
Depth: 180 mm
Height: 86 mm
Weight: 1.88 kg
Packaging data
Package width: 330 mm
Package depth: 195 mm
Package height: 130 mm
Package weight: 3.2 kg
Logistics data
Harmonized System (HS) code: 84733020
