Inter-Tech KVM AS-41DA DVI. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Scan interval: 5 s. Product colour: Black, Housing material: Steel, Mean time between failures (MTBF): 120000 h. Power source: DC, Input voltage: 9 V, Input current: 0.5 A. Width: 203 mm, Depth: 115 mm, Height: 41 mm

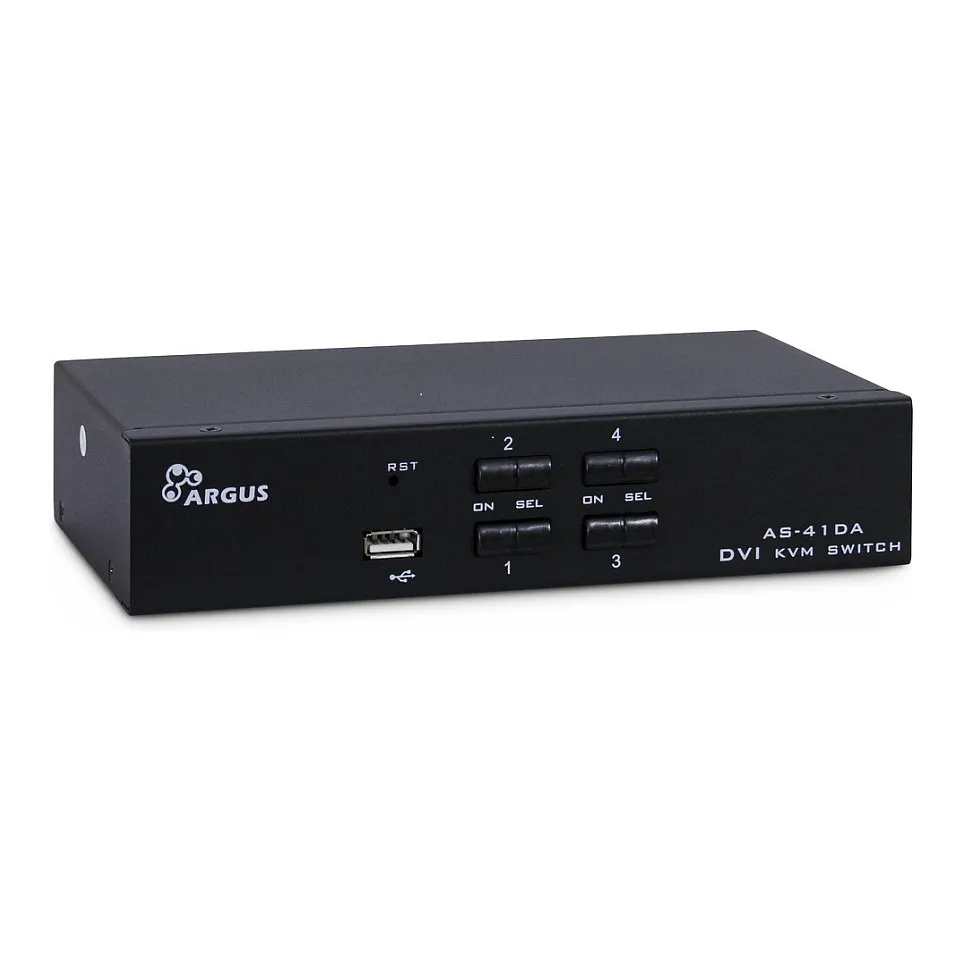

The KVM AS-41DA DVI is a 4-Port KVM-Switch with reasonable price and automatic audio switch for Desktops.

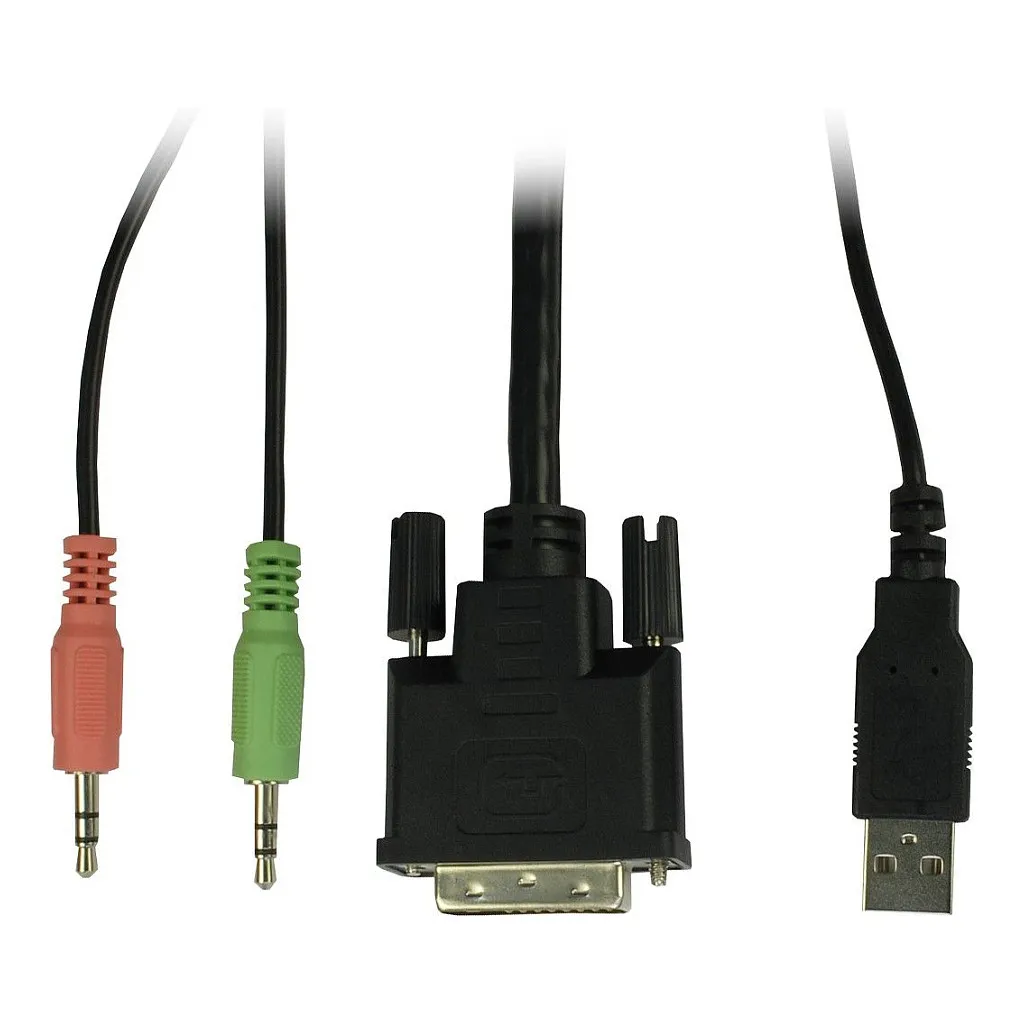

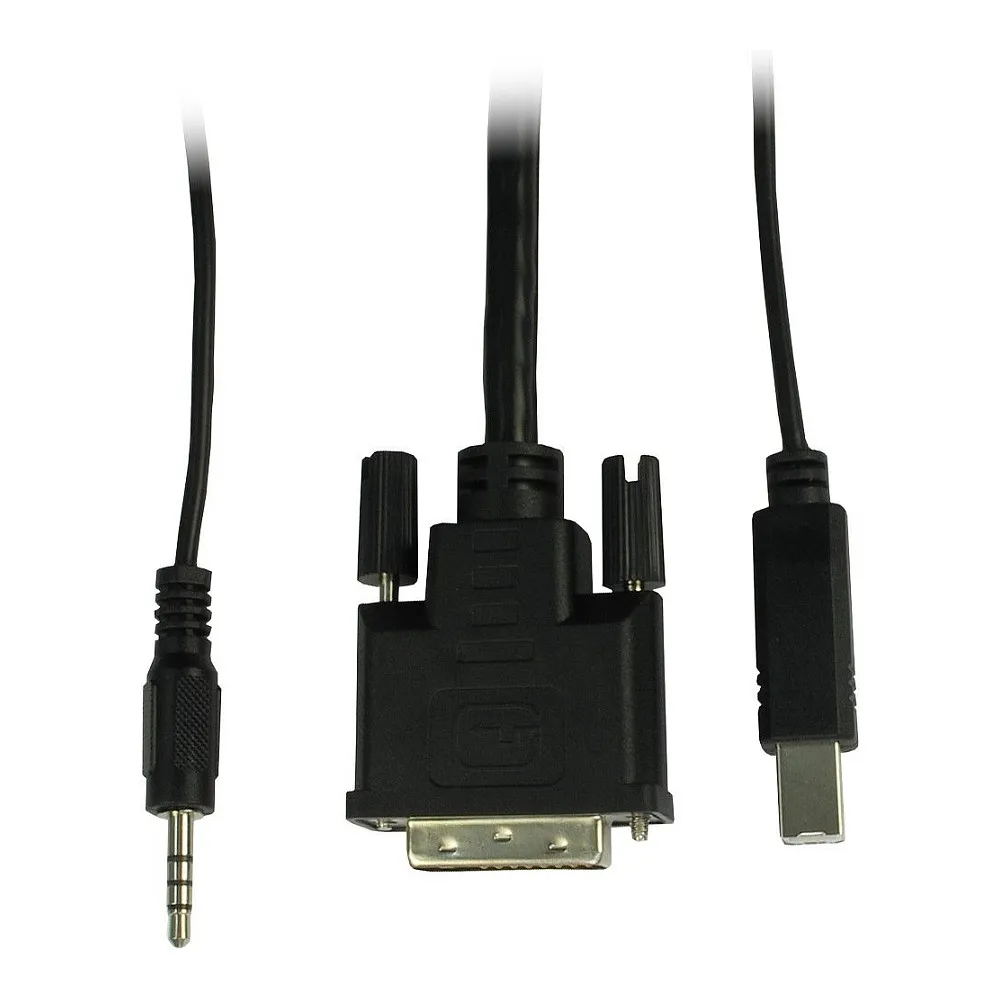

The KVM is connected to your system via USB (Keyboard / Mouse), 4x 3.5mm Audio Jack (Audio Mic/Line) and DVI-I or DVI-D by 4 included cables.
The additional USB port in the front allows to connect external data drives, such as USB sticks.

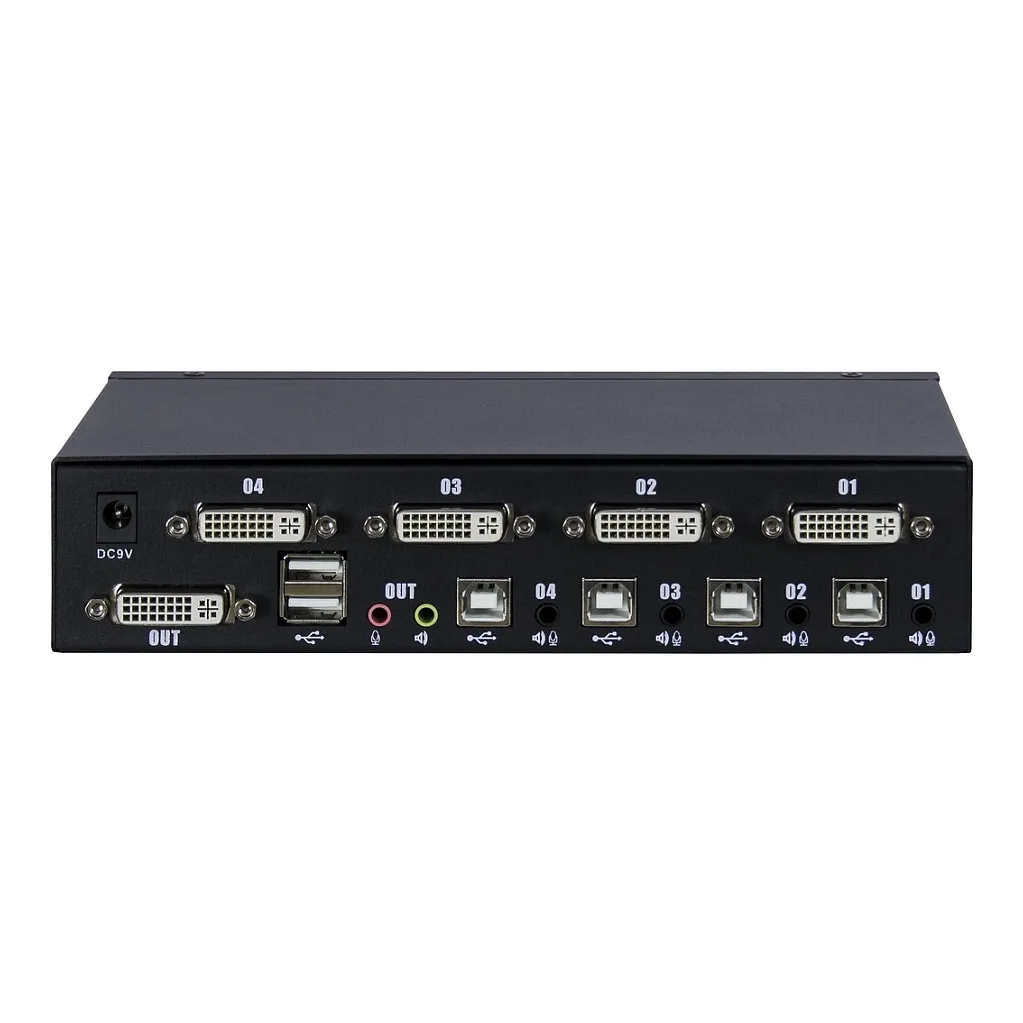

Ports & interfaces
Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: DVI-D
DVI-D ports quantity: 5
USB 2.0 Type-B ports quantity: 4
Console ports: 3.5mm headphone, 3.5mm mic, DVI-D, USB A
Console USB ports quantity: 2
USB 2.0 ports quantity: 3
USB connector type: USB Type-A, USB Type-B
USB version: 2.0
Feature: Audio connections
Headphone outputs: 4
Number of microphone inputs: 4
Feature: DC-in jack
Performance
HD type: Full HD
Maximum resolution: 1920 x 1200 pixels
Scan interval: 5 s
Feature: DDC/DDC2 supported
Design
Product colour: Black
Housing material: Steel
LED indicators: Yes
Feature: Hot keys
Mean time between failures (MTBF): 120000 h
Certification: CE
Power
Power source: DC
Input voltage: 9 V
Input current: 0.5 A
System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Operational conditions
Operating temperature (T-T): 5 – 40 °C
Storage temperature (T-T): -2 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Weight & dimensions
Width: 203 mm
Depth: 115 mm
Height: 41 mm
Weight: 760 g
Packaging data
Package width: 275 mm
Package depth: 210 mm
Package height: 100 mm
Package weight: 2.01 kg
Packaging content
Cables included: Audio (3.5mm), DVI, USB
Feature: Manual
Logistics data
Harmonized System (HS) code: 85176200
