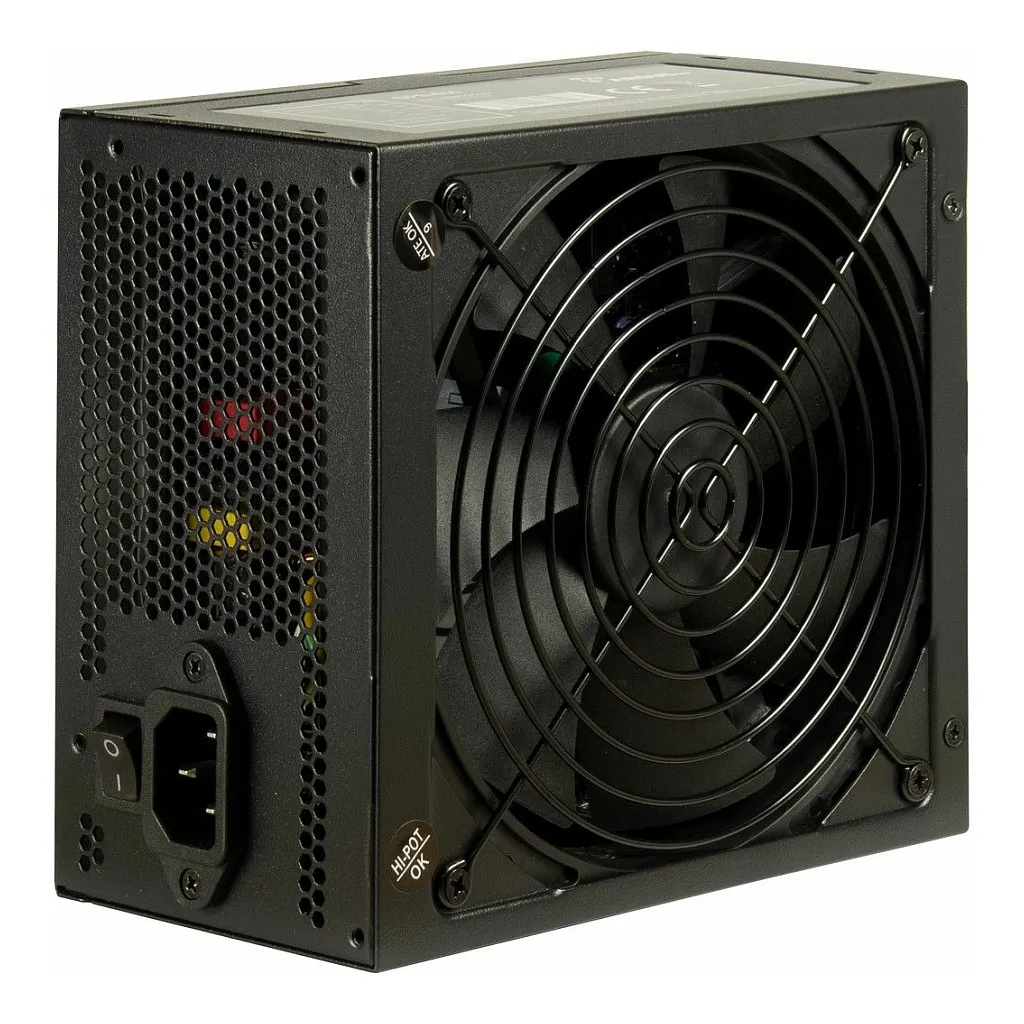

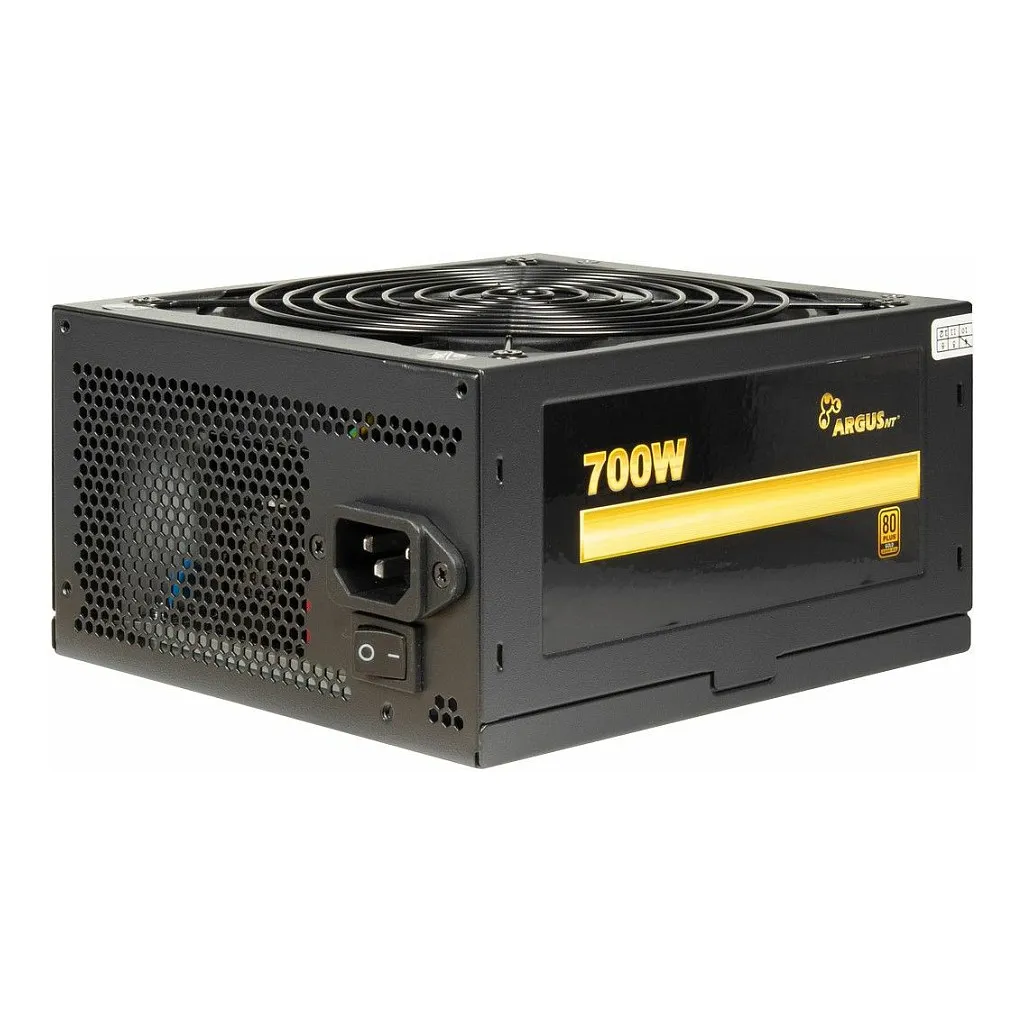

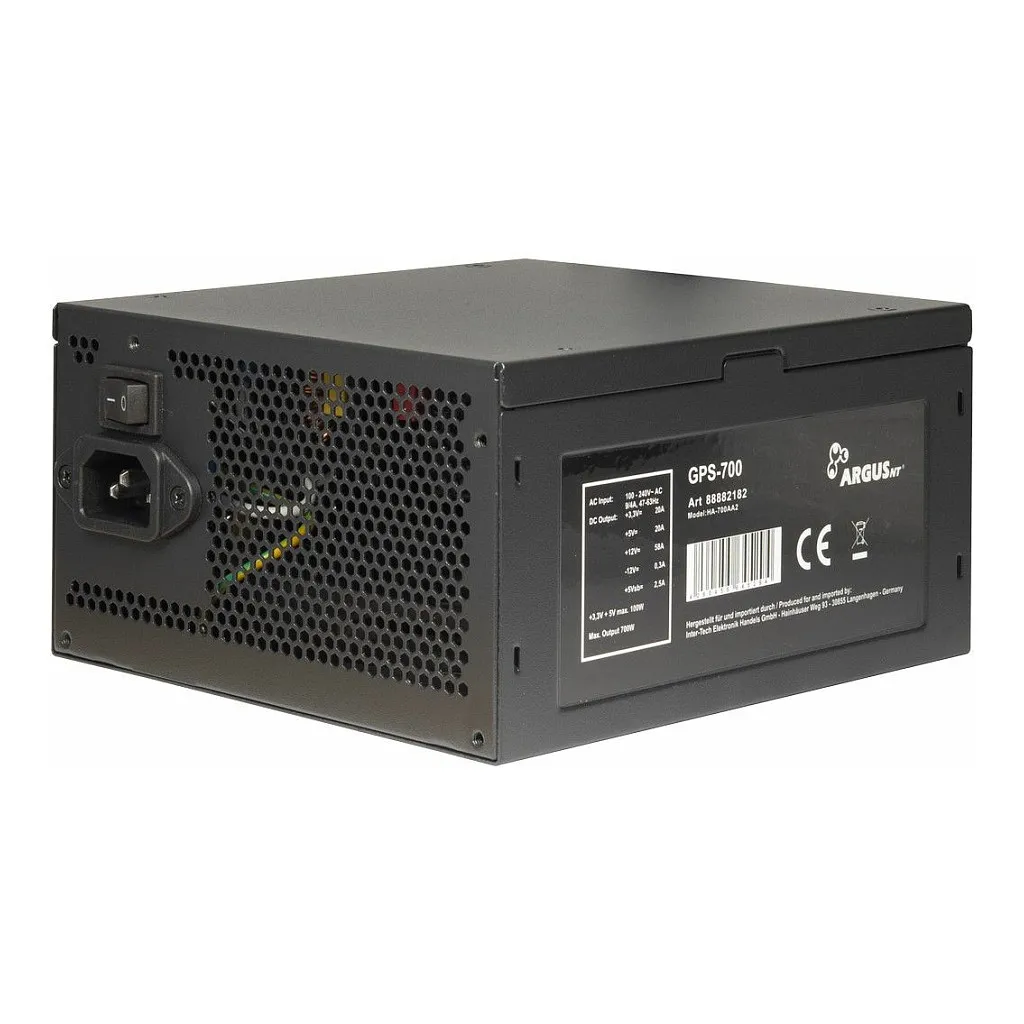

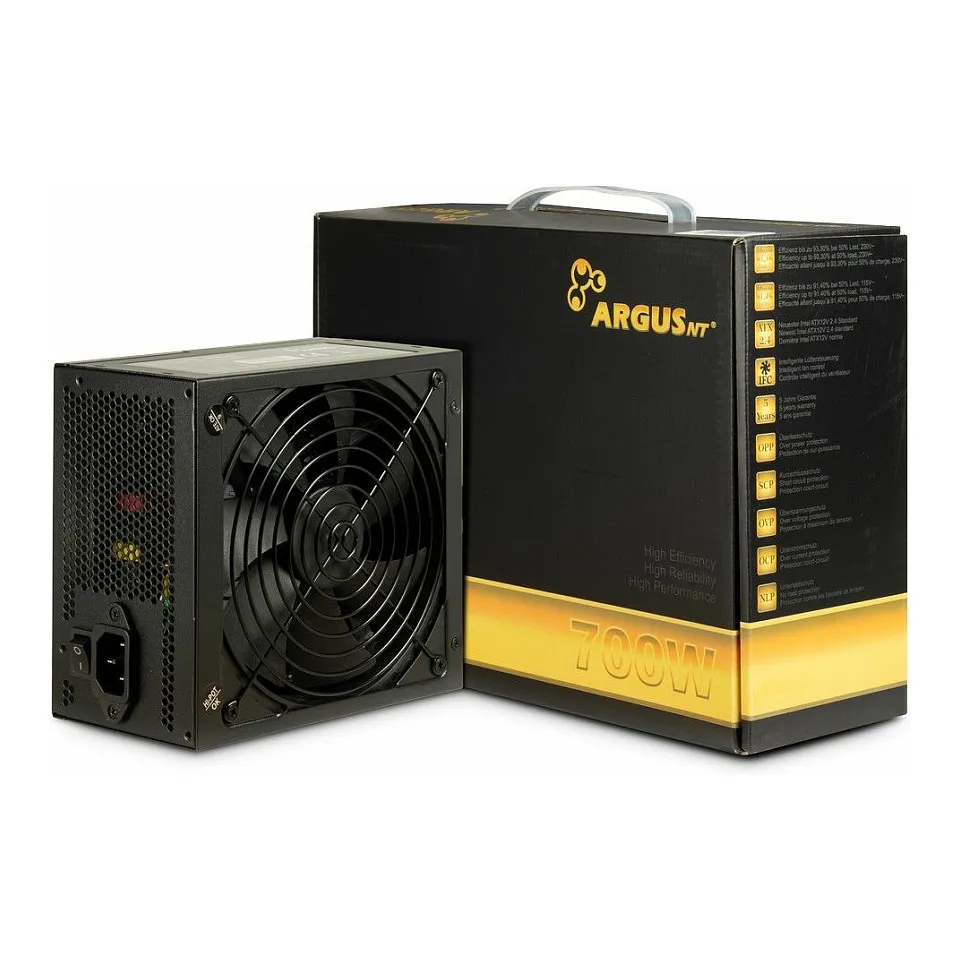

Inter-Tech ArgusNT GPS-700. Total power: 700 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 14 cm, Number of fans: 1 fan(s). Cables included: AC
The entire GPS series is equipped with a smooth-running 140mm fan and an intelligent fan control, or IFC for short. The IFC ensures that the fan of the power supply only starts cooling when the internal temperature of the power supply exceeds 65°C. If the internal temperature falls below 65°C, the fan is switched back to idle mode – this keeps the noise level of the power supply unit extremely low.
When it comes to the variety of connections, we also kept an eye on the greatest possible efficiency and, with the exception of the 20+4pin connection, designed all other cable strands as flat ribbon versions – saving space and time when laying. The GPS-700 has four PCIe 6+2pin and six S-ATA connections available. With 58A on the 12V line, there is more than enough power available for potent hardware. We round off the overall package with a 60-month manufacturer’s guarantee for the entire GPS series.
Total power: 700 W
AC input voltage: 100 – 240 V
AC input frequency: 47 – 63 Hz
Input current: 9/4.5A
Combined power (+3.3V): 100 W
Combined power (+12V): 700 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 58 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 93.3%
Power protection features: Over current, Over power, Over voltage, Short circuit
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 4
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Feature: PCI Express connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Noise level: 35.6 dB
Design
Product colour: Black
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Packaging content
Cables included: AC
Weight & dimensions
Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 1.97 kg
Packaging data
Package weight: 2.31 kg
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
