Inter-Tech 88882188. Total power: 160 W. Motherboard power connector: 20-pin ATX. Purpose: Server. Product colour: Black. Width: 53 mm, Depth: 40 mm, Height: 18 mm
Mini-ITX PSU 160W DC/DC – brings energy into your ITX case
The compact design of this Mini-ITX PSU allows you to power your components even in tight cases.

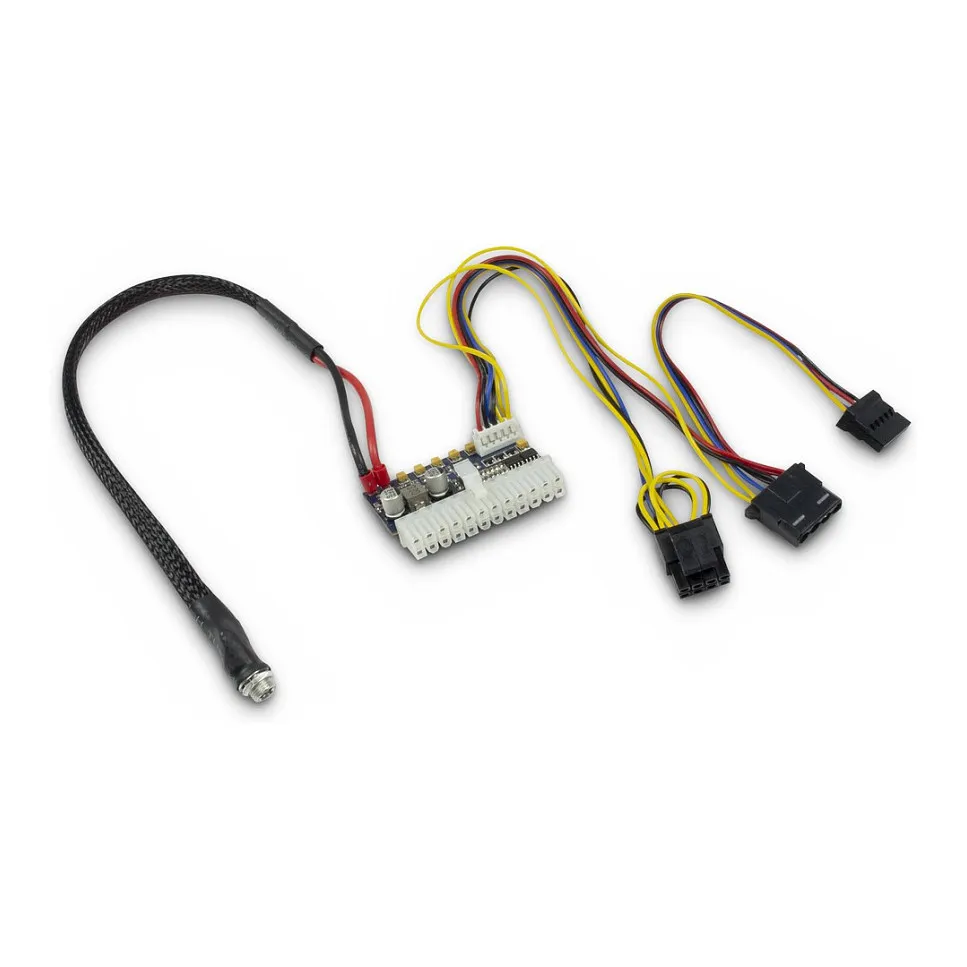

A cable with socket and nut is attached to a matching hole on the case wall and is used to connect an external 12V power supply, which may have a power of up to 160W.

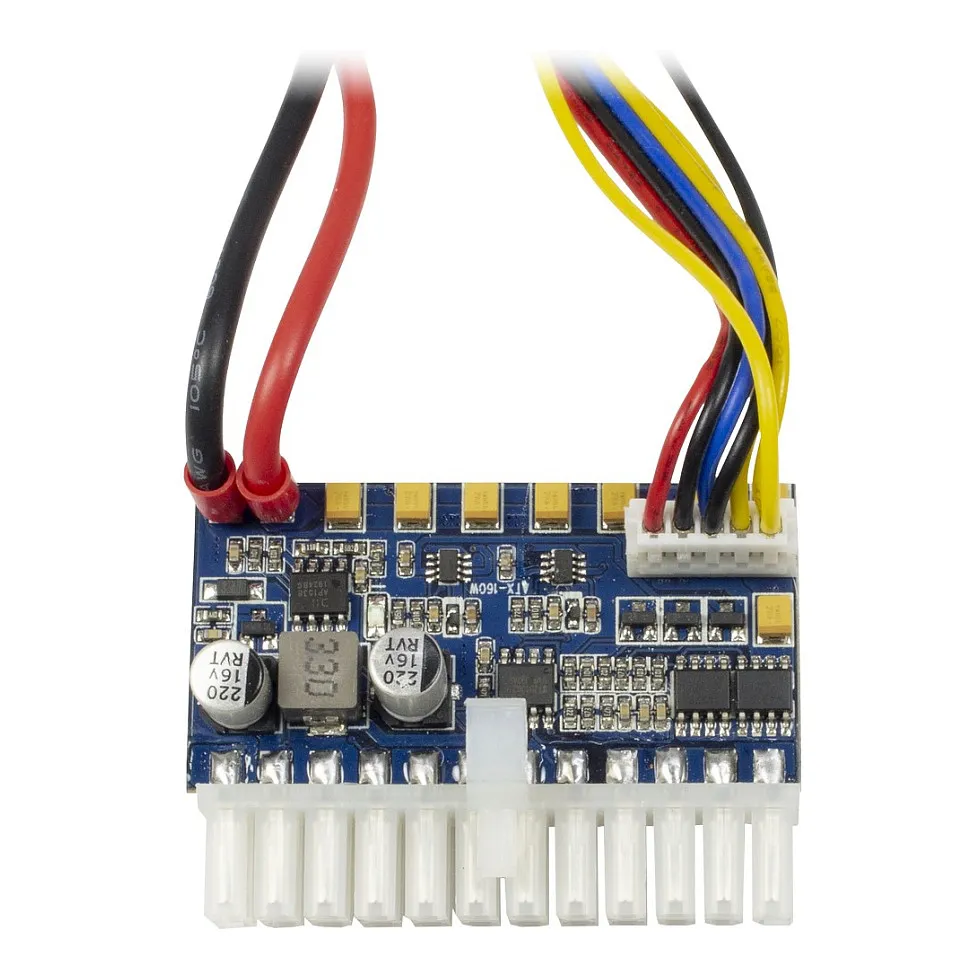

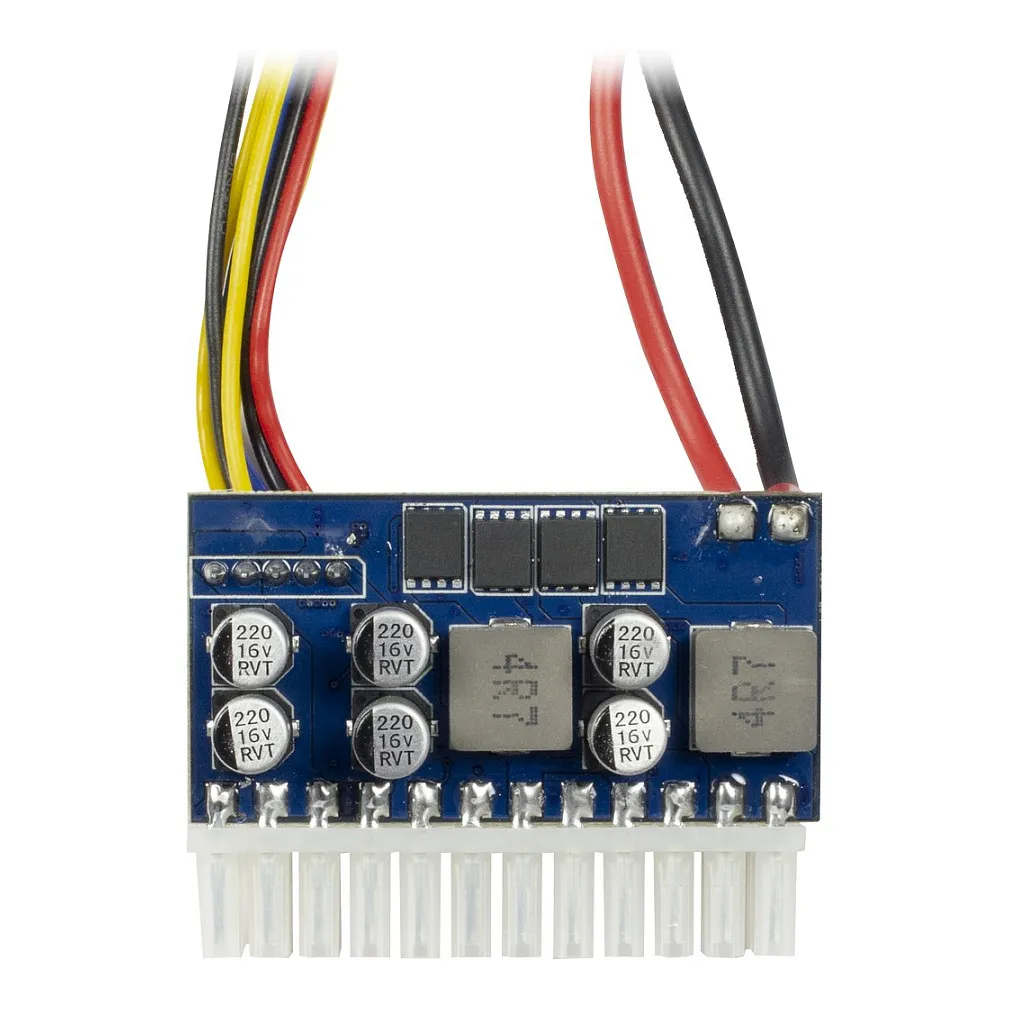

The board is equipped with the 24pin main power cable, a strand with 1x Molex connector, 1x S-ATA connector and a strand with 1x 4+4pin connector .
Compact design (40x53x18mm)
Supports power supplies up to 160W
24 Months Warranty
Please note!
For the operation of the Mini-ITX PSU an external power supply with sufficient maximum power matching the Mini-ITX PSU is mandatory.
The compact design of this Mini-ITX PSU allows you to power your components even in tight cases.
A cable with socket and nut is attached to a matching hole on the case wall and is used to connect an external 12V power supply, which may have a power of up to 160W.
The board is equipped with the 24pin main power cable, a strand with 1x Molex connector, 1x S-ATA connector and a strand with 1x 4+4pin connector .
Compact design (40x53x18mm)
Supports power supplies up to 160W
24 Months Warranty
Please note!
For the operation of the Mini-ITX PSU an external power supply with sufficient maximum power matching the Mini-ITX PSU is mandatory.
Power
Total power: 160 W
Ports & interfaces
Motherboard power connector: 20-pin ATX
Number of SATA power connectors: 1
Peripheral (Molex) power connectors (4-pin): 1
Feature: EPS power connector (4+4 pin)
Performance
Purpose: Server
Design
Product colour: Black
Weight & dimensions
Width: 53 mm
Depth: 40 mm
Height: 18 mm
Weight: 60 g
Packaging data
Package weight: 65 g
Logistics data
Harmonized System (HS) code: 84733020
Total power: 160 W
Ports & interfaces
Motherboard power connector: 20-pin ATX
Number of SATA power connectors: 1
Peripheral (Molex) power connectors (4-pin): 1
Feature: EPS power connector (4+4 pin)
Performance
Purpose: Server
Design
Product colour: Black
Weight & dimensions
Width: 53 mm
Depth: 40 mm
Height: 18 mm
Weight: 60 g
Packaging data
Package weight: 65 g
Logistics data
Harmonized System (HS) code: 84733020
