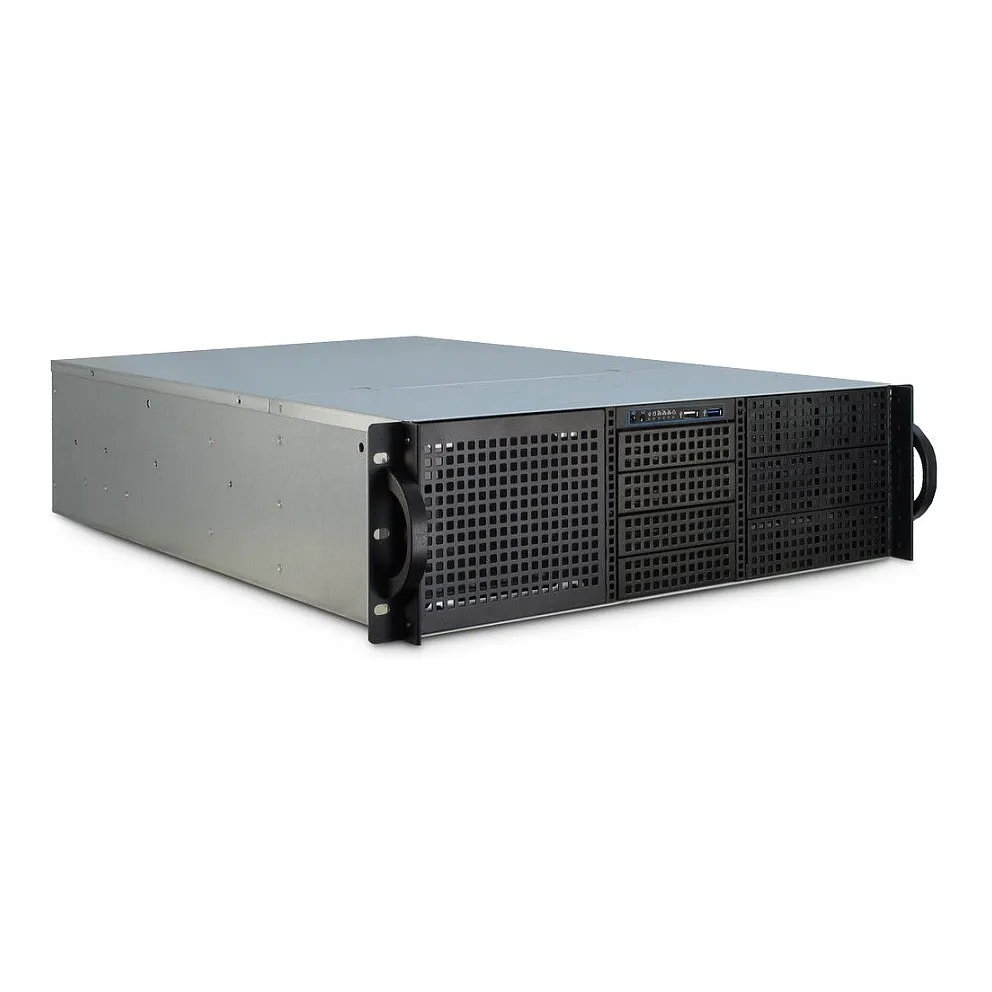

Inter-Tech 3U-30255. Form factor: Rack, Type: Server, Product colour: Black, Stainless steel. Supported power supply form factors: ATX. Front fans installed: 1x 120 mm, Front fans diameters supported: 120 mm, Side fans diameters supported: 40 mm. Supported HDD sizes: 3.5". Width: 480 mm, Depth: 588 mm, Height: 133.5 mm
The IPC 3U-30255 is the perfect rack for a low-priced server system. The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.
The IPC 3U-30255 provides the possibility to remove the two HDD cages on both sides and therefore to mount up to six 5.25″ external hard drives. In the middle four external 3.5″ HDDs are also available.
One 120mm and four 80mm fans guarantee an optimal cooling.
Additional extras like easily reachable USB connectors and the lid with the snap locks complete this total package.
Design
Material: Steel
Form factor: Rack
Type: Server
Product colour: Black, Stainless steel
Supported motherboard form factors: ATX, micro ATX, Mini-ITX, SSI CEB
Number of 3.5″ bays: 12
Number of 5.25″ bays: 6
Number of 2.5″ bays: 14
Number of internal 3.5″ bays: 12
Number of external 5.25″ bays: 6
Feature: Rack mounting
Rack capacity: 3U
Suitable for: Home/Office
Feature: Reset button
LED indicators: Alarm, HDD, Network, Power
Power supply
Supported power supply form factors: ATX
Ports & interfaces
Audio input: No
Audio output: No
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Cooling
Front fans installed: 1x 120 mm
Number of front fans supported (max): 1
Front fans diameters supported: 120 mm
Number of side fans supported (max): 6
Side fans diameters supported: 40 mm
Number of rear fans supported (max): 2
Rear fans diameters supported: 60 mm
Top fans installed: 3x 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120 mm
Storage
Supported HDD sizes: 3.5″
Number of HDDs supported: 10
Weight & dimensions
Width: 480 mm
Depth: 588 mm
Height: 133.5 mm
Weight: 10.7 kg
Material thickness: 1.2 mm
Packaging data
Package width: 560 mm
Package depth: 730 mm
Package height: 200 mm
Package weight: 13.1 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Peripheral (Molex) power connectors (4-pin): 1
Material: Steel
Form factor: Rack
Type: Server
Product colour: Black, Stainless steel
Supported motherboard form factors: ATX, micro ATX, Mini-ITX, SSI CEB
Number of 3.5″ bays: 12
Number of 5.25″ bays: 6
Number of 2.5″ bays: 14
Number of internal 3.5″ bays: 12
Number of external 5.25″ bays: 6
Feature: Rack mounting
Rack capacity: 3U
Suitable for: Home/Office
Feature: Reset button
LED indicators: Alarm, HDD, Network, Power
Power supply
Supported power supply form factors: ATX
Ports & interfaces
Audio input: No
Audio output: No
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Cooling
Front fans installed: 1x 120 mm
Number of front fans supported (max): 1
Front fans diameters supported: 120 mm
Number of side fans supported (max): 6
Side fans diameters supported: 40 mm
Number of rear fans supported (max): 2
Rear fans diameters supported: 60 mm
Top fans installed: 3x 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120 mm
Storage
Supported HDD sizes: 3.5″
Number of HDDs supported: 10
Weight & dimensions
Width: 480 mm
Depth: 588 mm
Height: 133.5 mm
Weight: 10.7 kg
Material thickness: 1.2 mm
Packaging data
Package width: 560 mm
Package depth: 730 mm
Package height: 200 mm
Package weight: 13.1 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Peripheral (Molex) power connectors (4-pin): 1
