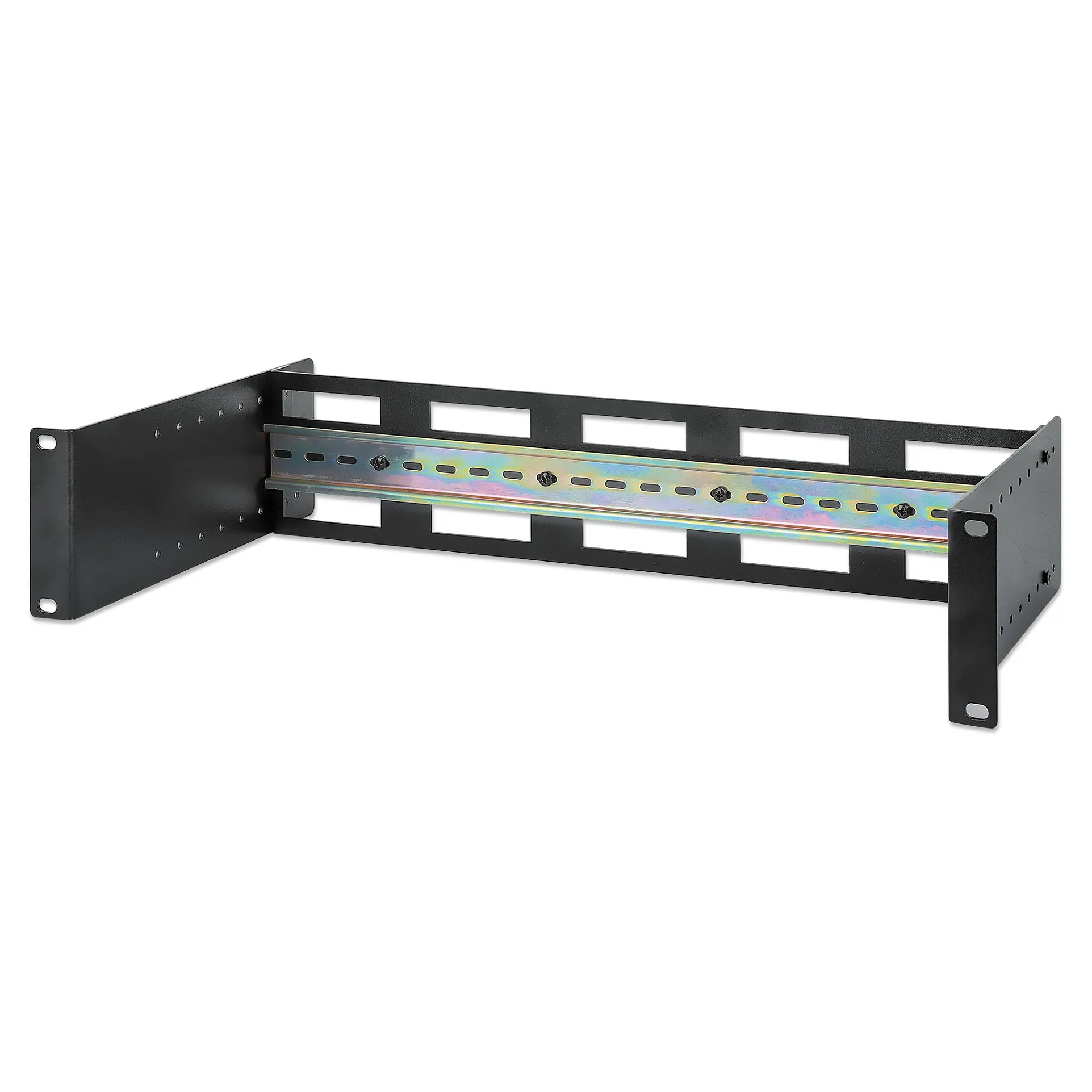

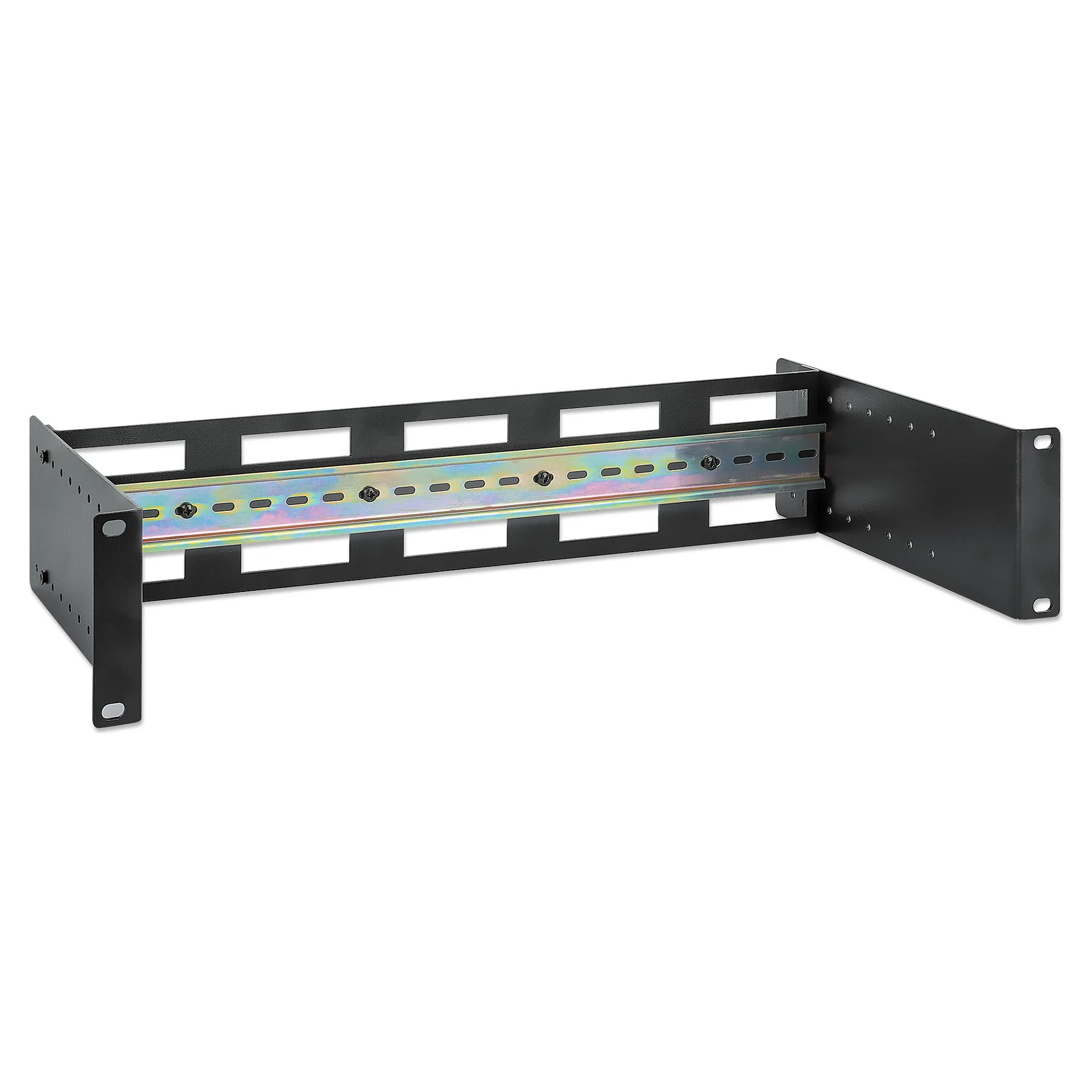

Intellinet Adjustable 19" Rackmount DIN Rail Kit, 2U, Chassis to Mount Top Hat DIN Rail Equipment in a 19 in. Rack, Adjustable Rail Depth of 48 to 174 mm, Aluminum, Black RAL 9005. Type: Rack rail, Housing material: Aluminium, Product colour: Black. Quantity per pack: 1 pc(s). Weight: 1.3 kg

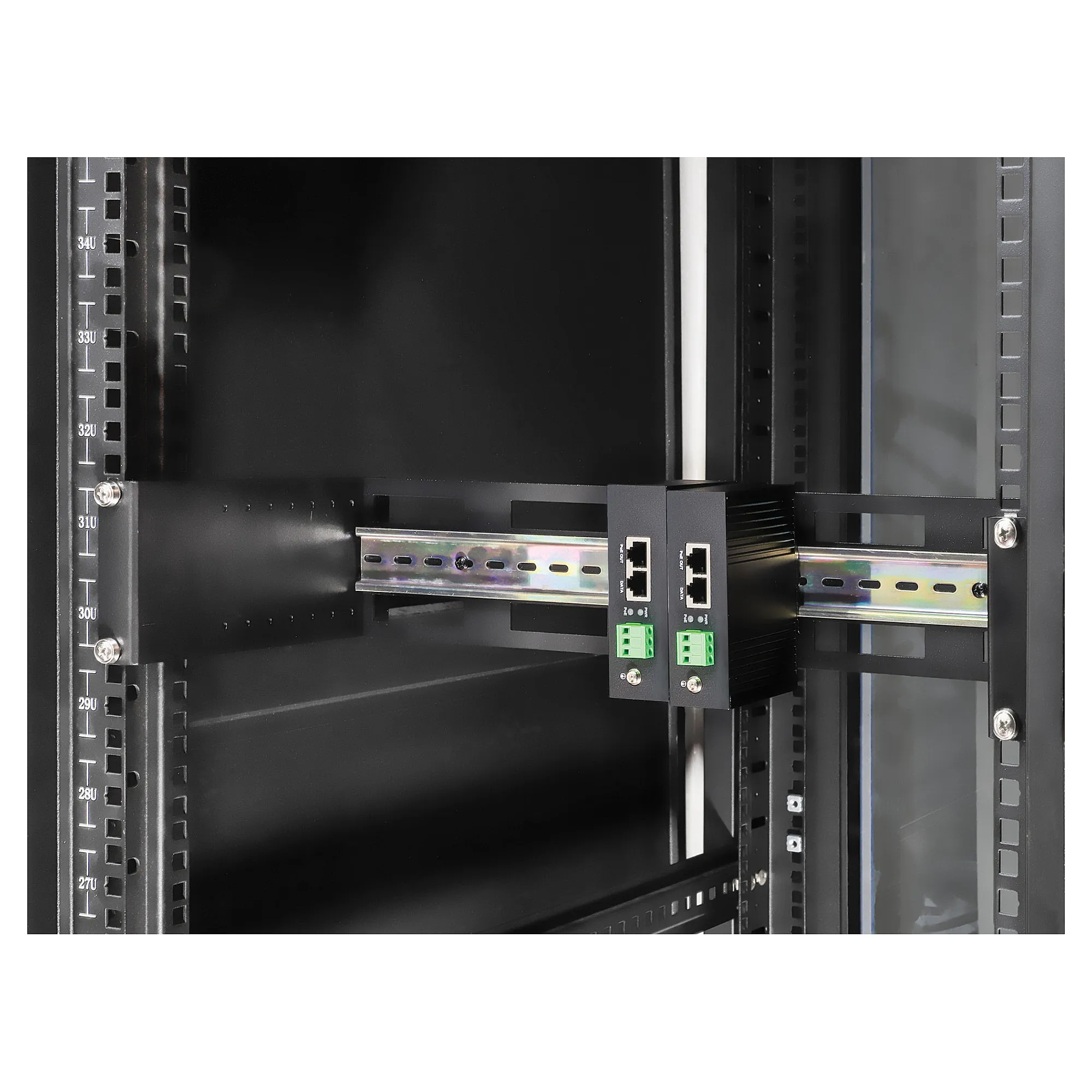

The Adjustable 19″” Rackmount DIN Rail Kit, 2U from Intellinet Network Solutions allows for seamless integration of your top hat DIN rail equipment into a 19 in. network enclosure, open frame rack or server cabinet.
Tailor Your Space with Depth Adjustment

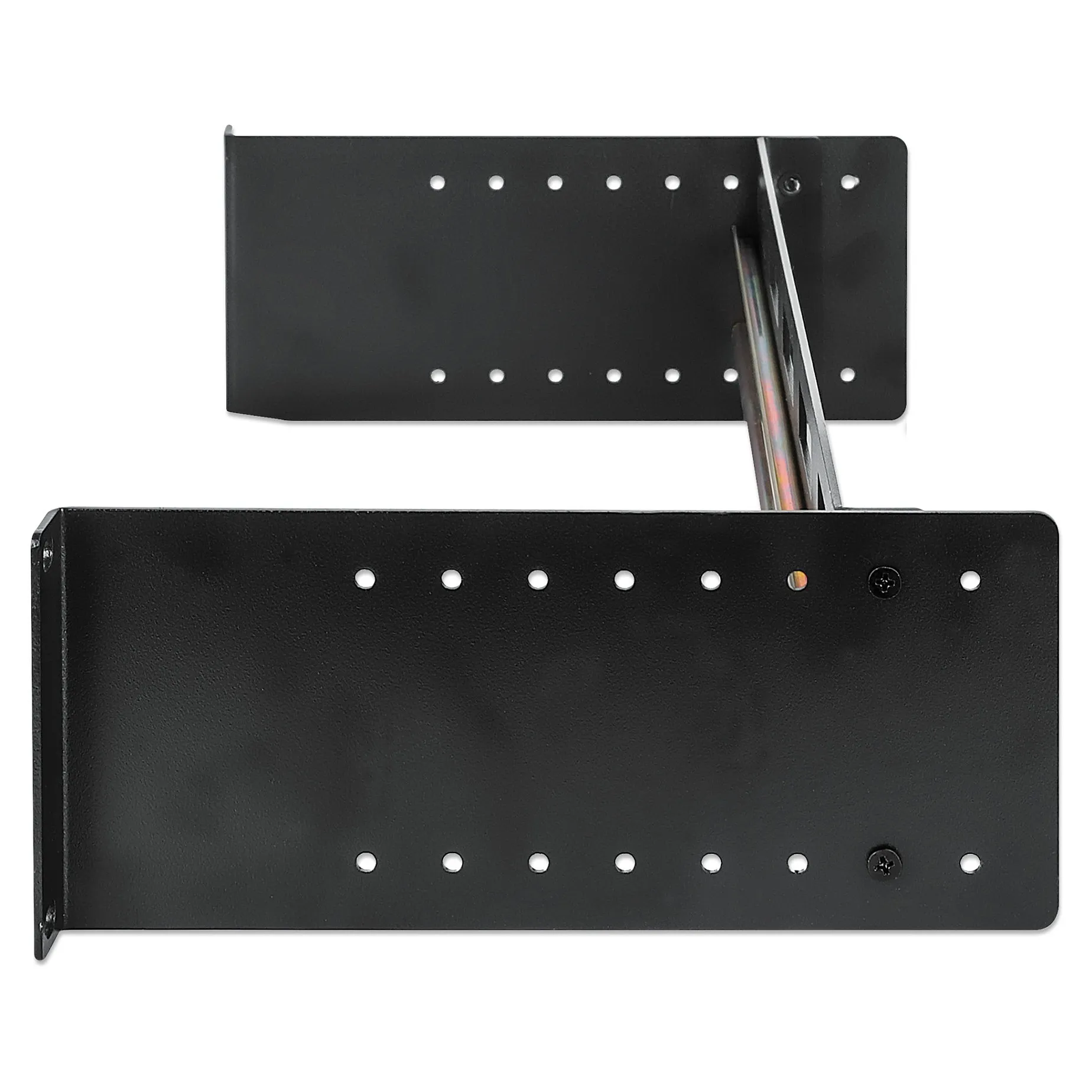

With eight adjustable levels ranging from 48 to 174 mm (1.89 to 6.85 in.), it accommodates a wide spectrum of products. Whether it’s industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks, or more – this kit adapts to your needs.
Compliant and Compatible
Meeting EIA 310 / IEC 60297 standards, it fits into all standard 19 in. / 482.6 mm racks. The DIN-rail, in accordance with IEC/EN 60715 standards, ensures a perfect fit for your equipment.
Durable Construction Built to Last
Crafted with heavy-duty anodized 2 mm thick aluminum, our kit is built to withstand the test of time. It offers great strength and stability, providing a maximum load capacity of 9 kg (20 lbs.).
Everything You Need Included
We’ve got you covered with a package that includes four M6x12 screws, four M6 cage nuts, and four M6 plastic washers for 19″” mounting straight out of the box.
Type: Rack rail
Product colour: Black
Housing material: Aluminium
Maximum weight capacity: 9 kg
Rack capacity: 2U
Certification: ANSI/EIA 310-EIEC 60297-3IEC/EN 60715
Weight & dimensions
Width: 487 mm
Depth: 210 mm
Height: 89 mm
Material thickness: 2 mm
Weight: 1.3 kg
Packaging data
Quantity per pack: 1 pc(s)
Package weight: 1.55 kg
Packaging content
Feature: Mounting kit
Technical details
Feature: Sustainability compliance
Compliance certificates: RoHS
