Intellinet 4-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, 90 W PoE Power Budget, Four PSE Ports with up to 30 W Output, IEEE 802.3bt/at/af Compliant, Metal Housing. Type: Network transmitter, Maximum transfer distance: 100 m, Data transfer rate: 10000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Product colour: Black, Housing material: Metal, LED indicators: Activity, Link, PoE. Total Power over Ethernet (PoE) budget: 90 W, Power over Ethernet (PoE) voltage range: 44 – 57 V. Width: 130 mm, Depth: 86 mm, Height: 29 mm

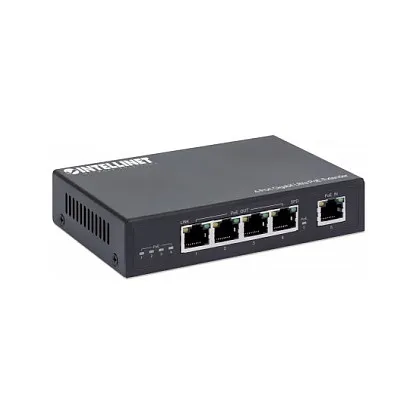

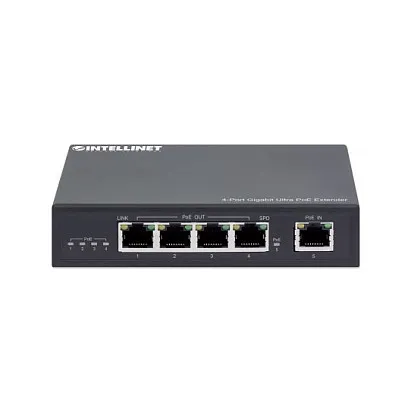

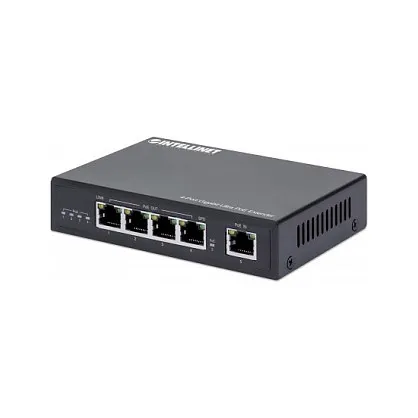

The Intellinet Network Solutions 4-Port Gigabit Ultra PoE Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to four output devices via Cat5e or Cat6 cable. This PoE extender does not need an additional power supply since it draws its power from the PoE input.
Reduced Wiring Costs
This Ultra PoE Extender helps avoid the expense of running AC power lines for a wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.
Power over Ethernet 802.3bt Compliant
The Intellinet Network Solutions 4-Port Gigabit Ultra PoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 90 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).
Simple Installation
This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its „PoE In” port to your PoE injector or PoE switch and to connect the „PoE Out” ports to the PoE devices you want to connect (e.g., a VoIP phone and a PoE network camera).
Type: Network transmitter
Maximum transfer distance: 100 m
Data transfer rate: 10000 Mbit/s
Cable types supported: Cat5e
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Jumbo frames support
Duplex system: Full
MAC address table: 2048 entries
Feature: Flow control support
Network
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Ports & interfaces
Ethernet LAN (RJ-45) ports: 5
Power over Ethernet (PoE) ports quantity: 4
Design
Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, PoE
Certification: FCC A, CE
Power
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 90 W
Power over Ethernet (PoE) voltage range: 44 – 57 V
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -10 – 70 °C
Operating relative humidity (H-H): 20 – 85%

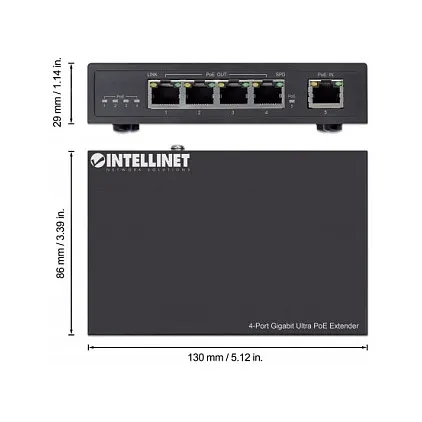

Weight & dimensions
Width: 130 mm
Depth: 86 mm
Height: 29 mm
Weight: 337 g
Packaging content
Feature: Manual
Certificates
Compliance certificates: CE, RoHS, Federal Communications Commission (FCC), UL
Logistics data
Harmonized System (HS) code: 85176990
