Intellinet Gigabit High-Power PoE+ Injector, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE). Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, Housing material: Metal, LED indicators: PoE, Power. Input voltage: 100 – 240 V, Power consumption (max): 42 W. Compliance certificates: CE, RoHS, Federal Communications Commission (FCC), Certification: FCC Class A Subpart B, CE, RoHS, UKCA, NDAA. Width: 72 mm, Depth: 154 mm, Height: 35 mm

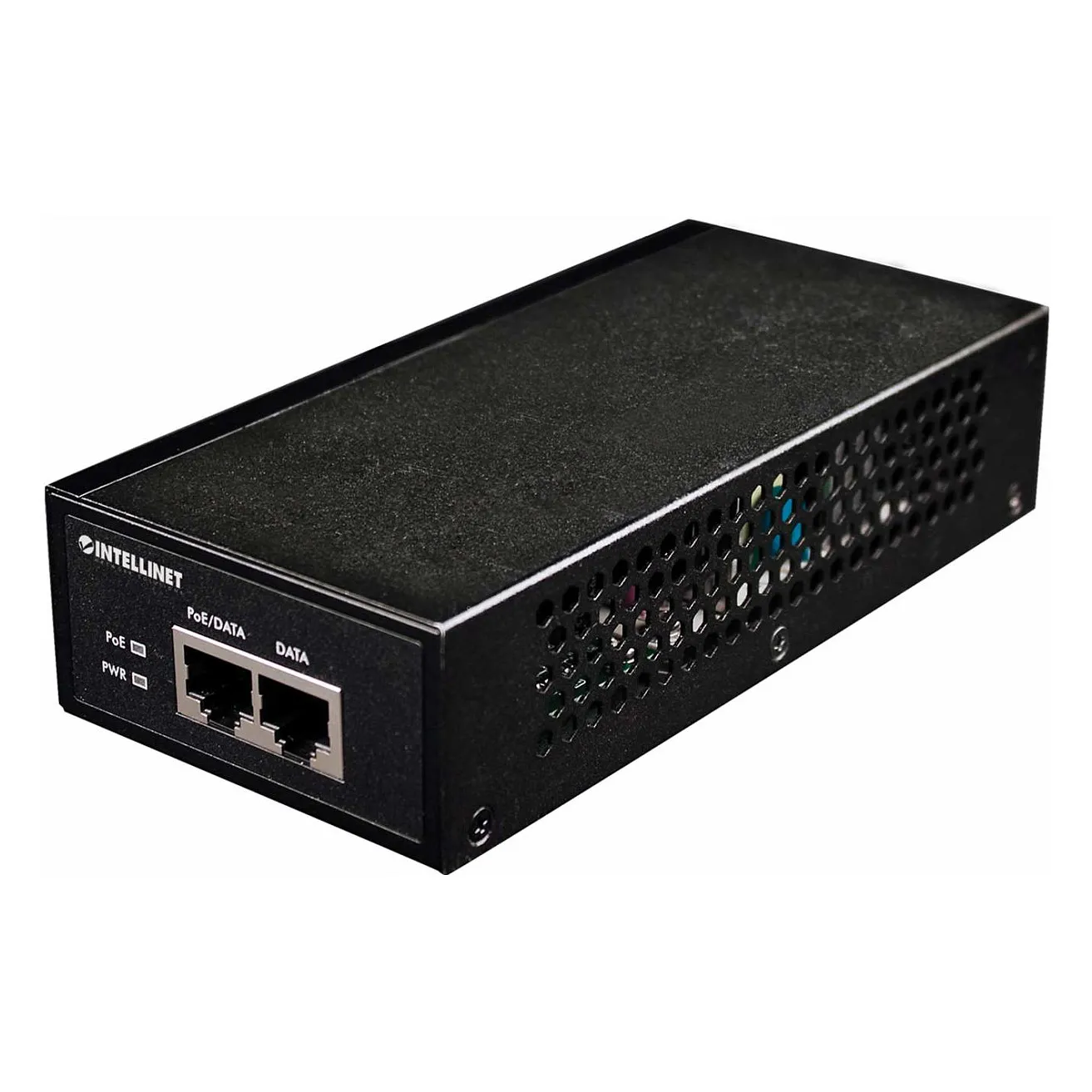

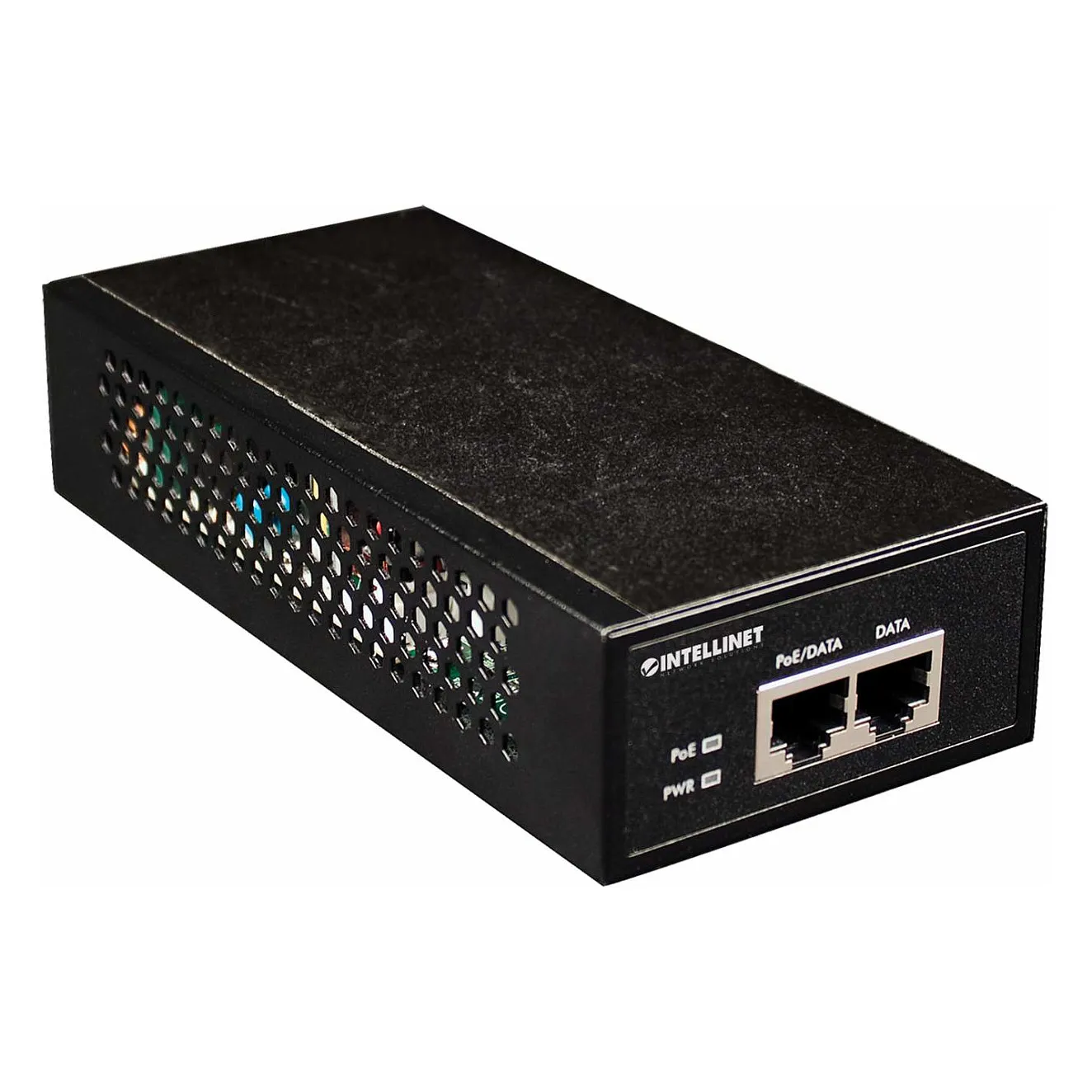

The Intellinet Network Solutions 1-Port Gigabit High-Power PoE+ Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The PoE Injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts. That’s enough for even power-hungry PoE devices.
Reduce Wiring Costs
No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.
Protect Your Equipment
Now that you are running DC power to your networked equipment through the Cat5e/6 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads and high voltages.
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Cable types supported: Cat5, Cat5e
Features
Product colour: Black
Housing material: Metal

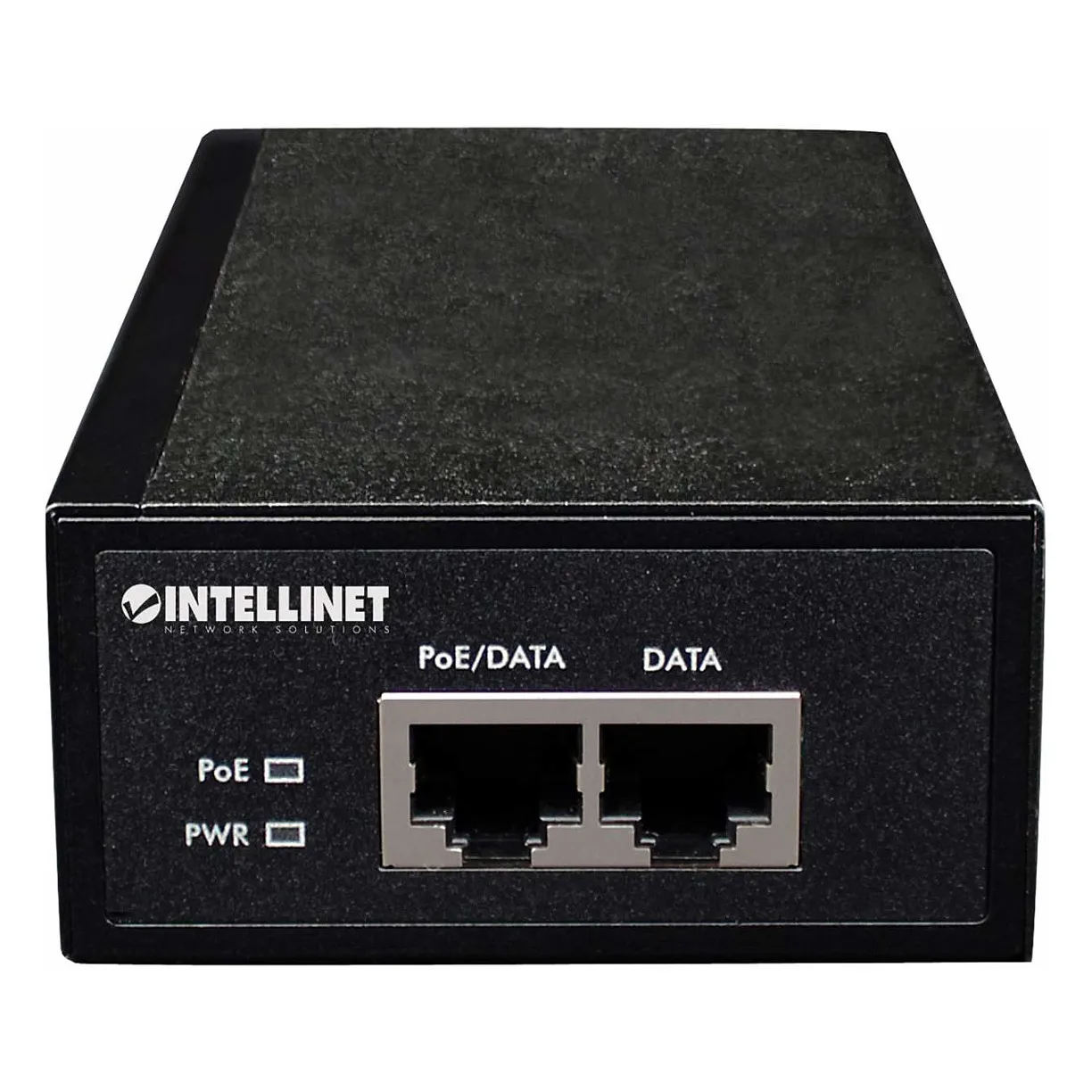

LED indicators: PoE, Power
Power protection features: Over voltage, Overload, Short circuit
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power

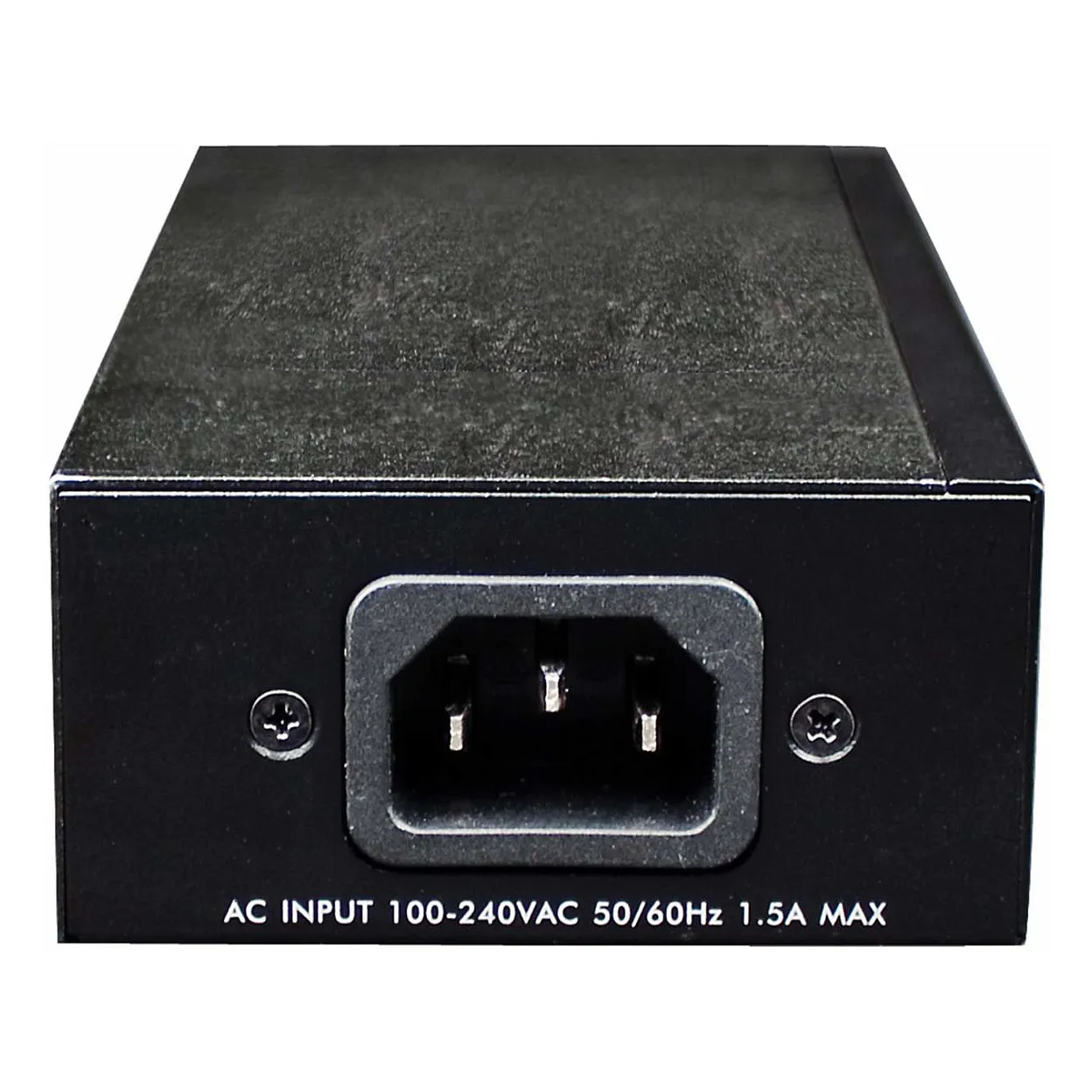

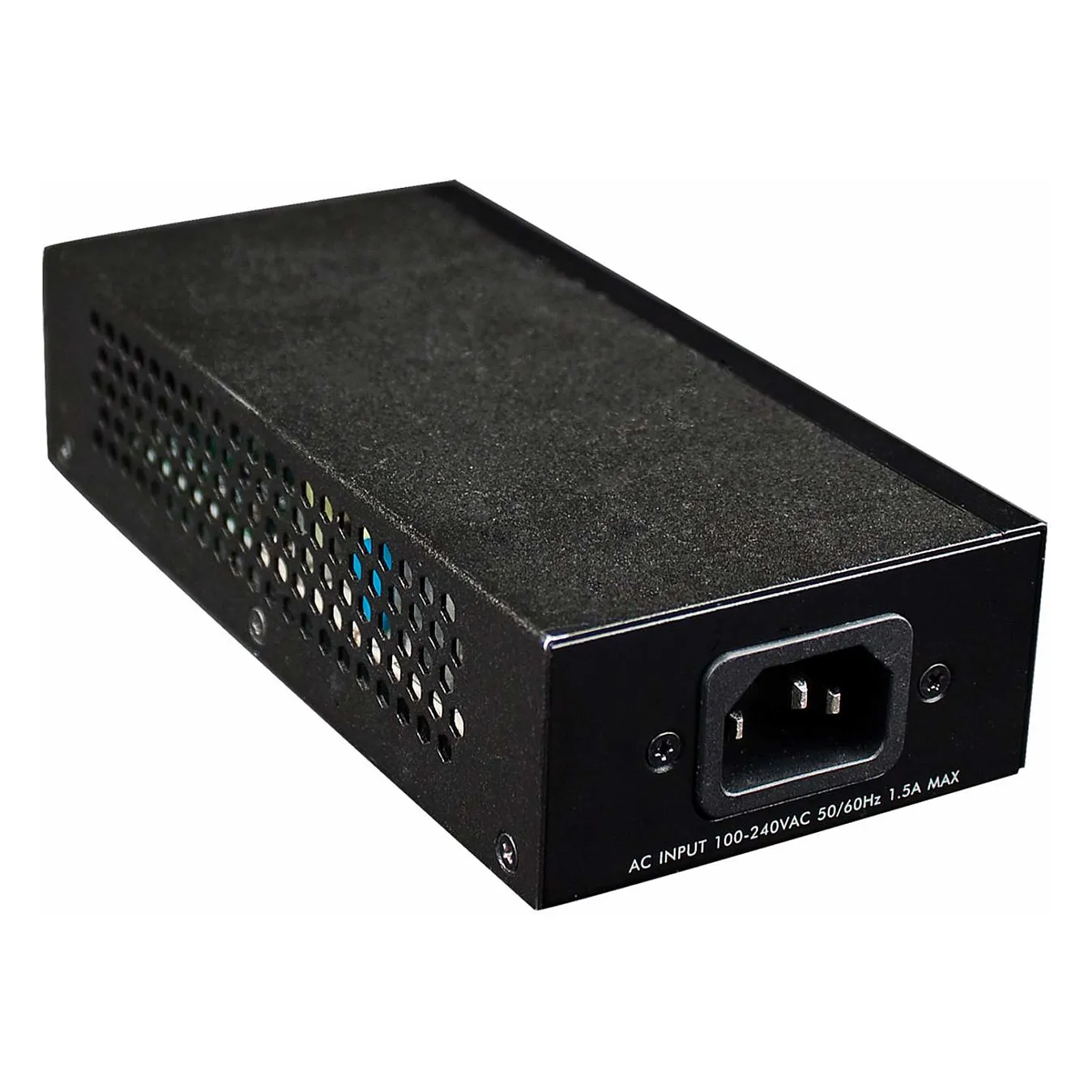

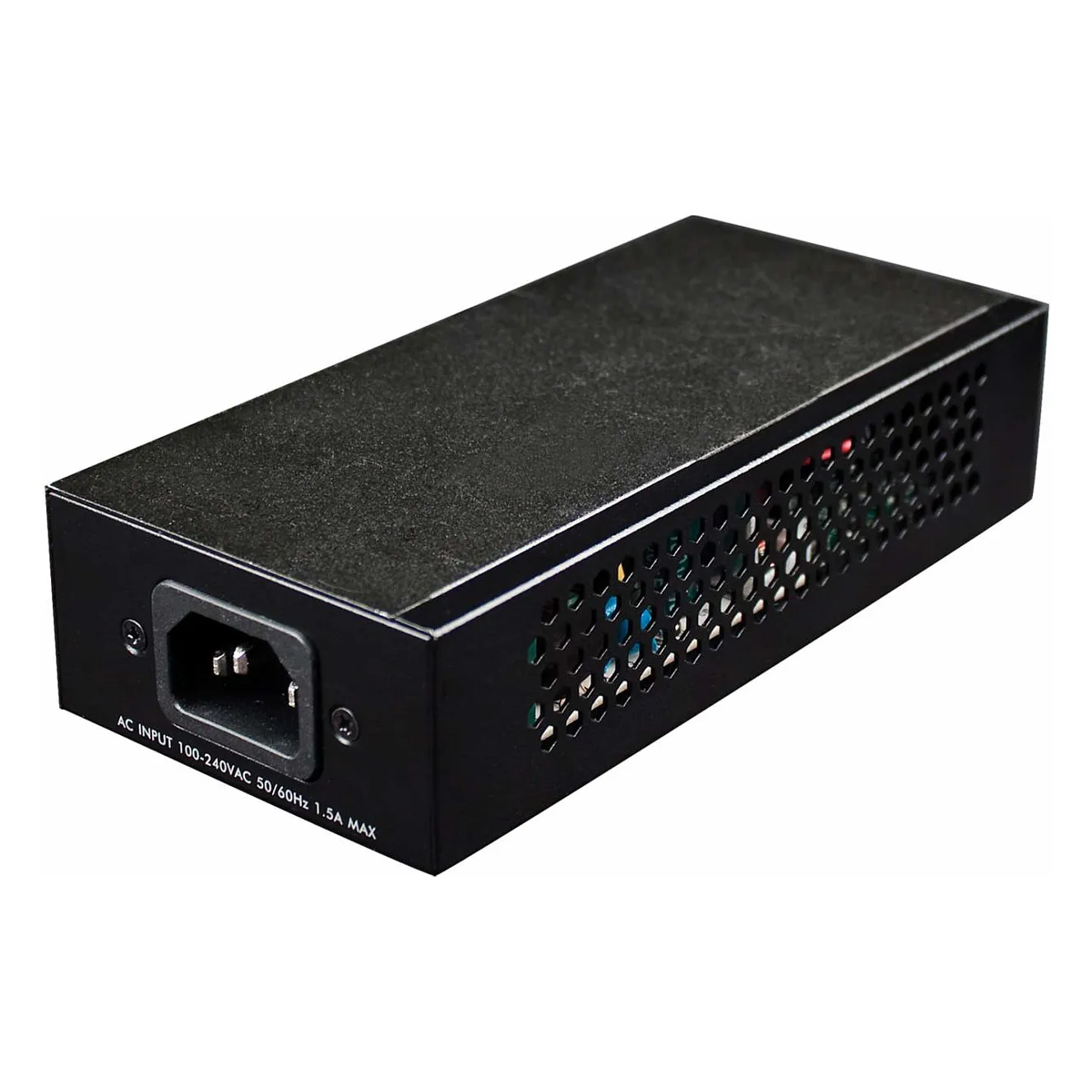

Input voltage: 100 – 240 V
Power consumption (max): 42 W
Certificates
Compliance certificates: CE, RoHS, Federal Communications Commission (FCC)
Certification: FCC Class A Subpart B, CE, RoHS, UKCA, NDAA
Operational conditions
Operating temperature (T-T): 5 – 45 °C
Operating relative humidity (H-H): 10 – 90%
Storage temperature (T-T): -20 – 55 °C
Weight & dimensions
Width: 72 mm
Depth: 154 mm
Height: 35 mm
Weight: 790 g
Packaging content
Number of products included: 1 pc(s)
Feature: Manual
Logistics data
Harmonized System (HS) code: 85044095
