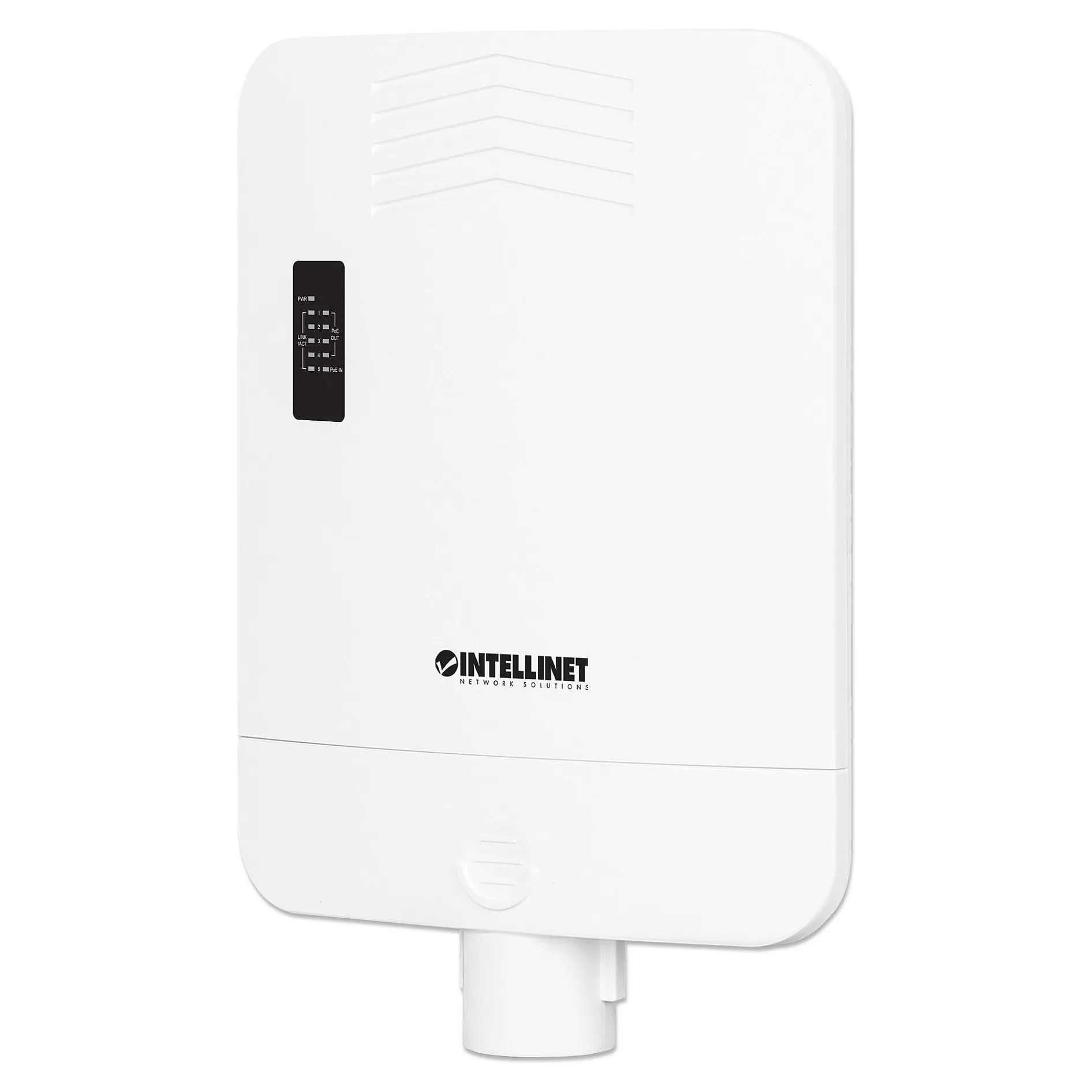

Intellinet Outdoor PoE-Powered 5-Port Gigabit Switch with PoE Passthrough / 4-Port PoE+ Extender. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

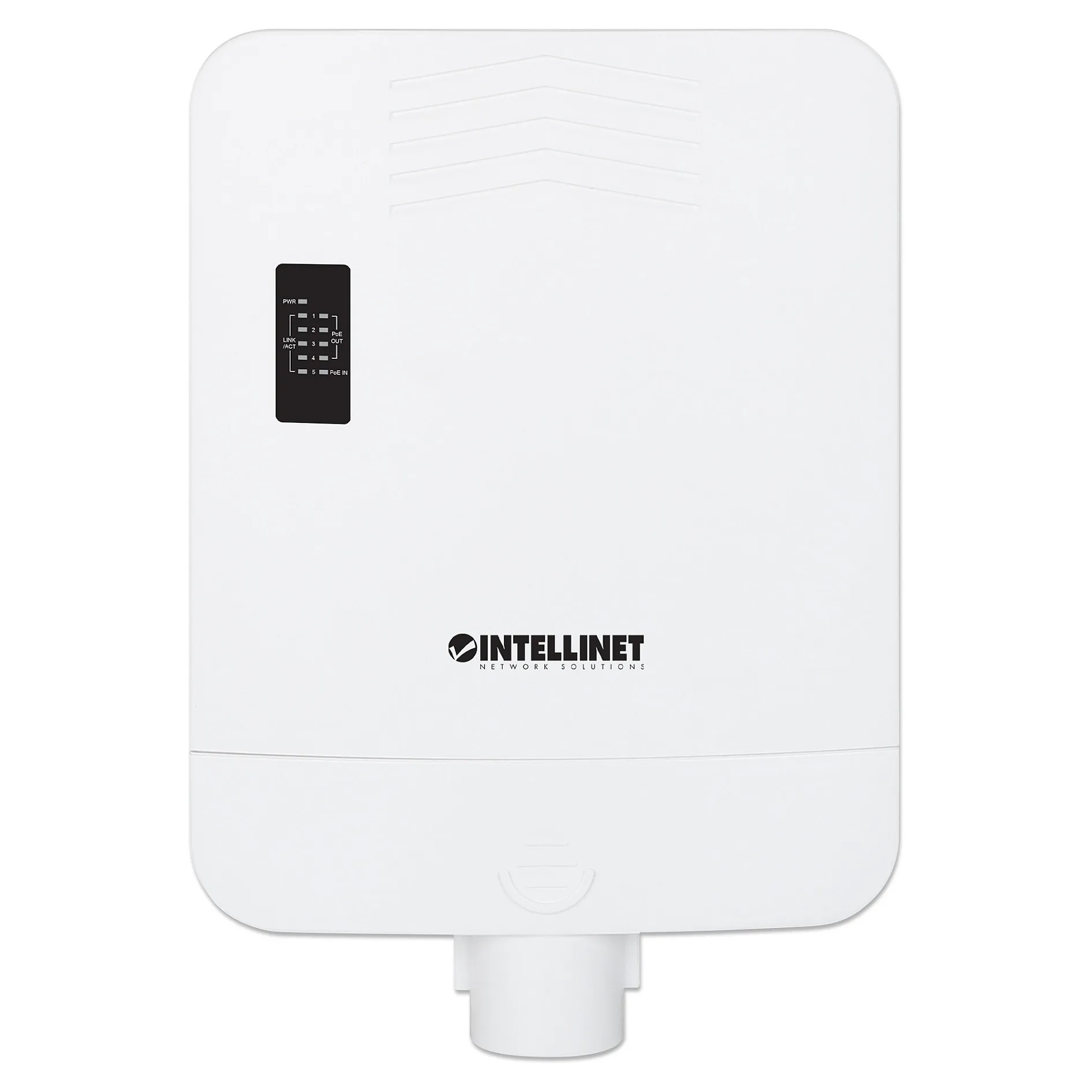

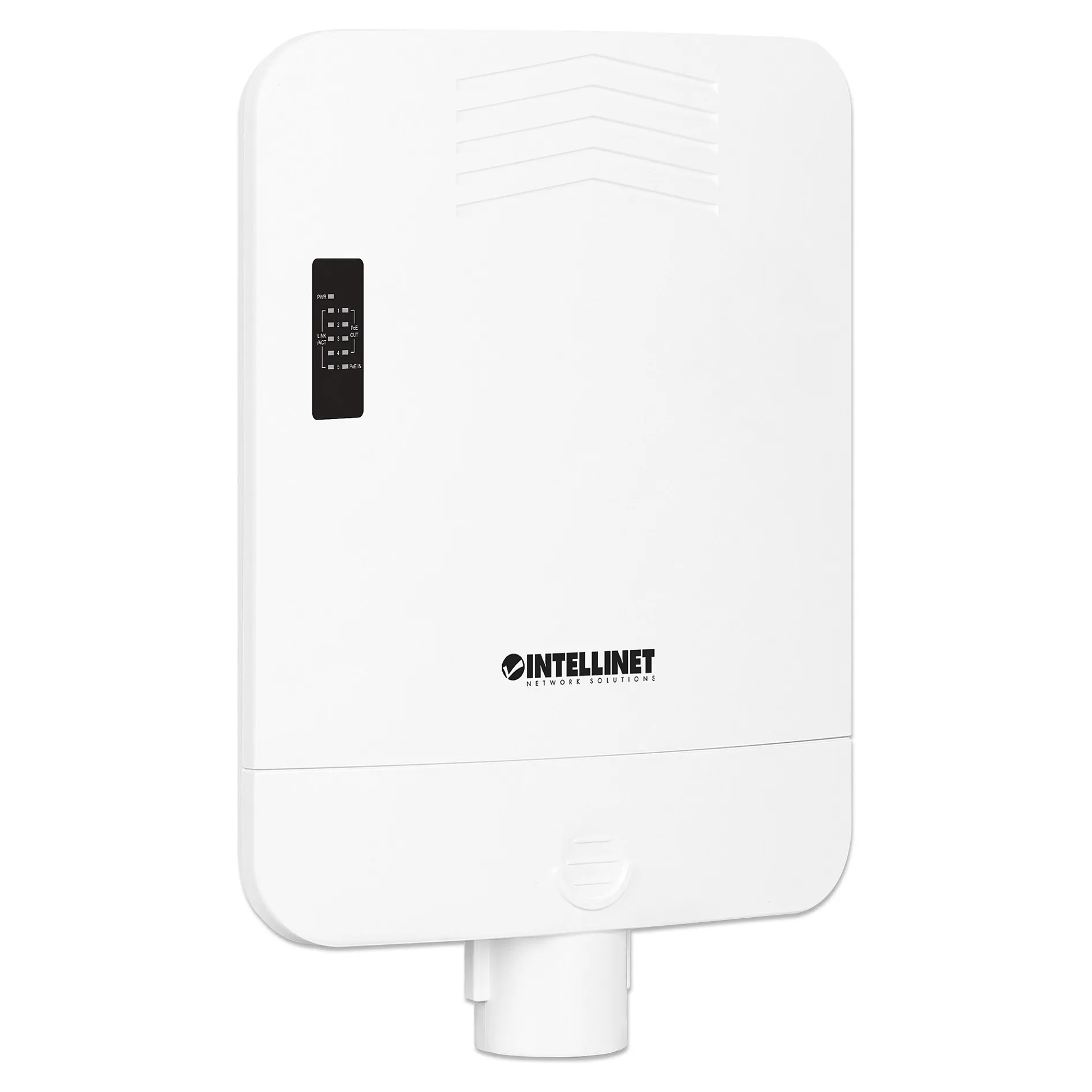

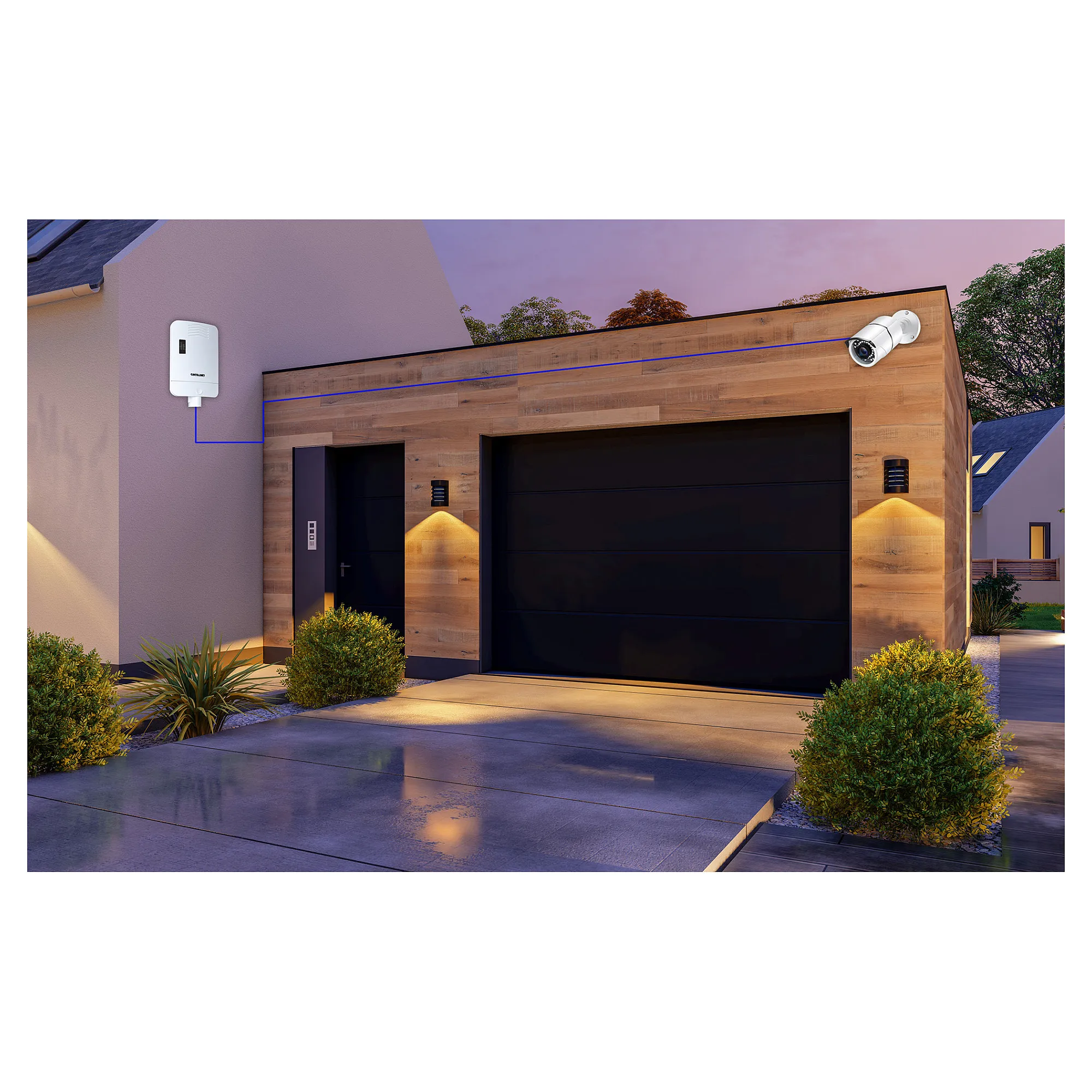

This PoE-Powered 5-Port Gigabit Switch from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power directly to a number of PoE-compatible devices via standard Ethernet cables. Equipped with five Gigabit ports, it can power up to four IP video cameras or wireless access points, drawing its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps. Its high range and weatherproof housing are especially useful for outdoor surveillance camera deployments, where both power and data connectivity are critical. As opposed to traditional 1-port outdoor PoE extenders, this 4-output switch simplifies the expansion of your outdoor infrastructure as needed for easier scalability of your network.
Designed for Outdoor Use
While you can power it from an indoor source, this outdoor PoE+ switch offers benefits where traditional indoor switches are not suitable, especially for longer-distance applications in a wide variety of environments. Its weatherproof IP65 (waterproof and dustproof) rating and a wide operating temperature range of -40 to 80ºC (-40 to 176ºF) make it able to withstand even the harshest conditions like rain, snow, dust, and extreme heat.
Usable as a PoE extender for reduced wiring costs

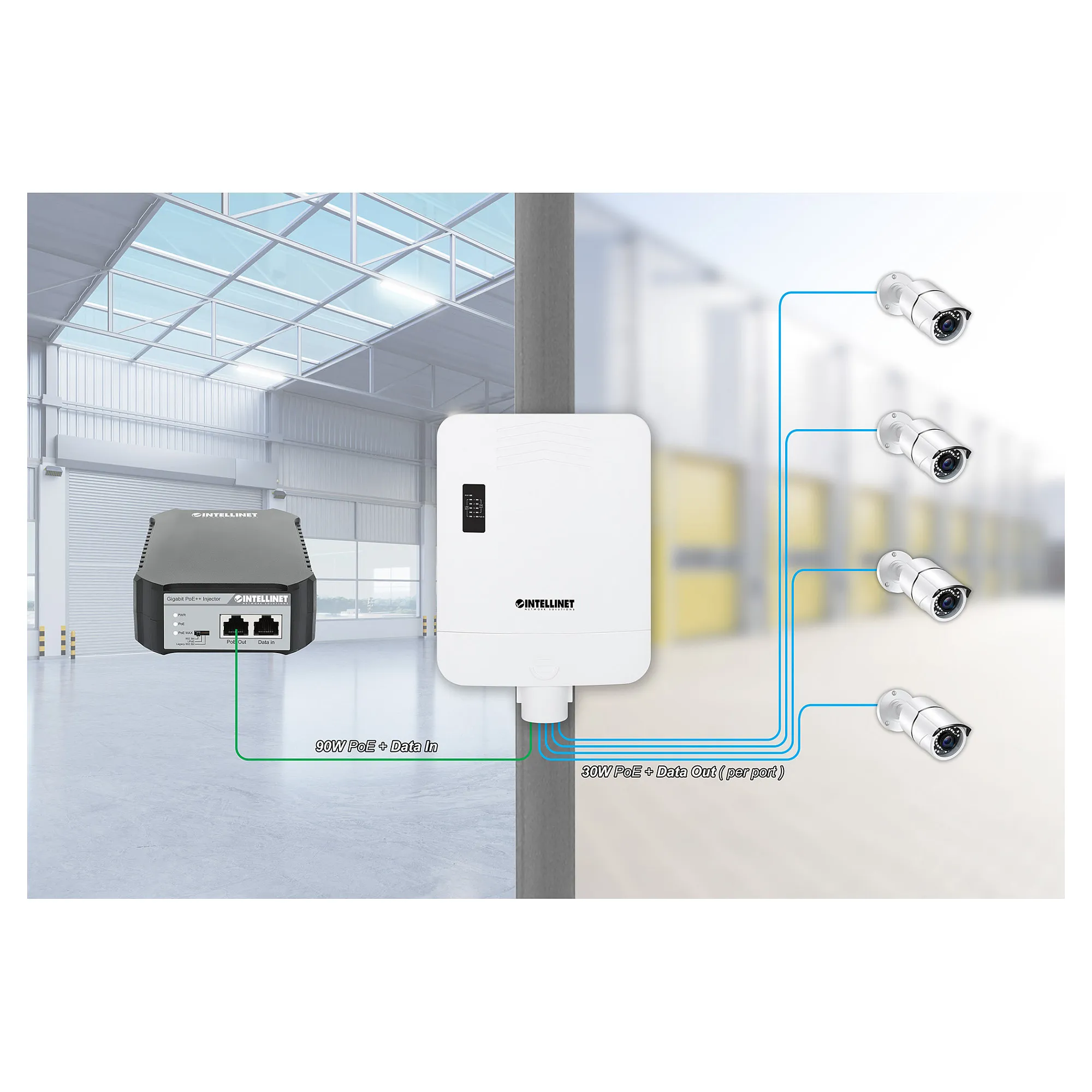

Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also avoids the expense of running AC power lines to an outdoor device. Simply connect the switch to a PSE in your network through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.
Power over Ethernet 802.3bt Compliant
This switch supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input up to 90 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to connected IEEE 802.3at- or IEEE 802.3af-compliant devices.
Wall-mount and pole-mount option
For full installation flexibility, you can mount the switch on the wall or a pole through its built-in bracket with mounting holes.

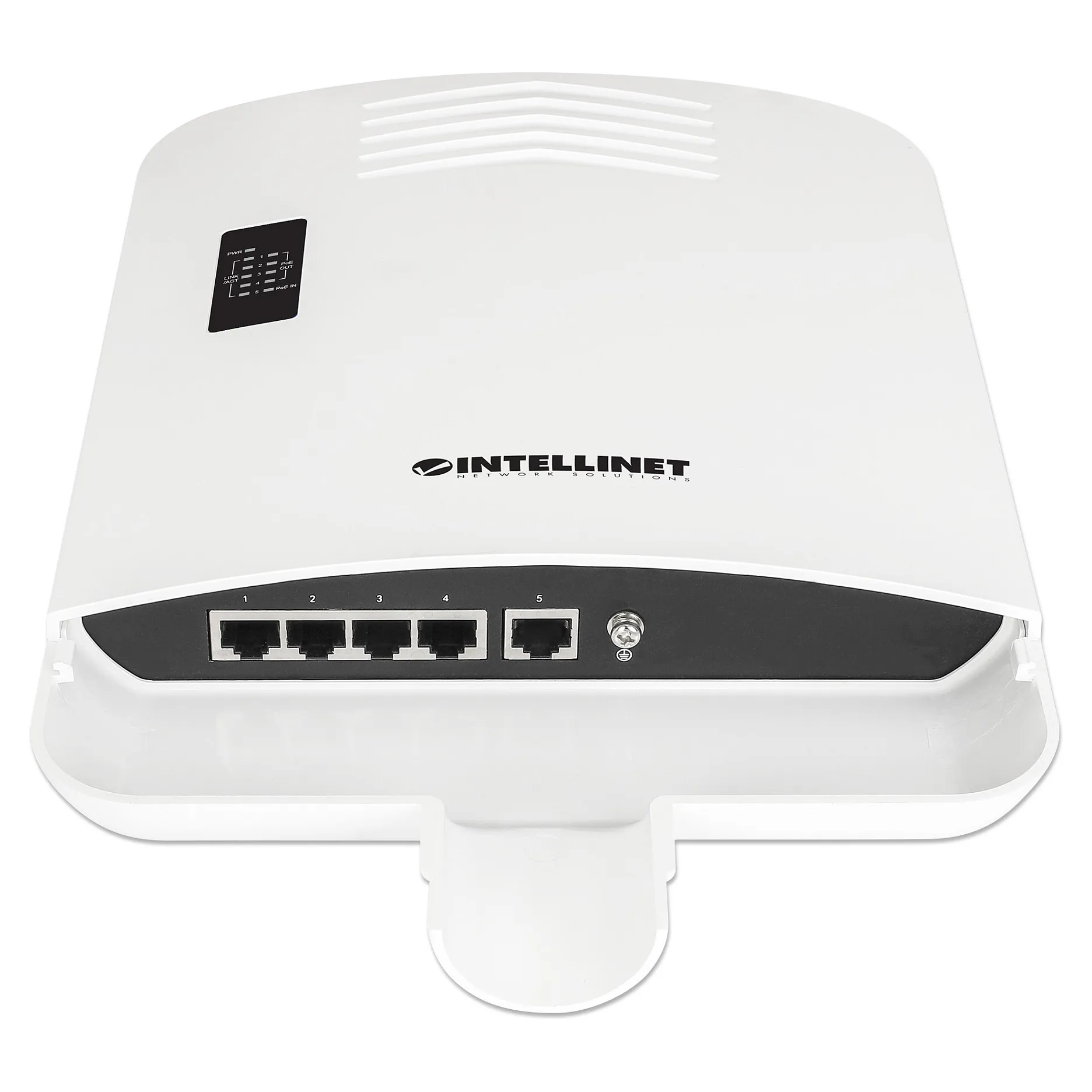

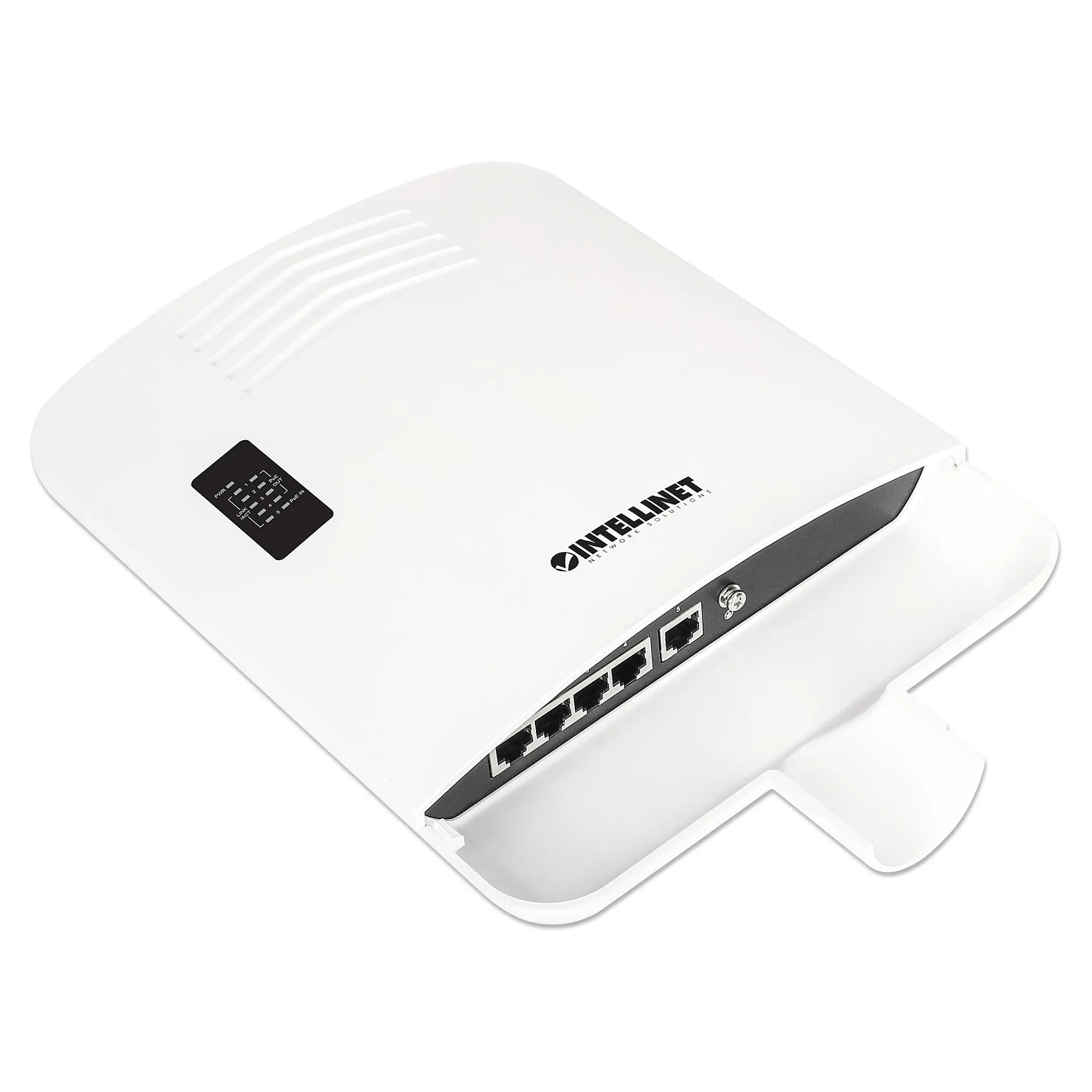

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Cable types supported: Cat5e, Cat6, Cat6a, Cat8.1
Feature: Auto MDI/MDI-X
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Data transmission
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 2 MB
Design
Product colour: White
Housing material: Plastic
LED indicators: Link, PoE, Power
International Protection (IP) code: IP65
Performance
Mean time between failures (MTBF): 50000 h
Power
Power source: PoE
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 85 W
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 0 – 90%
Storage relative humidity (H-H): 0 – 95%

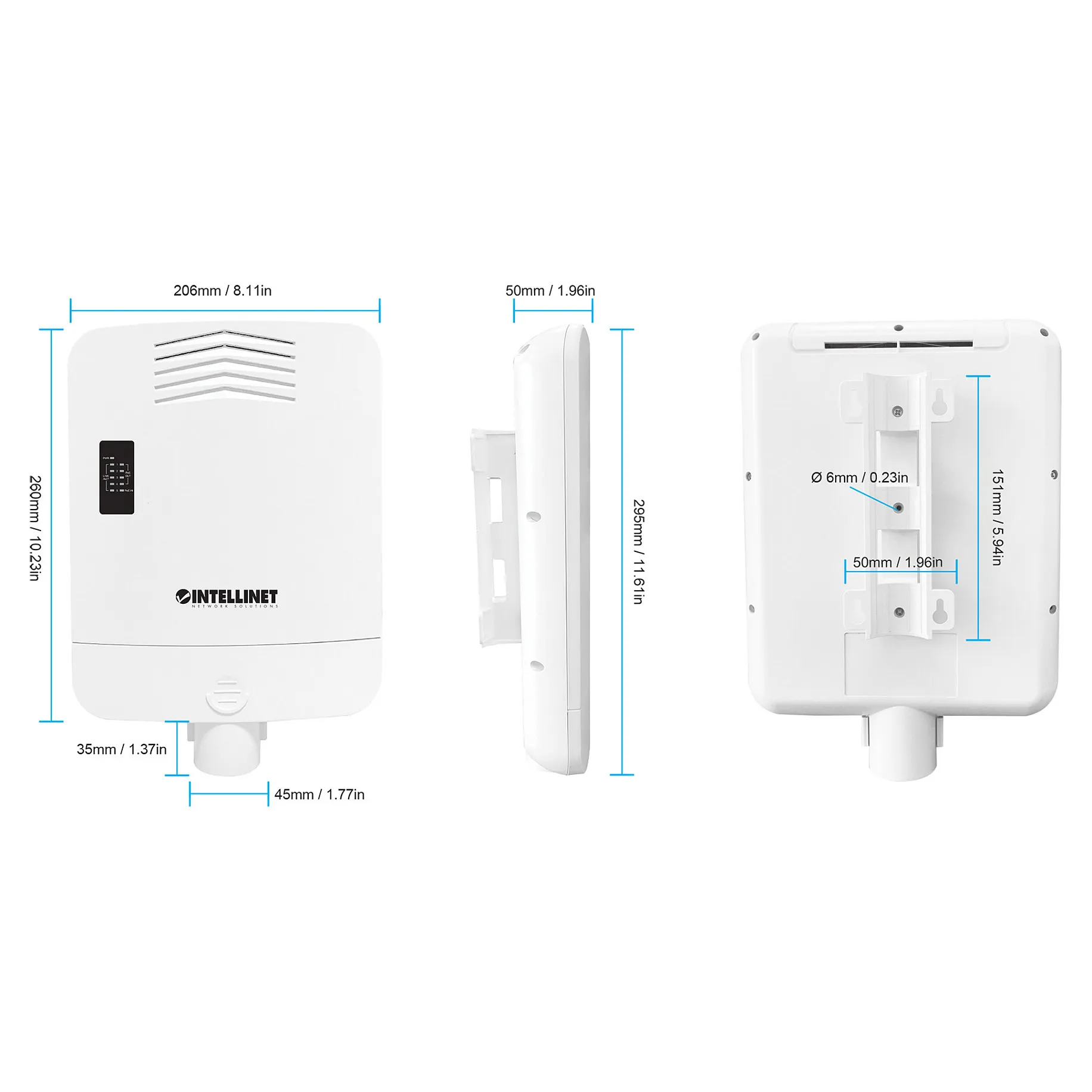

Weight & dimensions
Width: 206 mm
Depth: 299 mm
Height: 65 mm
Weight: 1 kg
Packaging content
Feature: Manual
Packaging data
Package width: 310 mm
Package depth: 350 mm
Package height: 90 mm
Package weight: 1.3 kg
Certificates
Compliance certificates: CE, RoHS
Certification: FCC, CE, RoHS, UKCA, NDAA
Logistics data
Master (outer) case width: 365 mm
Master (outer) case length: 565 mm
Master (outer) case height: 335 mm
Master (outer) case gross weight: 6.93 kg
Products per master (outer) case: 6 pc(s)
