Intellinet Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, Ethernet, Fibre, HPE Compliant, Equivalent to HPE J9150A / J9150D / JD092A / JD092B, Three Year Warranty. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Metal, Brand compatibility: HPE. Maximum voltage: 3.3 V, Power consumption (typical): 1 W. Compliance certificates: CE, RoHS, Federal Communications Commission (FCC). Width: 14 mm, Depth: 57 mm, Height: 12 mm
The Enhanced Small Form Factor Pluggable (SFP+) Transceiver from Intellinet Network Solutions provides a great combination of performance and affordability. Also known as a mini-Gigabit Interface Converter (GBIC), this SFP+ module’s metal housing reduces electromagnetic interference and increases its durability.
10G Connectivity
Whether you need a fast connection to your 10-GbE-equipped server or NAS device, or if you simply want to connect two Gigabit switches in your data center at higher speeds to eliminate bottlenecks, the Intellinet Network Solutions 10GBase-SR Fiber SFP+ Optical Transceiver Module is the right choice in getting the speeds and bandwidth you want.
Small Size for High-density Fiber Connections
The transceiver’s mini-GBIC form factor helps it take up less space on the equipment it plugs into. It’s ideal in environments that require many fiber connections.
Compatible with HP / HPE®
Compatibility in your network is everything, and this SFP+ Transceiver Module delivers. It has been designed, programmed and tested to work with HP / HPE-compatible switches and routers. Since it is set to broadcast the vendor part number J9150A / J9150D / JD092A / JD092B, it is compatible with your HPE gear.
Hot-pluggable
This module is fully hot-pluggable, and that allows you to install the module without rebooting your network switch, so network traffic is uninterrupted.

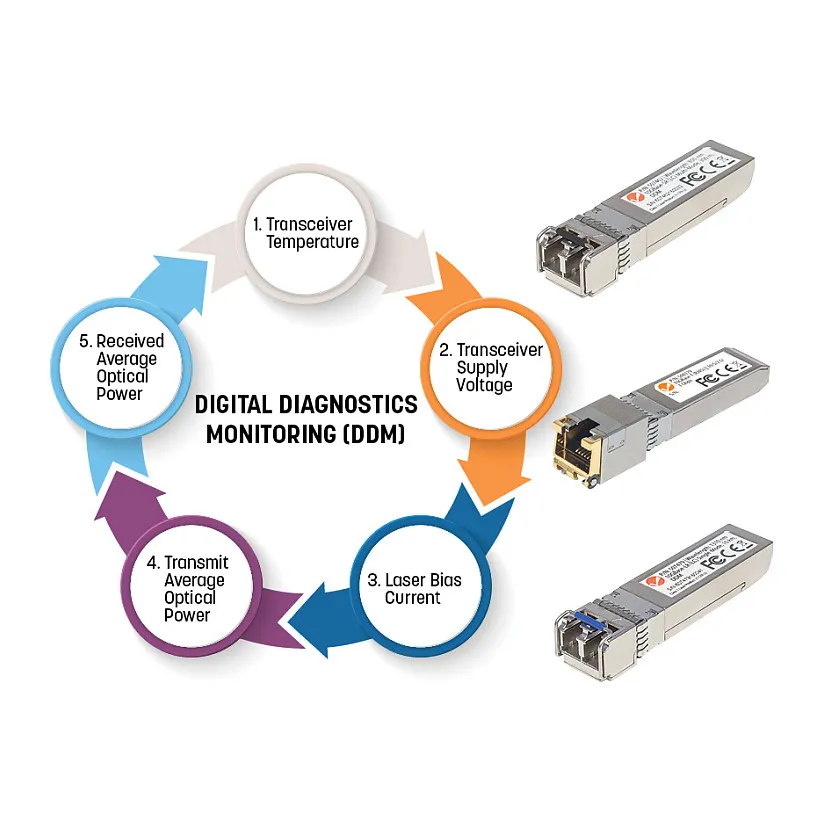

Digital Diagnostics Monitoring (DDM)
This 10 Gigabit Fiber SFP+ Optical Transceiver Module supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This lets you monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.
SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
SFP transceiver standard: SR
Maximum transfer distance: 300 m
Wavelength: 850 nm
Tx power (min): -6 dBmW
Tx power (max): -1 dBmW
Link budget: 4 dB
Networking standards: IEEE 802.3ae, IEEE 802.3z
Copper ethernet cabling technology: 10GBASE
Feature: Digital Diagnostics Monitoring (DDM)
Features
Product colour: Silver
Housing material: Metal
Feature: Hot-Plug support
Brand compatibility: HPE
Power
Maximum voltage: 3.3 V
Power consumption (typical): 1 W
Certificates
Compliance certificates: CE, RoHS, Federal Communications Commission (FCC)
Sustainability
Feature: Sustainability compliance
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 10 – 85%
Weight & dimensions
Width: 14 mm
Depth: 57 mm
Height: 12 mm
Weight: 20 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 56 mm
Package depth: 120 mm
Package height: 24 mm
Package weight: 50 g
Logistics data
Master (outer) case width: 200 mm
Master (outer) case length: 310 mm
Master (outer) case height: 250 mm
Master (outer) case gross weight: 2.6 kg
Products per master (outer) case: 48 pc(s)
