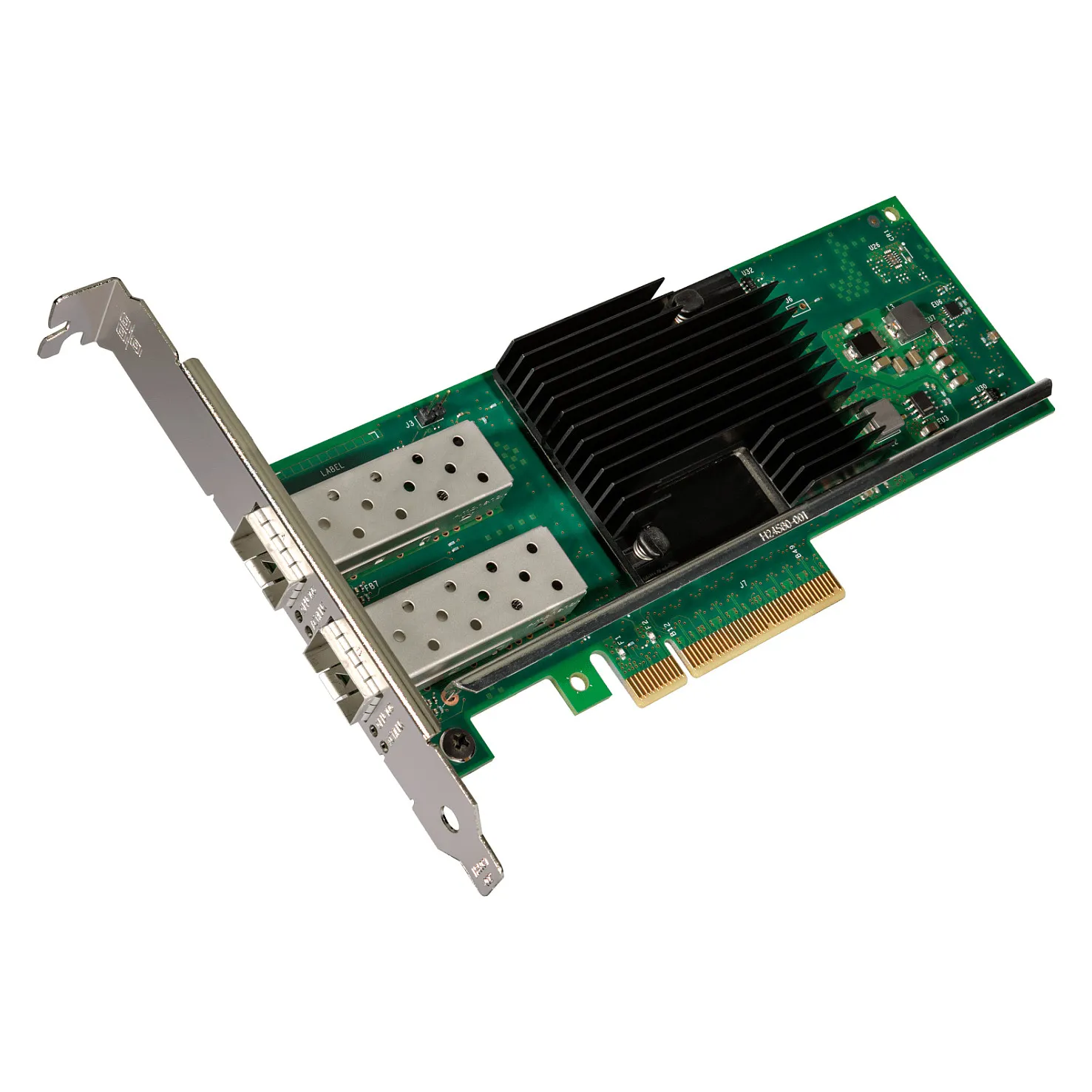

Intel X710DA2. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Green
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Connectivity technology: Wired
Host interface: PCI Express
Interface: Fiber
Ethernet LAN (RJ-45) ports: 2
Fiber ports quantity: 2
Fiber optic connector: SFP+
PCI version: 3.0
PCI Card form factor: Full-height (low-profile)
Network
Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet, 10 Gigabit Ethernet
Ethernet LAN data rates: 1000,10000 Mbit/s
Fiber ethernet cabling technology: 10GBASE-LR, 10GBASE-SR
Supported network protocols: TCP, UDP, IP
Feature: VLAN tagging
Feature: iSCSI support
Maximum operating distance: 10 m
LAN controller: Intel® X710
Design
Product colour: Black, Green
Feature: Internal
Chipset: X710-AM2
LED indicators: Yes
Certification: FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Power
Power consumption (typical): 4.5 W
System requirements
Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Linux operating systems supported: RedHat EL Linux 6.0
Other operating systems supported: FreeBSD
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 35 – 90%
Weight & dimensions
Width: 68.6 mm
Depth: 167.1 mm
Logistics data
Harmonized System (HS) code: 85176990
Other features
Cable type: SFP+ Direct Attached Twinaxial Cabling up to 10m
Market segment: Server
Target market: Artificial Intelligence, High Performance Computing
Feature: Flow control support
Management protocols: PXE, SNMP, RMON
Number of VLANs: 4096
Intel® Virtualization Technology (Intel® VT): VT-c
Feature: Intel Virtual Machine Device Queues (VMDq)
Feature: PCI-SIG* SR-IOV Capable
Feature: On-chip QoS and Traffic Management
Feature: Intel Flexible Port Partitioning
Speed & slot width: 8.0 GT/s, x8 Lane
Feature: Intelligent Offloads
Feature: Intel Ethernet Power Management
Feature: Intel Data Direct I/O Technology
Feature: Intel Virtualization Technology for Connectivity (VT-c)
Interface type: PCIe v3.0 (8.0 GT/s)
Storage Over Ethernet: iSCSI, NFS
Launch date: Q4’14
Network interface card cable medium: Copper
Product brief URL: https://cdrdv2.intel.com/v1/dl/getContent/641693
Product type: Network Interface Card
Status: Launched
Last change: 64826824
Processor family: 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Export Control Classification Number (ECCN): 5A991
Commodity Classification Automated Tracking System (CCATS): NA
Controller type: Intel® Ethernet Controller X710
Cabling type: SFP+ Direct Attached Twinaxial Cabling up to 10m
Bracket height: Low-Profile (LP) / Full-Height (FH)
Product family: Intel 10 Gigabit server adapter
Product series: 700 Series Network Adapters (up to 40GbE)
Product codename: Fortville
