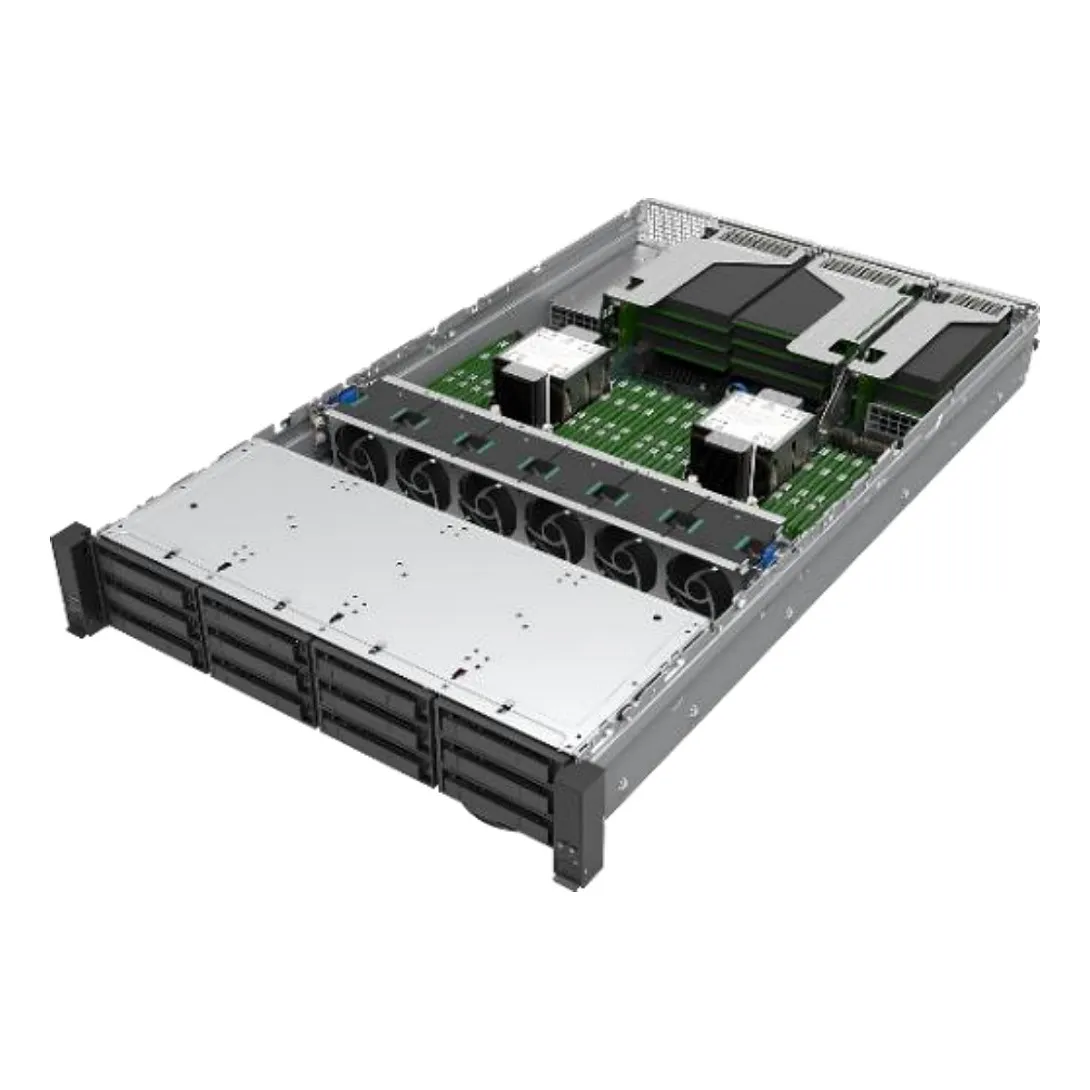

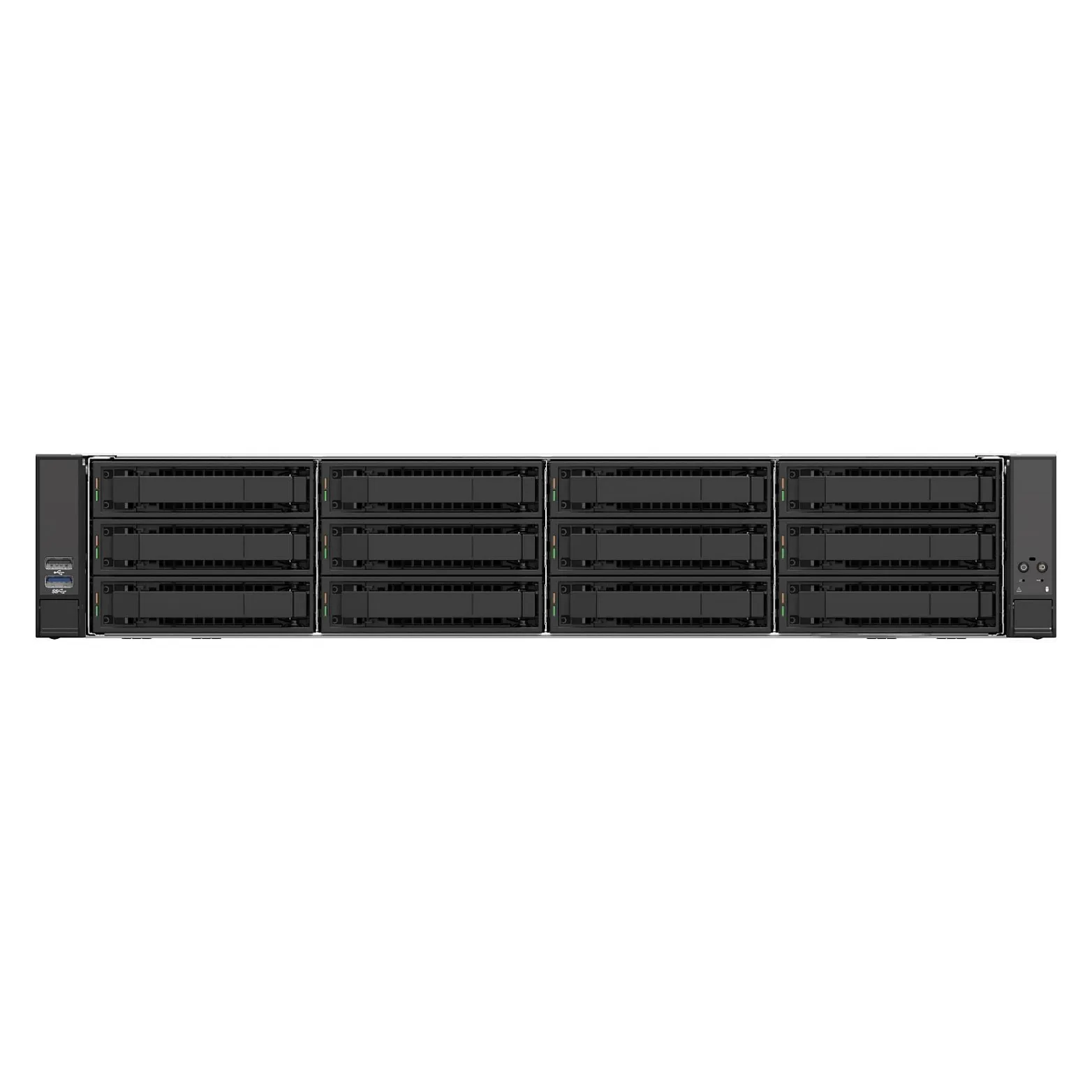

Intel Server System M50CYP2UR312. Motherboard chipset: Intel C621A, Processor manufacturer: Intel, Processor family: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 12 TB. Storage drive sizes supported: 2.5", Supported storage drive types: SSD, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2500. Export Control Classification Number (ECCN): 5A002U, Commodity Classification Automated Tracking System (CCATS): G157815L1
The Intel® Server System M50CYP Family is designed to be your primary workhorse server for all your mainstream needs, including collaboration, storage, database, web server, ecommerce, analytics, and more.
Processor
Motherboard chipset: Intel C621A
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Number of processors supported: 2
Memory
Number of DIMM slots: 32
Supported memory types: DDR4-SDRAM
Maximum internal memory: 12 TB
Storage
Number of storage drives supported: 12
Feature: Hot-swap HDD bays
Number of 2.5″ bays: 12
Storage drive sizes supported: 2.5″
Supported storage drive types: SSD
RAID levels: 0, 1, 5, 10
Graphics
On-board graphics card model: Aspeed AST2500
Ports & interfaces
USB ports quantity: 6
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Serial ports quantity: 2
Number of SATA connectors: 10
Number of SAS ports: 8
Features
Optical drive type: No
Feature: Integrated BMC with IPMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Export Control Classification Number (ECCN): 5A002U
Commodity Classification Automated Tracking System (CCATS): G157815L1
ARK ID: 214841
Logistics data
Harmonized System (HS) code: 8473301180
Processor special features
Feature: Intel Advanced Management Technology
Intel Remote Management Module Support: Y
Feature: Intel Intelligent Power Node Manager
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel® Optane™ Memory Ready
BIOS
BIOS type: UEFI
Design
Chassis type: Rack (2U)
Feature: Rack-Friendly board
Feature: Redundant fans support
Power
Power supply type: AC
Power supply: 2100 W
Feature: Redundant power supply (RPS) support
Thermal Design Power (TDP): 270 W
Weight & dimensions
Width: 712 mm
Depth: 439 mm
Height: 89 mm
Other features
CPU configuration (max): 2
Feature: On-board graphics card
Feature: Extended warranty available for purchase (select countries)
Launch date: Q2’21
Riser slot 1 number of lanes: 32
Riser slot 2 number of lanes: 32
Status: Launched
Supported RAID configuration: 0/1/5/10
Target market: Mainstream
Riser slot 3 number of lanes: 16
Motherboard chipset: Intel C621A
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Number of processors supported: 2
Memory
Number of DIMM slots: 32
Supported memory types: DDR4-SDRAM
Maximum internal memory: 12 TB
Storage
Number of storage drives supported: 12
Feature: Hot-swap HDD bays
Number of 2.5″ bays: 12
Storage drive sizes supported: 2.5″
Supported storage drive types: SSD
RAID levels: 0, 1, 5, 10
Graphics
On-board graphics card model: Aspeed AST2500
Ports & interfaces
USB ports quantity: 6
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Serial ports quantity: 2
Number of SATA connectors: 10
Number of SAS ports: 8
Features
Optical drive type: No
Feature: Integrated BMC with IPMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Export Control Classification Number (ECCN): 5A002U
Commodity Classification Automated Tracking System (CCATS): G157815L1
ARK ID: 214841
Logistics data
Harmonized System (HS) code: 8473301180
Processor special features
Feature: Intel Advanced Management Technology
Intel Remote Management Module Support: Y
Feature: Intel Intelligent Power Node Manager
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel® Optane™ Memory Ready
BIOS
BIOS type: UEFI
Design
Chassis type: Rack (2U)
Feature: Rack-Friendly board
Feature: Redundant fans support
Power
Power supply type: AC
Power supply: 2100 W
Feature: Redundant power supply (RPS) support
Thermal Design Power (TDP): 270 W
Weight & dimensions
Width: 712 mm
Depth: 439 mm
Height: 89 mm
Other features
CPU configuration (max): 2
Feature: On-board graphics card
Feature: Extended warranty available for purchase (select countries)
Launch date: Q2’21
Riser slot 1 number of lanes: 32
Riser slot 2 number of lanes: 32
Status: Launched
Supported RAID configuration: 0/1/5/10
Target market: Mainstream
Riser slot 3 number of lanes: 16
