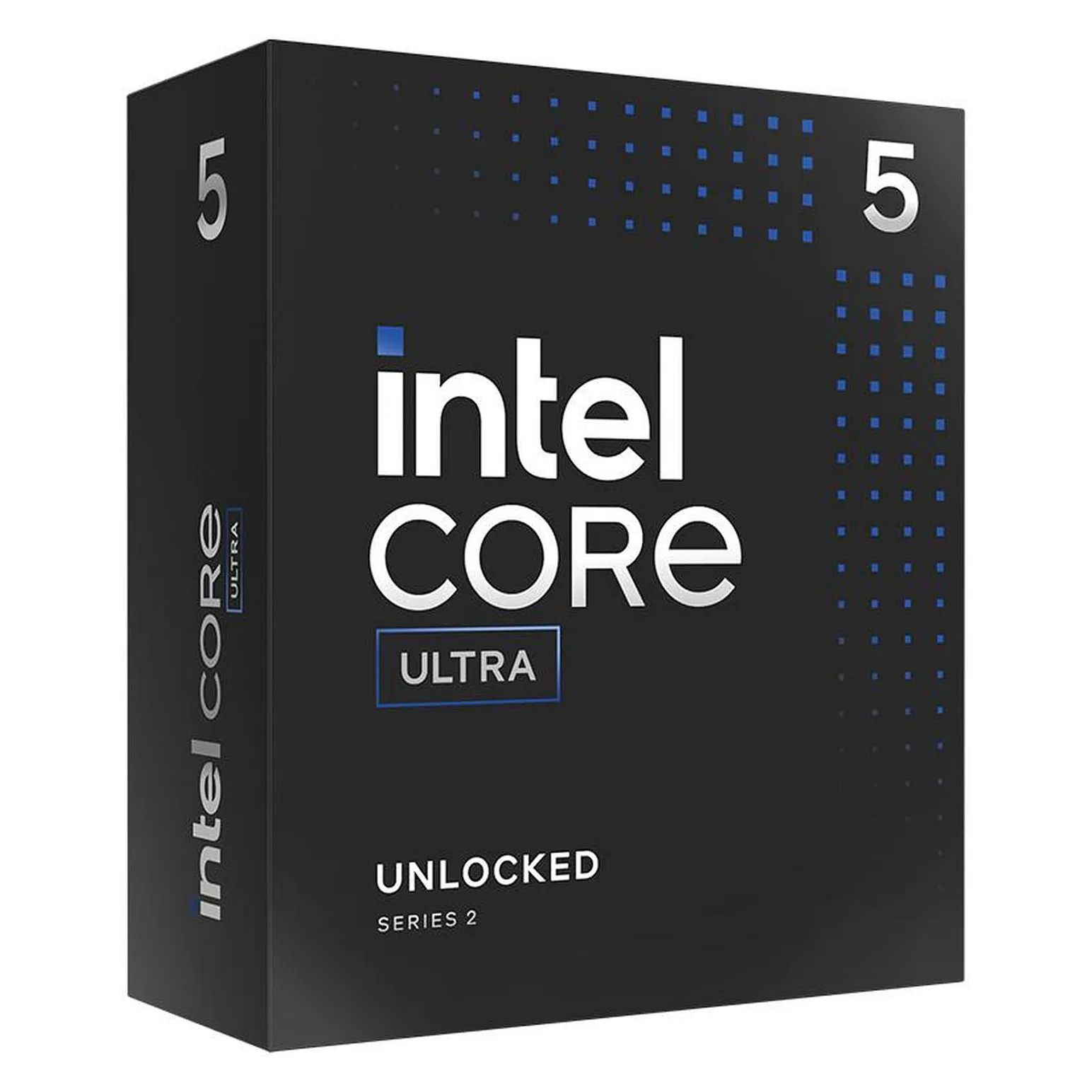

Intel Core Ultra 5 225F processor

Processor
Processor manufacturer: Intel
Processor generation: Intel Core Ultra (Series 2)
Processor model: 225F
Processor family: Intel Core Ultra 5
Processor cores: 10
Processor socket: LGA 1851 (Socket V1)
Processor threads: 10
Processor operating modes: 64-bit
Performance cores: 6
Efficient cores: 4
Processor boost frequency: 4.9 GHz
Performance-core boost frequency: 4.9 GHz
Performance-core base frequency: 3.3 GHz
Efficient-core boost frequency: 4.4 GHz
Efficient-core base frequency: 2.7 GHz
Processor cache: 20 MB
Processor cache type: Smart Cache
Package type: Box
Processor base power: 65 W
Maximum turbo power: 121 W
AI software frameworks supported by CPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Maximum number of DMI lanes: 8
Processor codename: Arrow Lake
Processor ARK ID: 241069
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 19 TOPs
NPU performance up to: 13 TOPs
Memory
Maximum internal memory supported by processor: 192 GB
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 6400 MHz
Memory channels: Dual-channel
Graphics
On-board graphics card: No
Discrete graphics card: No
On-board graphics card model: Not available
Discrete graphics card model: Not available
Features
Execute Disable Bit: Yes
Idle States: Yes
Thermal Monitoring Technologies: Yes
Market segment: Desktop
Use conditions: PC/Client/Tablet
Maximum number of PCI Express lanes: 24
PCI Express slots version: 4.0, 5.0
Supported instruction sets: AVX 2.0, SSE4.1, SSE4.2
Scalability: 1S
Embedded options available: No
Direct Media Interface (DMI) Revision: 4.0
Processor special features
Intel® Turbo Boost Technology: 2.0
Intel® AES New Instructions (Intel® AES-NI): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel Trusted Execution Technology: Yes
Intel® Speed Shift Technology: Yes
Intel® Thunderbolt 4: Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Thread Director: Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Secure Key: Yes
Intel® OS Guard: Yes
Intel 64: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel® Boot Guard: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Volume Management Device (VMD): Yes
Mode-based Execute Control (MBE): Yes
Intel® Standard Manageability (ISM): Yes
Operational conditions
Maximum operating temperature: 105 °C
Technical details
Launch date: Q1’25
Status: Launched
Other features
L2 cache: 22528 KB
Maximum internal memory: 192 GB
