Intel I226-T1. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Green, Silver

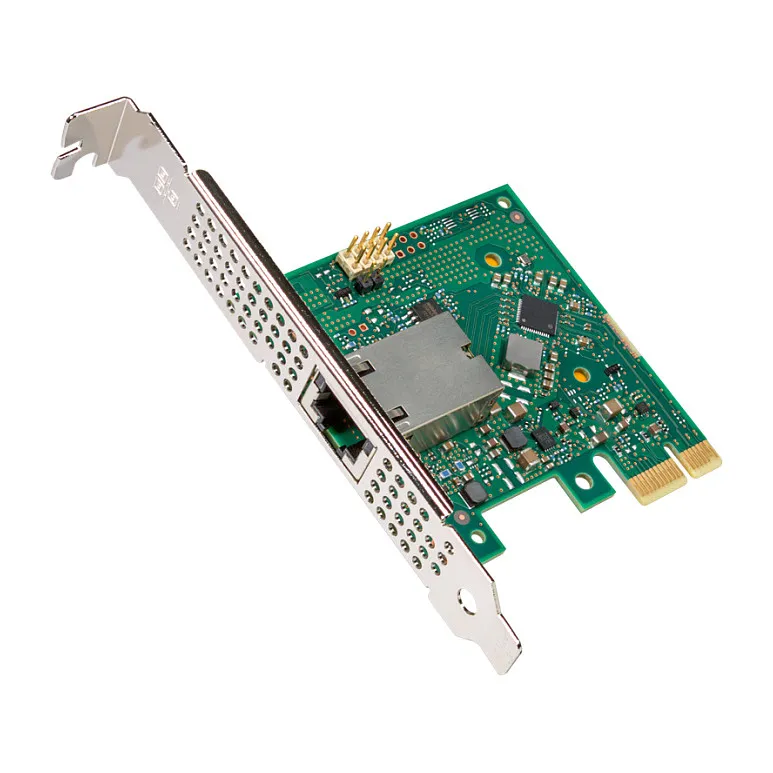

The Intel® Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption.
Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.
Based on the Intel® Ethernet Controller I226-LM, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility.
Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.
Based on the Intel® Ethernet Controller I226-LM, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility.
Ports & interfaces
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 3.1
PCI Card form factor: Full-height (low-profile)
Network
Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3x, IEEE 802.3z
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Jumbo frames support
Maximum operating distance: 100 m
Design
Component for: PC/Server
Product colour: Green, Silver
Feature: Internal
LED indicators: Activity, Link
Power
Power consumption (typical): 1.4 W
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): -40 – 70 °C
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 68.7 mm
Depth: 65.3 mm
Technical details
Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), KCC, RoHS, VCCI
Logistics data
Harmonized System (HS) code: 8517620090
Other features
Market segment: Desktop
Launch date: Q3’23
Network interface card cable medium: Copper
Ethernet adapter ARK ID: 225771
Export Control Classification Number (ECCN): 5A991.B.4.A
Cabling type: CAT5e, CAT6, CAT6A
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 3.1
PCI Card form factor: Full-height (low-profile)
Network
Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3x, IEEE 802.3z
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Jumbo frames support
Maximum operating distance: 100 m
Design
Component for: PC/Server
Product colour: Green, Silver
Feature: Internal
LED indicators: Activity, Link
Power
Power consumption (typical): 1.4 W
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): -40 – 70 °C
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 68.7 mm
Depth: 65.3 mm
Technical details
Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), KCC, RoHS, VCCI
Logistics data
Harmonized System (HS) code: 8517620090
Other features
Market segment: Desktop
Launch date: Q3’23
Network interface card cable medium: Copper
Ethernet adapter ARK ID: 225771
Export Control Classification Number (ECCN): 5A991.B.4.A
Cabling type: CAT5e, CAT6, CAT6A
