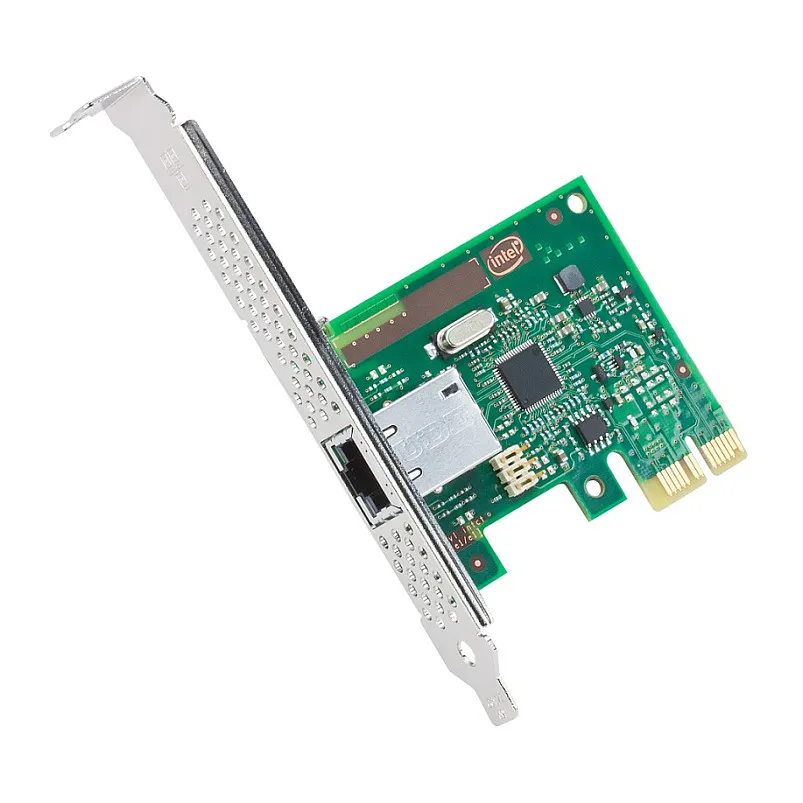

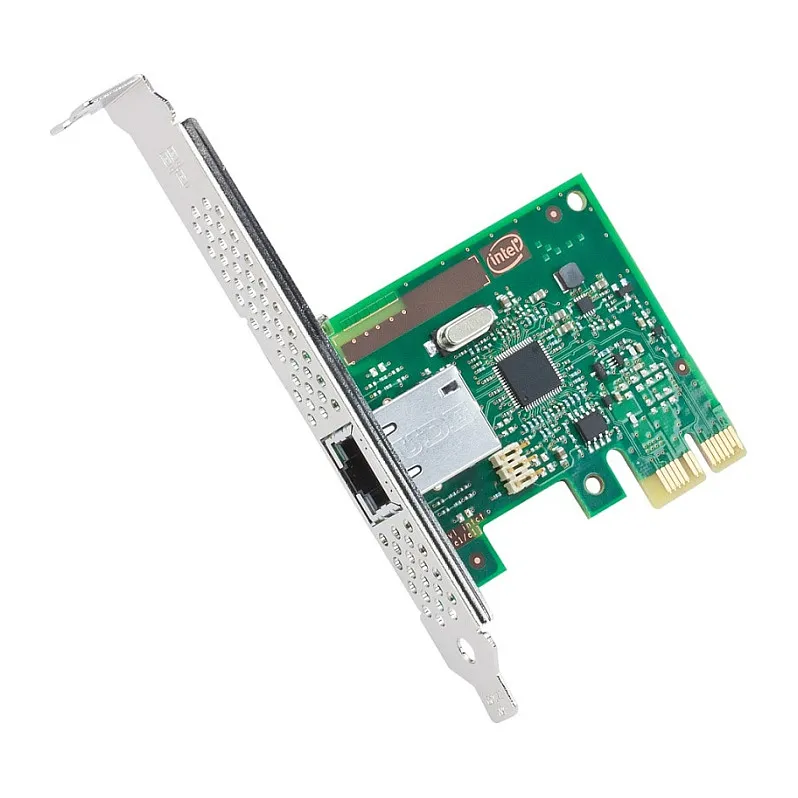

Intel I210T1. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 2.1
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet, Fast Ethernet, 100 Gigabit Ethernet
Ethernet LAN data rates: 1000,10,100,100000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Maximum operating distance: 100 m
LAN controller: Intel I210
Design
Feature: Internal
Weight & dimensions
Width: 65 mm
Depth: 20 mm
Height: 55 mm
Logistics data
Harmonized System (HS) code: 85176990
Other features
Cable type: RJ45 Category 5, up to 100 m
Market segment: Server
Thermal power: 1 W
Speed & slot width: 2.5 GT/s, x1 Lane
Feature: Intelligent Offloads
Feature: Intel Ethernet Power Management
Interface type: PCIe v2.1 (2.5 GT/s)
Feature: Conflict-Free
Product type: Network Interface Card
Thermal Design Power (TDP): 1 W
Launch date: Q1’13
Number of QPI links: Single
Network interface card type: Server
Product brief URL: https://cdrdv2.intel.com/v1/dl/getContent/724375
Product name: Intel Ethernet Server Adapter I210-T1
Status: Launched
Last change: 63903513
Processor family: Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Network interface card cable medium: Copper
Ethernet adapter ARK ID: 68668
Born on date: Q1’13
Export Control Classification Number (ECCN): 5A991
Commodity Classification Automated Tracking System (CCATS): NA
Controller type: Intel I210
Cabling type: RJ45 Category 5, up to 100 m
Bracket height: Low-Profile (LP) / Full-Height (FH)
Product family: Intel Gigabit server adapter
Product series: Intel I210
