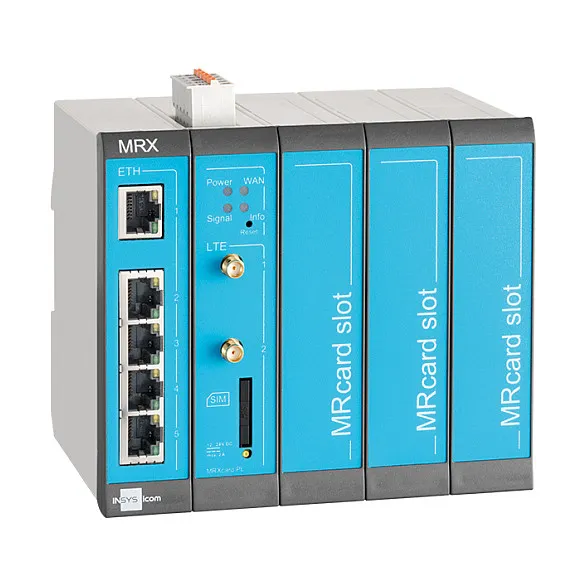

Name: Insys Microelectronics MRX5 LTE wired router
Brand: INSYS icom
SKU: K-10017037
Price: 1023.90 EUR
Availability: InStock

Insys Microelectronics MRX5 LTE wired router

Produkto kodas: K-10017037

Barkodas: 4022892000445

1023,90 €

Atsiėmimas parduotuvėje – 8 d.d.

Pristatymas kurjeriu – 12 d.d.

Garantija – 24 mėn.

Pridėkite likusią sumą (300,00 €) ir pristatysime nemokamai!

Insys Microelectronics icom MRX5 LTE, mod. 4G router. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Mobile network generation: 4G, 2G standards: Edge, GPRS, 3G standards: HSPA+, UMTS. Routing protocols: BGP, OSPF, RIP, RIP-2, RIPng. Security algorithms: IPSec, SNMP, SSH, Authentication method: RADIUS. Certification: CE, EN 55032 Class B; EN 61000-6-2, EN 55024, IEC/EN 60950, 62368, EN 61131-2 and EN 60068-2-6,…

The smart MRX routers combine KRITIS (critical applications) level IT security, state-of-the-art technology, high computing power, sophisticated administration and programmability. The basic variants DSL, 4G and LAN can be supplemented as required with additional plug-in cards (MRcards) – including customer-specific MRcards. Two digital inputs are already included in all variants. A variety of redundancies such as the parallel operation of WAN interfaces and VPNs create highly available communication.

Flexibility of design
Start with the optimal hardware combination for each individual application.

Extension options
Additional interfaces required? Supplement your application with additional MRcards.

Future-proof
New technologies available? Future MRcards enable fast and cost-efficient updates, e. g. to 5G.

Gateway functionality
Flexible hardware, scalable software and premium support guarantee optimal long-term operating conditions.

WAN connection
Feature: Ethernet WAN
Feature: SIM card slot
Network
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Full duplex
Feature: VLAN support
Feature: Port forwarding
Feature: Auto MDI/MDI-X
Mobile network
Mobile network generation: 4G
2G standards: Edge, GPRS
3G standards: HSPA+, UMTS
4G standard: LTE
GSM bands supported: 900,1800 MHz
UMTS bands supported: 900,1800,2100 MHz
4G bands supported: 800,900,1800,2100,2600 MHz
Feature: Short Message Service (SMS)
Management features
Feature: Web-based management
Ports & interfaces
Ethernet LAN (RJ-45) ports: 5
Protocols
Routing protocols: BGP, OSPF, RIP, RIP-2, RIPng
Feature: DHCP client
Feature: DHCP server
Security
Security algorithms: IPSec, SNMP, SSH
Feature: Firewall
Authentication method: RADIUS
Feature: IP address filtering
Design
Product colour: Blue, Grey
LED indicators: DSL, Power, Signal strength, WAN
Antenna
Antenna type: External
Antenna connector type: SMA
Antennas quantity: 2
Feature: Detachable antenna(s)
Power
Power consumption (typical): 2.5 W
Power source type: DC
Output voltage: 12-24 V
Operational conditions
Operating temperature (T-T): 30 – 75 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 136 mm
Depth: 88 mm
Height: 117 mm
Weight: 409 g
Logistics data
Harmonized System (HS) code: 85176990

Svoris

0,409 kg

Gamintojas

INSYS icom

Liko 6
