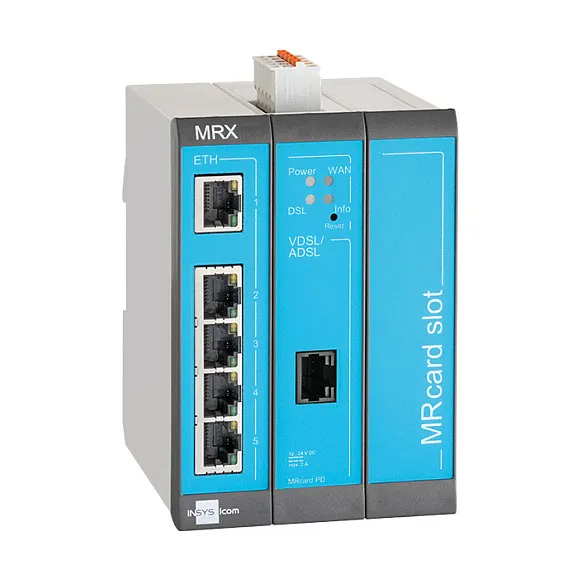

Insys Microelectronics icom MRX3 DSL-B, mod. xDSL router. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Routing protocols: BGP, OSPF, RIP, RIP-2. Security algorithms: IPSec, SNMP, SSH, Authentication method: RADIUS. Certification: CE, EN 55032 Class B; EN 61000-6-2, EN 55024, IEC/EN 60950, 62368, EN 61131-2 and EN 60068-2-6,…. Product colour: Blue, Grey
The smart MRX routers combine KRITIS (critical applications) level IT security, state-of-the-art technology, high computing power, sophisticated administration and programmability.
Freedom of design
Changing requirements require flexible solutions. The modularity of the MRX router series allows you to assemble a custom router for each individual application.
Extension options
The basic variants DSL, LTE and LAN are each available in two housing widths and have two digital inputs. Modular plug-in cards (MRcards) with additional interfaces can be added as required. In addition to the standard models, customer-specific MRcards can also be developed.
Future-proof
With the plug-in cards for the MRX router you will also be on the safe side in the future, because we are constantly expanding our range. This means that in the case of technology upgrades, e.g. to 5G, you can expand your router efficiently and at low cost.
Feature: Ethernet WAN
Network
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Full duplex
Feature: VLAN support
Feature: Port forwarding
Feature: Auto MDI/MDI-X
Mobile network
Mobile network generation: Not supported
Feature: Short Message Service (SMS)
DSL features
Feature: ADSL
Feature: ADSL2
Feature: ADSL2+
Feature: DSL
Feature: VDSL2
Management features
Feature: Web-based management
Ports & interfaces
Ethernet LAN (RJ-45) ports: 5
Protocols
Routing protocols: BGP, OSPF, RIP, RIP-2
Feature: DHCP client
Feature: DHCP server
Security
Security algorithms: IPSec, SNMP, SSH
Feature: Firewall
Authentication method: RADIUS
Feature: IP address filtering
Design
Product colour: Blue, Grey
LED indicators: Yes
Power
Power consumption (typical): 8 W
Power source type: DC
Output voltage: 12-24 V
Operational conditions
Operating temperature (T-T): -30 – 75 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 82 mm
Depth: 88 mm
Height: 117 mm
Weight: 306 g
Logistics data
Harmonized System (HS) code: 85176990
