Innovaphone IP511. Product colour: Grey. Voice codecs: G.711alaw, G.711ulaw, G.722, G.723.1, G.729A, OPUS. Processor frequency: 800 MHz, Internal memory: 2048 MB, Flash memory: 32 MB. Supported network protocols: IPv4/IPv6, NAT, H.323-NAT, STUN, TURN over UDP/TCP, VoIP protocols: H.323 Version 5, H.323 over UDP, TCP, TLS 1.3, SIP Version 2, conform RFC 3261, SIP over UDP, TCP,…. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3az

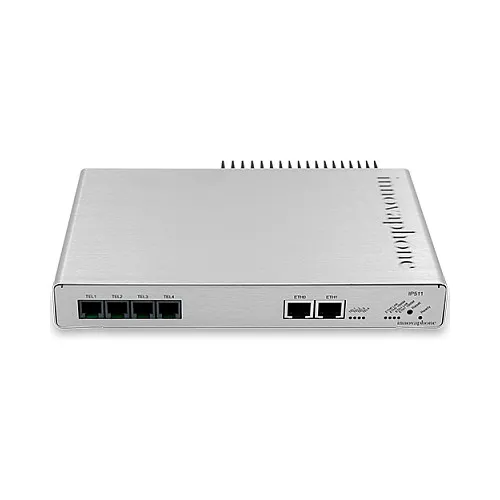

The innovaphone IP511 VoIP gateway fulfils all requirements placed on a modern PBX and Unified Communications platform. It offers four analog FXS interfaces plus ten hardware-based and ten software-based conference channels. The IP511 is a compact gateway for pure SIP installations.
Design
Product colour: Grey
Features
Voice codecs: G.711alaw, G.711ulaw, G.722, G.723.1, G.729A, OPUS
Performance
Processor frequency: 800 MHz
Internal memory: 2048 MB
Number of SSDs supported: 1
Flash memory: 32 MB
Protocols
Supported network protocols: IPv4/IPv6, NAT, H.323-NAT, STUN, TURN over UDP/TCP
VoIP protocols: H.323 Version 5, H.323 over UDP, TCP, TLS 1.3, SIP Version 2, conform RFC 3261, SIP over UDP, TCP, TLS, RTP, SRTP (SDES, DTLS 1.2), RTCP, ICE
Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3af, IEEE 802.3az
Number of concurrent sessions (max): 25000
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
RJ-11 ports quantity: 4
Power
Feature: Power over Ethernet (PoE)
Software
Software version: 13r1
Weight & dimensions
Width: 210 mm
Depth: 148 mm
Height: 32 mm
Weight: 888 g
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -10 – 70 °C
Operating relative humidity (H-H): 10 – 90%
