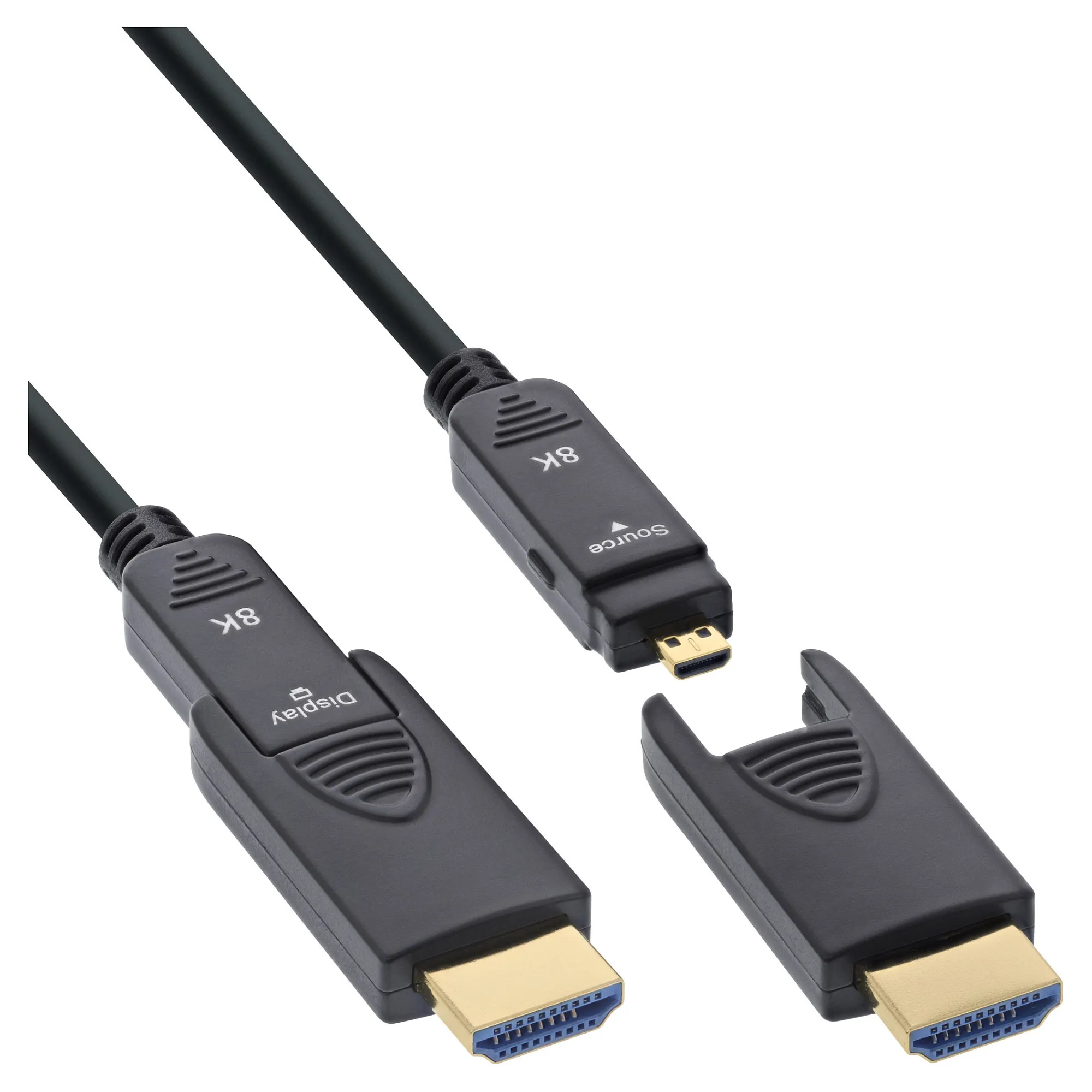

InLine HDMI AOC cable, Ultra High Speed HDMI, 8K4K, detachable plug, 25m. Cable length: 50 m, Connector 1: HDMI Type-A/HDMI Type-D, Connector 1 gender: Male, Connector 2: HDMI Type-A/HDMI Type-D, Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.1, 3D, Data transfer rate: 48 Gbit/s, Audio Return Channel (ARC), Product colour: Black
Loss-free signal quality:Active optical HDMI 2.1 technology enables high-resolution video and audio signals in the highest quality.
Versatile combination options:4-in-1 solution – can be used as HDMI-A/D in both directions, ideal for different connection environments.
Industrial-grade design:Hybrid construction made of fibre optic and copper with aramid protection, gold-plated contacts and robust metal connectors.
Future-proof equipment:Supports 8K@60Hz, 4K@120Hz, HDR, eARC, CEC, HDCP and much more – for professional AV and IT applications.
The InLine® HDMI AOC cable with detachable HDMI plugs is the well-designed solution for professional AV installations with the highest demands on resolution, flexibility and signal quality. Thanks to active optical transmission via fibre optics, it ensures stable, loss-free signal transmission – ideal for digital signage systems, conference rooms or home cinema systems.
The hybrid design of fibre optic and copper, combined with aramid protective braiding and gold-plated contacts, ensures maximum robustness, durability and minimal signal interference. The HDMI A and HDMI D connectors can be removed without tools, making installation in tight spaces particularly easy – perfect for cable ducts, cabinets and flush-mounted solutions.
The cable supports HDMI 2.1 features such as 8K at 60 Hz or 4K at 120 Hz, Dynamic HDR, eARC, HDCP 2.3 and much more, making it ideally equipped for future requirements in presentation technology, entertainment, streaming or broadcasting. The 4-in-1 connection options offer maximum flexibility in practice.
HDMI version: HDMI 2.1 (Ultra High Speed HDMI)
Transmission rate: up to 48 Gb/s
Construction: 4 glass fibres + 7 copper conductors, hybrid
Diameter: 4.8 mm
Temperature range: operation 0 °C to +50 °C, storage -20 °C to +70 °C

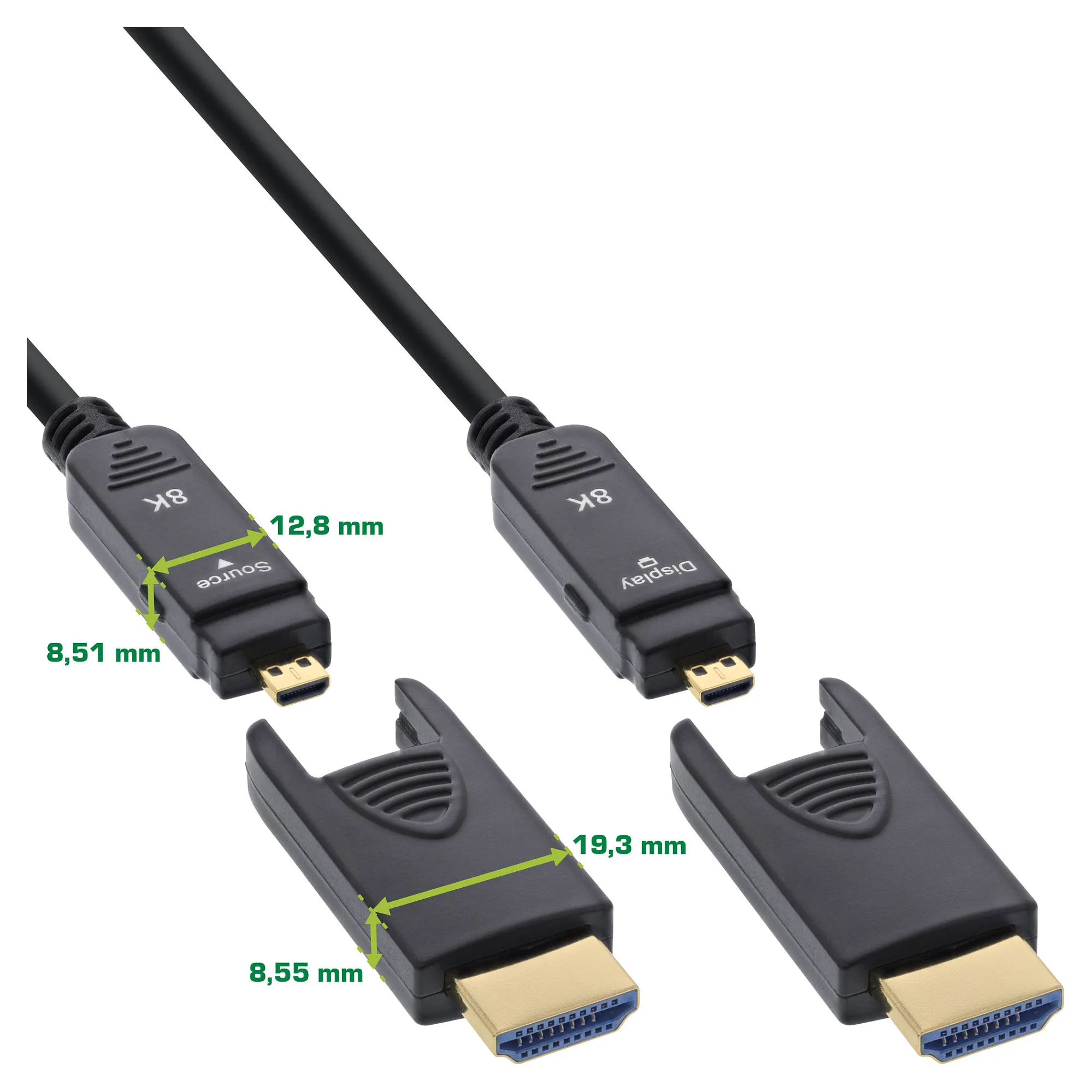

Connector: HDMI-A (standard), HDMI-D (micro), detachable
Supported functions: HDR, eARC, HDCP, CEC, DDC, EDID, 3D, Dynamic HDR
Directional (source → display)
Contact material: gold-plated
Connector housing: metal, aramid-protected
Minimum bending radius (static): 48 mm, (dynamic): 96 mm
Cable length: 50 m
Connector 1: HDMI Type-A/HDMI Type-D
Connector 2: HDMI Type-A/HDMI Type-D
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Product colour: Black
HDMI version: 2.1
Feature: 3D
Supported graphics resolutions: 3840 x 2160, 7680 x 4320
Dolby technologies: Dolby TrueHD, DTS-HD
Feature: Audio Return Channel (ARC)
Feature: HDCP
Data transfer rate: 48 Gbit/s
Feature: High Dynamic Range (HDR) supported
AWG wire size: 30
Connector contacts plating: Gold
Cable material: Fibre optic/Copper
Cable jacket material: Nylon/Polyvinyl Chloride (PVC)
Feature: Extended display identification data (EDID)
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Certificates
Compliance certificates: TÜV mark, CE
Weight & dimensions
Cable diameter: 4.8 mm
Weight: 630 g
Packaging data
Package type: Box
Quantity per pack: 1 pc(s)
Other features
Depth: 25000 mm
Height: 10 mm
Width: 20 mm
Dimensions (WxDxH): 20 x 25000 x 10 mm
Logistics data
Country of origin: China
