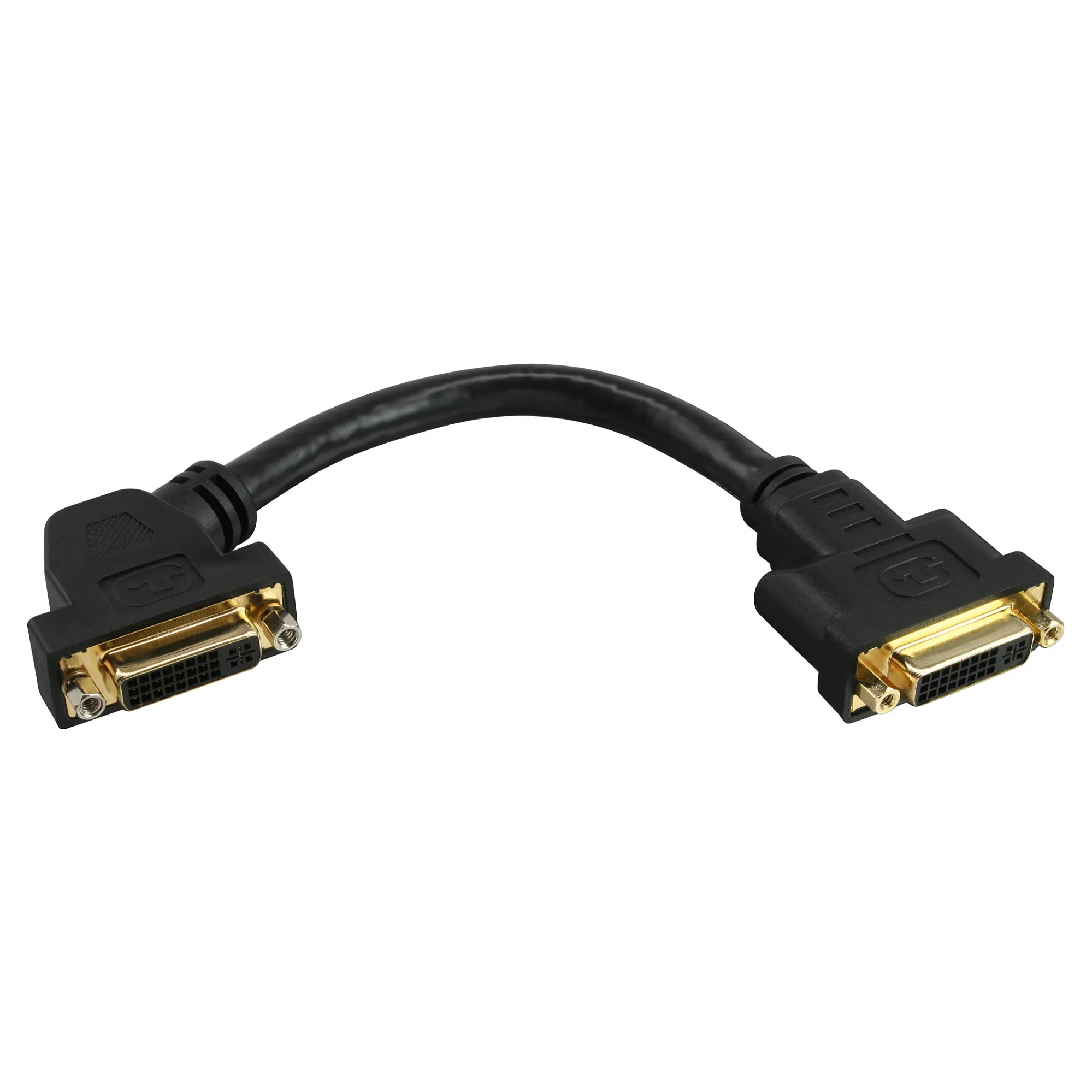

InLine DVI-I Adapter Cable 24+5 DVI female / female with flange 0.2m. Connector 1: DVI-I, Connector 2: DVI-I, Connector gender: Female/Female, Cable length: 0.2 m, Connector contacts plating: Gold. Product colour: Black
Front panel feed-through without special parts:Panel-mount socket with defined cutout 9 x 25 mm and 32 mm hole spacing.
Stable, precise-fit mounting:Included #4-40 screws (thread length 6 mm) for panels up to 2 mm.
Compatible connection without adapter chain:DVI-I 24+5 socket to DVI-I 24+5 socket with 1:1 pin assignment.
Reliable connection:Gold-plated contacts for consistent connection.
This DVI-I panel-mount adapter cable routes the port cleanly to the front or rack panel. One DVI-I 24+5 socket is screwed in as a panel-mount socket, the other DVI-I 24+5 socket remains freely accessible for the internal connection. The 1:1 pin assignment enables a direct pass-through without additional adapters.
For on-site installations and service deployments, the defined cutout size facilitates reproducible results, while the short 0.2 m lead supports tidy cable routing in existing infrastructures. In professional IT environments as well as in companies and public institutions, the front panel feed-through enables quick access to the DVI port without having to open devices.
Connector 1:DVI-I 24+5 socket
Connector 2:DVI-I 24+5 panel-mount socket
Pin assignment:1:1
Length:0.2 m
Cutout for DVI socket:9 x 25 mm
Hole spacing:32 mm
Screws:#4-40, thread length 6 mm
Max. panel thickness:2 mm
Color:Black
Contacts:Gold-plated
Connector 1: DVI-I
Connector 2: DVI-I
Connector gender: Female/Female
Connector contacts plating: Gold
Cable length: 0.2 m
Performance
Product colour: Black
Feature: Plug and Play
Weight & dimensions
Weight: 69 g
Packaging data
Package width: 40 mm
Package depth: 230 mm
Package height: 20 mm
Package weight: 74 g
Logistics data
Package volume: 200 cm³
