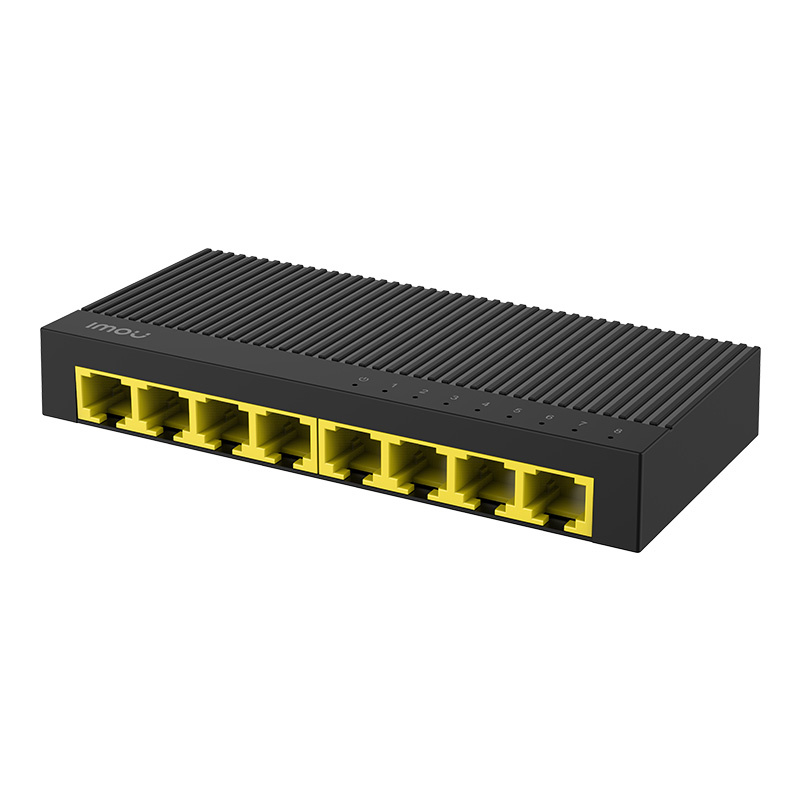

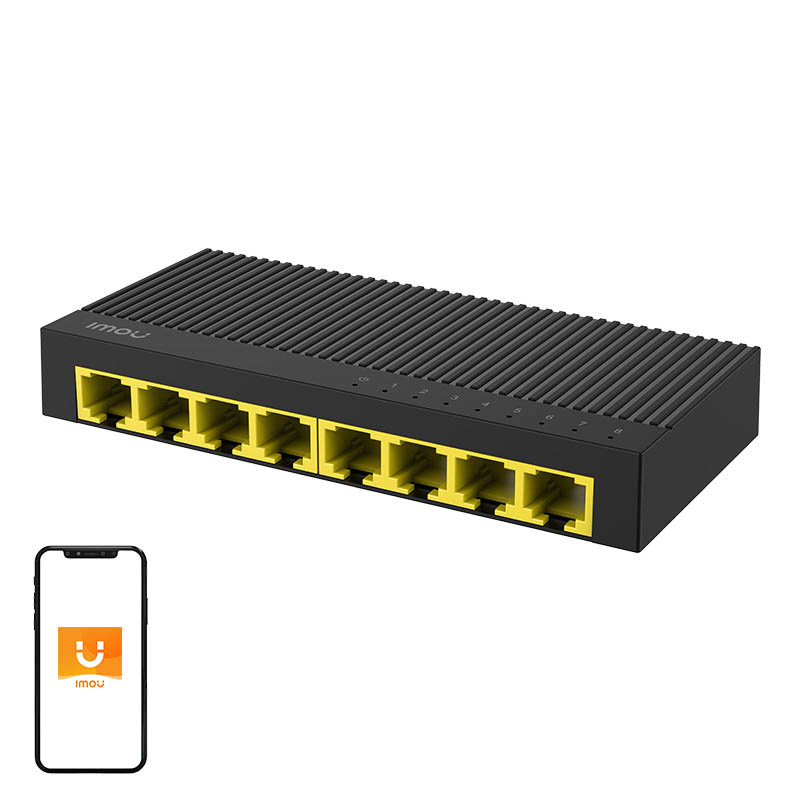

IMOU SG108C 8-port LAN switch

IMOU SG108C 8-port LAN switch.

The IMOU SG108C LAN Switch offers 8 RJ45 ports, providing fast and stable network connectivity. It supports automatic speed negotiation in the 10/100/1000 Mbps range, and the Auto MDI/MDIX function eliminates the need for crossover cables. In addition, the 802.3X Flow Control protocol provides efficient data flow control. Installation of the device is quick and hassle-free, and the Plug & Play function enhances user convenience.

Fast connection

Enjoy the convenience of high bandwidth and flexible connectivity provided by the IMOU SG108C LAN switch. With 8 RJ45 ports, this device is ideal for managing heavy data traffic and provides the performance needed for modern network applications. Each port supports Auto-Negotiation, allowing automatic adjustment of data transfer rates from 10 to 1000 Mbps. As a result, the switch is widely compatible with a variety of equipment and allows you to optimize connection speeds according to your current needs, ensuring that you can work smoothly and efficiently on your network, whether you’re transferring large files, streaming high-definition video or using advanced applications.

Optimized data flow

The advanced 802.3X Flow Control feature of the IMOU switch ensures the stability and efficiency of your network’s data flow. This flow control mechanism allows you to manage and coordinate data transmission between the switch and connected devices, which is especially important in situations of high network load. As a result, the device is able to prevent the loss of data packets and reduce the risk of network congestion – so it is an excellent solution for both demanding business users and advanced home applications.

Impressive performance

The switch is unmanageable, which translates into ease of use without the need for complex configuration. It offers a total throughput of 16 Gbps and a packet transfer rate of 1,488 Mpps per port. Packet buffer memory is 4 Mb, which supports efficient handling of network traffic. The device supports jumbo frames of up to 15K and has a MAC table with 8K entries. It also provides surge protection of up to 2 KV in common mode and 1 KV in differential mode.

Hassle-free configuration

With support for Auto MDI/MDIX, the IMOU switch automatically recognizes the type of cable connected, eliminating the need for special patch cables. The solution used greatly simplifies the network configuration process. An additional advantage is Plug & Play, a feature that guarantees immediate operation of the device – you do not need to install additional drivers.

Refined design

The housing of the device is made of high-quality plastic, which translates into lightness (79 g) and durability. The dimensions of the switch are only 133.2 x 62 x 21 mm, so you can freely place it on your desk or mount it on the wall.
