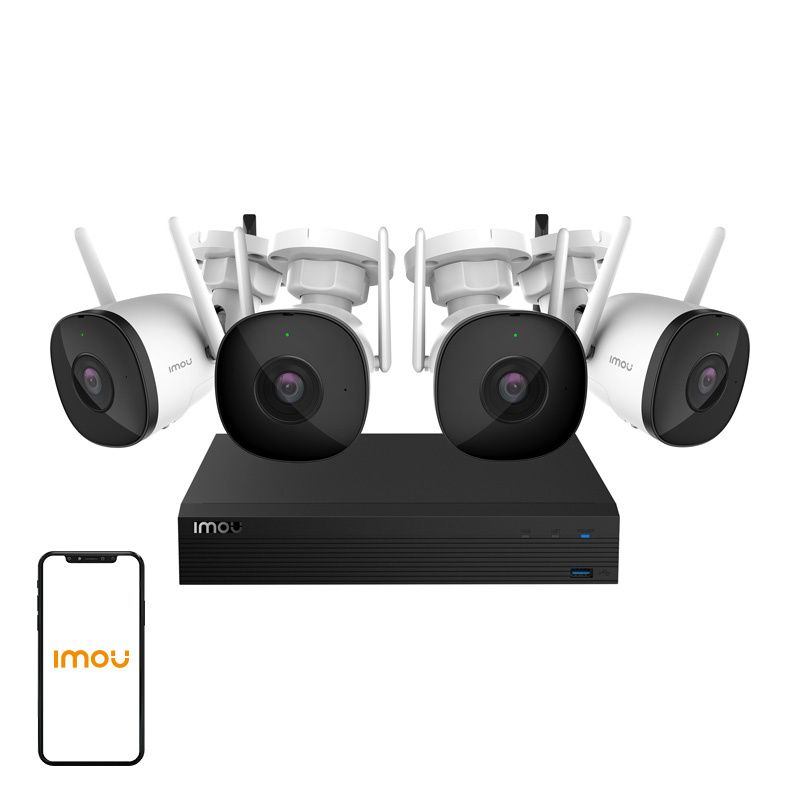

IMOU Kit-Pro WiFi CCTV Monitoring Kit

IMOU Kit-Pro WiFi CCTV Surveillance Kit

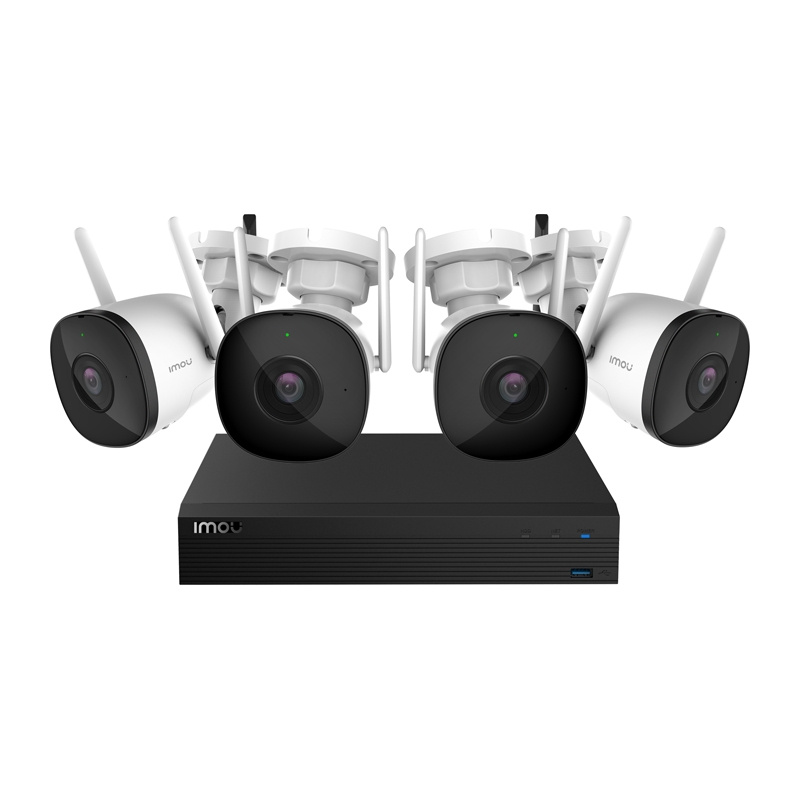

The IMOU Kit-Pro is a surveillance system featuring 4 IMOU Bullet 2C cameras and a Wi-Fi NVR, designed for quick setup without complicated installation. The cameras record video in 1080p Full HD (2 MP) quality, and automatic pairing takes about 120 seconds, making setup simple and requiring no advanced technical knowledge. The built-in 1 TB hard drive lets you start recording right away, and H.265 compression allows you to store more footage without quickly filling up the storage. With a Wi-Fi range of up to 100 m in open space and an IP67 rating, the set works well both indoors and outdoors.

Detailed image and wide field of view

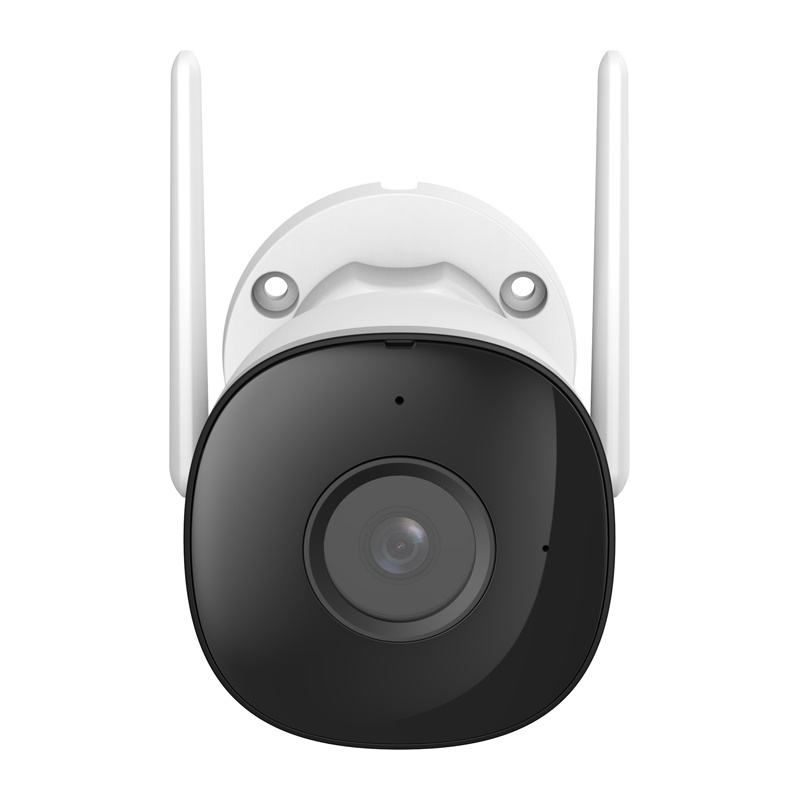

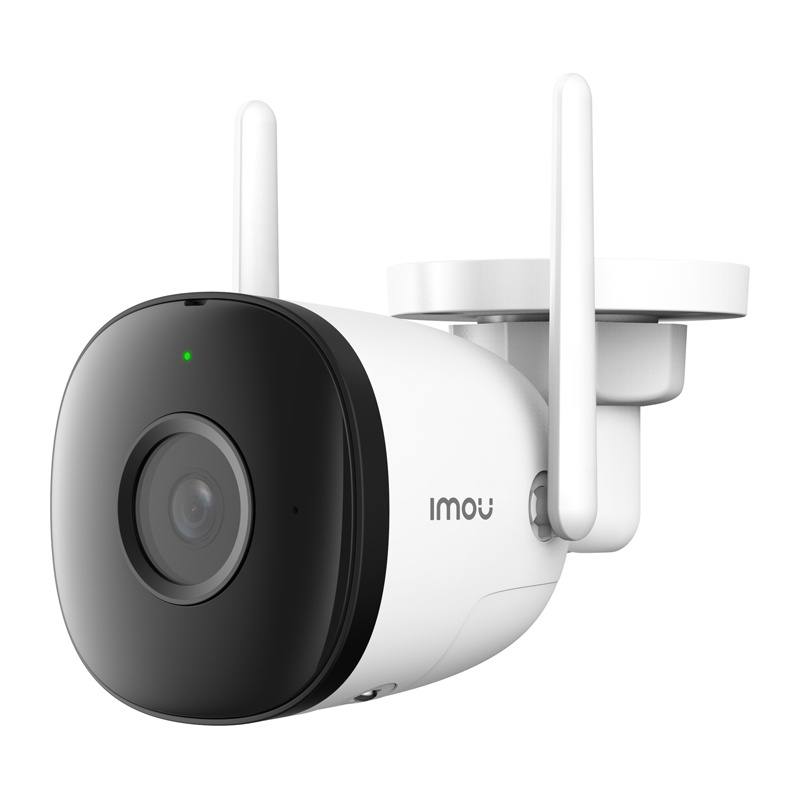

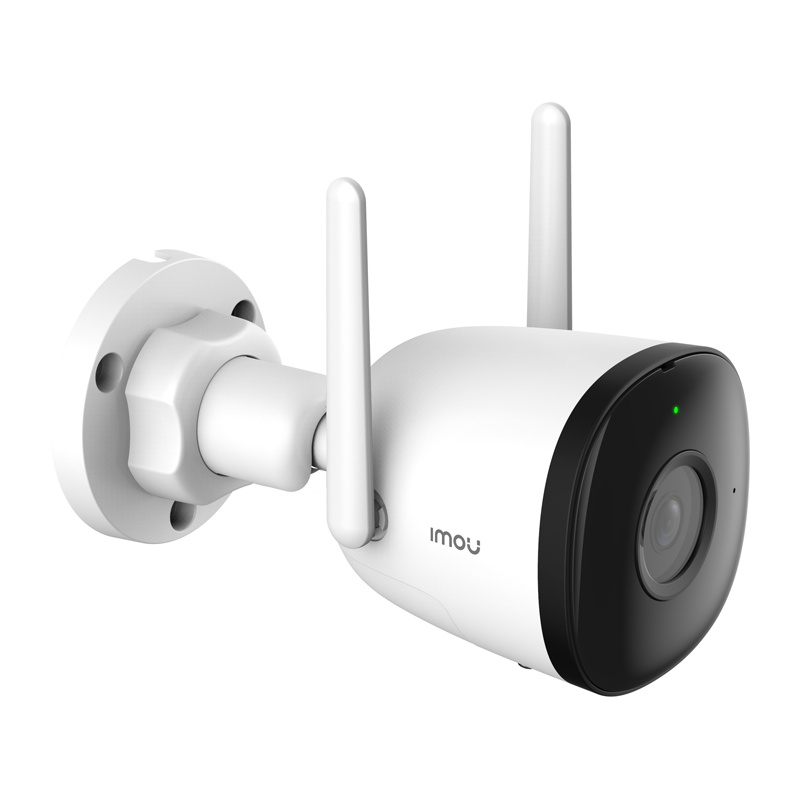

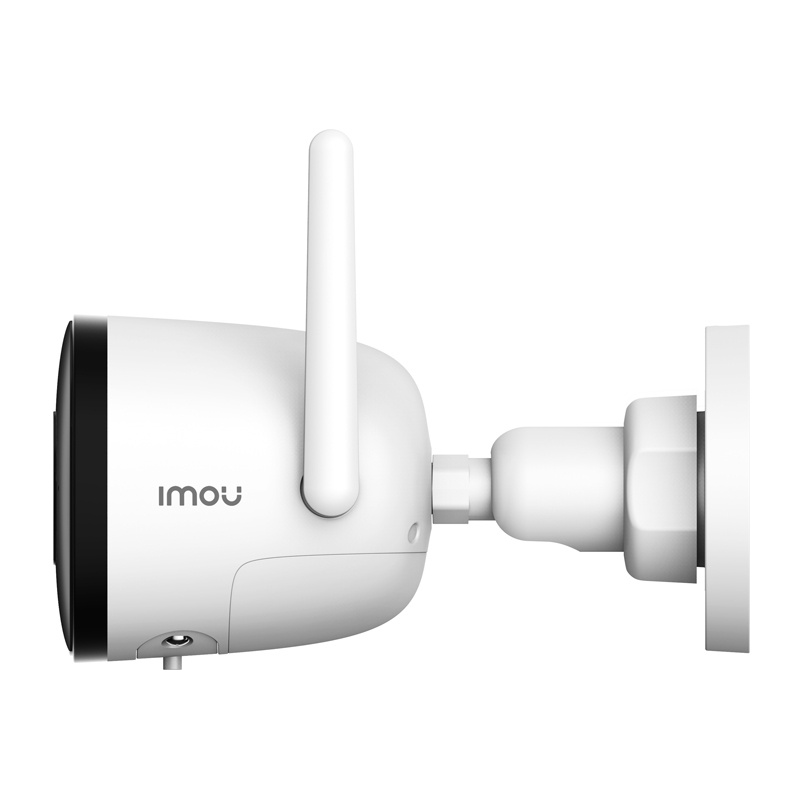

The cameras use a 1/2.8" 2 MP Progressive CMOS sensor and capture images at a resolution of 1920 × 1080. A viewing angle of 102° horizontally, 54° vertically, and 120° diagonally allows for coverage of a wide area without the need to install additional devices. Smooth recording at up to 25/30 fps ensures a clear image, which is important for event analysis.

Monitoring Even After Dark

Night vision with a range of up to 30 meters allows you to monitor the surroundings even in the dark. This makes the system ideal for locations requiring constant surveillance—regardless of the time of day.

Stable Connection and Quick Setup

IEEE802.11 b/g/n (2.4 GHz) connectivity and dual antennas ensure stable system operation. A range of up to 100 meters in open space gives you the freedom to place cameras wherever you need them. Automatic pairing simplifies setup and reduces the need for manual configuration.

Practical features

The system detects motion and sends notifications to your phone, allowing you to quickly check the event. Features such as a recording schedule and playback of footage from all channels are also available. The cameras have a built-in microphone and support microSD cards with a capacity of up to 256 GB, allowing for additional recording directly on the device.

Efficient recording and greater capacity

The recorder uses H.265/H.264 compression, which helps reduce disk space usage. The built-in 1 TB hard drive enables long-term storage of recordings, and support for storage media up to 8 TB via the SATA port allows for expansion. Recording speeds of up to 40 Mbps (wired connection) and 16 Mbps via Wi-Fi ensure stable system operation.

Functional recorder and remote access

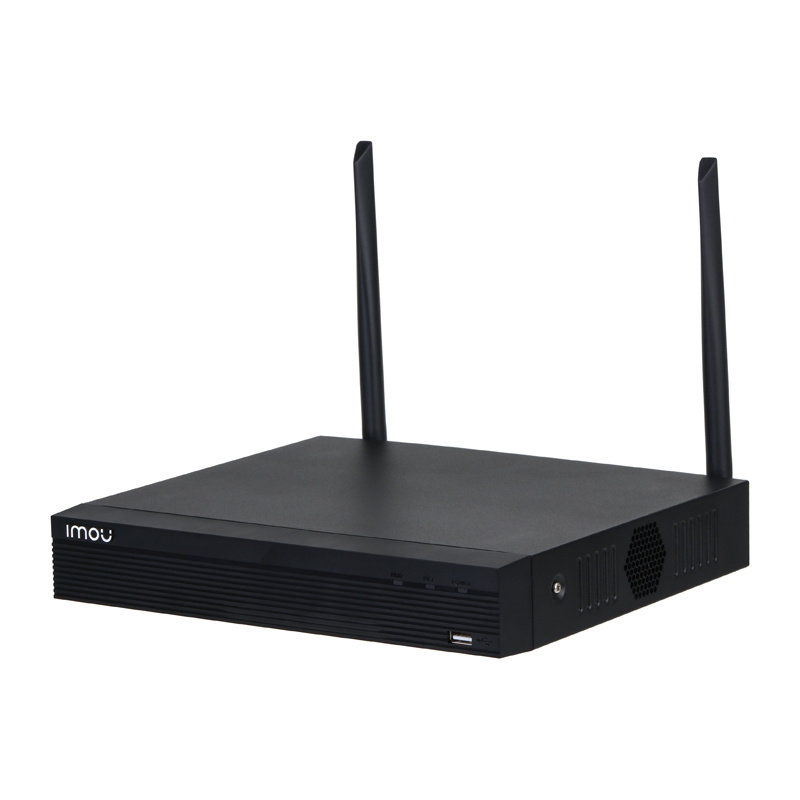

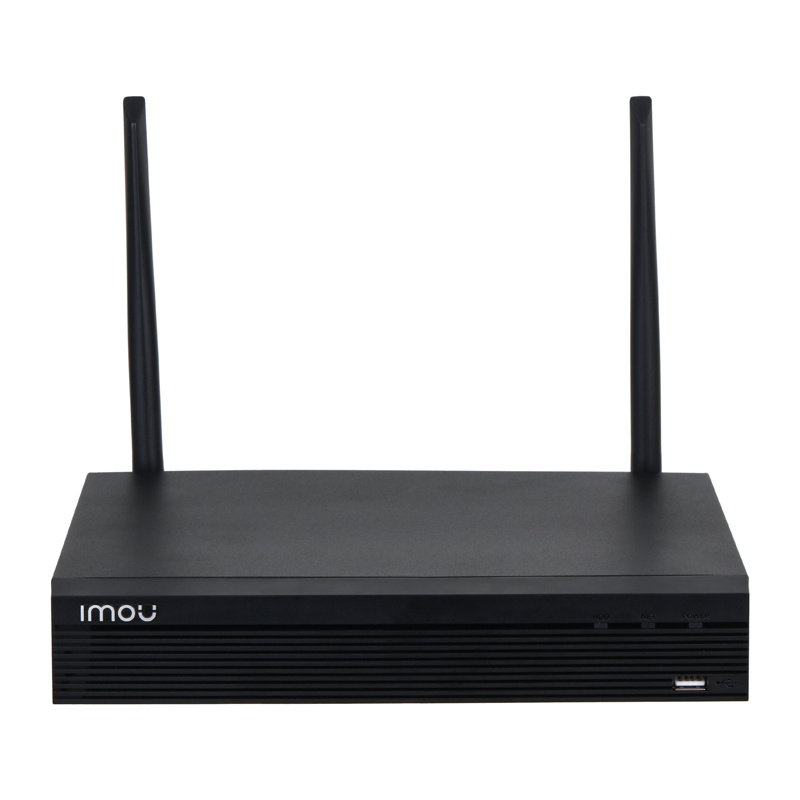

The recorder is equipped with HDMI and VGA ports (up to 1080P), an RJ-45 network port (10/100 Mbps), RCA In and RCA Out connectors, and 2 USB 2.0 ports. It supports OSD functions, various recording modes (manual, alarm, schedule), and backup via USB or the network. Cloud access allows for live viewing and playback of recordings from anywhere.

Included:

• Camera x4
• Wi-Fi NVR (with built-in 1 TB HDD)
• Quick Start Guide
