iiyama TW3226AS-B3P. Product design: Kiosk design. Display diagonal: 80 cm (31.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 430 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

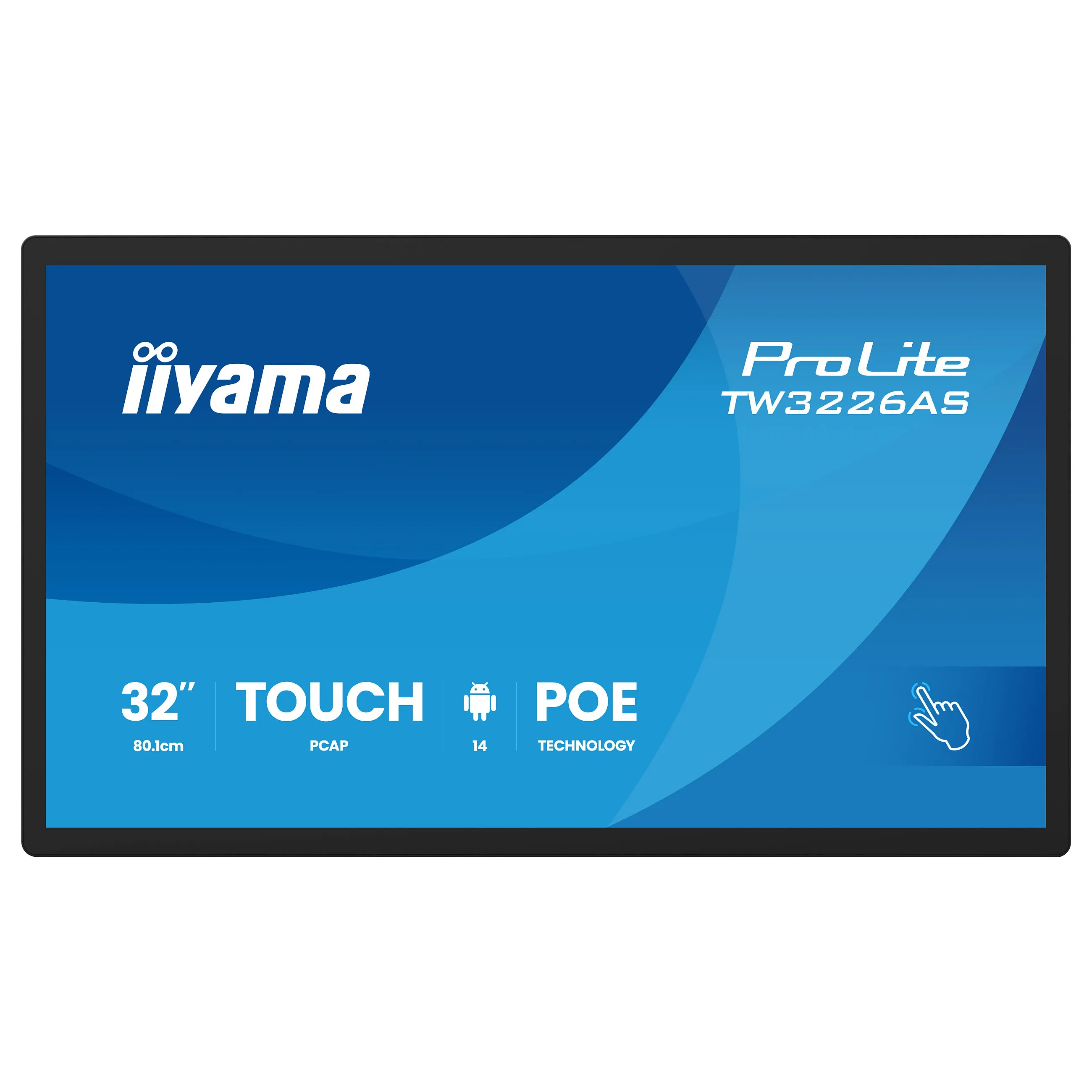

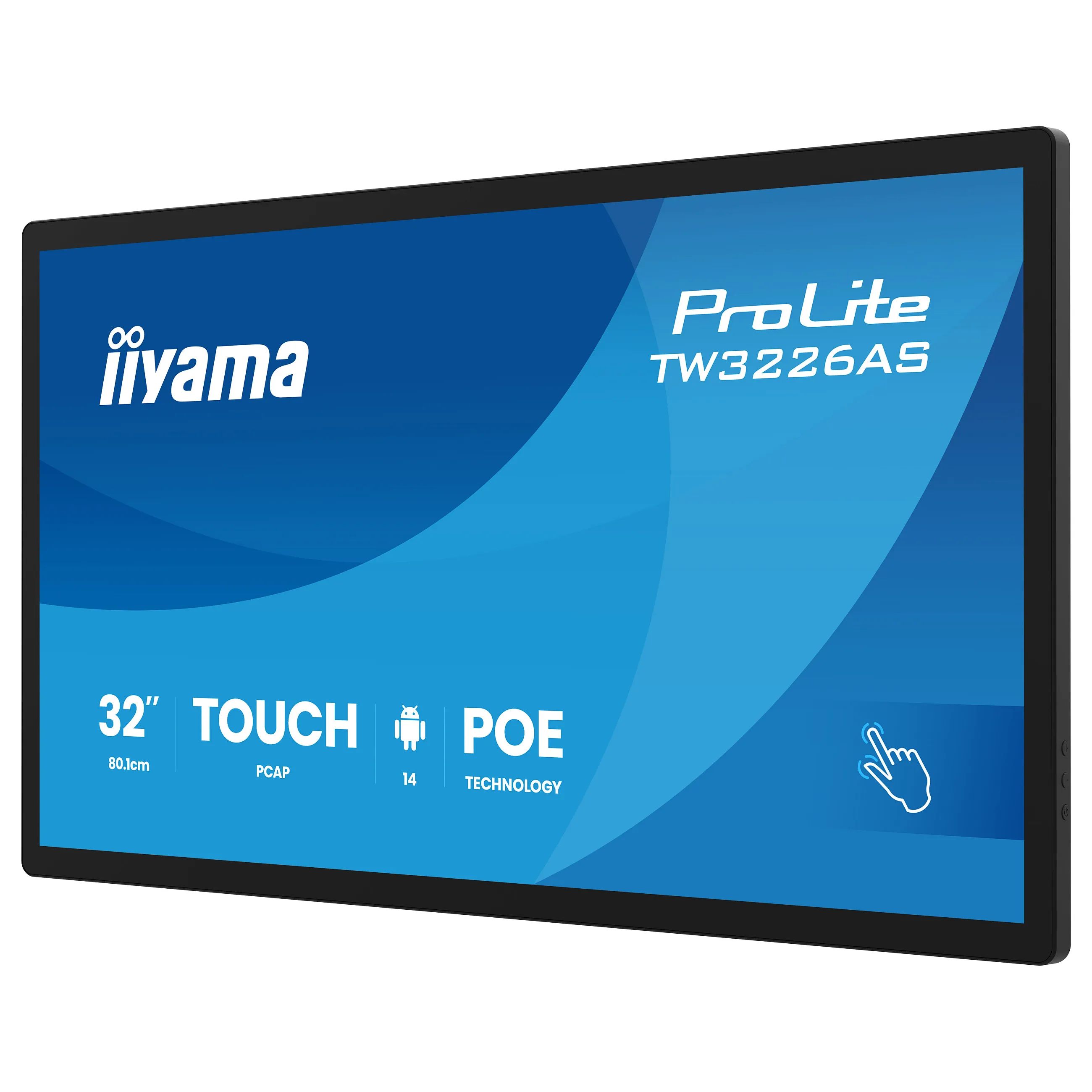

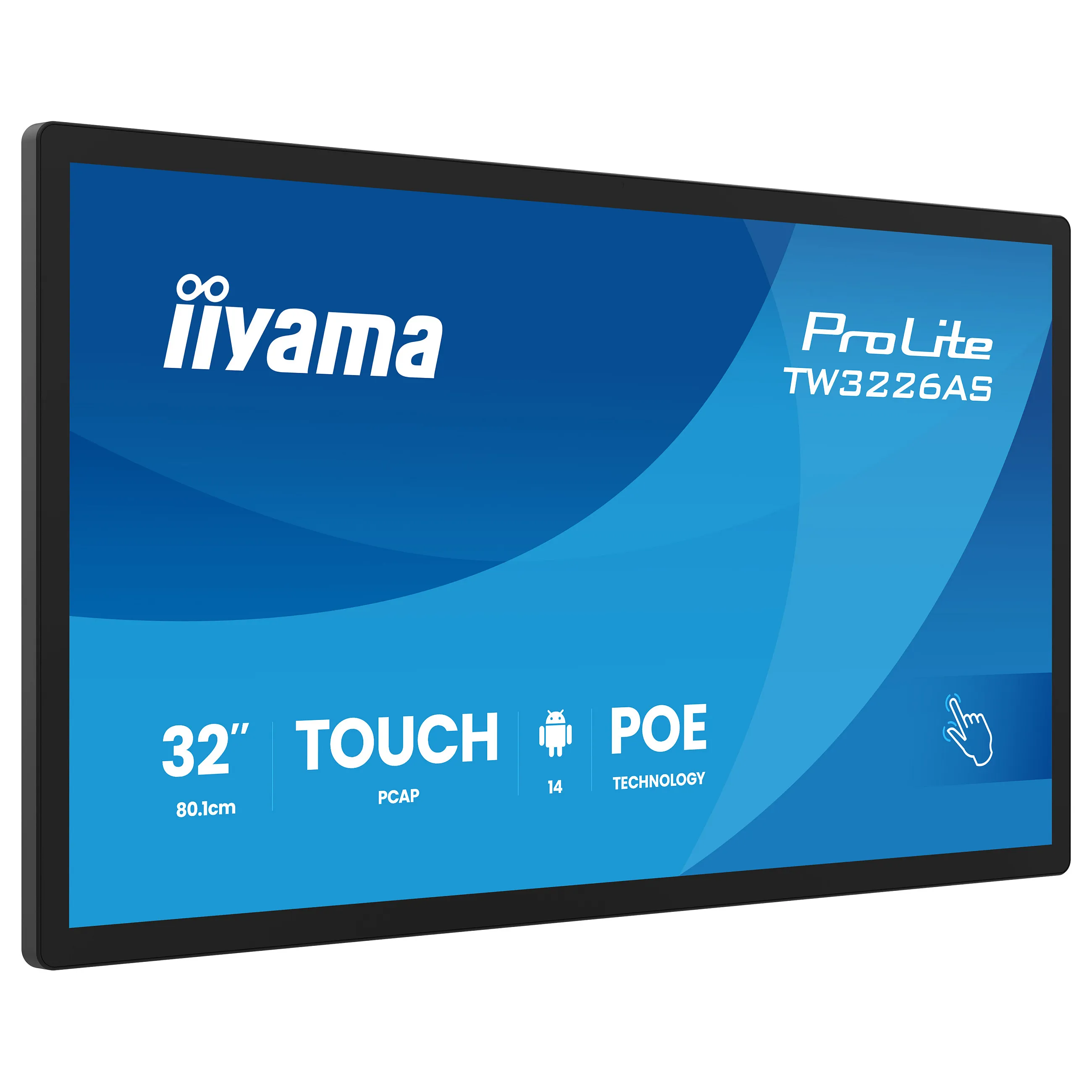

The ProLite TW3226AS-B3P is a smart and intuitive 31.5″ Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device – making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage2 , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
Display
Panel type: VA
Display diagonal: 80 cm (31.5″)
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 430 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.3637 x 0.3637 mm
Active display area (W x H): 698.4 x 392.8 mm
Display diagonal (metric): 80.1 cm
Colour depth: 8 bit
Surface hardness: 3H

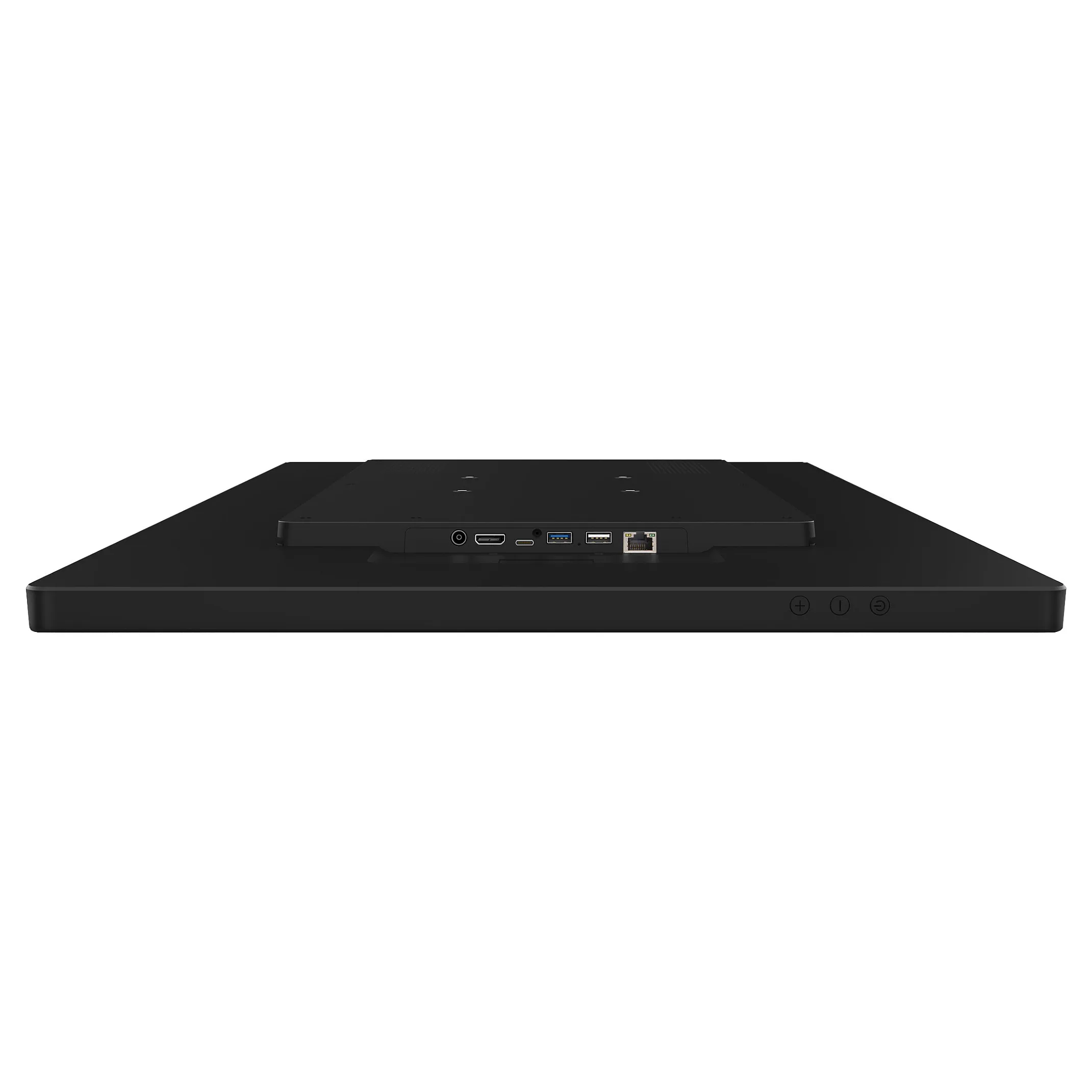

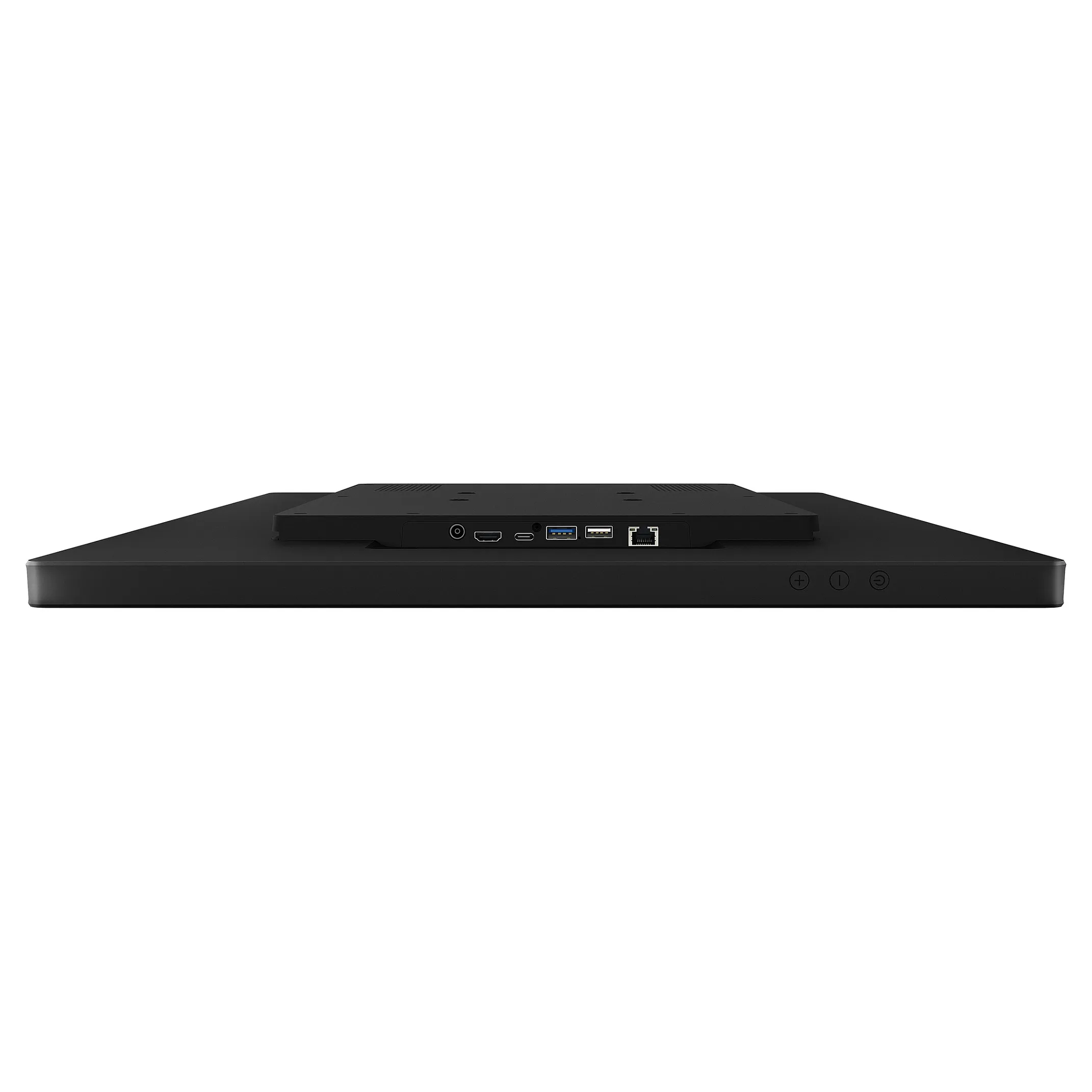

Ports & interfaces
HDMI ports quantity: 1
HDMI version: 1.4
HDMI input ports quantity: 1
Feature: USB port
USB ports quantity: 3
USB version: 3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: DC-in jack
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W
Design
Product design: Kiosk design
Placement supported: Indoor

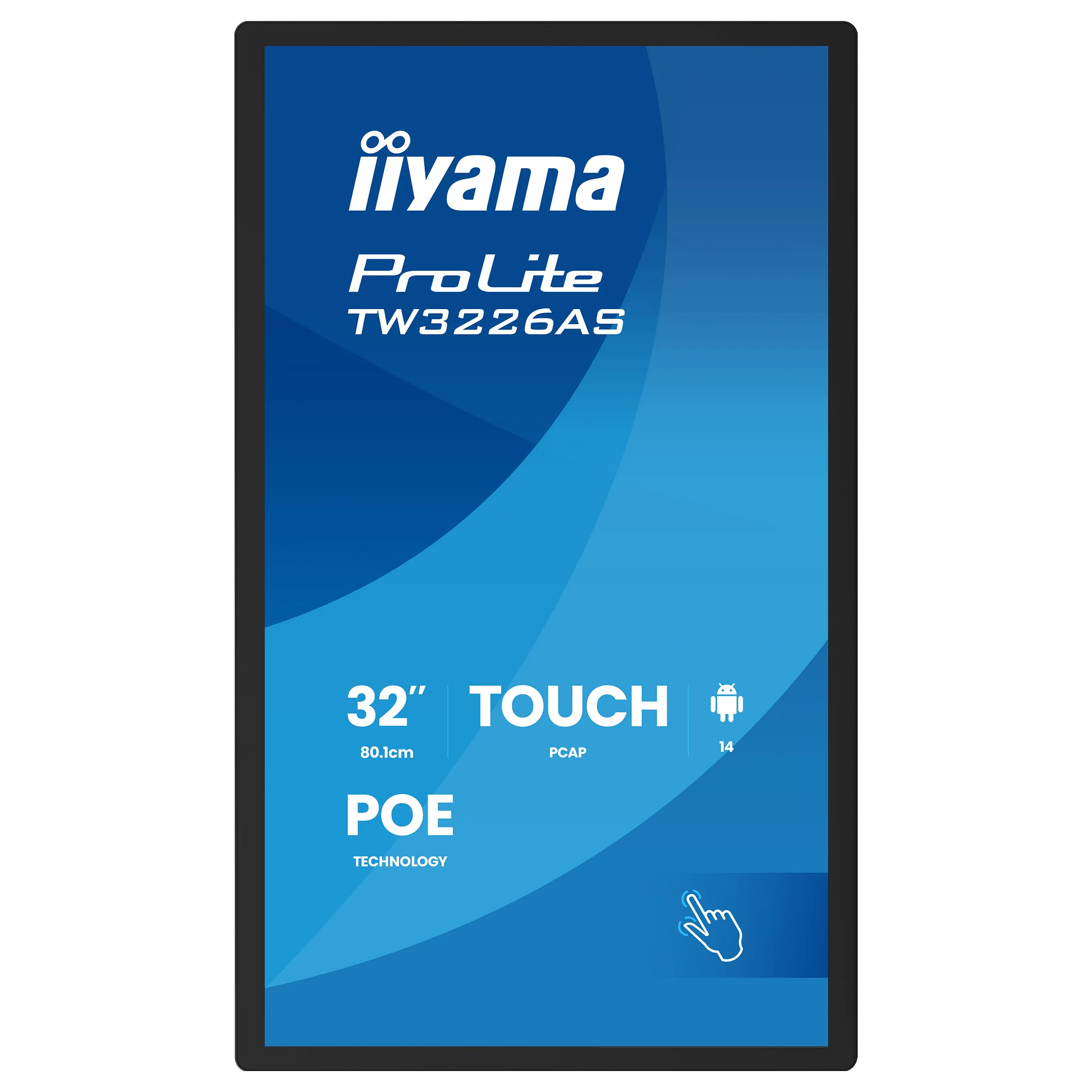

Orientation: Horizontal/Vertical
Product colour: Black

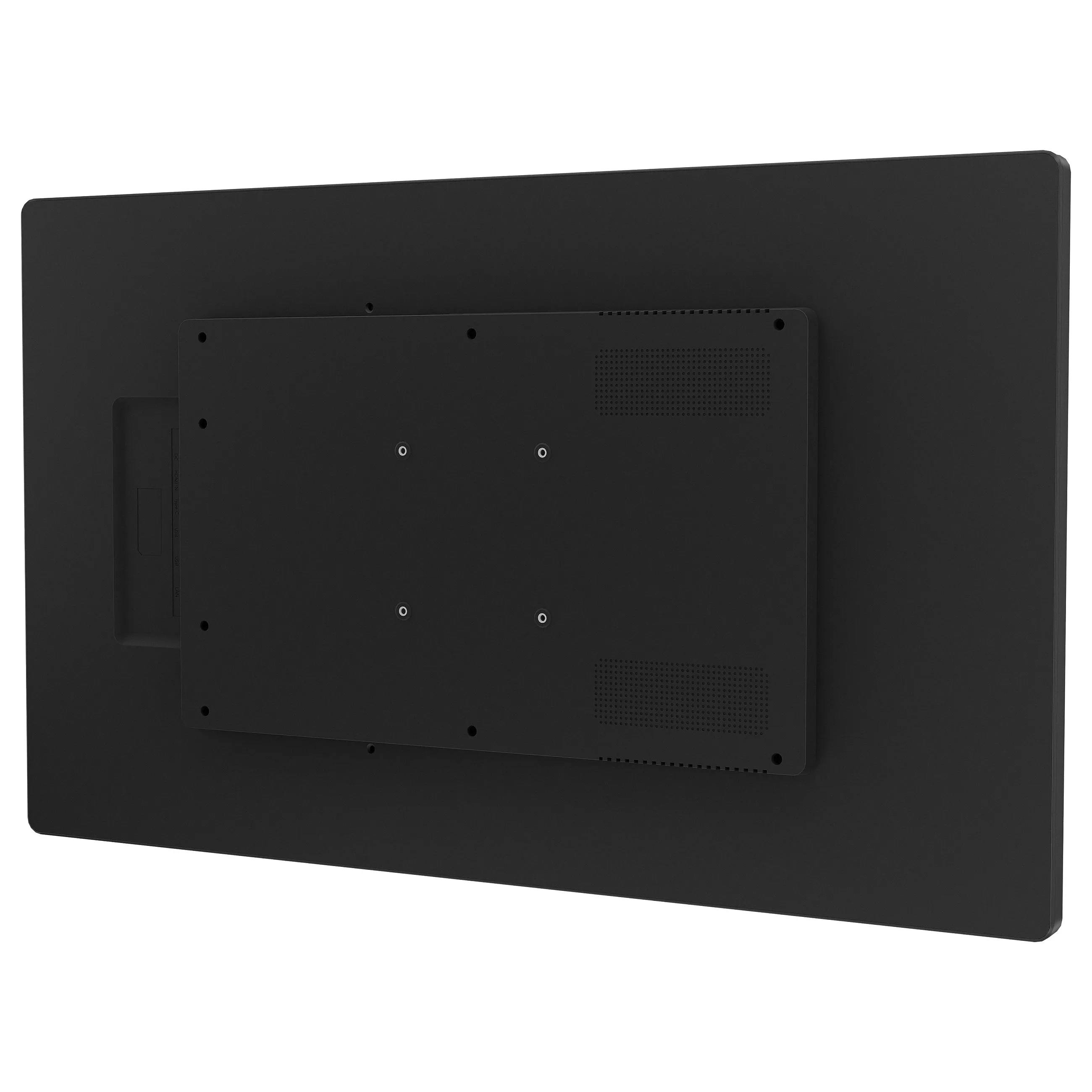

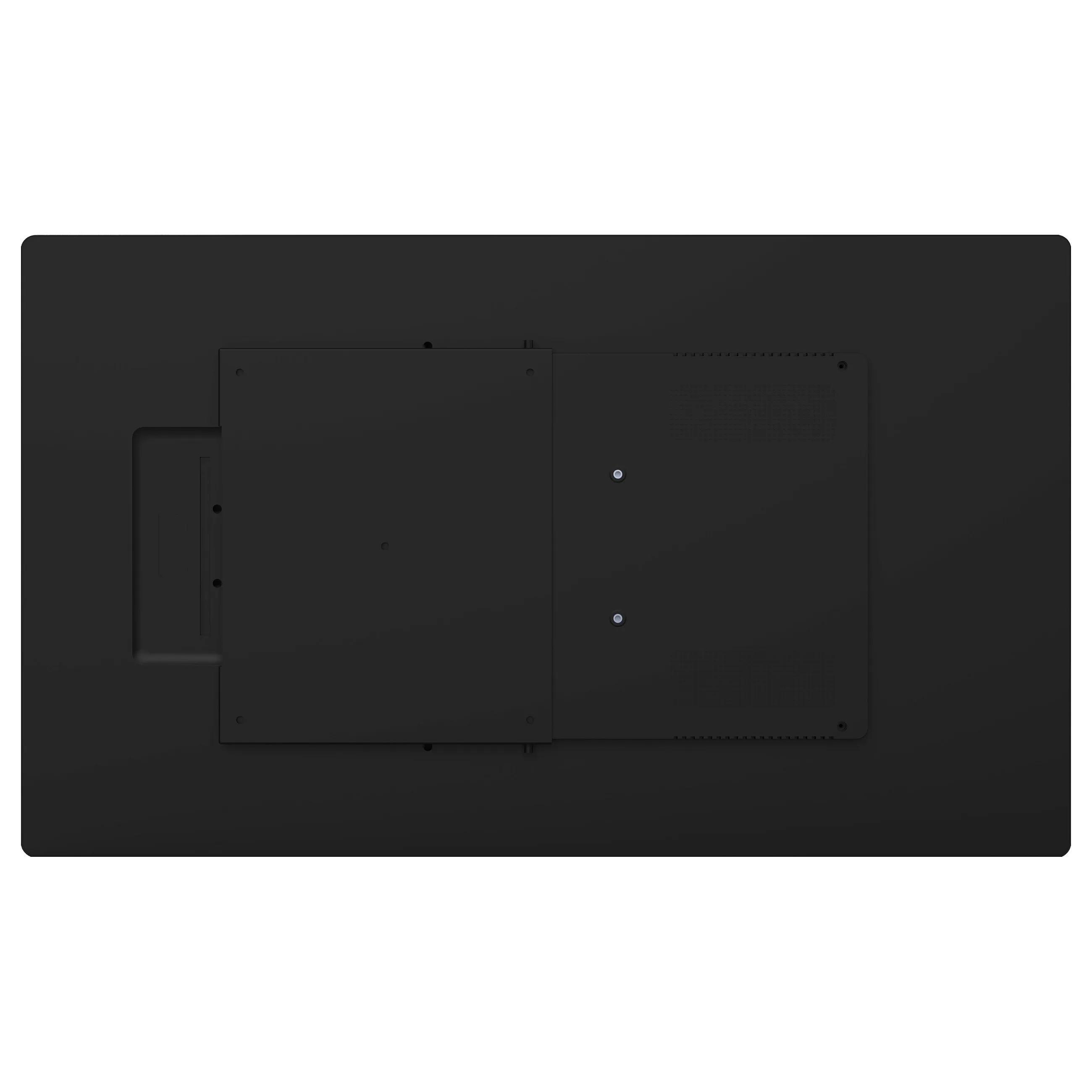

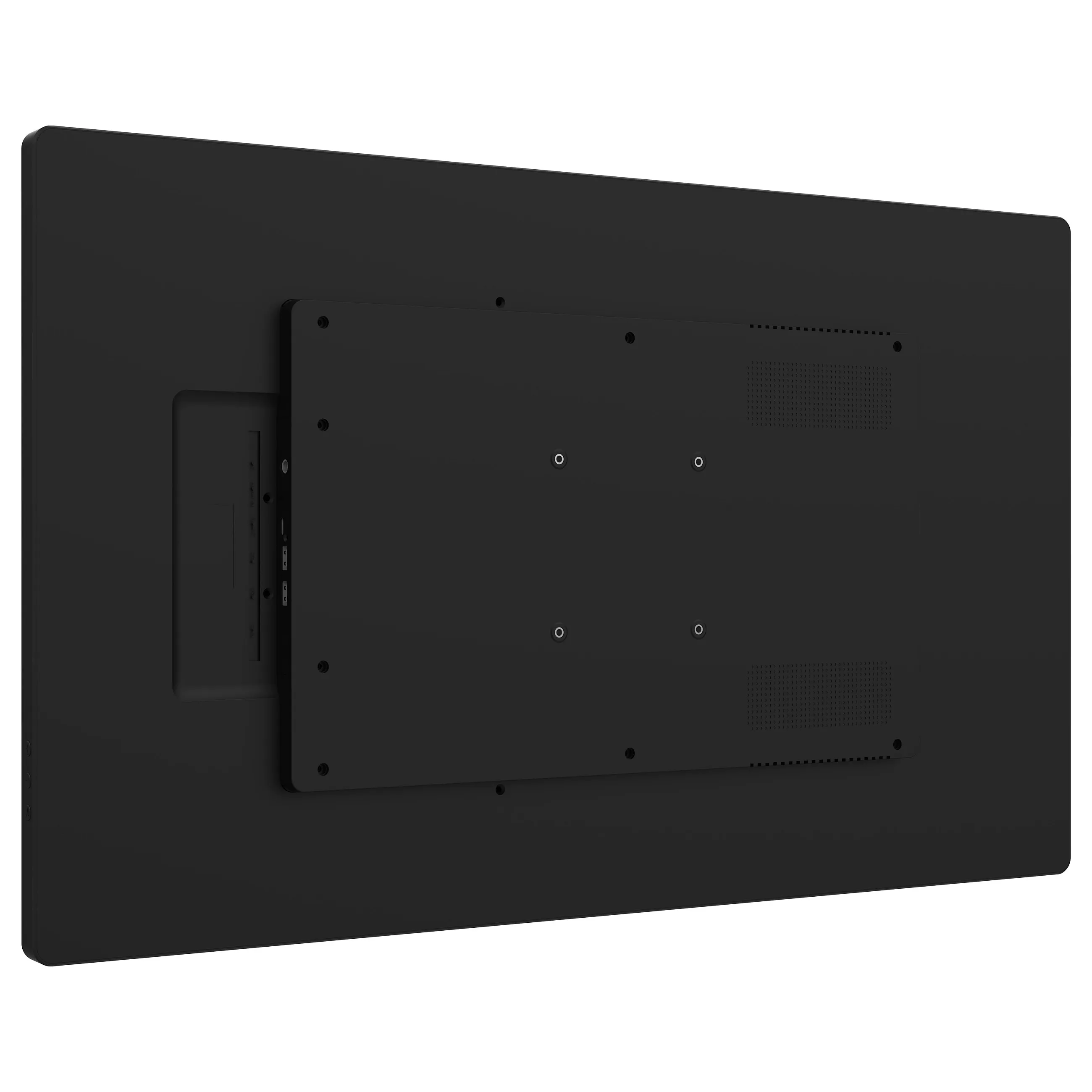

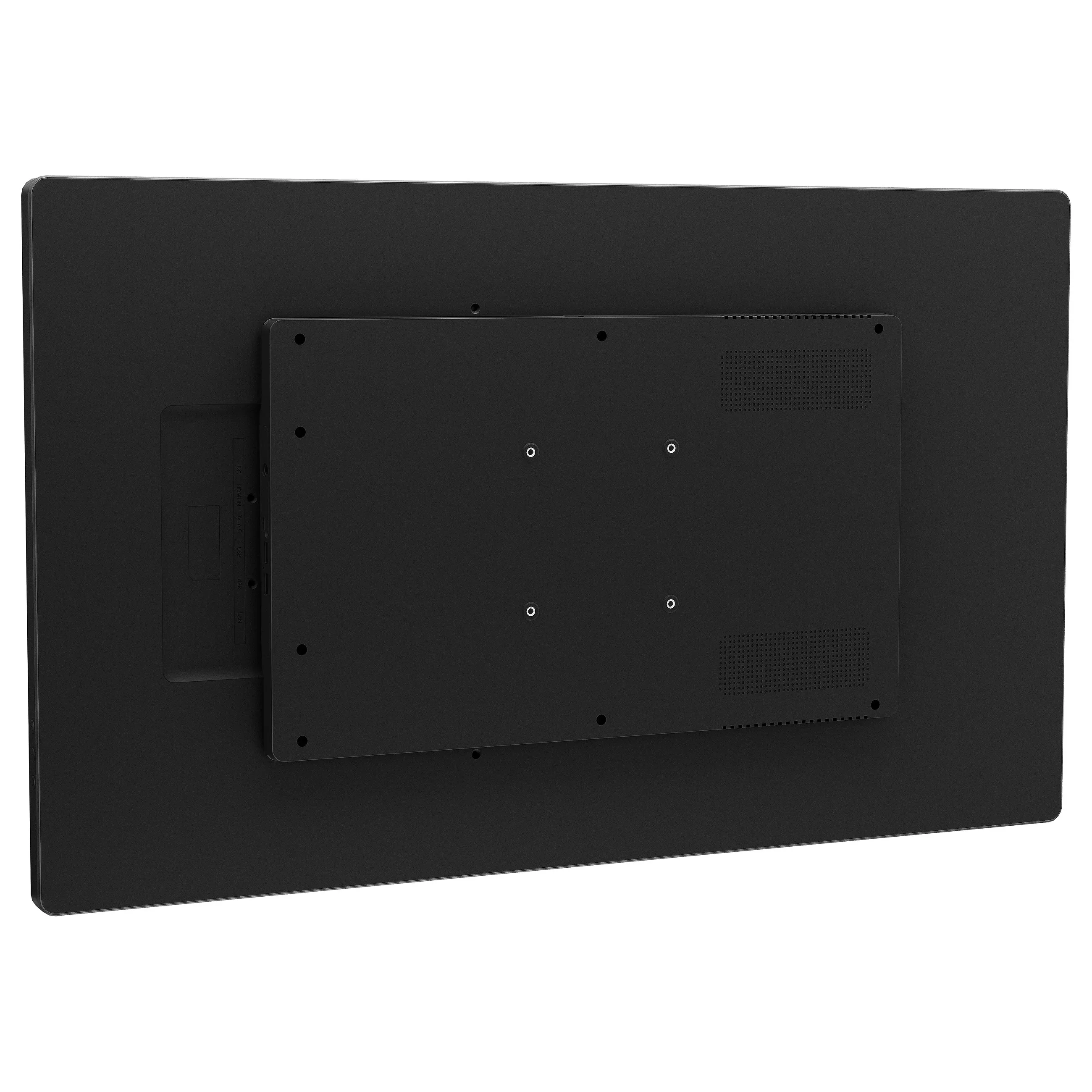

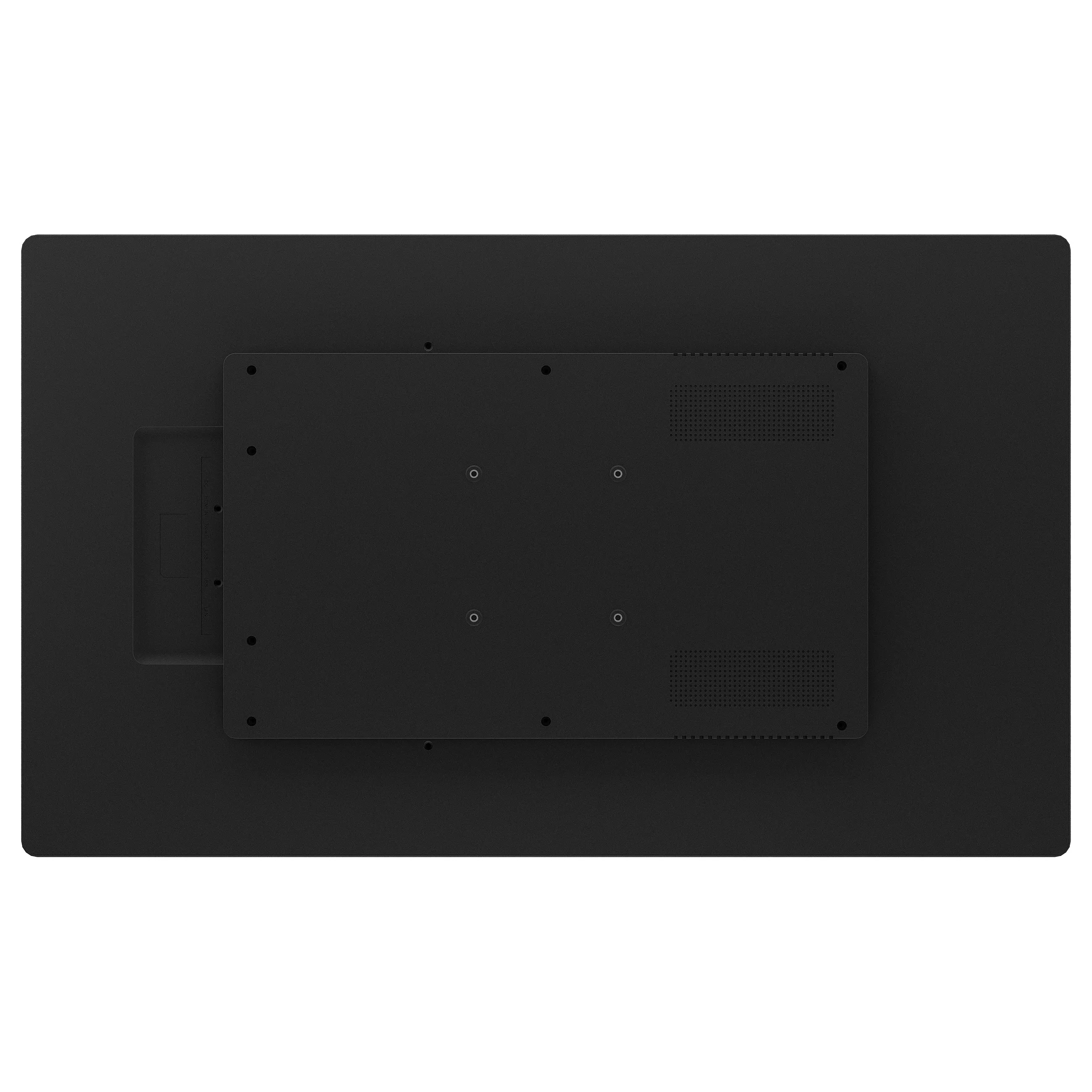

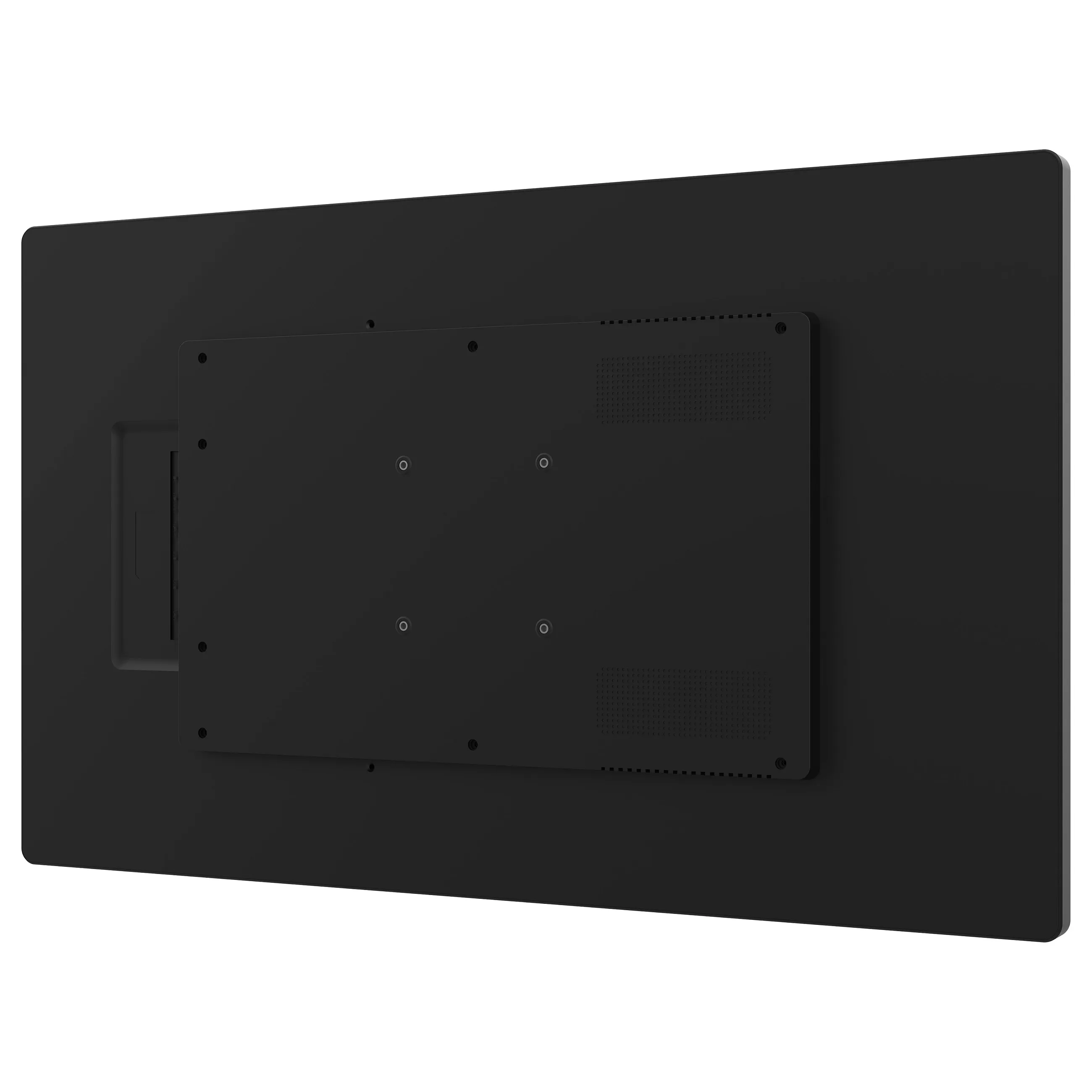

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel colour: Black
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
Feature: HDCP
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 36.34 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Rockchip
Processor model: Rockchip RK3576
Processor architecture: ARM Cortex-A53+Cortex-A72
Processor cores: 8
Internal memory: 4 GB
On-board graphics card model: Mali-G52 MC3
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Google applications: Google Chrome, Gmail, Google Calendar
Weight & dimensions
Display width: 735 mm
Display depth: 35 mm
Display height: 436 mm
Display weight: 7.7 kg
Width: 735 mm
Depth: 35 mm
Height: 436 mm
Weight: 7.7 kg
Width (with stand): 735 mm
Depth (with stand): 35 mm
Height (with stand): 436 mm
Weight (with stand): 7.7 kg
Packaging data
Package width: 833 mm
Package depth: 126 mm
Package height: 508 mm
Package weight: 12.4 kg
Packaging content
Feature: Power adapter included
Cables included: AC
Feature: Mounting kit
Certificates
Certification: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
User controls: Power switch, volume/ button +, volume/ button –
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Feature: Quick start guide
Feature: AC adapter included
Audio output: Mini jack
Feature: Bluetooth
Bluetooth version: 5.3
Viewable size, horizontal: 69.8 cm
Viewable size, vertical: 39.3 cm
Brightness: 430 cd/m²
Power supply type: External
Feature: Cable management
Panel type: VA
Display diagonal: 80 cm (31.5″)
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 430 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.3637 x 0.3637 mm
Active display area (W x H): 698.4 x 392.8 mm
Display diagonal (metric): 80.1 cm
Colour depth: 8 bit
Surface hardness: 3H
Ports & interfaces
HDMI ports quantity: 1
HDMI version: 1.4
HDMI input ports quantity: 1
Feature: USB port
USB ports quantity: 3
USB version: 3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: DC-in jack
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W
Design
Product design: Kiosk design
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel colour: Black
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
Feature: HDCP
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 36.34 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Rockchip
Processor model: Rockchip RK3576
Processor architecture: ARM Cortex-A53+Cortex-A72
Processor cores: 8
Internal memory: 4 GB
On-board graphics card model: Mali-G52 MC3
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Google applications: Google Chrome, Gmail, Google Calendar
Weight & dimensions
Display width: 735 mm
Display depth: 35 mm
Display height: 436 mm
Display weight: 7.7 kg
Width: 735 mm
Depth: 35 mm
Height: 436 mm
Weight: 7.7 kg
Width (with stand): 735 mm
Depth (with stand): 35 mm
Height (with stand): 436 mm
Weight (with stand): 7.7 kg
Packaging data
Package width: 833 mm
Package depth: 126 mm
Package height: 508 mm
Package weight: 12.4 kg
Packaging content
Feature: Power adapter included
Cables included: AC
Feature: Mounting kit
Certificates
Certification: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
User controls: Power switch, volume/ button +, volume/ button –
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Feature: Quick start guide
Feature: AC adapter included
Audio output: Mini jack
Feature: Bluetooth
Bluetooth version: 5.3
Viewable size, horizontal: 69.8 cm
Viewable size, vertical: 39.3 cm
Brightness: 430 cd/m²
Power supply type: External
Feature: Cable management
