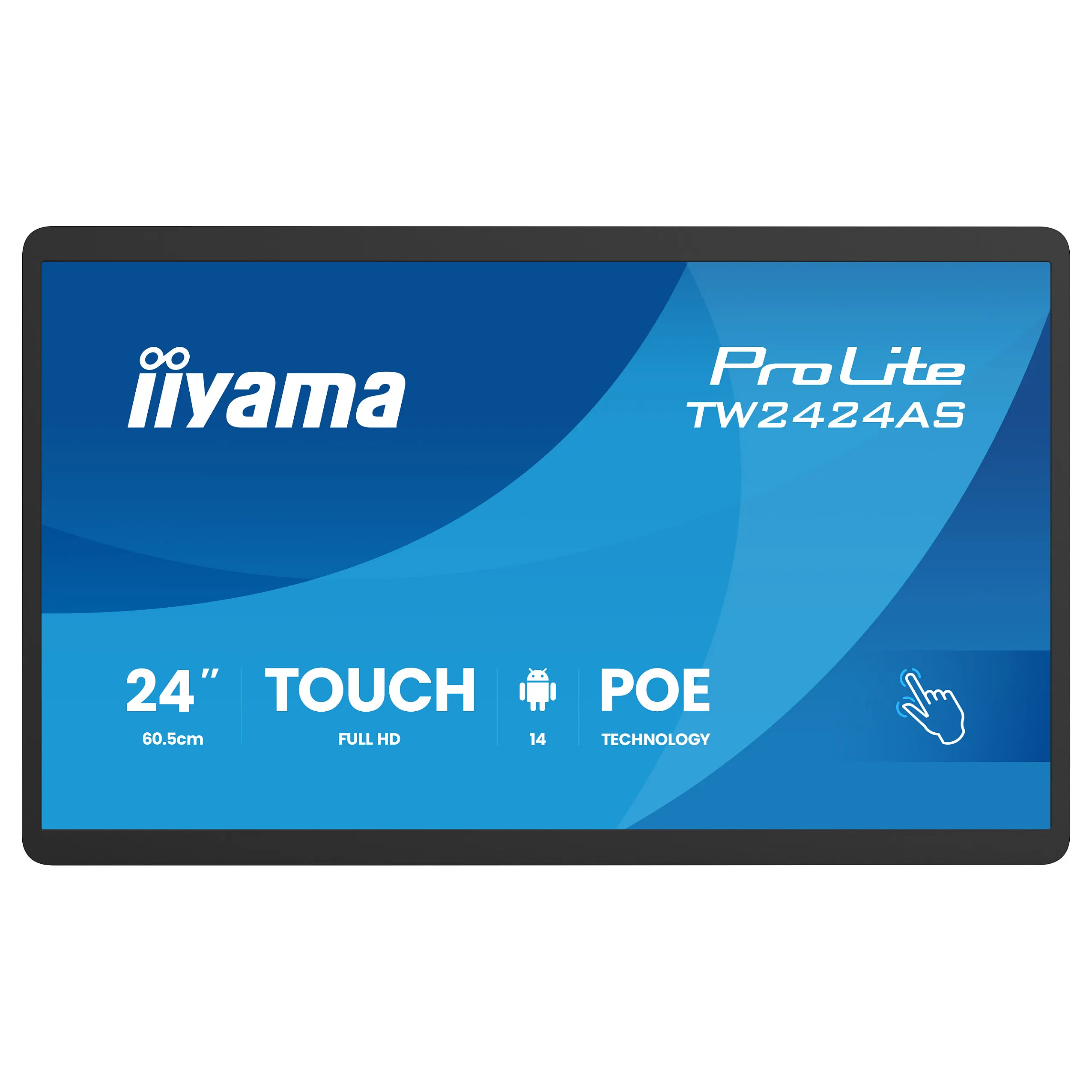

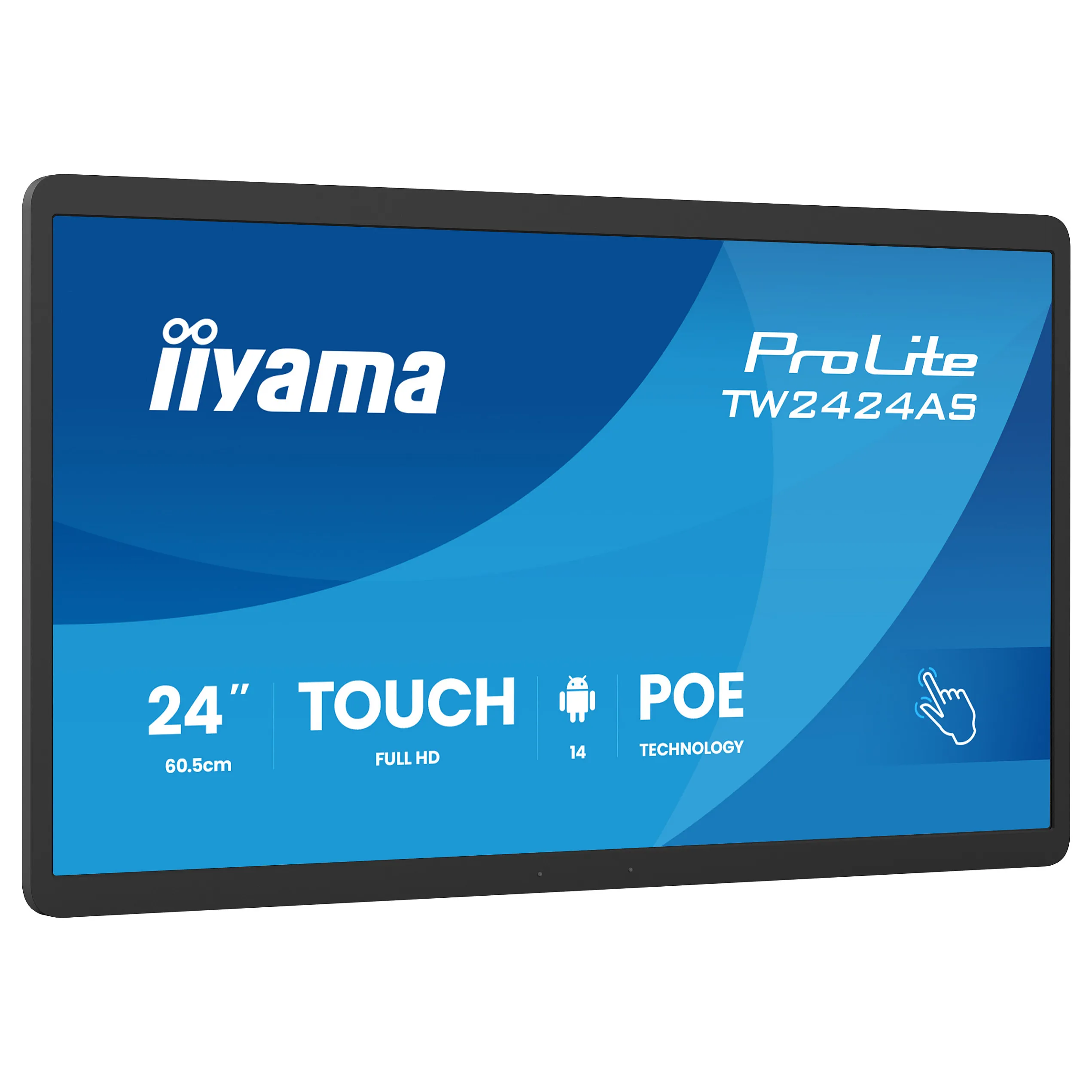

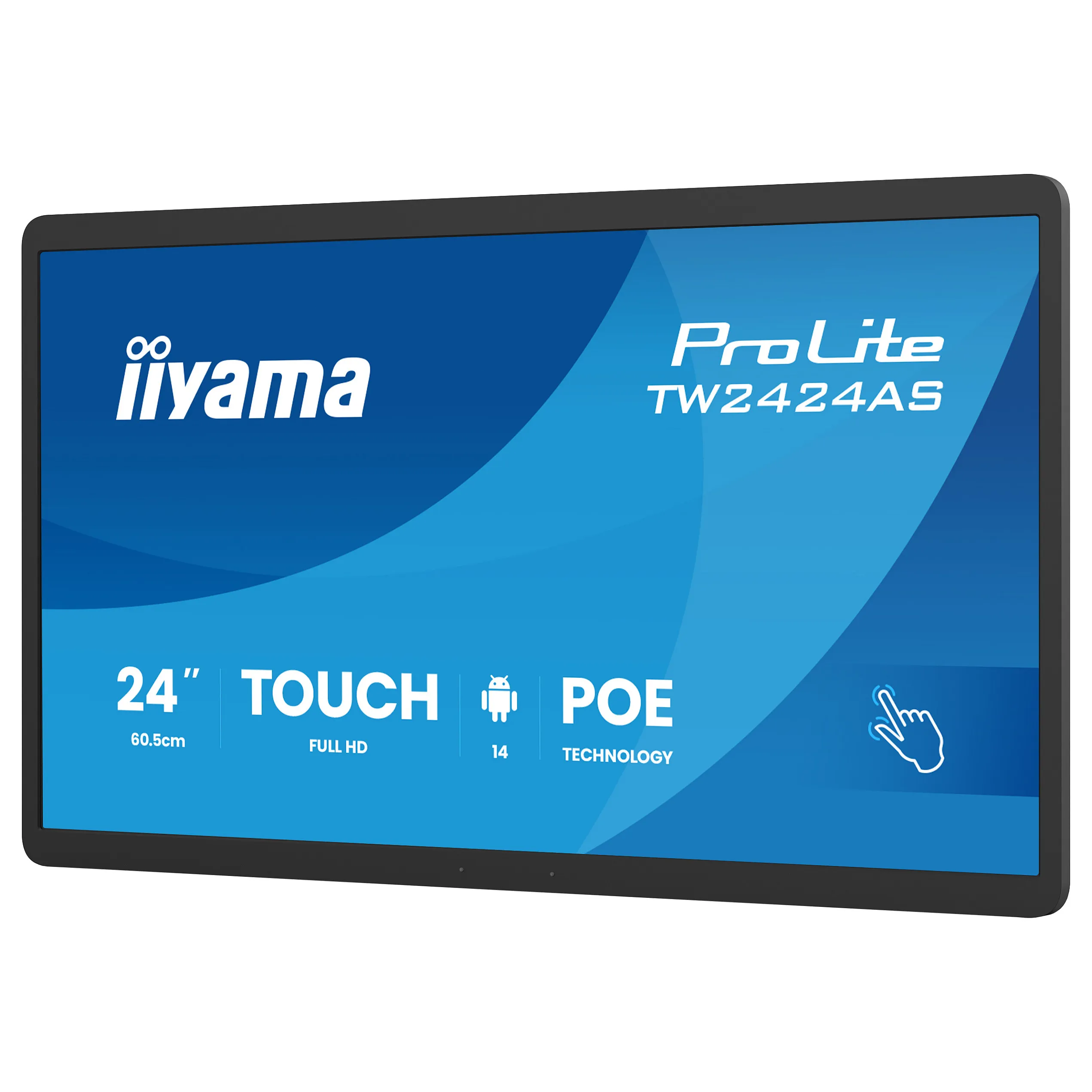

iiyama TW2424AS-B3P. Product design: Interactive flat panel. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, Display brightness: 450 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
The ProLite TW2424AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage2 , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.
Display
Panel type: IPS
Display diagonal: 60.5 cm (23.8″)
Display resolution: 1920 x 1080 pixels
Display brightness: 450 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.275 x 0.275 mm
Active display area (W x H): 527 x 296.5 mm
Display diagonal (metric): 60.5 cm
Colour depth: 8 bit
Surface hardness: 6H
Ports & interfaces
Feature: USB port
USB ports quantity: 2
USB 2.0 Type-B ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W
Design
Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Operating hours (hours/days): 24/7
Feature: HDCP
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 17.5 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: Rockchip
Processor family: ARM Rockchip
Processor model: Rockchip RK3576
Processor frequency: 1.8 GHz
Internal memory: 4 GB
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Google applications: Google Chrome, Gmail, Google Calendar
Weight & dimensions
Display width: 550 mm
Display depth: 28 mm
Display height: 336 mm
Display weight: 4.24 kg
Width: 550 mm
Depth: 28 mm
Height: 336 mm
Weight: 4.24 kg
Width (with stand): 550 mm
Depth (with stand): 28 mm
Height (with stand): 336 mm
Weight (with stand): 4.24 kg
Packaging data
Package width: 640 mm
Package depth: 121 mm
Package height: 410 mm
Package weight: 6.2 kg
Packaging content
Cables included: AC
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
Feature: Audio in (mini jack)
User controls: Power switch, volume/ button +, volume/ button –
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Feature: Quick start guide
Feature: AC adapter included
Audio input: Y
Feature: Bluetooth
Bluetooth version: 5.3
Feature: Built-in microphone
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Brightness: 450 cd/m²
Power supply type: External
Feature: Cable management
Panel type: IPS
Display diagonal: 60.5 cm (23.8″)
Display resolution: 1920 x 1080 pixels
Display brightness: 450 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.275 x 0.275 mm
Active display area (W x H): 527 x 296.5 mm
Display diagonal (metric): 60.5 cm
Colour depth: 8 bit
Surface hardness: 6H
Ports & interfaces
Feature: USB port
USB ports quantity: 2
USB 2.0 Type-B ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W
Design
Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Operating hours (hours/days): 24/7
Feature: HDCP
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 17.5 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: Rockchip
Processor family: ARM Rockchip
Processor model: Rockchip RK3576
Processor frequency: 1.8 GHz
Internal memory: 4 GB
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Google applications: Google Chrome, Gmail, Google Calendar
Weight & dimensions
Display width: 550 mm
Display depth: 28 mm
Display height: 336 mm
Display weight: 4.24 kg
Width: 550 mm
Depth: 28 mm
Height: 336 mm
Weight: 4.24 kg
Width (with stand): 550 mm
Depth (with stand): 28 mm
Height (with stand): 336 mm
Weight (with stand): 4.24 kg
Packaging data
Package width: 640 mm
Package depth: 121 mm
Package height: 410 mm
Package weight: 6.2 kg
Packaging content
Cables included: AC
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
Feature: Audio in (mini jack)
User controls: Power switch, volume/ button +, volume/ button –
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Feature: Quick start guide
Feature: AC adapter included
Audio input: Y
Feature: Bluetooth
Bluetooth version: 5.3
Feature: Built-in microphone
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Brightness: 450 cd/m²
Power supply type: External
Feature: Cable management
