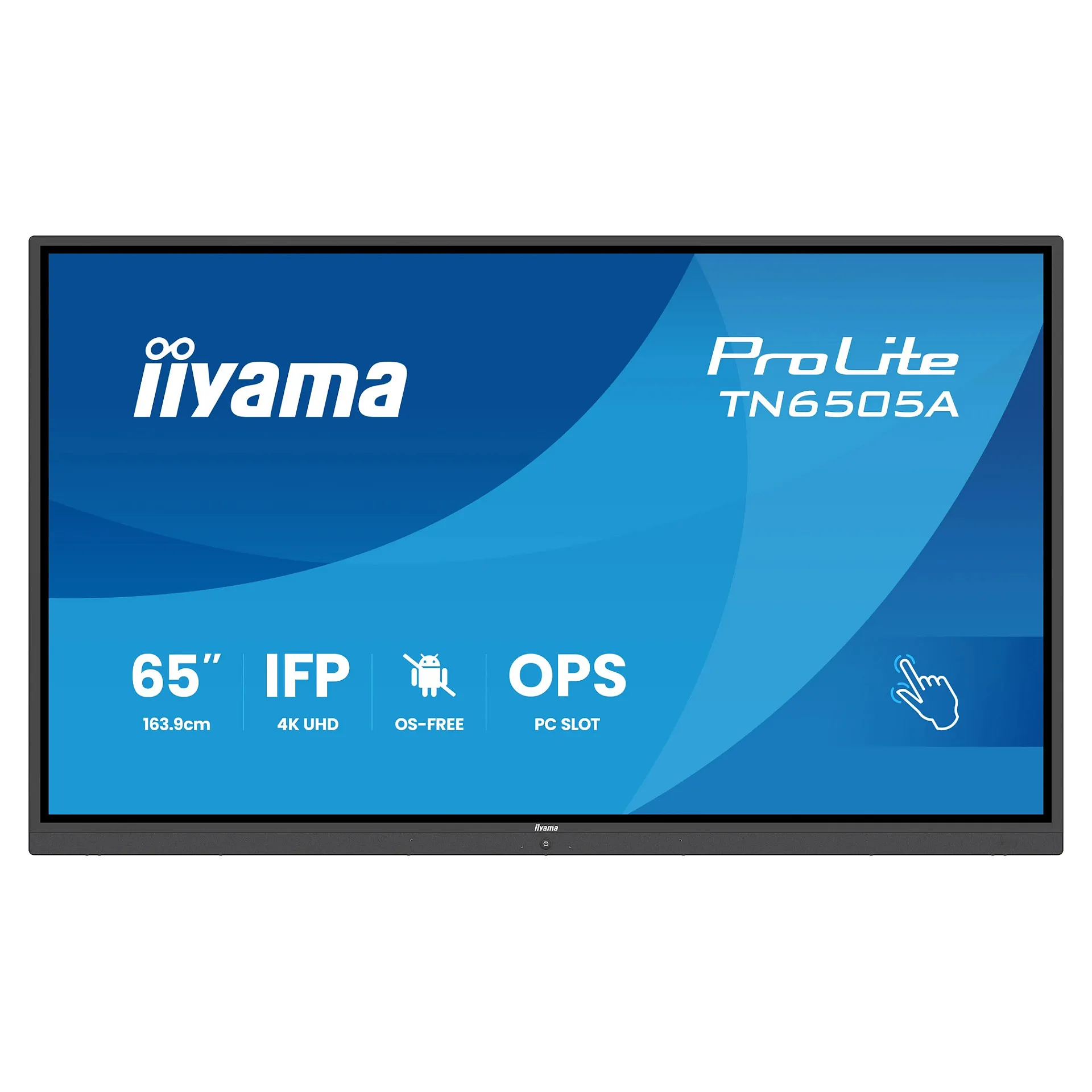

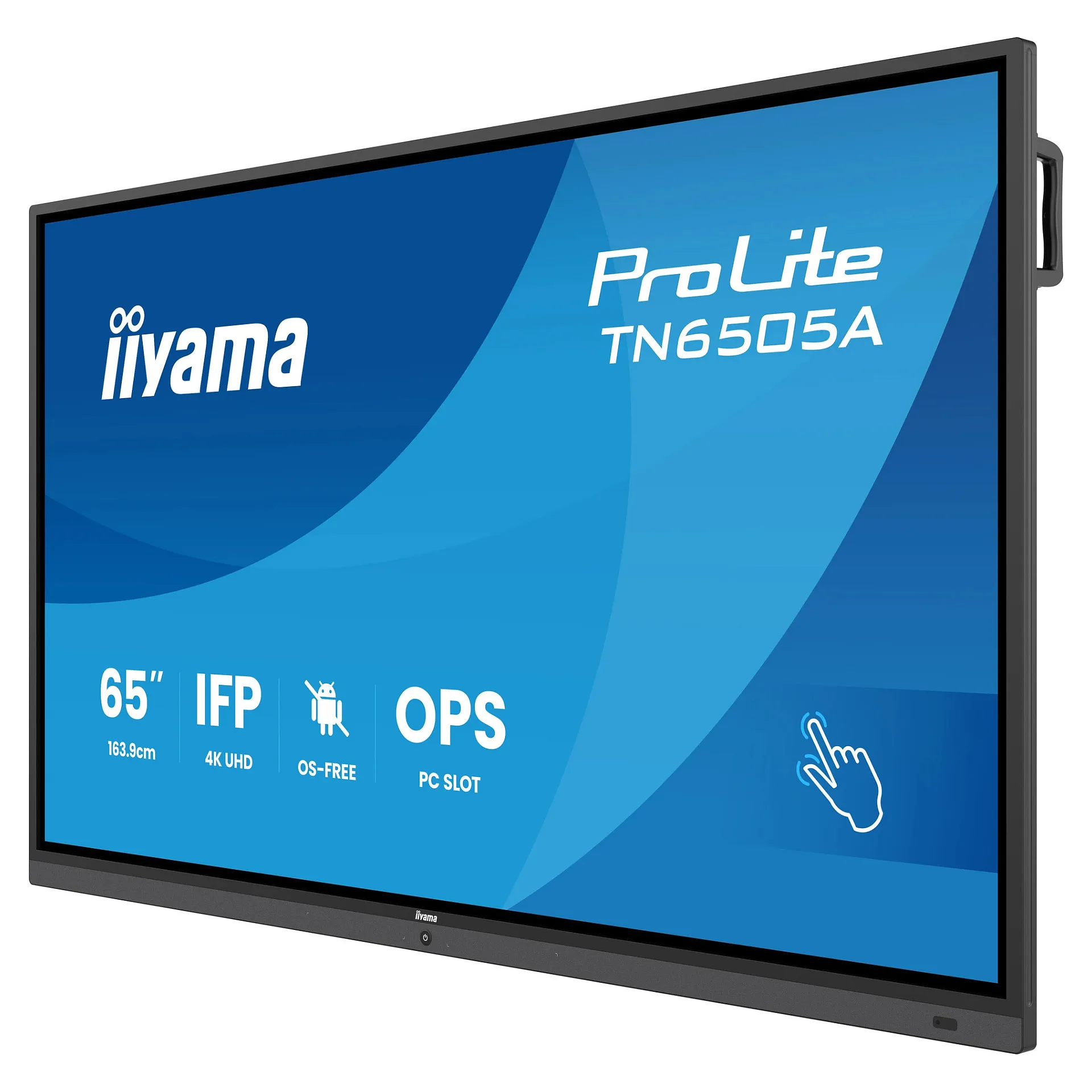

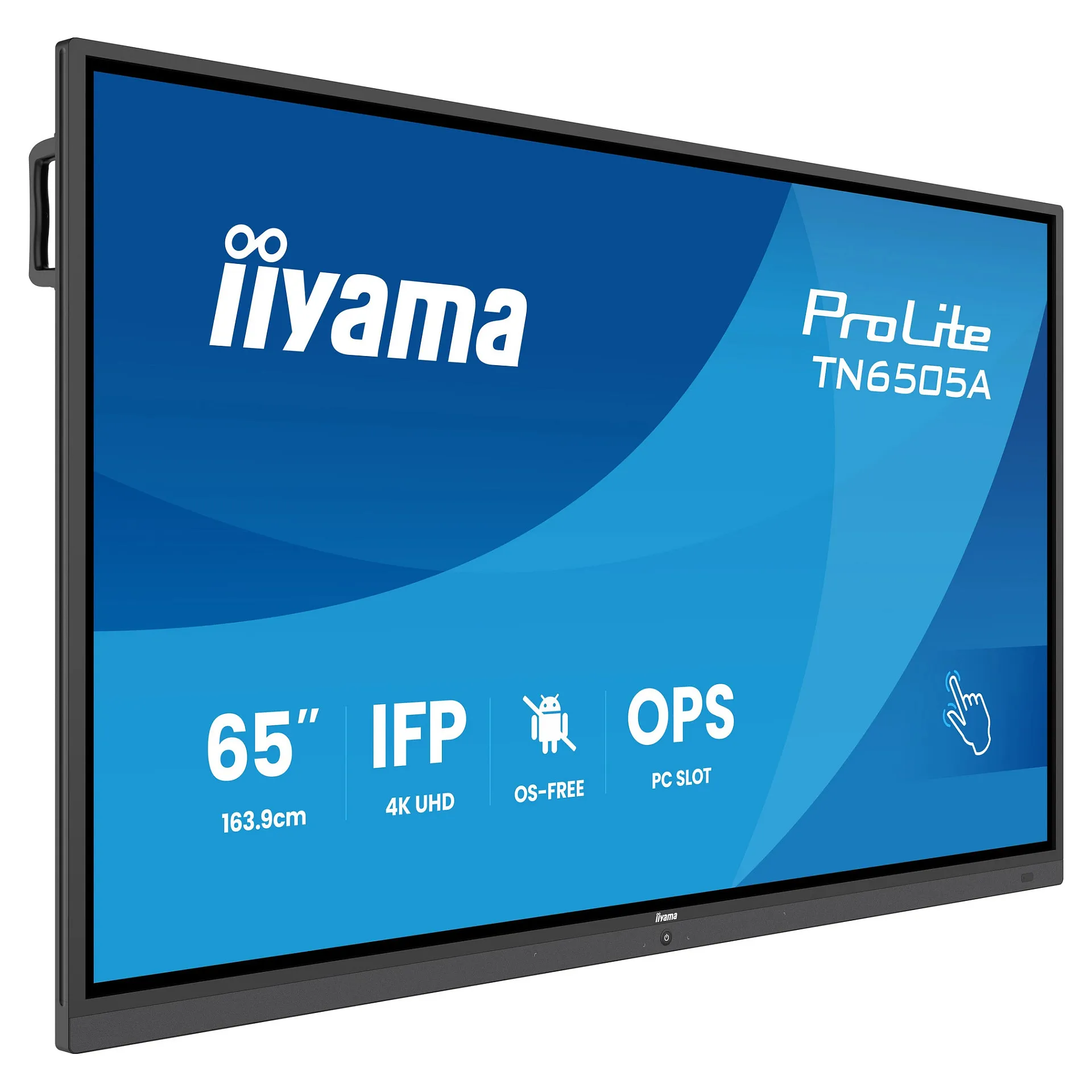

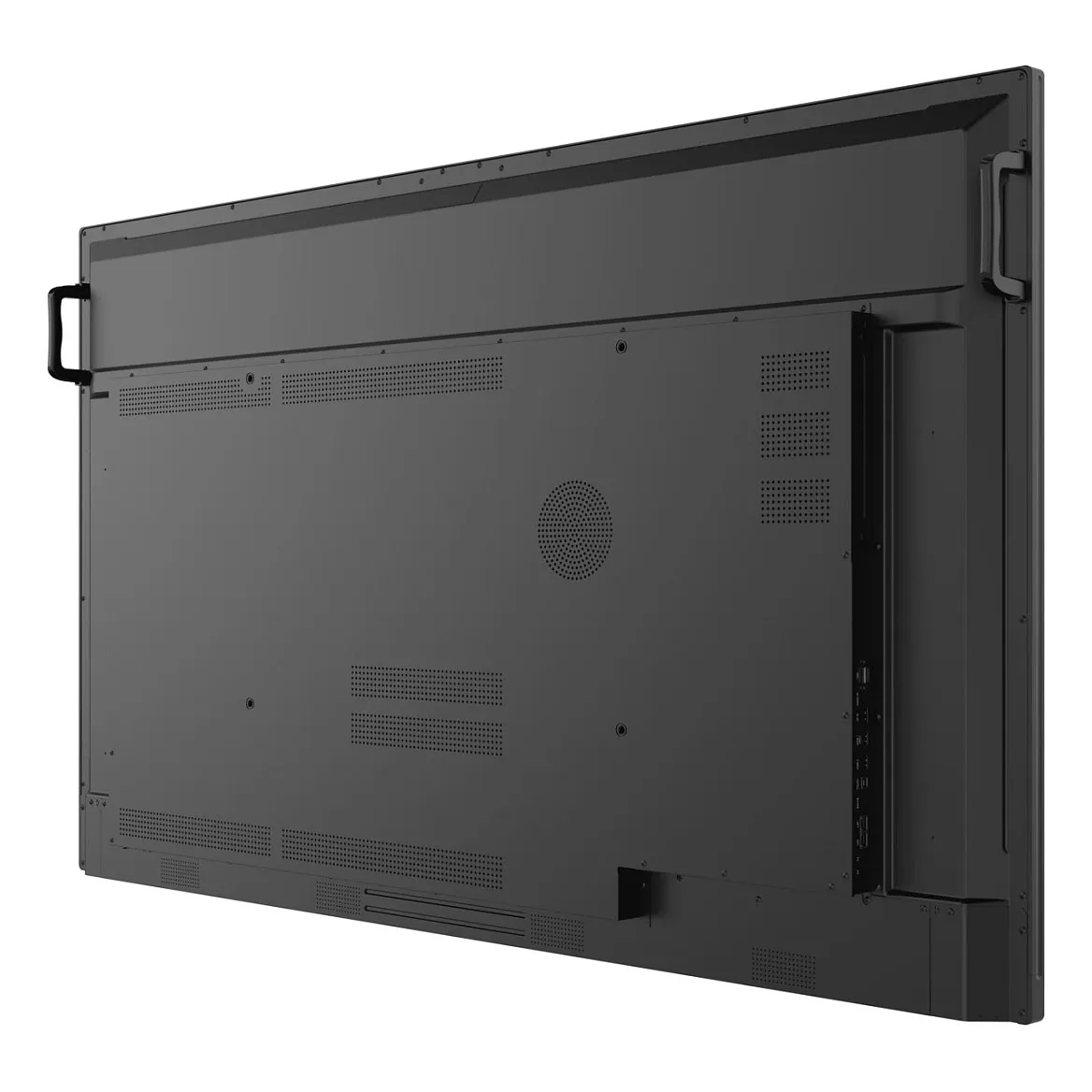

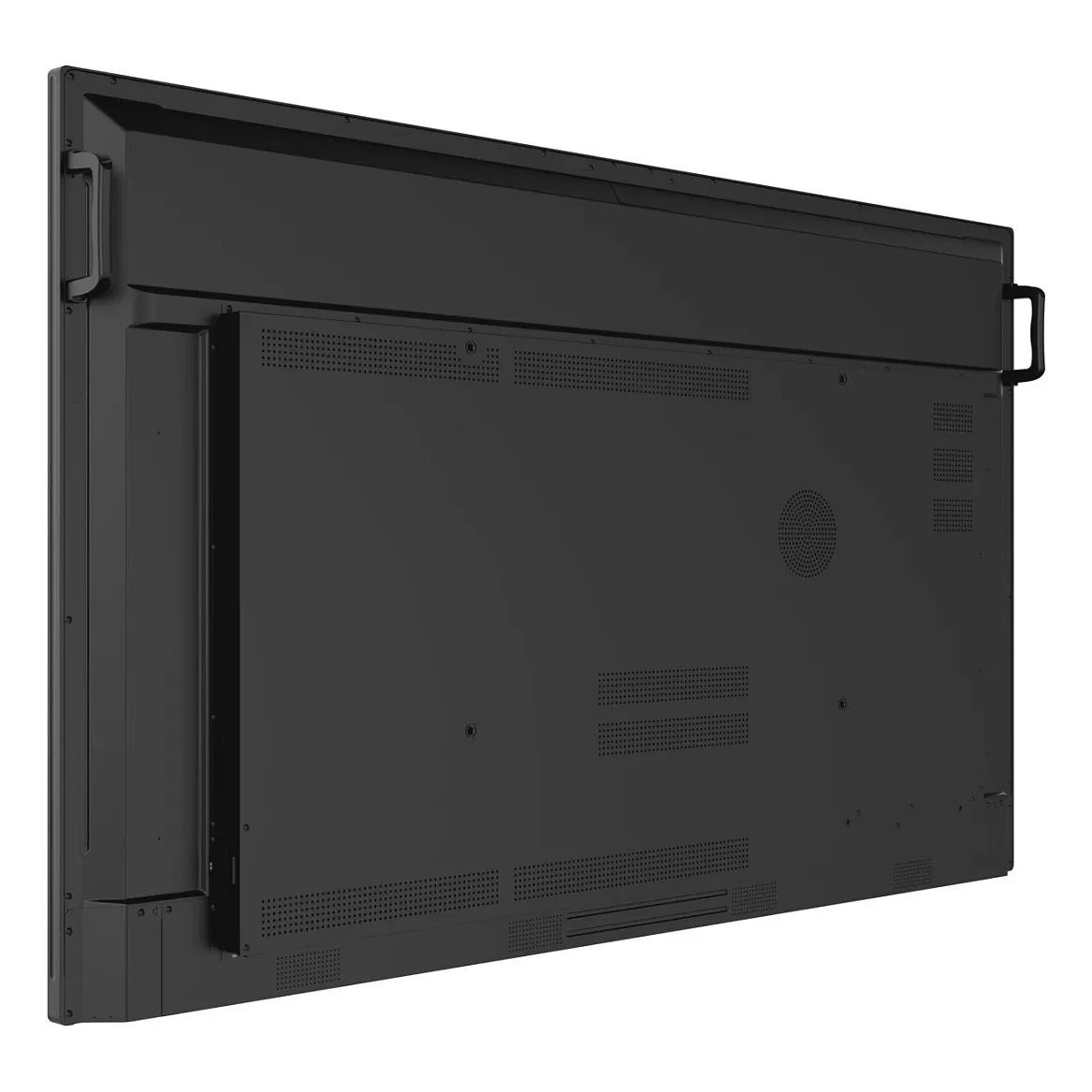

iiyama TN6505A-B1AG. Product design: Interactive flat panel. Display diagonal: 163.8 cm (64.5"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Product colour: Black
The ProLite TN6505A-B1AG is a large-format professional touch display, without an operating system, designed for environments where security, reliability and control are non-negotiable. Despite its minimalist structure, the TN6505A is exceptionally easy to use: simply connect your source and it works. The responsive multi-touch panel, 4K UHD resolution and high brightness deliver a precise and professional experience for collaboration, presentations and interactive applications. Built-in annotation allows users to write directly on the screen with a pen, marking up presentations or any on-screen content in real time for clear and effective communication. The TN6505A is the ideal choice for banks, courts, defence organisations, IT departments, universities and other high-security or compliance-driven environments where simplicity, transparency and trust are essential.
Display
Panel type: IPS
Display diagonal: 163.8 cm (64.5″)
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Infrared
Native aspect ratio: 16:9
Response time: 5 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Active display area (W x H): 1428.5 x 803.5 mm
Display diagonal (metric): 163.9 cm
Horizontal scan range: 30 – 135 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
Surface hardness: 7H
Glass thickness: 3.2 mm
Ports & interfaces
HDMI ports quantity: 2
HDMI input ports quantity: 2
VGA (D-Sub) input ports: 1
DisplayPorts quantity: 1
Feature: USB port
USB ports quantity: 1
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-C, USB Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 65 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 2
Feature: PC Audio in
Feature: RS-232C
Remote (IR) output: 1
Feature: PC Audio out
Feature: OPS module slot
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
Design
Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Feature: Anti-glare screen
Positioning accuracy: 1 mm
Performance
Purpose: Education
Feature: Picture-in-Picture
Feature: On Screen Display (OSD)
Number of OSD languages: 8
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Power
Power consumption (typical): 146 W
Power consumption (standby): 0.4 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 146 kWh
Energy efficiency scale: A to G
Weight & dimensions
Display width: 1489.1 mm
Display depth: 118.6 mm
Display height: 911.8 mm
Display weight: 41.1 kg
Width: 1489.1 mm
Depth: 118.6 mm
Height: 911.8 mm
Weight: 41.1 kg
Packaging content
Cables included: AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Network
Feature: Ethernet LAN
Technical details
Feature: Audio in (mini jack)
OPS slot: 1
Sustainability certificates: ErP
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Brightness: 450 cd/m²
