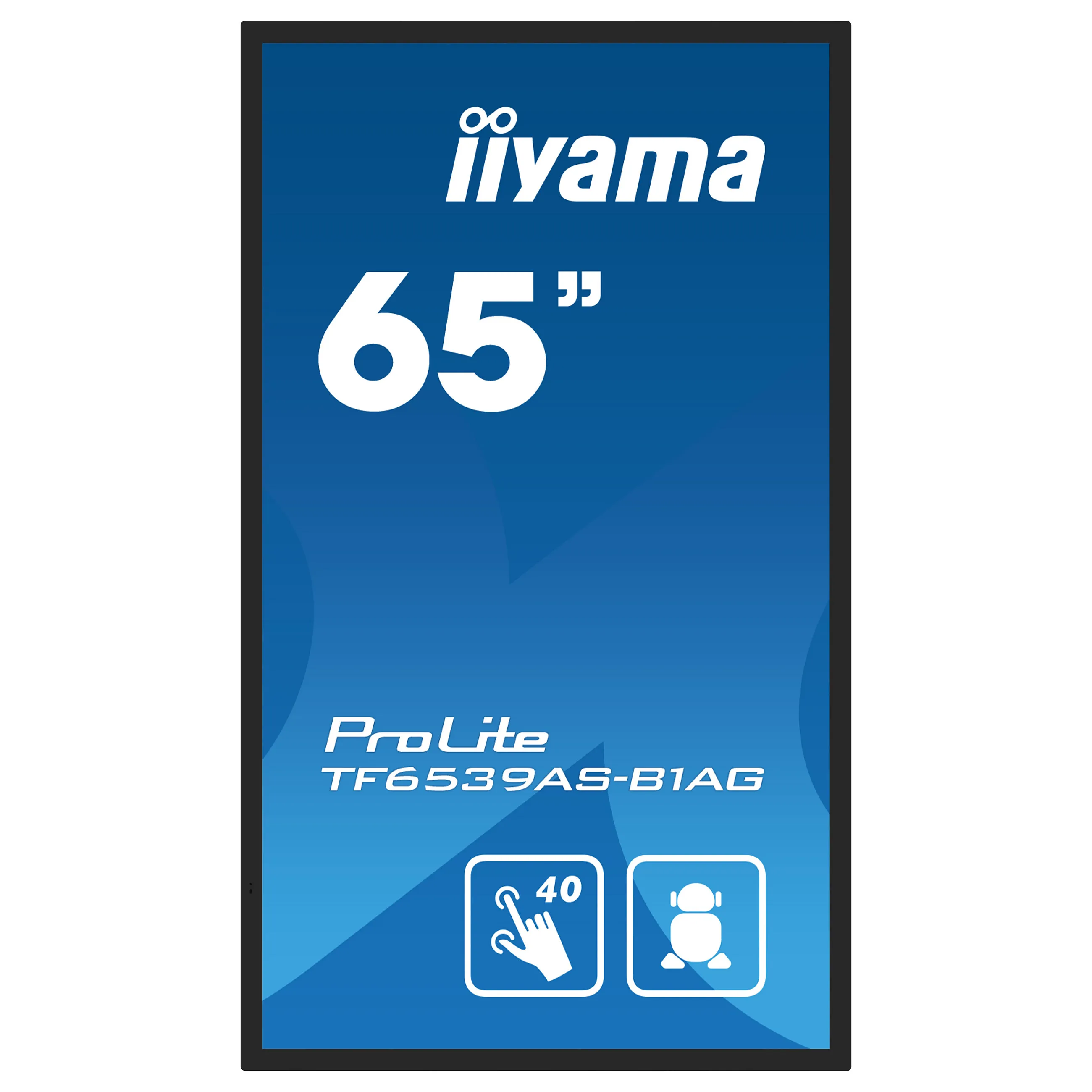

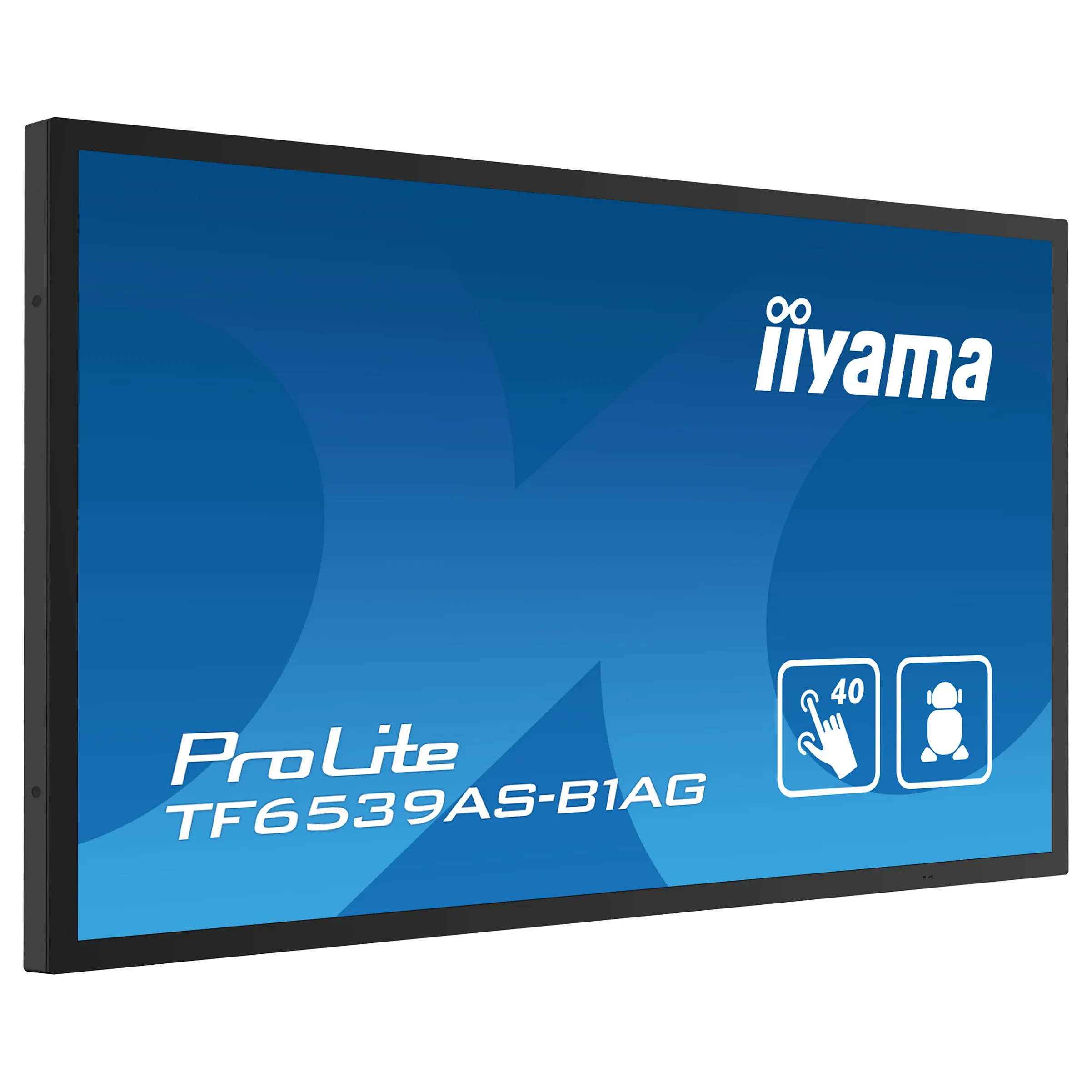

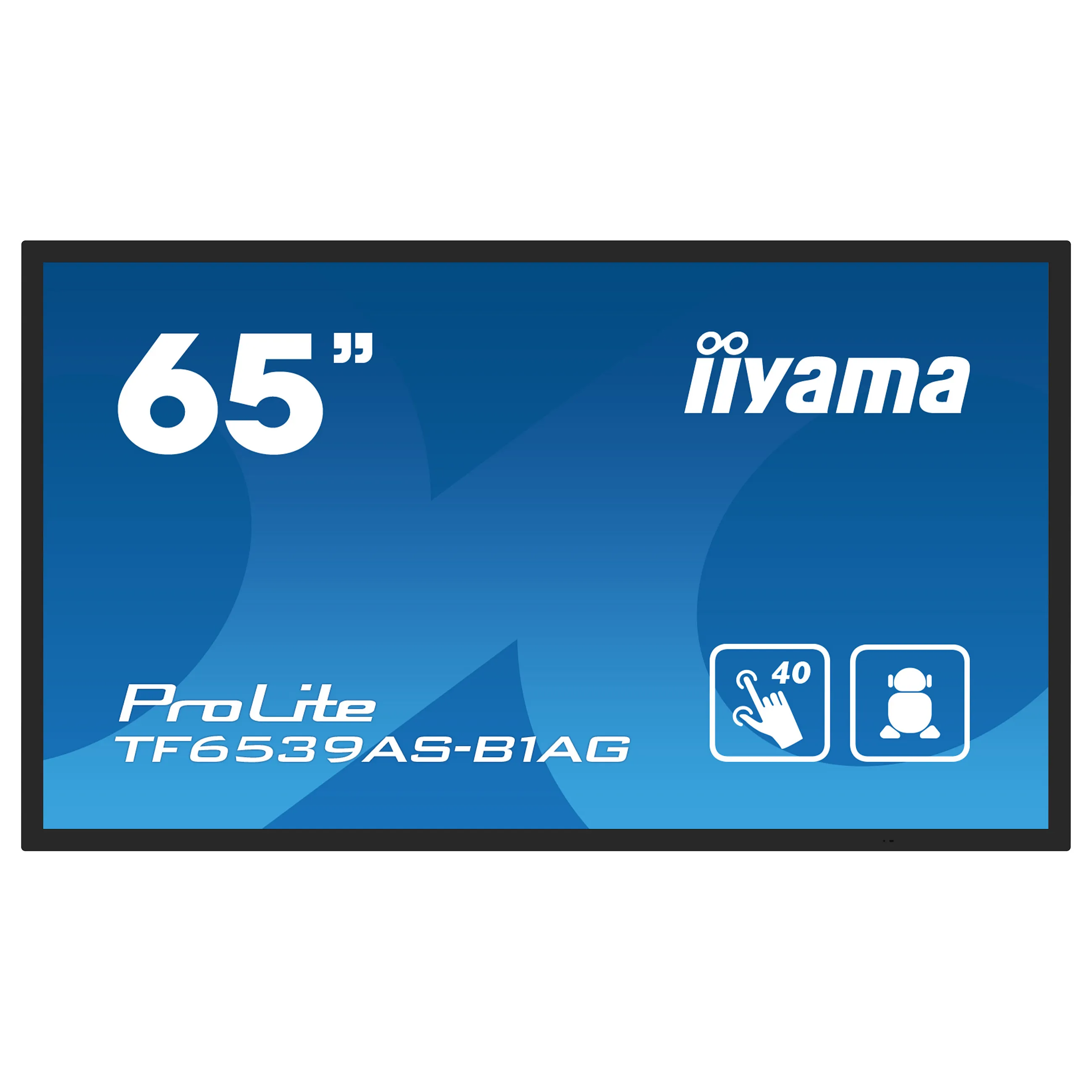

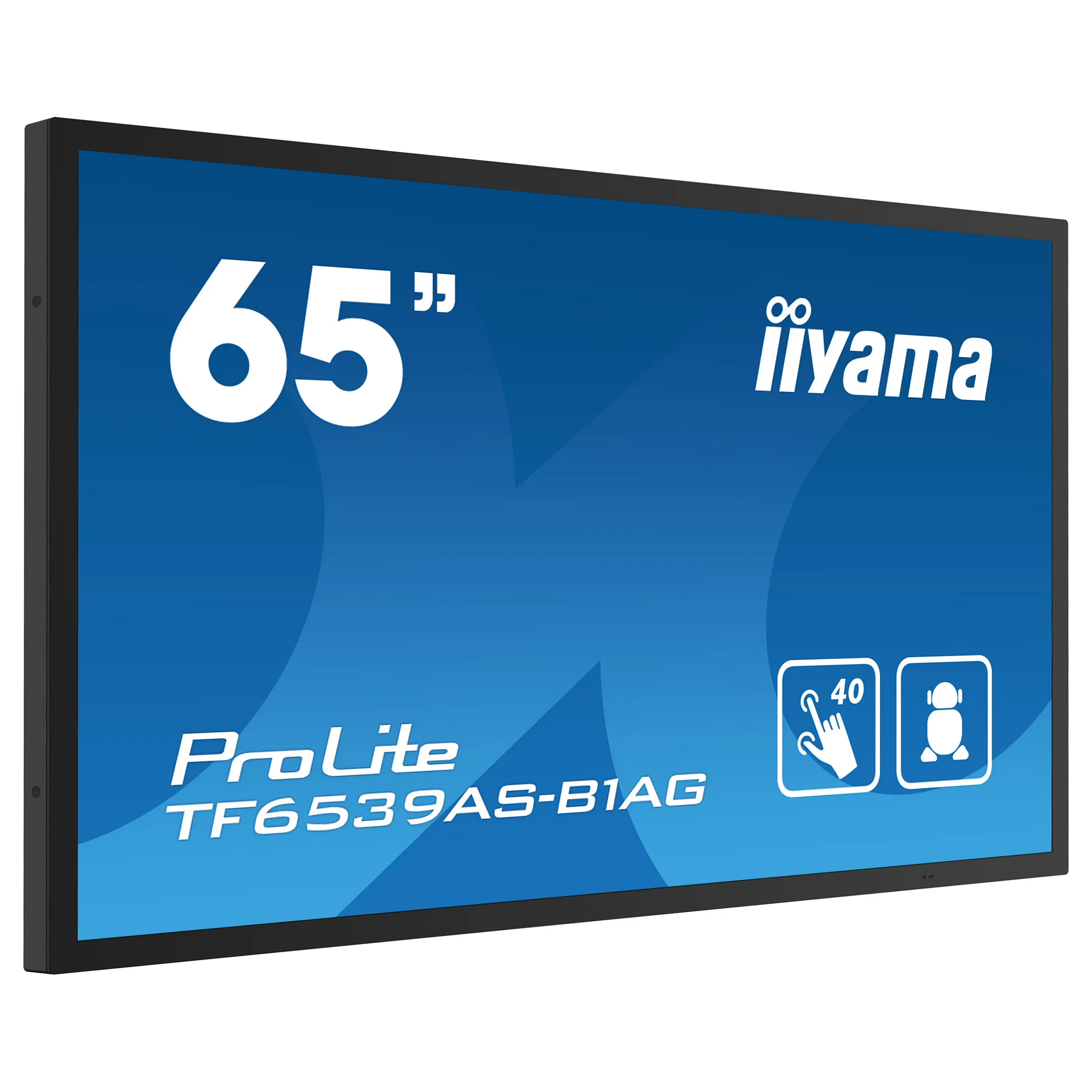

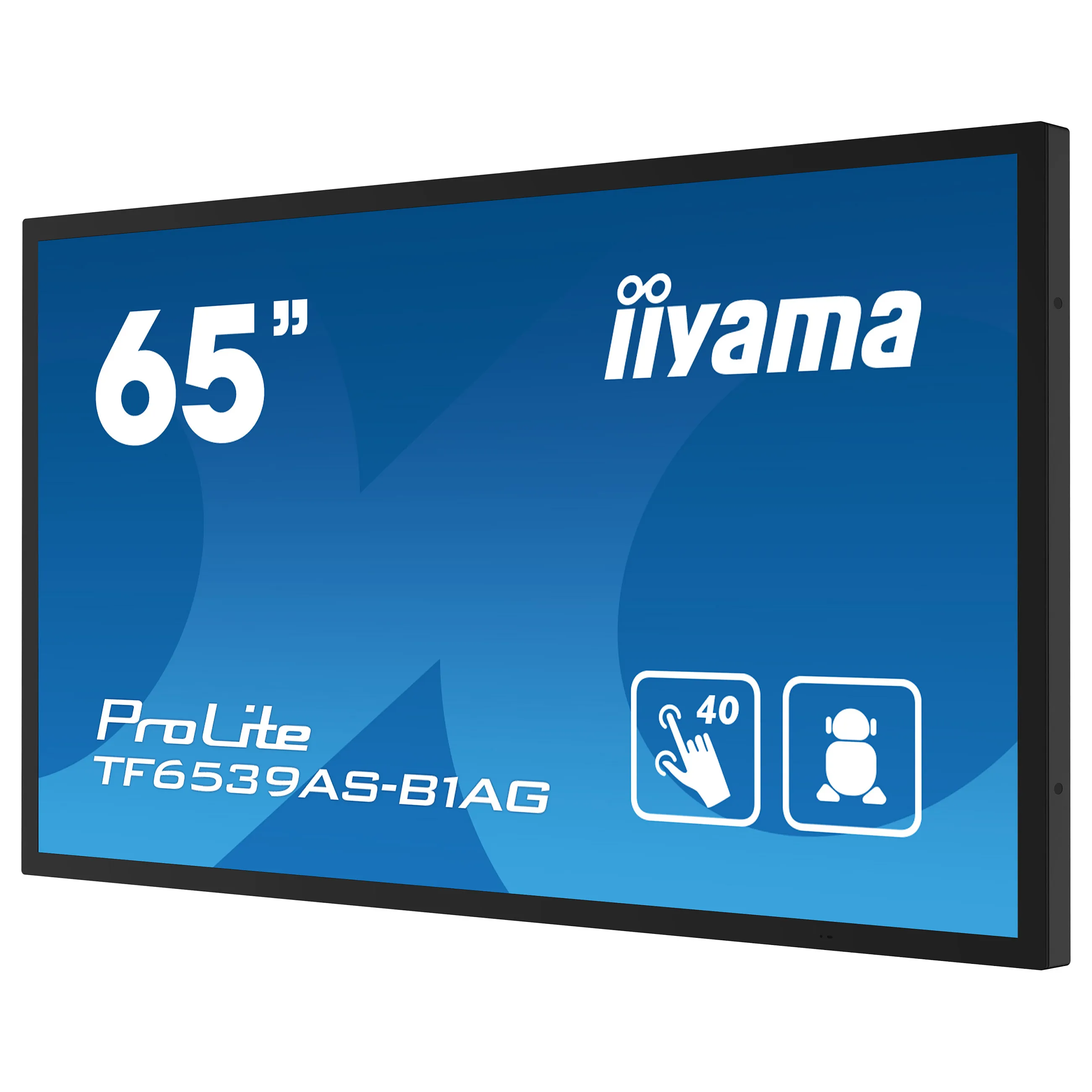

iiyama TF6539AS-B1AG. Product design: Kiosk design. Display diagonal: 163.8 cm (64.5"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 435 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF6539AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage2 CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before. For ease of integration, the TF6539AS-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ).
Display
Panel type: IPS
Feature: LED backlight
Display diagonal: 163.8 cm (64.5″)
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 435 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 40
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.372 x 0.372 mm
Active display area (W x H): 1428.5 x 803.5 mm
Display diagonal (metric): 163.9 cm
Horizontal scan range: 28 – 160 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
Surface hardness: 7H
Glass thickness: 4 mm
Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
USB connector type: USB Type-A, USB Type-B
USB 2.0 Type-B ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Kiosk design
Placement supported: Indoor

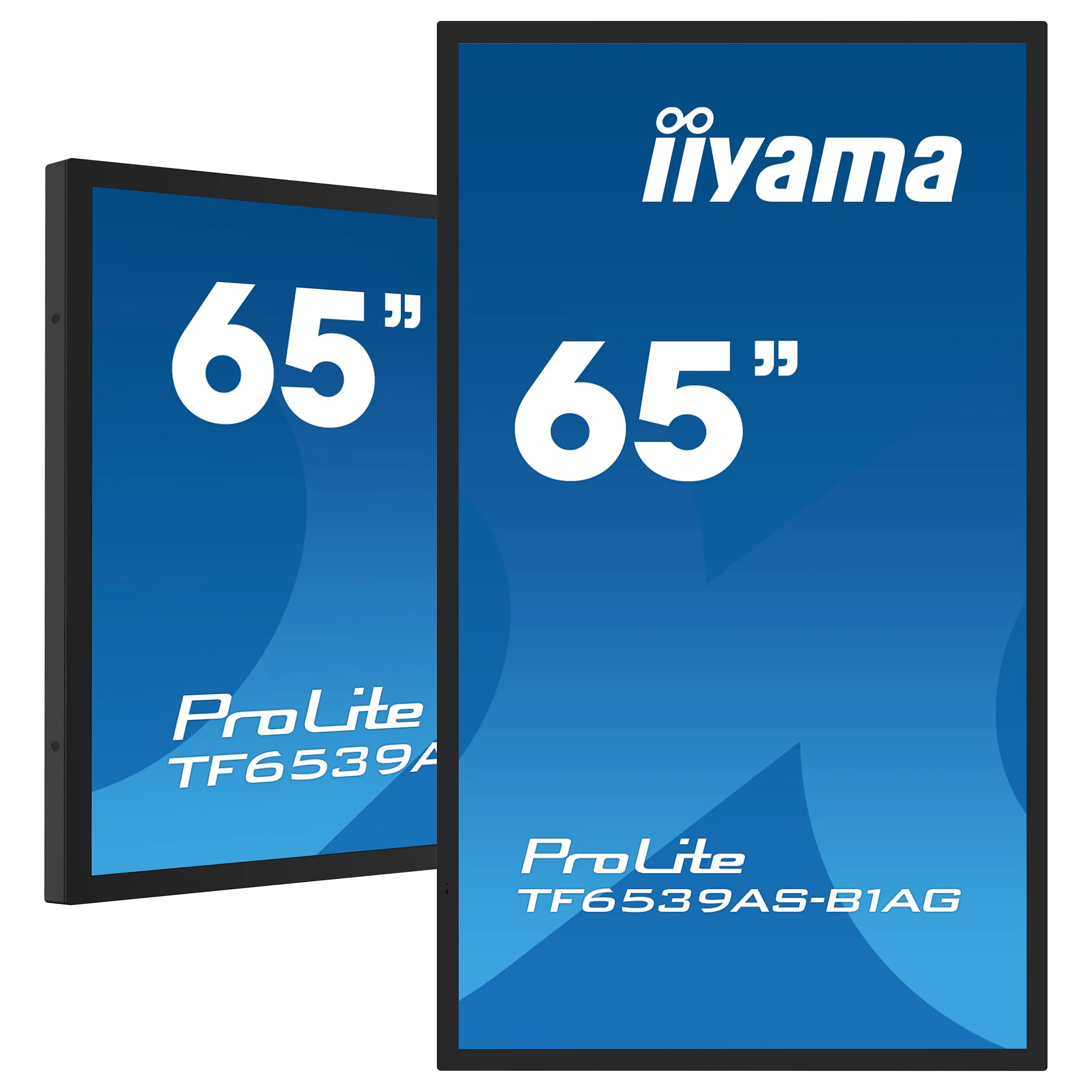

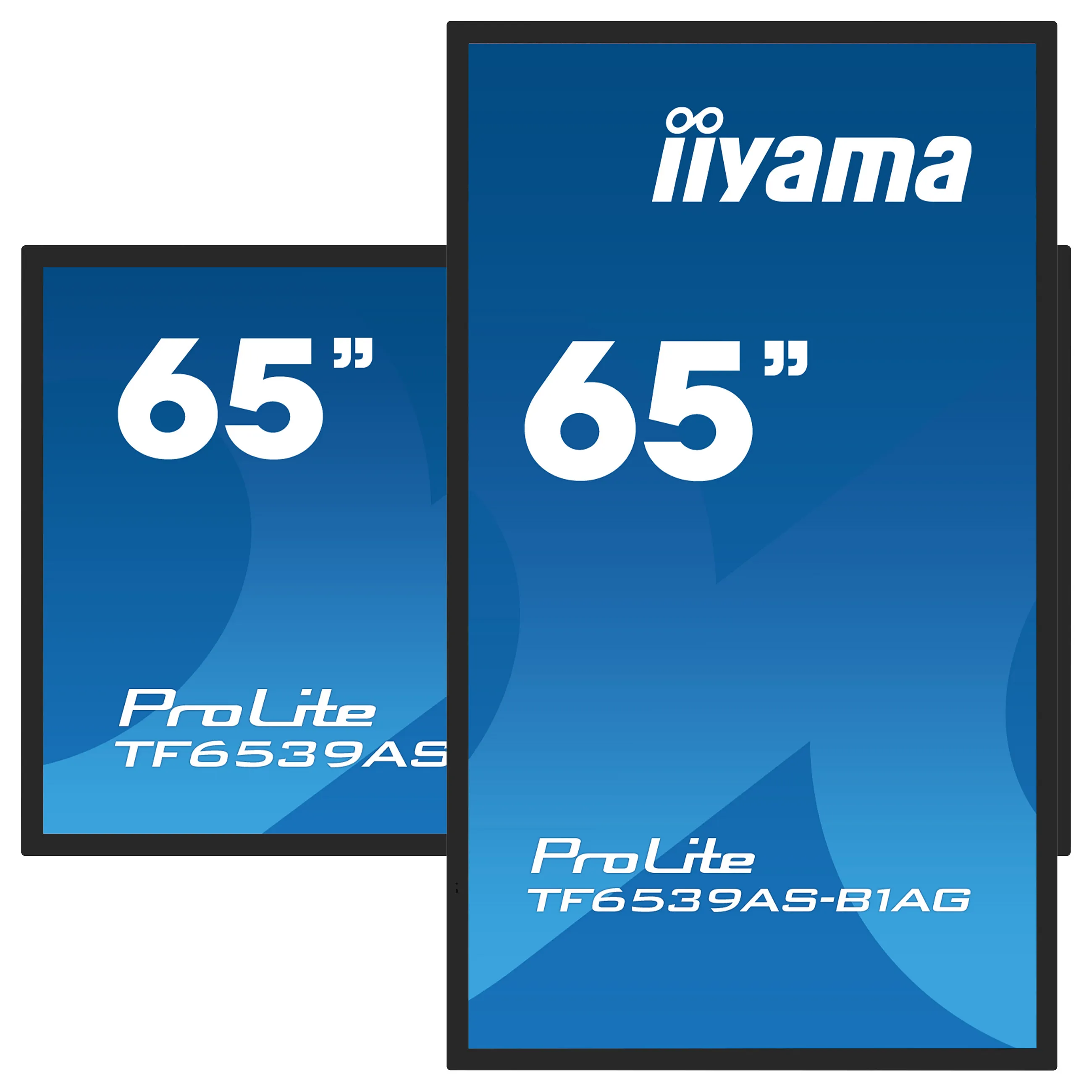

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

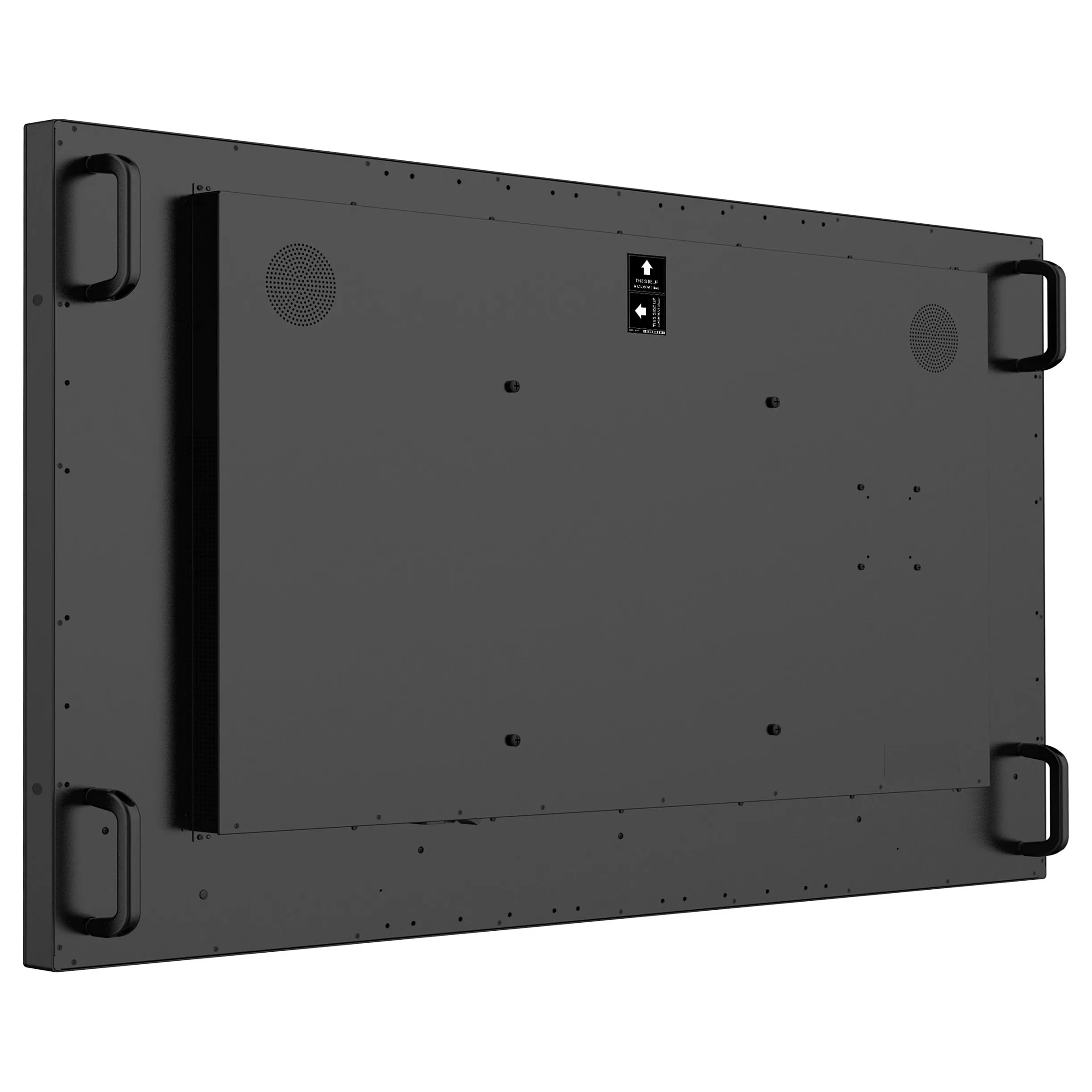

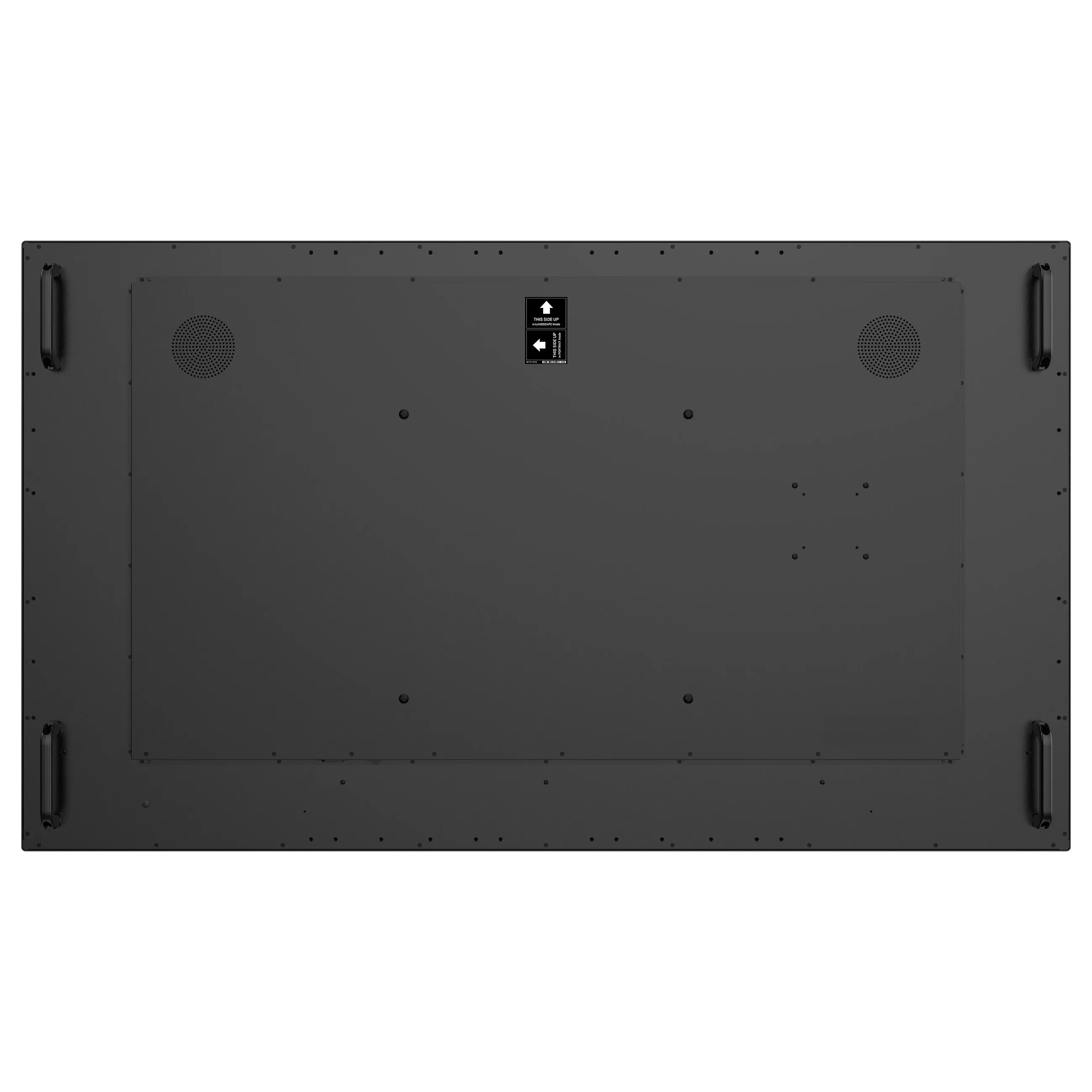

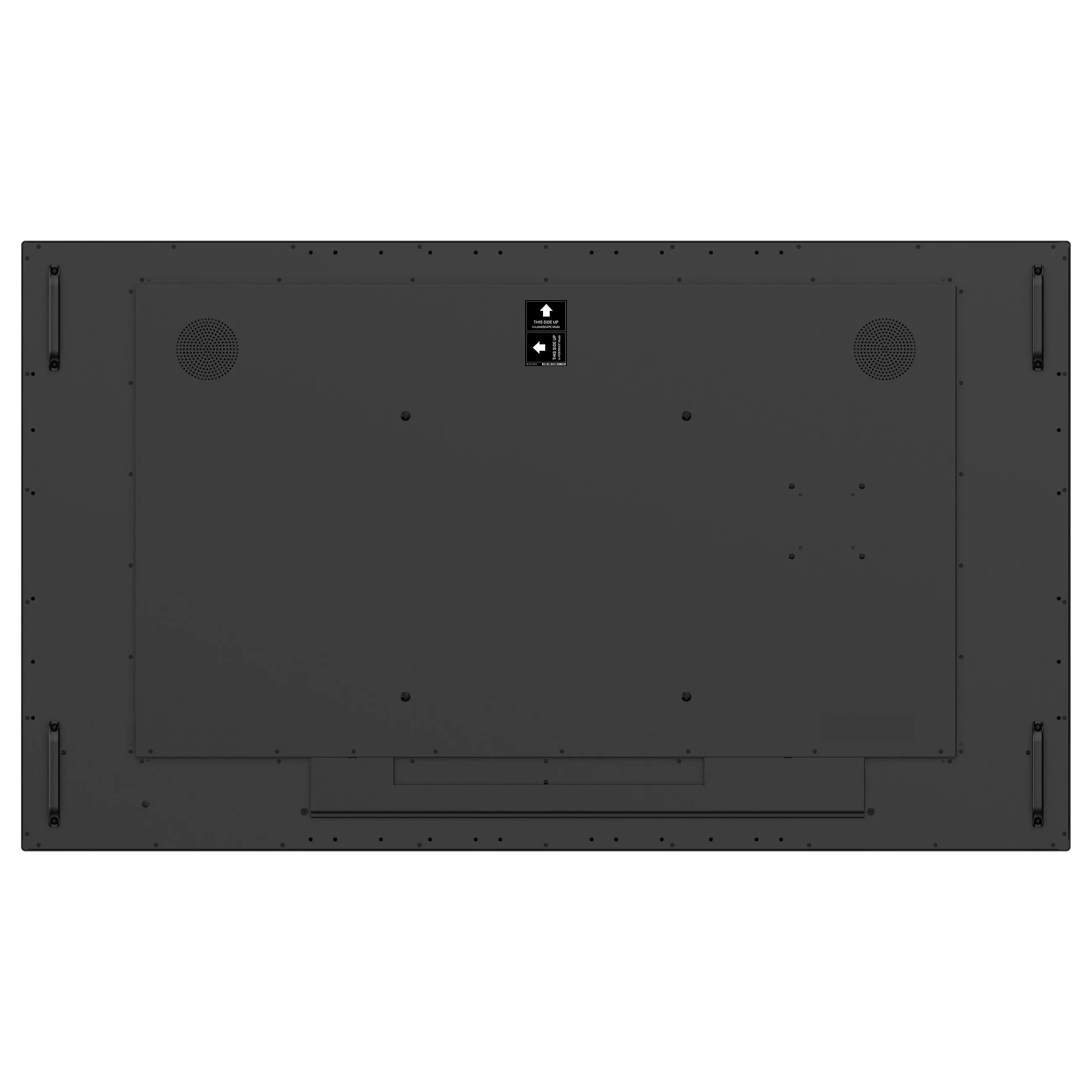

Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Bezel width (bottom): 3.15 cm
Bezel width (side): 3.15 cm
Bezel width (top): 3.15 cm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 13
On Screen Display (OSD) languages: Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
International Protection (IP) code: IP65
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 183 W
Power consumption (standby): 0.3 W
Power consumption (off): 0.3 W

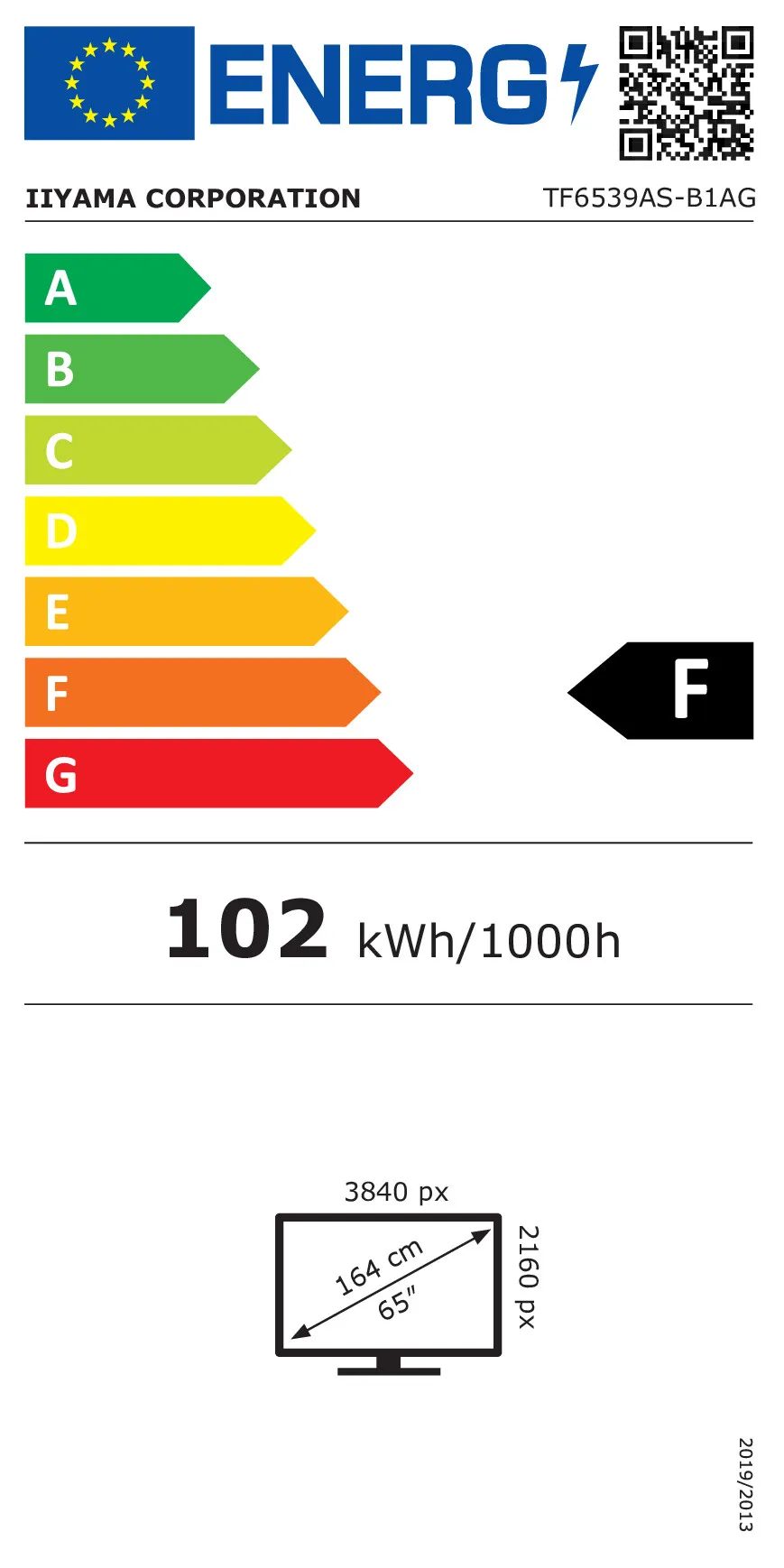

Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 102 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A73
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11
Operating system version: 11
Weight & dimensions
Display width: 1495 mm
Display depth: 66 mm
Display height: 870 mm
Display weight: 53.7 kg
Width: 1495 mm
Depth: 66 mm
Height: 870 mm
Weight: 53.7 kg
Width (with stand): 1495 mm
Depth (with stand): 66 mm
Height (with stand): 870 mm
Weight (with stand): 53.7 kg
Packaging data
Package width: 1650 mm
Package depth: 194 mm
Package height: 1010 mm
Package volume: 65000 cm³
Package weight: 65 kg
Packaging content
Feature: Remote control included
Feature: Batteries included

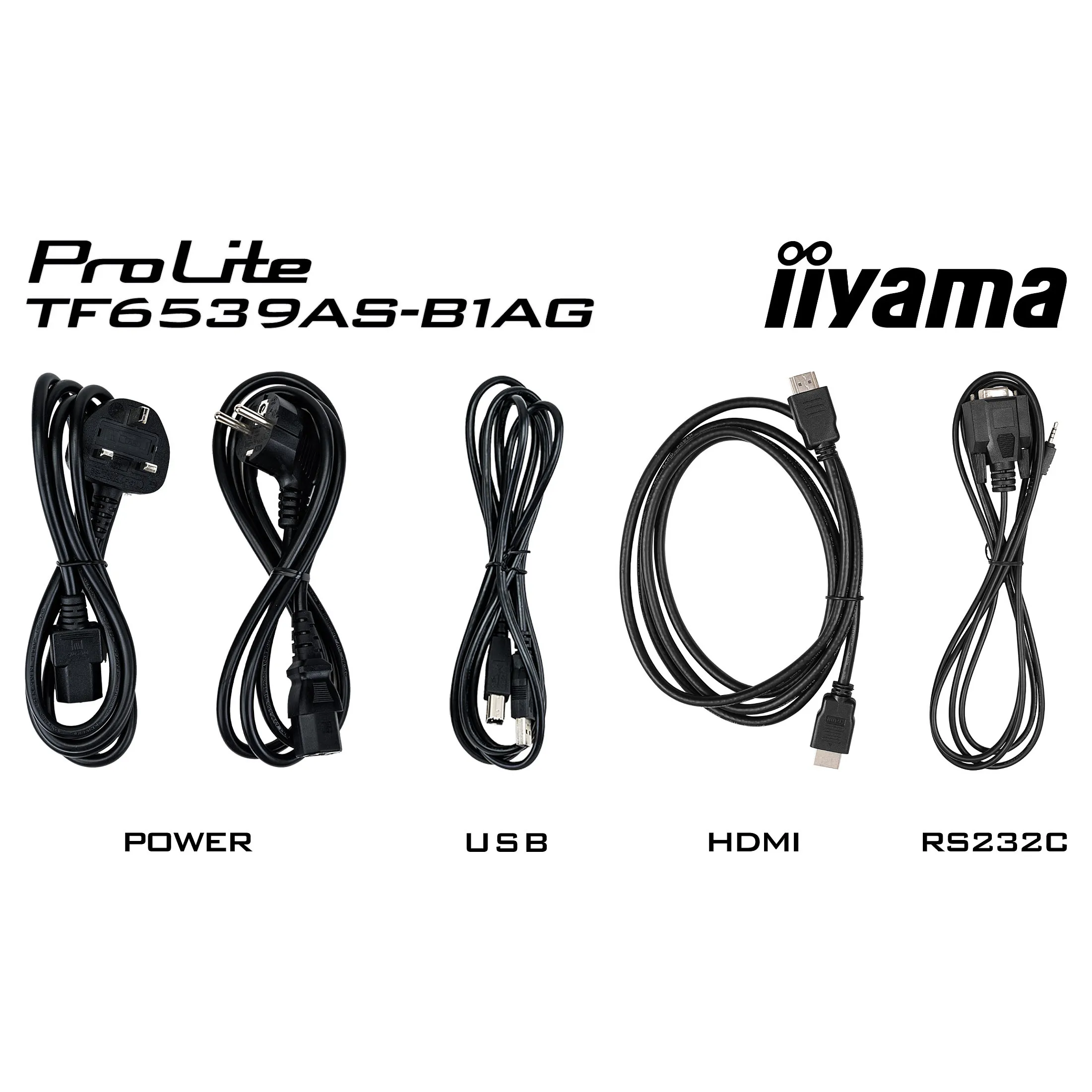

Cables included: AC, USB, HDMI
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Certificates
Certification: TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Network
Feature: Ethernet LAN
Technical details
Sustainability certificates: ErP
Compliance certificates: CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Maximum refresh rate: 60 Hz
Feature: Quick start guide
Viewable size, horizontal: 142.8 cm
Viewable size, vertical: 80.3 cm
Brightness: 435 cd/m²
Display surface: Matt
Power supply type: Internal
Panel type: IPS
