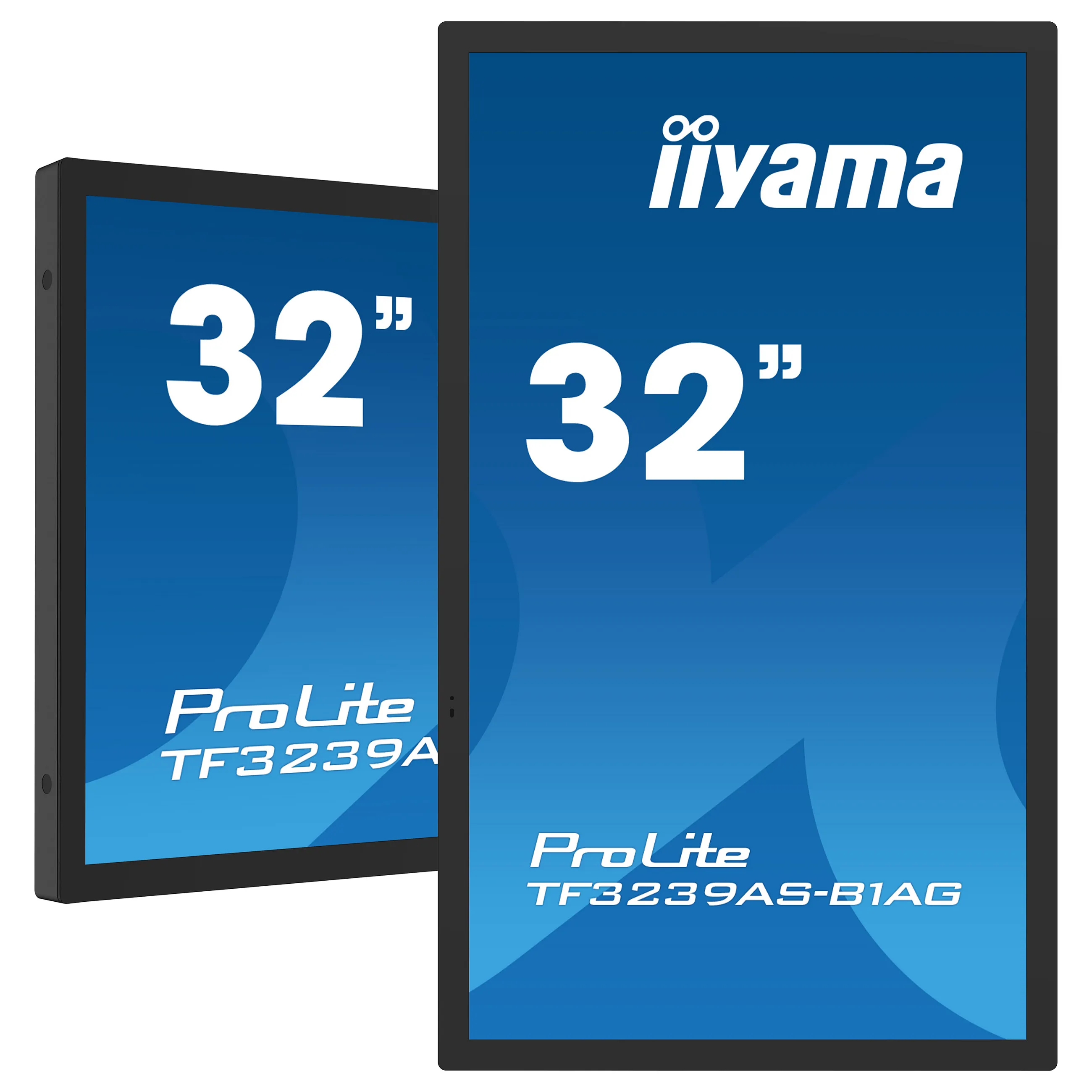

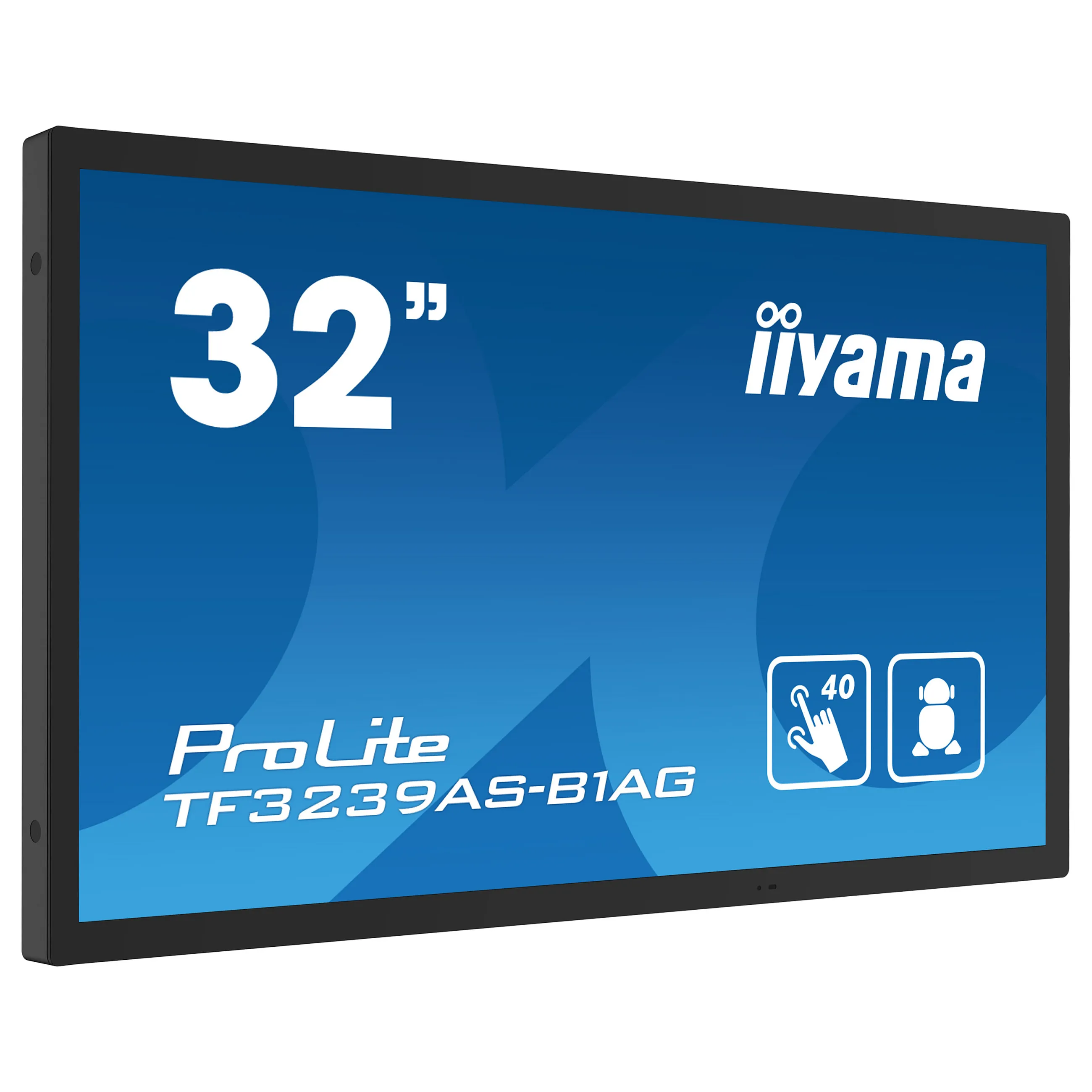

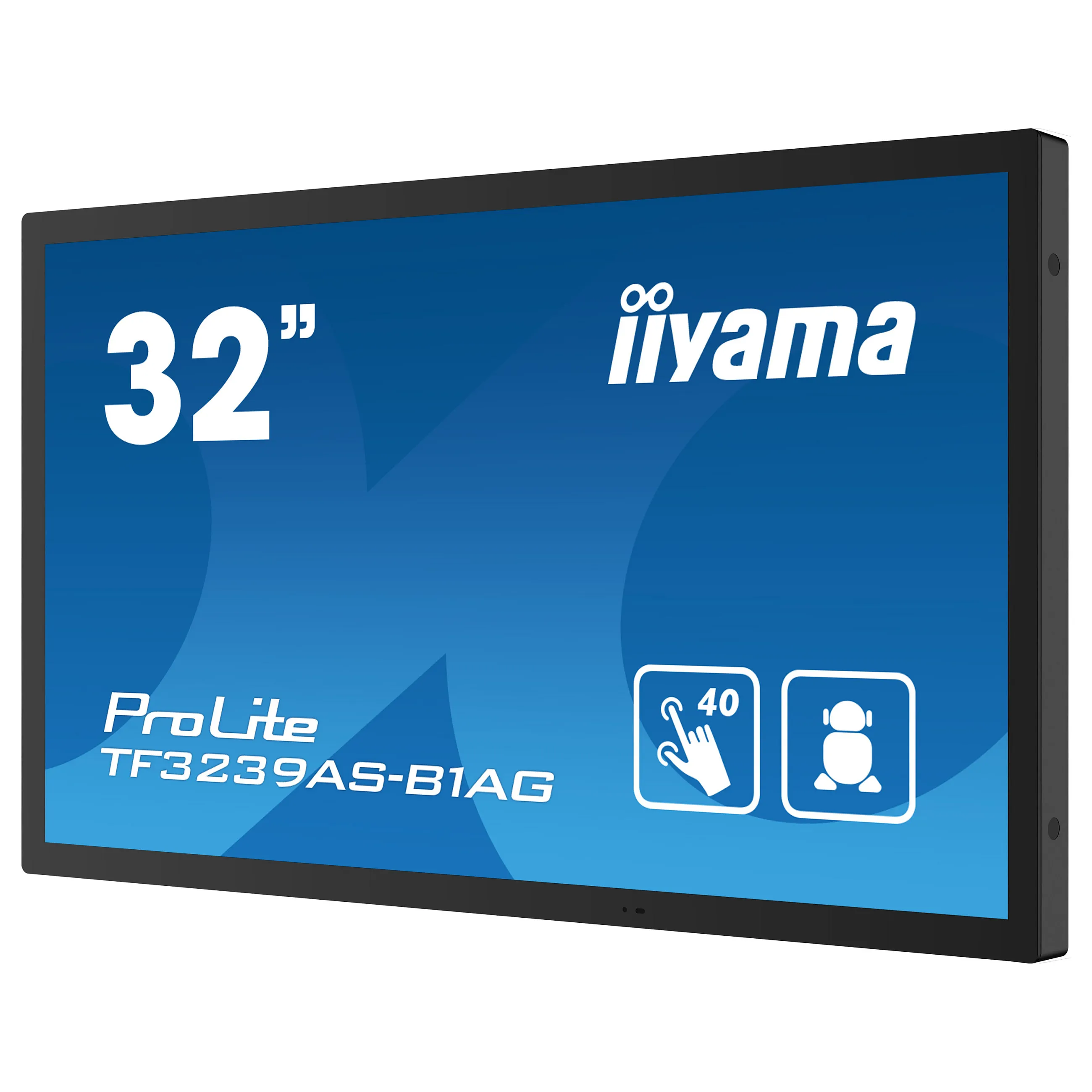

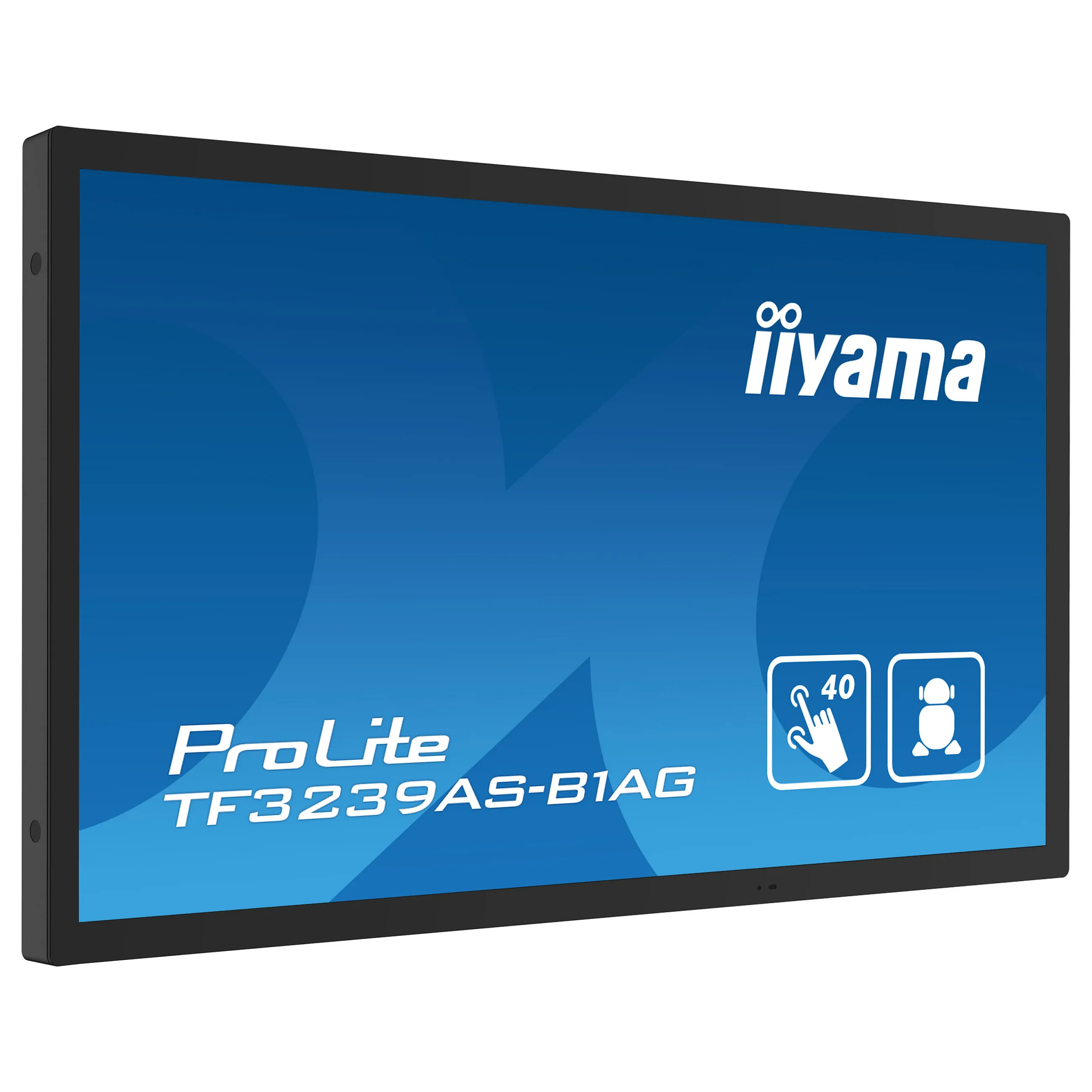

iiyama TF3239AS-B1AG. Display diagonal: 80 cm (31.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Display surface: Matt, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF3239AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage2 CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before; while the FailOver feature ensures your content is always actively displayed through your choice of inputs For ease of integration, the TF3239AS-B1AG can be equipped with optional external mounting brackets ( OMK4-4 ).
Display
Display diagonal: 80 cm (31.5″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Feature: LED backlight
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 40
Display brightness (typical): 500 cd/m²
Display brightness: 435 cd/m²
Response time: 8 ms
Response time measurement type: GTG (Gray to Gray)
Display surface: Matt
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1200:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.363 x 0.363 mm
Horizontal scan range: 28 – 160 kHz
Viewable size, horizontal: 69.8 cm
Viewable size, vertical: 39.3 cm
Display diagonal (metric): 80 cm
Haze rate: 25%
Surface hardness: 7H
Colour depth: 8 bit
Performance
Operating hours (hours/days): 24/7
Operating system installed: Android 11
Operating system version: 11
Feature: Palm rejection
Multimedia
Number of speakers: 2
RMS rated power: 20 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Front bezel colour: Black
Glass thickness: 3 mm

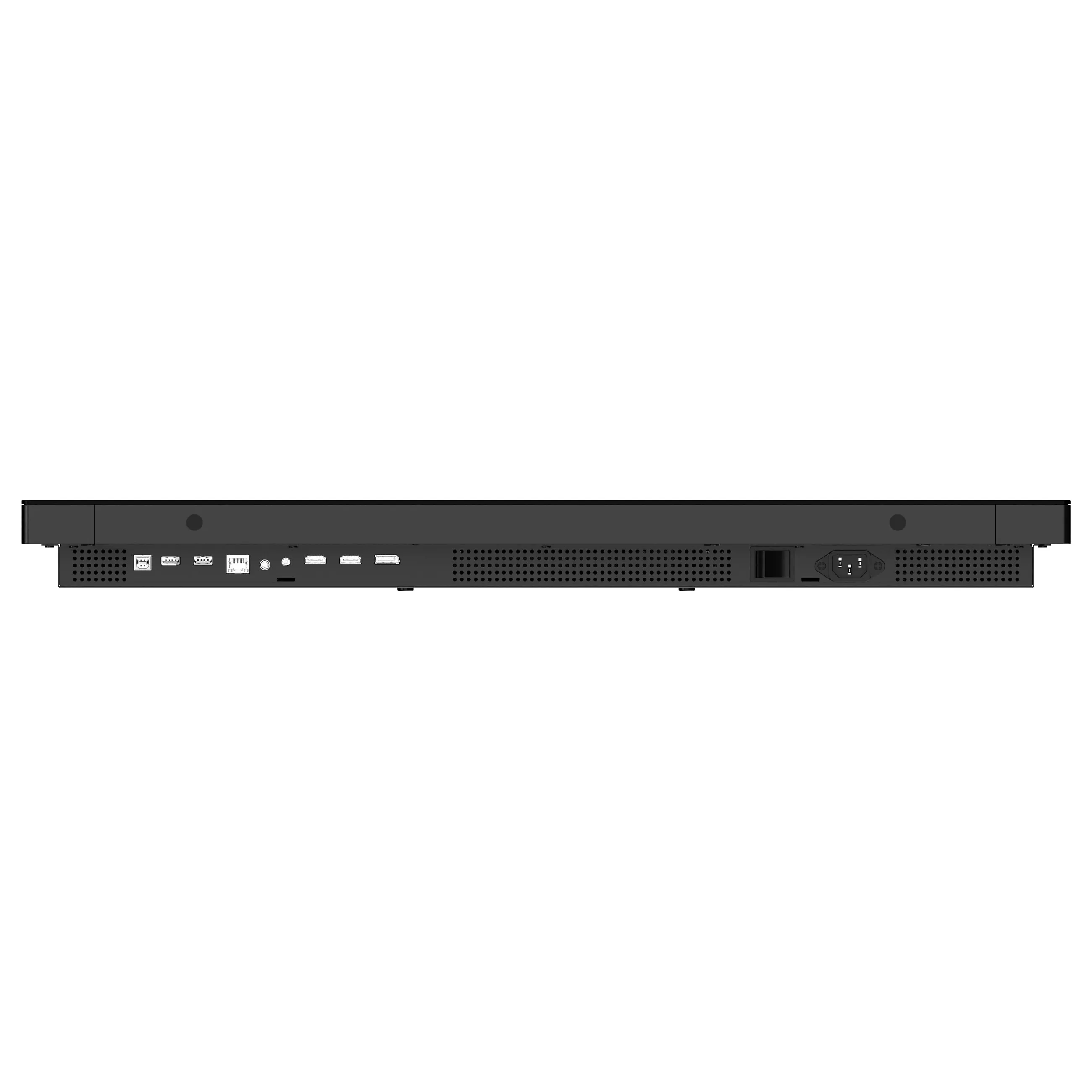

Ports & interfaces
USB 2.0 Type-A ports quantity: 2
Feature: USB Touch port
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: HDCP
HDCP version: 2.2
Feature: RS-232C
Network
Feature: Ethernet LAN
Ergonomics

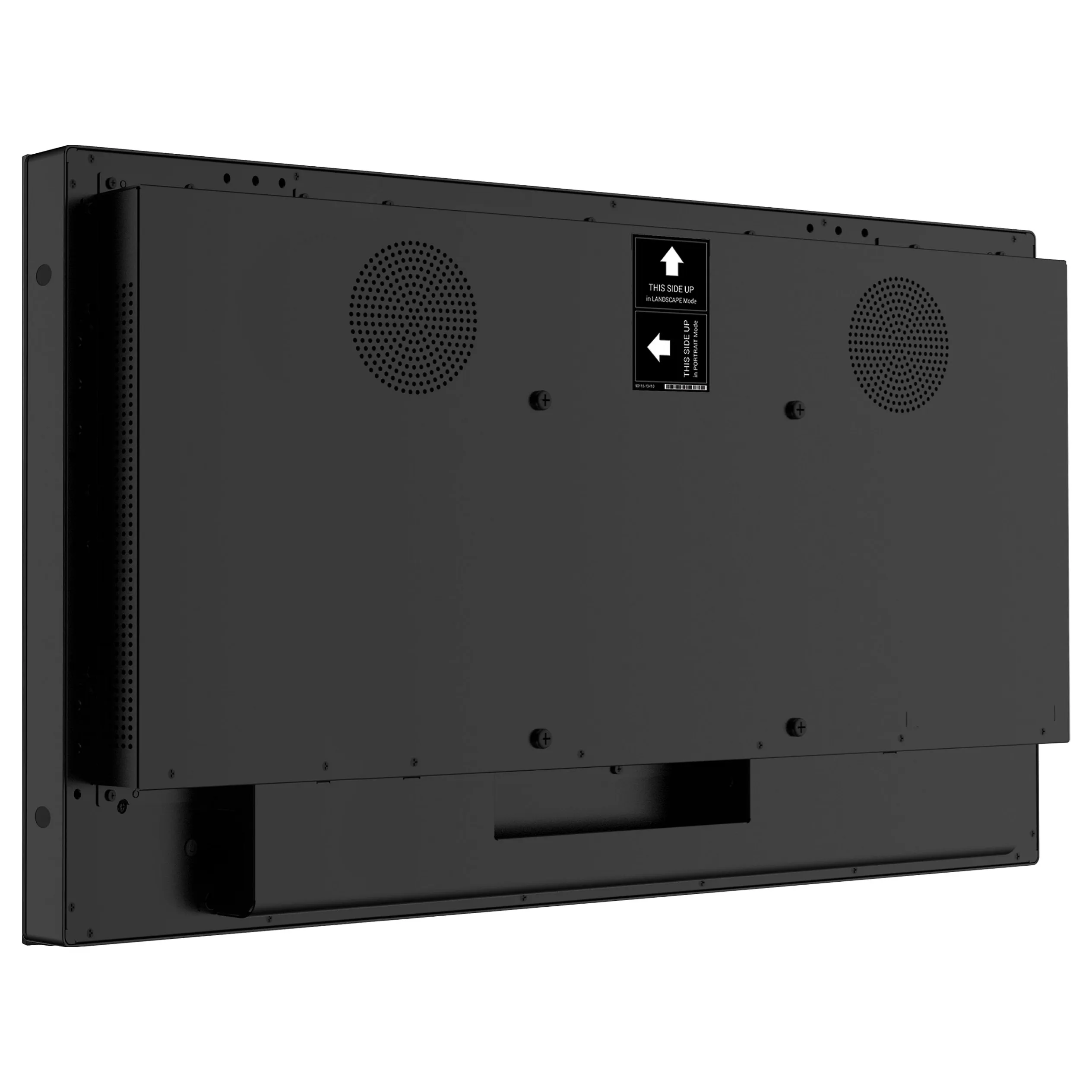

Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Number of OSD languages: 13
Power
Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 31.3 kWh
Power consumption (typical): 50 W
Power consumption (standby): 0.4 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Weight & dimensions
Width (with stand): 746.2 mm
Depth (with stand): 62.4 mm
Height (with stand): 440.7 mm
Weight (with stand): 13.2 kg
Bezel width (side): 2.2 cm
Bezel width (top): 2.2 cm
Bezel width (bottom): 2.2 cm
Packaging data
Package width: 840 mm
Package depth: 149 mm
Package height: 560 mm
Package weight: 16.6 kg
USB cable length: 1.8 m
Packaging content

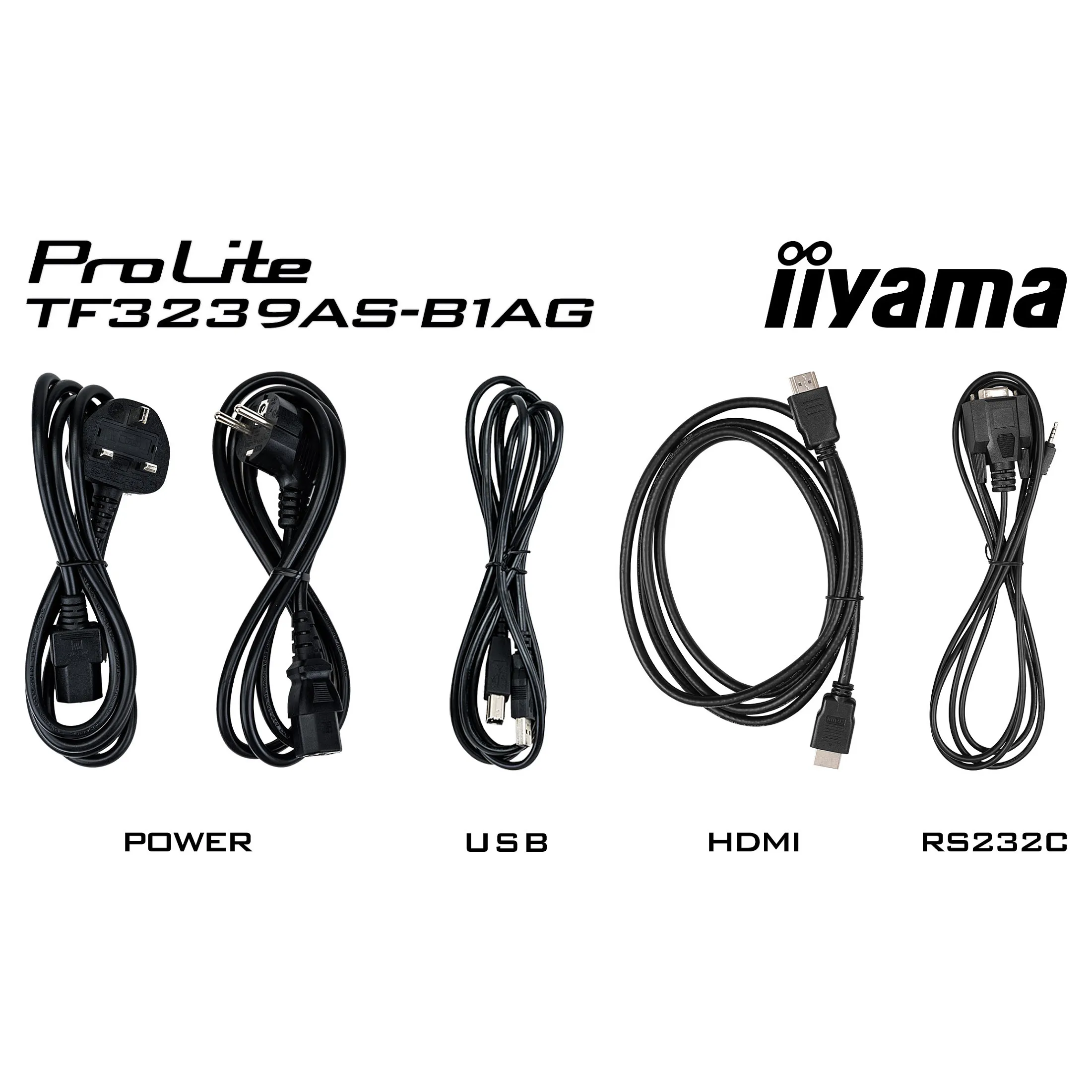

Cables included: AC, USB, HDMI
Feature: Remote control included
Feature: Quick start guide
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Feature: Batteries included
Feature: Remote control batteries included
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Positional accuracy: 2.5 mm
Placement supported: Indoor
Brightness: 435 cd/m²
Feature: Built-in processor
Active display area (W x H): 698.4 x 392.8 mm
USB ports quantity: 2
Weight: 13.2 kg
Height: 440.7 mm
Width: 746.2 mm
Touch method: stylus, finger, glove (latex)
Depth: 62.4 mm
Control panel: Power
Compliance certificates: CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Ethernet LAN (RJ-45) ports: 1
Package volume: 16600 cm³
Certification: TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Thin Client
Processor architecture: ARM Cortex-A73
Technical details
Native refresh rate: 60 Hz
Display diagonal: 80 cm (31.5″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Feature: LED backlight
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 40
Display brightness (typical): 500 cd/m²
Display brightness: 435 cd/m²
Response time: 8 ms
Response time measurement type: GTG (Gray to Gray)
Display surface: Matt
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1200:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.363 x 0.363 mm
Horizontal scan range: 28 – 160 kHz
Viewable size, horizontal: 69.8 cm
Viewable size, vertical: 39.3 cm
Display diagonal (metric): 80 cm
Haze rate: 25%
Surface hardness: 7H
Colour depth: 8 bit
Performance
Operating hours (hours/days): 24/7
Operating system installed: Android 11
Operating system version: 11
Feature: Palm rejection
Multimedia
Number of speakers: 2
RMS rated power: 20 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Front bezel colour: Black
Glass thickness: 3 mm
Ports & interfaces
USB 2.0 Type-A ports quantity: 2
Feature: USB Touch port
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: HDCP
HDCP version: 2.2
Feature: RS-232C
Network
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Number of OSD languages: 13
Power
Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 31.3 kWh
Power consumption (typical): 50 W
Power consumption (standby): 0.4 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Weight & dimensions
Width (with stand): 746.2 mm
Depth (with stand): 62.4 mm
Height (with stand): 440.7 mm
Weight (with stand): 13.2 kg
Bezel width (side): 2.2 cm
Bezel width (top): 2.2 cm
Bezel width (bottom): 2.2 cm
Packaging data
Package width: 840 mm
Package depth: 149 mm
Package height: 560 mm
Package weight: 16.6 kg
USB cable length: 1.8 m
Packaging content
Cables included: AC, USB, HDMI
Feature: Remote control included
Feature: Quick start guide
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Feature: Batteries included
Feature: Remote control batteries included
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Positional accuracy: 2.5 mm
Placement supported: Indoor
Brightness: 435 cd/m²
Feature: Built-in processor
Active display area (W x H): 698.4 x 392.8 mm
USB ports quantity: 2
Weight: 13.2 kg
Height: 440.7 mm
Width: 746.2 mm
Touch method: stylus, finger, glove (latex)
Depth: 62.4 mm
Control panel: Power
Compliance certificates: CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Ethernet LAN (RJ-45) ports: 1
Package volume: 16600 cm³
Certification: TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Thin Client
Processor architecture: ARM Cortex-A73
Technical details
Native refresh rate: 60 Hz
