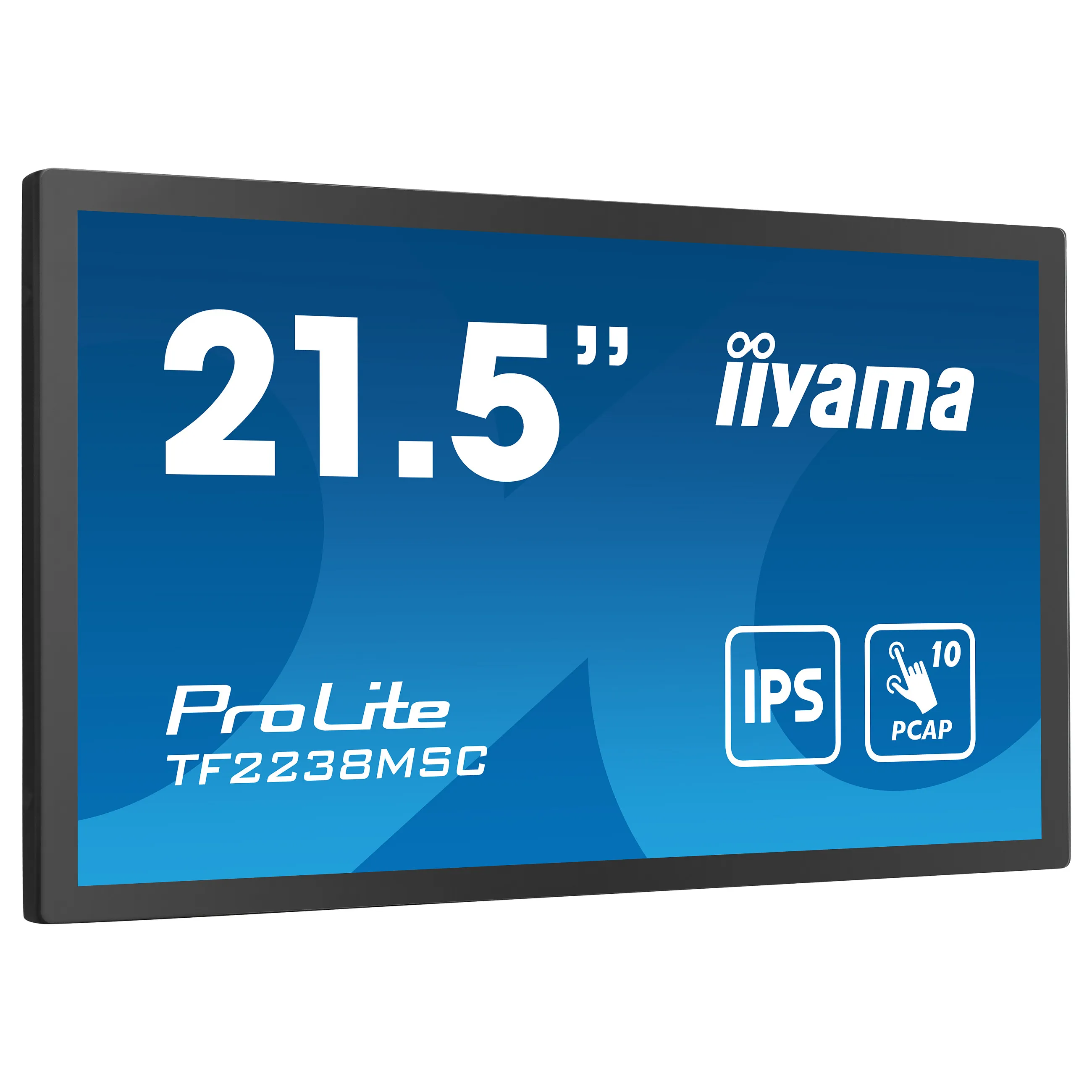

iiyama TF2238MSC-B1. Display diagonal: 53.3 cm (21"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black

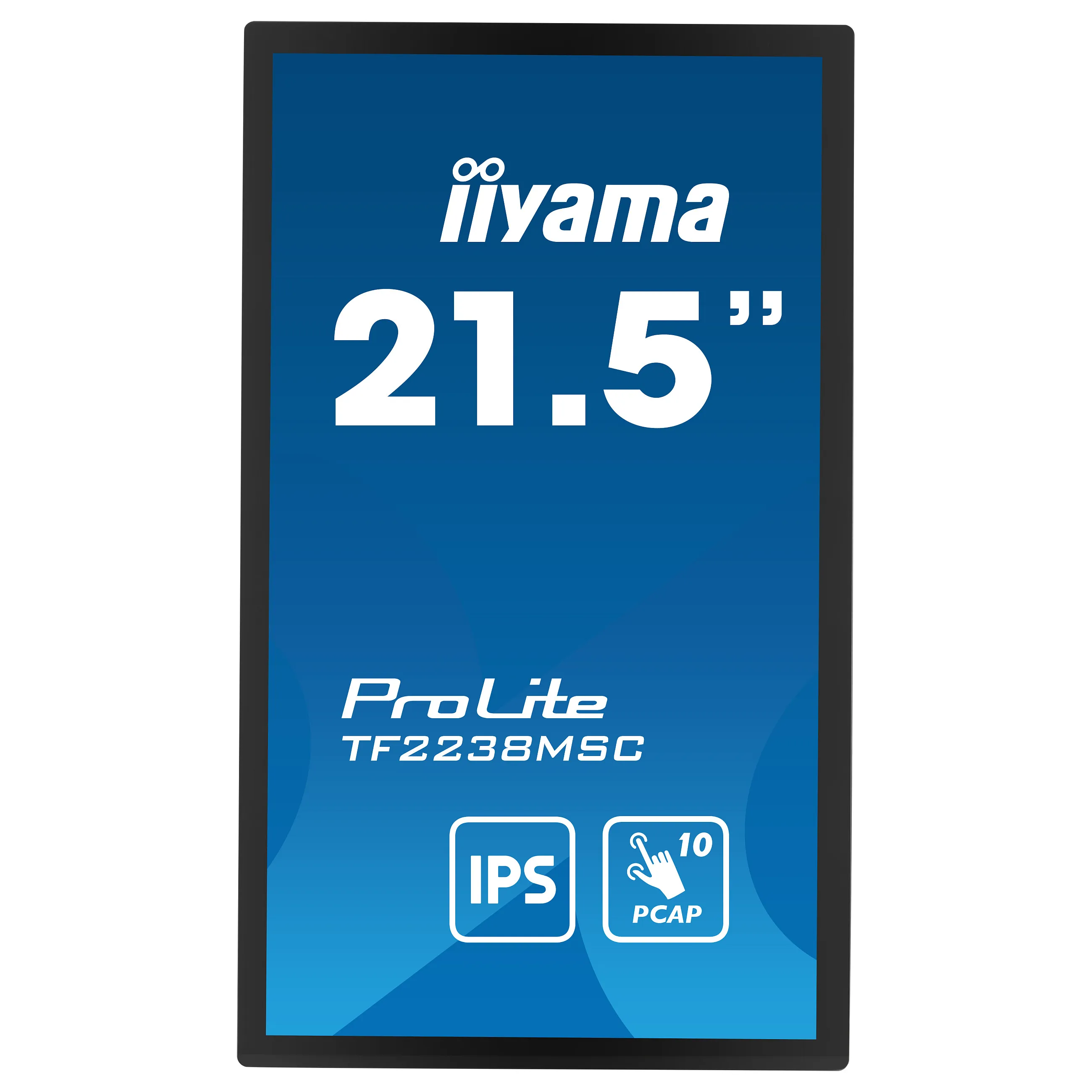

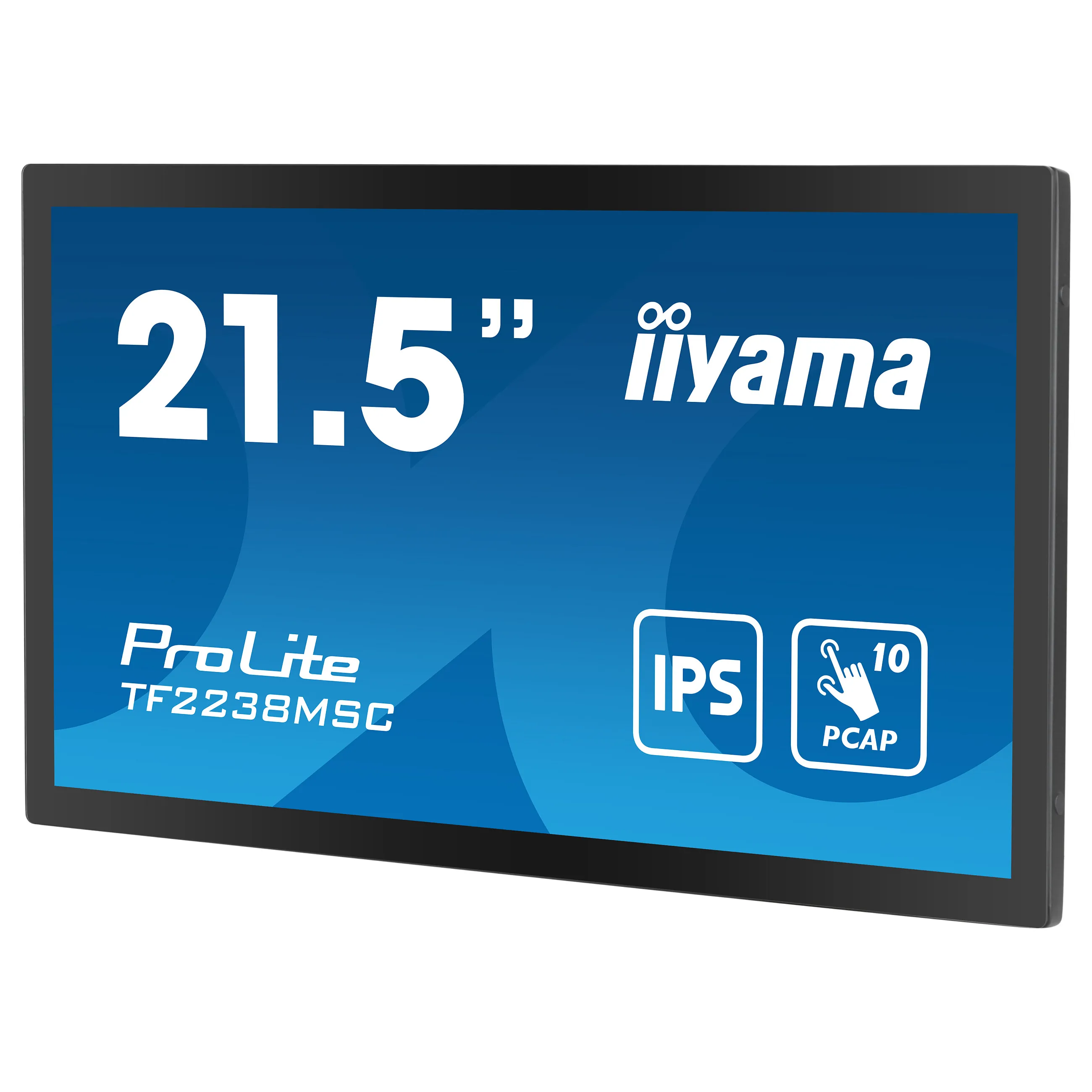

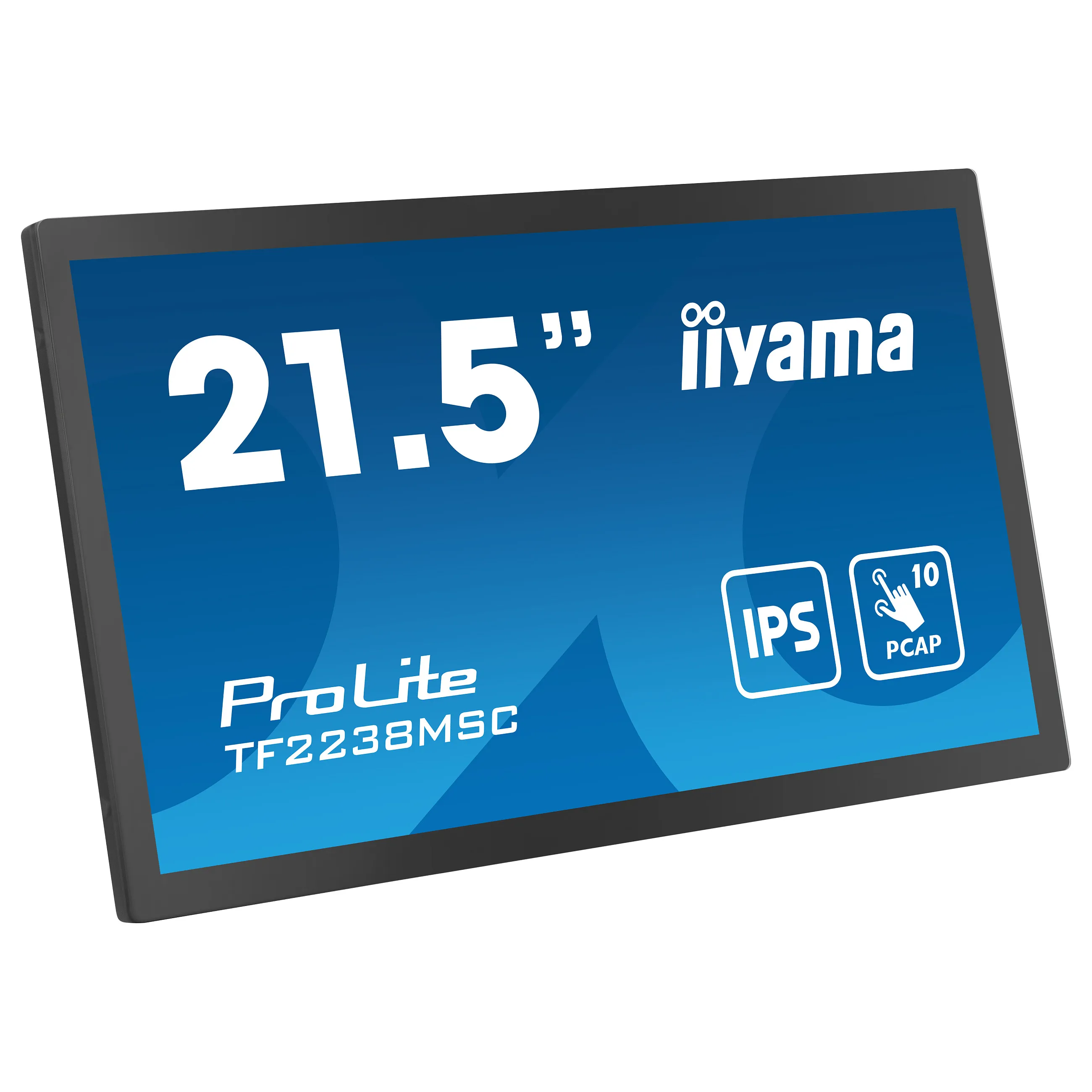

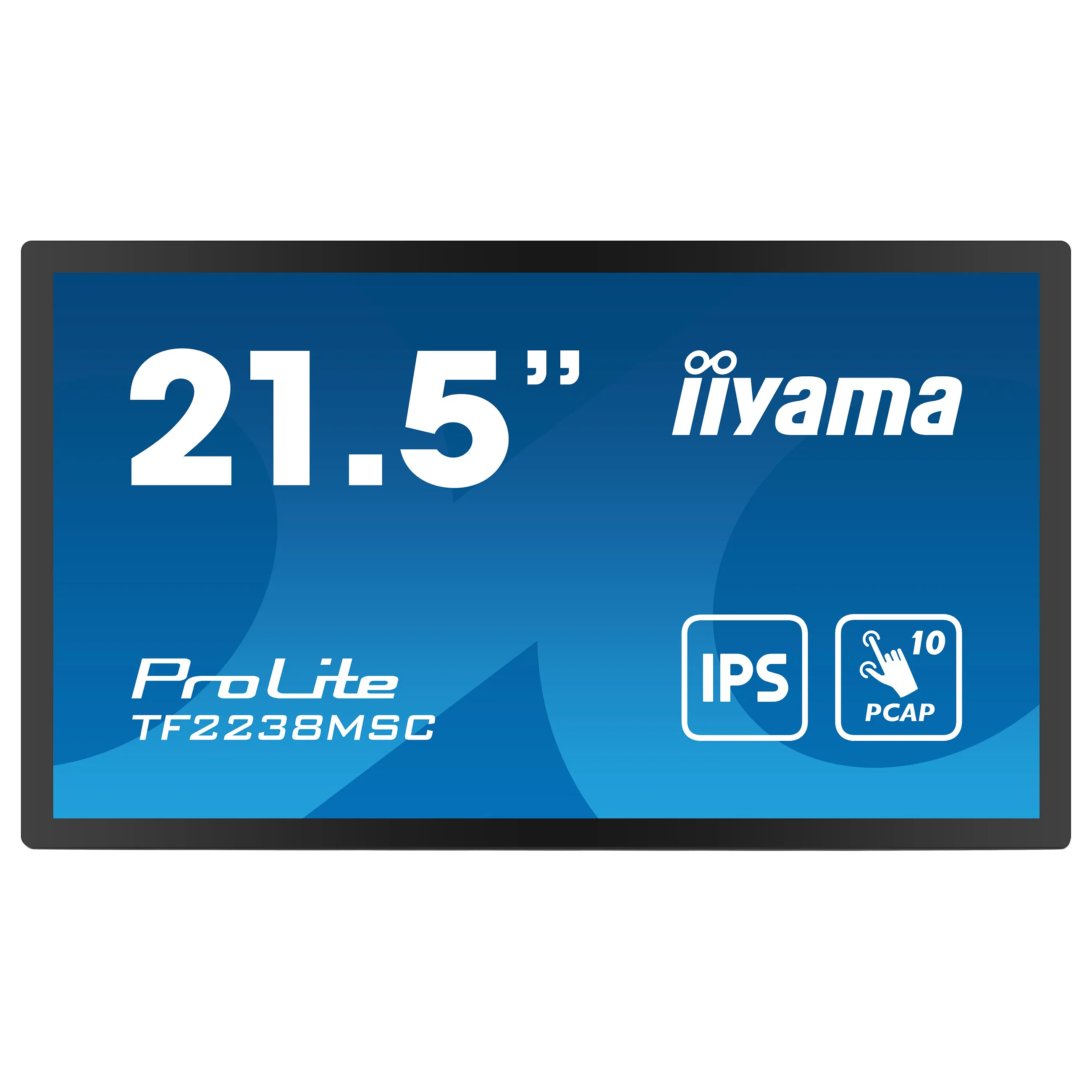

The Full HD (1920×1080) Open Frame monitor ProLite TF2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.
Display
Display diagonal: 53.3 cm (21″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Display brightness (typical): 600 cd/m²
Display brightness: 525 cd/m²
Response time: 5 ms
Response time measurement type: GTG (Gray to Gray)
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.249 x 0.249 mm
Horizontal scan range: 30 – 83 kHz
Viewable size, horizontal: 47.9 cm
Viewable size, vertical: 26 cm
Display diagonal (metric): 54.5 cm
Surface hardness: 7H
Performance
Feature: Low Blue Light technology
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.6 mm

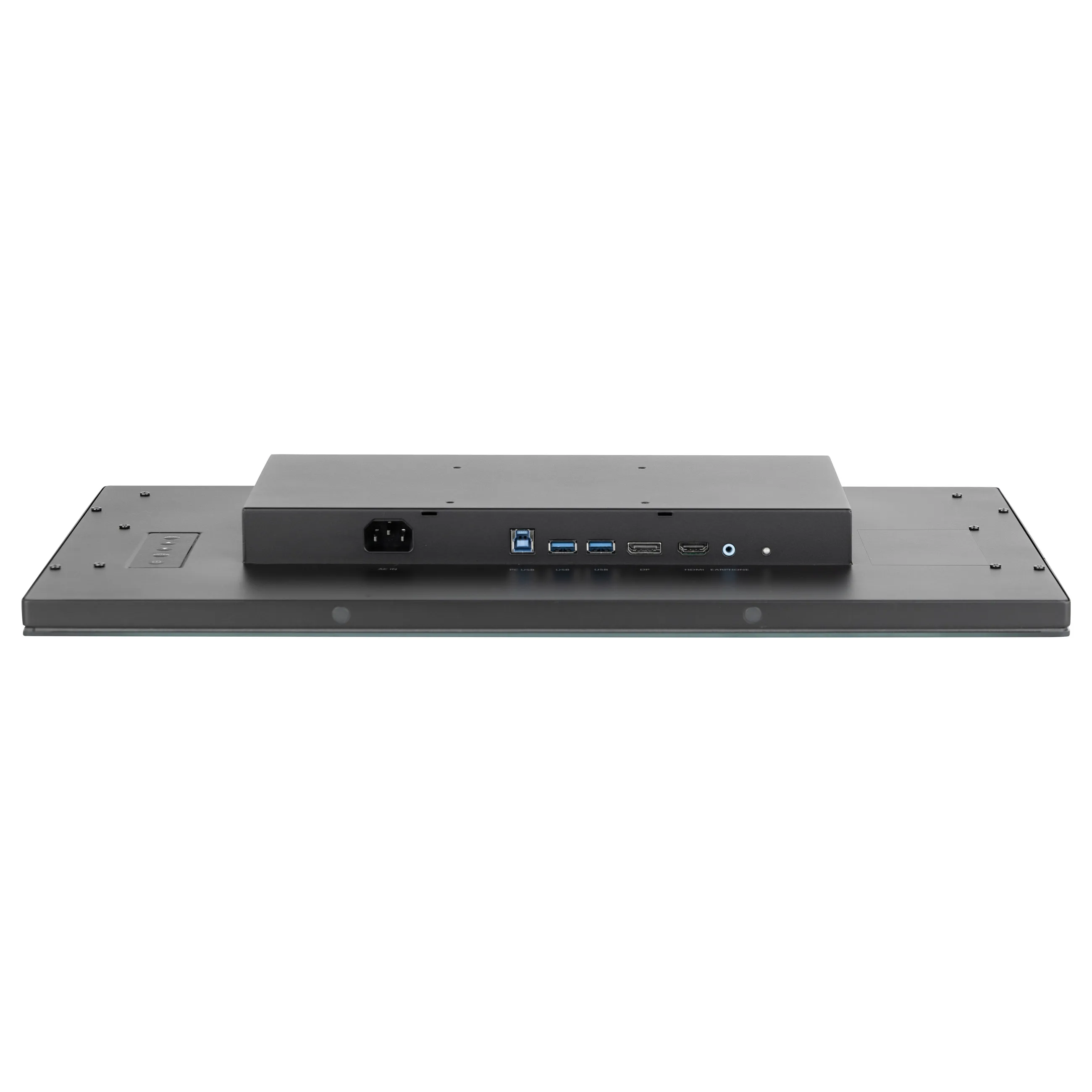

Ports & interfaces
USB version: 3.2 Gen 1 (3.1 Gen 1)
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
Number of downstream ports: 2
Feature: USB Touch port
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics

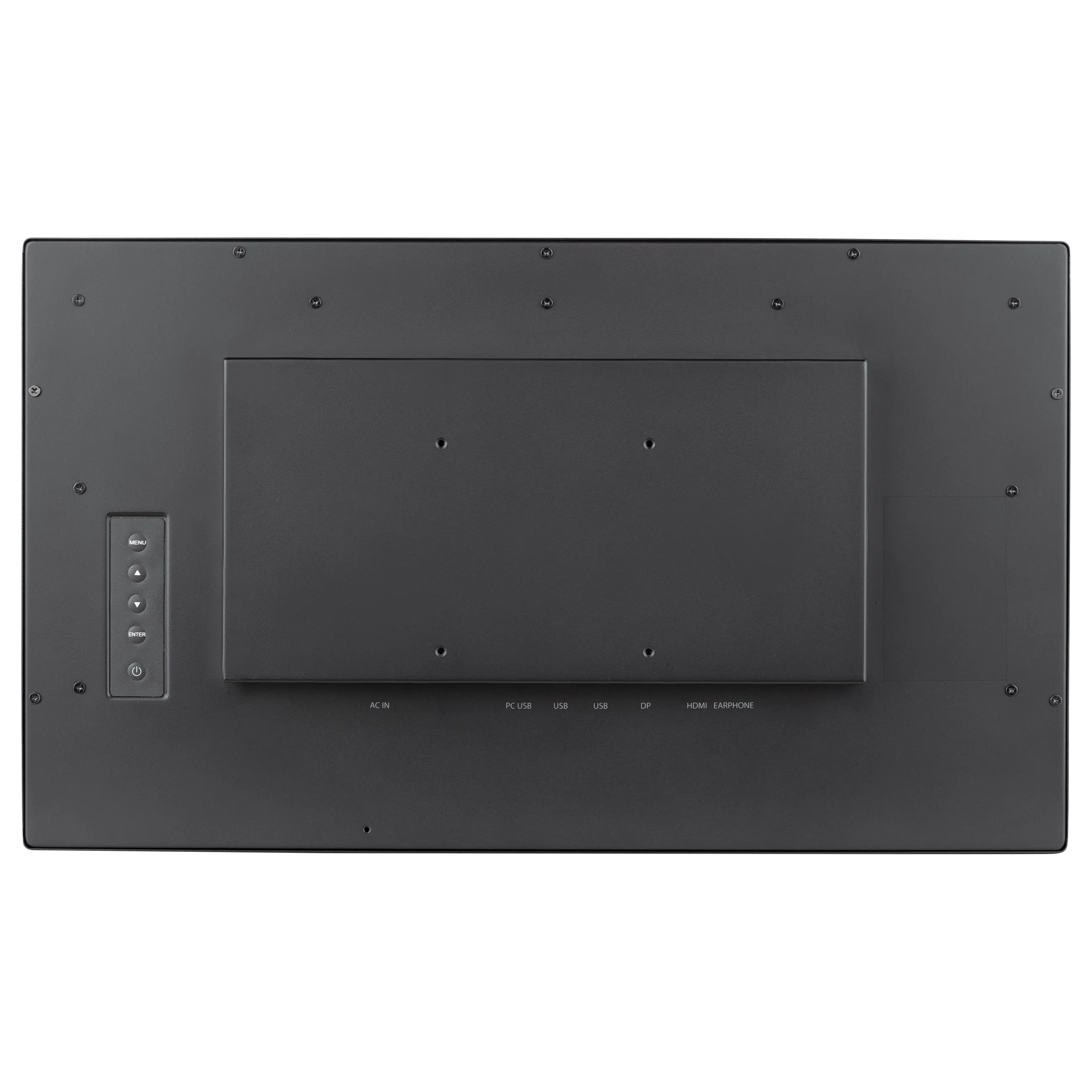

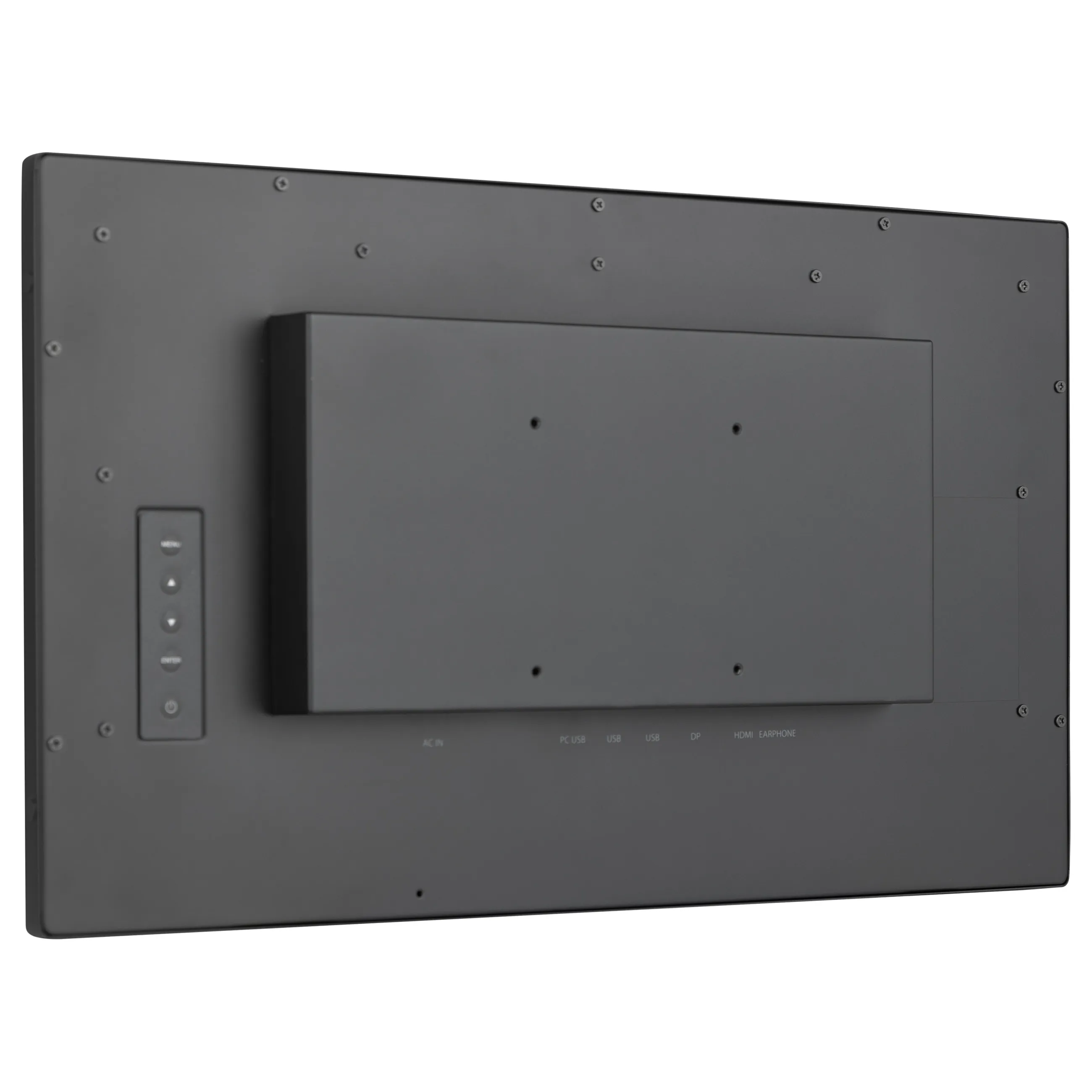

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian
Power

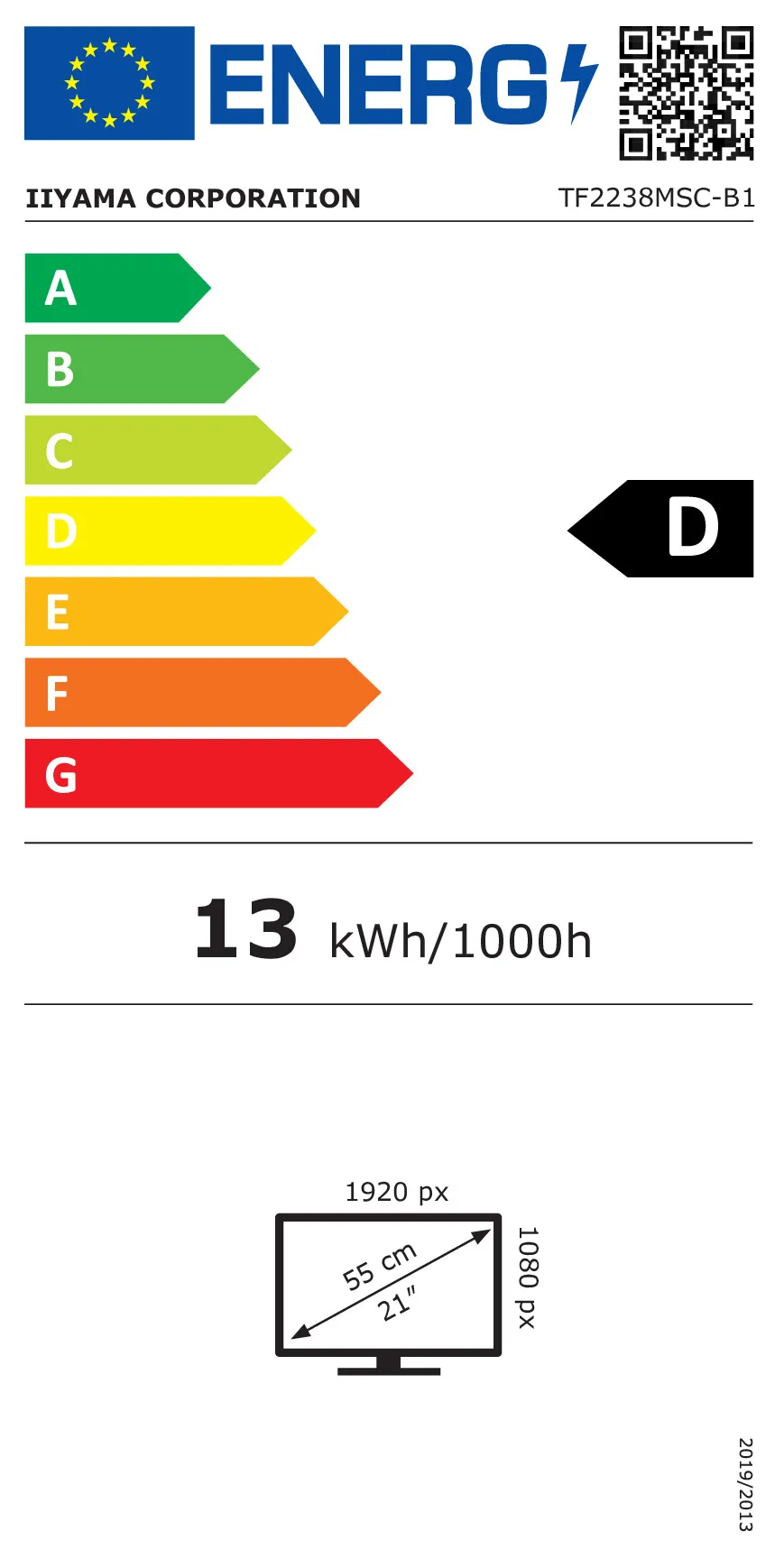

Energy efficiency class (SDR): D
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 12.9 kWh
Power consumption (typical): 17 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Weight & dimensions
Width (with stand): 512.5 mm
Depth (with stand): 47 mm
Height (with stand): 300 mm
Weight (with stand): 5.1 kg
Bezel width (side): 1.7 cm
Bezel width (top): 1.98 cm
Bezel width (bottom): 1.98 cm
Packaging data
Package width: 572 mm
Package depth: 112 mm
Package height: 364 mm
Package weight: 6.4 kg
Packaging content

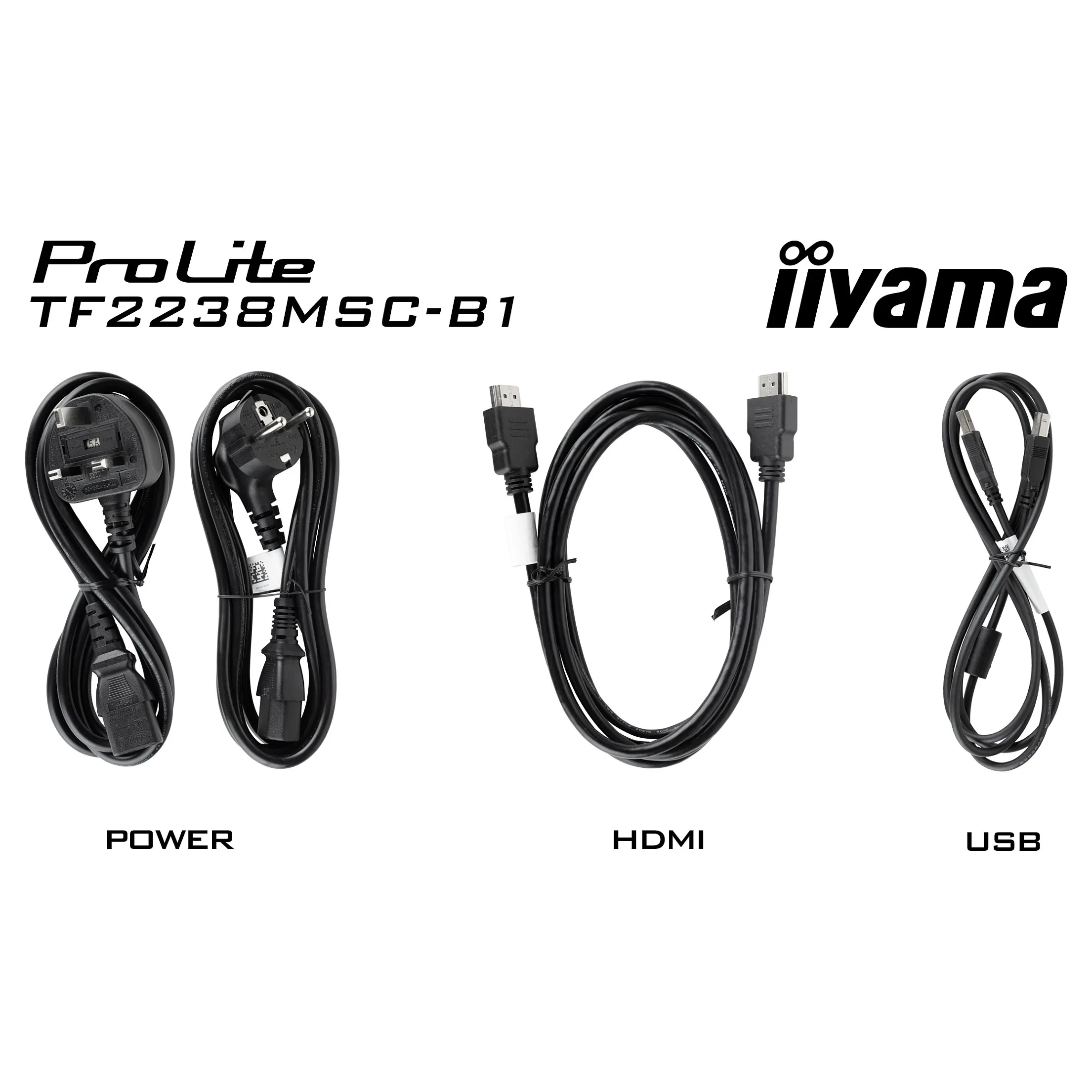

Cables included: AC, USB, HDMI
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP1X
Placement supported: Indoor
Brightness: 525 cd/m²
Active display area (W x H): 479 x 260 mm
USB ports quantity: 2
Weight: 5.1 kg
Height: 300 mm
Touch method: stylus, finger, glove
Width: 512.5 mm
Depth: 47 mm

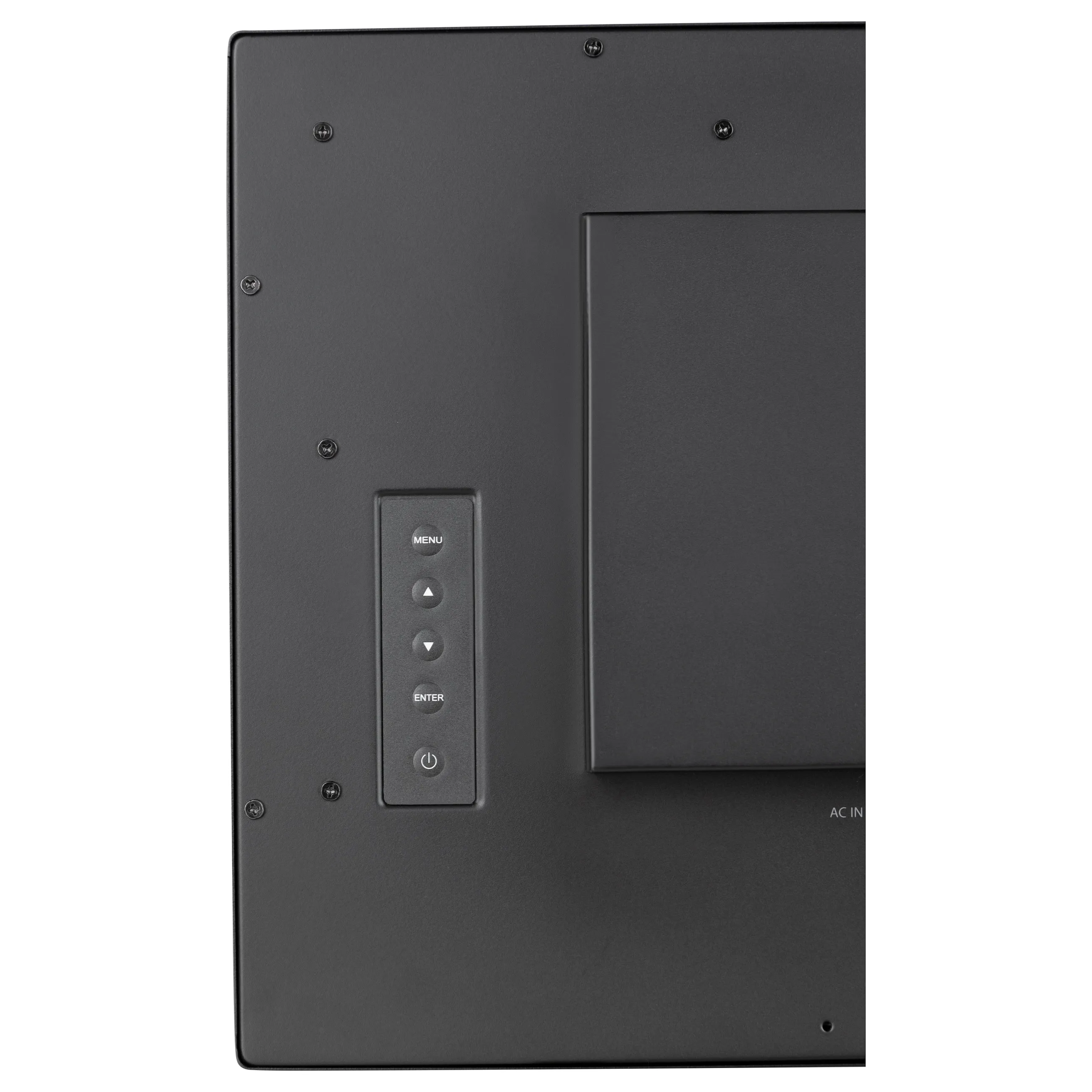

Control panel: Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
Compliance certificates: CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Certification: CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
