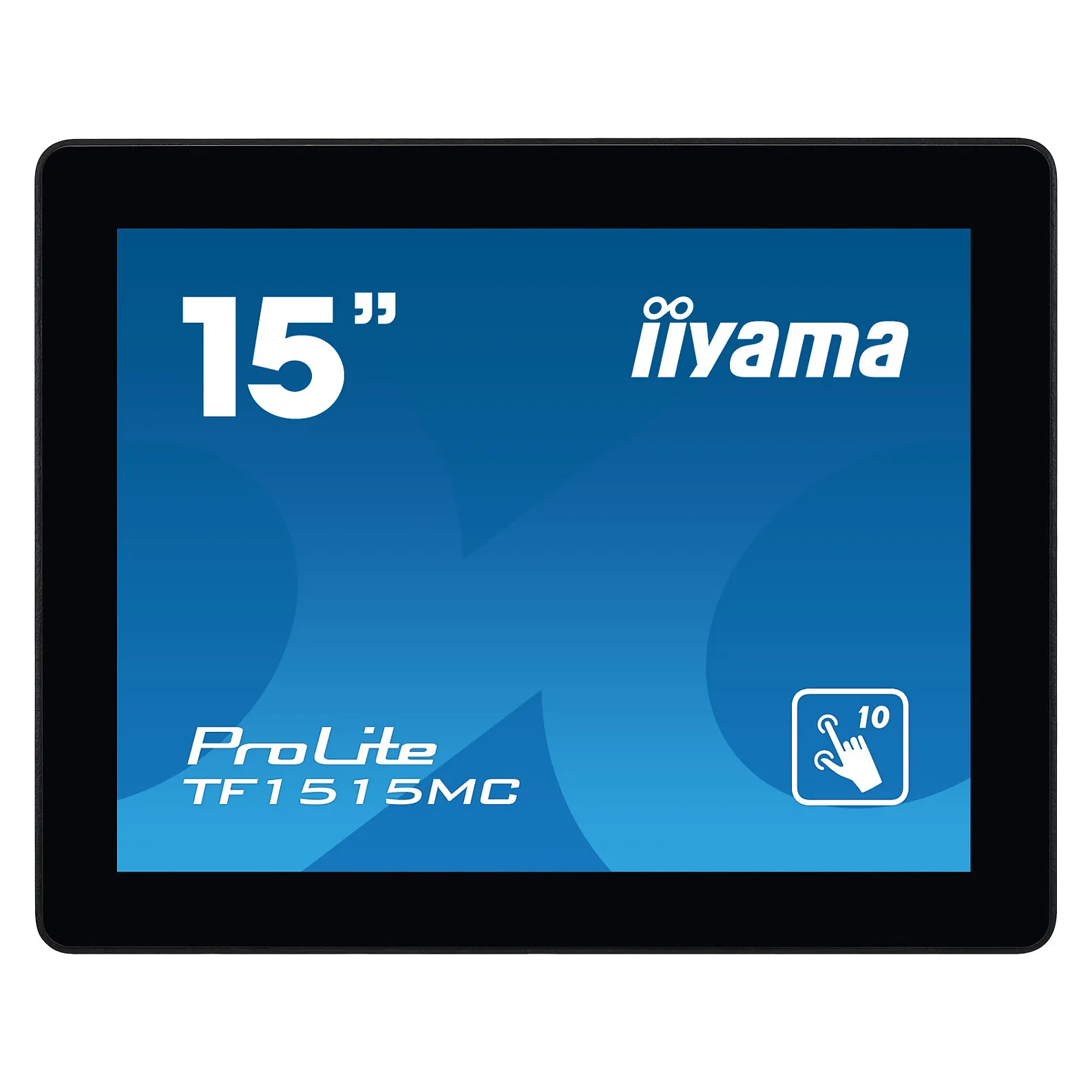

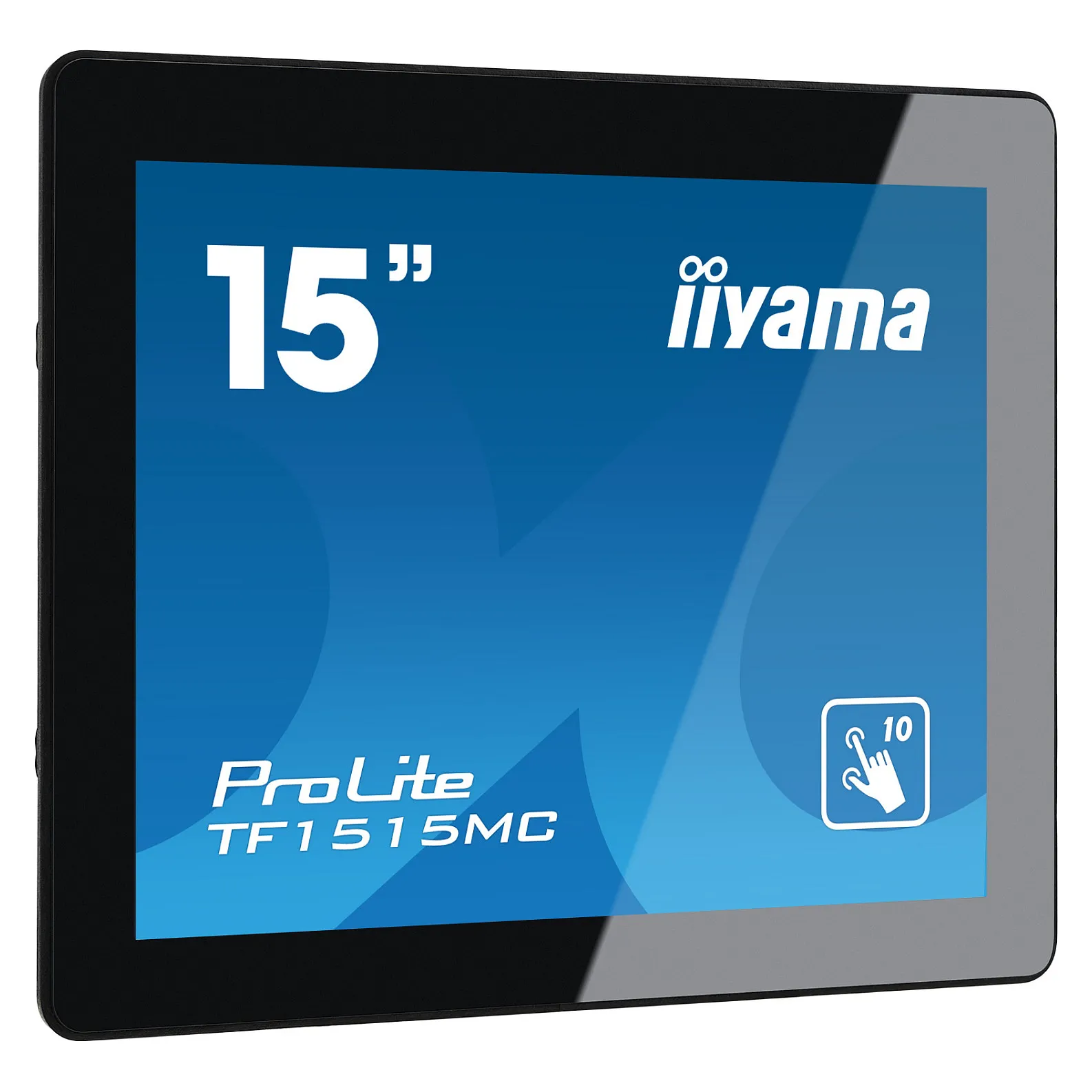

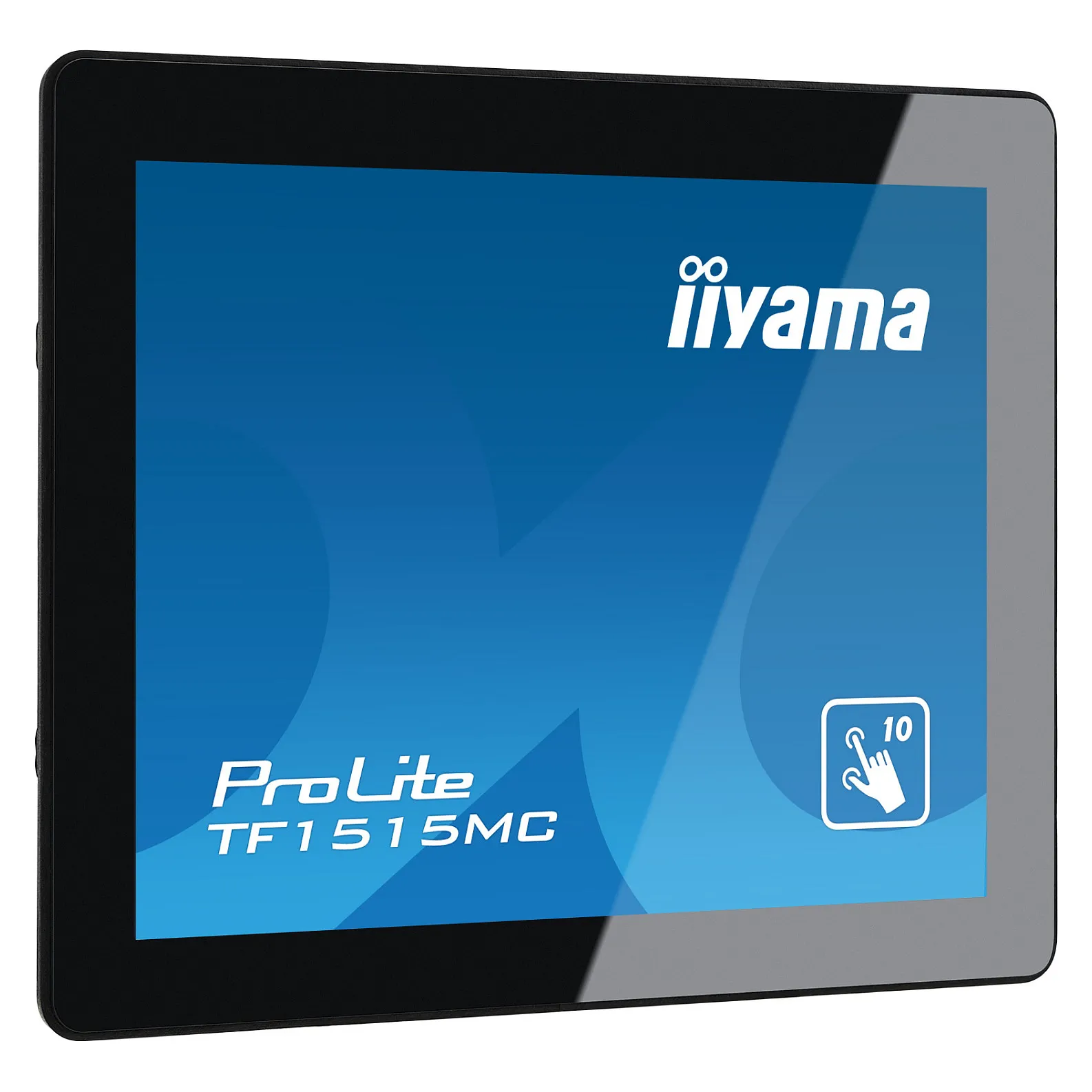

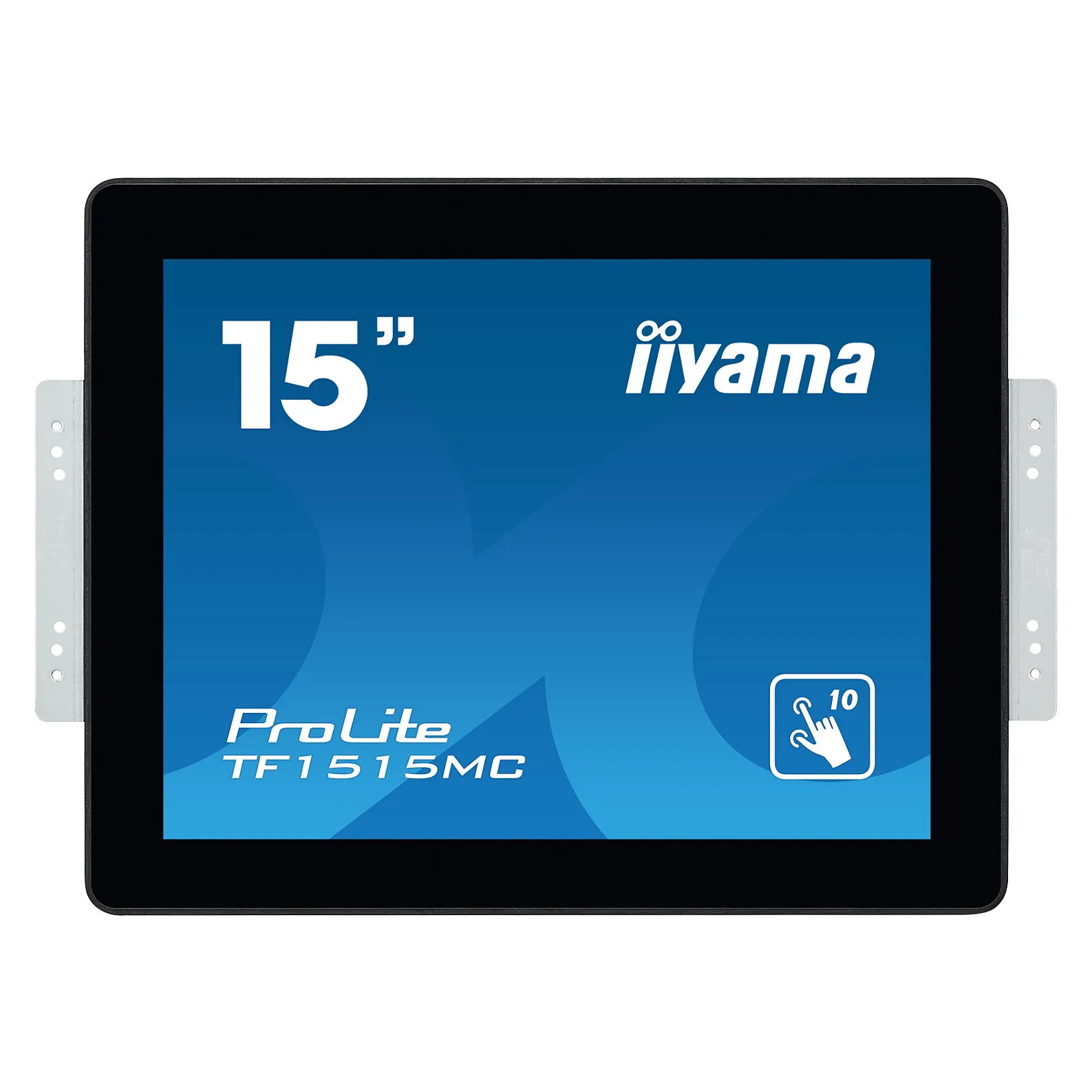

iiyama TF1515MC-B2. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Response time: 8 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 160°, Viewing angle, vertical: 150°. VESA mounting. Product colour: Black

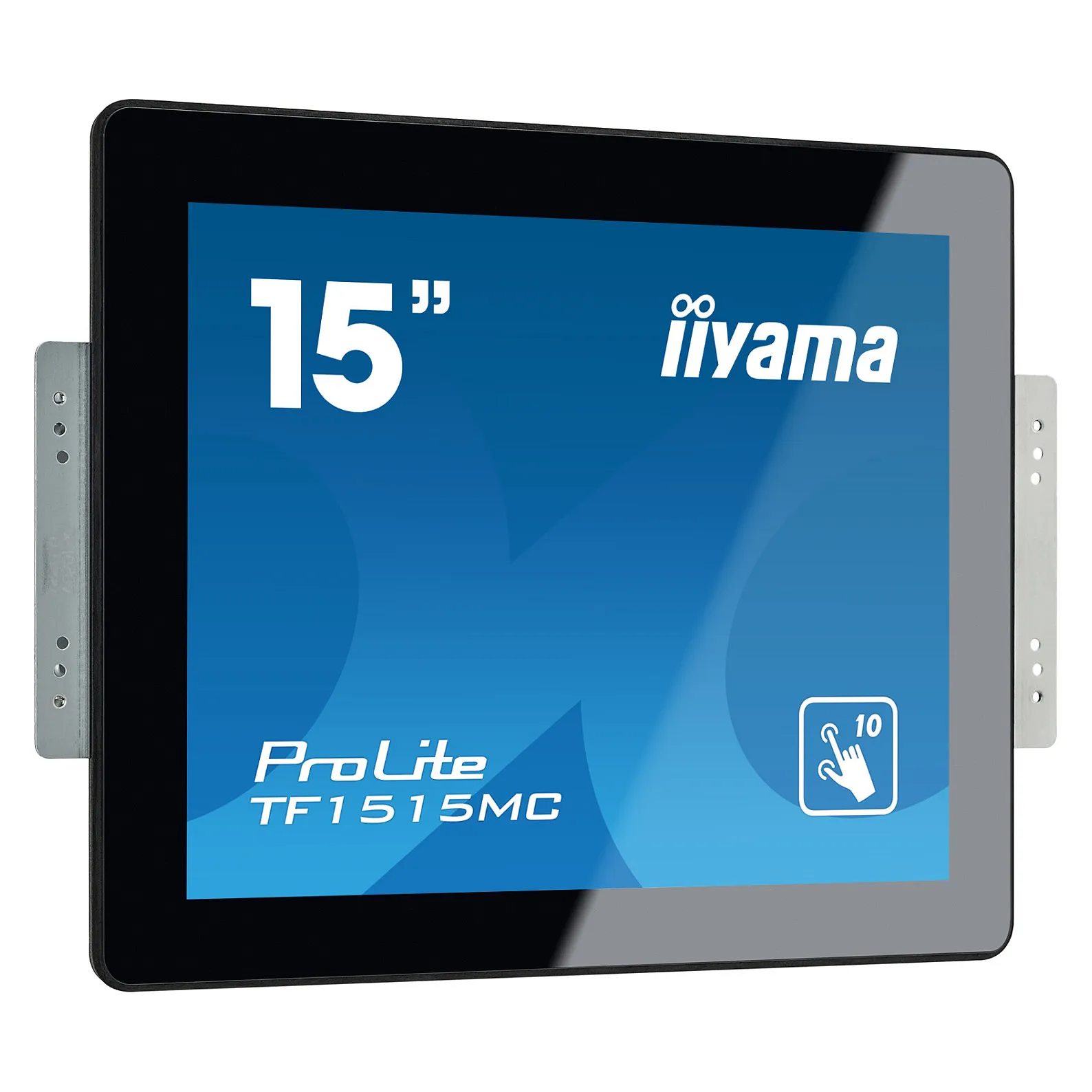

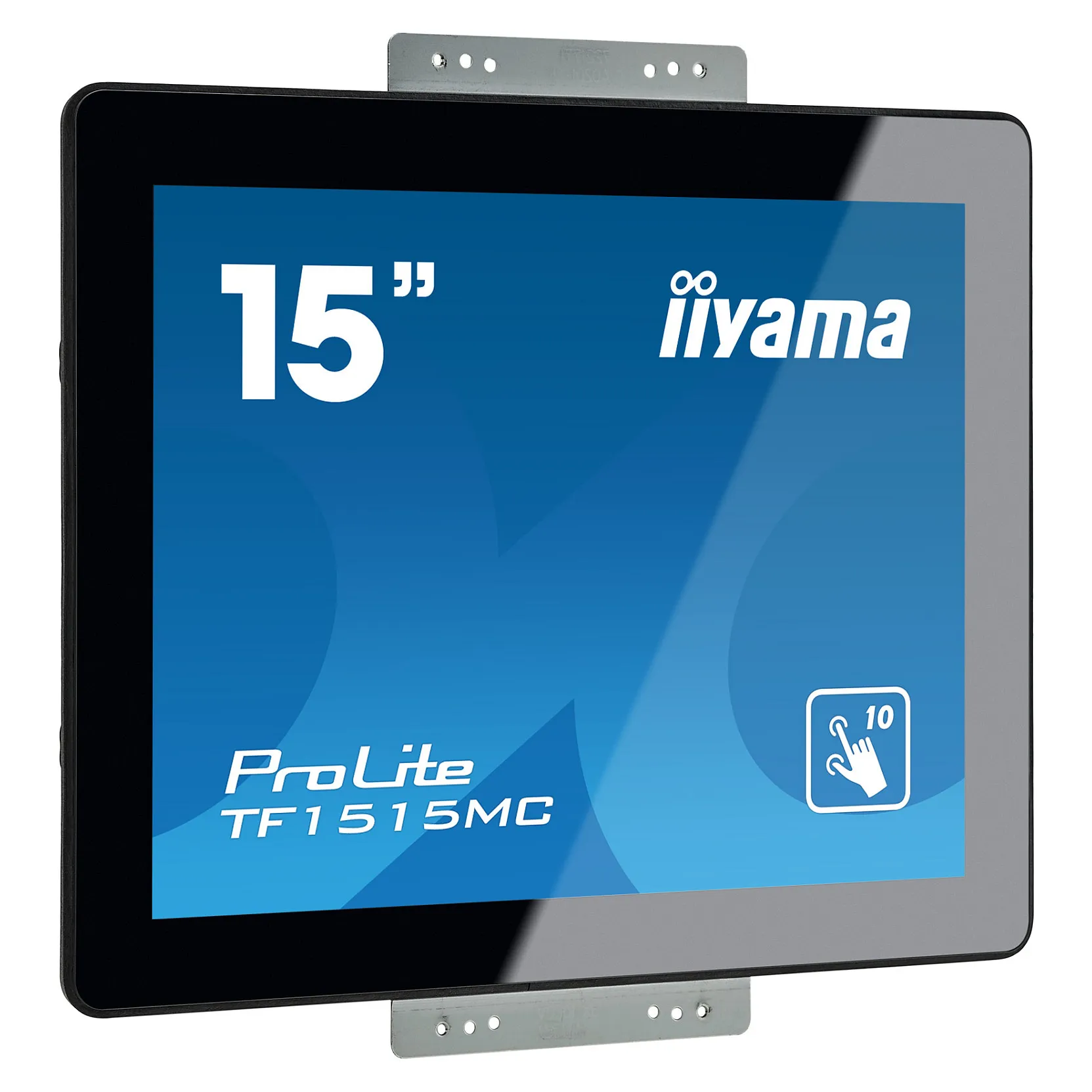

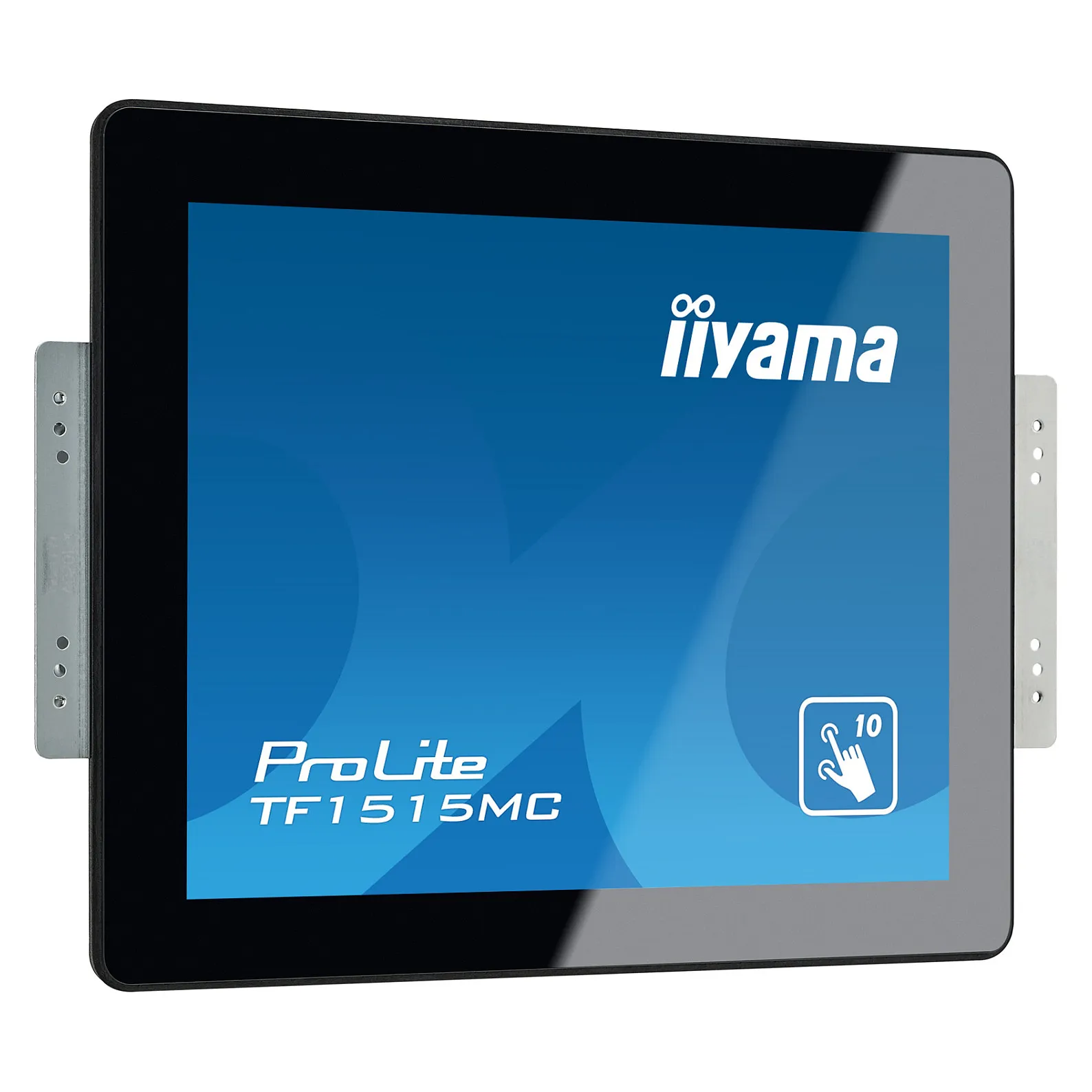

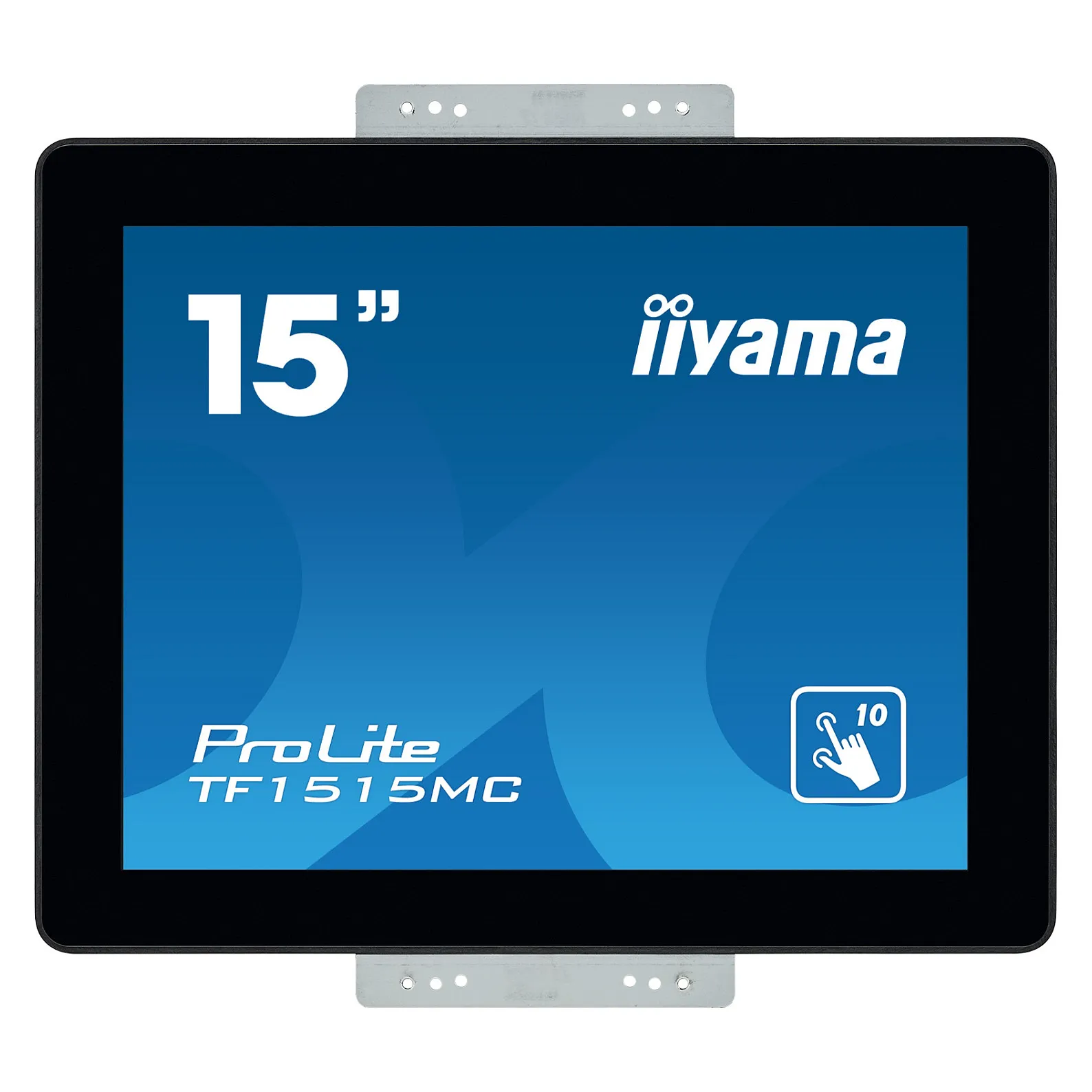

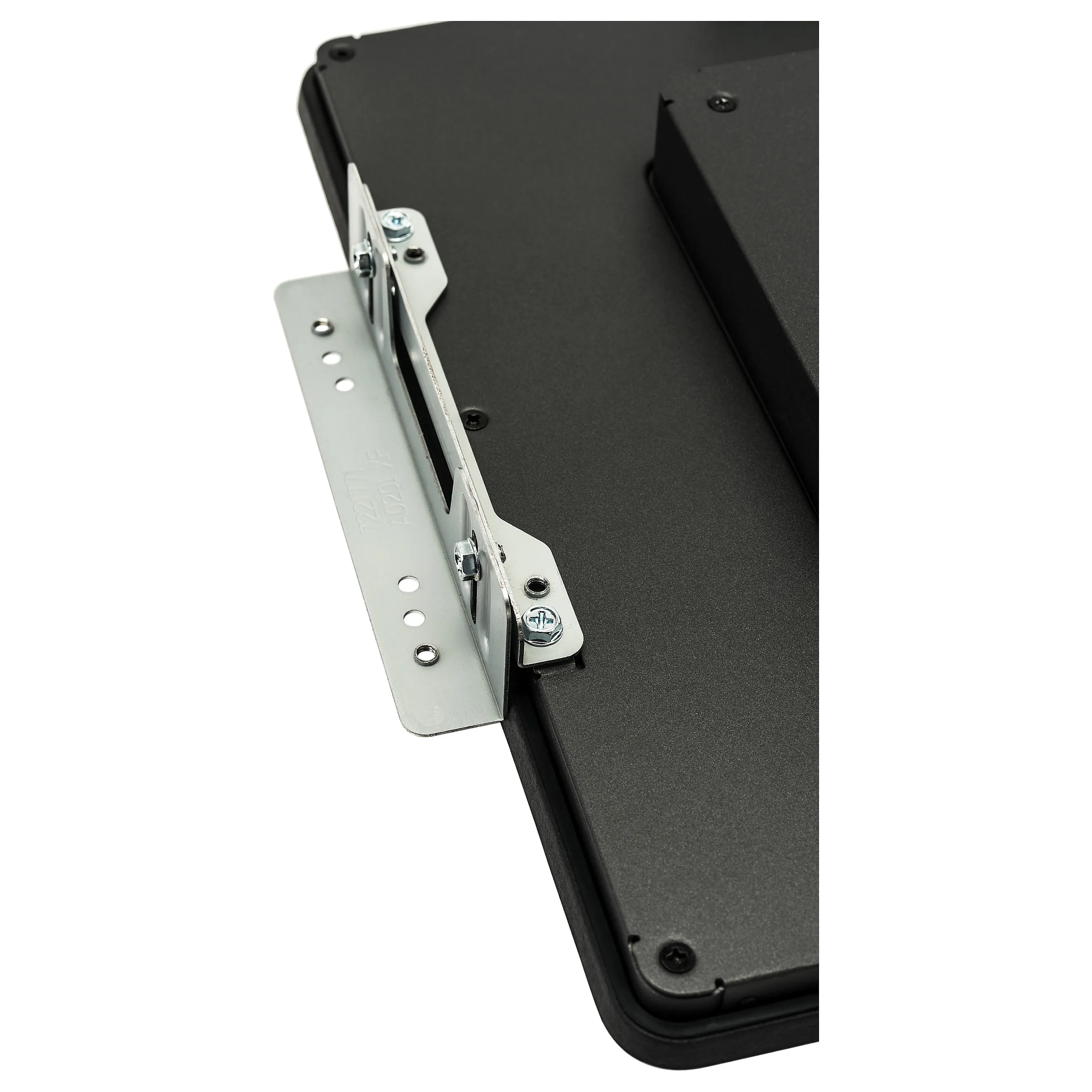

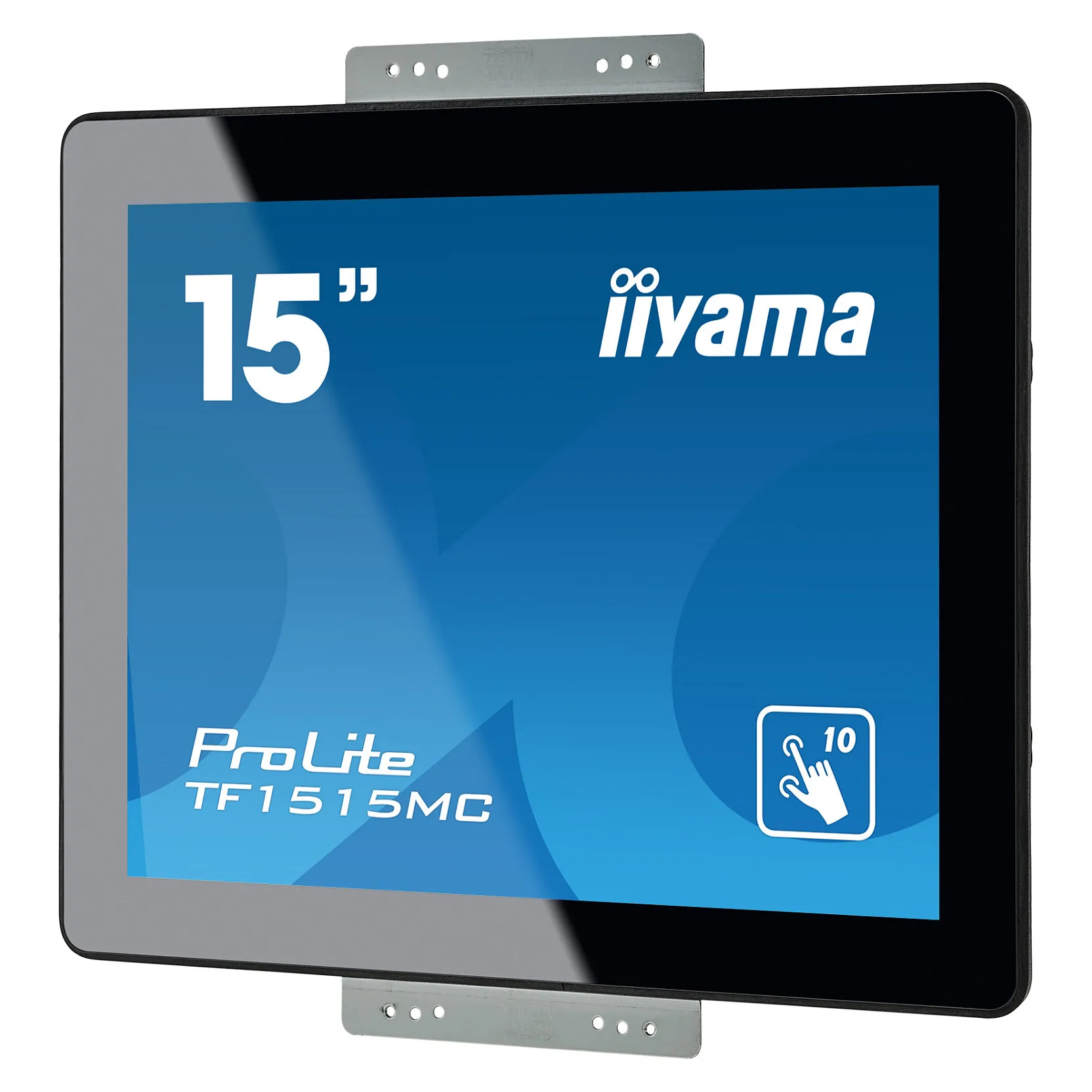

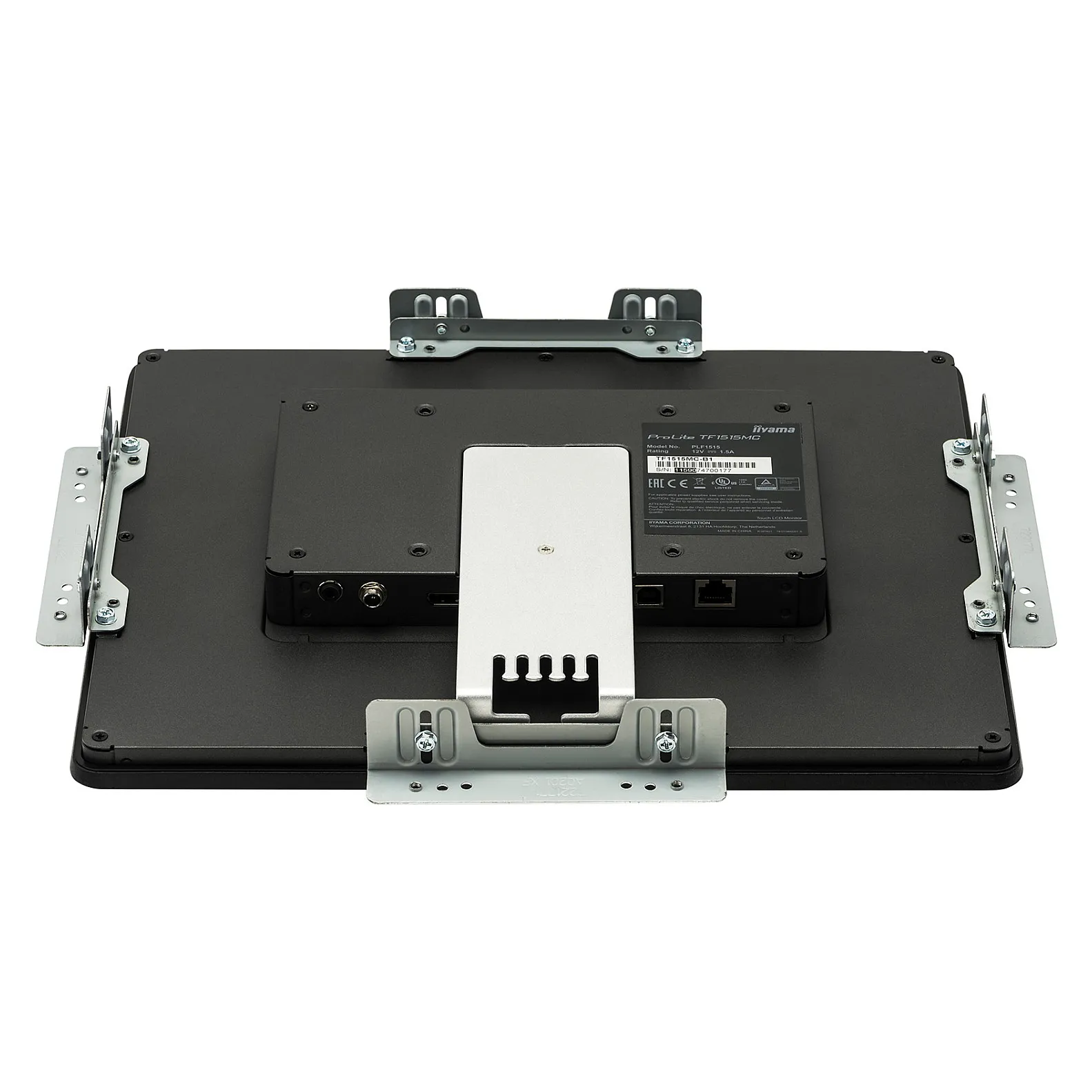

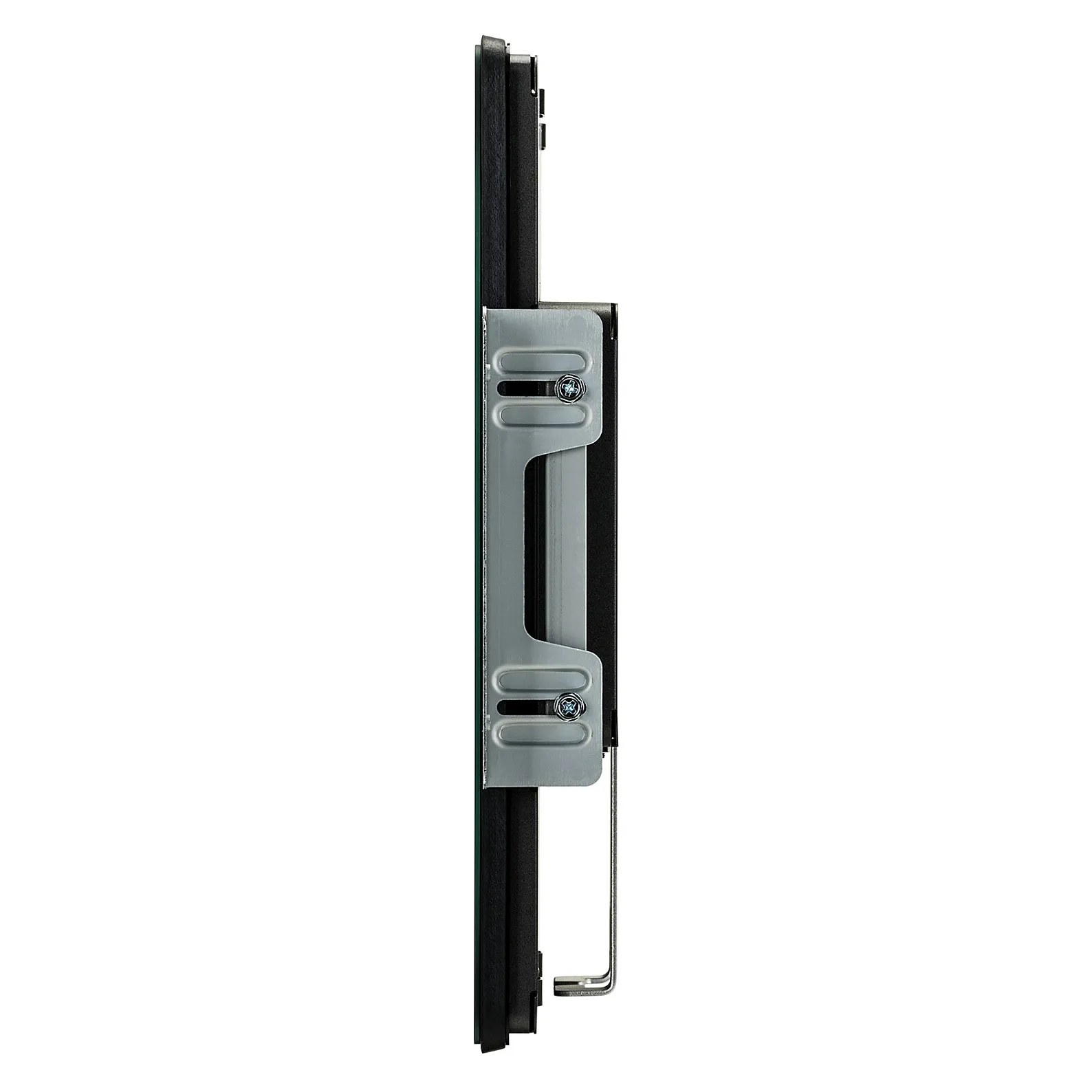

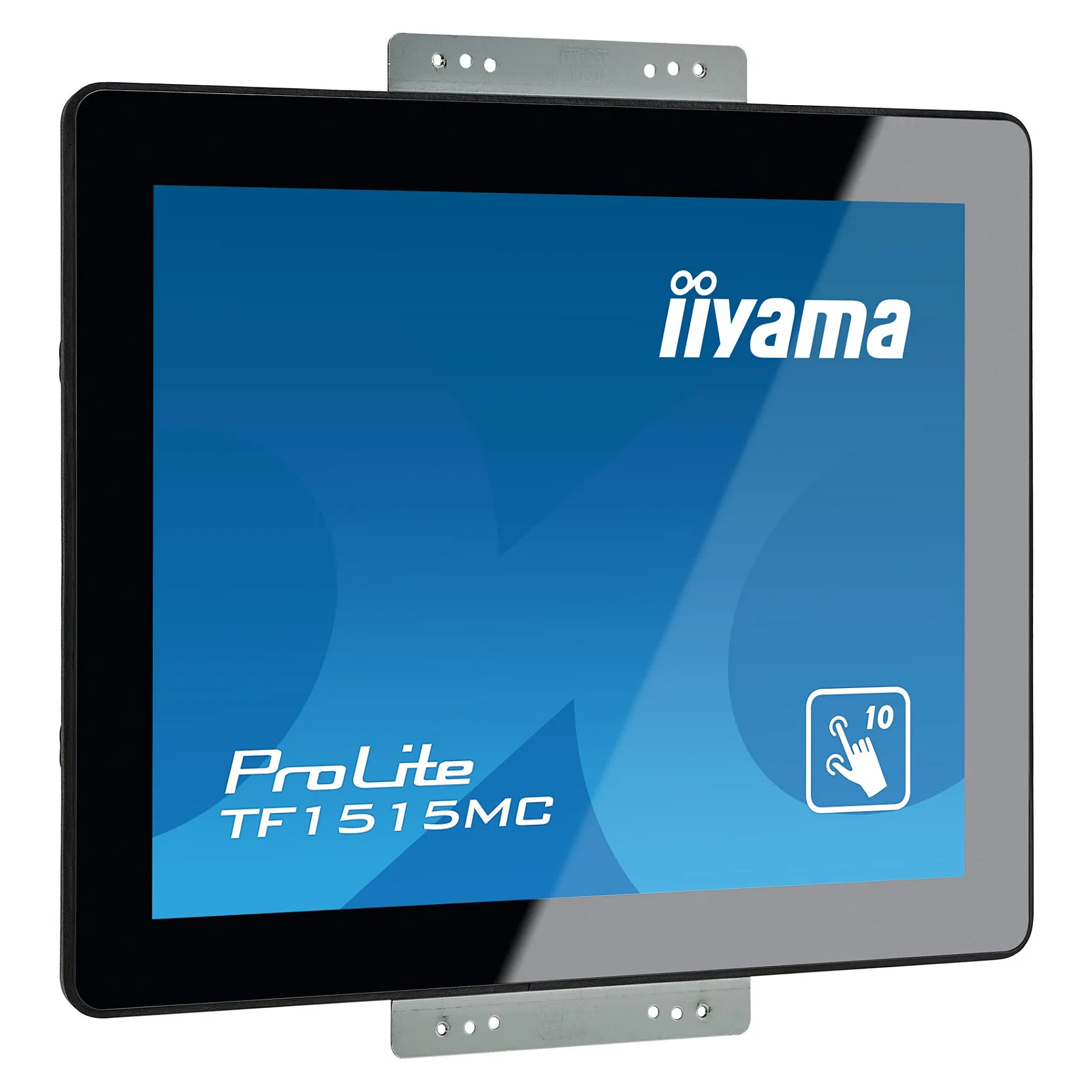

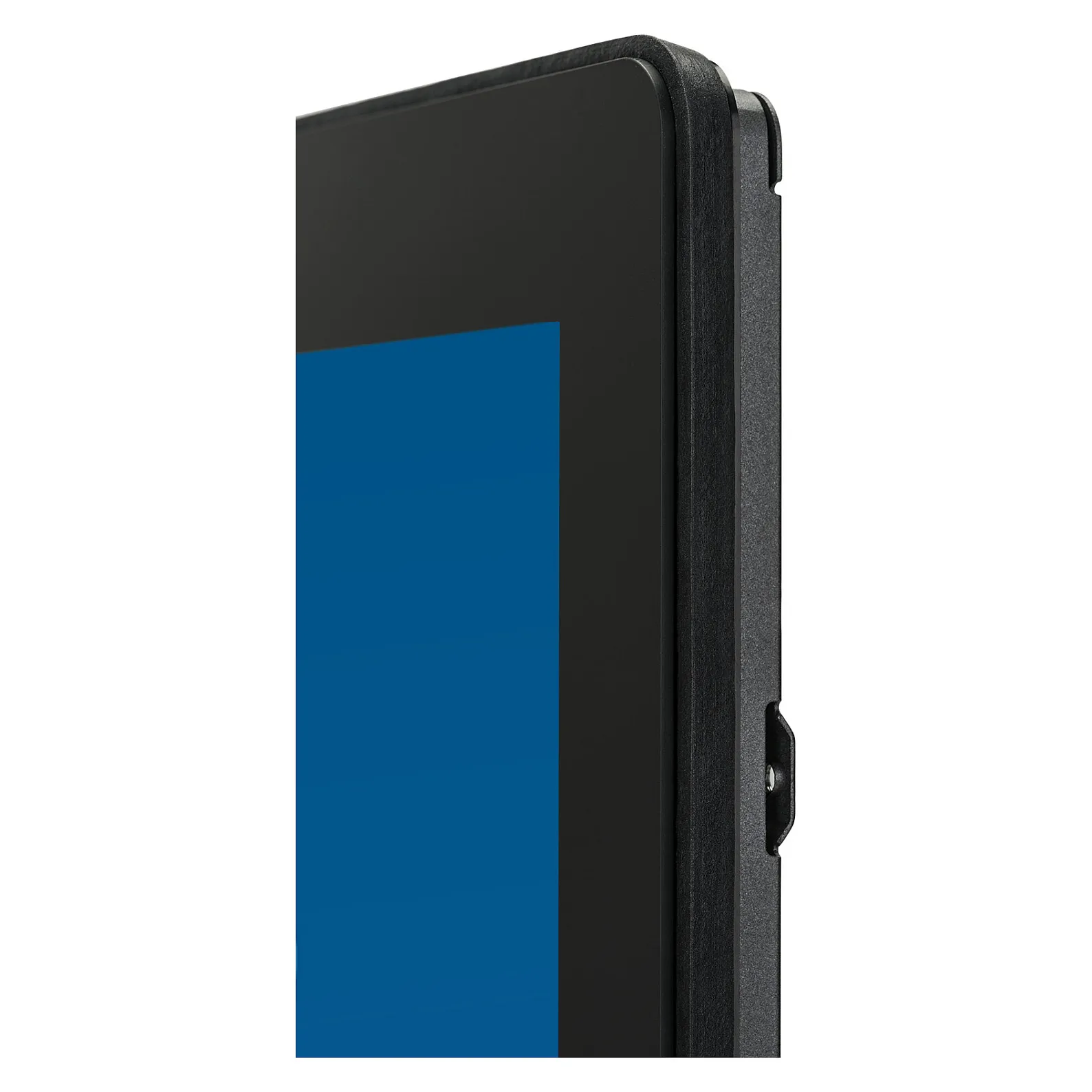

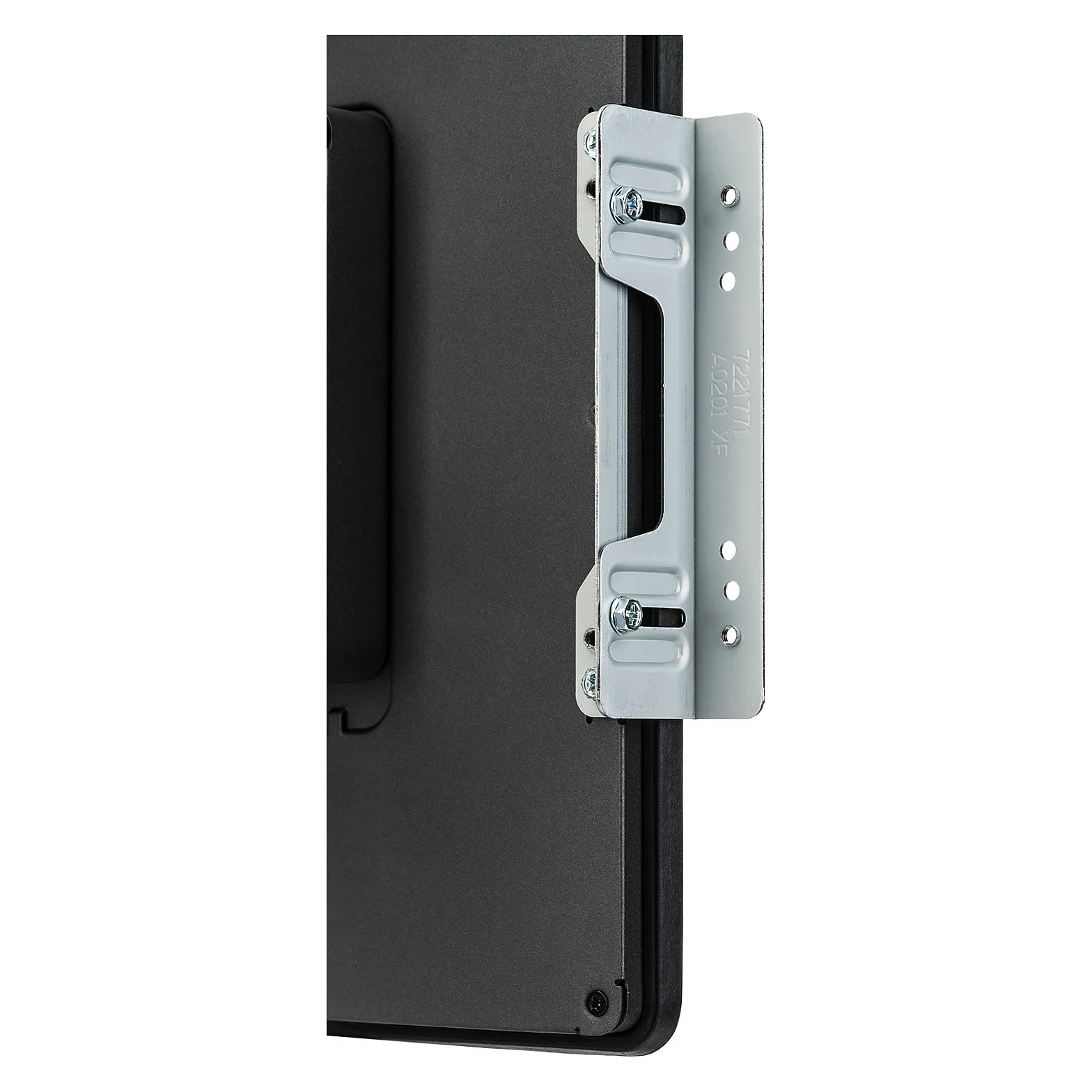

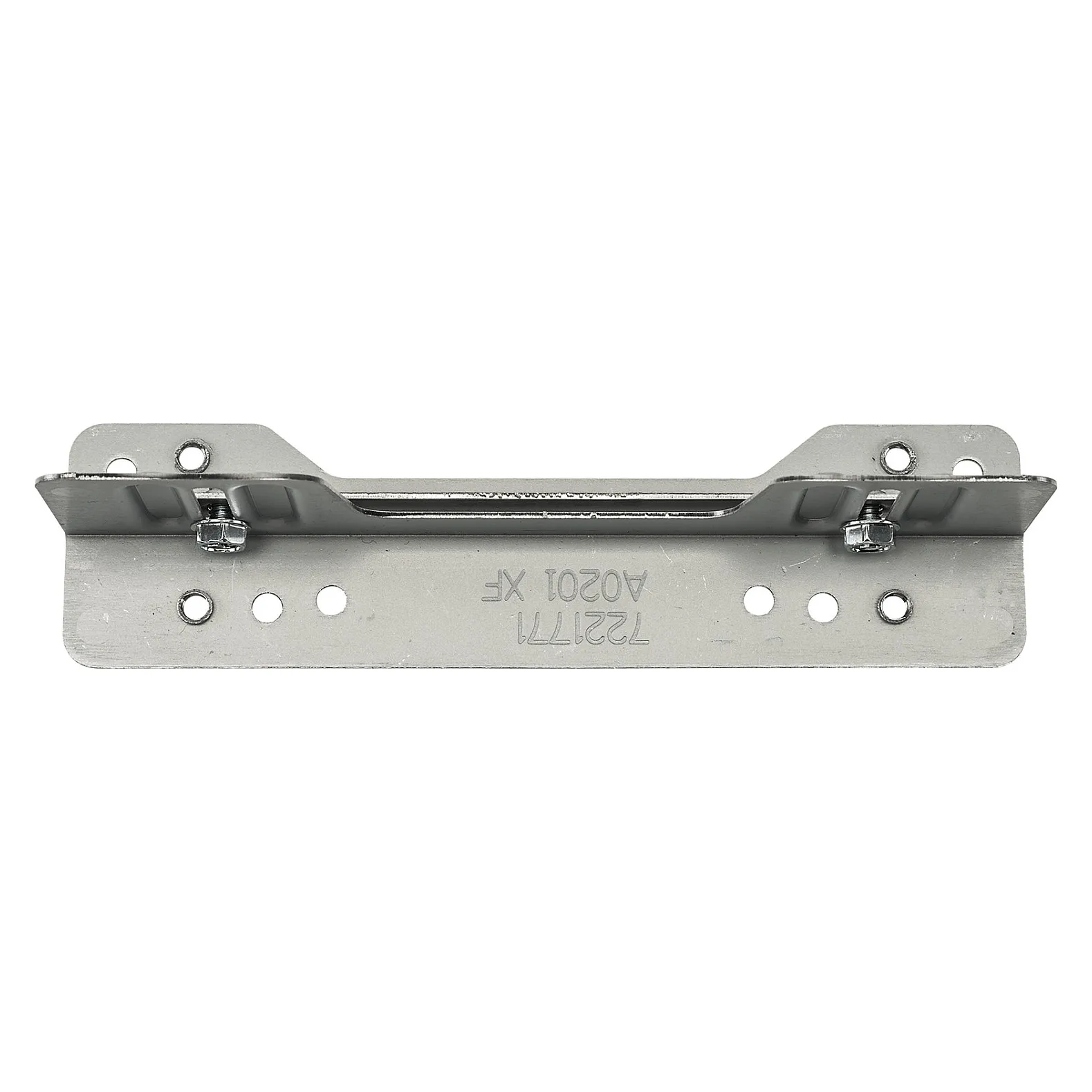

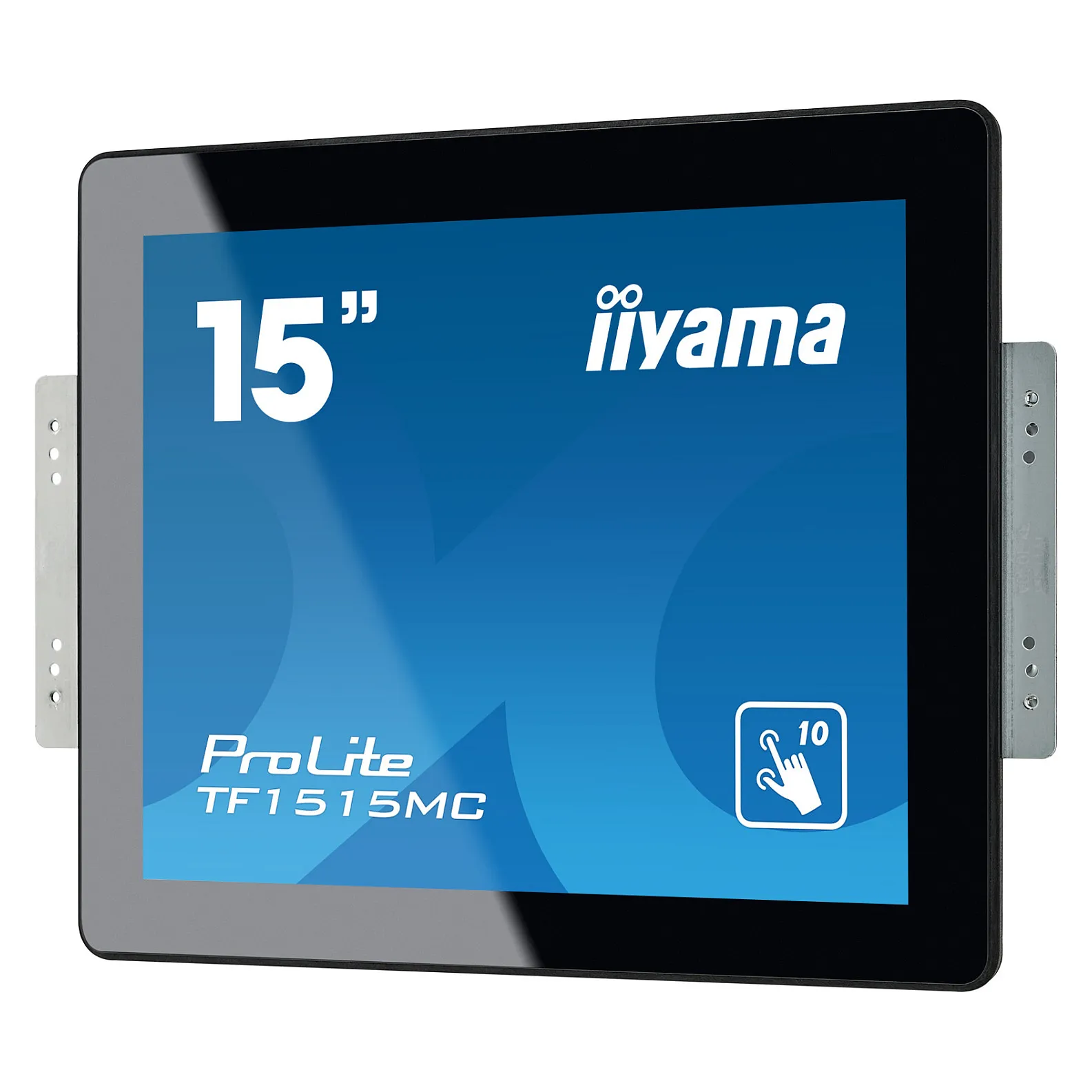

The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display
Display diagonal: 38.1 cm (15″)
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Display technology: LED
Panel type: TN
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 315 cd/m²
Response time: 8 ms
Screen shape: Flat
Aspect ratio: 4:3
Contrast ratio (typical): 800:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 160°
Viewing angle, vertical: 150°
Display number of colours: 16.2 million colours
Pixel pitch: 0.297 x 0.297 mm
Horizontal scan range: 31.4 – 60 kHz
Viewable size, horizontal: 30.4 cm
Viewable size, vertical: 22.8 cm
Display diagonal (metric): 38 cm
Surface hardness: 7H
Performance
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Design
Product colour: Black
Front bezel colour: Black
Glass thickness: 6 mm

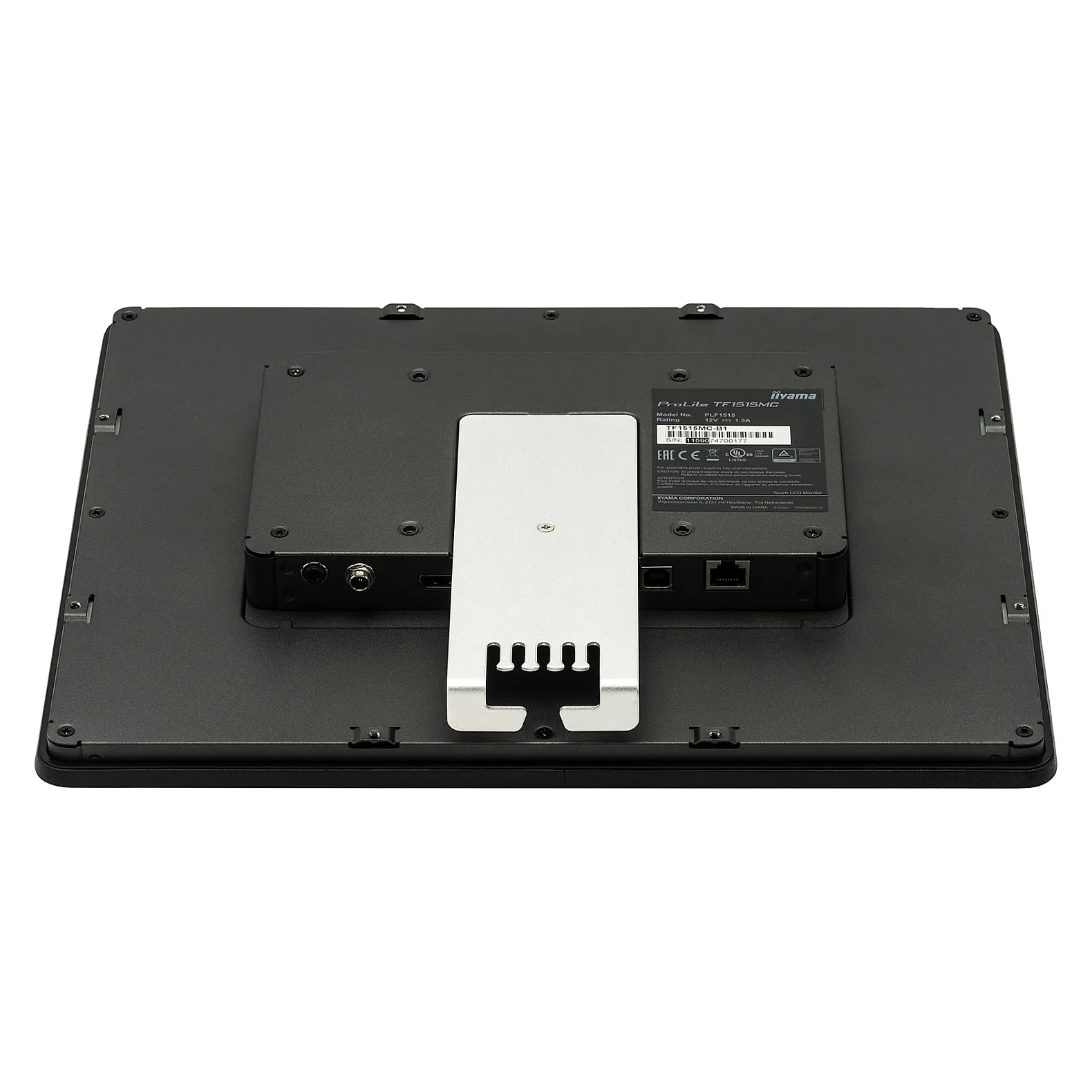

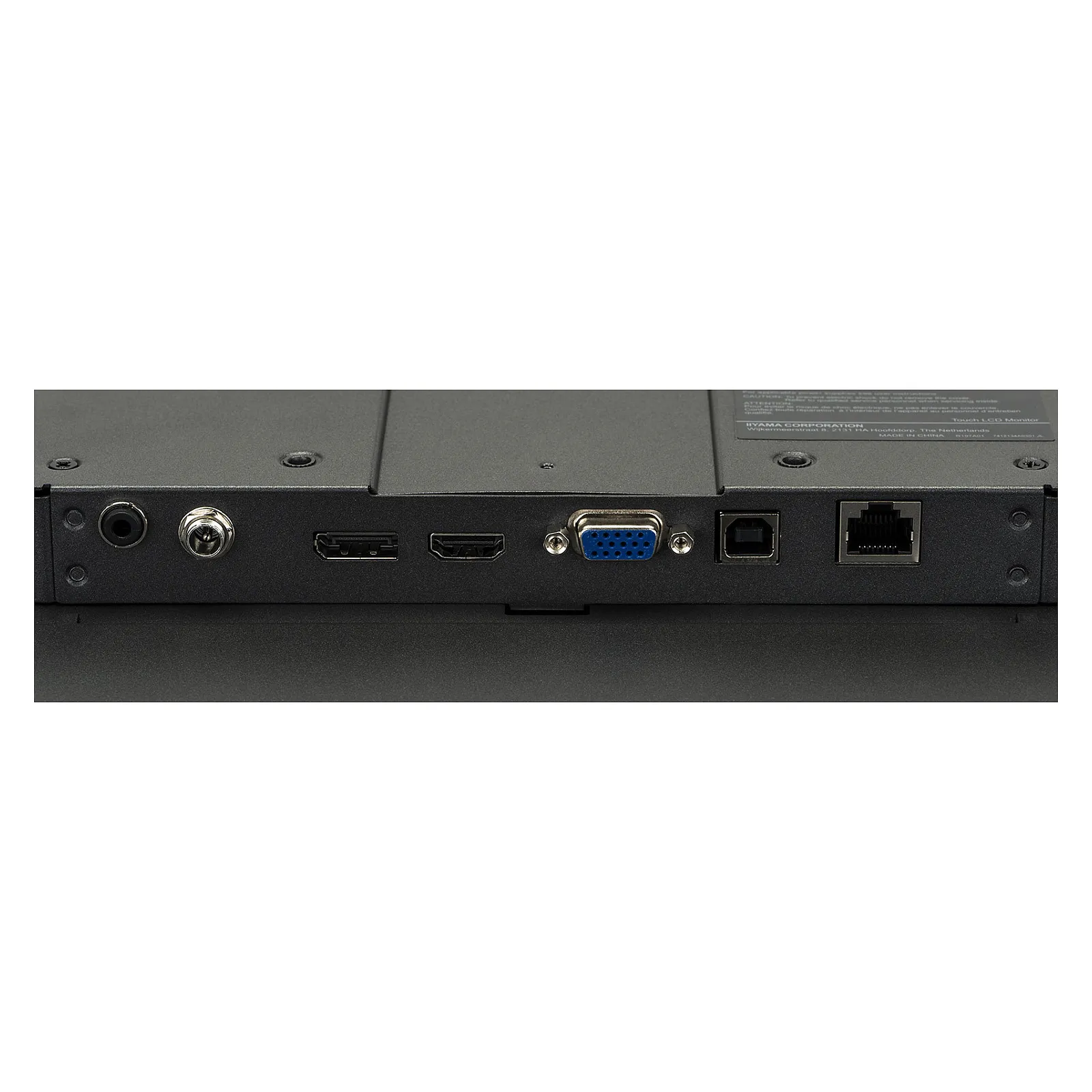

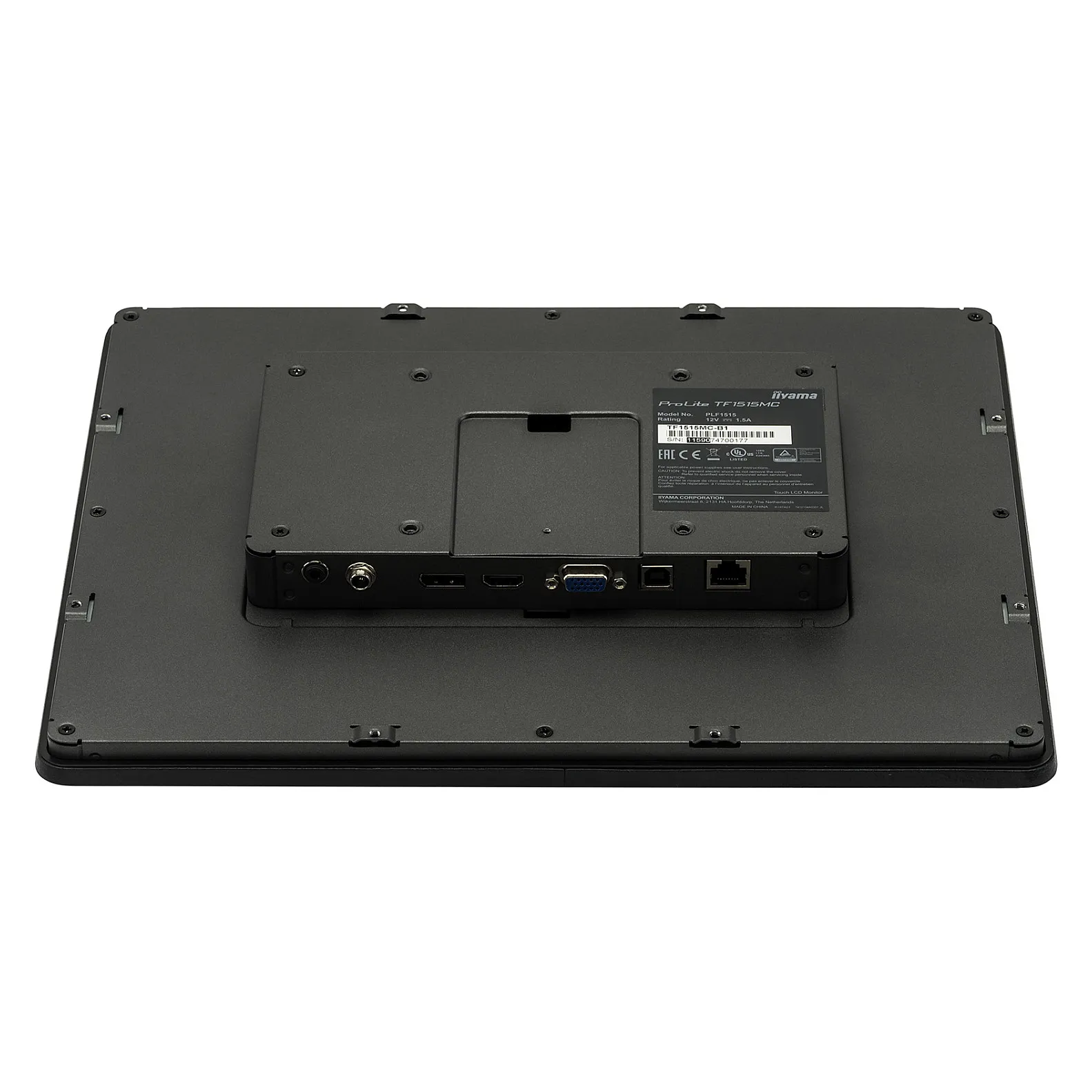

Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Network
Feature: Ethernet LAN
Ergonomics

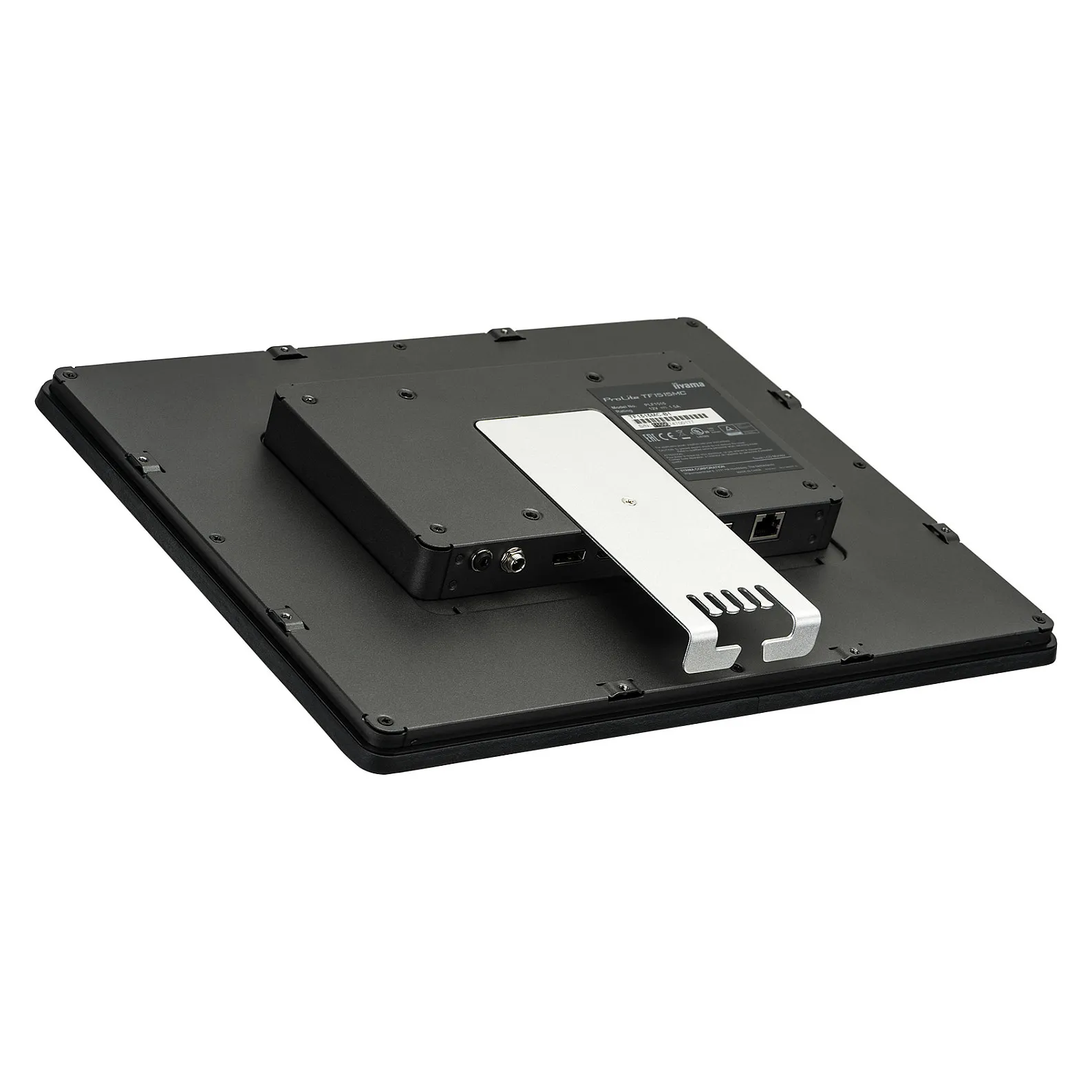

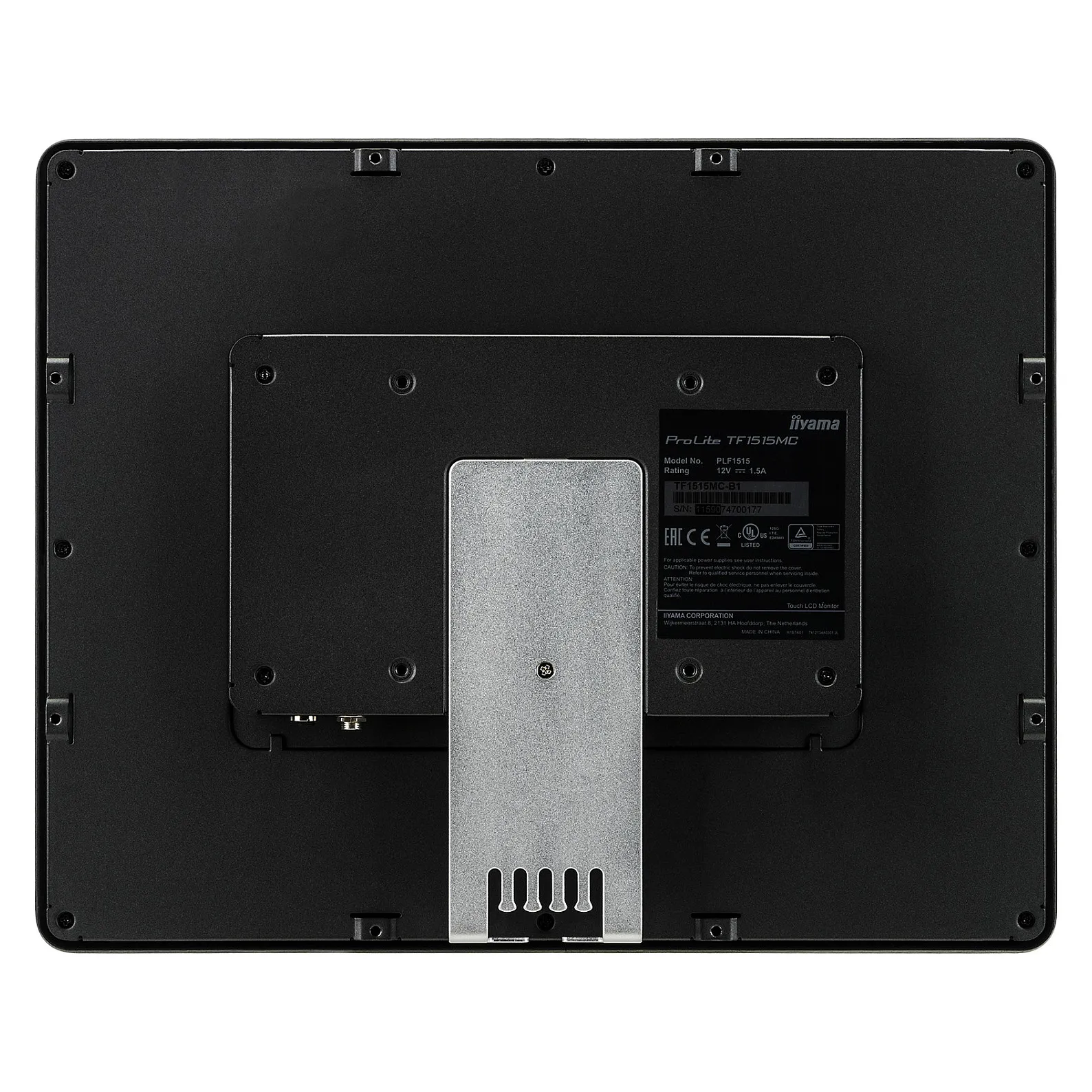

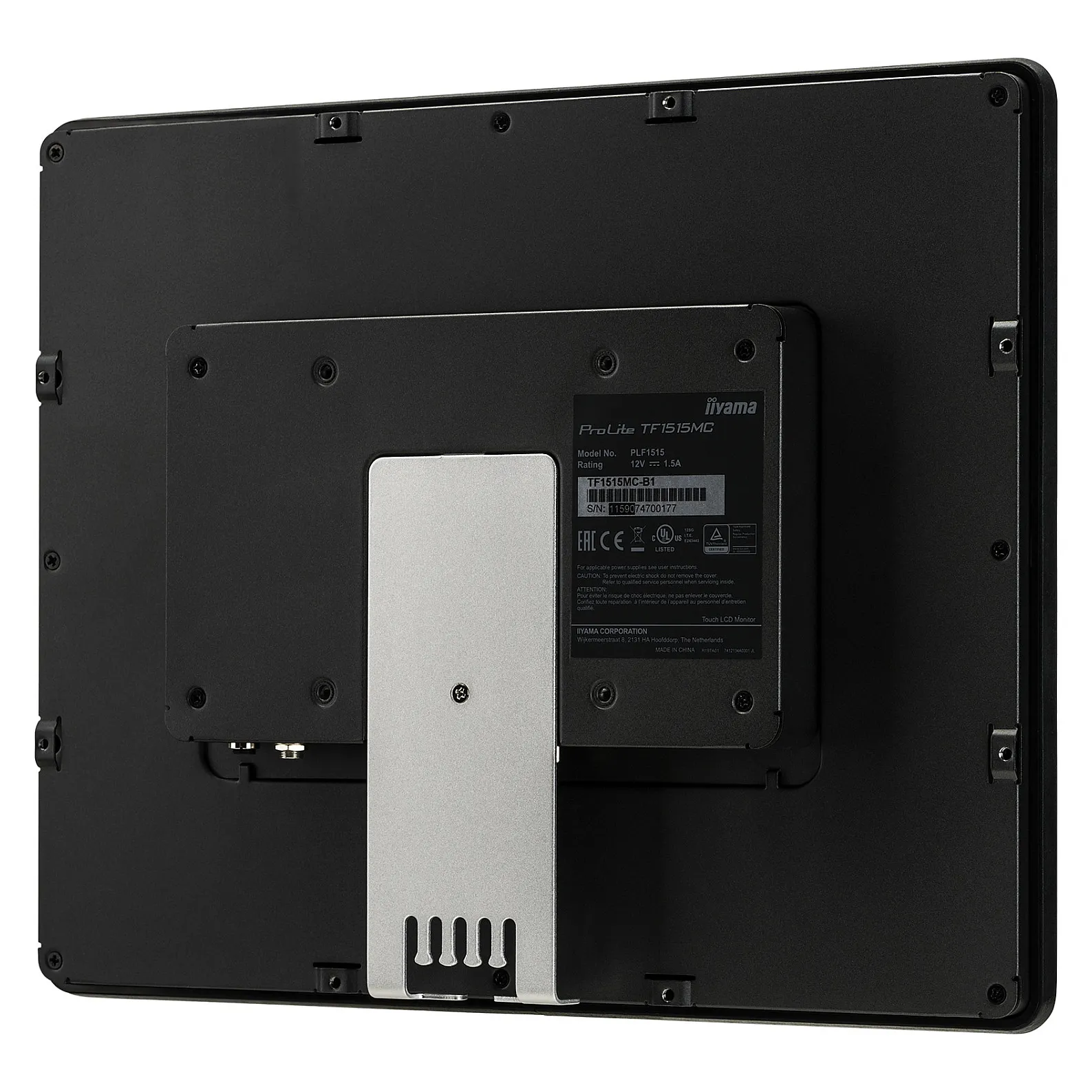

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Feature: Plug and Play
LED indicators: Yes
Power

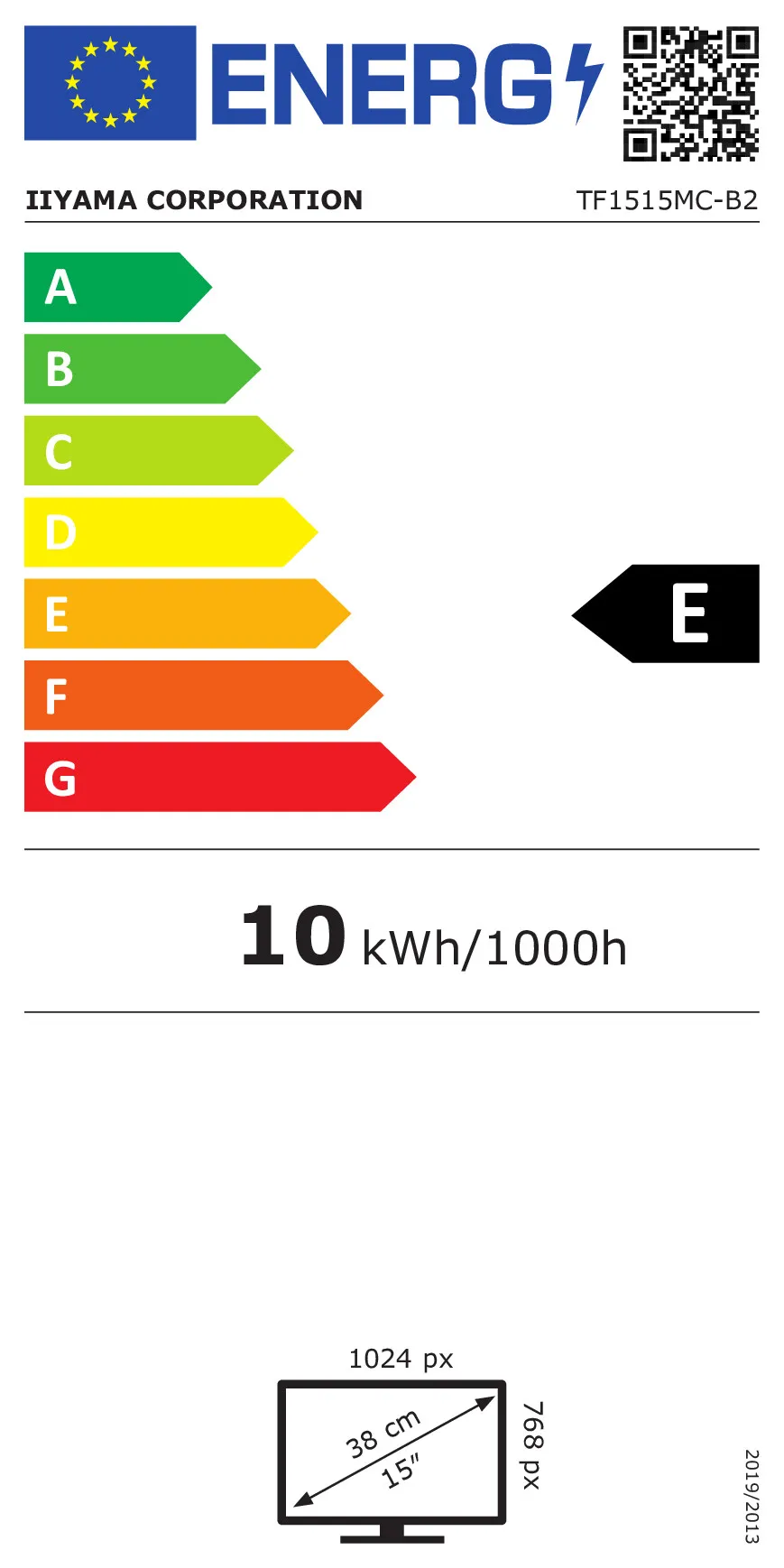

Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 10 kWh
Power consumption (typical): 16 W
Power consumption (standby): 1.2 W
Power consumption (off): 1.2 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C

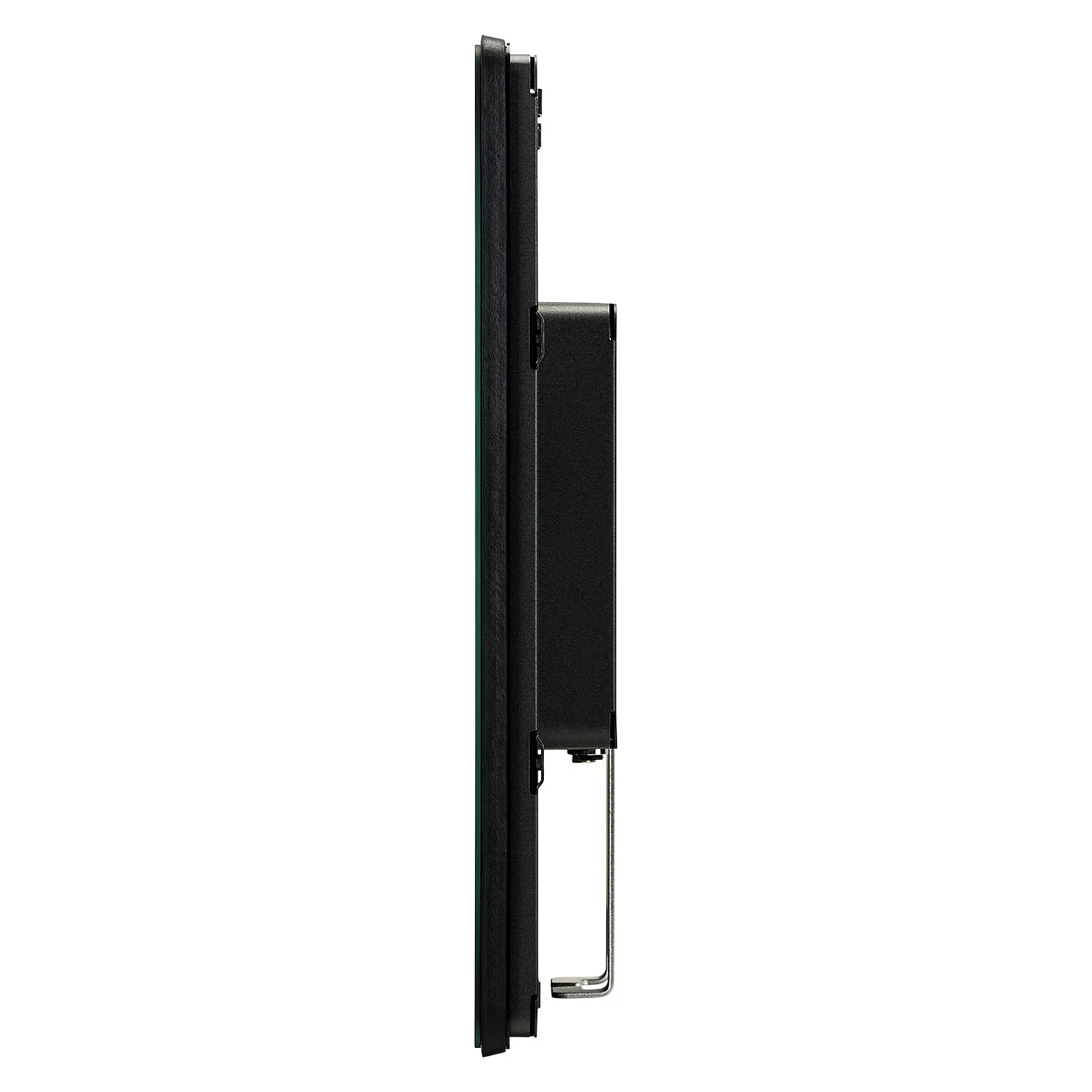

Weight & dimensions
Width (with stand): 364 mm
Depth (with stand): 41.5 mm
Height (with stand): 291 mm
Weight (with stand): 2.9 kg
Width (without stand): 364 mm
Depth (without stand): 291 mm
Height (without stand): 41.5 mm
Weight (without stand): 2.9 kg
Packaging data
Package width: 460 mm
Package depth: 175 mm
Package height: 470 mm
Package weight: 4.6 kg
Packaging content

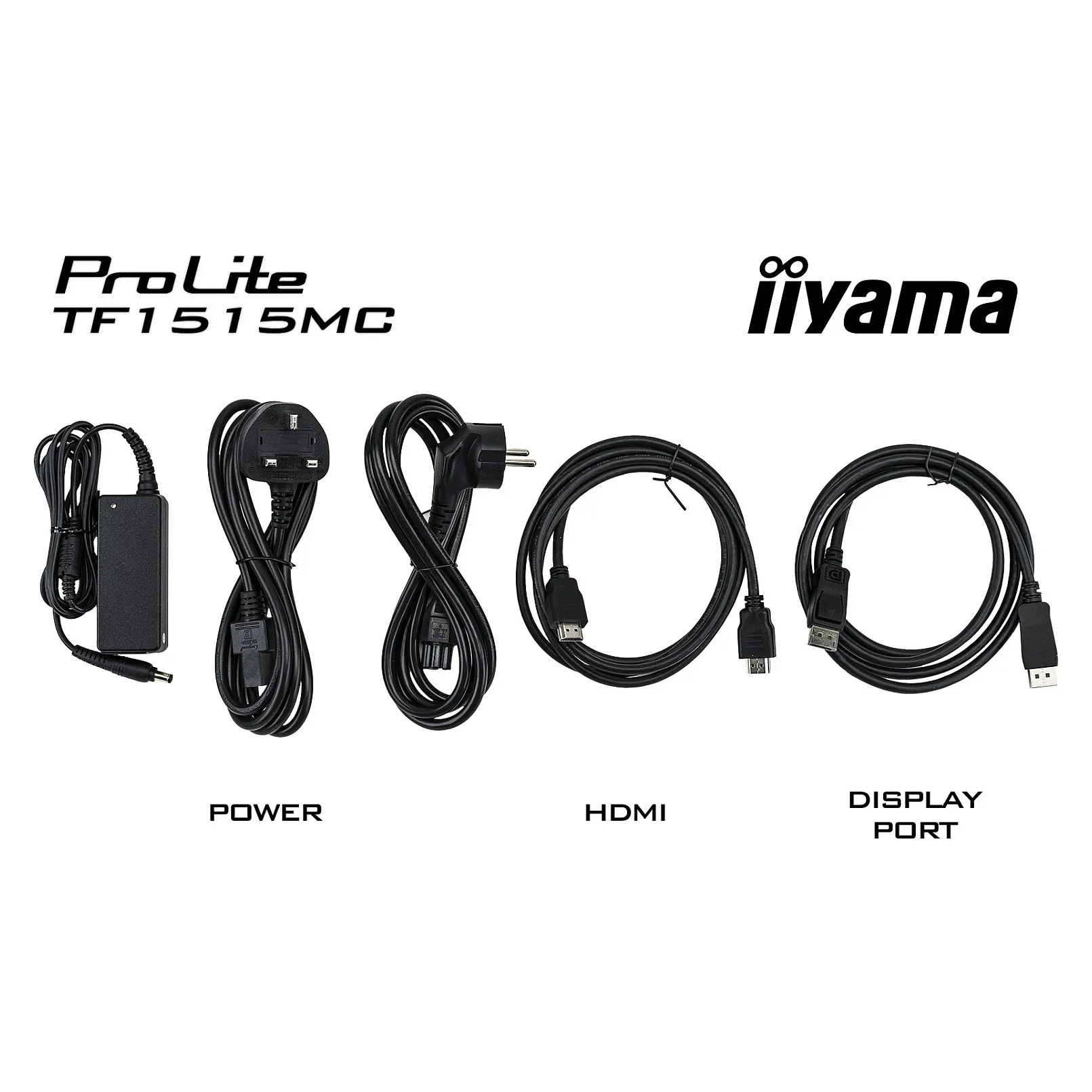

Cables included: AC, USB, HDMI, DisplayPort
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Feature: AC adapter included
Display viewable area (HxV): 304.1 x 228.1 mm
Placement supported: Horizontal/Vertical
Brightness: 315 cd/m²
Packaging content: AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Active display area (W x H): 304.1 x 228.1 mm
Weight: 2.9 kg
Height: 291 mm
Touch method: stylus, finger, glove (latex)
Width: 364 mm
Depth: 41.5 mm

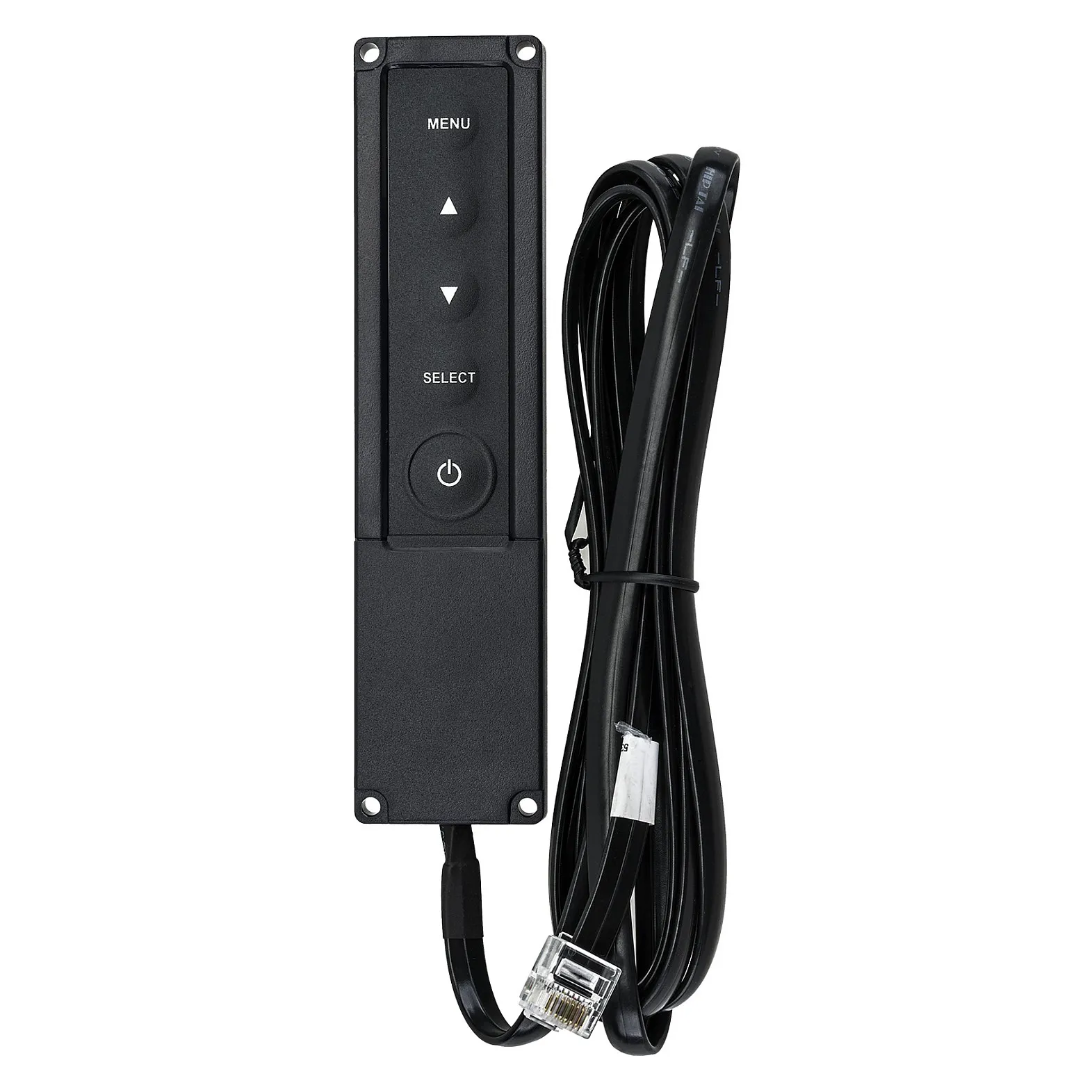

Control panel: menu,scroll up/ brightness, scroll down/ contrast, select, power
Compliance certificates: CB, CE, cULus, EAC, REACH, RoHS, WEEE
Ethernet LAN (RJ-45) ports: 1
Certification: CB, CE, TÜV-Bauart, EAC, cULus
Logistics data
Products per pallet: 44 pc(s)
Pallet net width: 86 cm
Pallet net length: 12 cm
Pallet net height: 97 cm
Harmonized System (HS) code: 85285210
