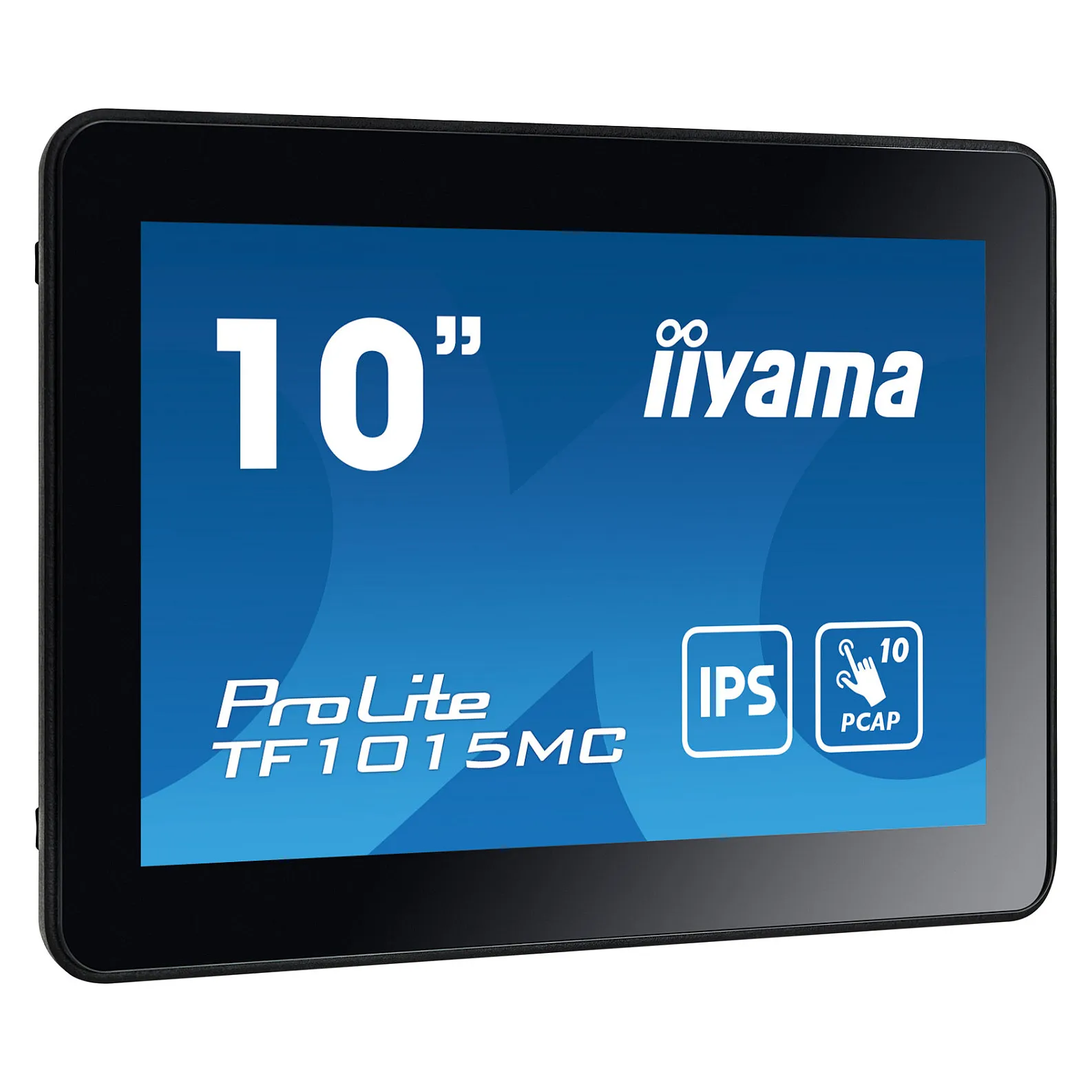

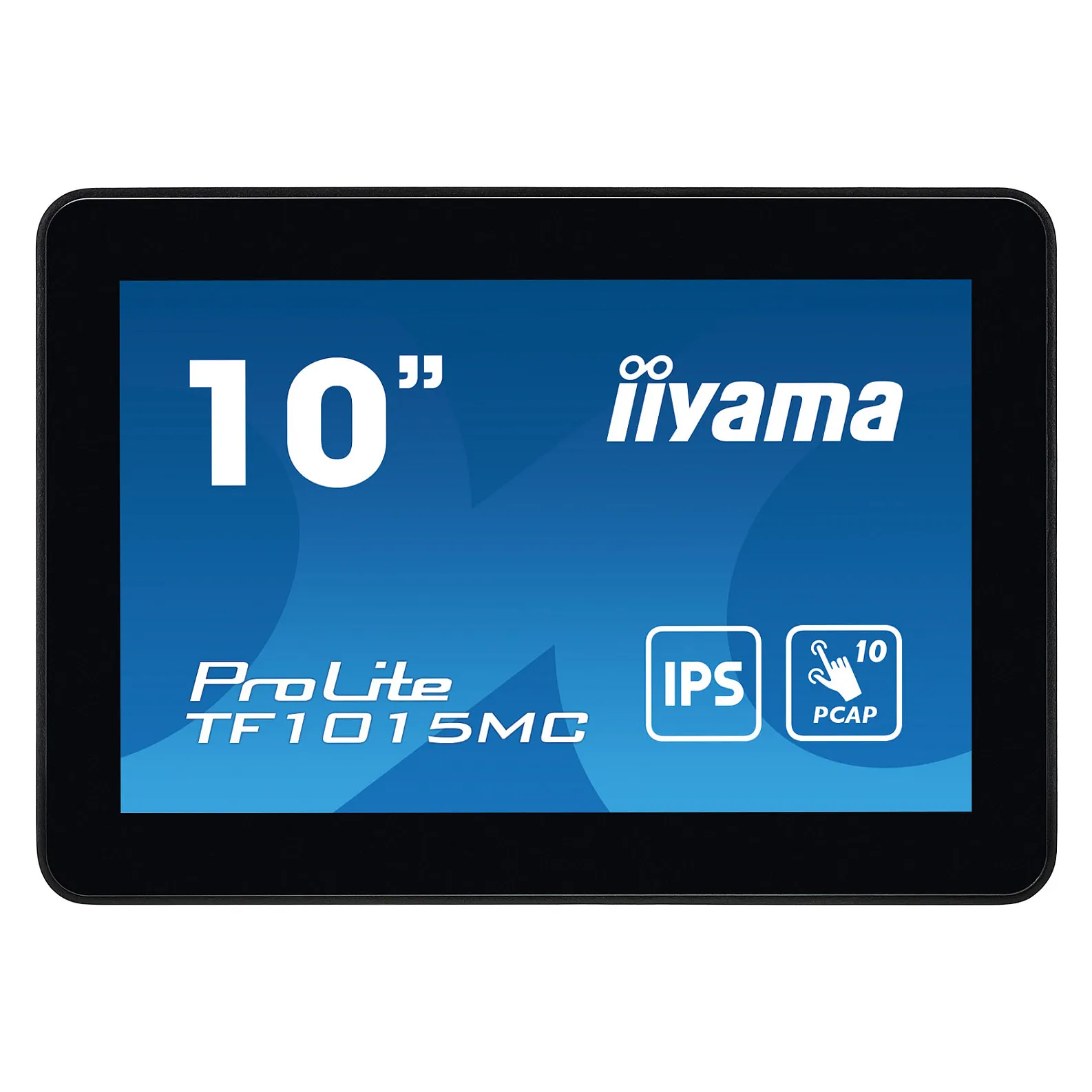

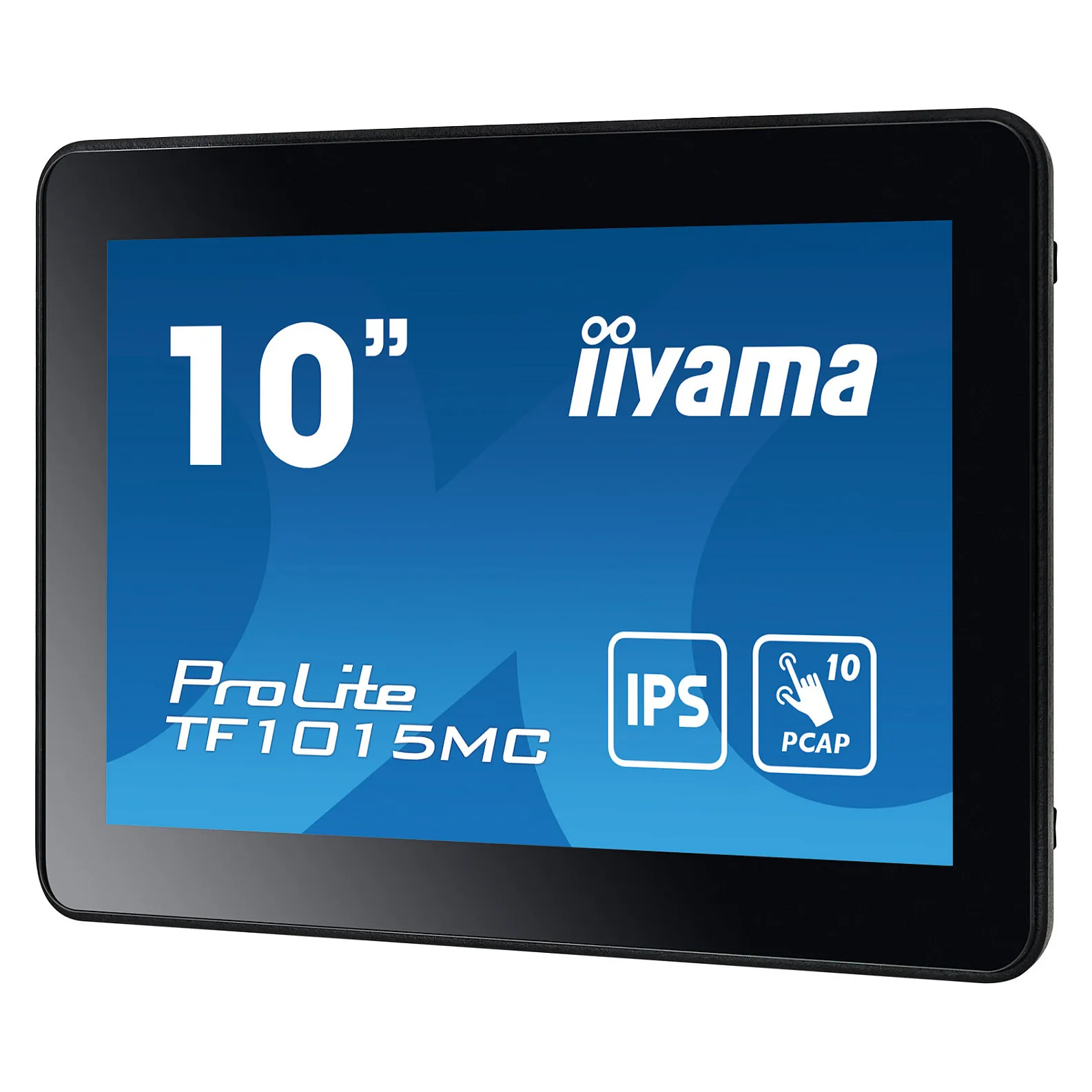

iiyama TF1015MC-B3. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, HD type: HD, Display technology: LED, Response time: 29 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting. Product colour: Black

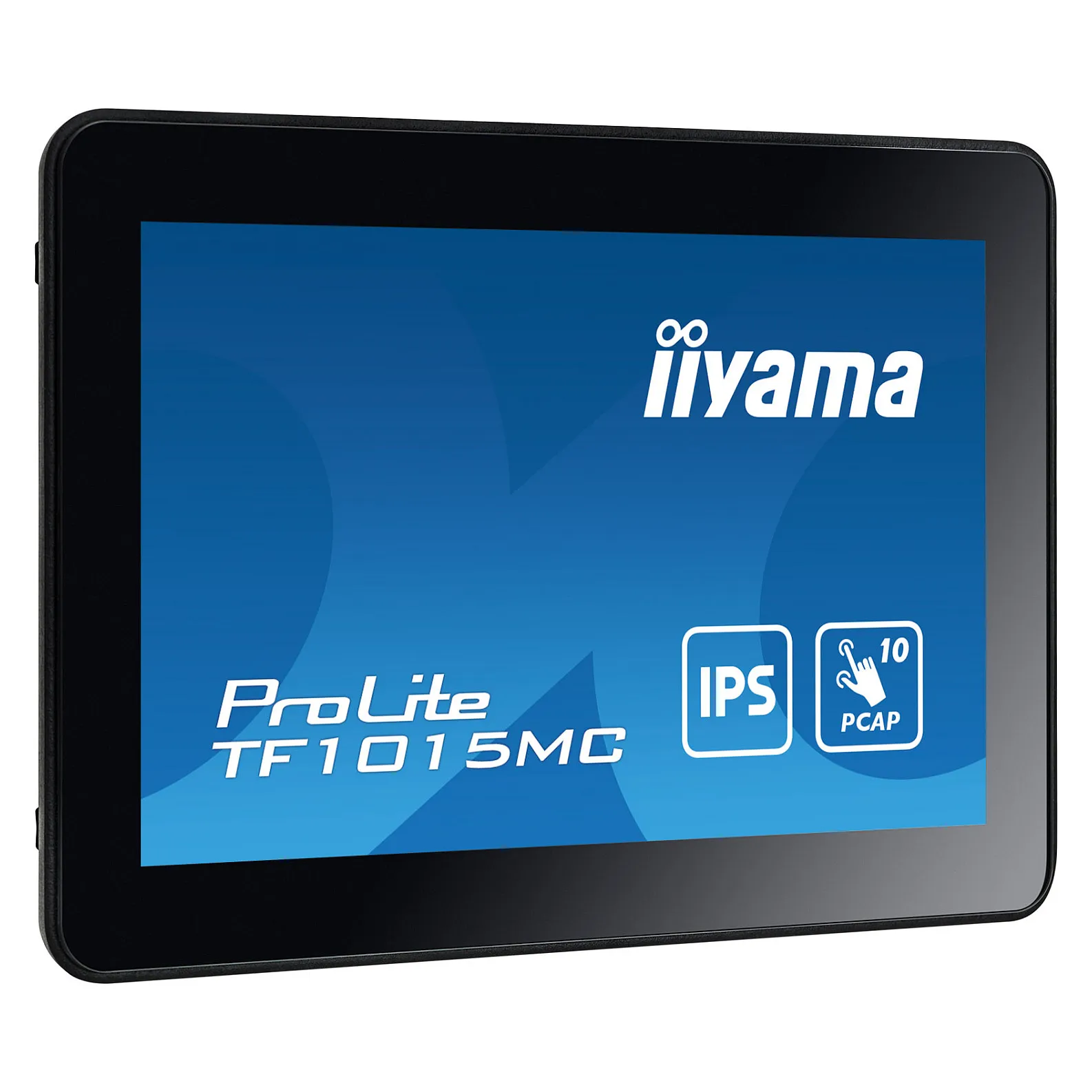

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display
Display diagonal: 25.6 cm (10.1″)
Display resolution: 1280 x 800 pixels
HD type: HD
Native aspect ratio: 16:10
Display technology: LED
Panel type: IPS
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 500 cd/m²
Display brightness (typical): 500 cd/m²
Display brightness: 425 cd/m²
Response time: 29 ms
Screen shape: Flat
Contrast ratio (typical): 800:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.1695 x 0.1695 mm
Horizontal scan range: 30 – 49.7 kHz
Viewable size, horizontal: 21.7 cm
Viewable size, vertical: 13.6 cm
Digital horizontal frequency: 30 – 49.7 kHz
Display diagonal (metric): 25.7 cm
Surface hardness: 7H
Performance
Feature: Palm rejection
Design
Market positioning: Business
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.3 mm

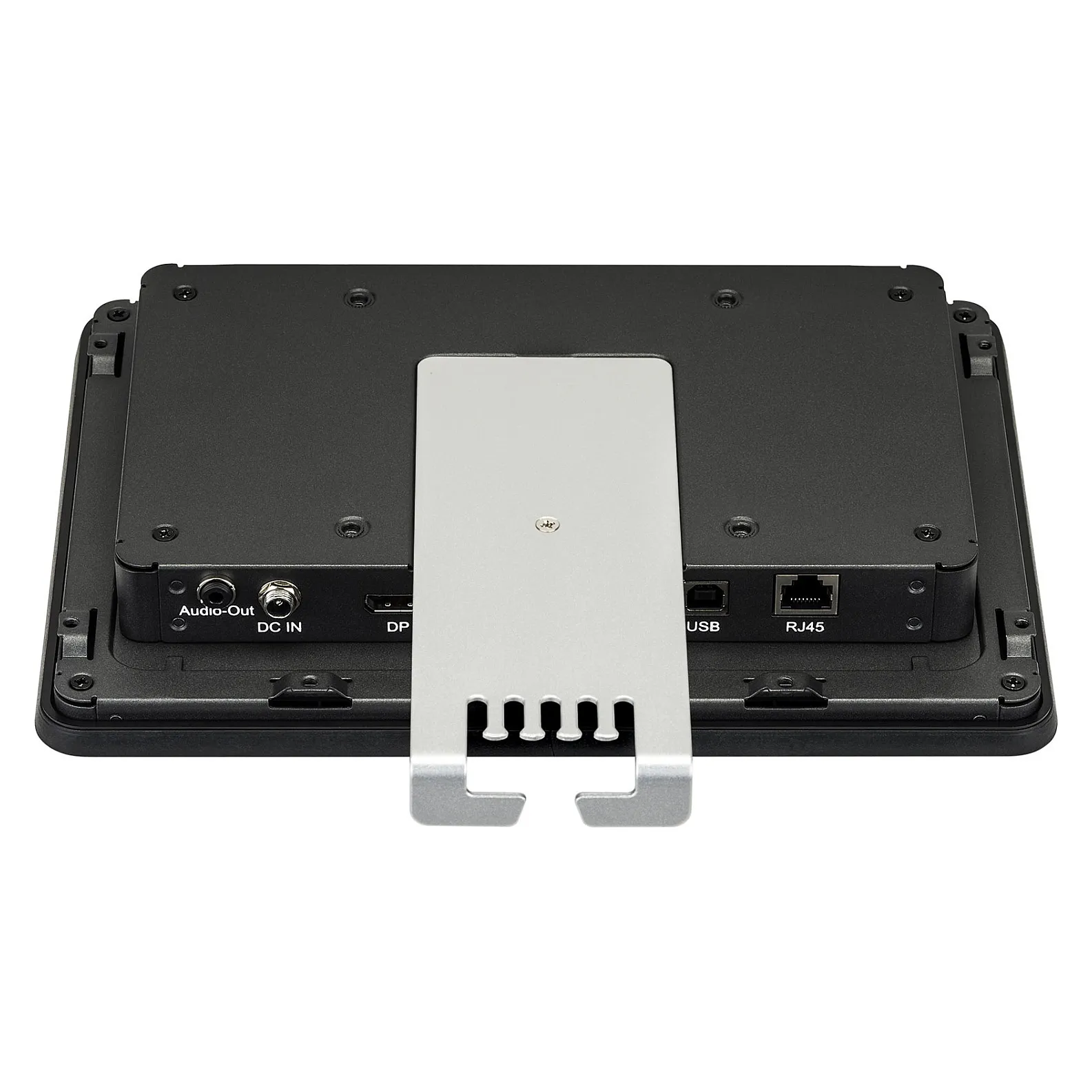

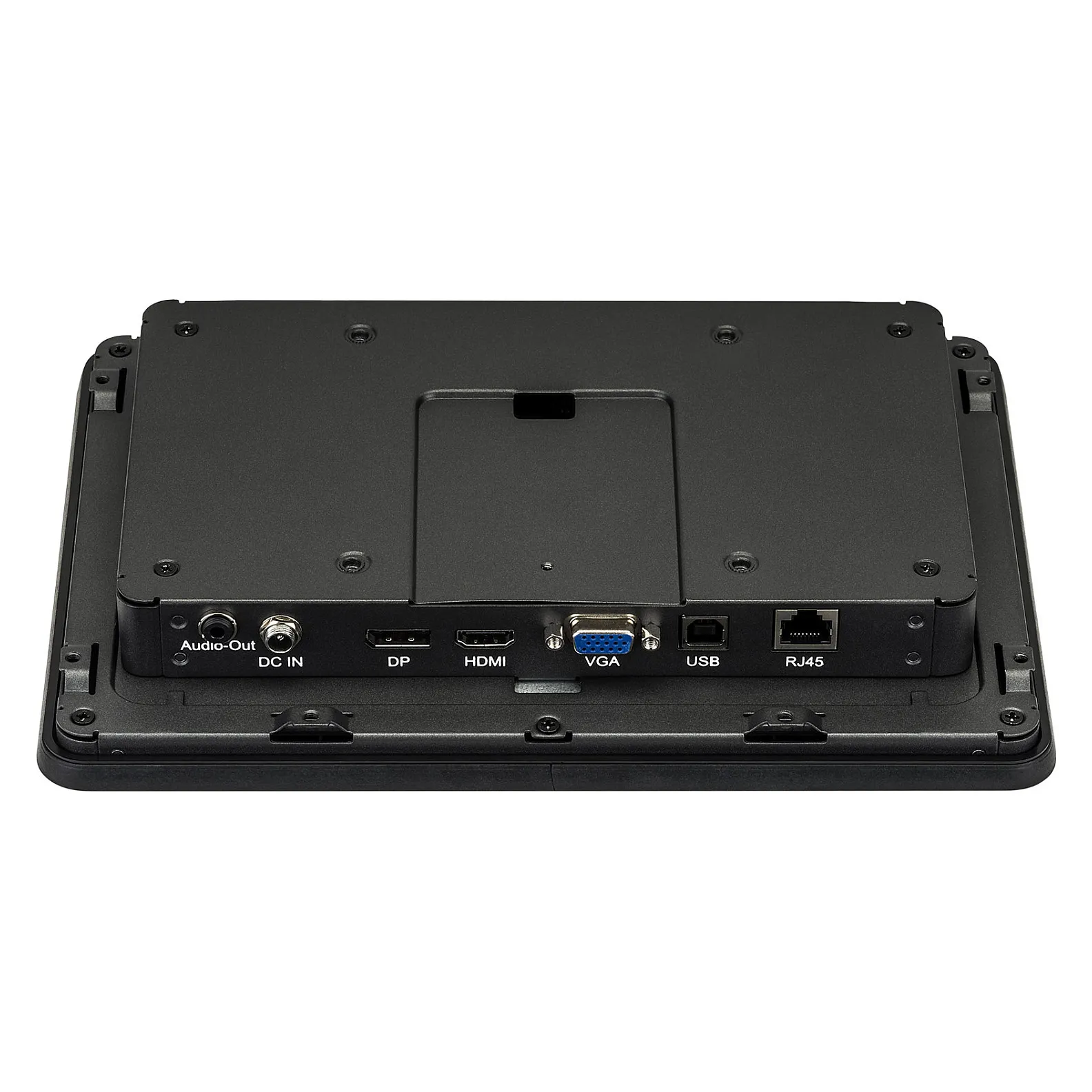

Ports & interfaces
Feature: Built-in USB hub
Number of upstream ports: 1
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone connectivity: 3.5 mm
Feature: HDCP
Network
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting

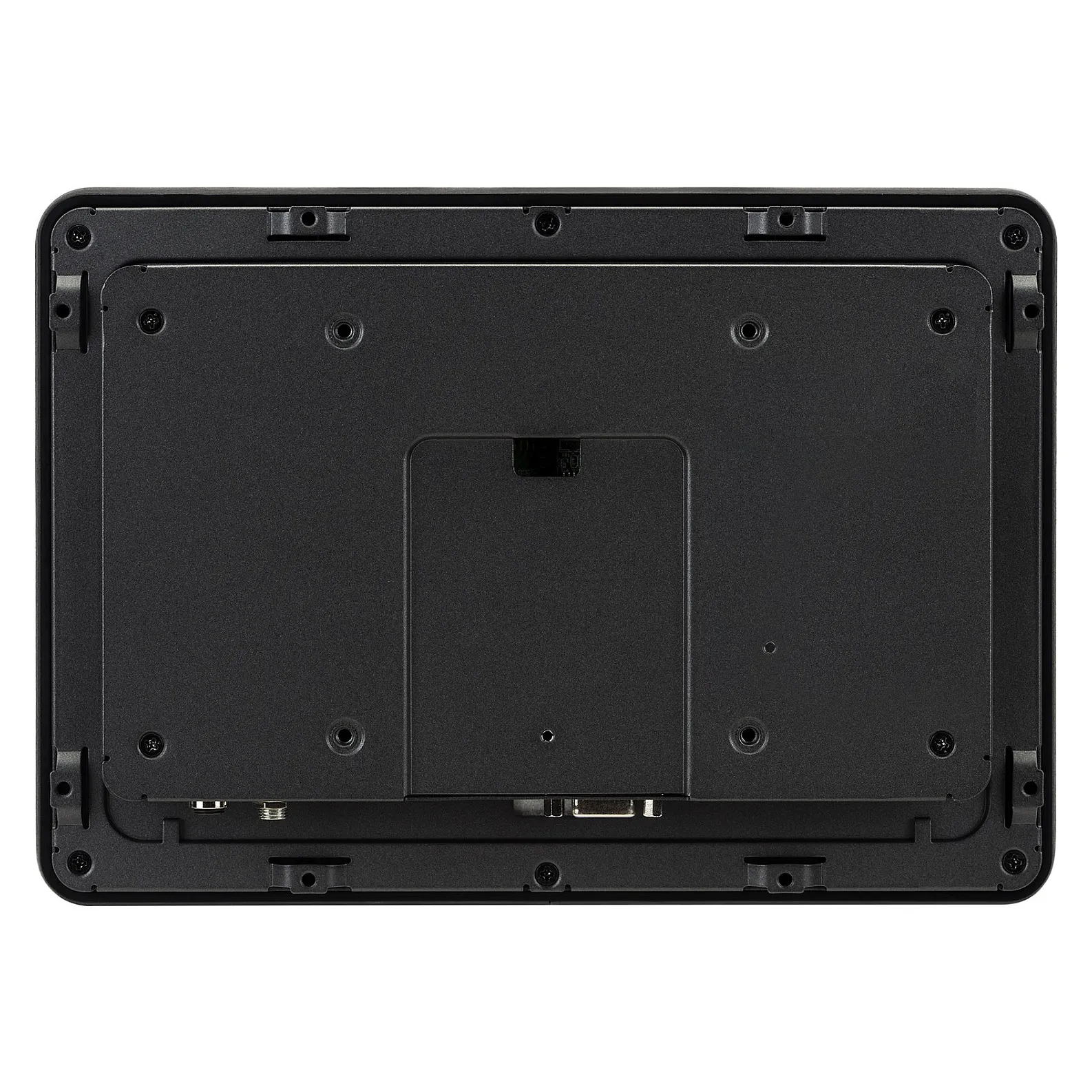

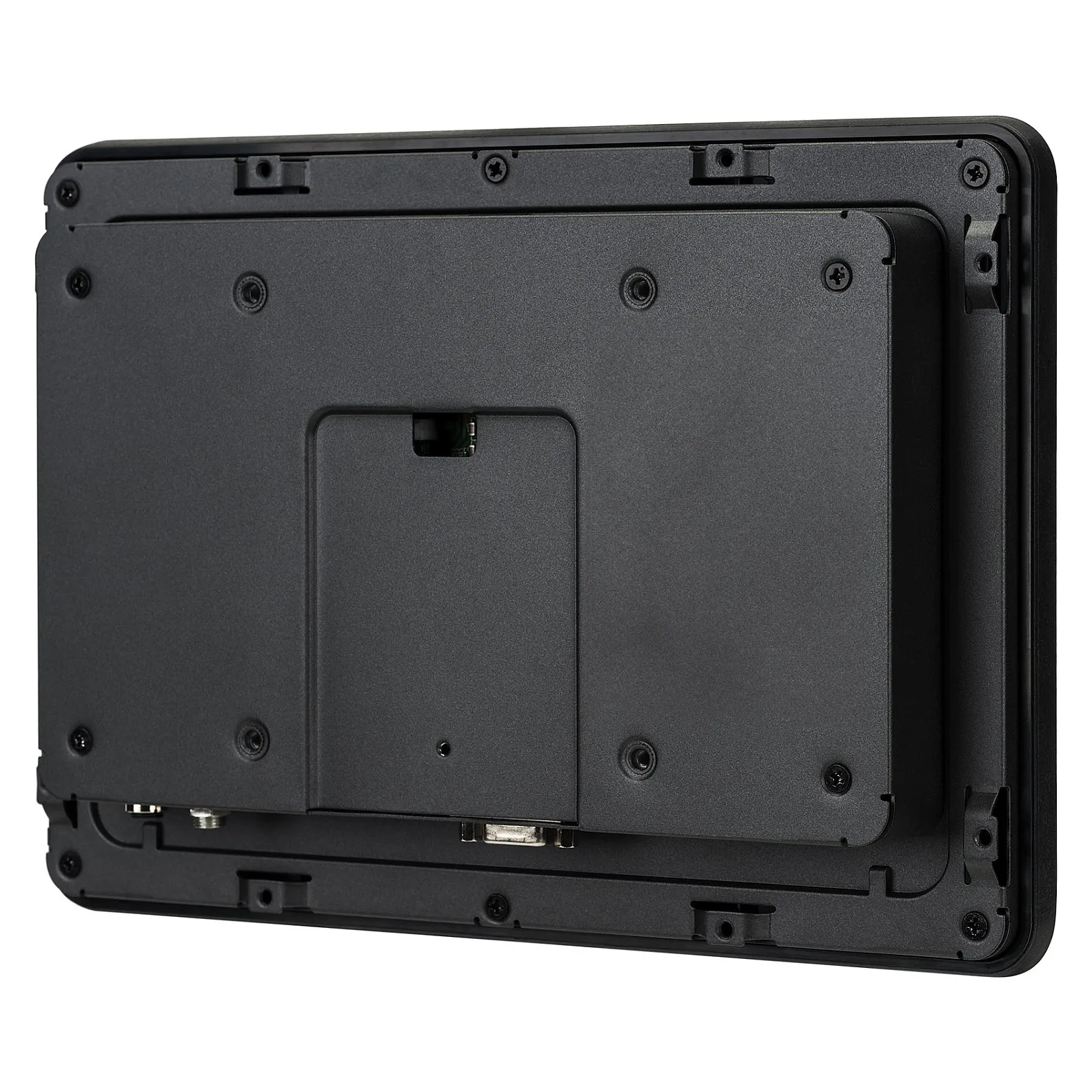

Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Feature: Plug and Play
LED indicators: Yes
Power

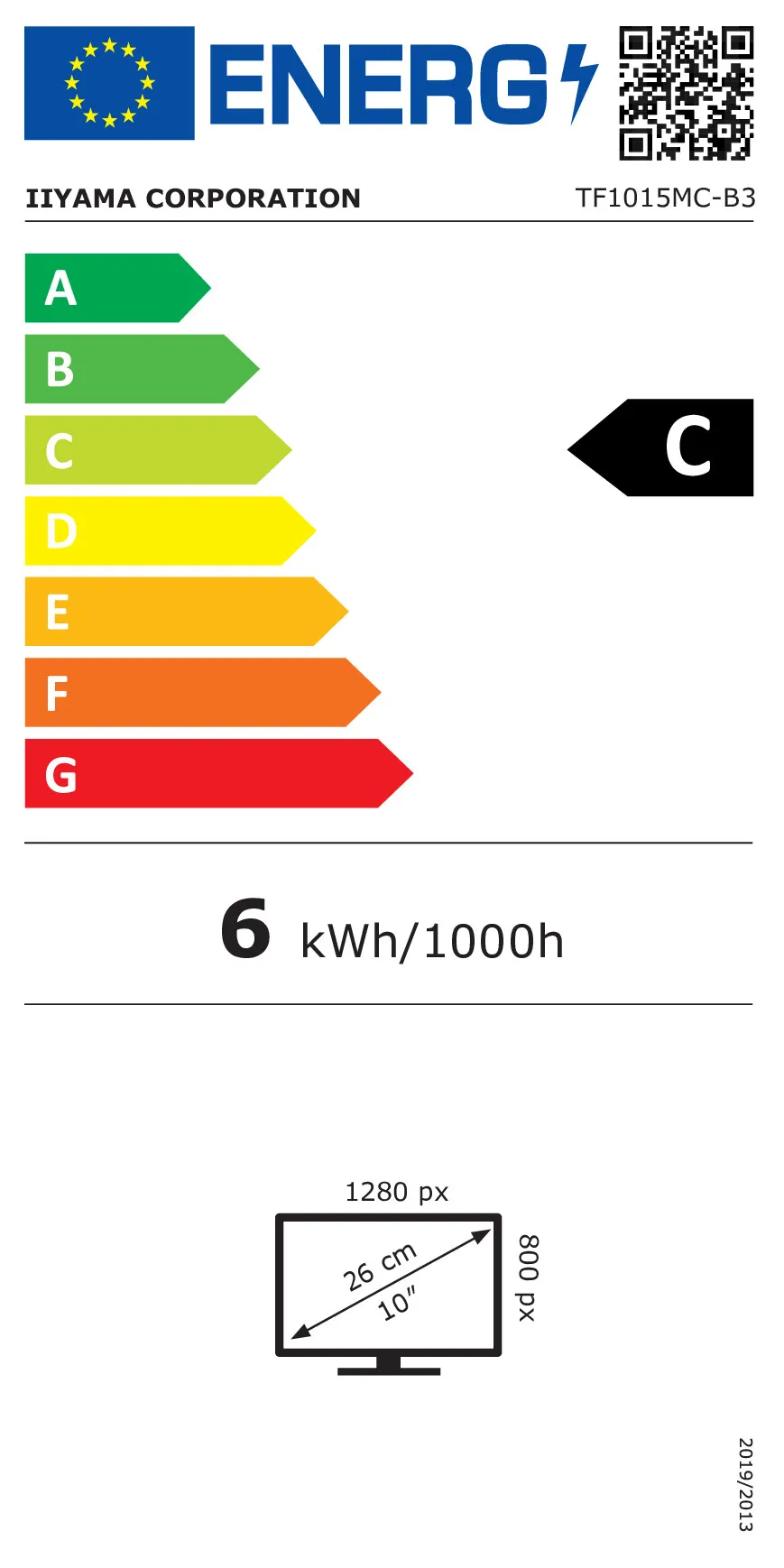

Energy efficiency class (SDR): C
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 5.7 kWh
Power consumption (typical): 6 W
Power consumption (standby): 0.7 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Weight & dimensions
Width (with stand): 260.5 mm
Depth (with stand): 39.5 mm
Height (with stand): 183.5 mm
Weight (with stand): 1.4 kg
Width (without stand): 260.5 mm
Depth (without stand): 39.5 mm
Height (without stand): 183.5 mm
Weight (without stand): 2.7 kg
Packaging data
Package width: 310 mm
Package depth: 370 mm
Package height: 160 mm
Package weight: 2.7 kg
Packaging content

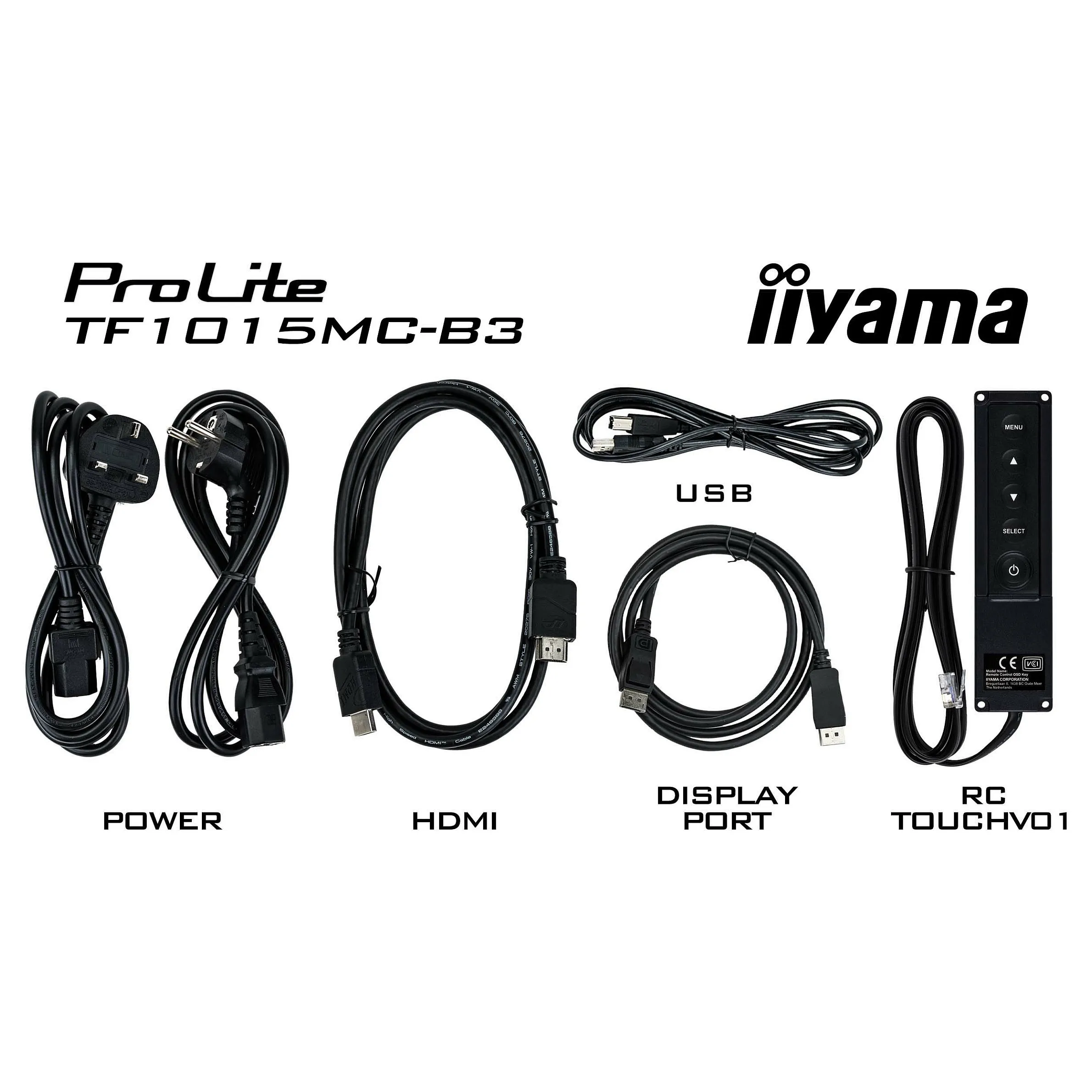

Cables included: AC, USB, HDMI, DisplayPort
Feature: Remote control included
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Feature: AC adapter included
Placement supported: Indoor
Brightness: 425 cd/m²
Packaging content: AC adapter, external control pad
Active display area (W x H): 216.96 x 135.6 mm
USB ports quantity: 1
Weight: 1.4 kg
Height: 183.5 mm
Touch method: stylus, finger, glove (latex)
Width: 260.5 mm
Depth: 39.5 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Ethernet LAN (RJ-45) ports: 1
Certification: CB, CE, TÜV-Bauart, EAC, cULus
Technical details
Native refresh rate: 60 Hz
Display diagonal: 25.6 cm (10.1″)
Display resolution: 1280 x 800 pixels
HD type: HD
Native aspect ratio: 16:10
Display technology: LED
Panel type: IPS
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 500 cd/m²
Display brightness (typical): 500 cd/m²
Display brightness: 425 cd/m²
Response time: 29 ms
Screen shape: Flat
Contrast ratio (typical): 800:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.1695 x 0.1695 mm
Horizontal scan range: 30 – 49.7 kHz
Viewable size, horizontal: 21.7 cm
Viewable size, vertical: 13.6 cm
Digital horizontal frequency: 30 – 49.7 kHz
Display diagonal (metric): 25.7 cm
Surface hardness: 7H
Performance
Feature: Palm rejection
Design
Market positioning: Business
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.3 mm
Ports & interfaces
Feature: Built-in USB hub
Number of upstream ports: 1
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone connectivity: 3.5 mm
Feature: HDCP
Network
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Feature: Plug and Play
LED indicators: Yes
Power
Energy efficiency class (SDR): C
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 5.7 kWh
Power consumption (typical): 6 W
Power consumption (standby): 0.7 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Weight & dimensions
Width (with stand): 260.5 mm
Depth (with stand): 39.5 mm
Height (with stand): 183.5 mm
Weight (with stand): 1.4 kg
Width (without stand): 260.5 mm
Depth (without stand): 39.5 mm
Height (without stand): 183.5 mm
Weight (without stand): 2.7 kg
Packaging data
Package width: 310 mm
Package depth: 370 mm
Package height: 160 mm
Package weight: 2.7 kg
Packaging content
Cables included: AC, USB, HDMI, DisplayPort
Feature: Remote control included
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Feature: AC adapter included
Placement supported: Indoor
Brightness: 425 cd/m²
Packaging content: AC adapter, external control pad
Active display area (W x H): 216.96 x 135.6 mm
USB ports quantity: 1
Weight: 1.4 kg
Height: 183.5 mm
Touch method: stylus, finger, glove (latex)
Width: 260.5 mm
Depth: 39.5 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Ethernet LAN (RJ-45) ports: 1
Certification: CB, CE, TÜV-Bauart, EAC, cULus
Technical details
Native refresh rate: 60 Hz
