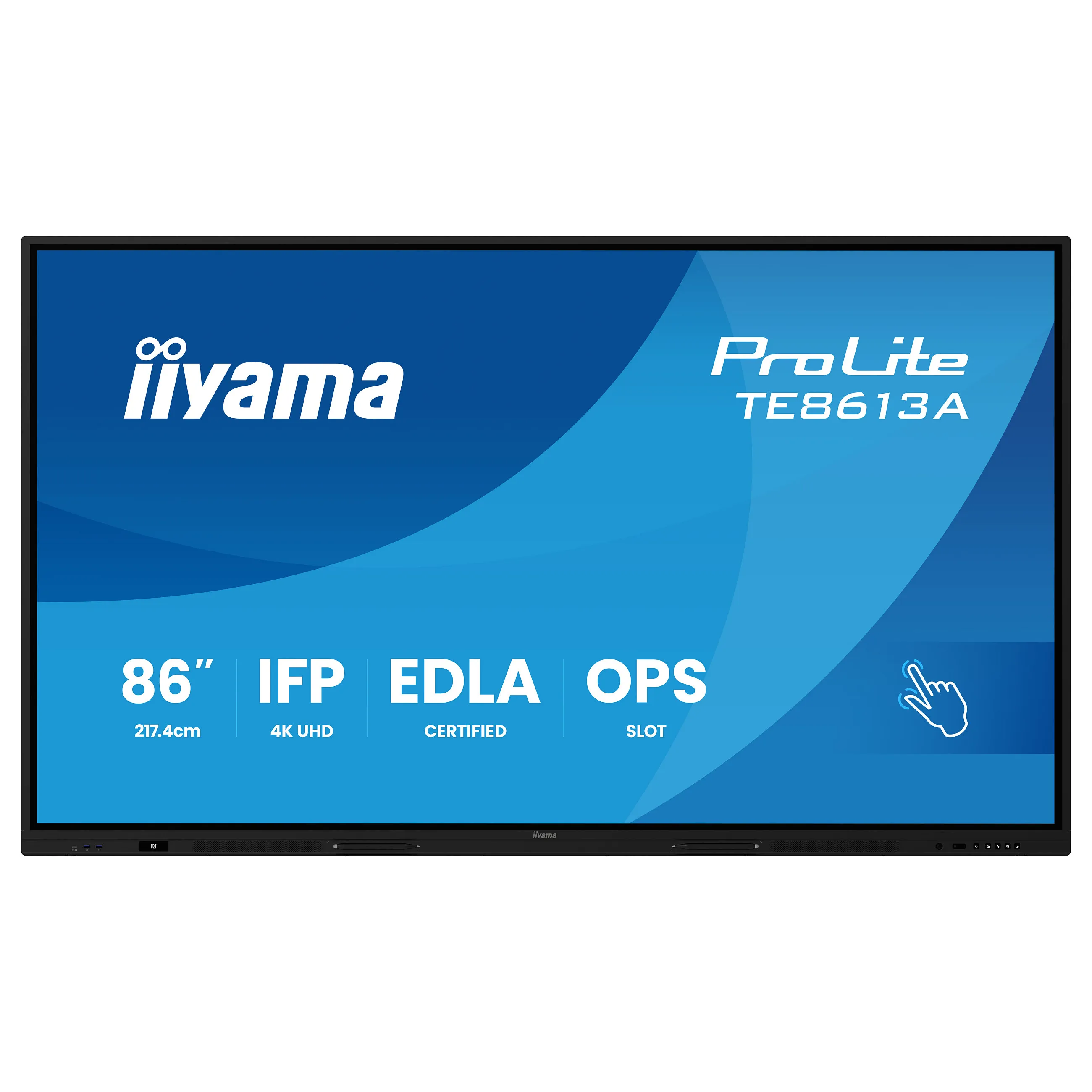

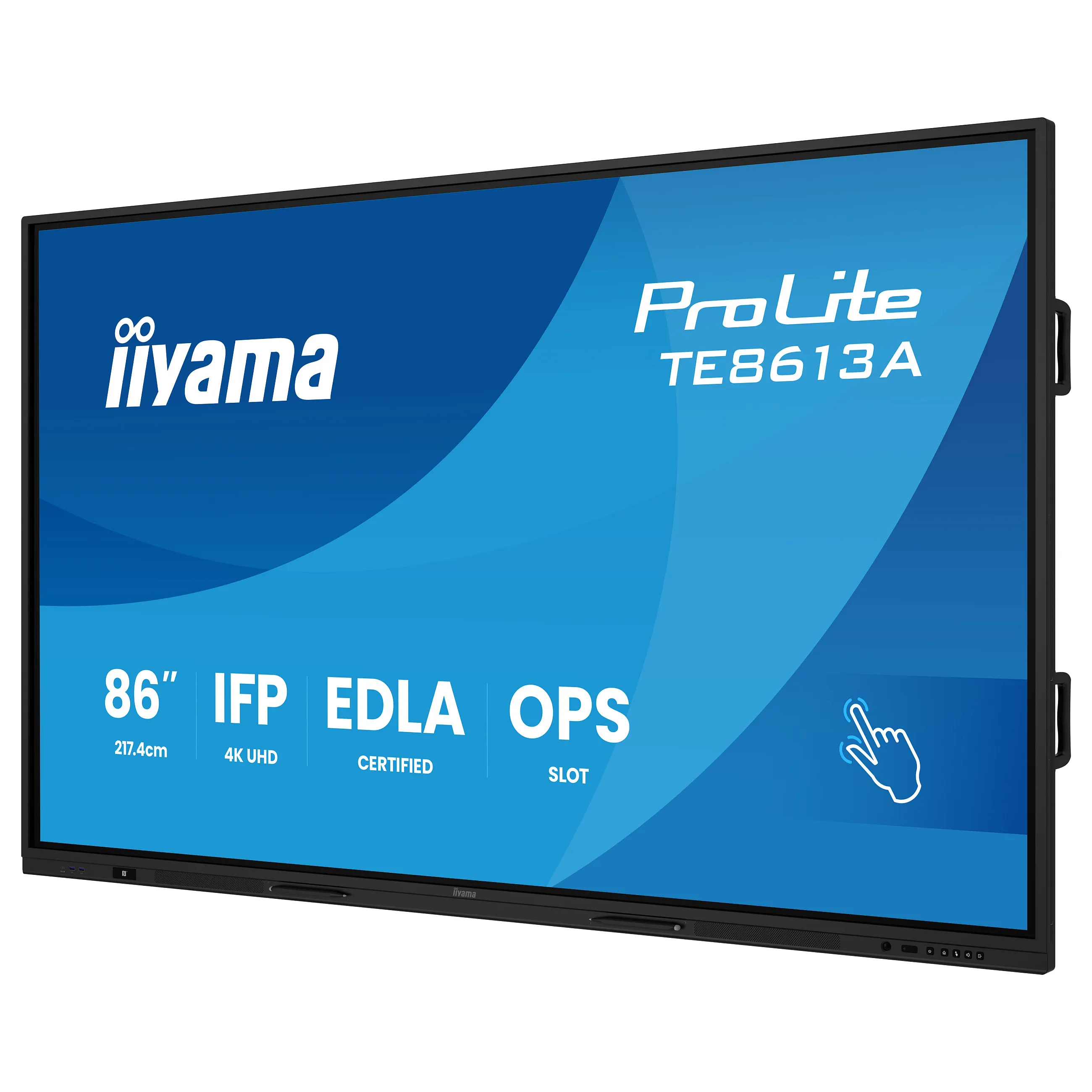

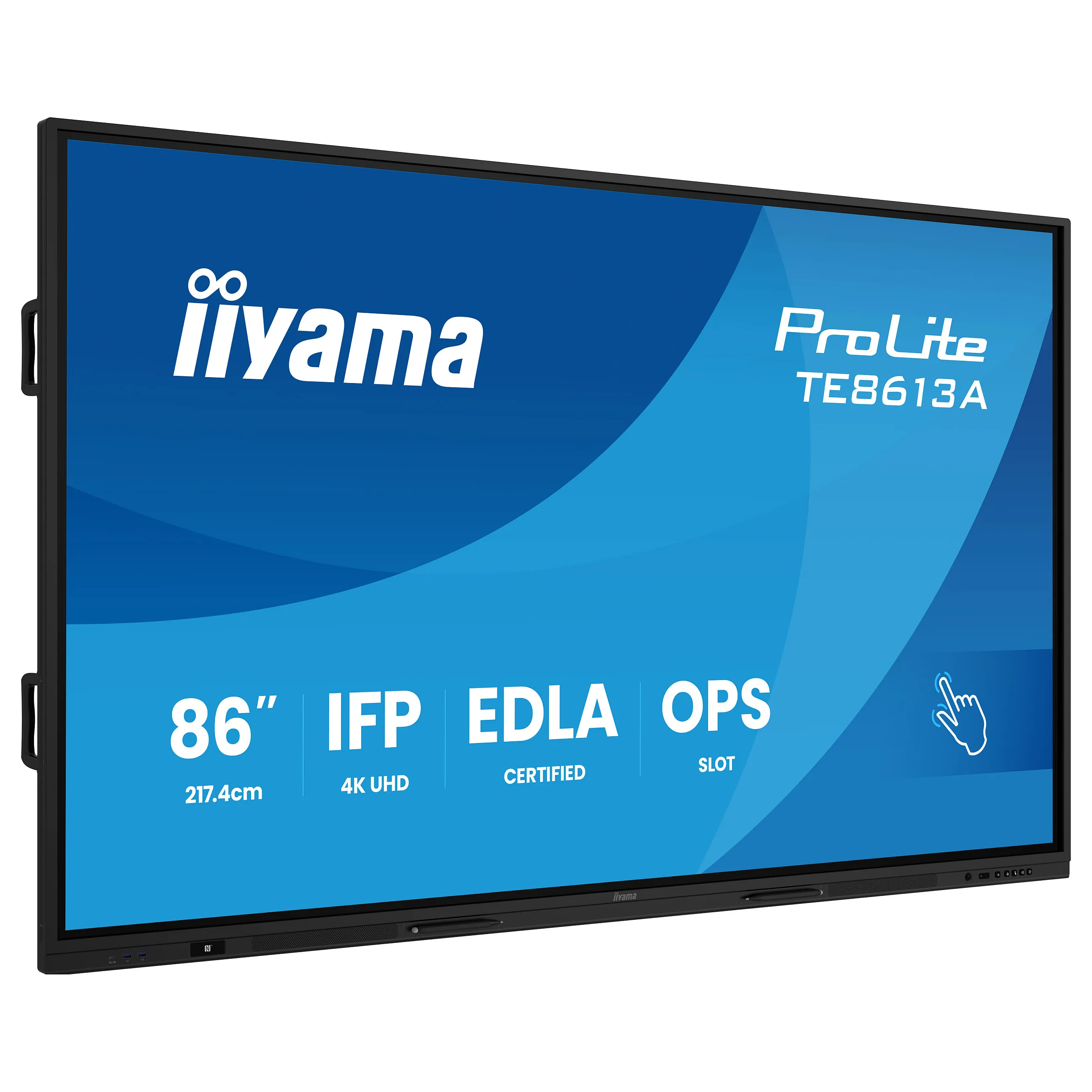

iiyama TE8613A-B2AG. Product design: Kiosk design. Display diagonal: 2.17 m (85.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
The TE8613A-B2AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
Display
Panel type: IPS
Display diagonal: 2.17 m (85.6″)
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: PureTouch-IR
Number of simultaneous touchpoints: 40
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.493 x 0.493 mm
Active display area (W x H): 1895 x 1066 mm
Display diagonal (metric): 217.4 cm
Horizontal scan range: 30 – 135 kHz
Native refresh rate: 60 Hz
Surface hardness: 7H
Touch response time: 5 ms
Glass thickness: 3.2 mm
Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 1
HDMI output ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 6
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-B, USB Type-C
USB 2.0 Type-B ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232C
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Feature: OPS module slot
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 60 W
Design
Product design: Kiosk design
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black

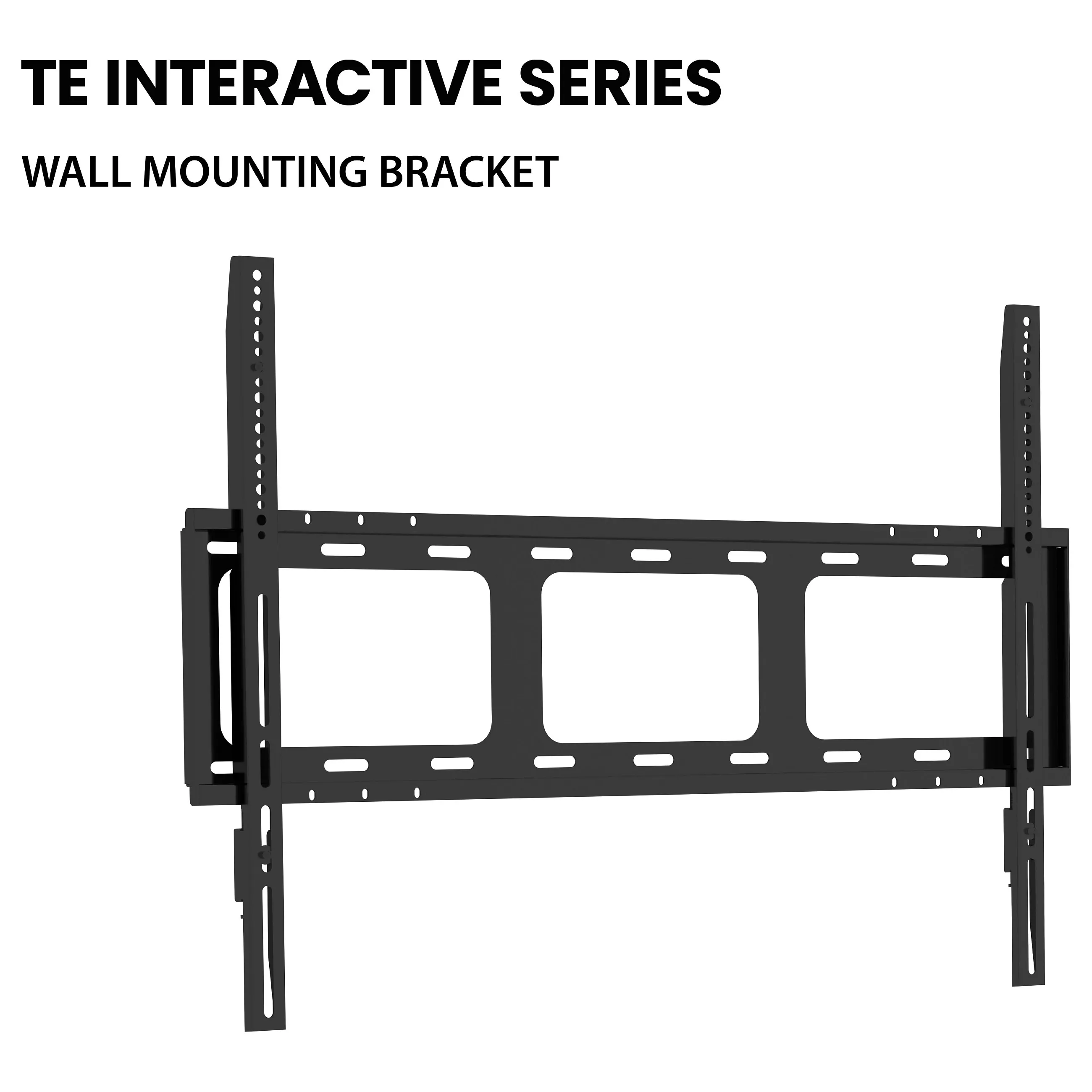

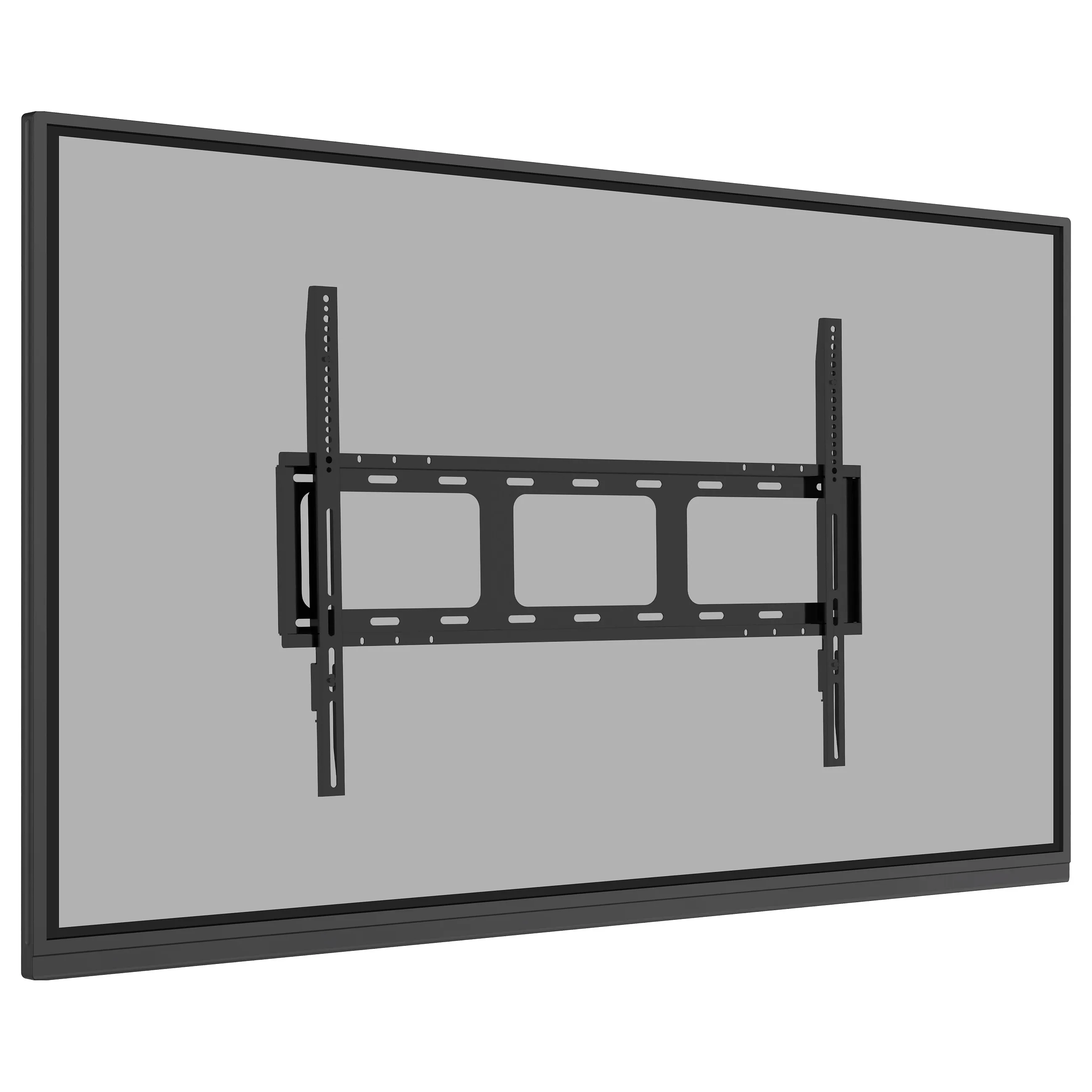

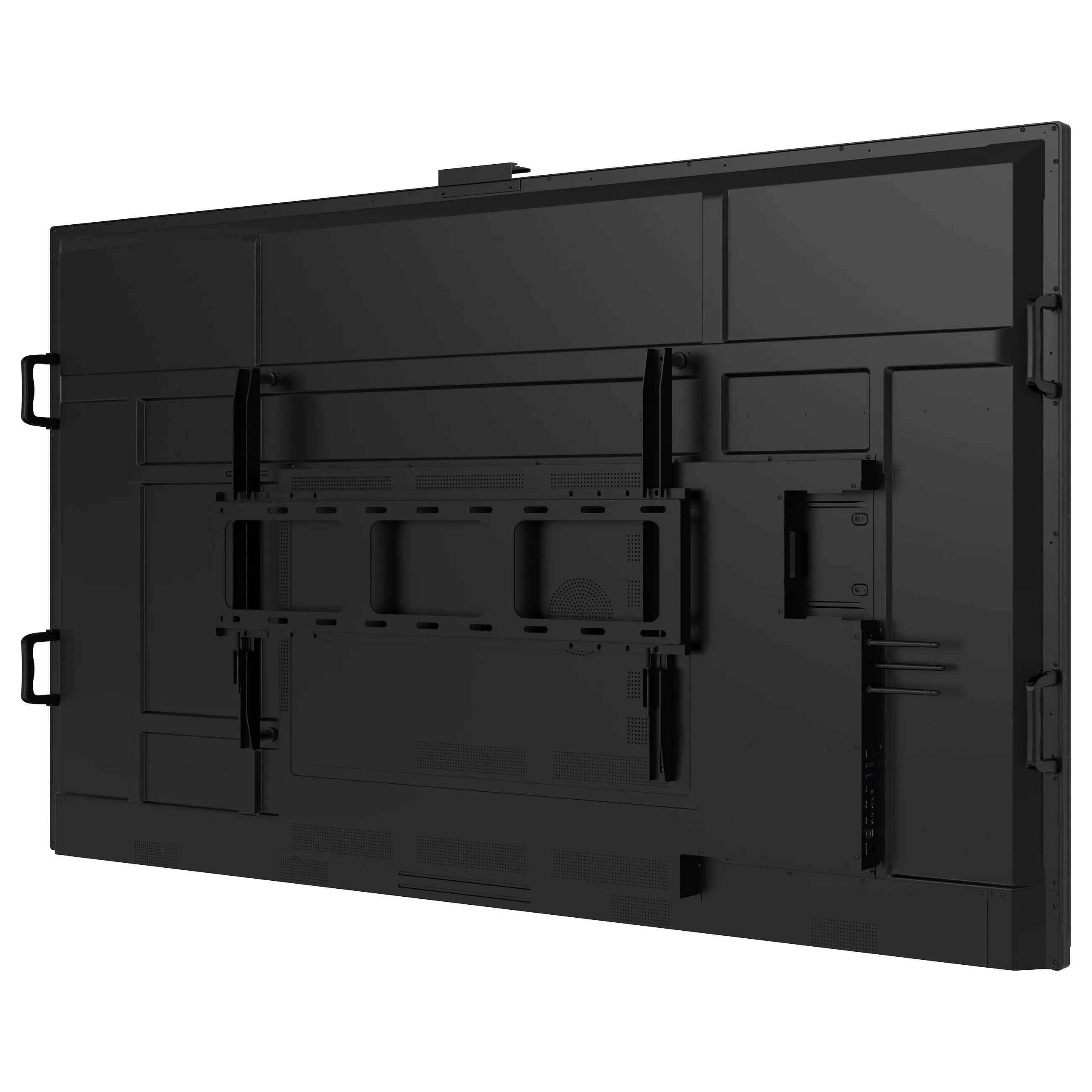

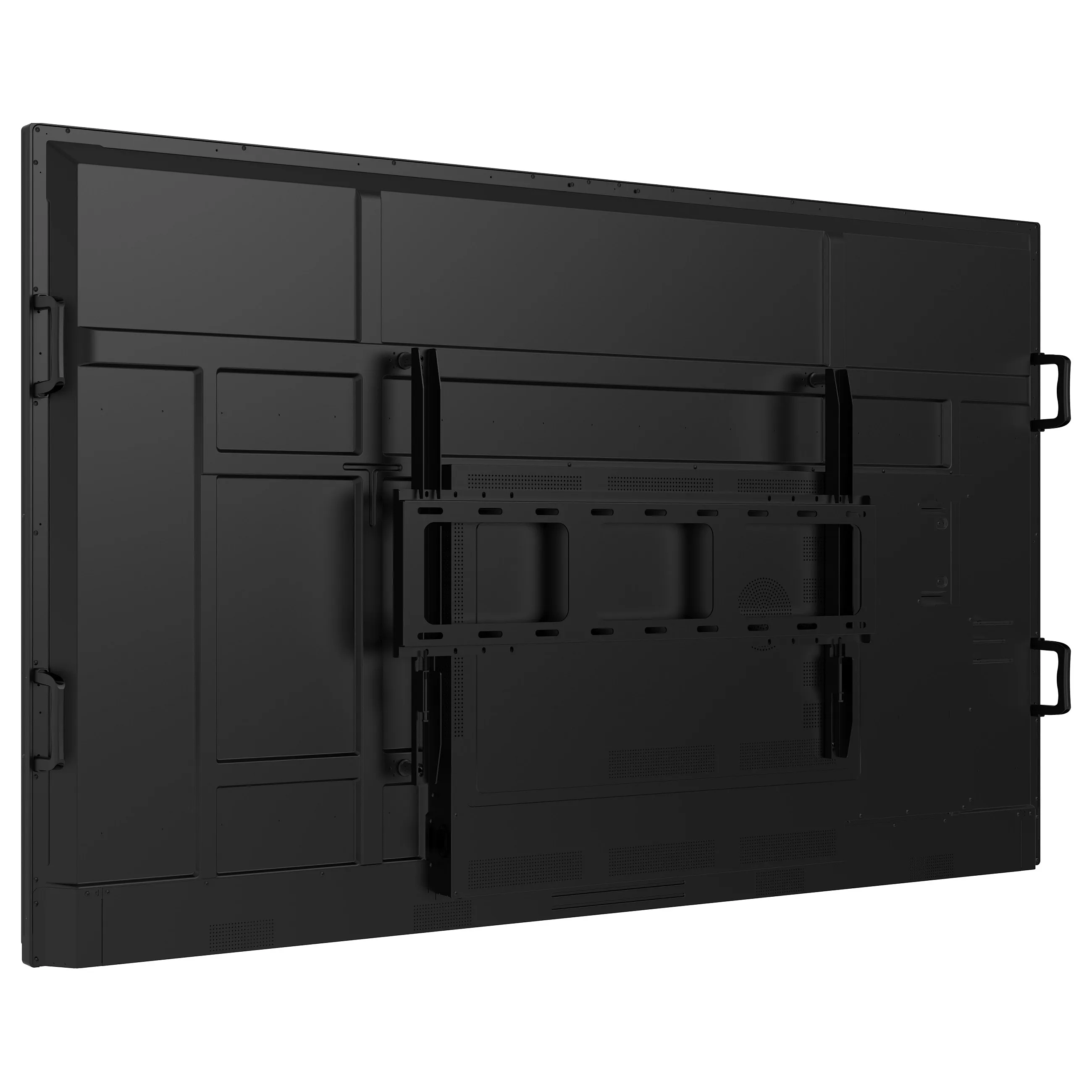

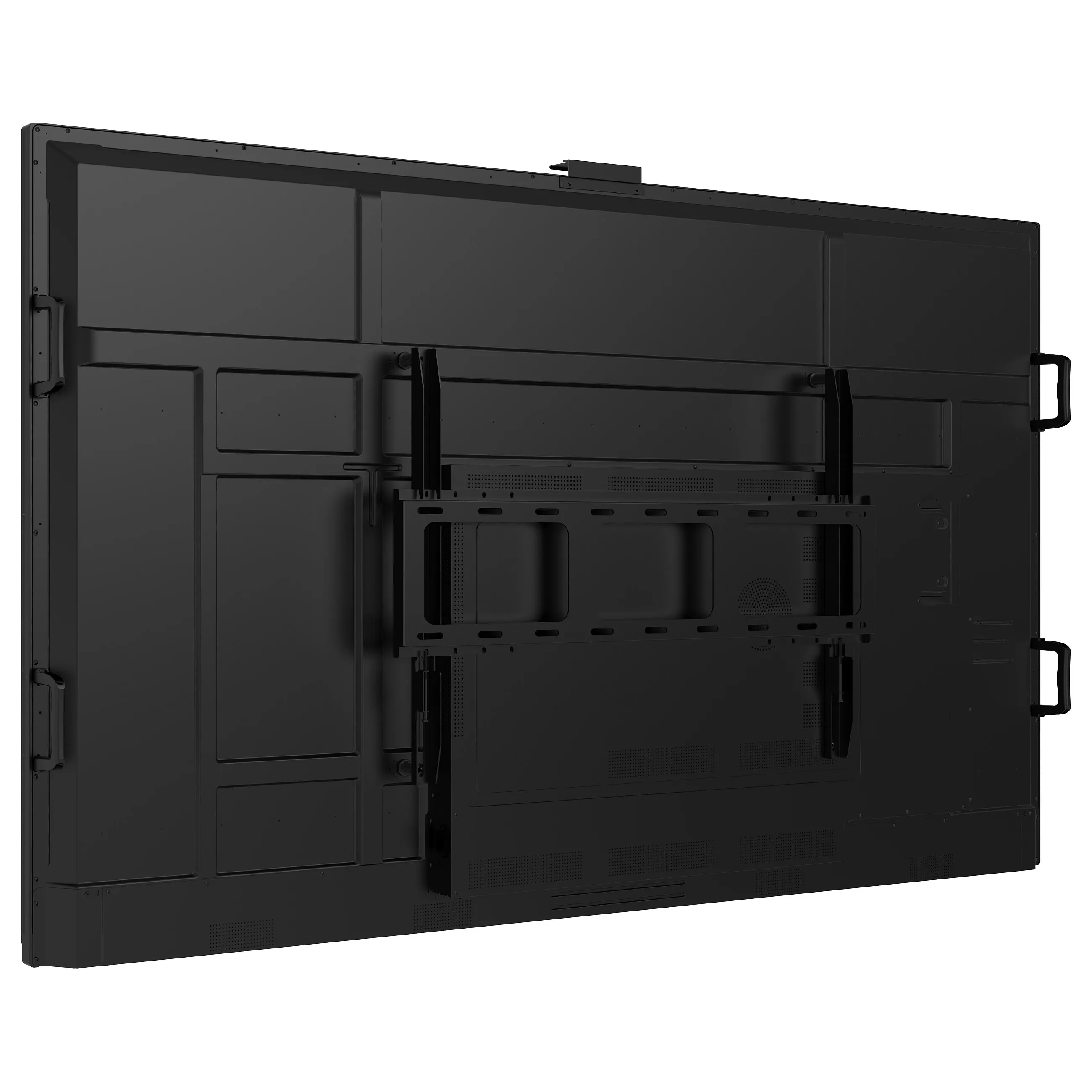

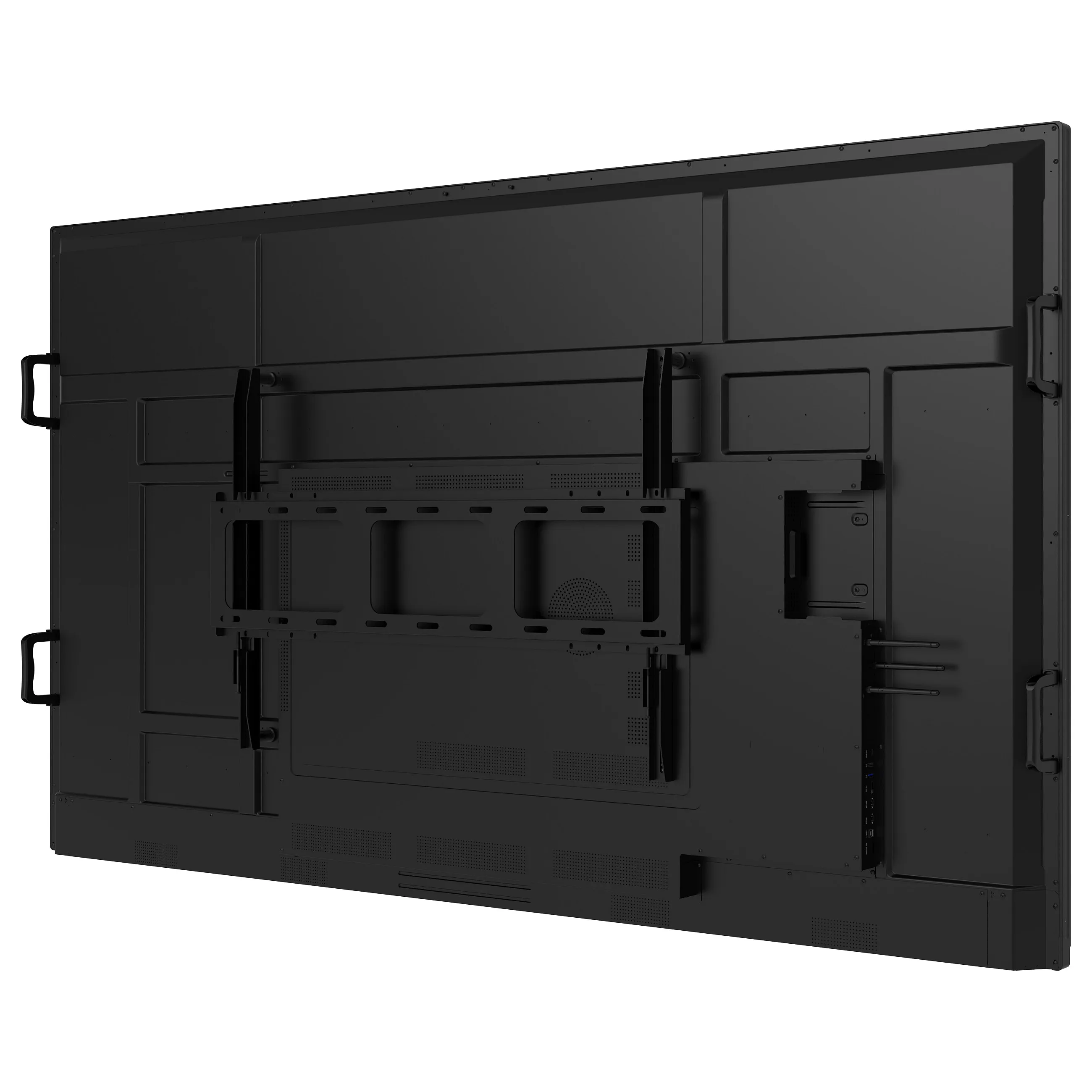

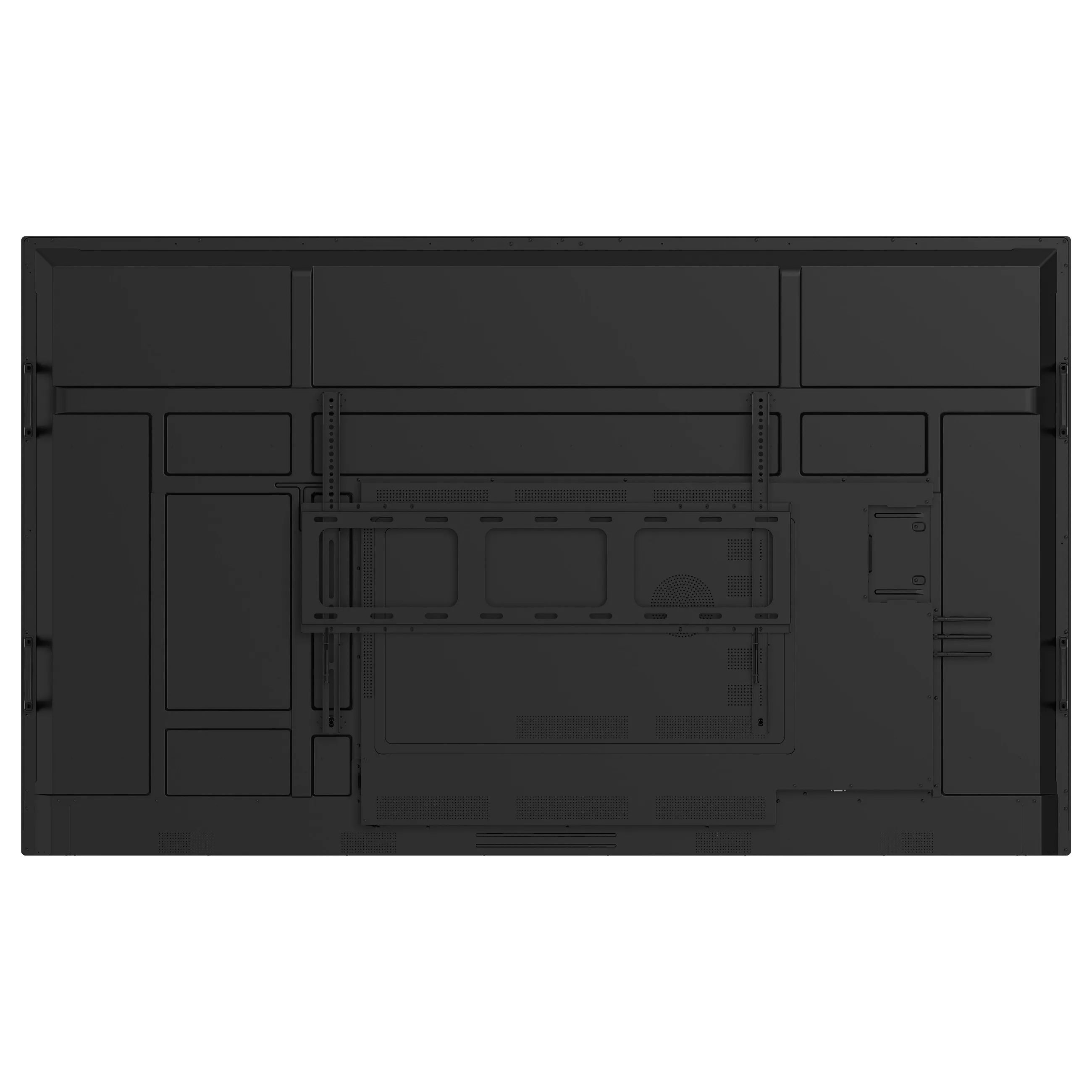

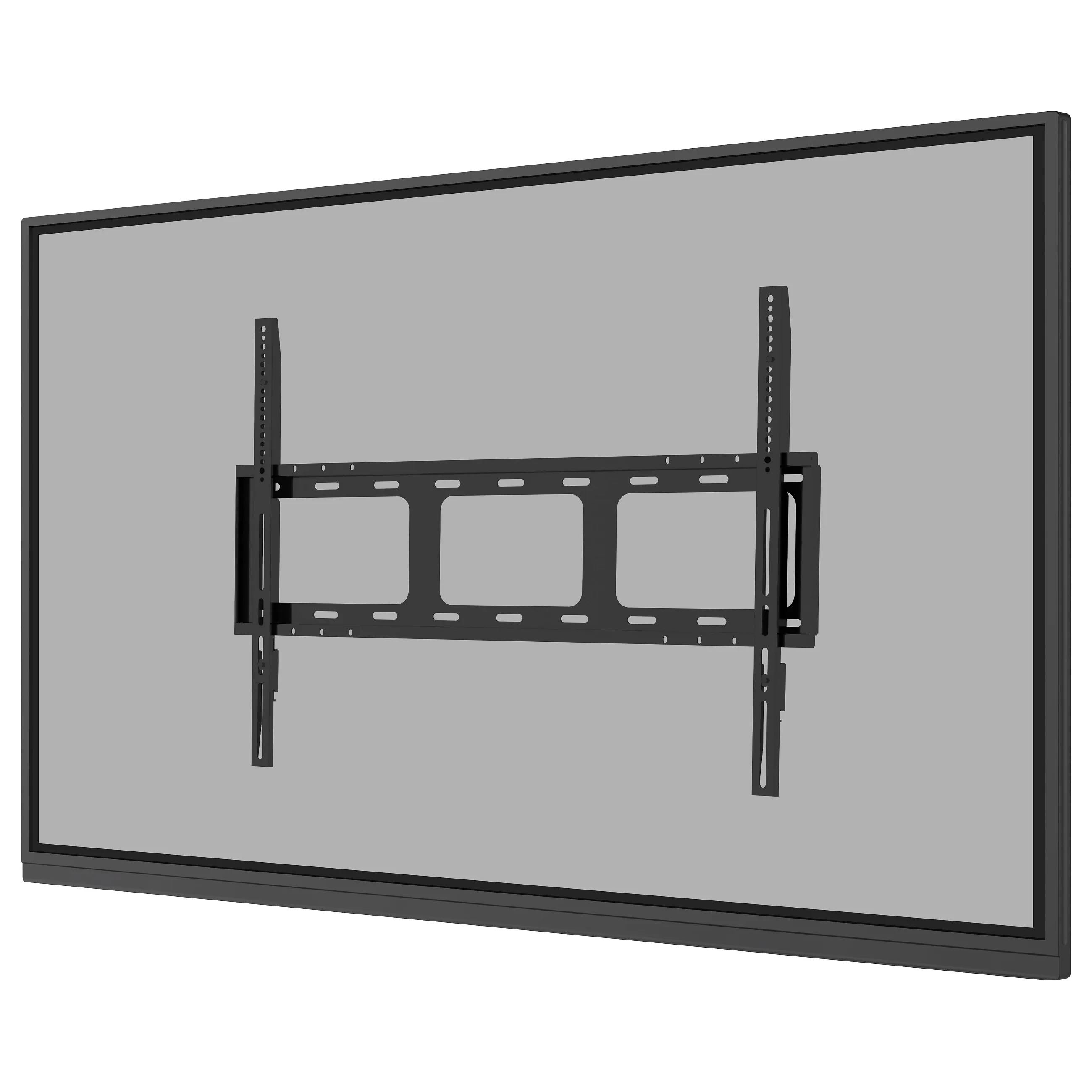

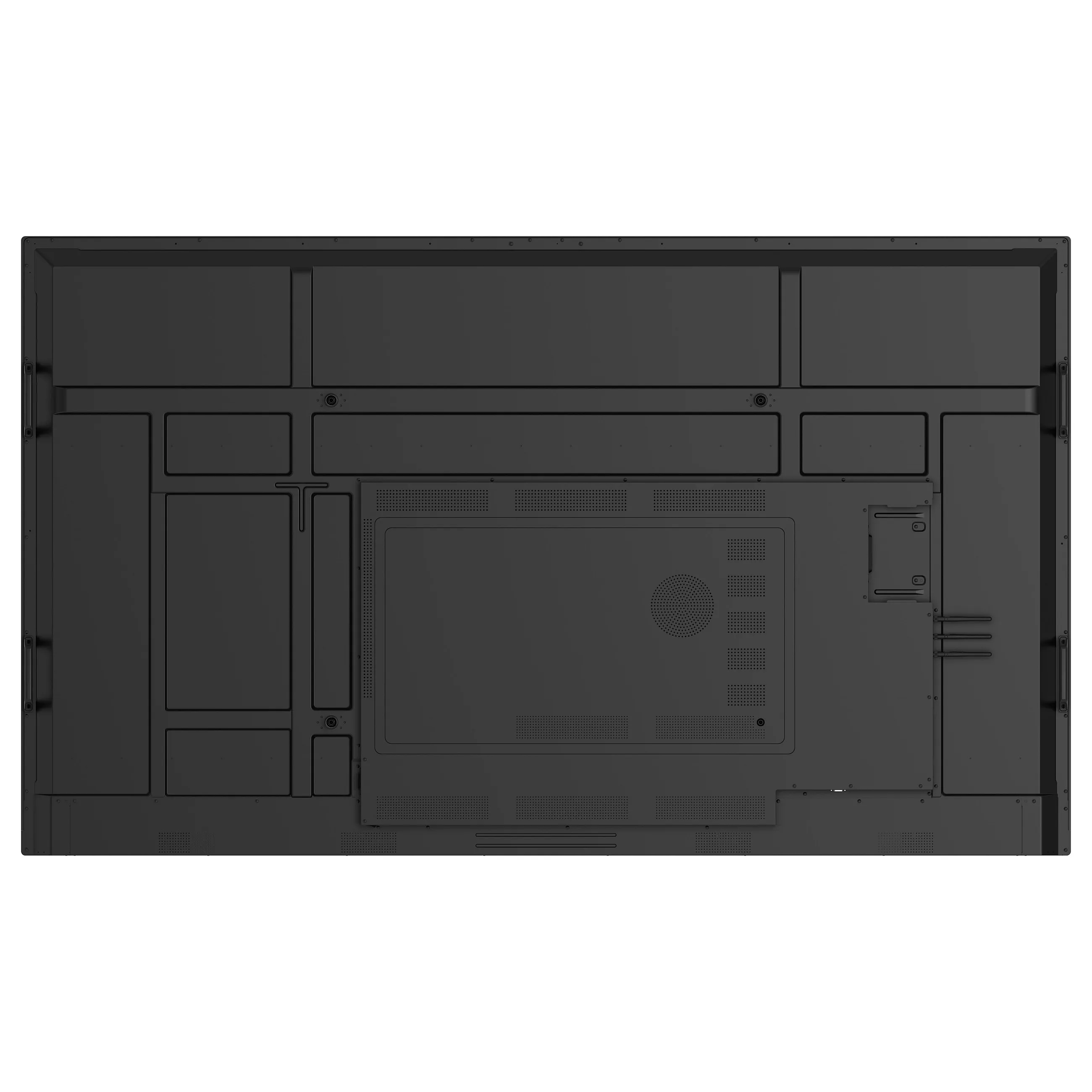

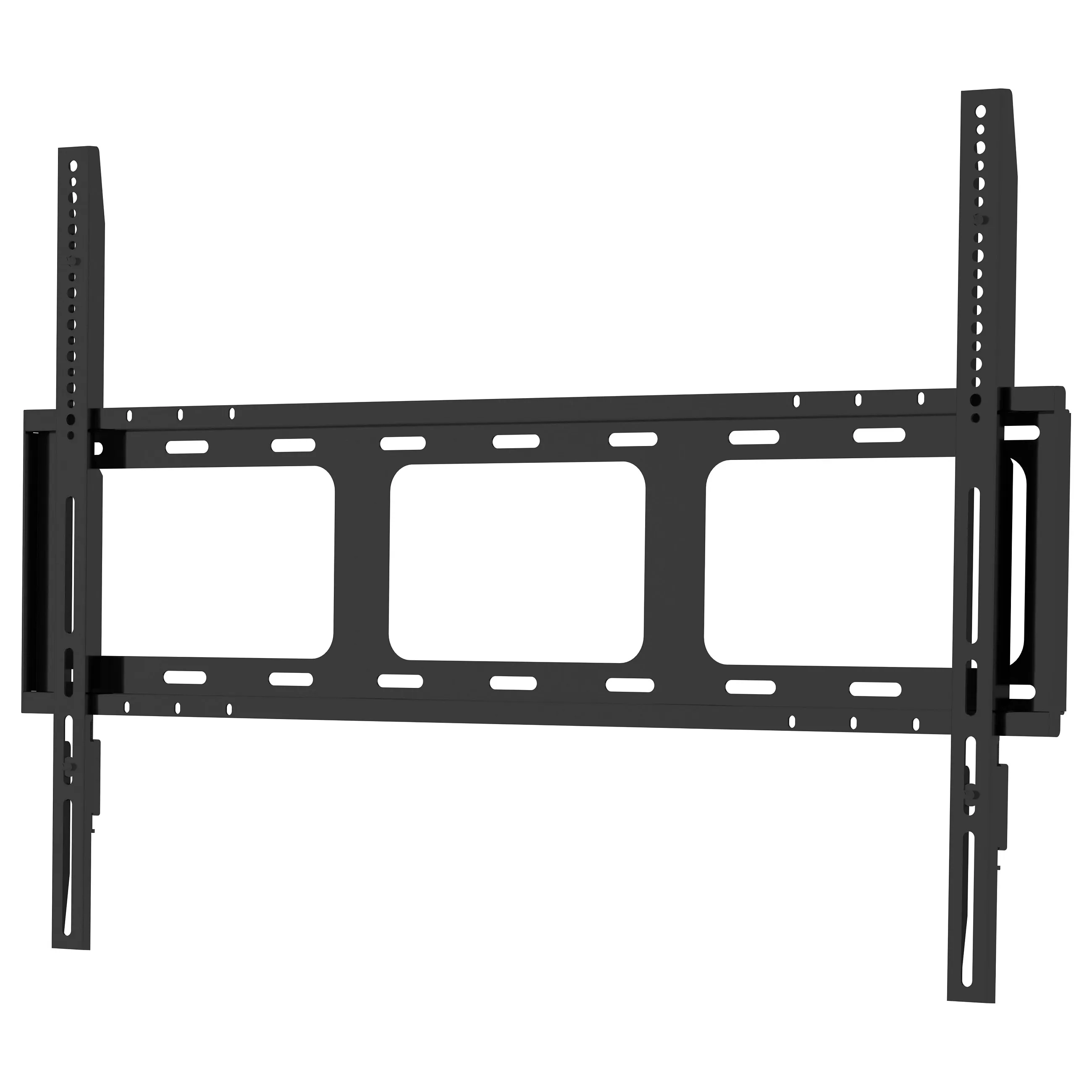

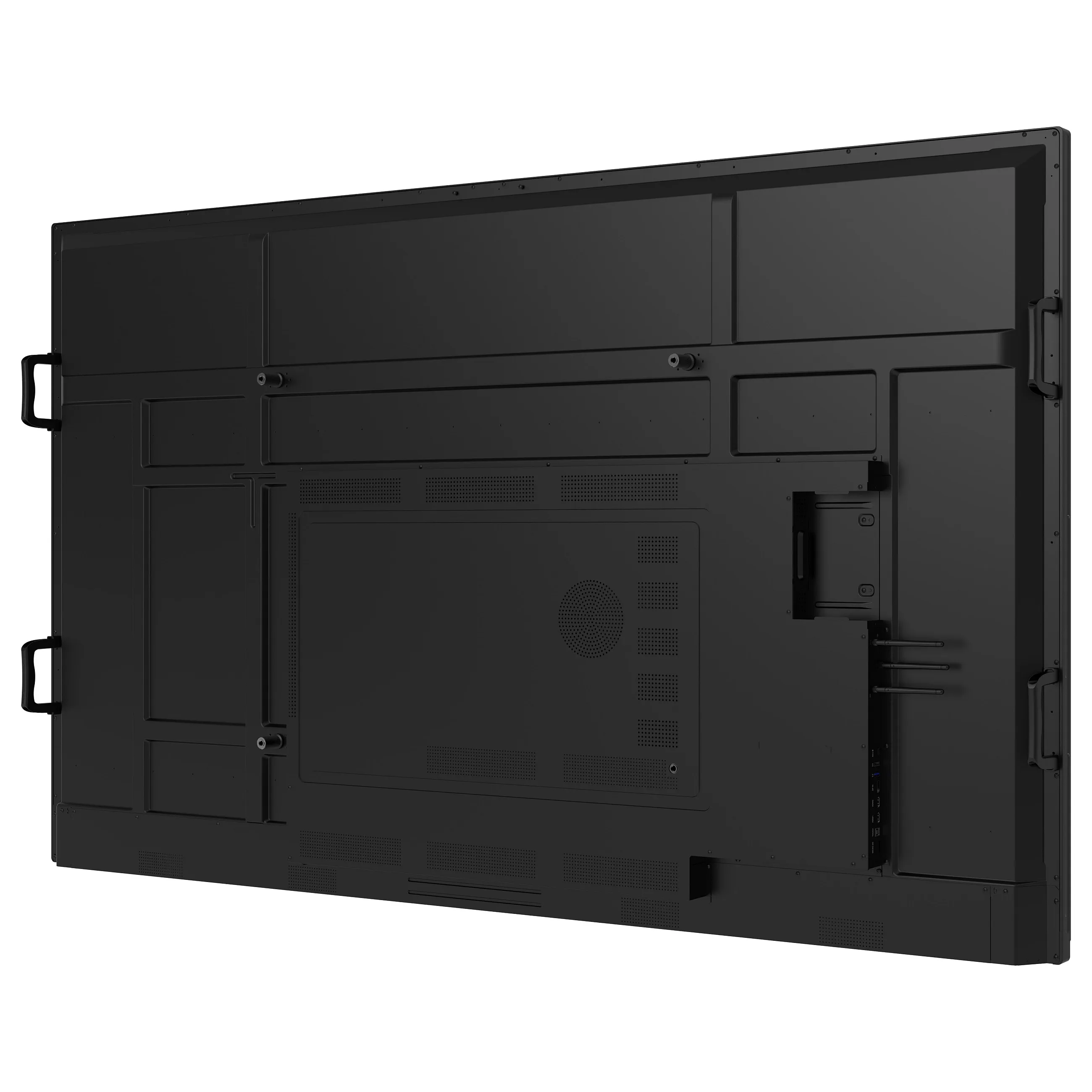

Feature: VESA mounting
Panel mounting interface: 800 x 600 mm
Bezel width (bottom): 4.1 cm
Bezel width (side): 1.65 cm
Bezel width (top): 1.65 cm
Bezel colour: Black
Feature: Anti-glare screen
Positioning accuracy: 1 mm
Performance
Purpose: Education
Feature: On Screen Display (OSD)
Number of OSD languages: 13
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 282 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 260 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor architecture: ARM Cortex-A73
Processor frequency: 1.4 GHz
Processor cores: 4
Internal memory: 8 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1955.6 mm
Display depth: 87.1 mm
Display height: 1154 mm
Display weight: 63.8 kg
Width: 1955.6 mm
Depth: 87.1 mm
Height: 1154 mm
Weight: 63.8 kg
Packaging data
Package width: 2095 mm
Package depth: 185 mm
Package height: 1265 mm
Package weight: 76.5 kg
Packaging content
Feature: Remote control included

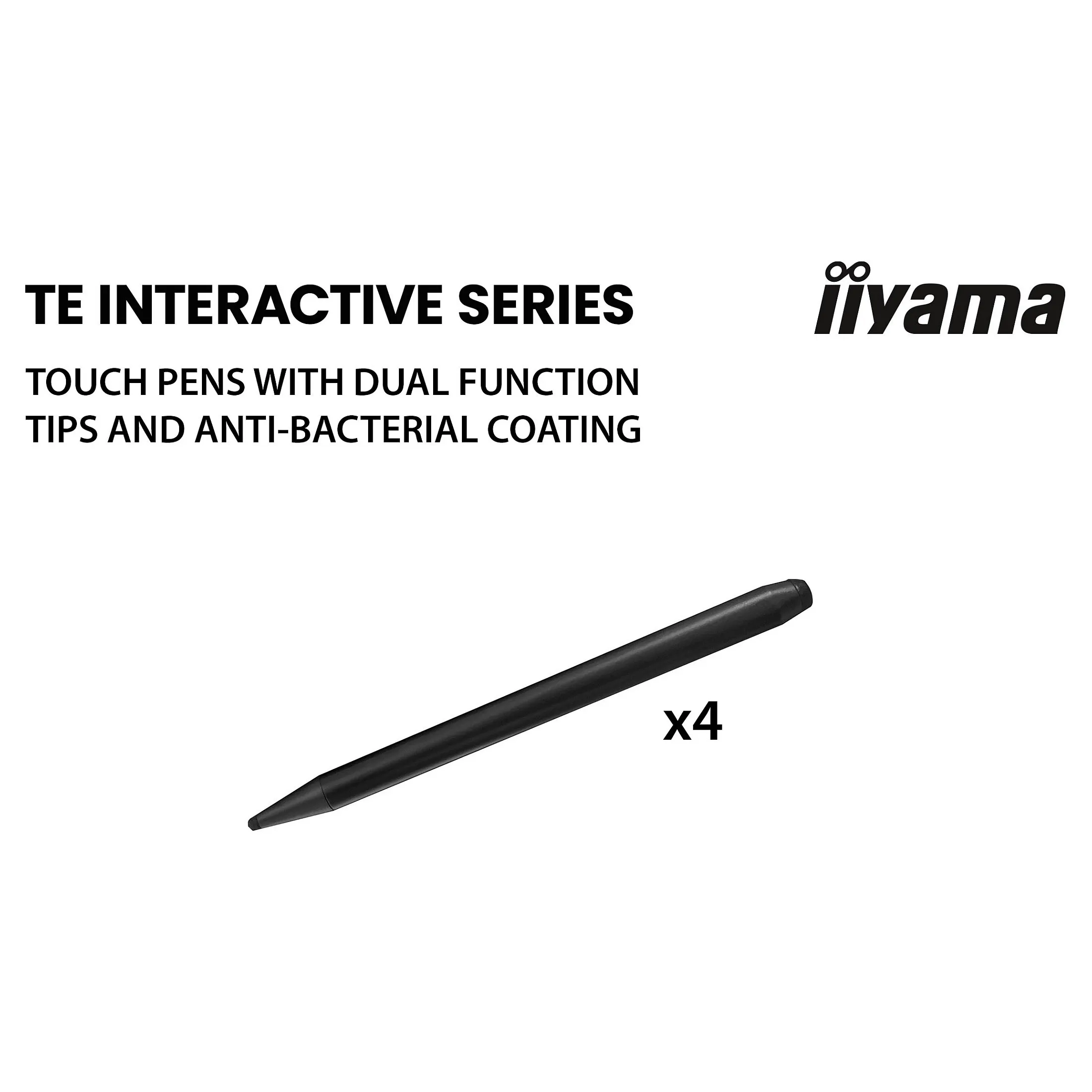

Feature: Stylus pen
Number of stylus pens: 4
Cables included: AC, USB, HDMI
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Logistics data
Products per pallet: 4 pc(s)
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Technical details
Feature: Audio in (mini jack)
OPS slot: 1
Playback media: Y
Sustainability certificates: ErP
Warranty period: 5 year(s)
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Feature: Quick start guide
Feature: Bluetooth
Bluetooth version: 5.0
Brightness: 500 cd/m²
Power supply type: Internal
Panel type: IPS
