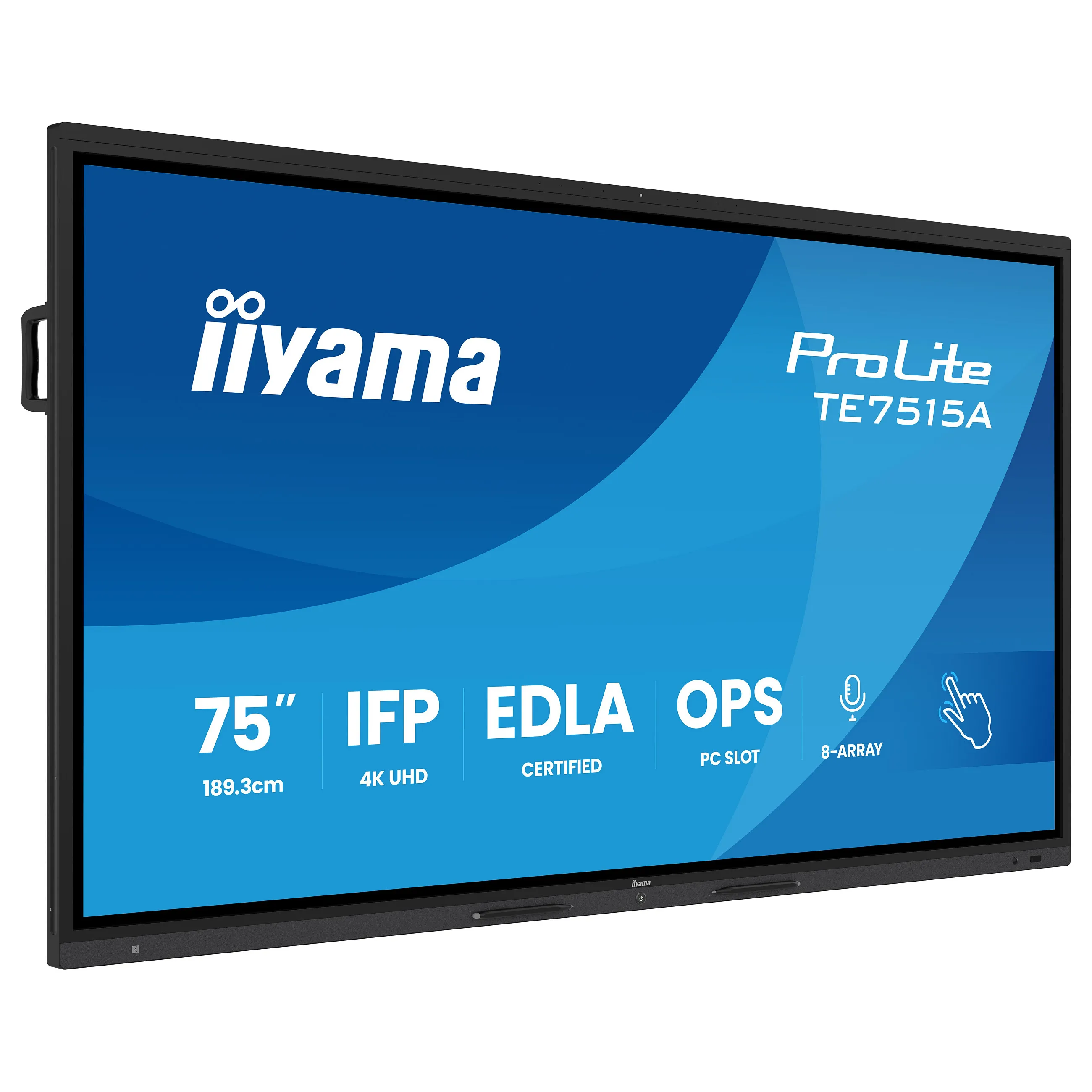

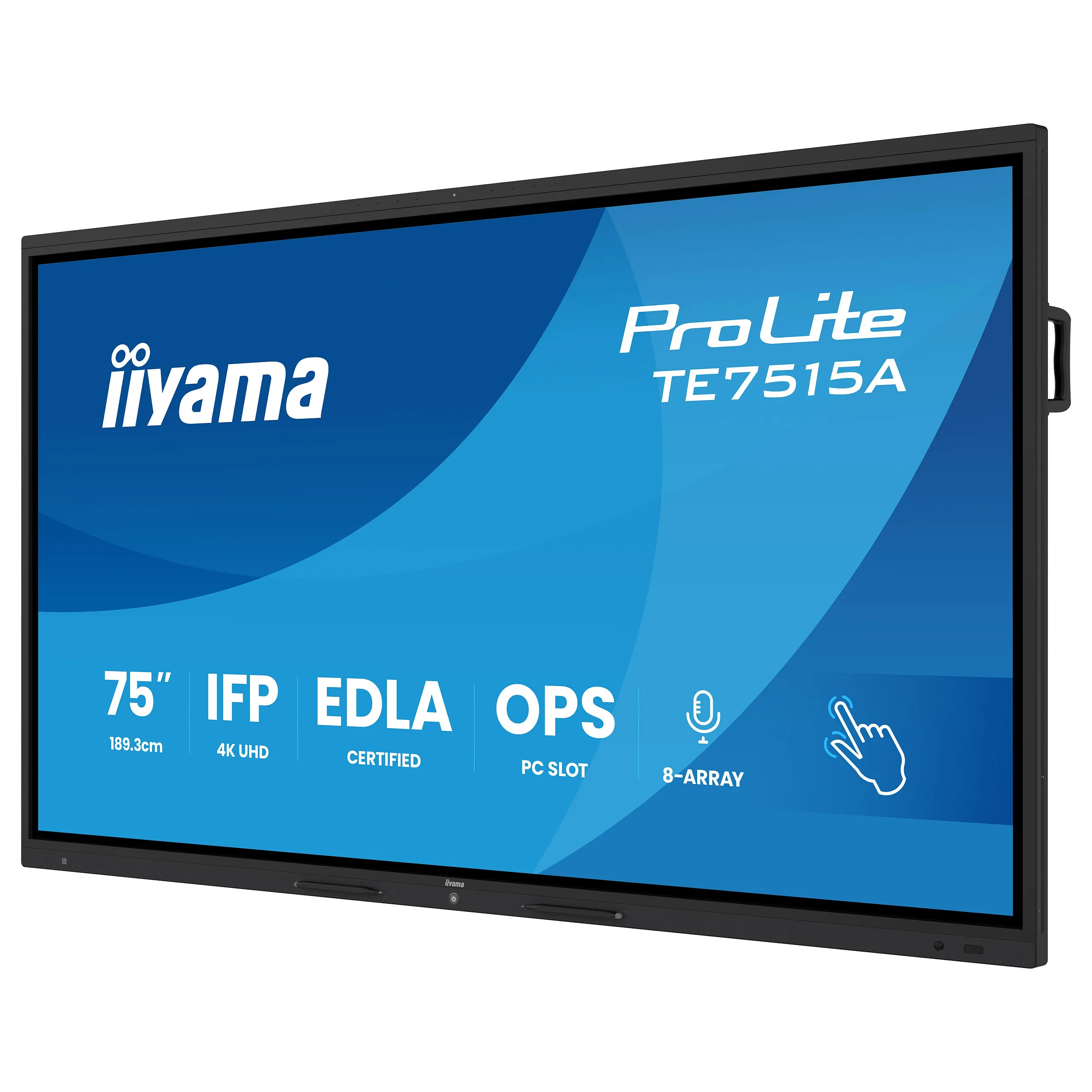

iiyama TE7515A-B2AG. Product design: Kiosk design. Display diagonal: 190.5 cm (75"), Display resolution: 3840 x 2160 pixels, Display brightness: 550 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

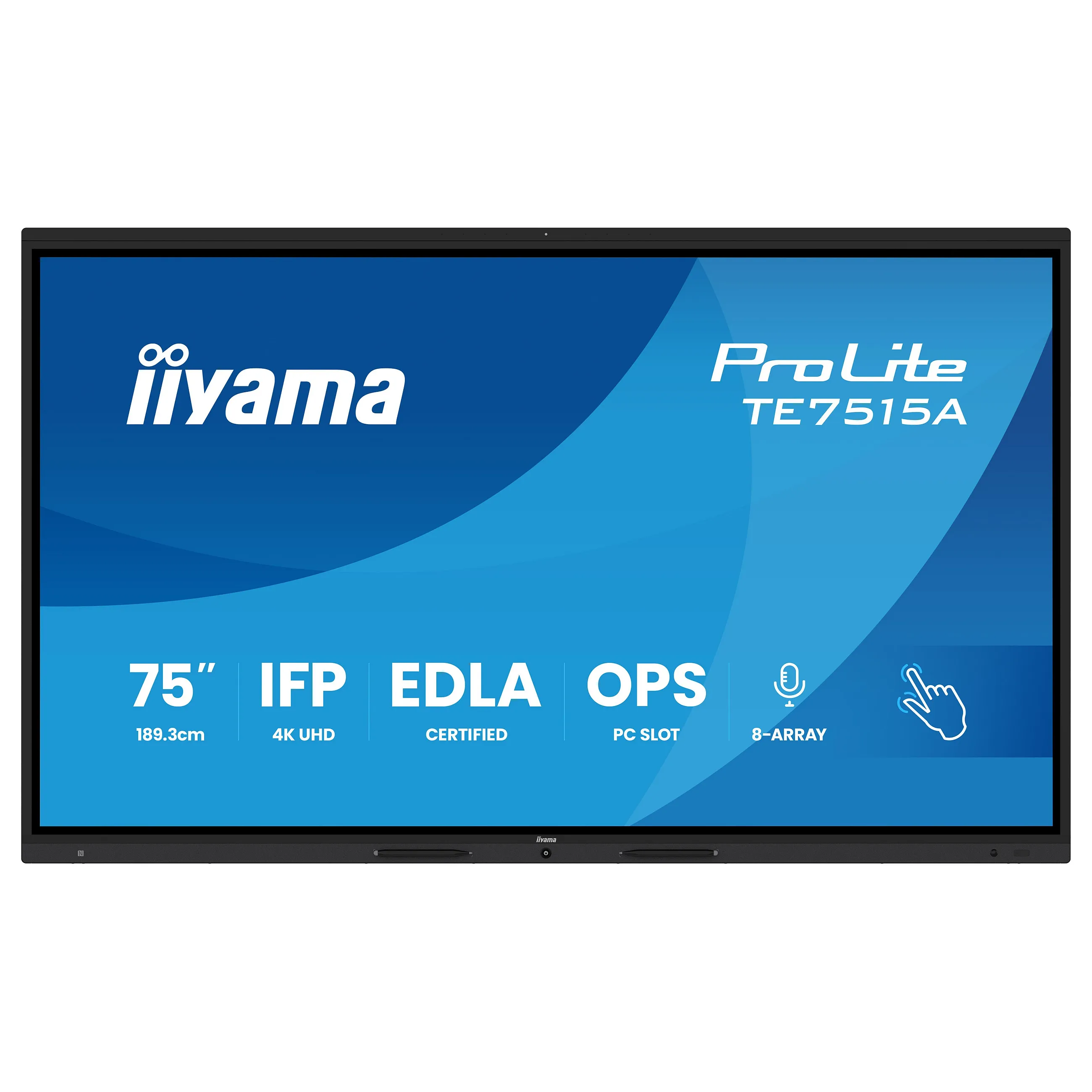

Elegance and functionality come together in the ProLite TE7515A-B2AG. This 75” 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE7515A elevates the visual experience of any room. It’s more than a tool—it’s part of your space. Coupled with DeepContrast-IR++ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi 6E, BT 5.0 and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE7515A promotes seamless teamwork—whether you’re presenting, teaching, or brainstorming. The TE7515A-B2AG isn’t just an interactive display—it’s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.
Display
Panel type: VA
Display diagonal: 190.5 cm (75″)
Display resolution: 3840 x 2160 pixels
Display brightness: 550 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Infrared
Number of simultaneous touchpoints: 40
Native aspect ratio: 16:9
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.43 x 0.43 mm
Active display area (W x H): 1650 x 928 mm
Display diagonal (metric): 189.3 cm
Horizontal scan range: 30 – 135 kHz
Native refresh rate: 60 Hz
Surface hardness: 7H
Touch response time: 5 ms
Glass thickness: 3.2 mm

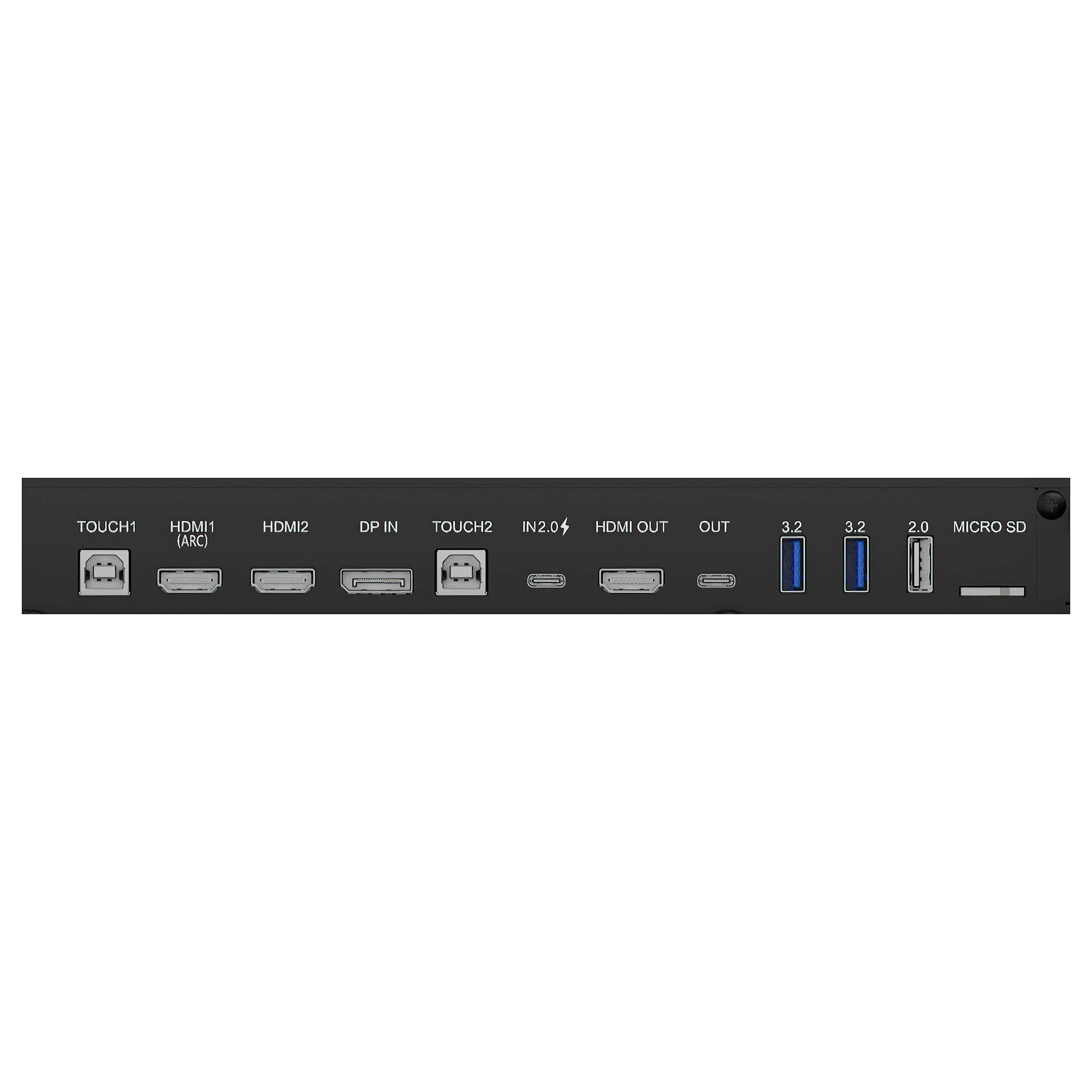

Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 1
HDMI output ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 4
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C, USB Type-B
USB 2.0 Type-B ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
Feature: USB Type-C DisplayPort Alternate Mode

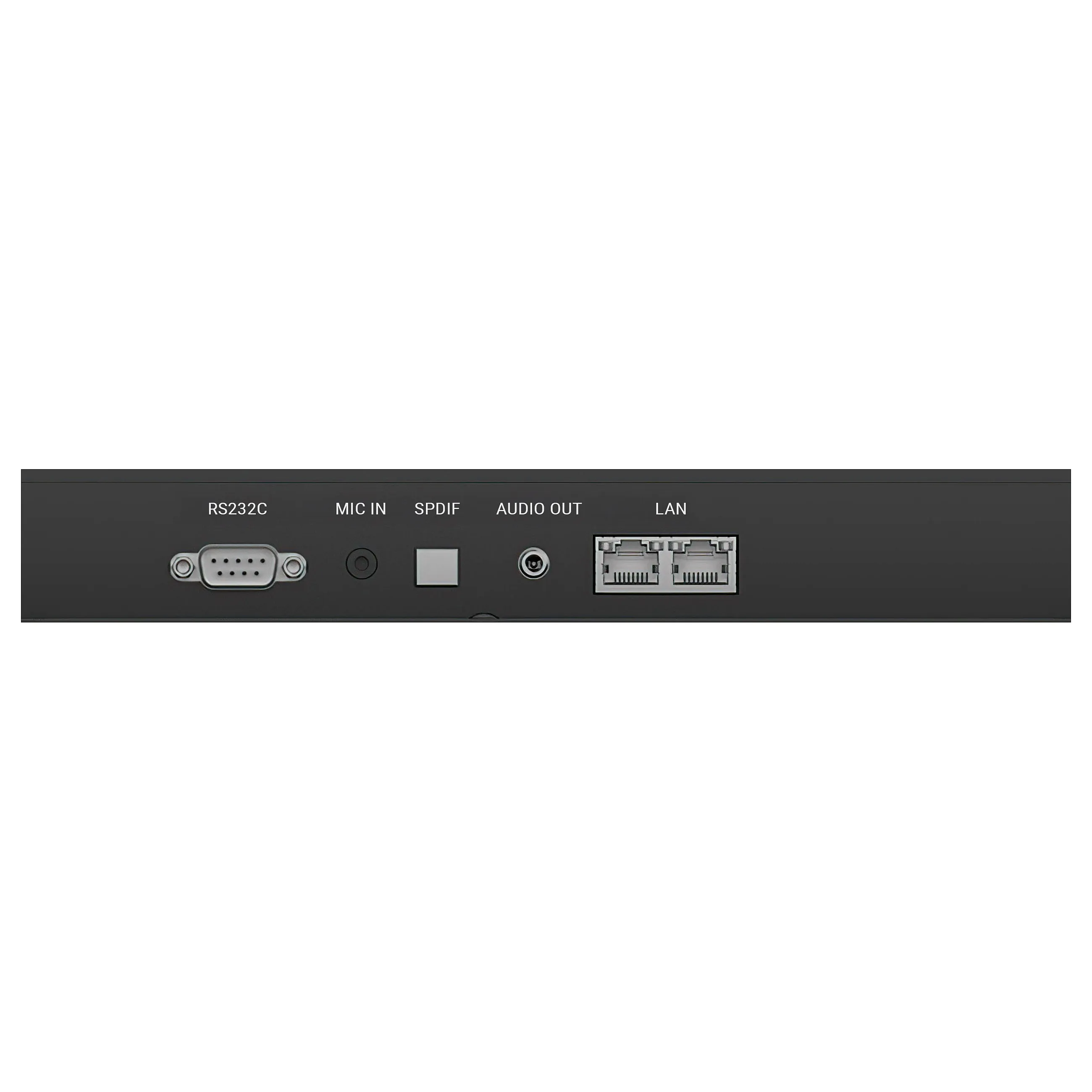

Ethernet LAN (RJ-45) ports: 2
Feature: RS-232C
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Feature: OPS module slot
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 60 W
Design
Product design: Kiosk design
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black

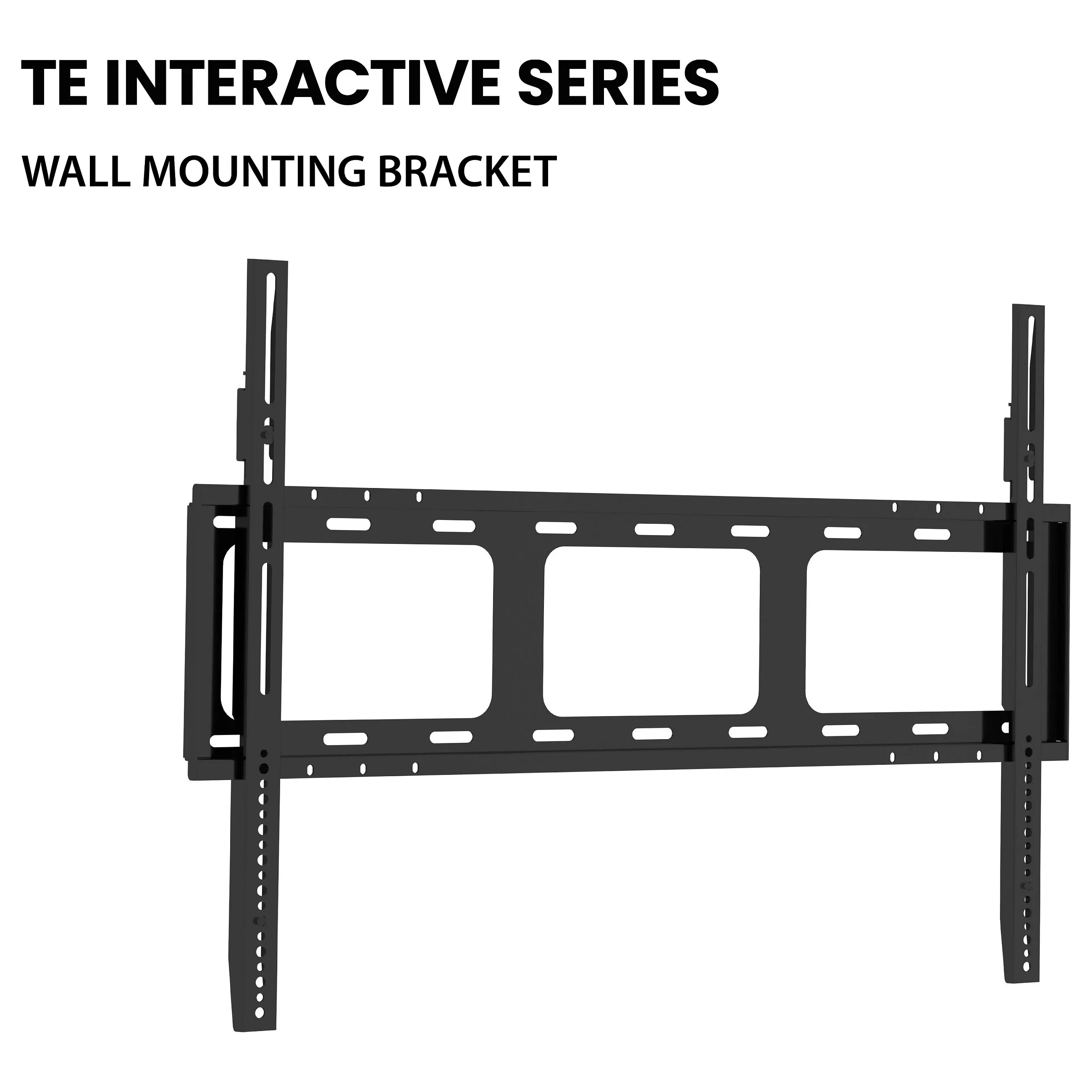

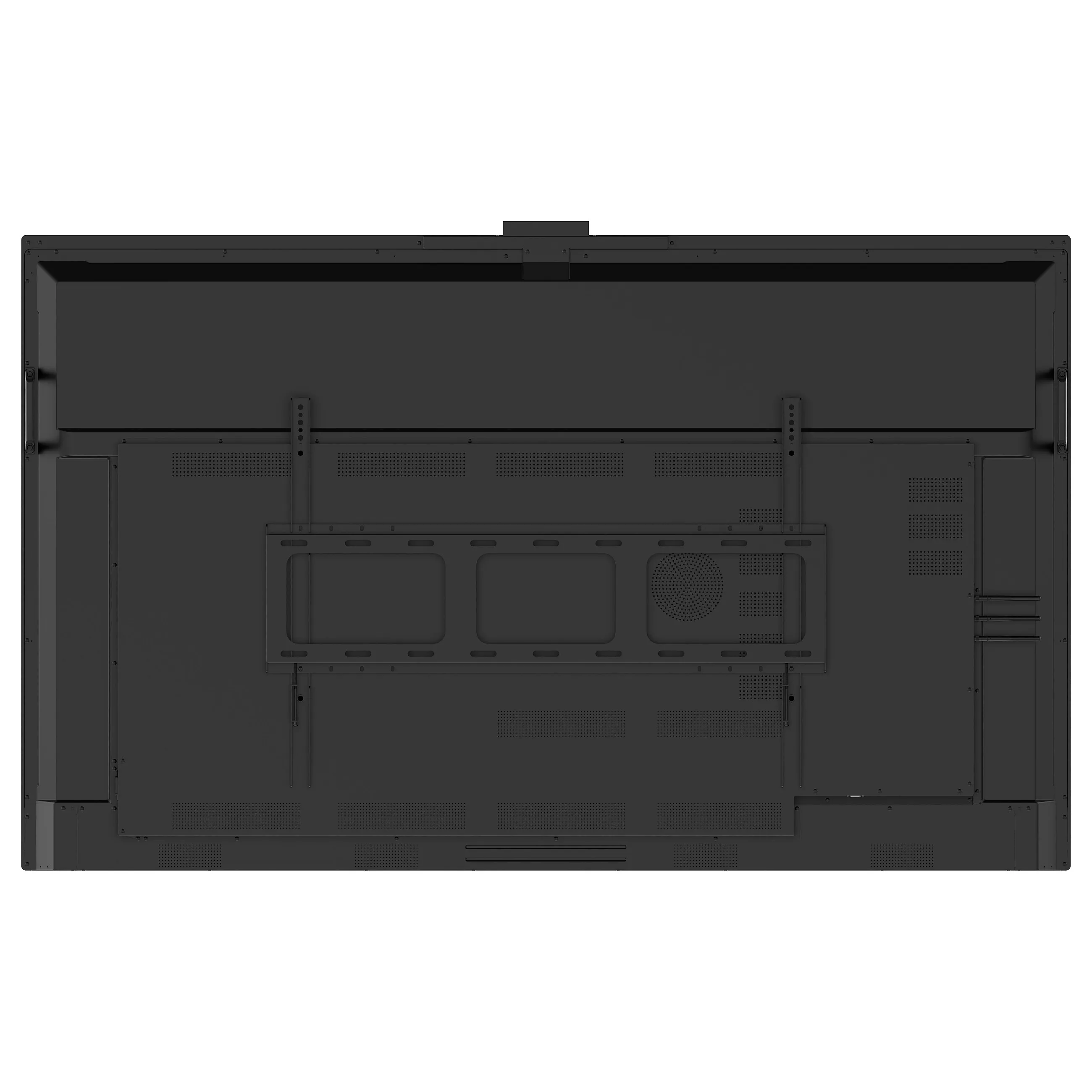

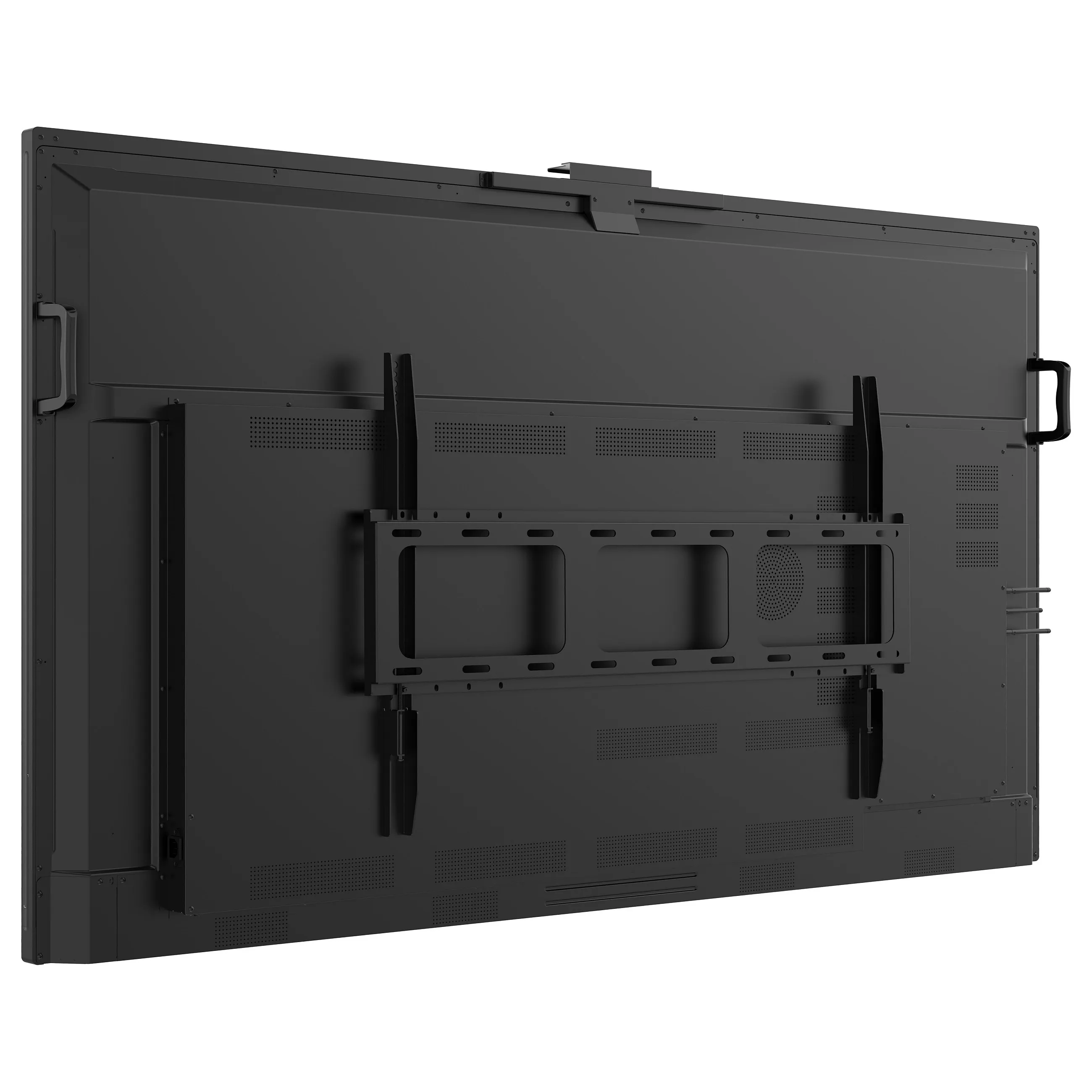

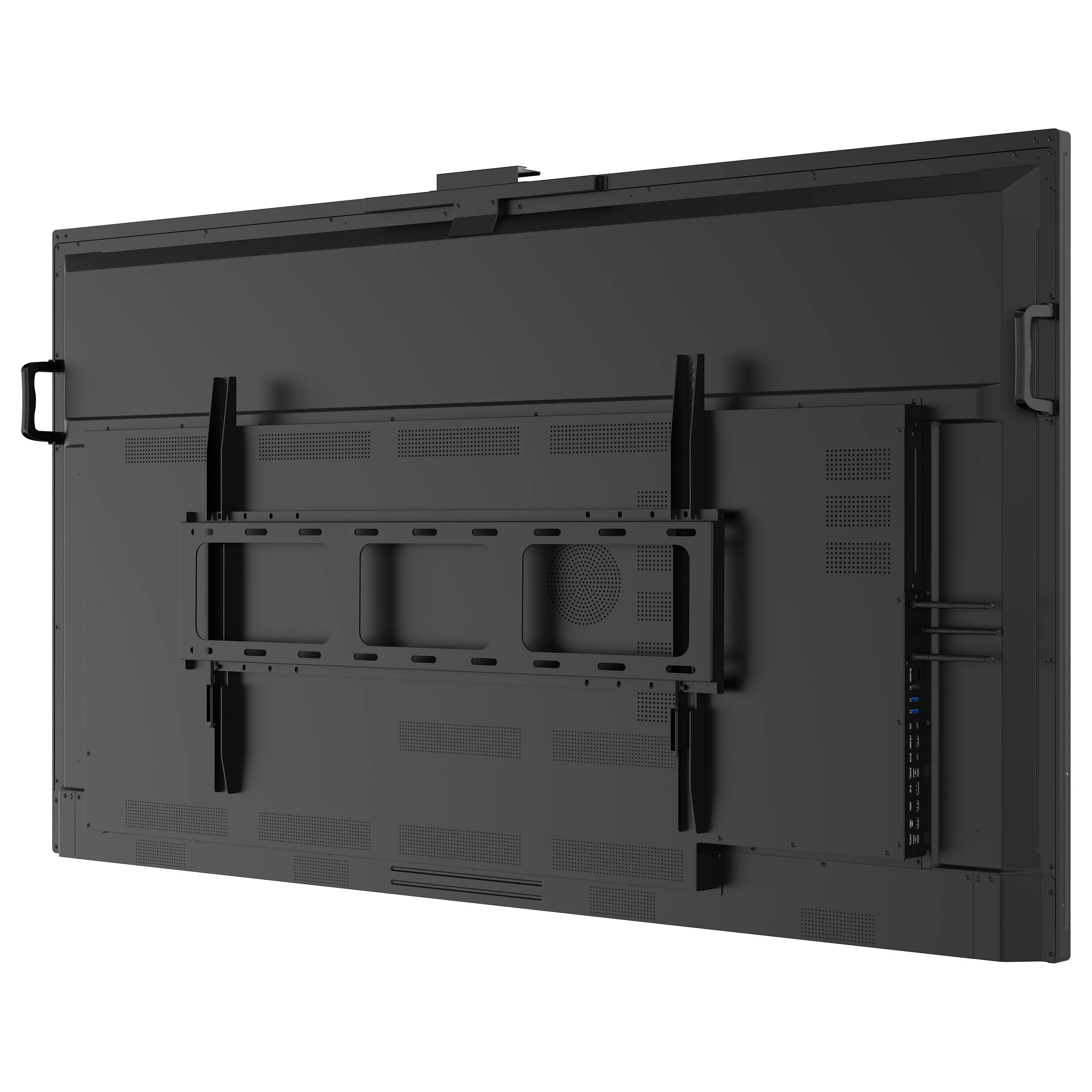

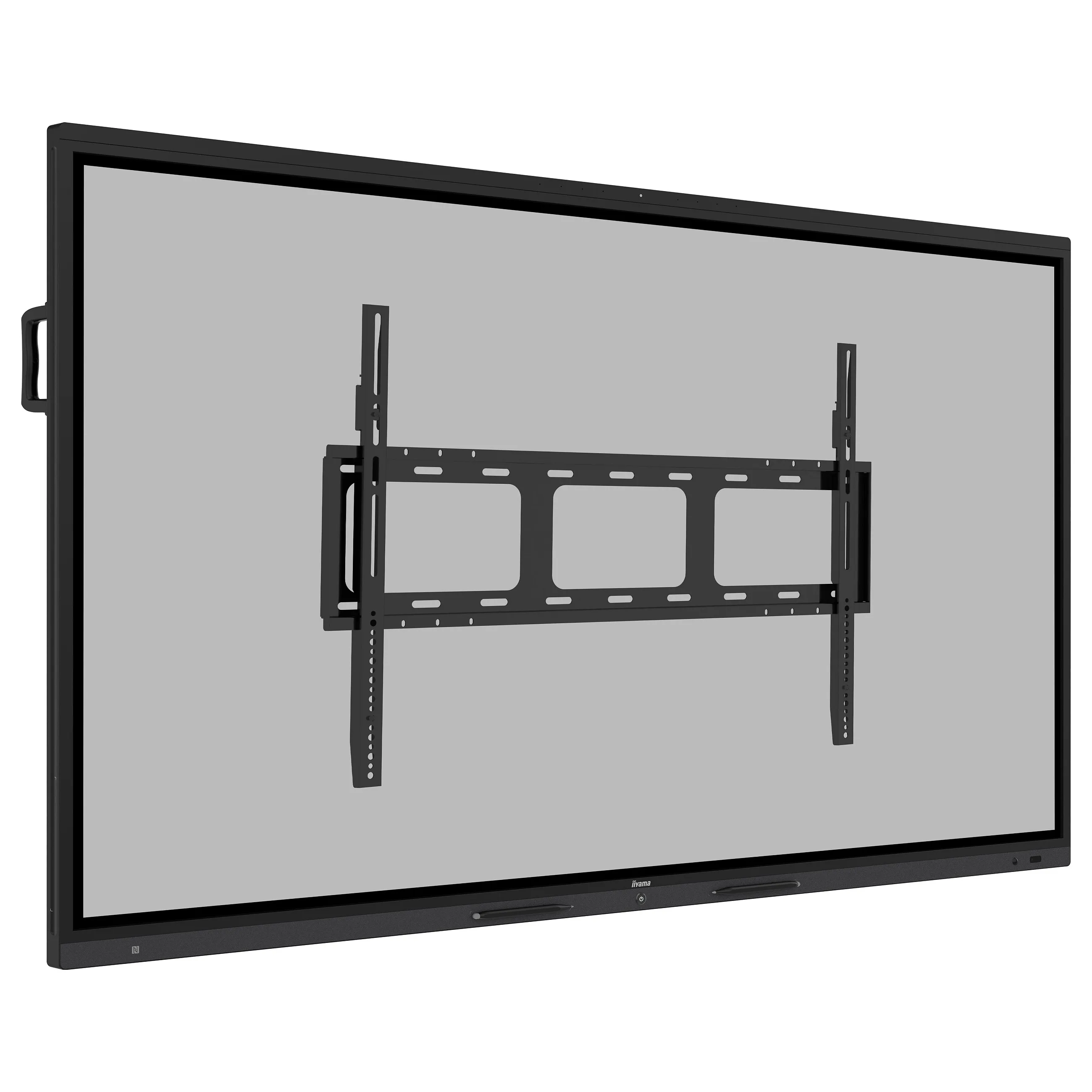

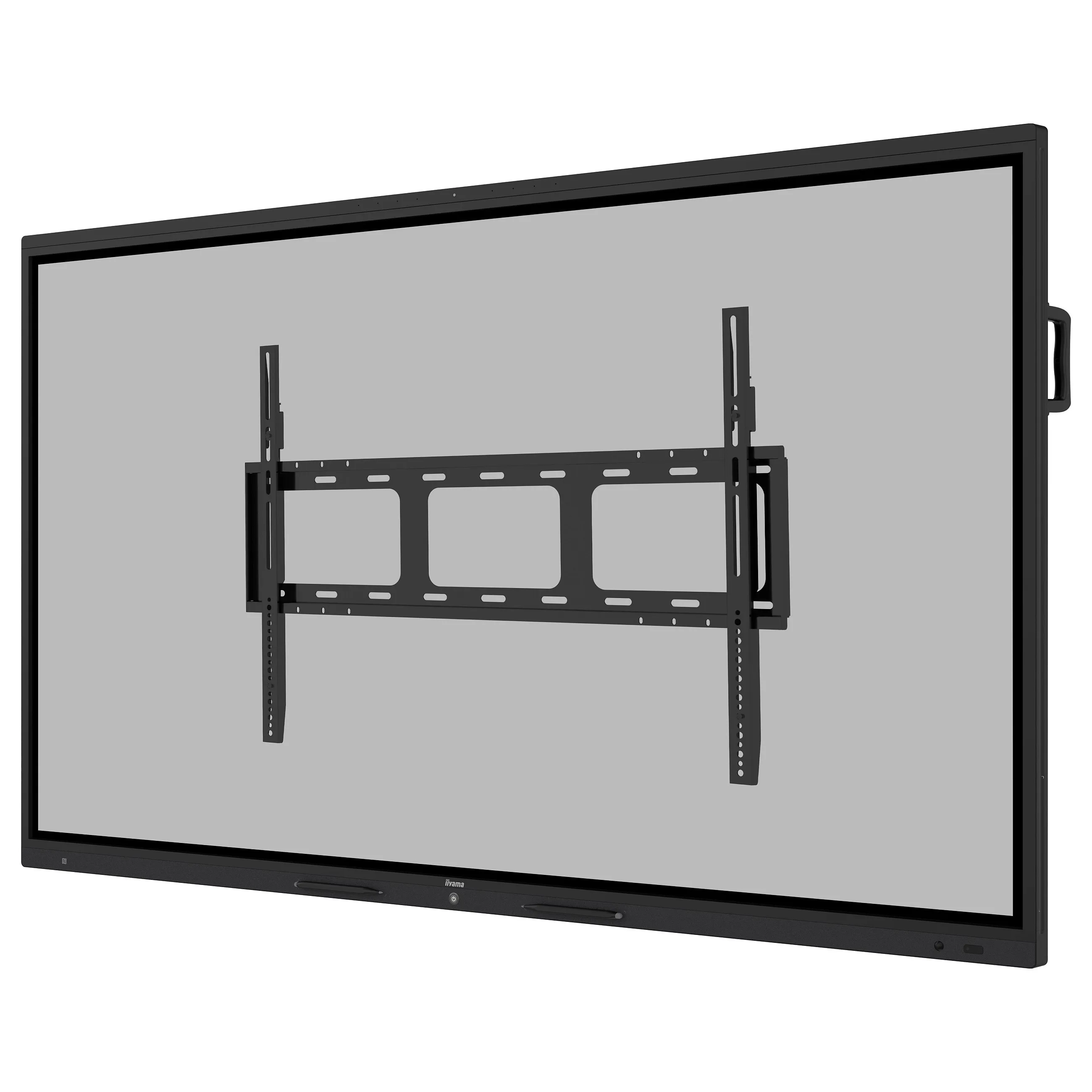

Feature: VESA mounting
Panel mounting interface: 800 x 400 mm
Bezel width (bottom): 4.67 cm
Bezel width (side): 1.67 cm
Bezel width (top): 3.43 cm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Education
Feature: Picture-in-Picture
Feature: On Screen Display (OSD)
Number of OSD languages: 13
On Screen Display (OSD) languages: CAT, Czech, Danish, German, English, Spanish, Finnish, French, Hungarian, Italian, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 191 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 191 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor architecture: ARM Cortex-A53+Cortex-A72
Internal memory: 8 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1710.2 mm
Display depth: 87.1 mm
Display height: 1036.3 mm
Display weight: 54.6 kg
Width: 1710.2 mm
Depth: 87.1 mm
Height: 1036.3 mm
Weight: 54.6 kg
Packaging data
Package width: 1860 mm
Package depth: 185 mm
Package height: 1125 mm
Package weight: 67.6 kg
Packaging content
Feature: Remote control included

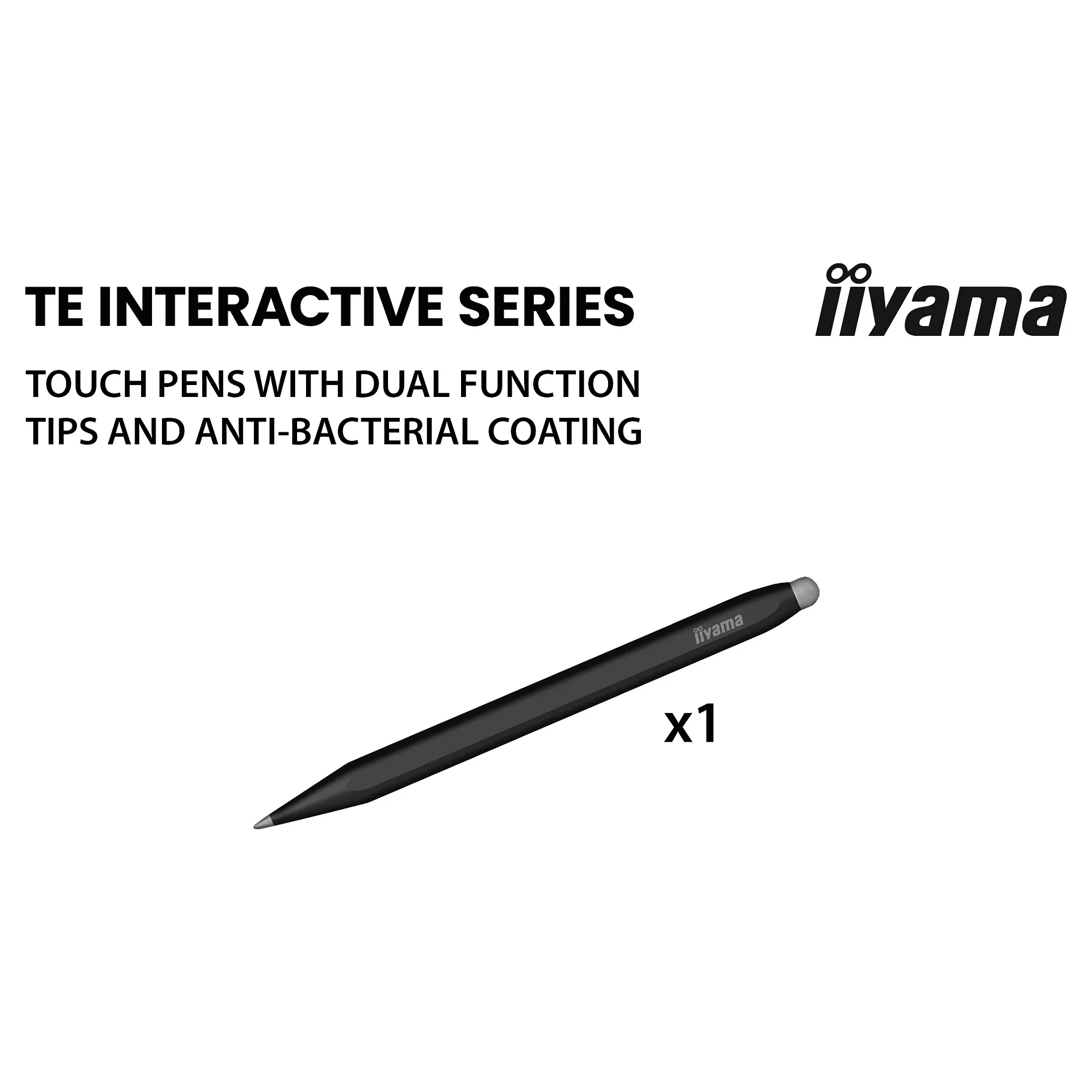

Feature: Stylus pen
Number of stylus pens: 4

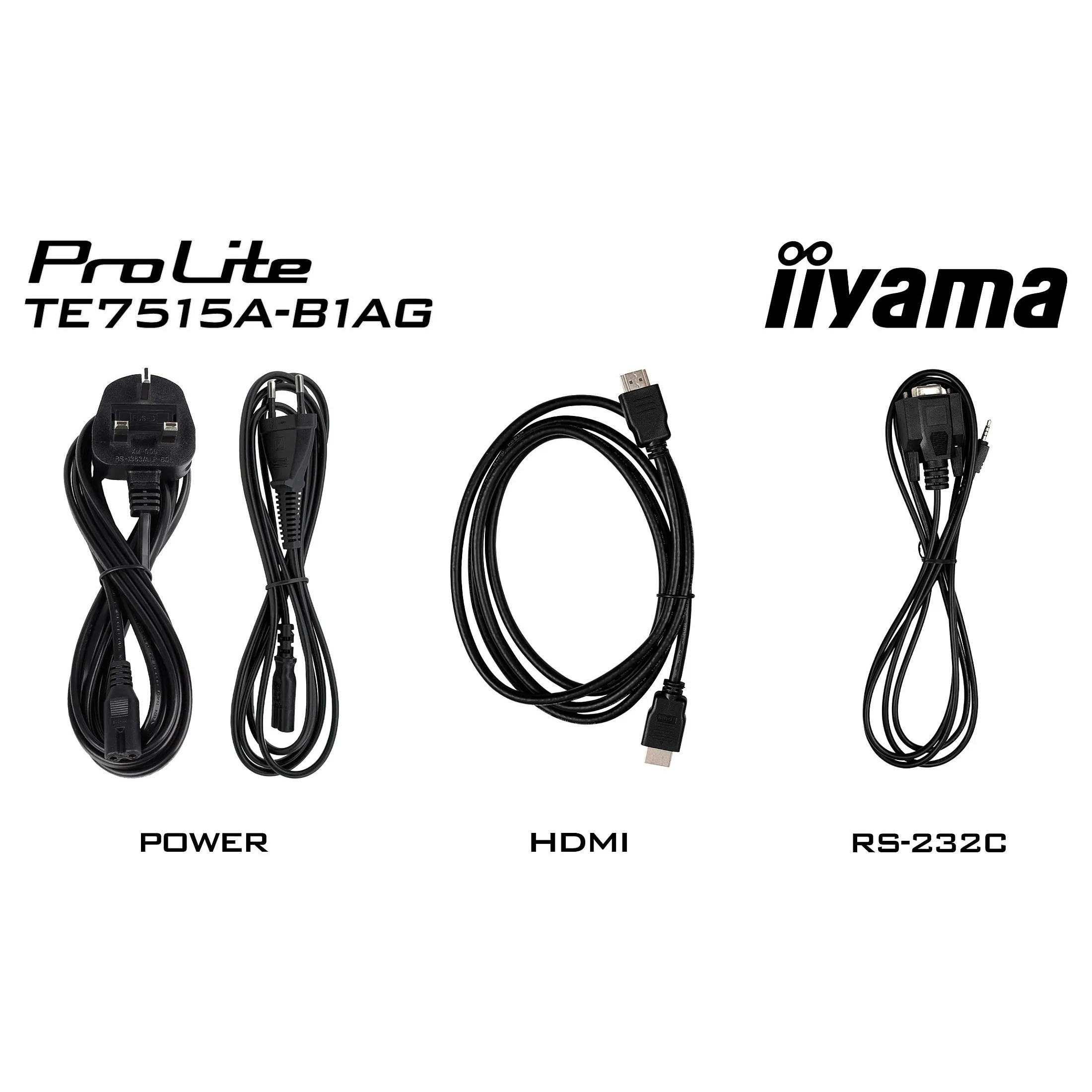

Cables included: AC, USB, HDMI
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Logistics data
Products per pallet: 6 pc(s)
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Technical details
Feature: Audio in (mini jack)
OPS slot: 1
Playback media: Y
Sustainability certificates: EPEAT, ErP, EPEAT Bronze
Warranty period: 5 year(s)
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Feature: Quick start guide
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Built-in microphone
Power supply type: Internal
Panel type: VA
Display diagonal: 190.5 cm (75″)
Display resolution: 3840 x 2160 pixels
Display brightness: 550 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Infrared
Number of simultaneous touchpoints: 40
Native aspect ratio: 16:9
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.43 x 0.43 mm
Active display area (W x H): 1650 x 928 mm
Display diagonal (metric): 189.3 cm
Horizontal scan range: 30 – 135 kHz
Native refresh rate: 60 Hz
Surface hardness: 7H
Touch response time: 5 ms
Glass thickness: 3.2 mm
Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 1
HDMI output ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 4
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C, USB Type-B
USB 2.0 Type-B ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232C
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Feature: OPS module slot
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 60 W
Design
Product design: Kiosk design
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 800 x 400 mm
Bezel width (bottom): 4.67 cm
Bezel width (side): 1.67 cm
Bezel width (top): 3.43 cm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Education
Feature: Picture-in-Picture
Feature: On Screen Display (OSD)
Number of OSD languages: 13
On Screen Display (OSD) languages: CAT, Czech, Danish, German, English, Spanish, Finnish, French, Hungarian, Italian, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 191 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 191 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor architecture: ARM Cortex-A53+Cortex-A72
Internal memory: 8 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1710.2 mm
Display depth: 87.1 mm
Display height: 1036.3 mm
Display weight: 54.6 kg
Width: 1710.2 mm
Depth: 87.1 mm
Height: 1036.3 mm
Weight: 54.6 kg
Packaging data
Package width: 1860 mm
Package depth: 185 mm
Package height: 1125 mm
Package weight: 67.6 kg
Packaging content
Feature: Remote control included
Feature: Stylus pen
Number of stylus pens: 4
Cables included: AC, USB, HDMI
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Logistics data
Products per pallet: 6 pc(s)
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Technical details
Feature: Audio in (mini jack)
OPS slot: 1
Playback media: Y
Sustainability certificates: EPEAT, ErP, EPEAT Bronze
Warranty period: 5 year(s)
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Feature: Quick start guide
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Built-in microphone
Power supply type: Internal
