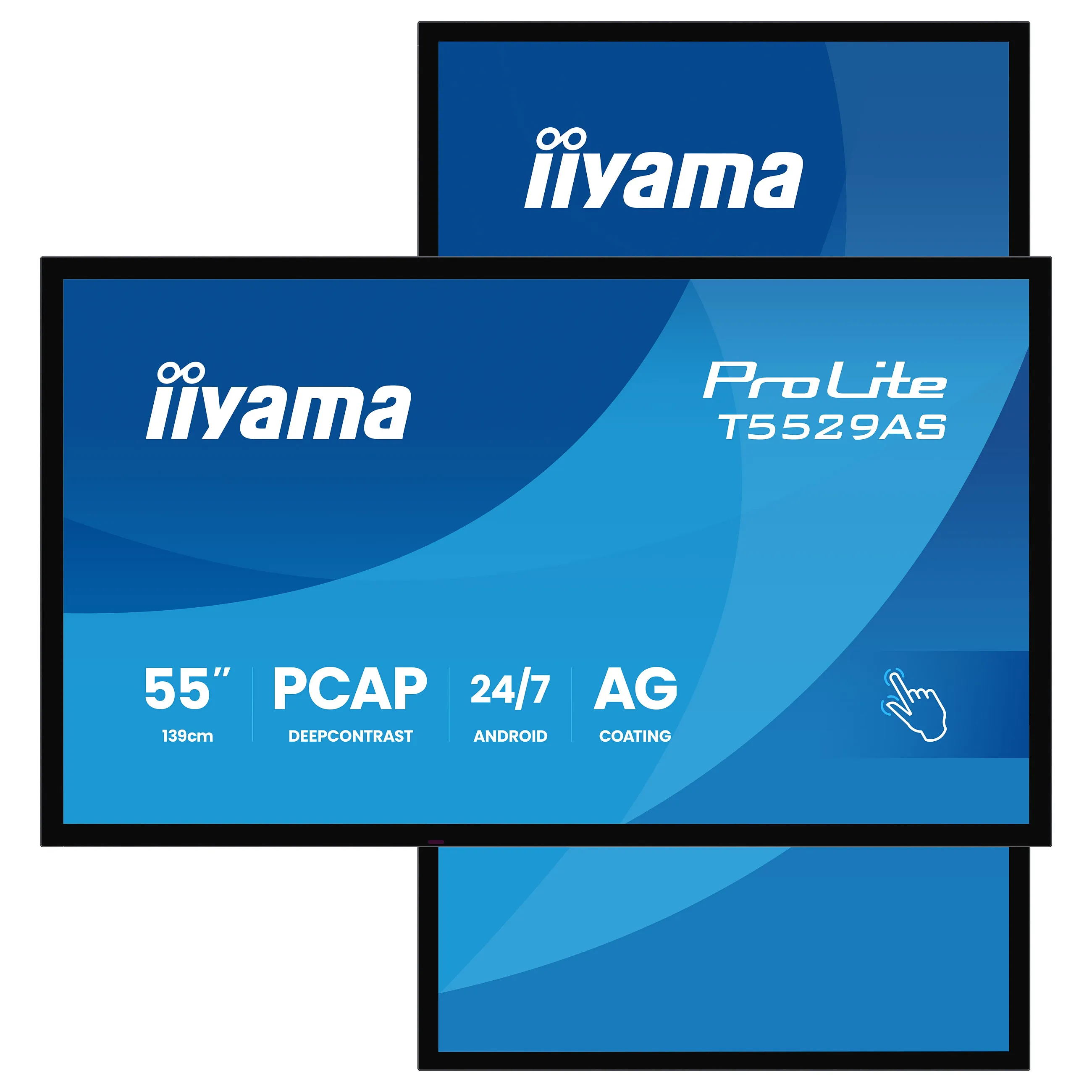

iiyama T5529AS-B1AG. Product design: Kiosk design. Display diagonal: 138.7 cm (54.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

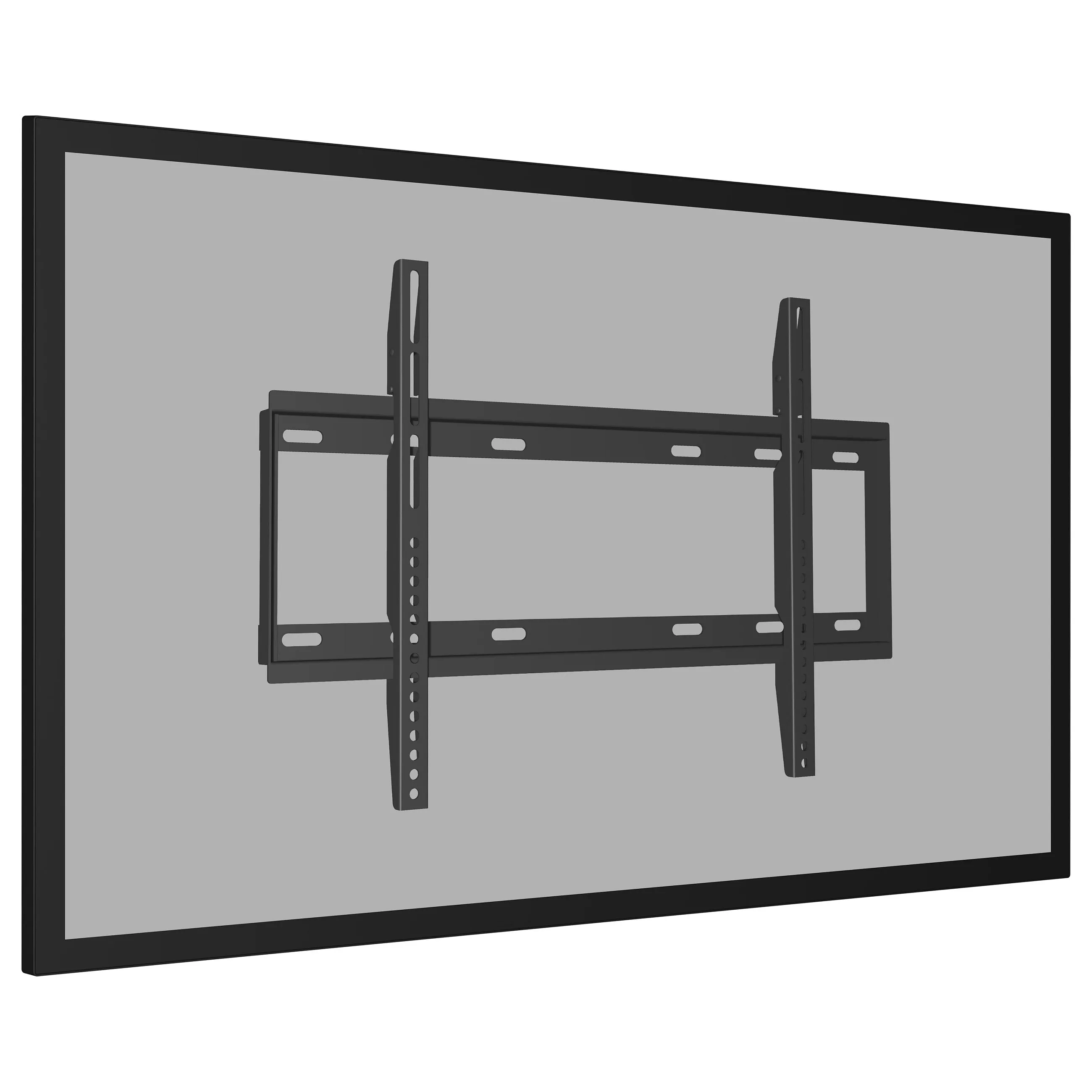

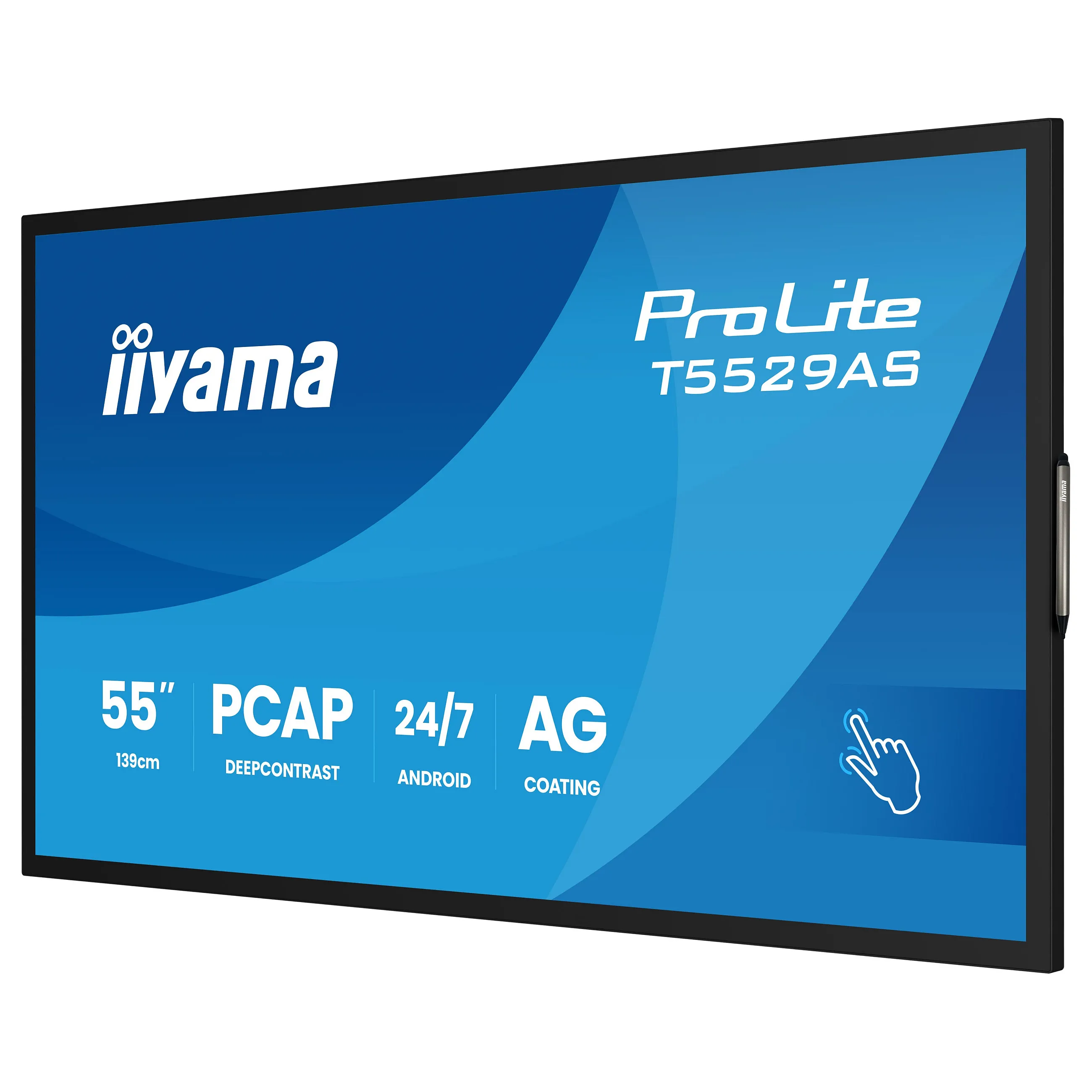

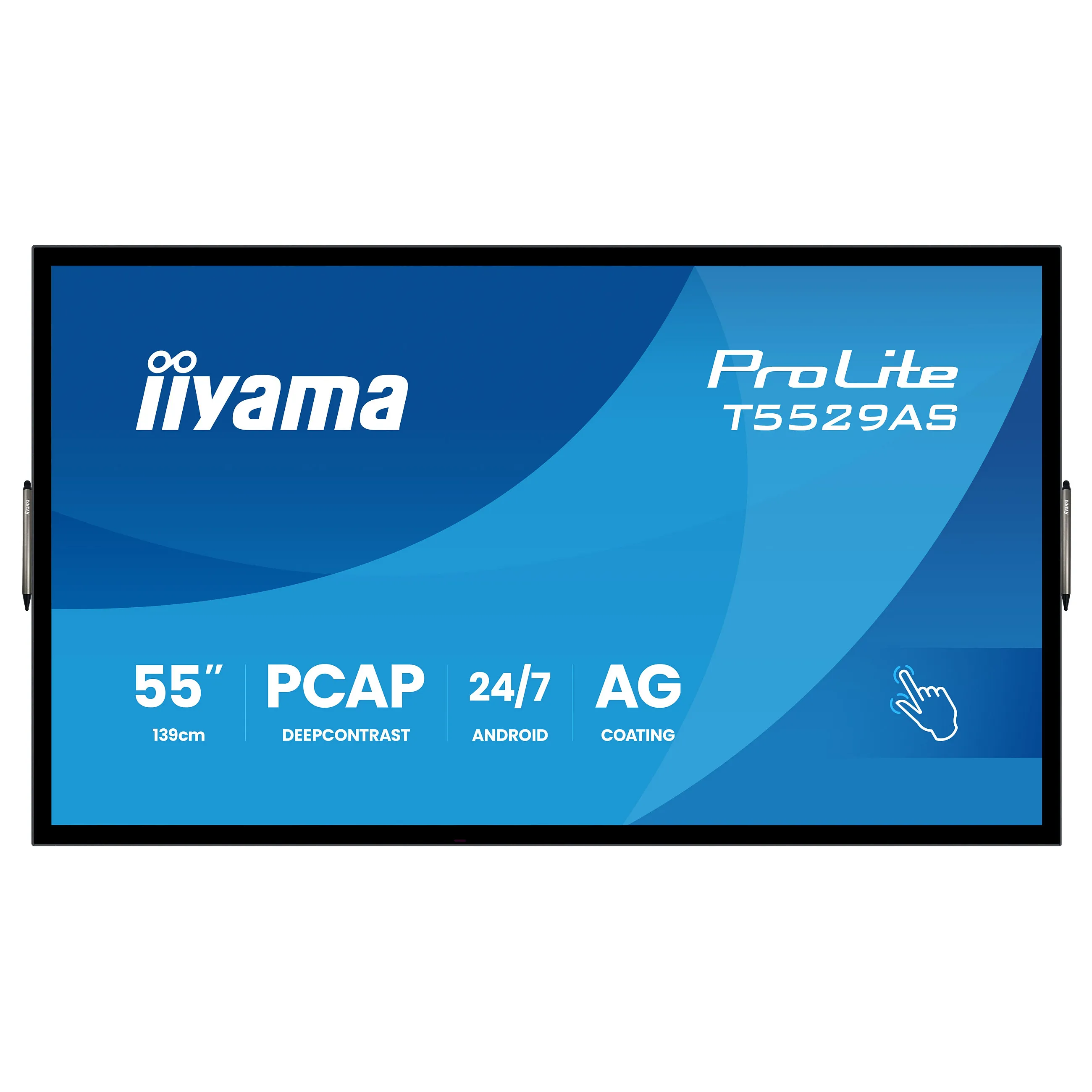

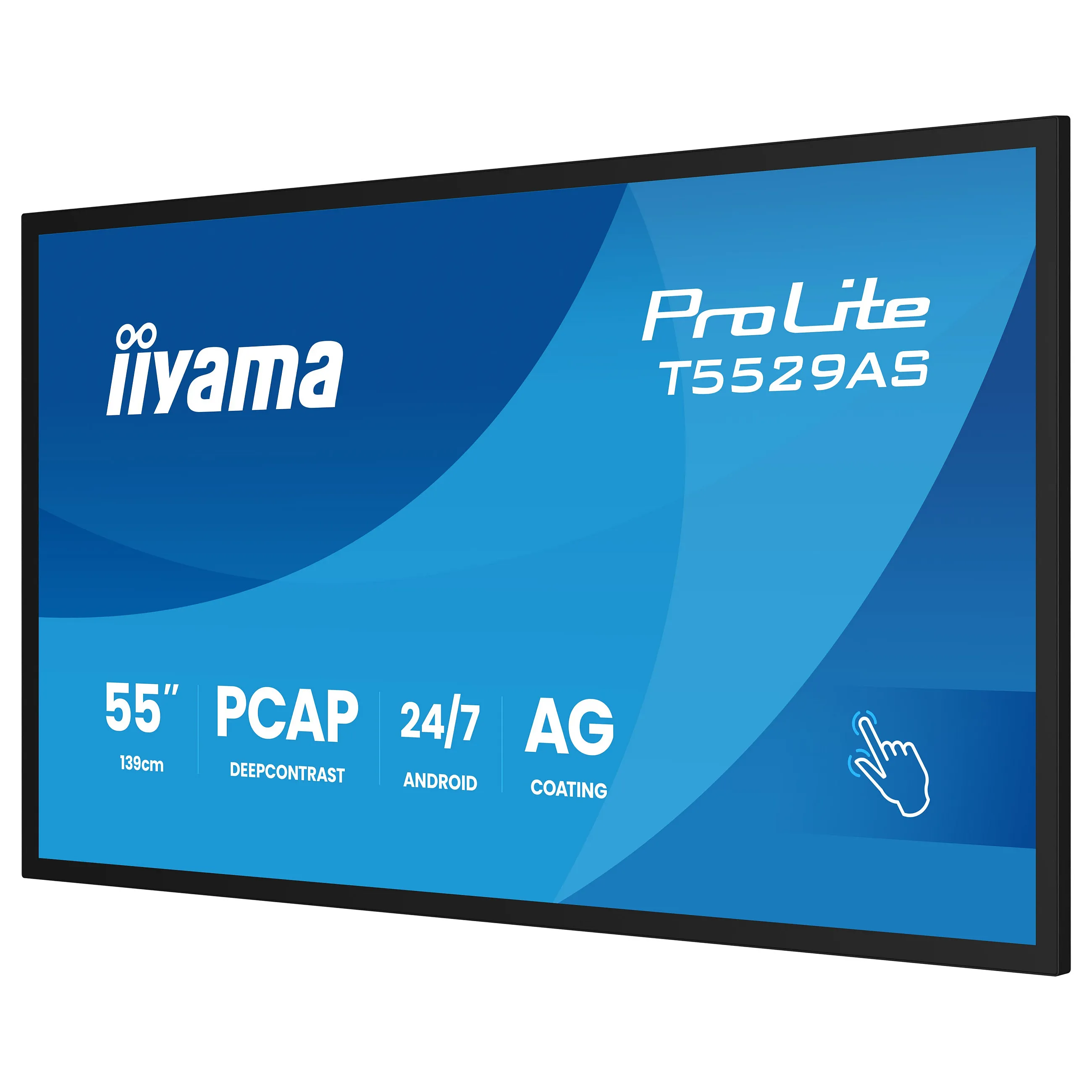

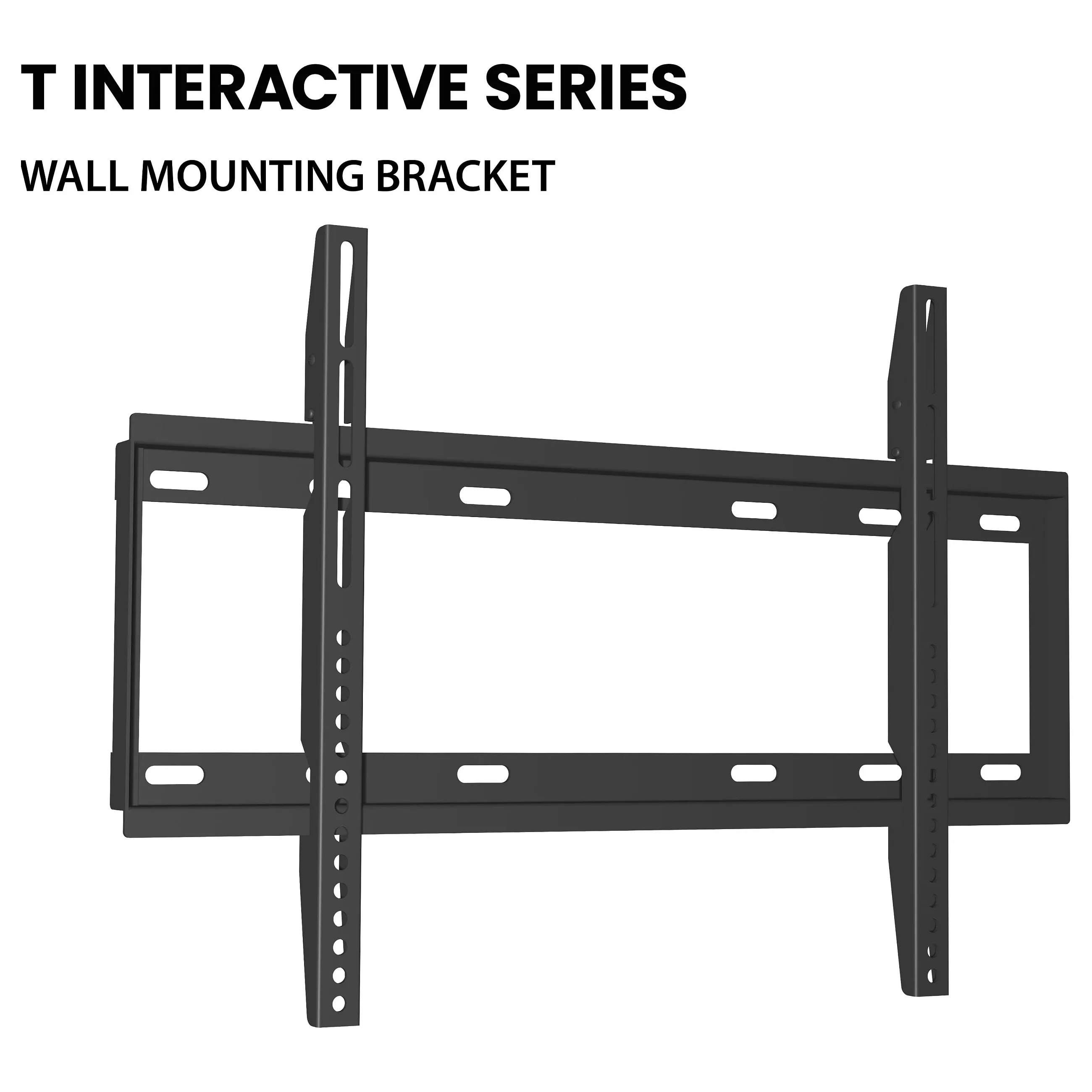

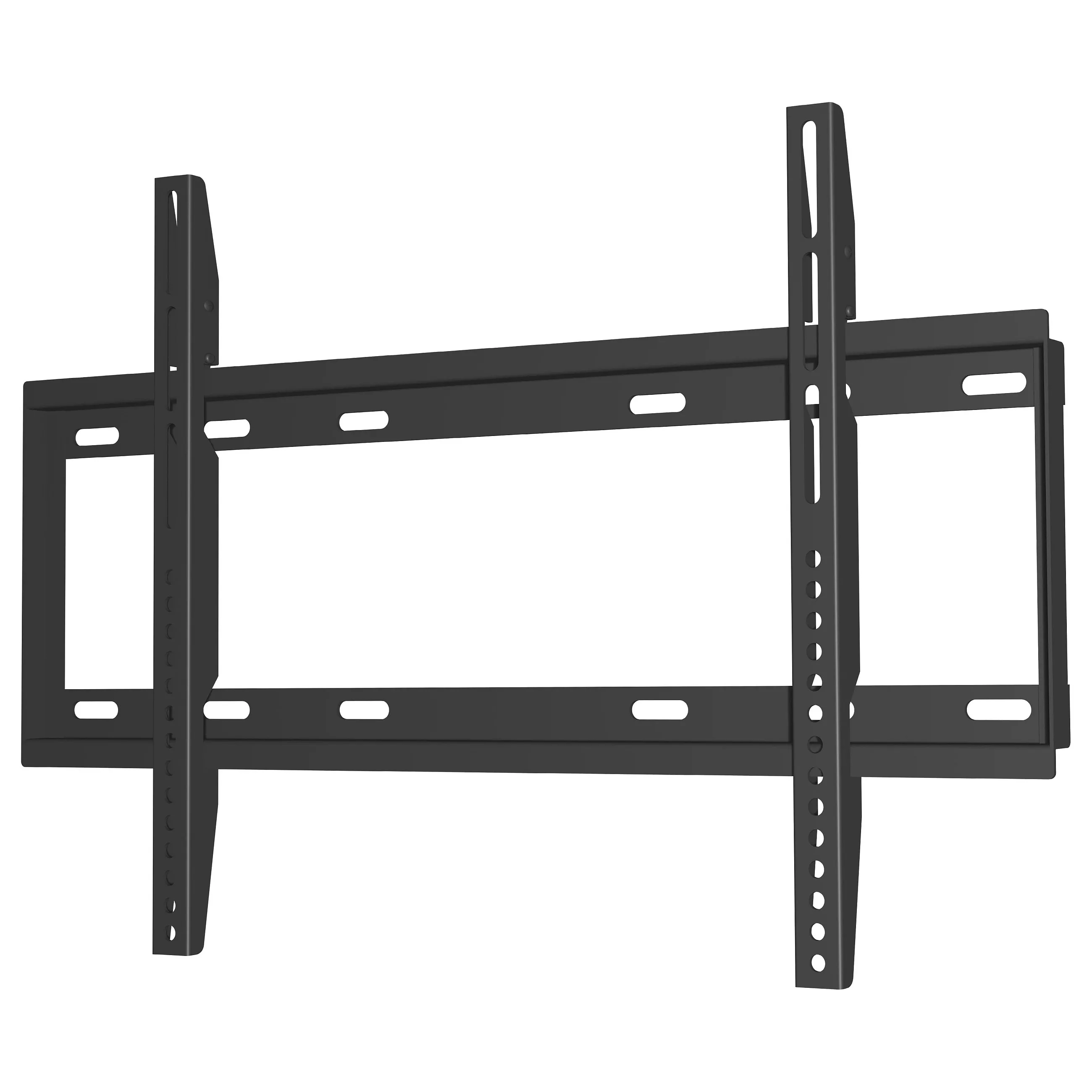

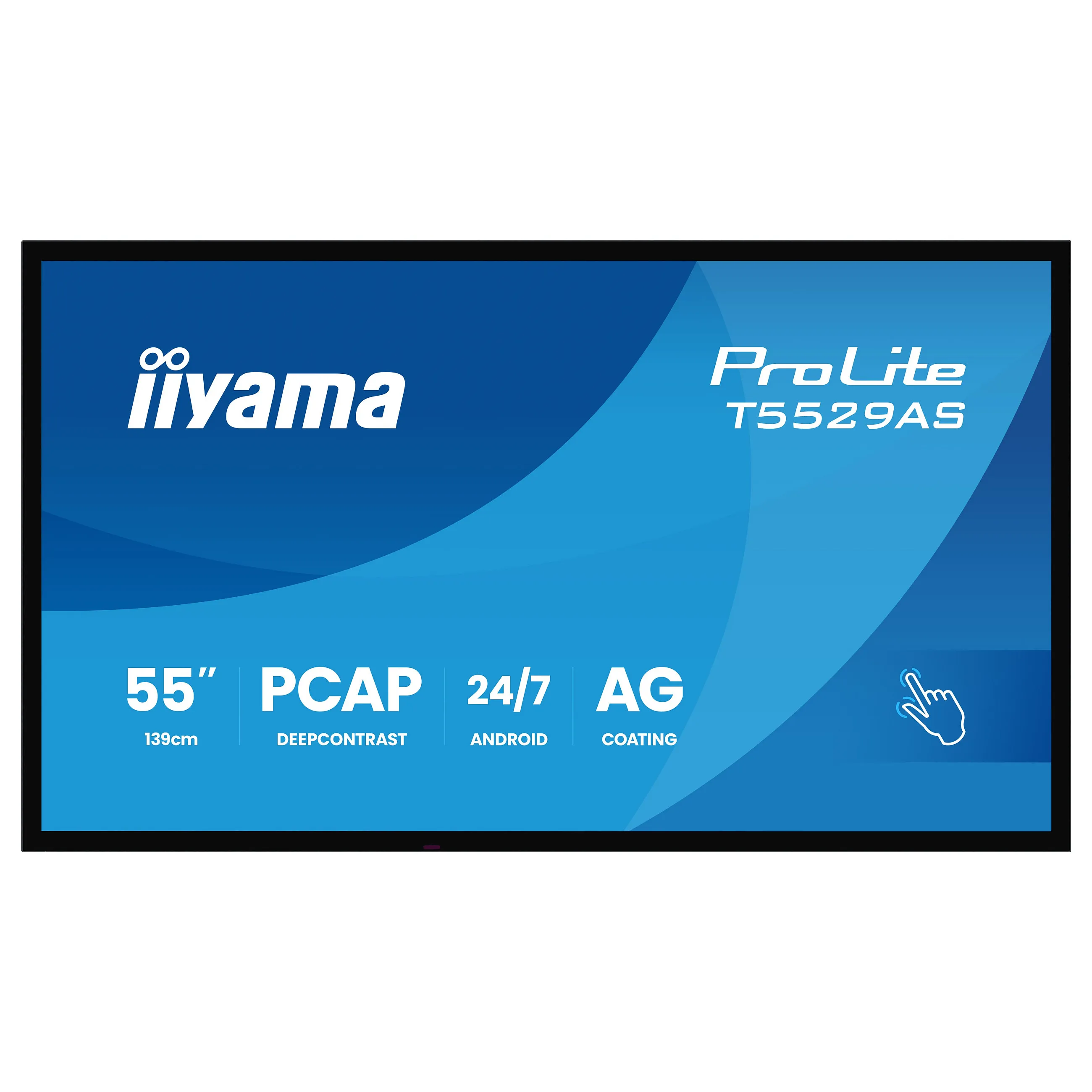

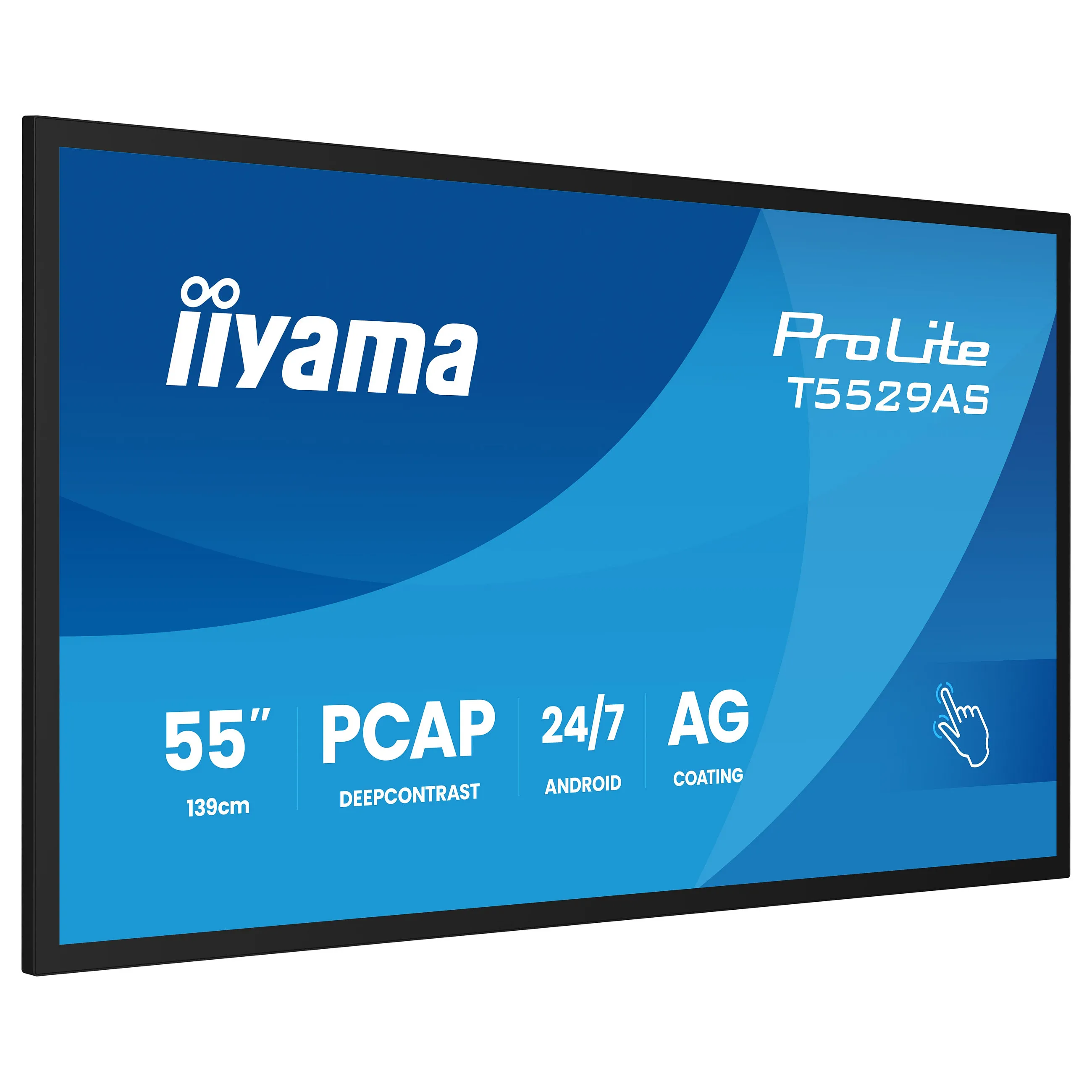

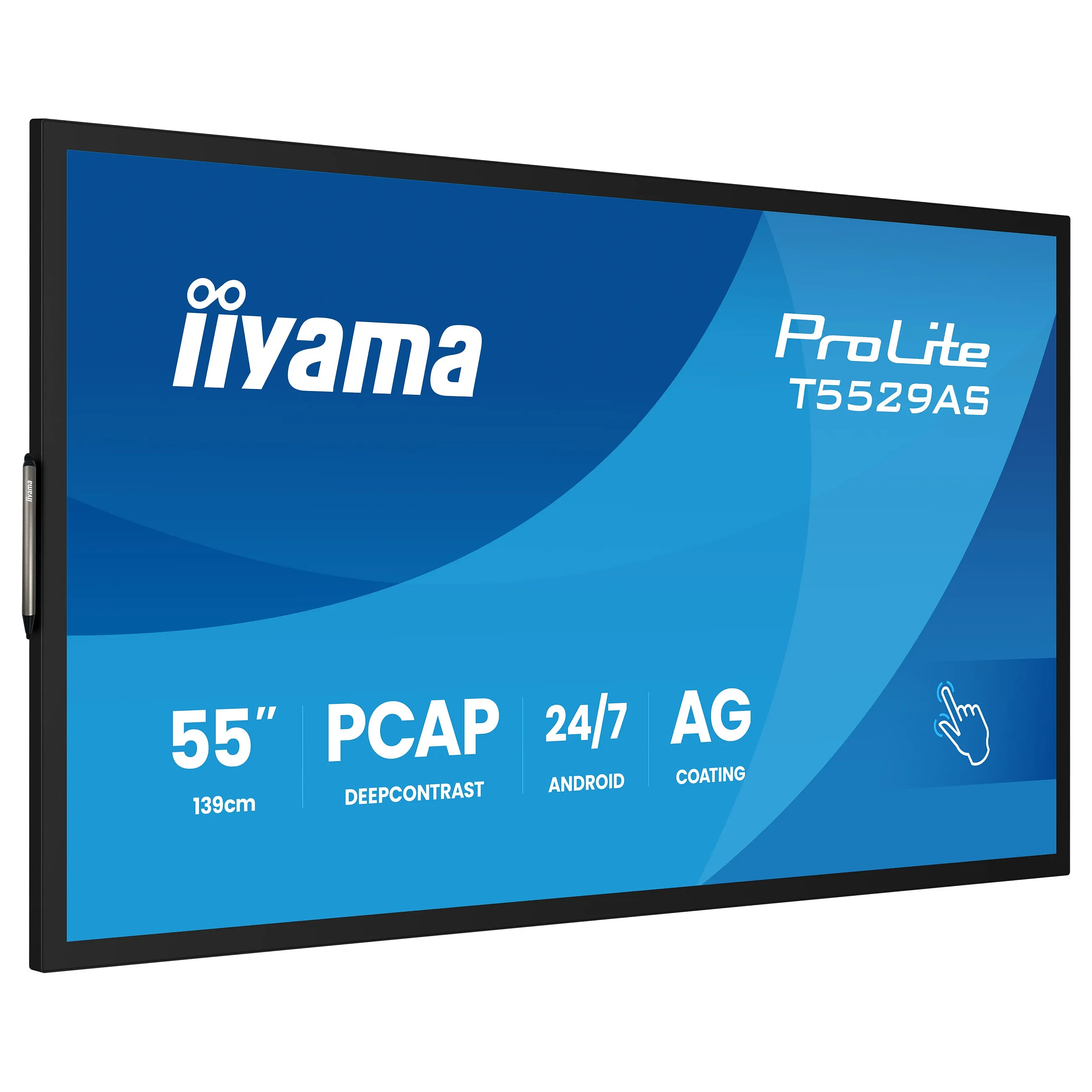

The ProLite T5529AS-B1AG is a 55″ all-in-one PCAP touchscreen display built for the evolving needs of modern workspaces, especially huddle spaces where creativity, flexibility, and seamless sharing take center stage. Powered by Android OS, this interactive display delivers a user-friendly and highly adaptable experience. You can install your preferred apps directly on the device, enabling customized workflows tailored to your environment — whether in a collaborative meeting area, an enterprise innovation hub, or an educational breakout room. The USB-C loop-through feature simplifies connectivity by allowing multiple displays to be easily daisy-chained while transmitting power, data, and video — all through a single cable. This reduces cable clutter and setup time, making it ideal for dynamic workspaces. The included wall mounting bracket makes installation straightforward and secure. With iiSignage2 (CMS), iiControl (DMS), and iiShare (Wireless Presentation) you gain full control over content and messaging, even remotely — perfect for updating shared information or branded visuals on the fly. The integrated EShare app brings wireless screen sharing and collaboration to life, supporting multi-user interaction and real-time ideation. The T5529AS-B1AG isn’t just a display — it’s a collaboration tool designed to empower teams, streamline communication, and make every meeting count.
Display
Panel type: VA
Feature: LED backlight
LED backlighting type: Direct-LED
Display diagonal: 138.7 cm (54.6″)
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 450 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 20
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 6.5 ms
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm
Active display area (W x H): 1209.6 x 680.4 mm
Display diagonal (metric): 139 cm
Horizontal scan range: 28 – 160 kHz
Native refresh rate: 60 Hz
Surface hardness: 8
Glass thickness: 3.7 mm

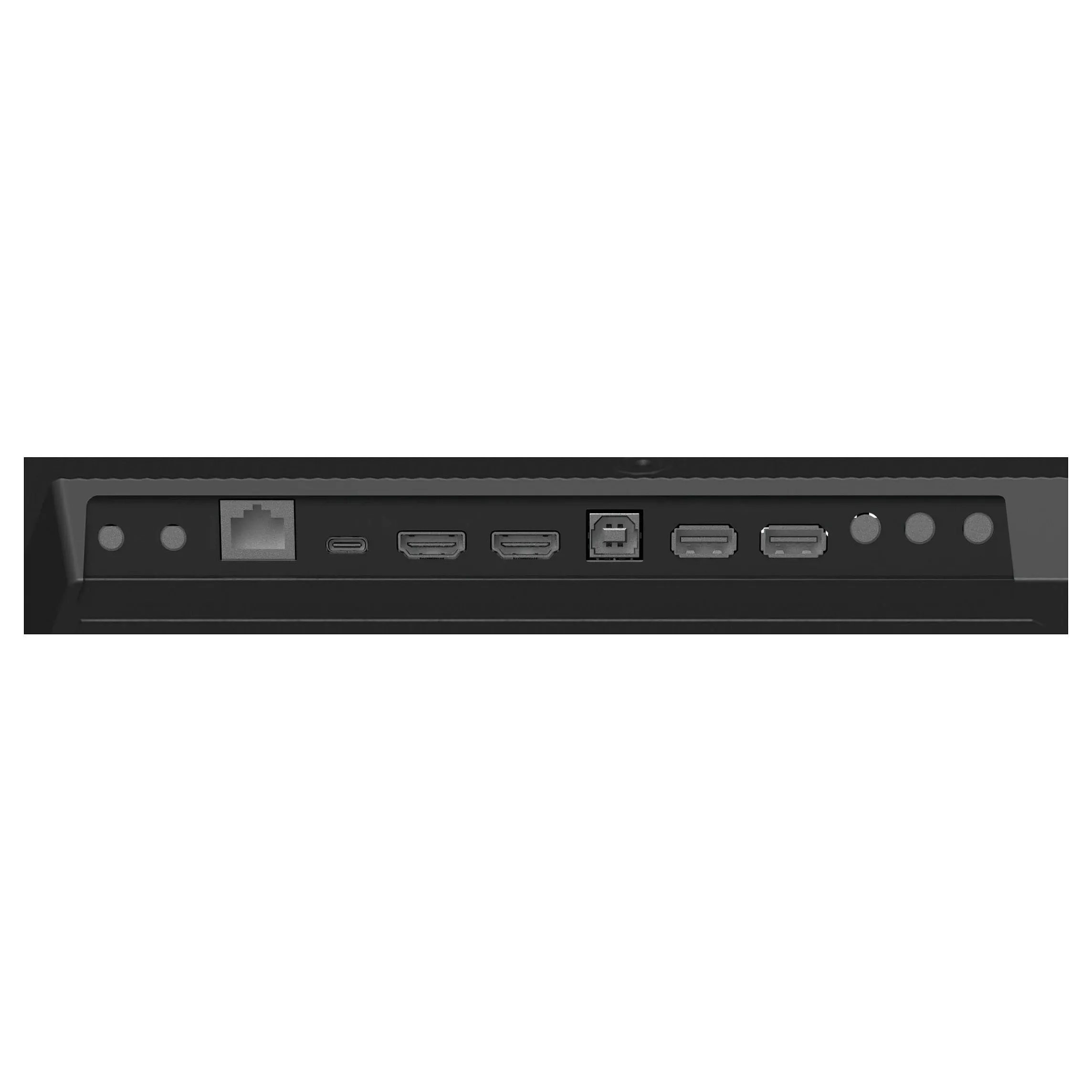

Ports & interfaces
HDMI ports quantity: 2
HDMI version: 1.4/2.0
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Kiosk design
Placement supported: Indoor

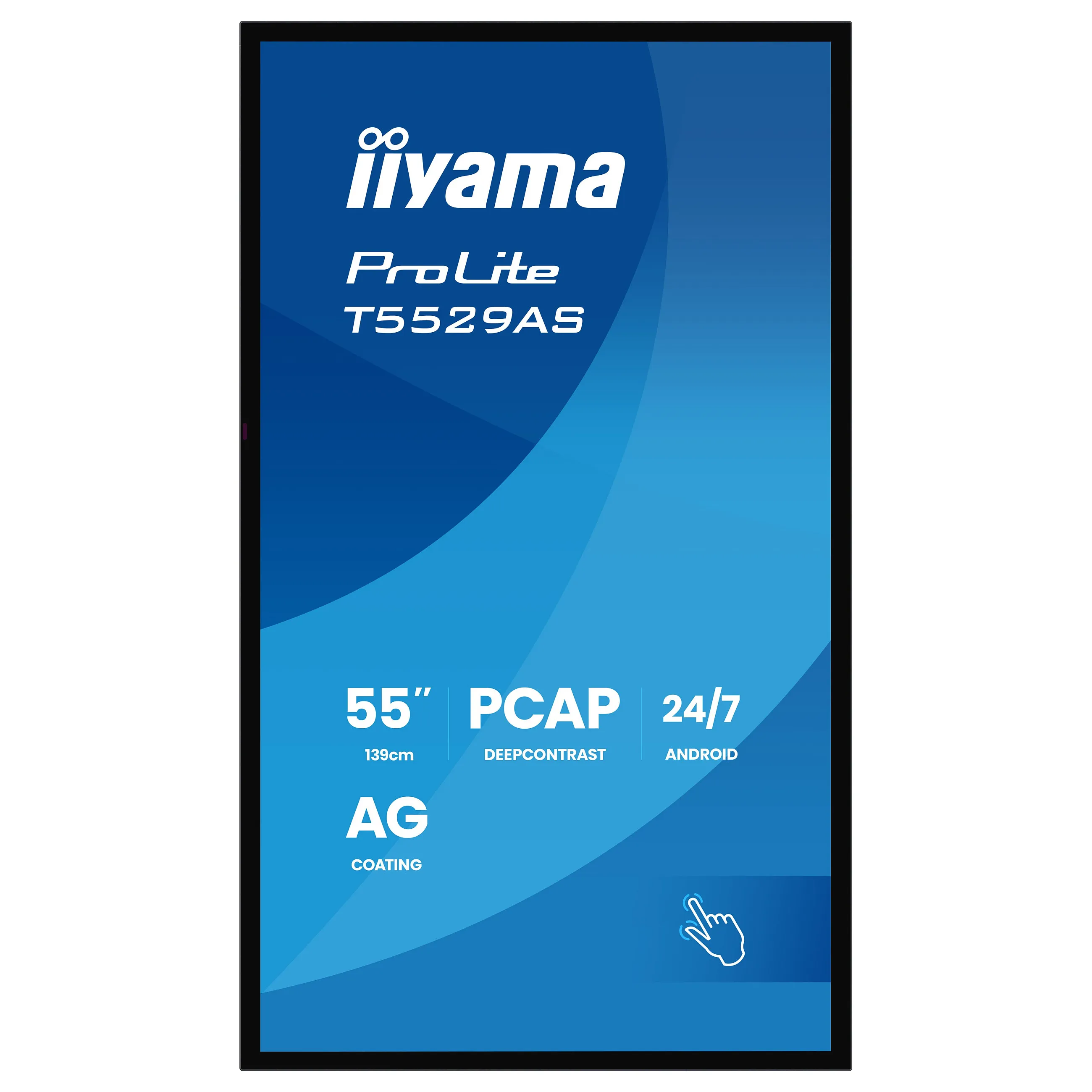

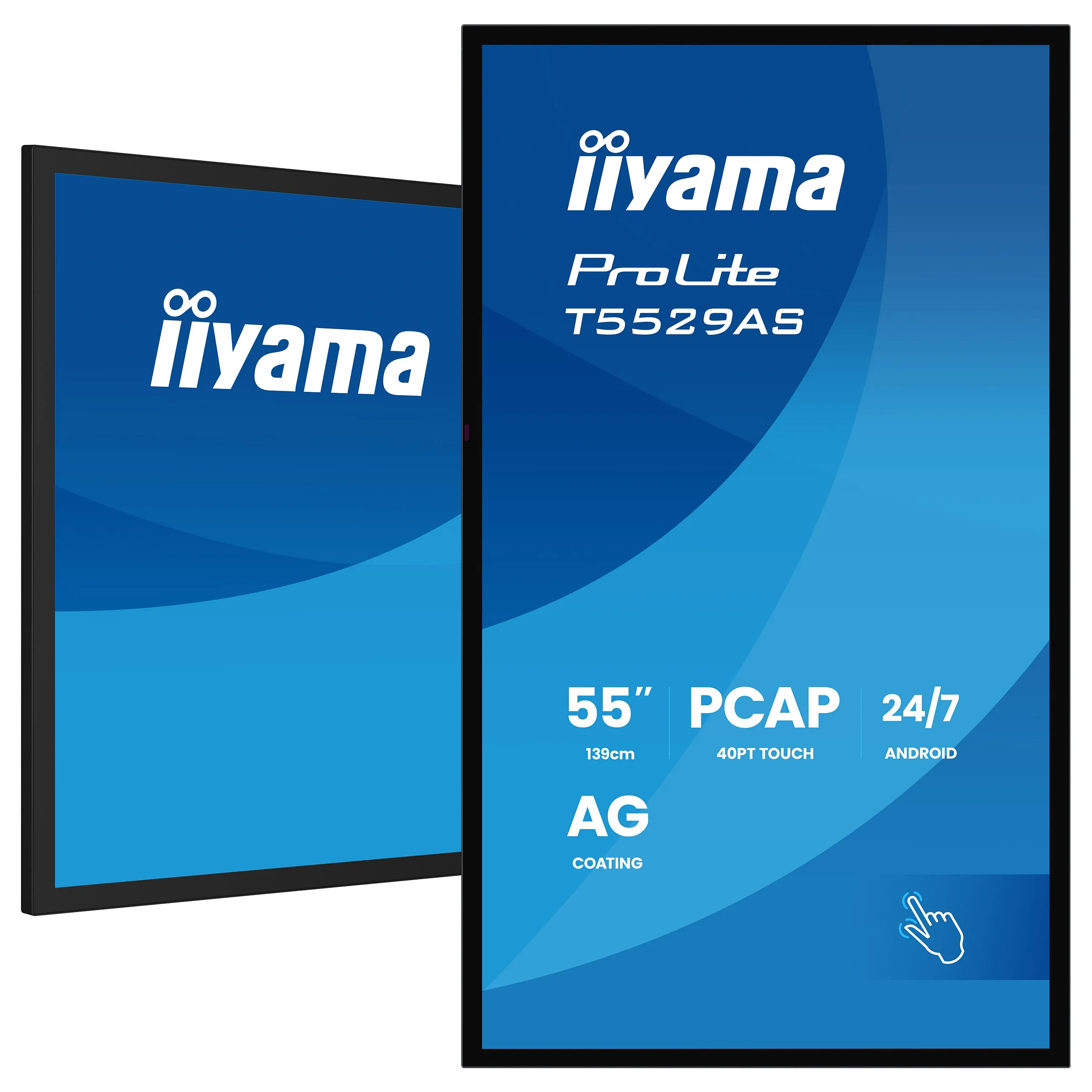

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

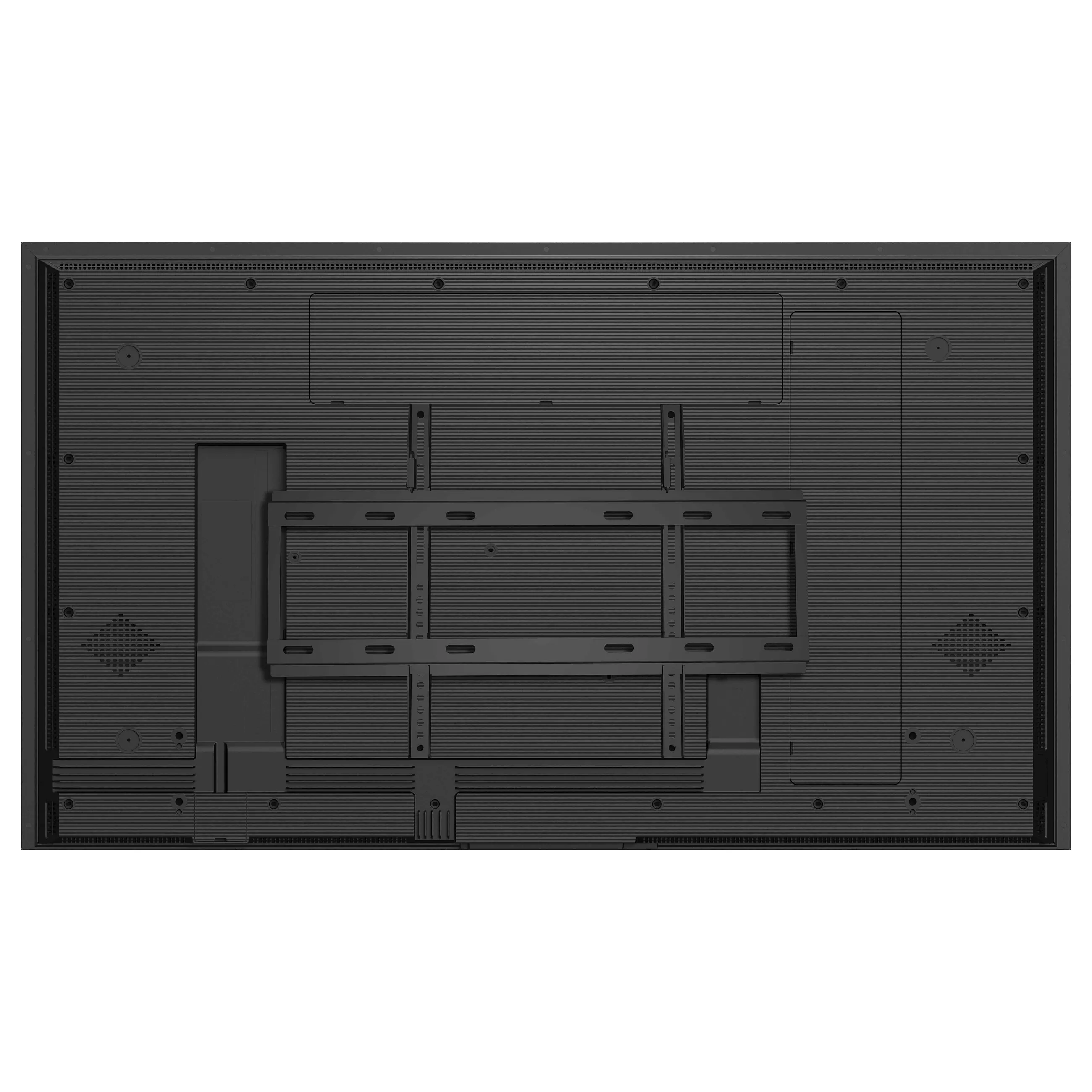

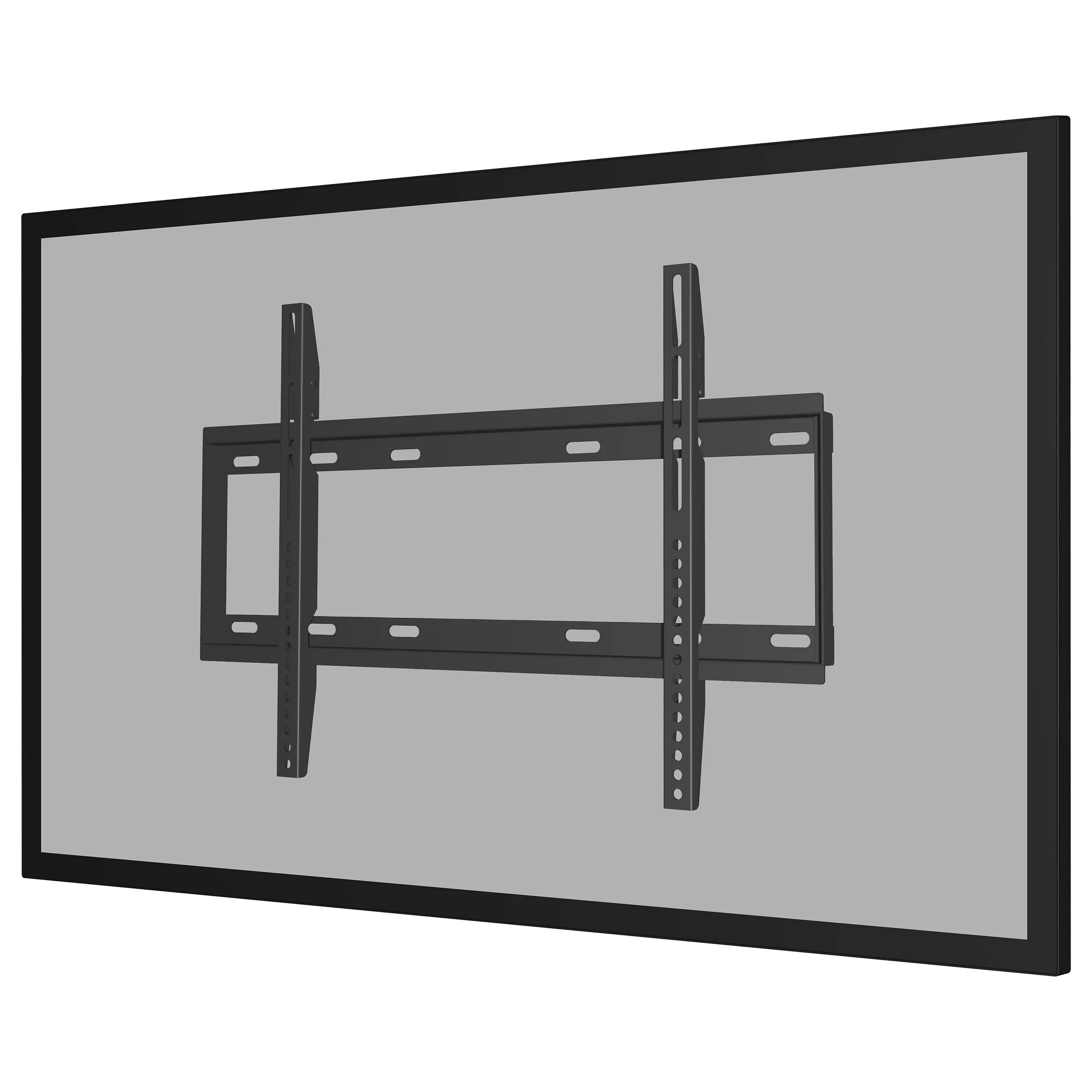

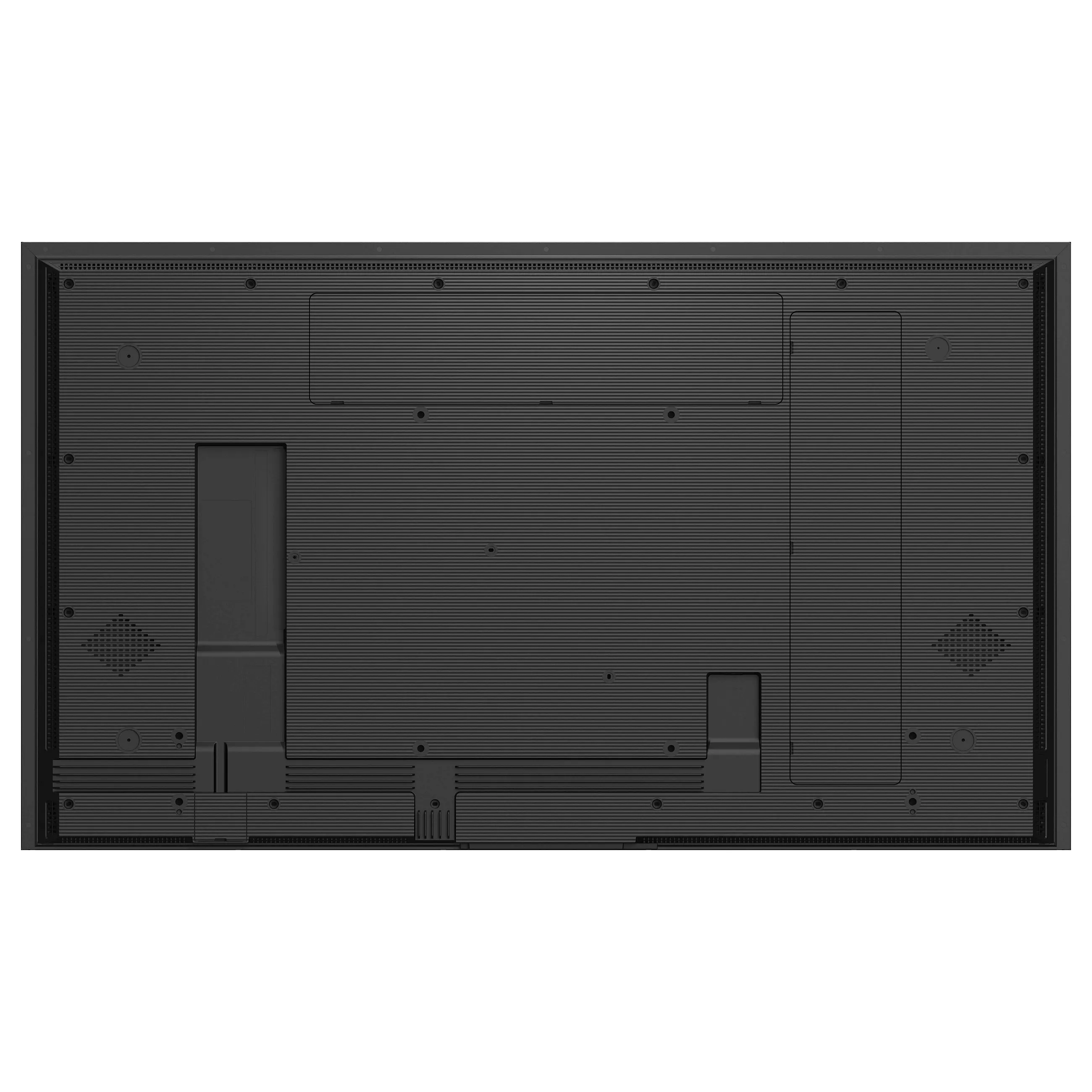

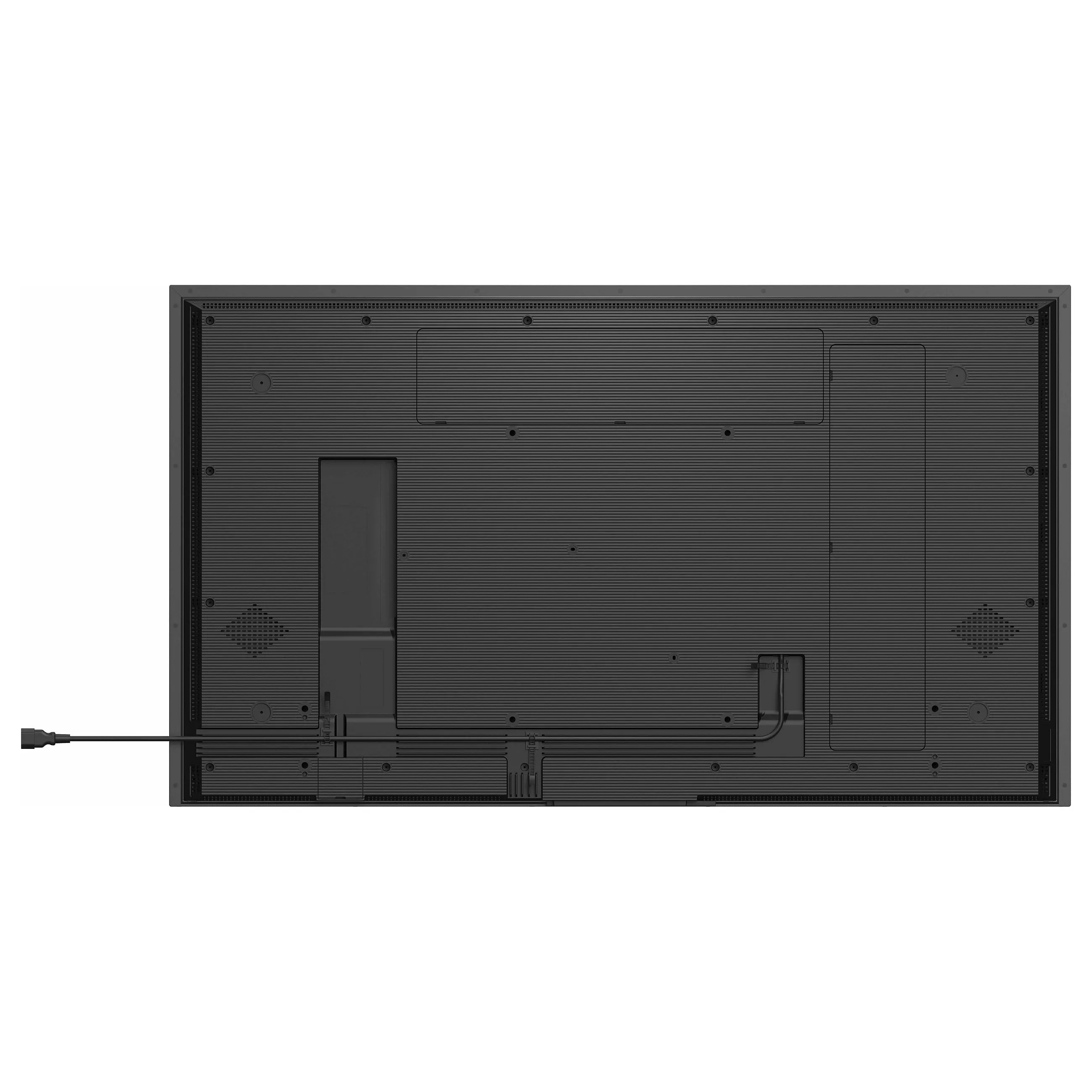

Feature: VESA mounting
Panel mounting interface: 300 x 400 mm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 8
On Screen Display (OSD) languages: Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4/2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 104 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 104 kWh

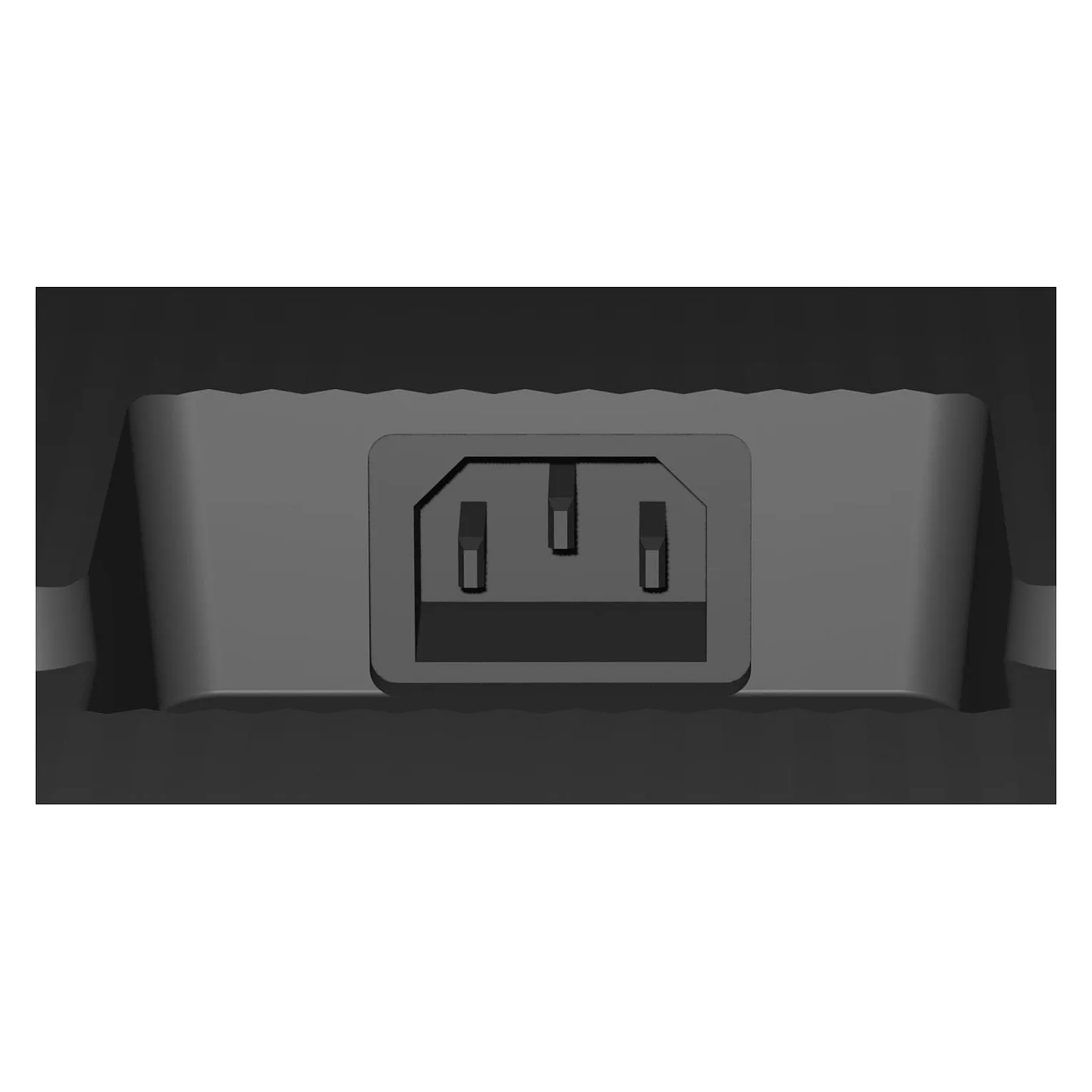

AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A73
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G51
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1258.2 mm

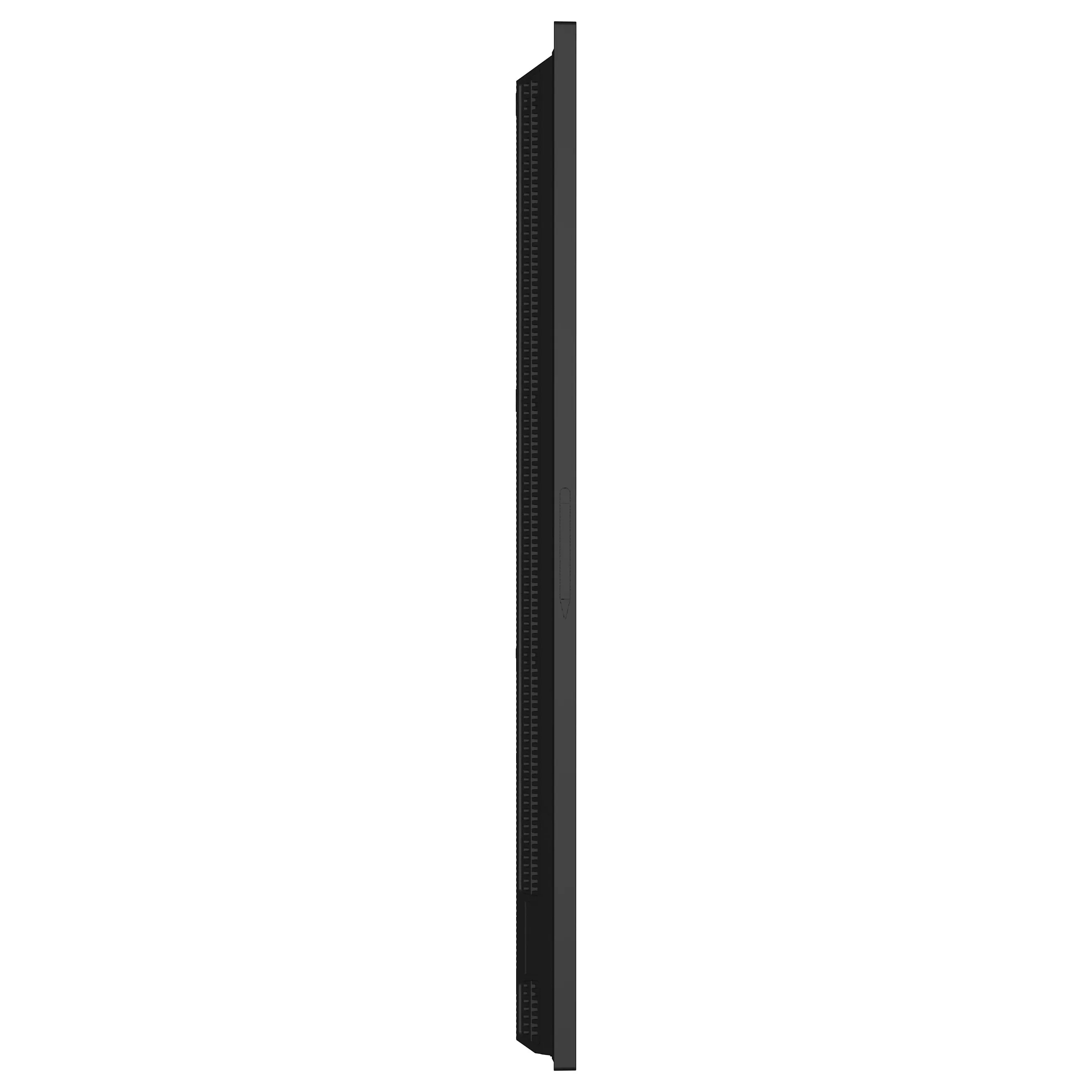

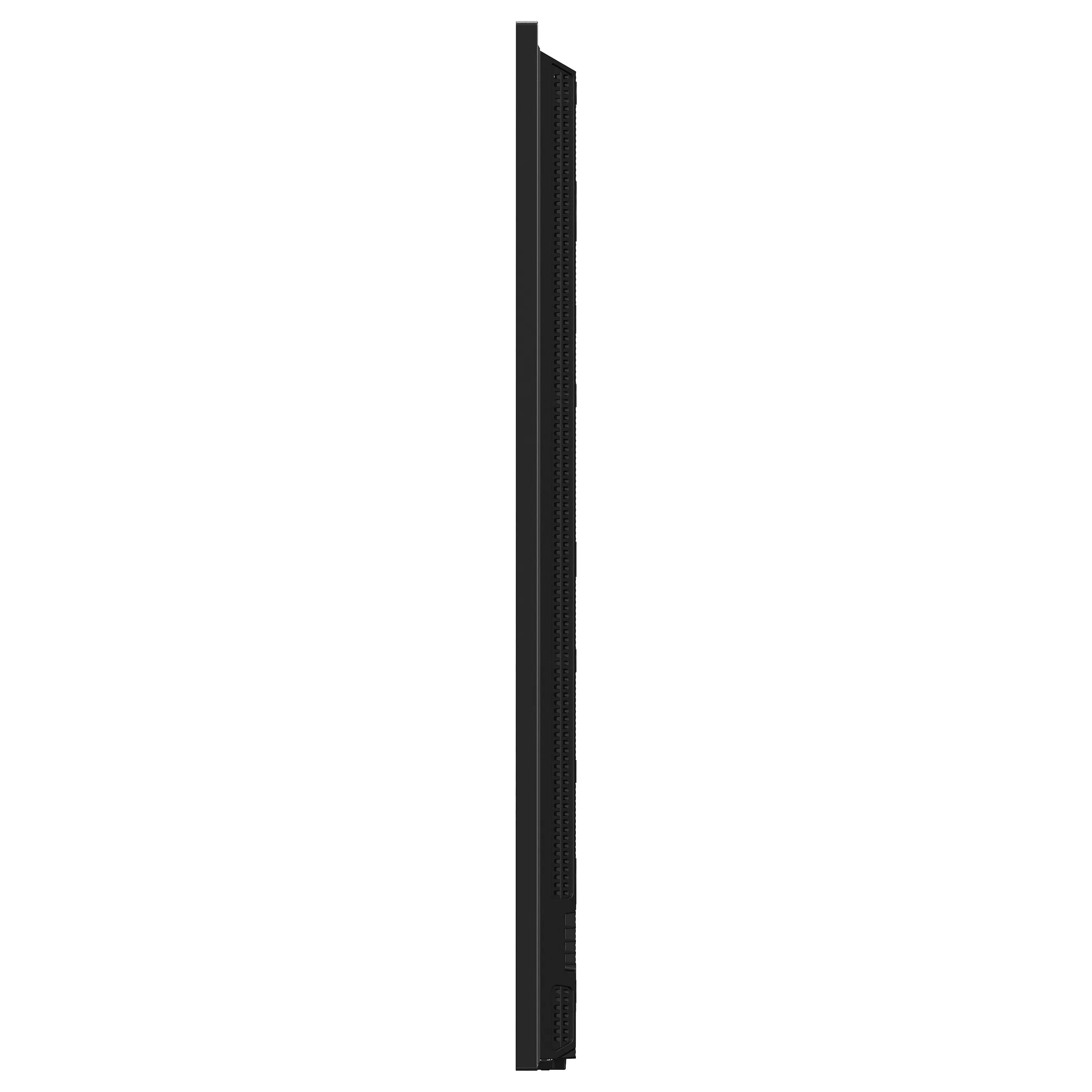

Display depth: 42.3 mm
Display height: 728.8 mm
Display weight: 26.8 kg
Width: 1258.2 mm
Depth: 42.3 mm
Height: 728.8 mm
Weight: 26.8 kg
Width (with stand): 1258.2 mm
Depth (with stand): 42.3 mm
Height (with stand): 728.8 mm
Weight (with stand): 26.8 kg
Packaging data
Package width: 1400 mm
Package depth: 164 mm
Package height: 850 mm
Package weight: 32.7 kg
Packaging content
Feature: Remote control included
Feature: Batteries included

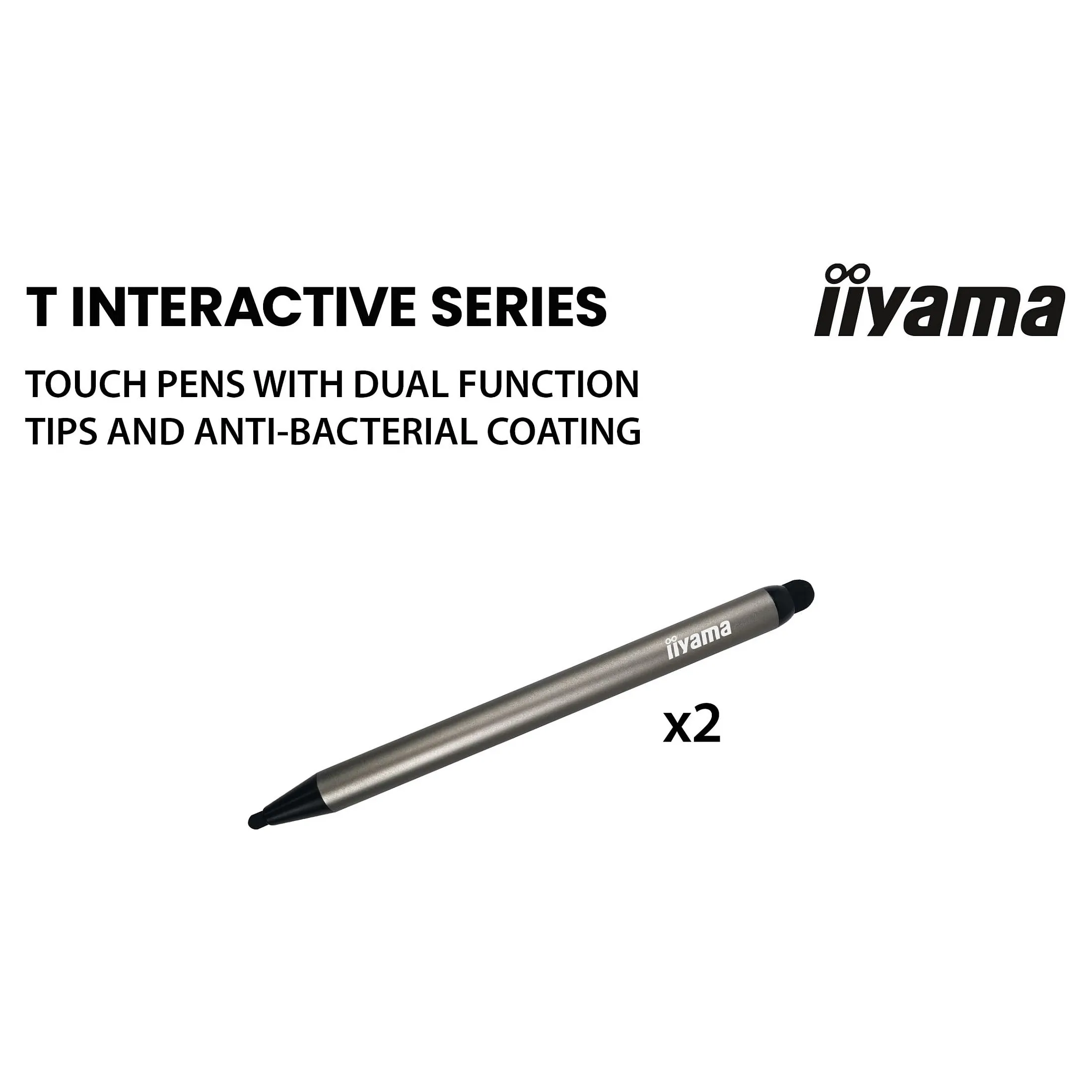

Feature: Stylus pen
Number of stylus pens: 2

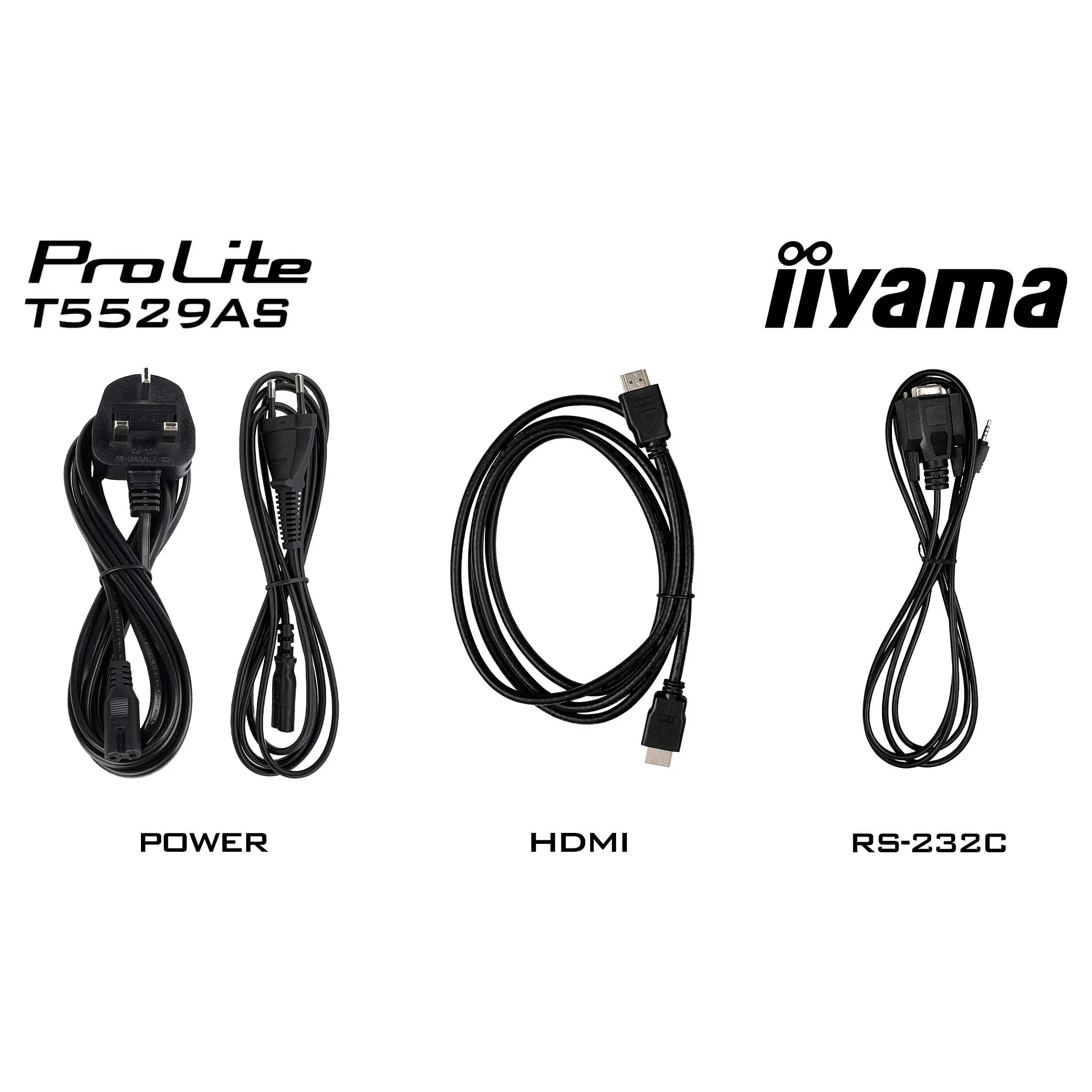

Cables included: AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): -20 – 60%
Certificates
Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Technical details
Sustainability certificates: ErP
Compliance certificates: CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Feature: Quick start guide
Backlight type: Direct LED
Viewable size, horizontal: 121 cm
Viewable size, vertical: 68 cm
Brightness: 450 cd/m²
Power supply type: Internal
Panel type: VA
Feature: LED backlight
LED backlighting type: Direct-LED
Display diagonal: 138.7 cm (54.6″)
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 450 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 20
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 6.5 ms
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm
Active display area (W x H): 1209.6 x 680.4 mm
Display diagonal (metric): 139 cm
Horizontal scan range: 28 – 160 kHz
Native refresh rate: 60 Hz
Surface hardness: 8
Glass thickness: 3.7 mm
Ports & interfaces
HDMI ports quantity: 2
HDMI version: 1.4/2.0
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Kiosk design
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 300 x 400 mm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 8
On Screen Display (OSD) languages: Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4/2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 104 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 104 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A73
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G51
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1258.2 mm
Display depth: 42.3 mm
Display height: 728.8 mm
Display weight: 26.8 kg
Width: 1258.2 mm
Depth: 42.3 mm
Height: 728.8 mm
Weight: 26.8 kg
Width (with stand): 1258.2 mm
Depth (with stand): 42.3 mm
Height (with stand): 728.8 mm
Weight (with stand): 26.8 kg
Packaging data
Package width: 1400 mm
Package depth: 164 mm
Package height: 850 mm
Package weight: 32.7 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Feature: Stylus pen
Number of stylus pens: 2
Cables included: AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): -20 – 60%
Certificates
Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Technical details
Sustainability certificates: ErP
Compliance certificates: CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Feature: Quick start guide
Backlight type: Direct LED
Viewable size, horizontal: 121 cm
Viewable size, vertical: 68 cm
Brightness: 450 cd/m²
Power supply type: Internal
