iiyama T4329AS-B1AG. Display diagonal: 108 cm (42.5"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LED, Response time: 6.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black

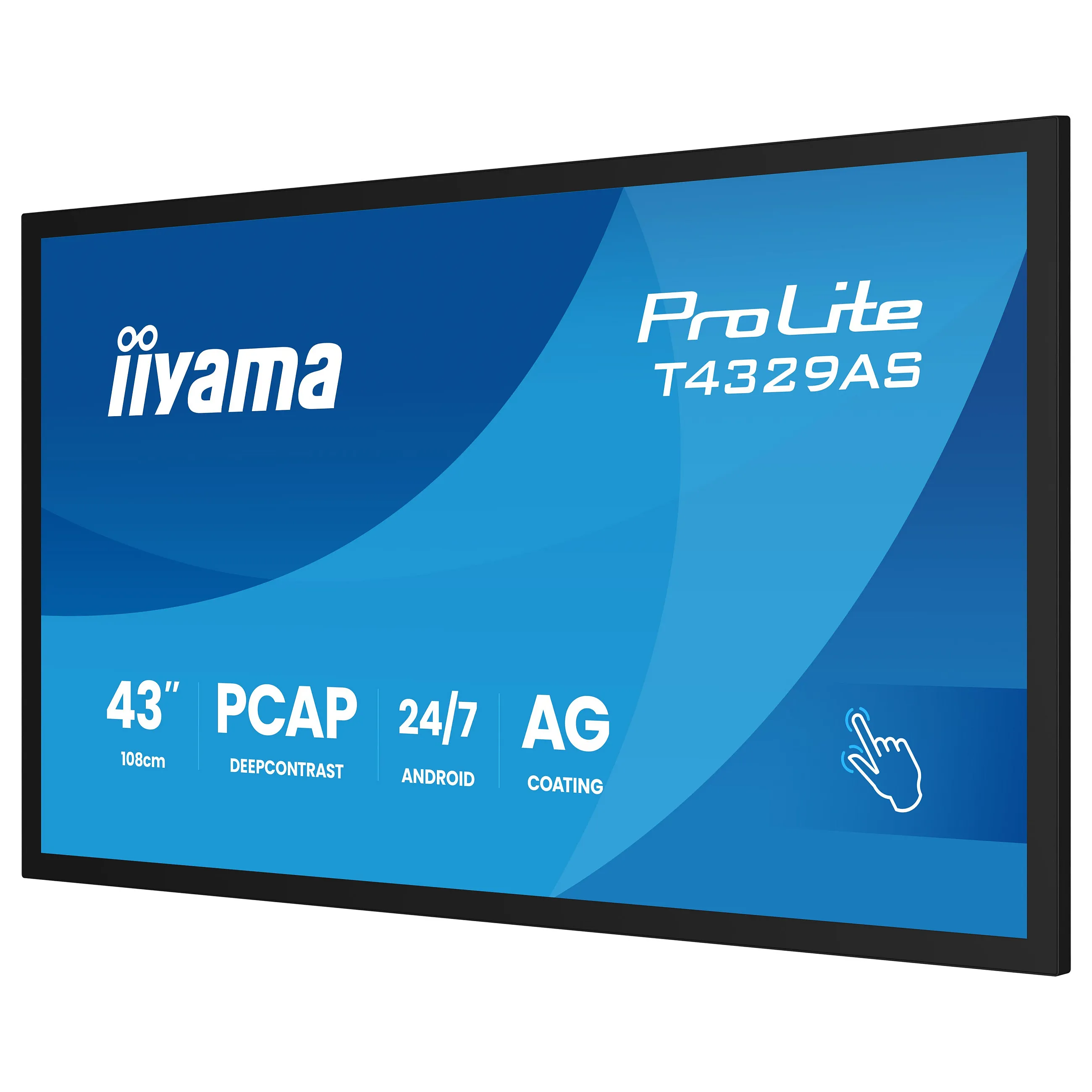

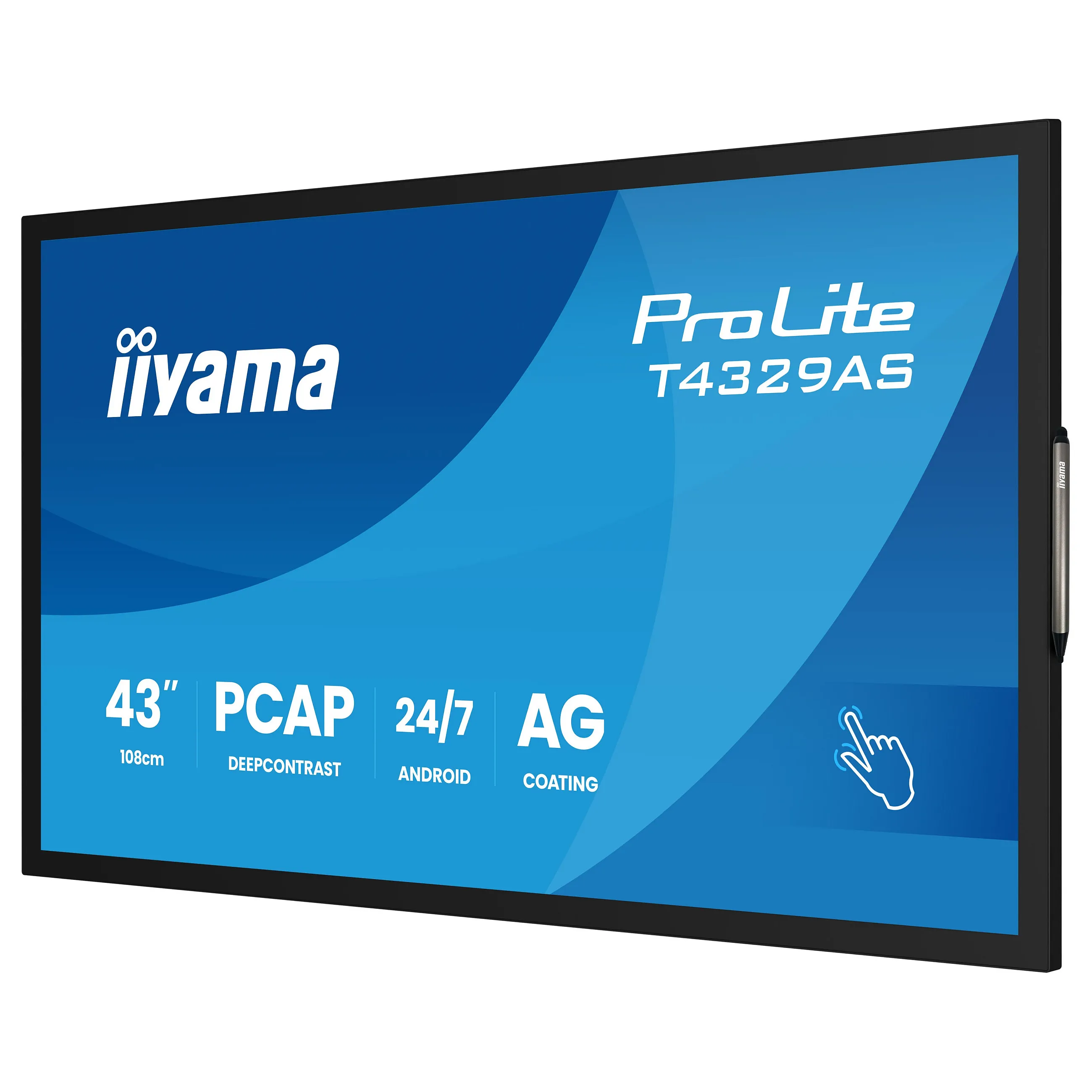

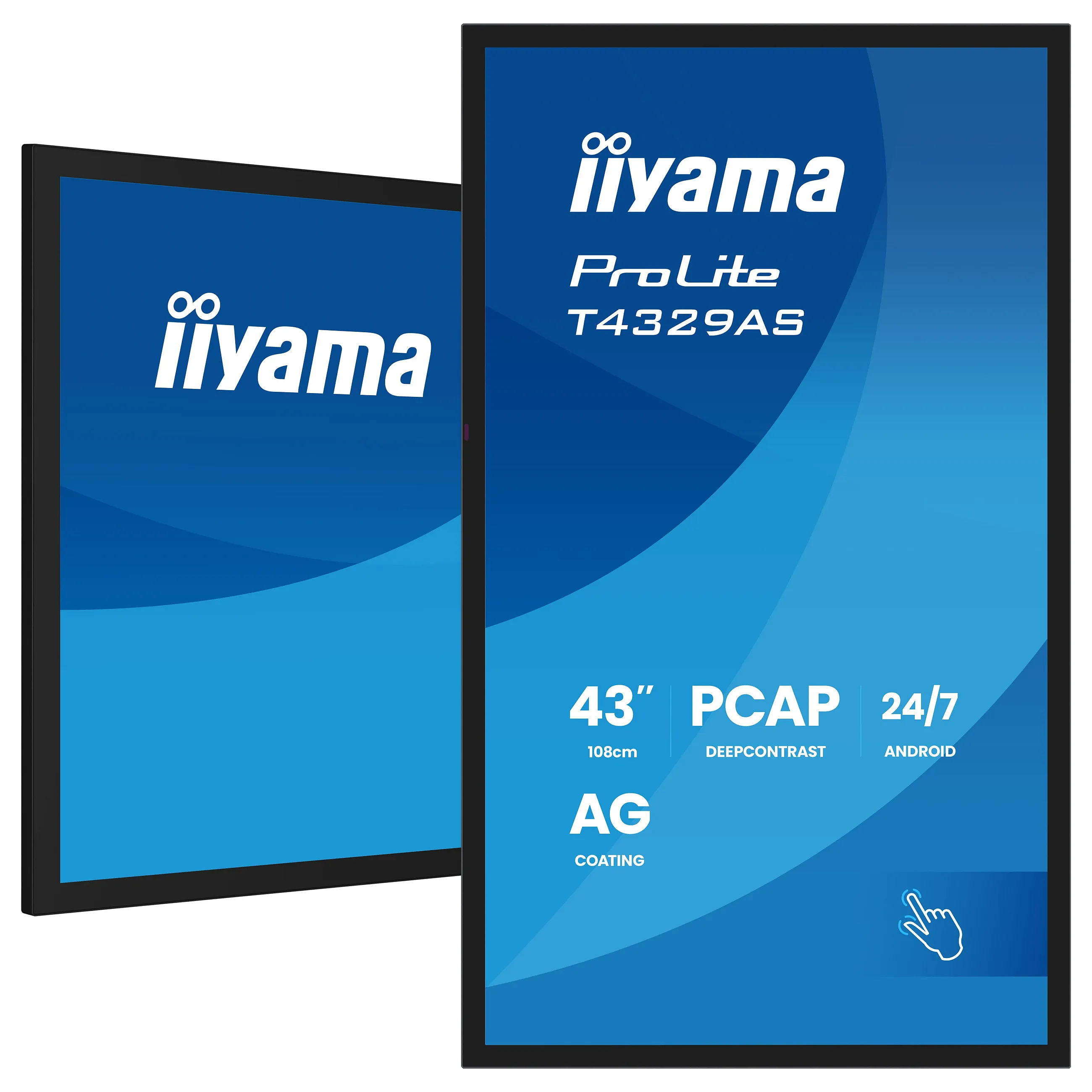

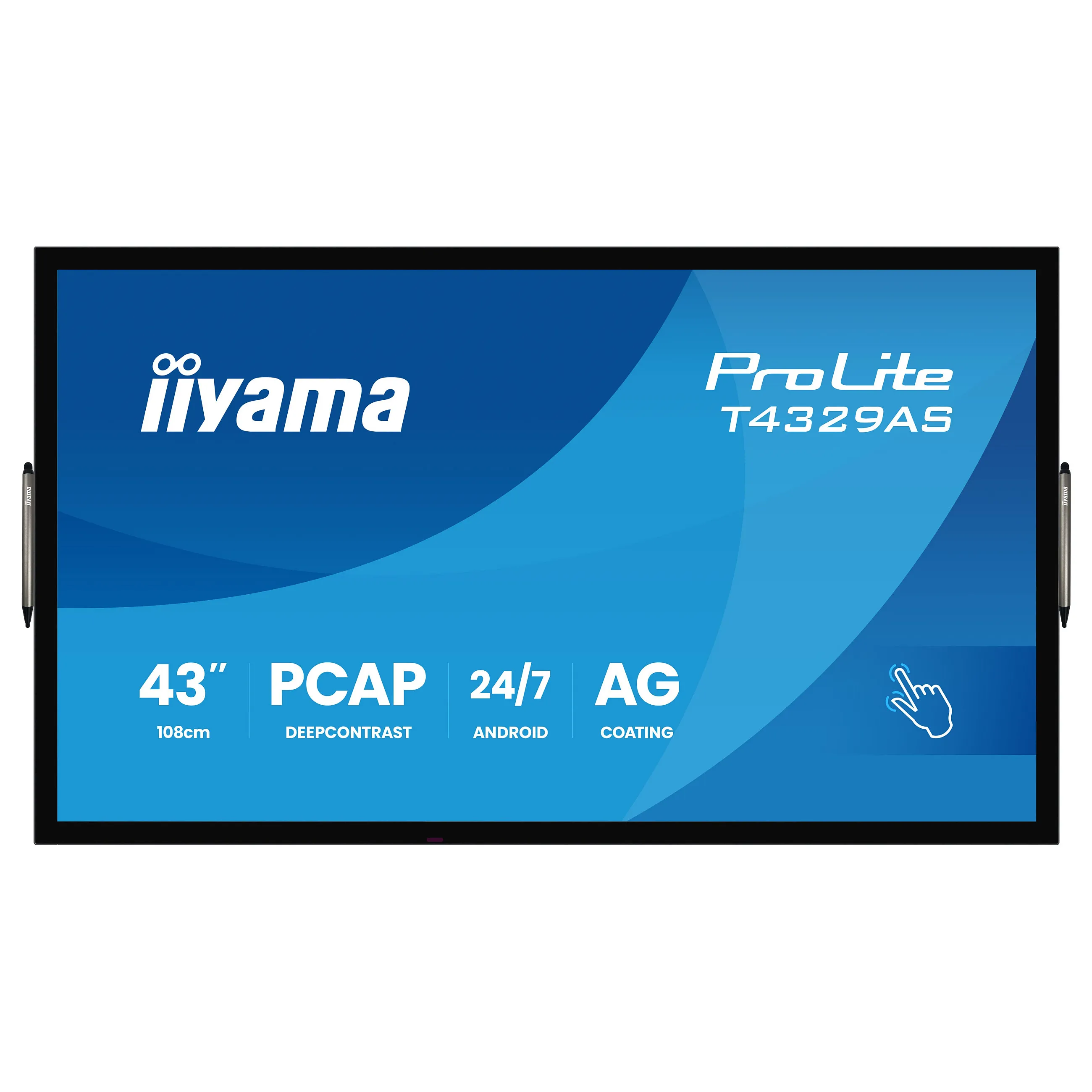

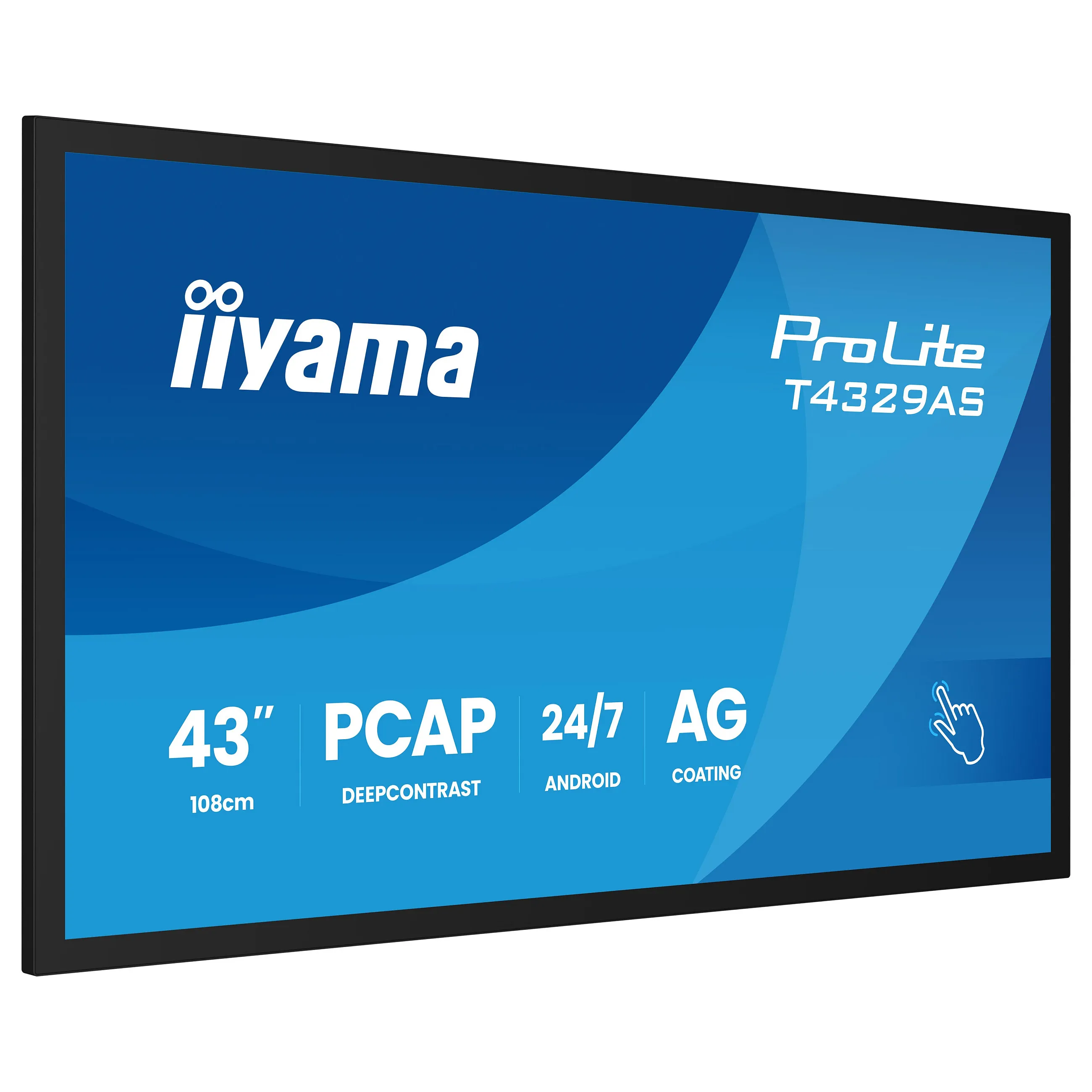

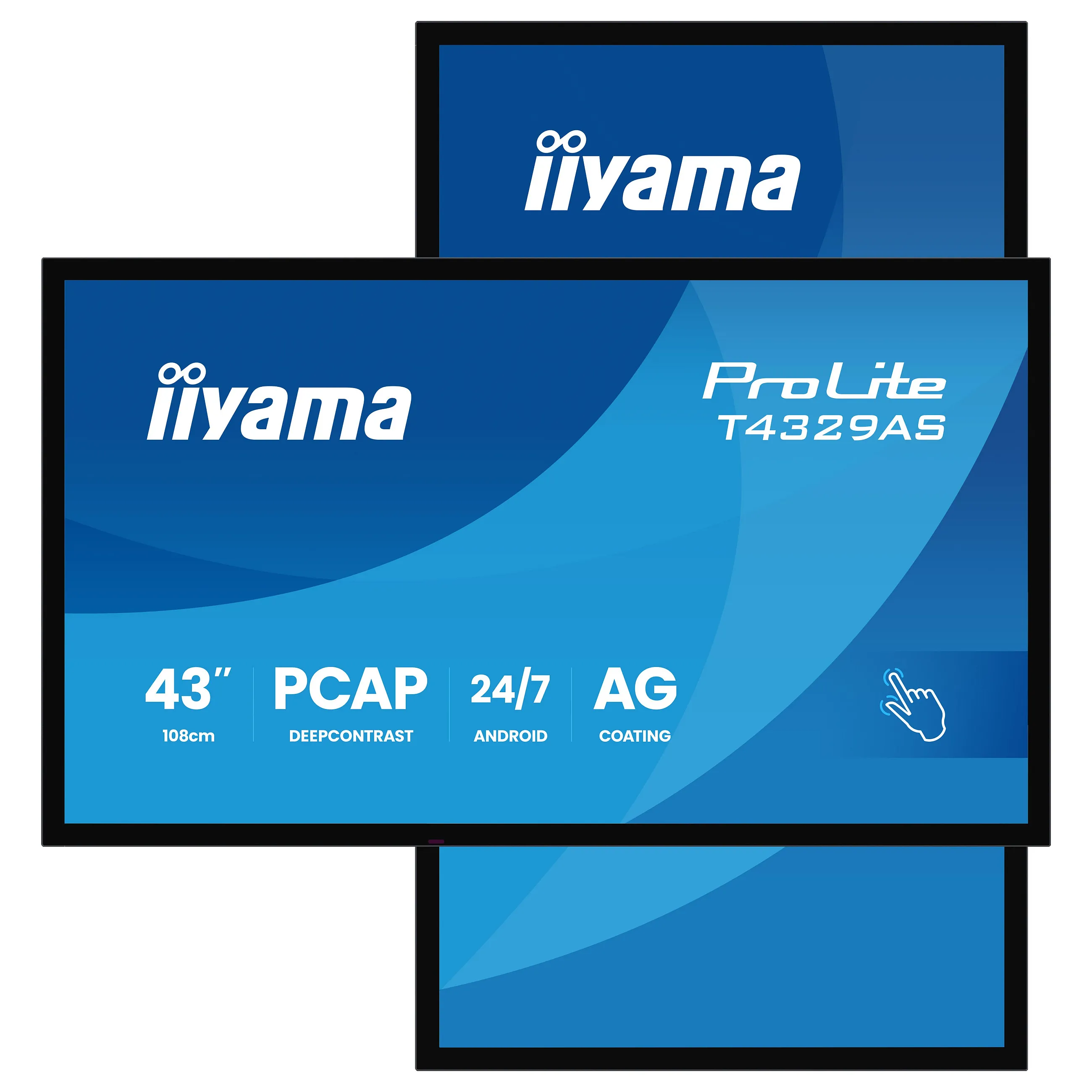

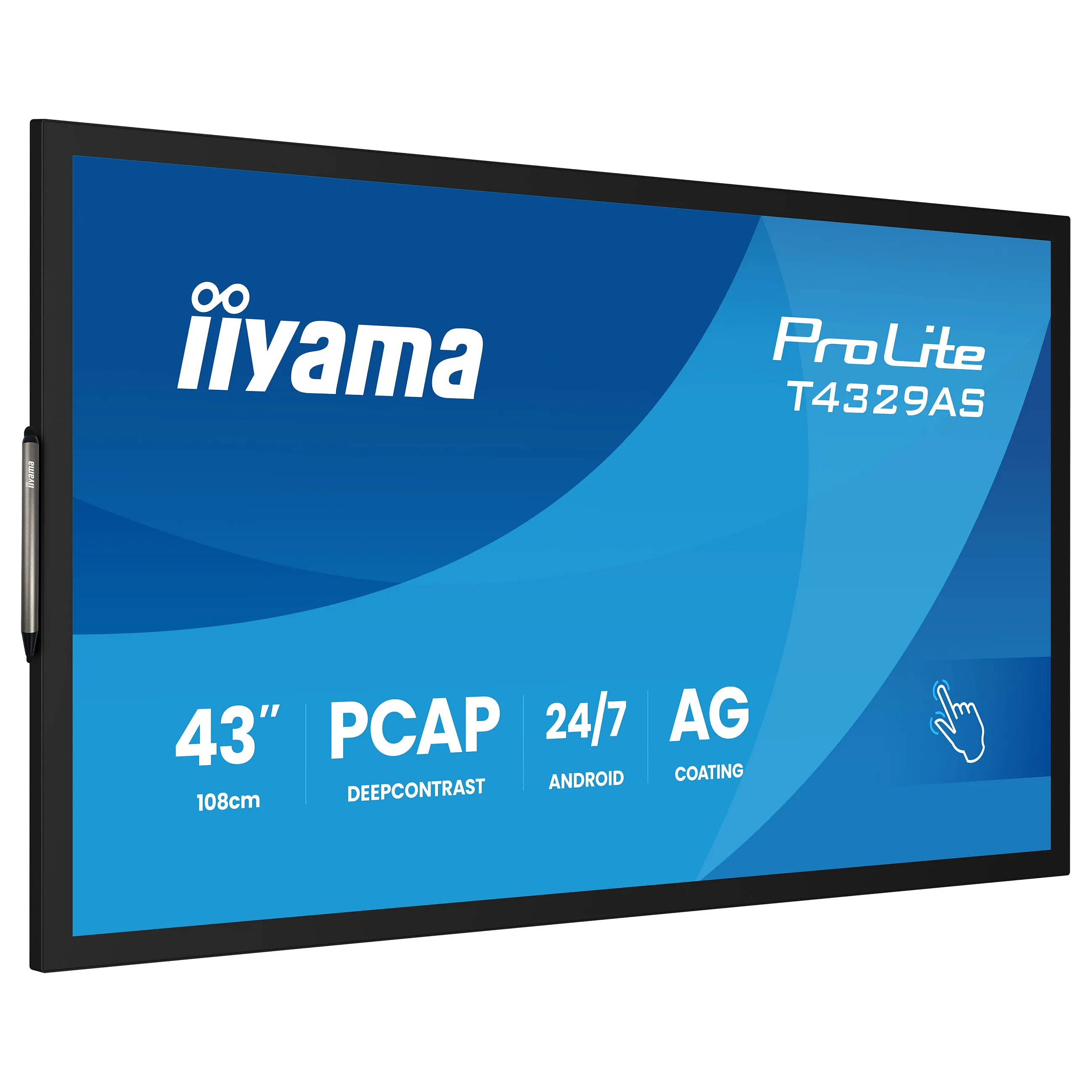

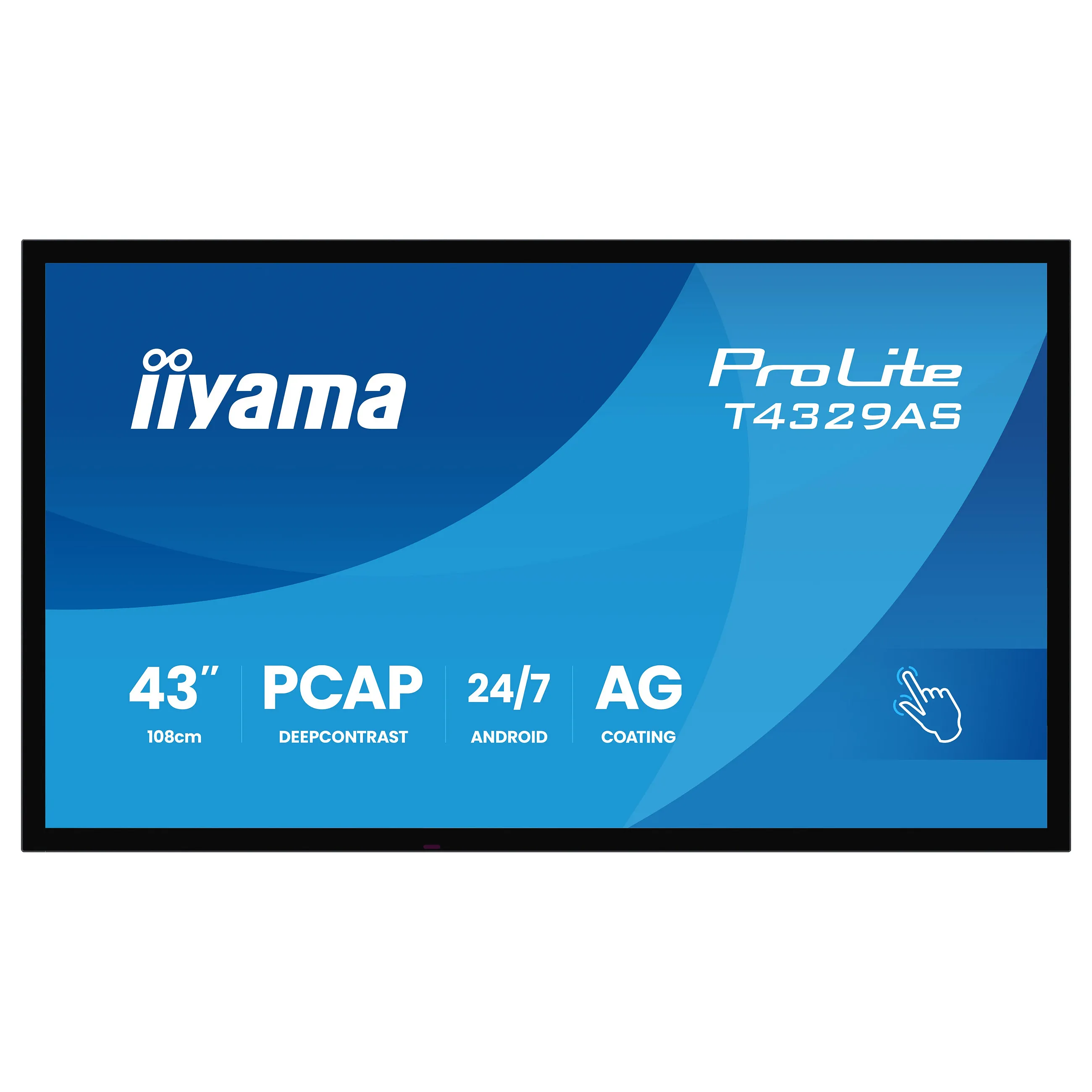

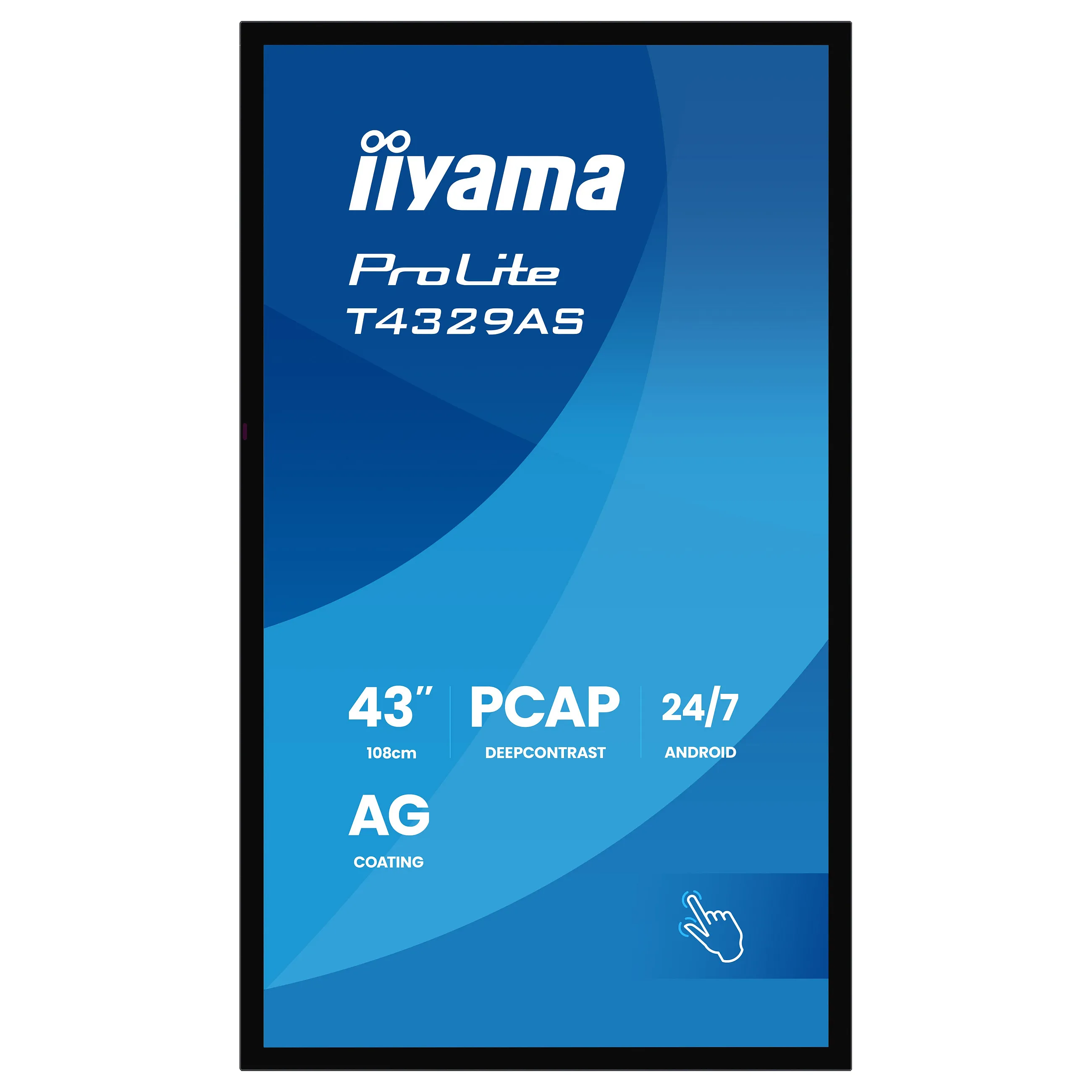

The ProLite T4329AS-B1AG is a 43″ all-in-one PCAP touchscreen display built for the evolving needs of modern workspaces, especially huddle spaces where creativity, flexibility, and seamless sharing take center stage. Powered by Android OS, this interactive display delivers a user-friendly and highly adaptable experience. You can install your preferred apps directly on the device, enabling customized workflows tailored to your environment — whether in a collaborative meeting area, an enterprise innovation hub, or an educational breakout room. The USB-C loop-through feature simplifies connectivity by allowing multiple displays to be easily daisy-chained while transmitting power, data, and video — all through a single cable. This reduces cable clutter and setup time, making it ideal for dynamic workspaces. The included wall mounting bracket makes installation straightforward and secure. With iiSignage2 (CMS), iiControl (DMS), and iiShare (Wireless Presentation) you gain full control over content and messaging, even remotely — perfect for updating shared information or branded visuals on the fly. The integrated EShare app brings wireless screen sharing and collaboration to life, supporting multi-user interaction and real-time ideation. The T4329AS-B1AG isn’t just a display — it’s a collaboration tool designed to empower teams, streamline communication, and make every meeting count.
Display
Display diagonal: 108 cm (42.5″)
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: VA
Feature: LED backlight
Backlight type: Direct LED
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 20
Display brightness (typical): 500 cd/m²
Display brightness: 420 cd/m²
Response time: 6.5 ms
Response time measurement type: GTG (Gray to Gray)
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.245 x 0.245 mm
Horizontal scan range: 28 – 160 kHz
Viewable size, horizontal: 94.1 cm
Viewable size, vertical: 52.9 cm
Display diagonal (metric): 108 cm
Surface hardness: 8
NTSC coverage (typical): 72%
Performance
Operating hours (hours/days): 24/7
Operating system installed: Android
Operating system version: 14
Feature: Palm rejection
Multimedia
Number of speakers: 2
RMS rated power: 20 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.7 mm

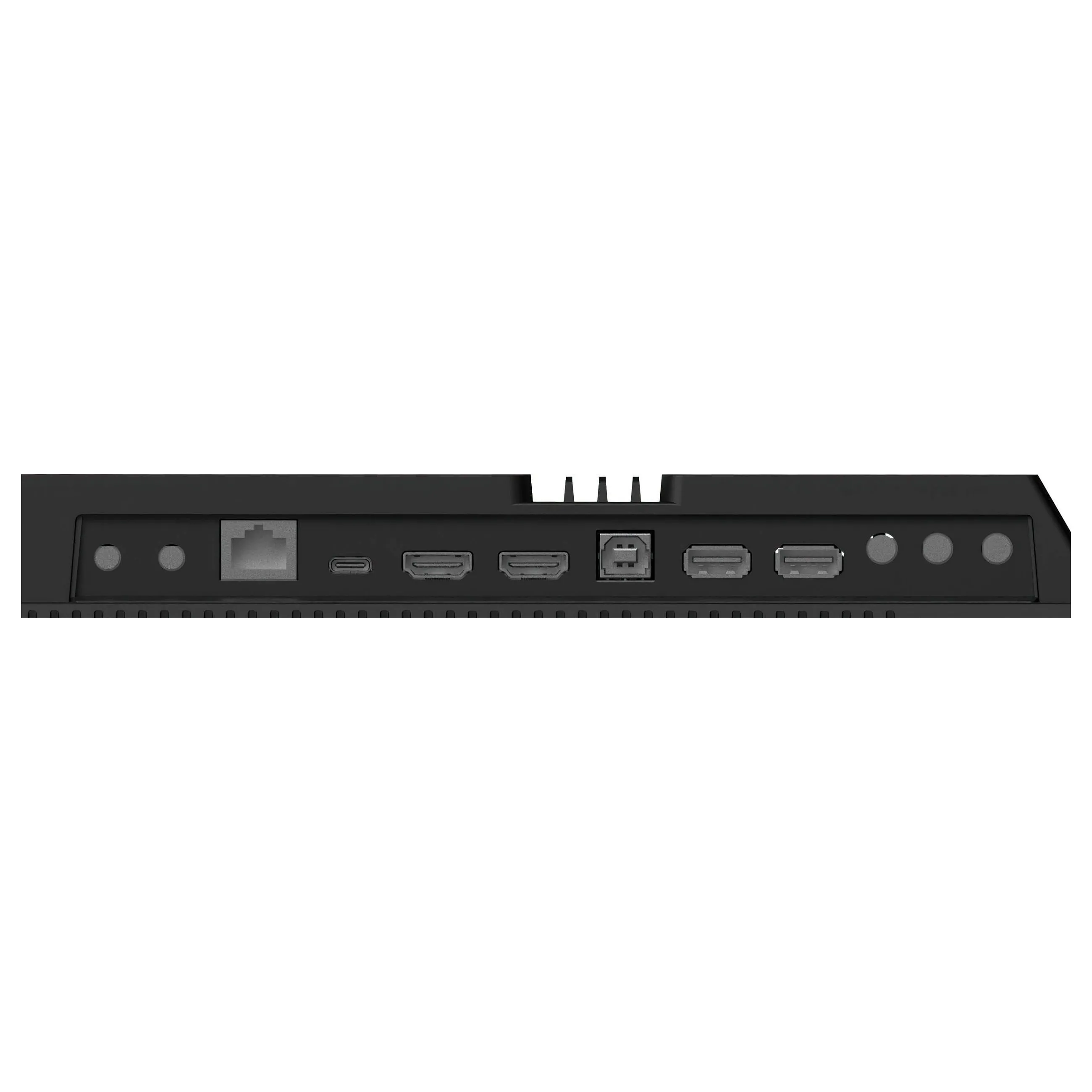

Ports & interfaces
USB version: 2.0
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: USB Touch port
HDMI ports quantity: 2
HDMI version: 1.4/2.0
Feature: HDCP
HDCP version: 1.4/2.2
Feature: RS-232C
Network
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Feature: Ethernet LAN
Ergonomics

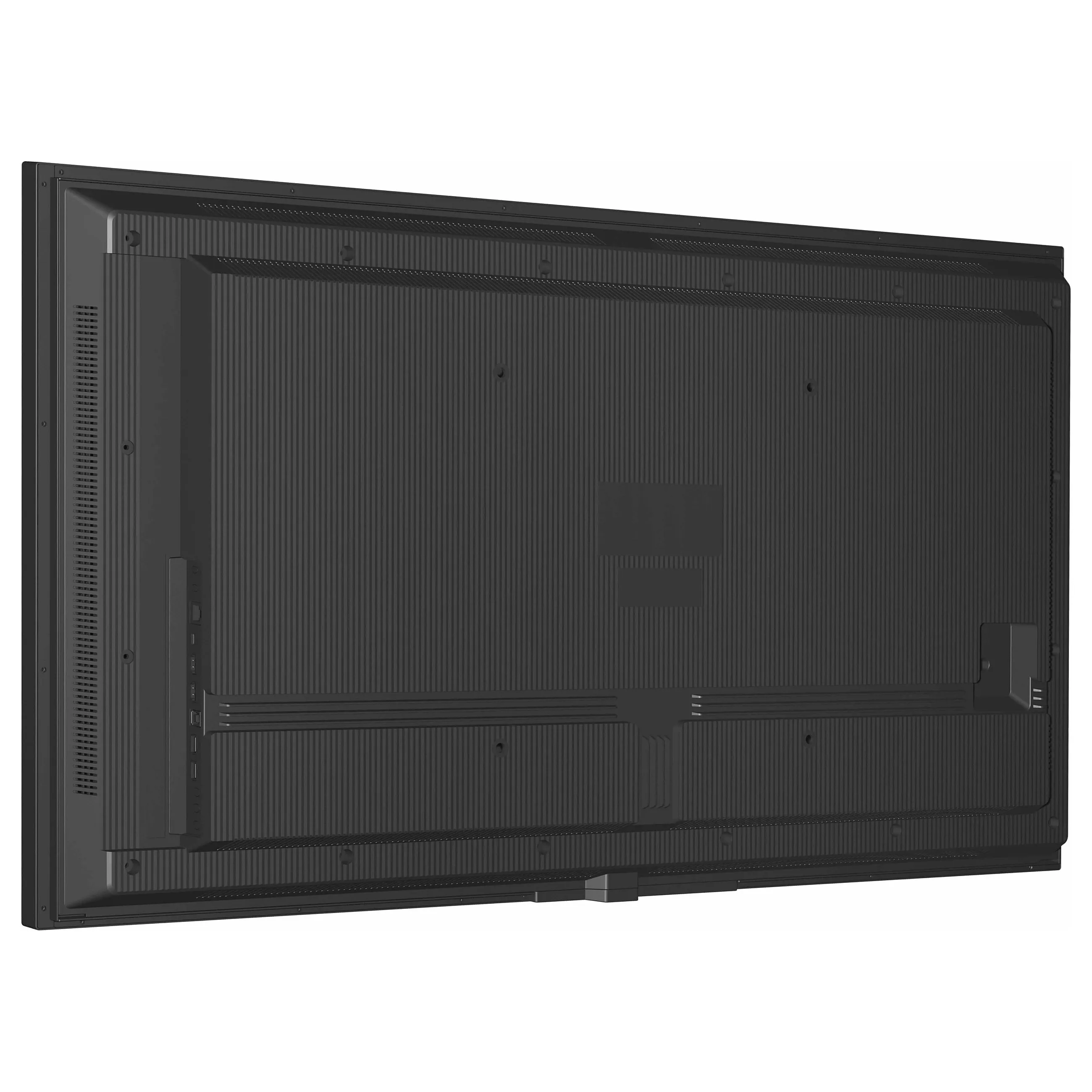

Feature: VESA mounting

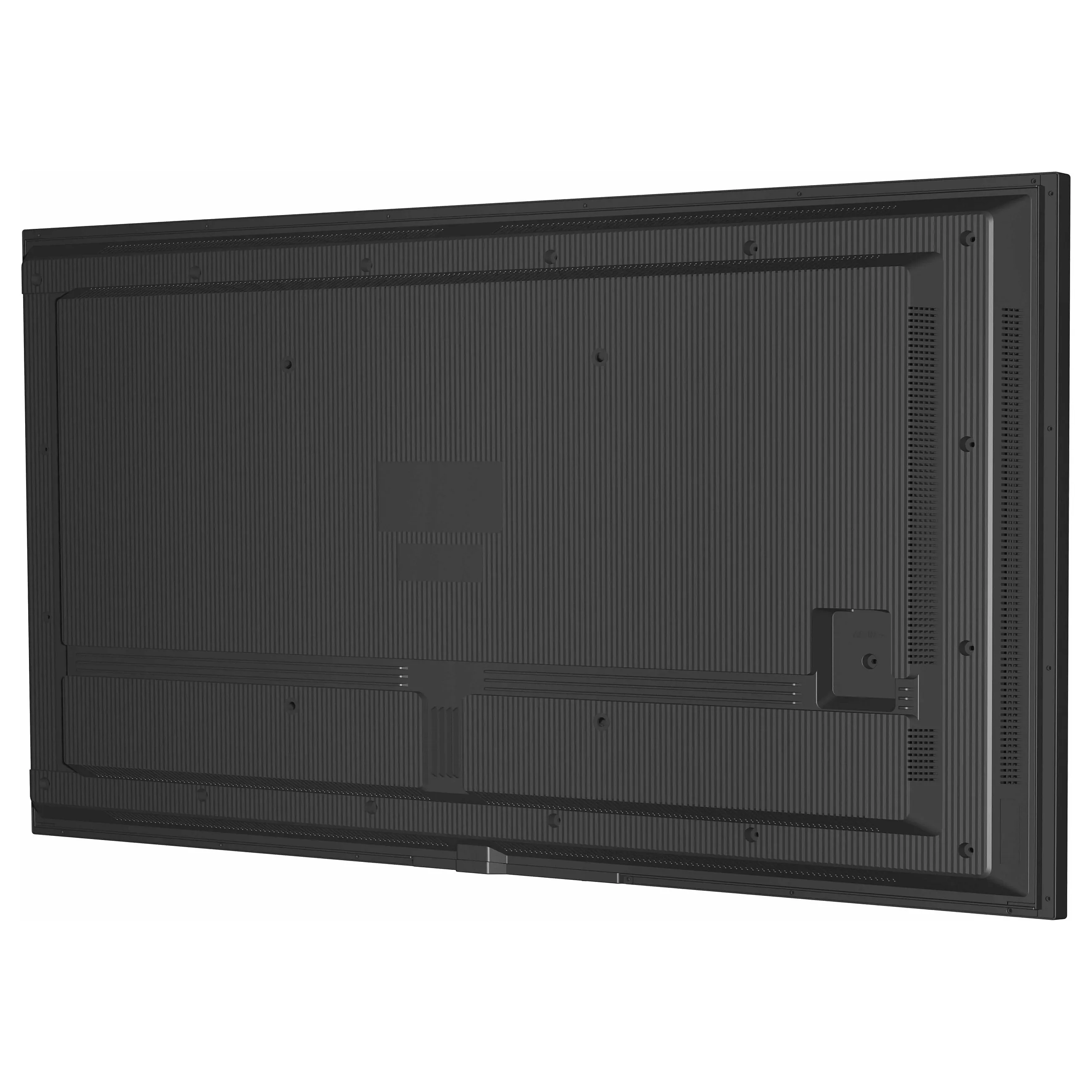

Panel mounting interface: 300 x 300 mm
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Japanese, Dutch, Polish, Russian
Number of OSD languages: 8
Power
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 98 kWh
Power consumption (typical): 98 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

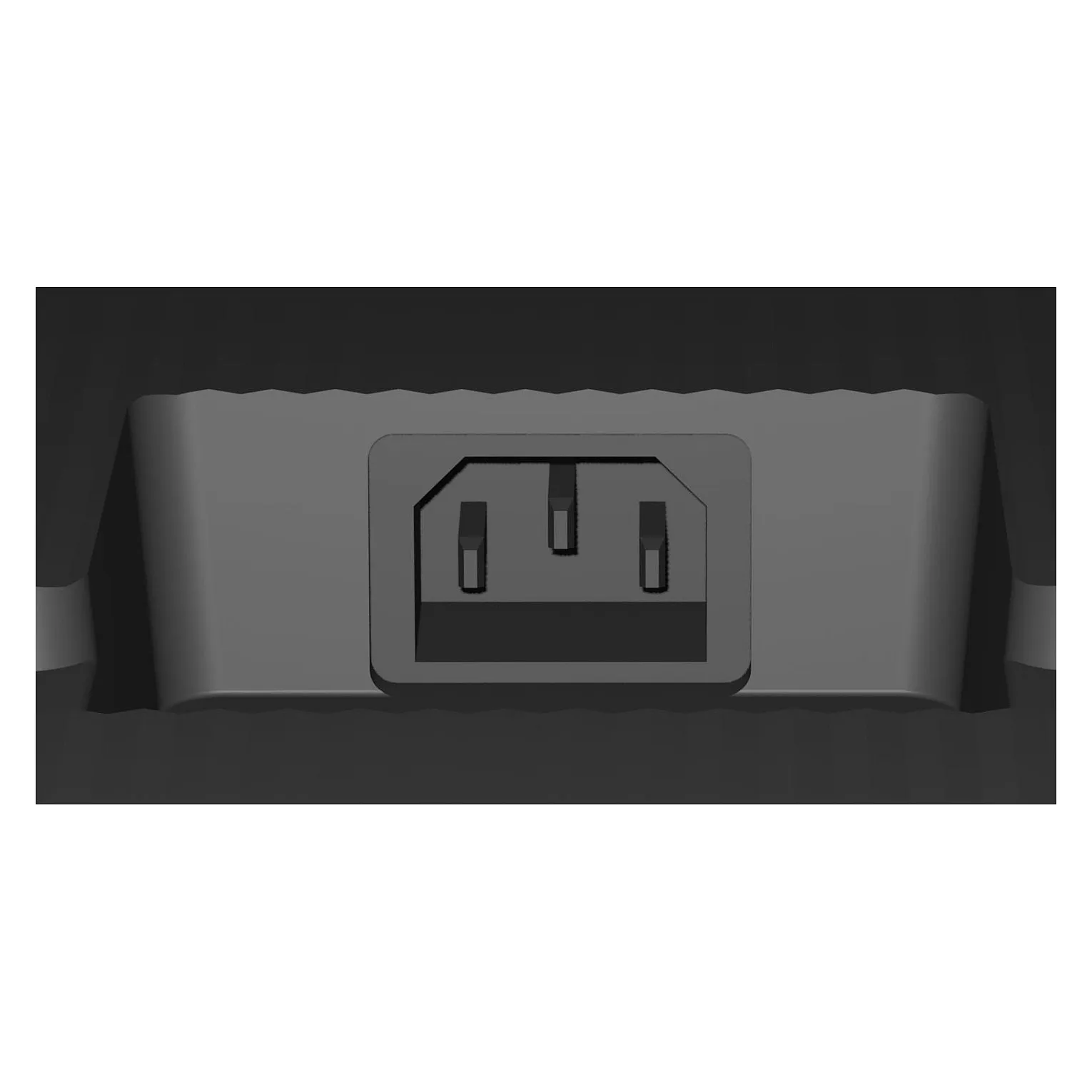

AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): -20 – 60%
Weight & dimensions
Width (with stand): 989.6 mm
Depth (with stand): 72.8 mm
Height (with stand): 577.8 mm
Weight (with stand): 13.7 kg
Packaging data
Package width: 1115 mm
Package depth: 144 mm
Package height: 730 mm
Package weight: 17.6 kg
Packaging content

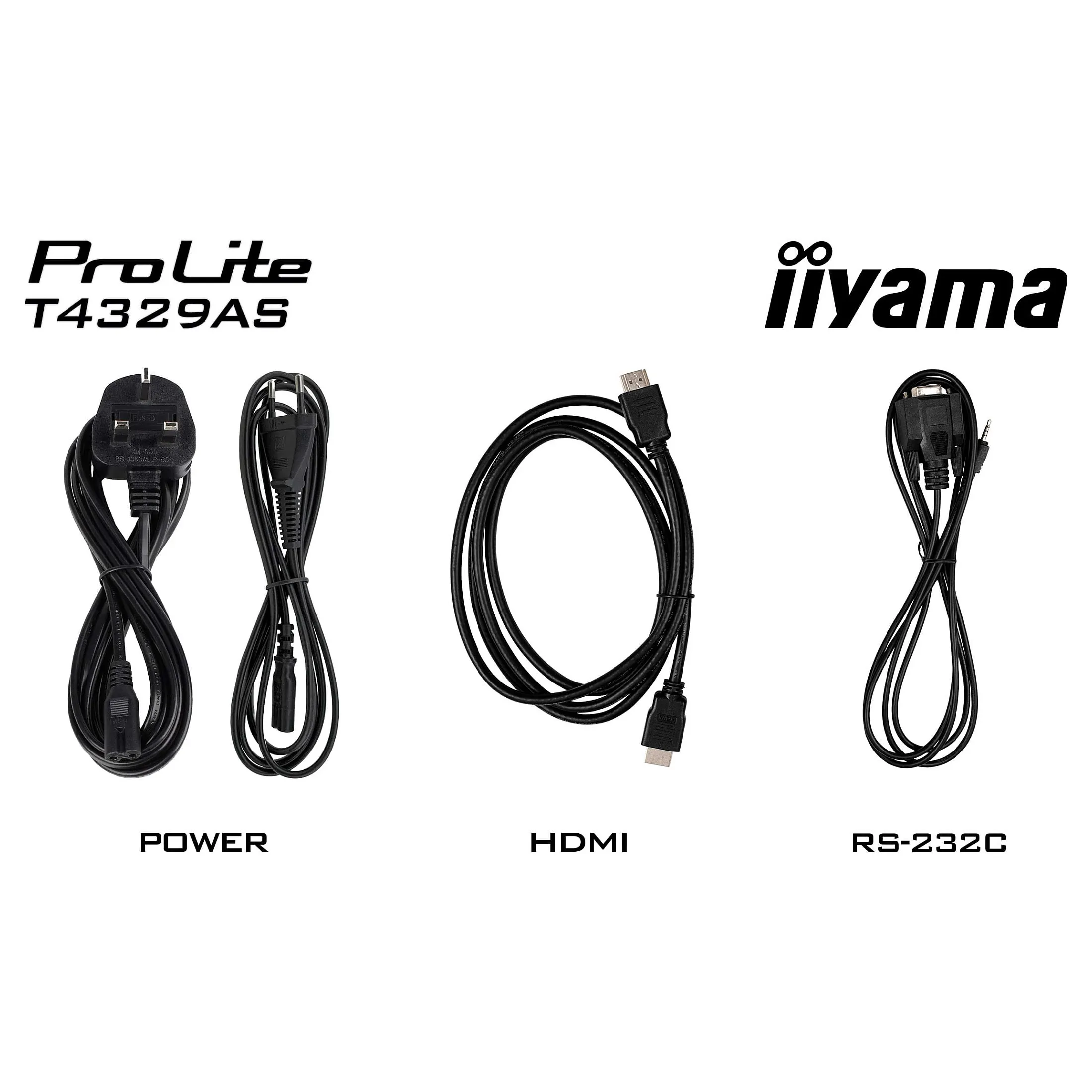

Cables included: AC, HDMI, RS-232
Feature: Remote control included
Feature: Quick start guide
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Feature: Batteries included
Feature: Remote control batteries included
Sustainability
Sustainability certificates: ErP
Other features
Positional accuracy: 2.5 mm
Placement supported: Indoor
Brightness: 420 cd/m²

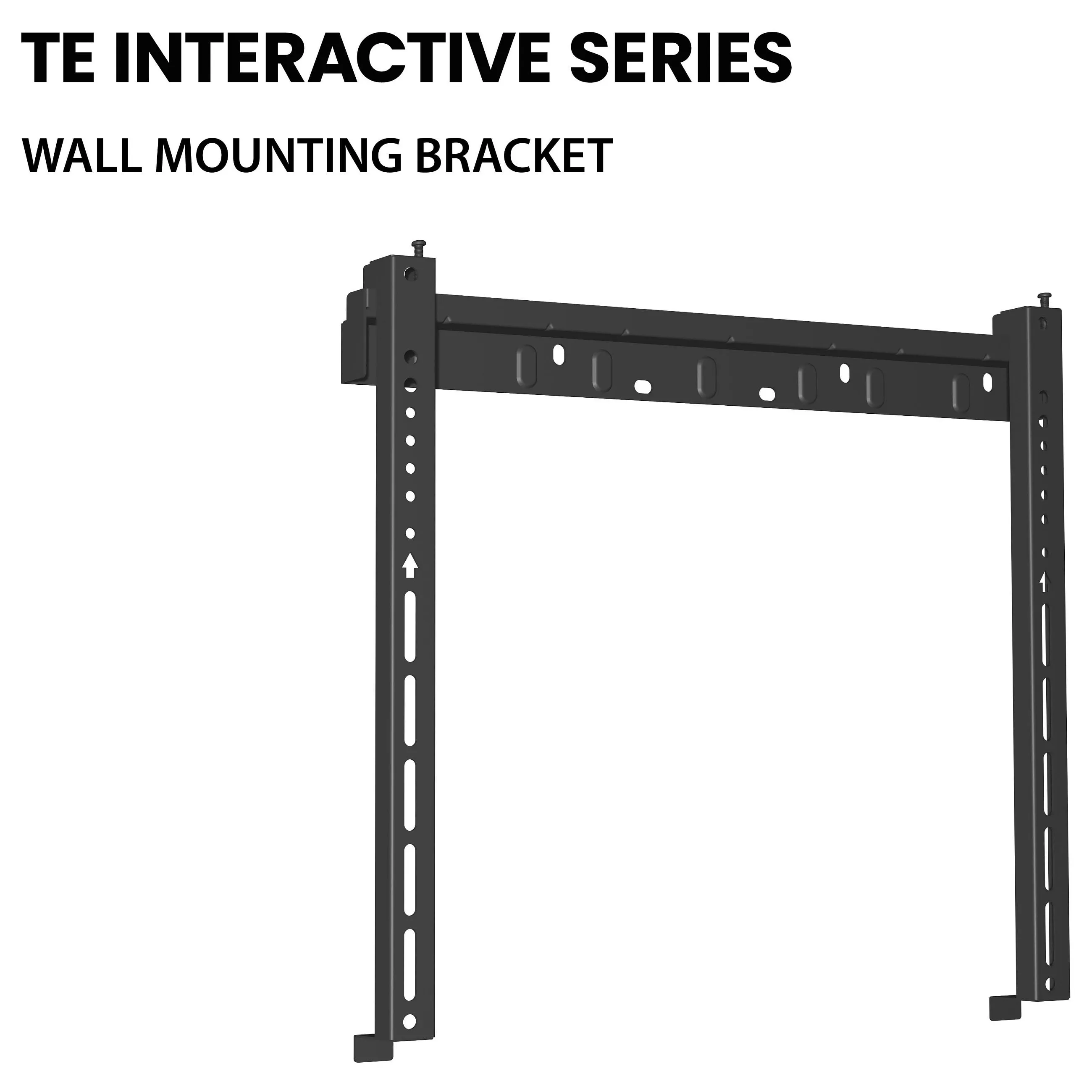

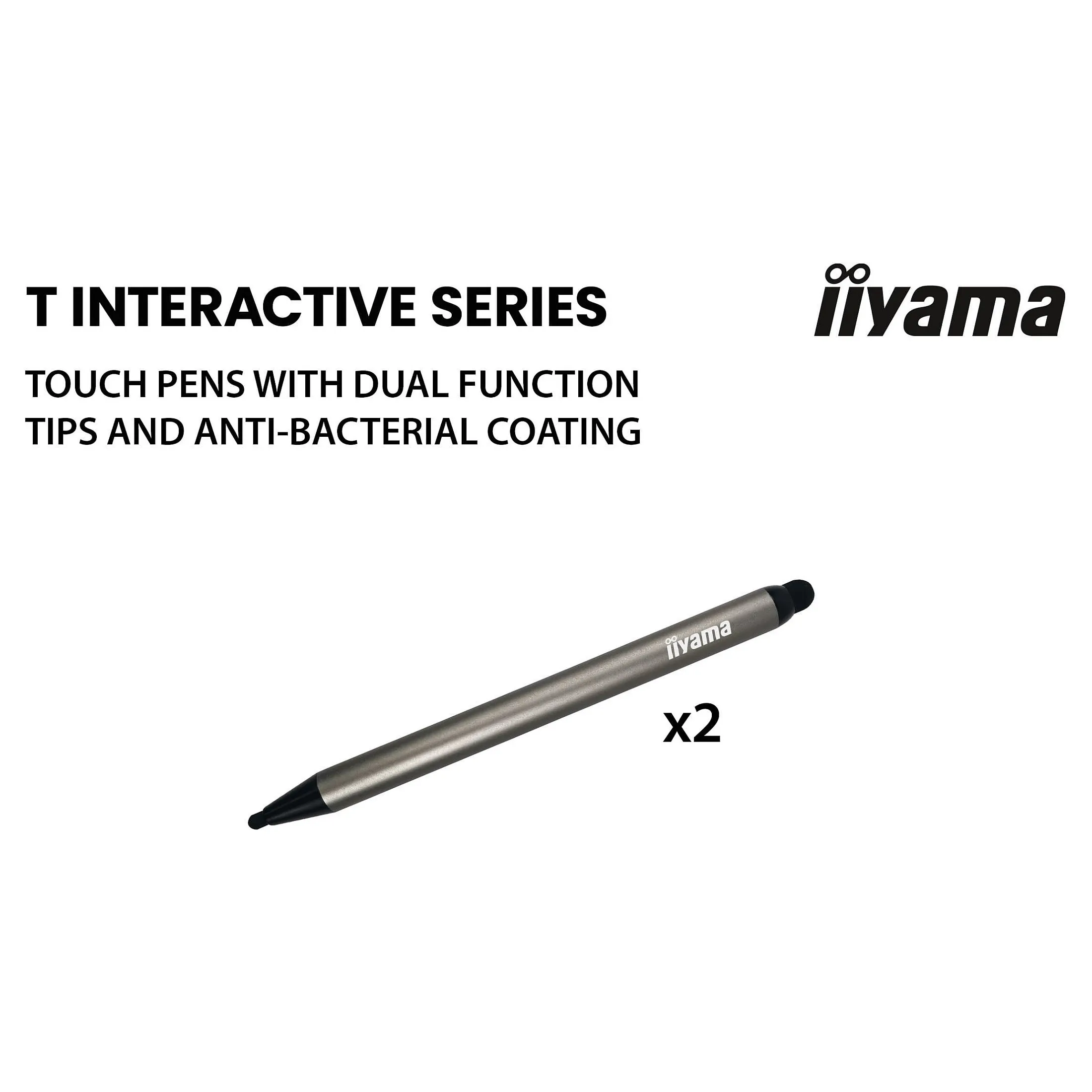

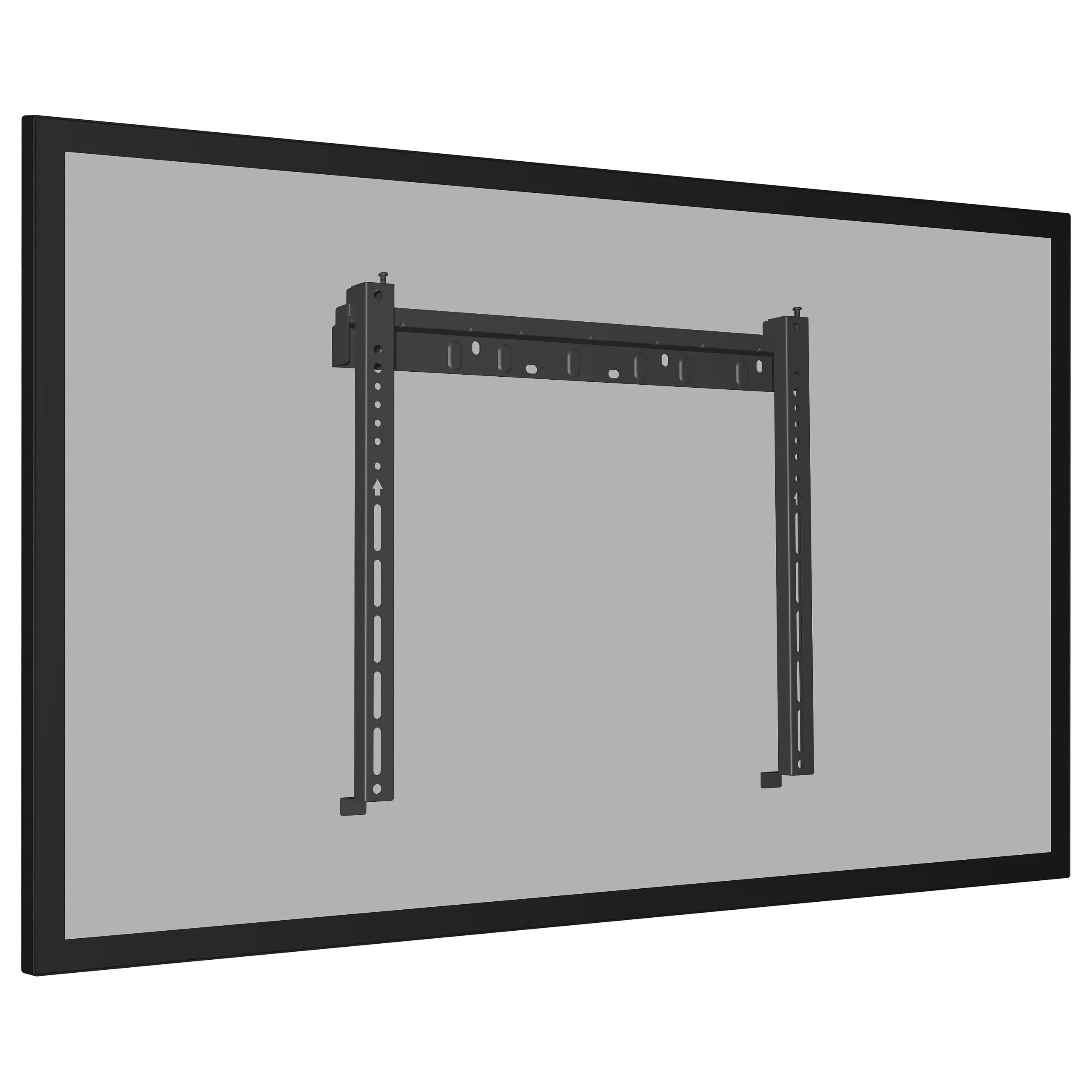

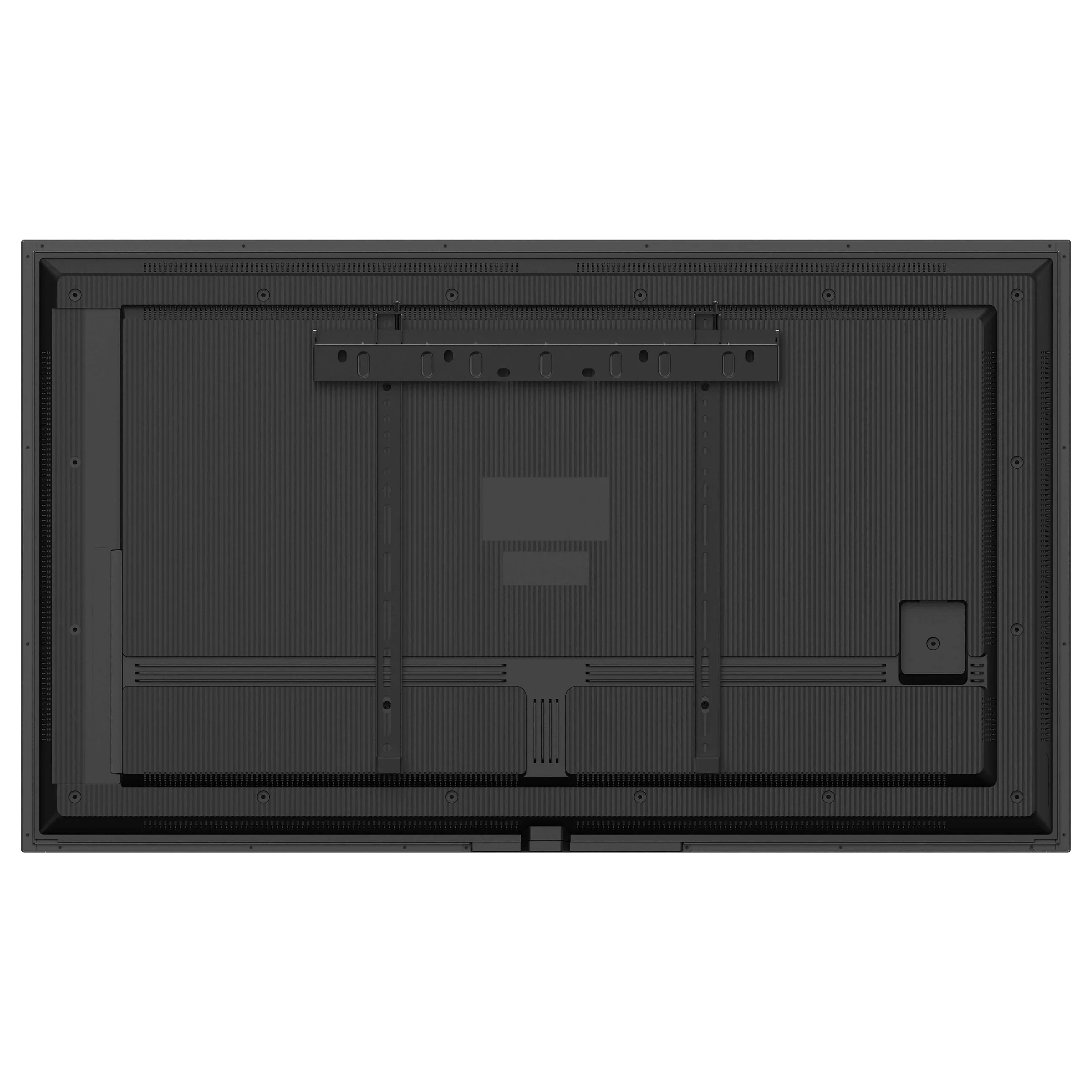

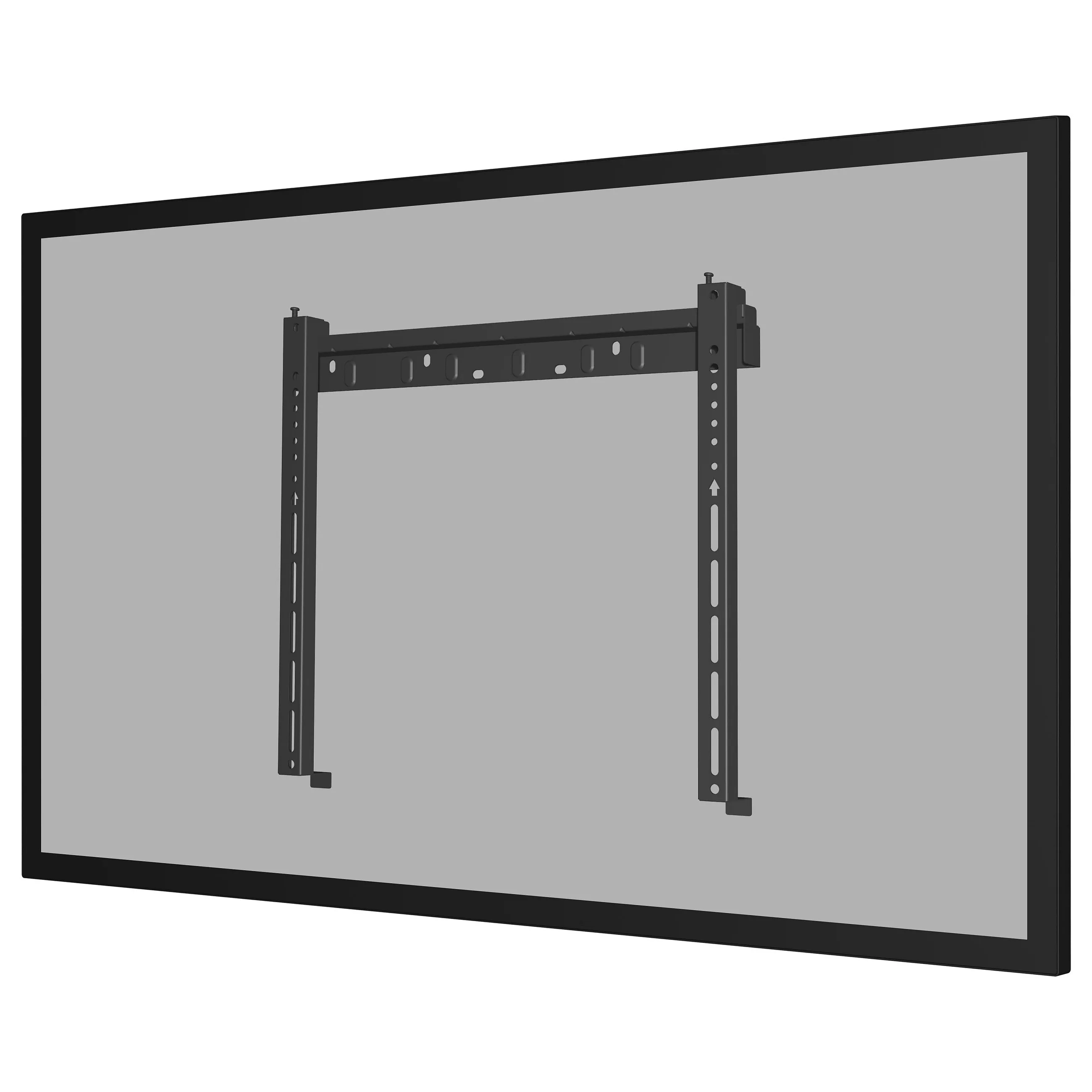

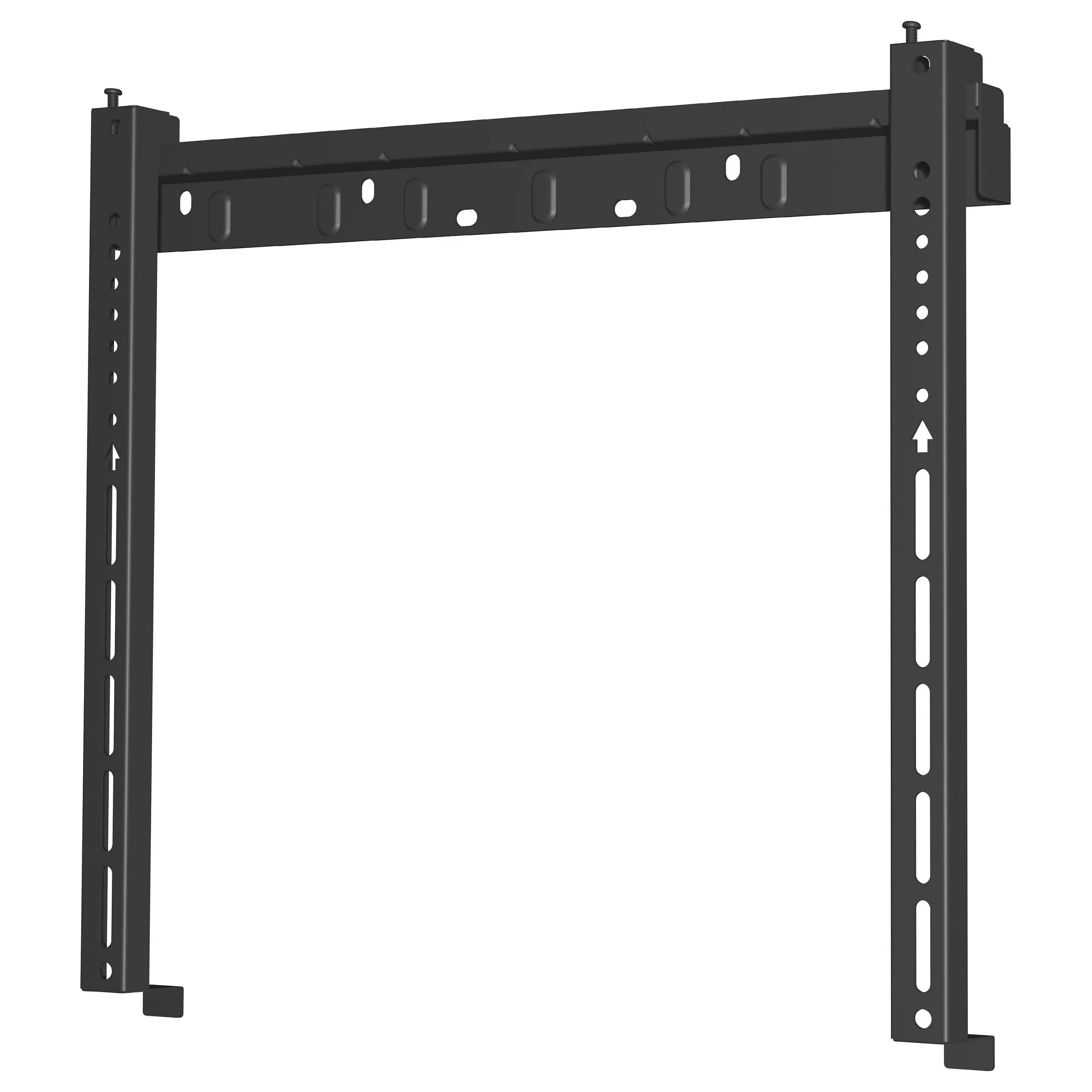

Packaging content: Wall Mounting Bracket (VESA 300×300), Magnetic holding places for Touch pens (on sides in landscape)
Feature: Built-in processor
Active display area (W x H): 941.2 x 529.4 mm
USB ports quantity: 2
Weight: 13.7 kg
Height: 577.8 mm
Touch method: stylus, finger
Width: 989.6 mm
Depth: 72.8 mm
Control panel: Power (long press for Quick Menu (source, volume +, volume -, brightness +, brightness -, Touch unlock)
Compliance certificates: CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Ethernet LAN (RJ-45) ports: 1
Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Thin Client
Processor architecture: ARM Cortex-A73
Processor cores: 4
Technical details
Native refresh rate: 60 Hz
Display diagonal: 108 cm (42.5″)
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: VA
Feature: LED backlight
Backlight type: Direct LED
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 20
Display brightness (typical): 500 cd/m²
Display brightness: 420 cd/m²
Response time: 6.5 ms
Response time measurement type: GTG (Gray to Gray)
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.245 x 0.245 mm
Horizontal scan range: 28 – 160 kHz
Viewable size, horizontal: 94.1 cm
Viewable size, vertical: 52.9 cm
Display diagonal (metric): 108 cm
Surface hardness: 8
NTSC coverage (typical): 72%
Performance
Operating hours (hours/days): 24/7
Operating system installed: Android
Operating system version: 14
Feature: Palm rejection
Multimedia
Number of speakers: 2
RMS rated power: 20 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.7 mm
Ports & interfaces
USB version: 2.0
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: USB Touch port
HDMI ports quantity: 2
HDMI version: 1.4/2.0
Feature: HDCP
HDCP version: 1.4/2.2
Feature: RS-232C
Network
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting
Panel mounting interface: 300 x 300 mm
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Japanese, Dutch, Polish, Russian
Number of OSD languages: 8
Power
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 98 kWh
Power consumption (typical): 98 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): -20 – 60%
Weight & dimensions
Width (with stand): 989.6 mm
Depth (with stand): 72.8 mm
Height (with stand): 577.8 mm
Weight (with stand): 13.7 kg
Packaging data
Package width: 1115 mm
Package depth: 144 mm
Package height: 730 mm
Package weight: 17.6 kg
Packaging content
Cables included: AC, HDMI, RS-232
Feature: Remote control included
Feature: Quick start guide
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Feature: Batteries included
Feature: Remote control batteries included
Sustainability
Sustainability certificates: ErP
Other features
Positional accuracy: 2.5 mm
Placement supported: Indoor
Brightness: 420 cd/m²
Packaging content: Wall Mounting Bracket (VESA 300×300), Magnetic holding places for Touch pens (on sides in landscape)
Feature: Built-in processor
Active display area (W x H): 941.2 x 529.4 mm
USB ports quantity: 2
Weight: 13.7 kg
Height: 577.8 mm
Touch method: stylus, finger
Width: 989.6 mm
Depth: 72.8 mm
Control panel: Power (long press for Quick Menu (source, volume +, volume -, brightness +, brightness -, Touch unlock)
Compliance certificates: CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Ethernet LAN (RJ-45) ports: 1
Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Thin Client
Processor architecture: ARM Cortex-A73
Processor cores: 4
Technical details
Native refresh rate: 60 Hz
