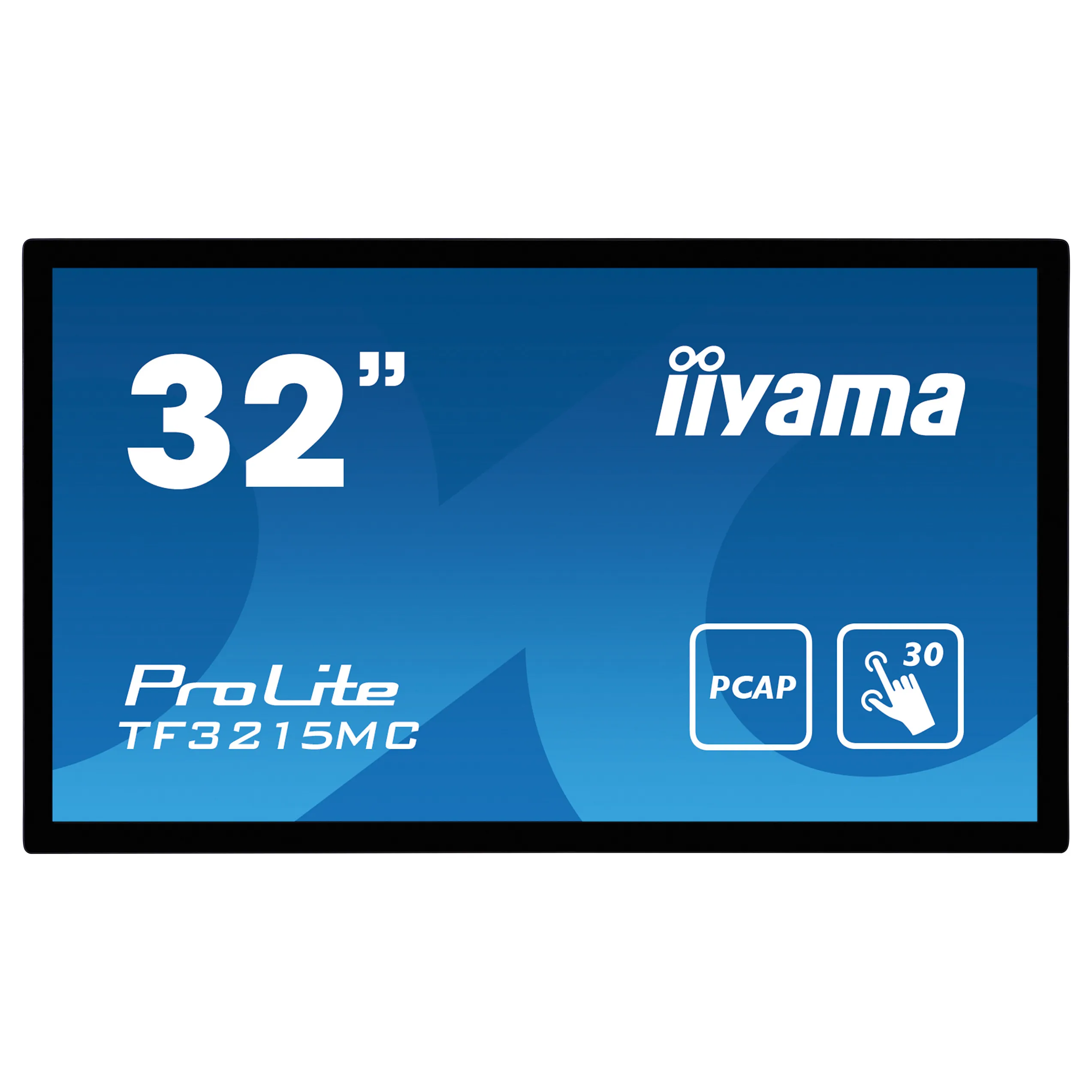

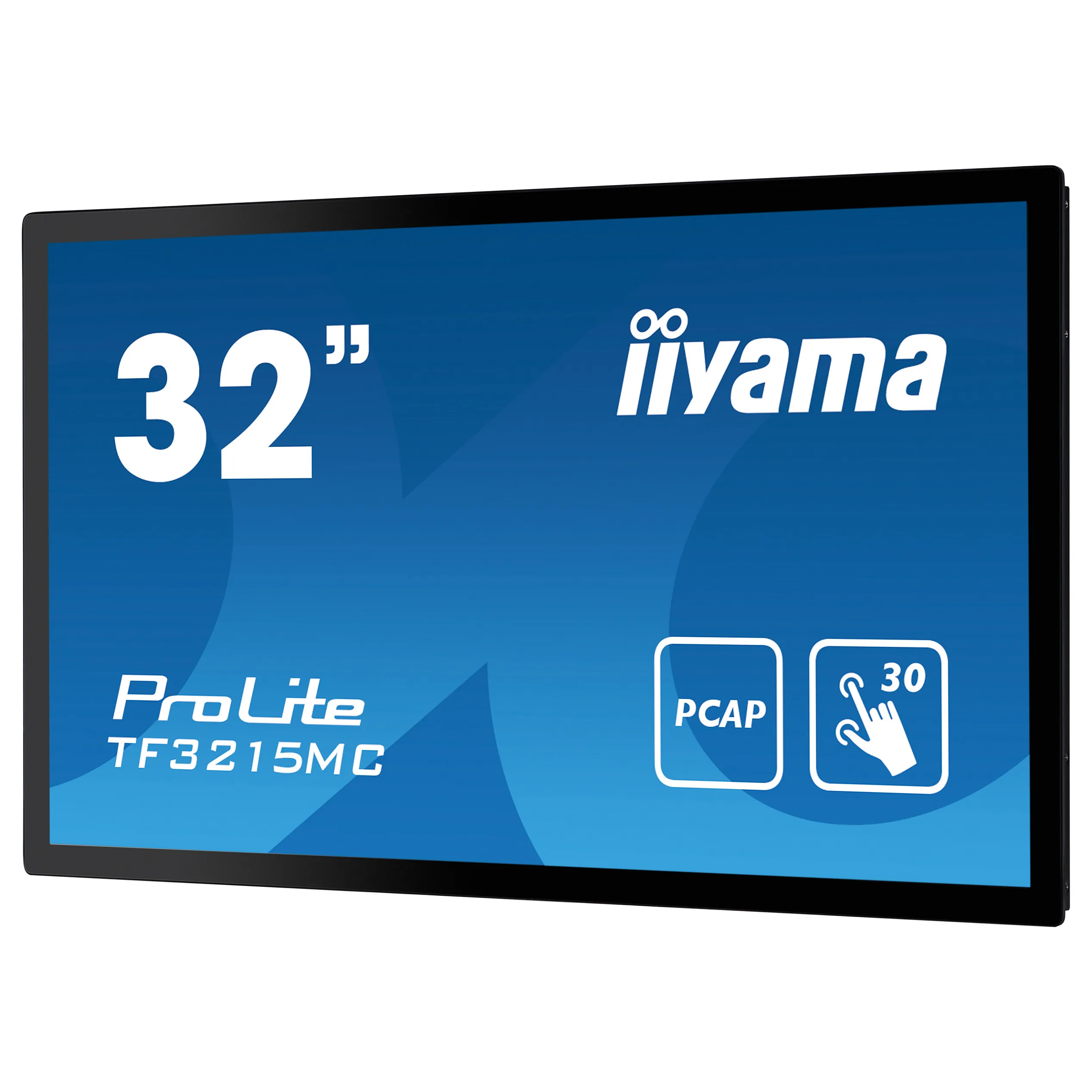

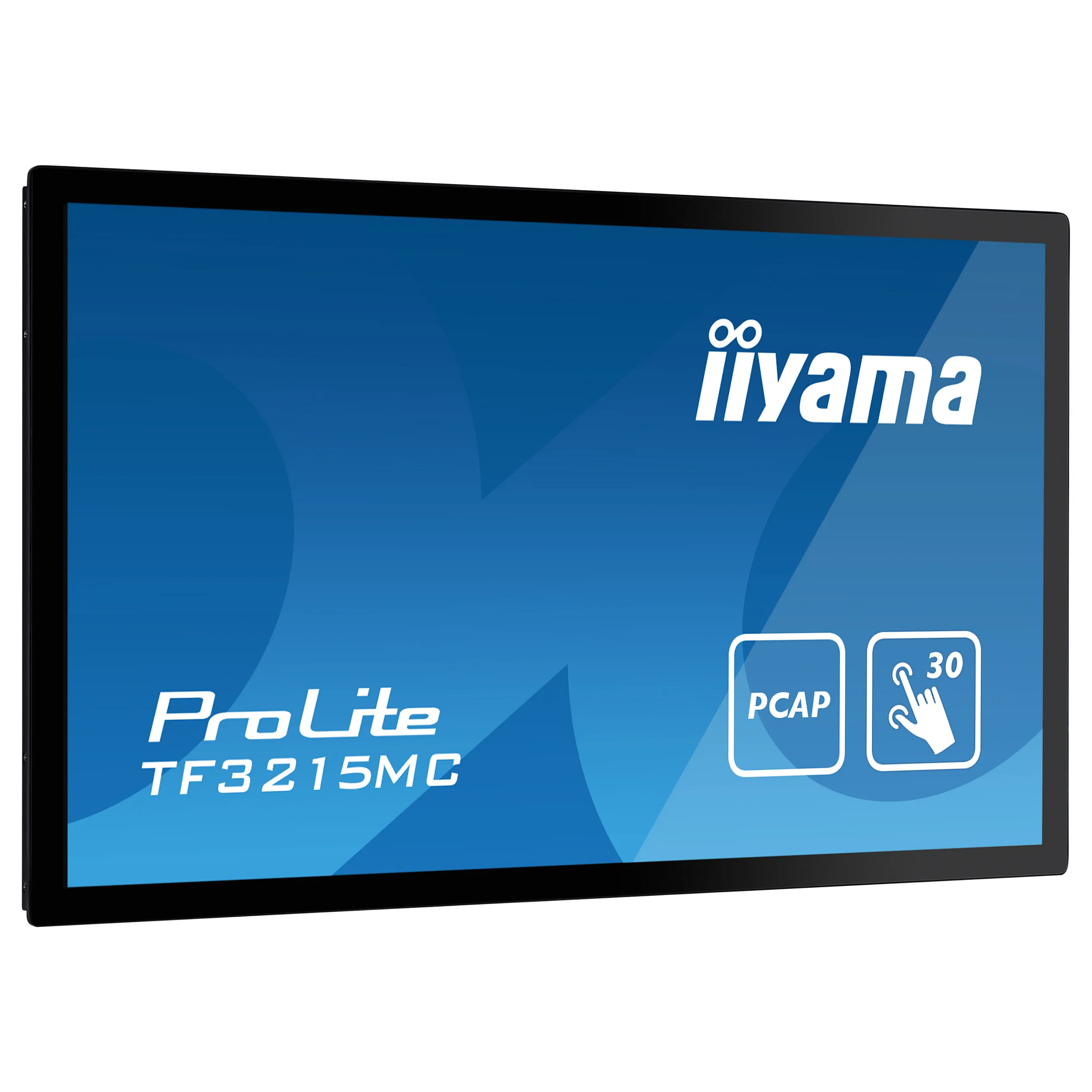

iiyama ProLite TF3215MC-B2. Display diagonal: 80 cm (31.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

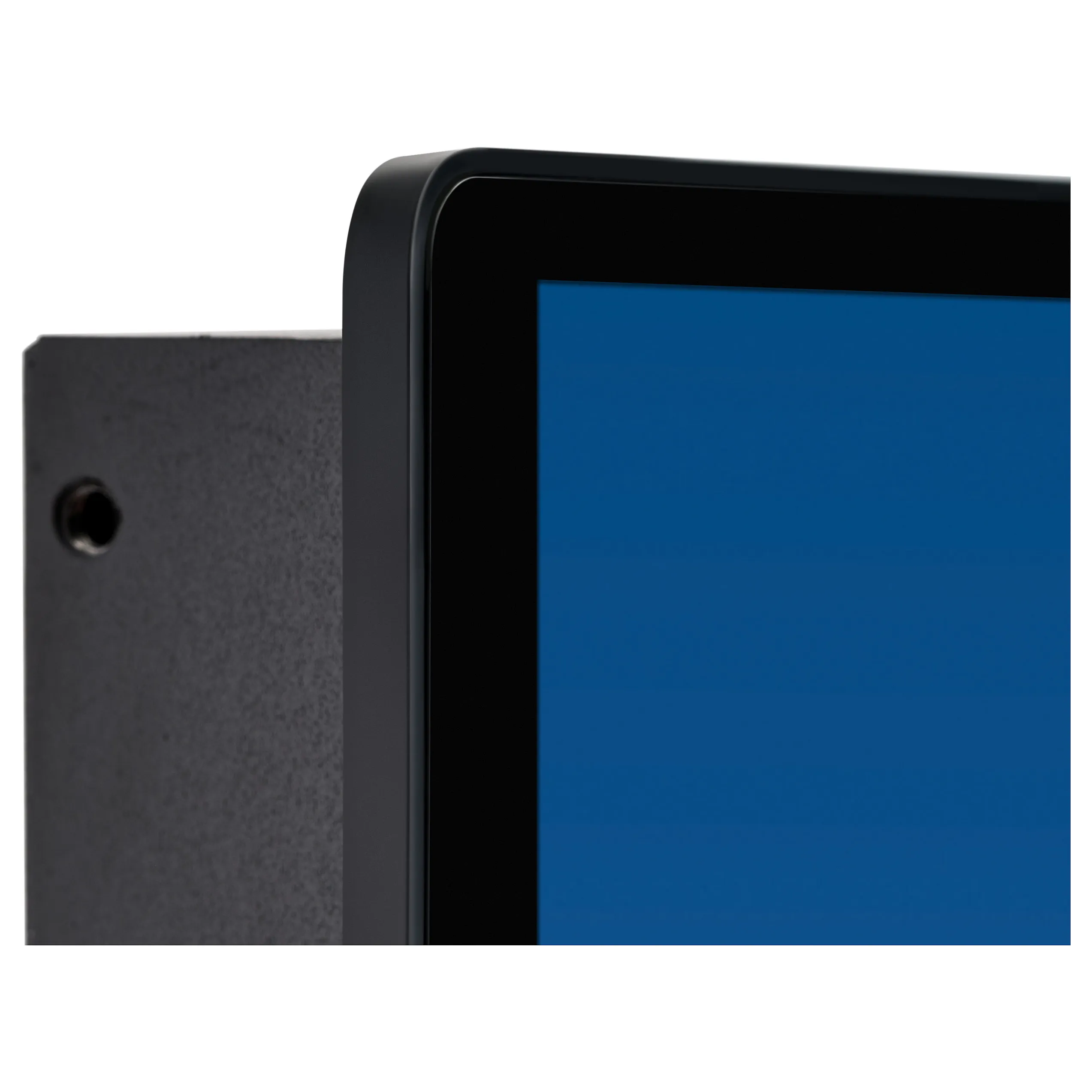

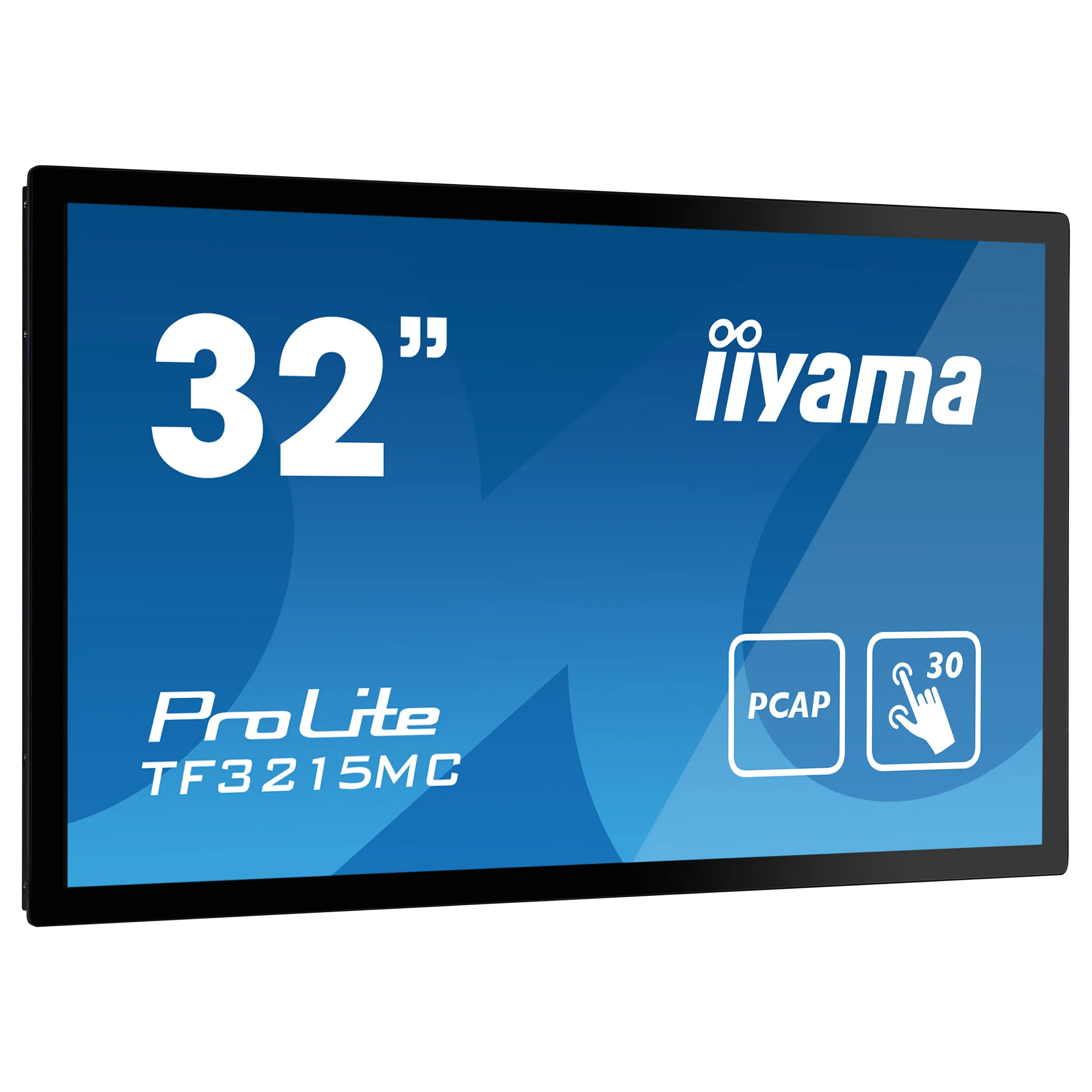

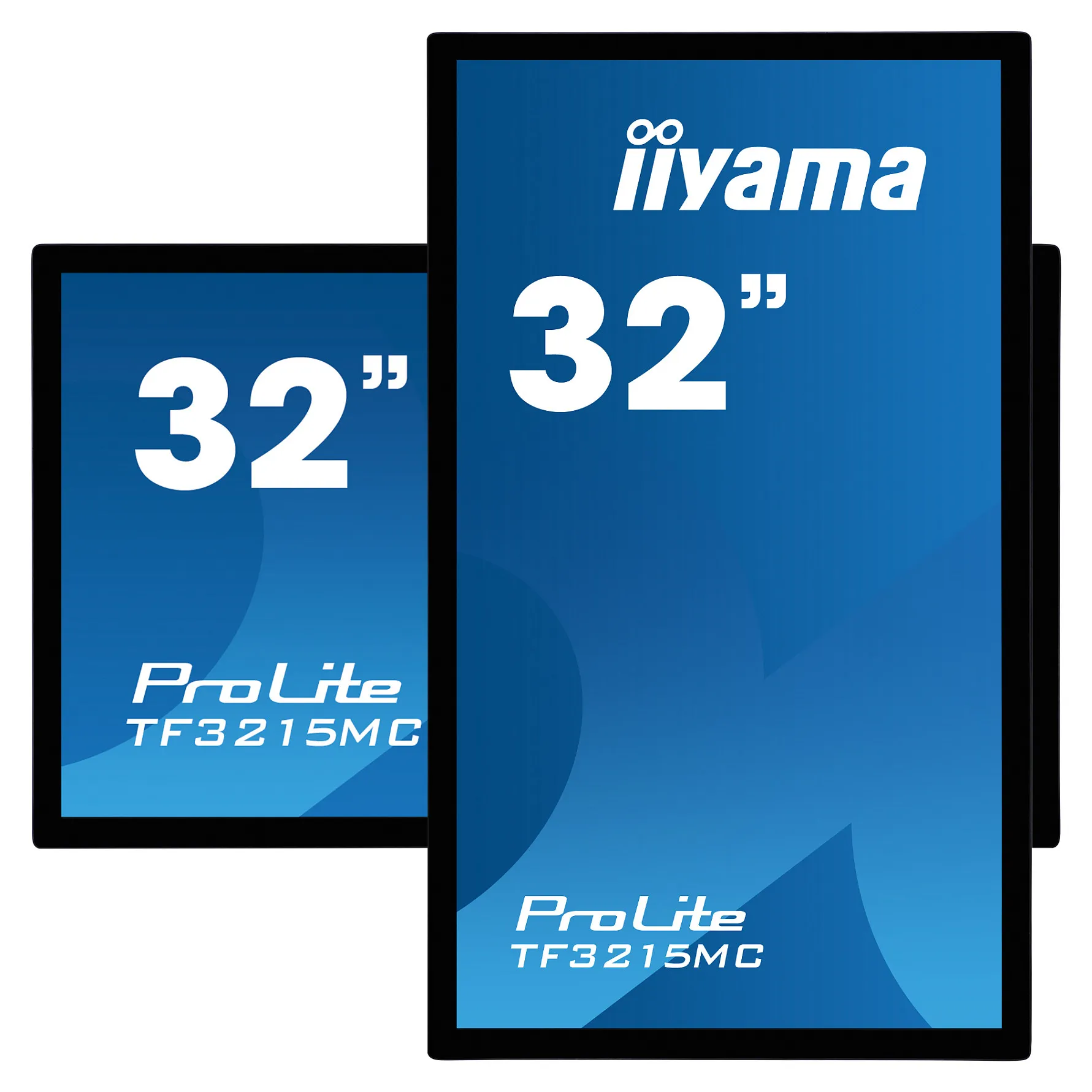

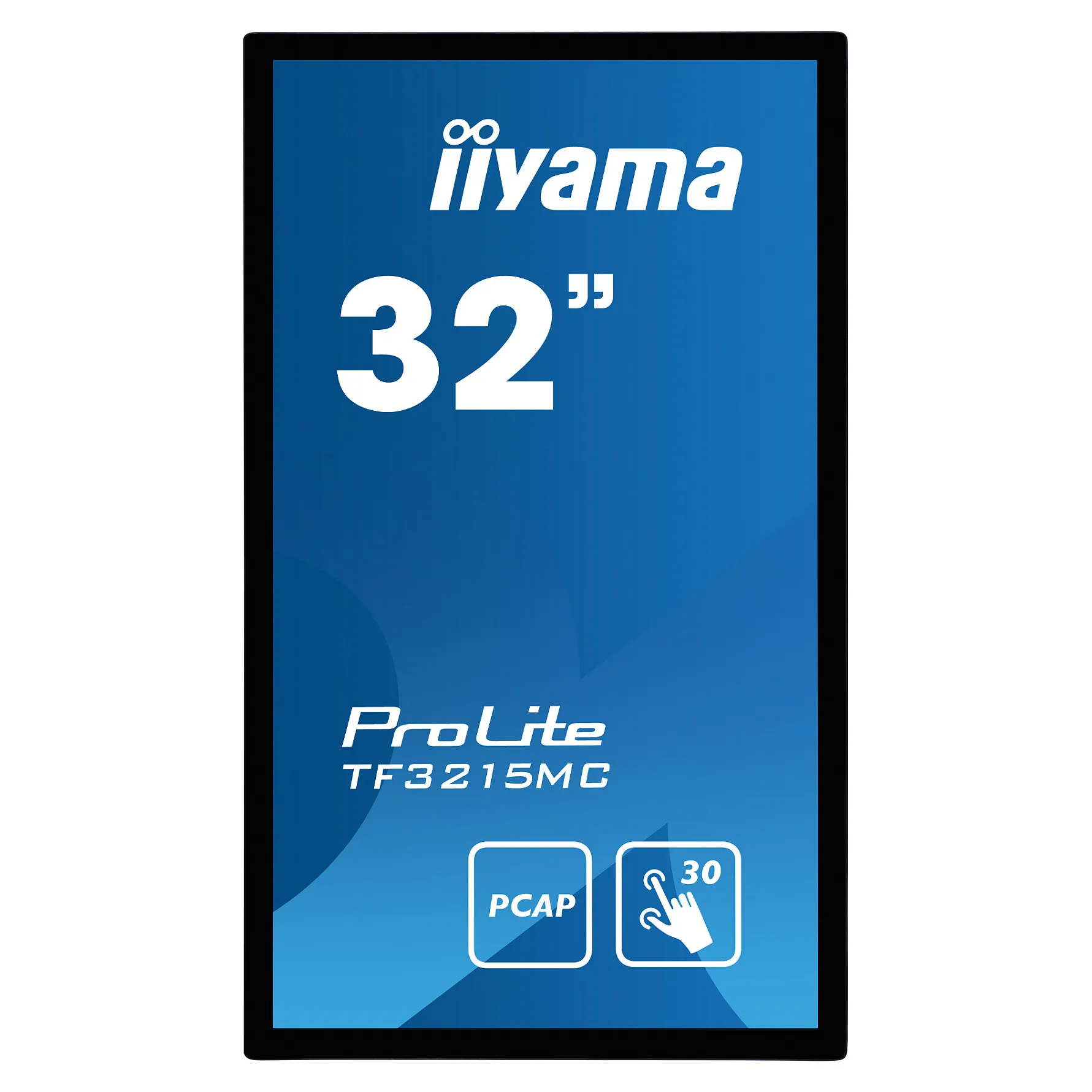

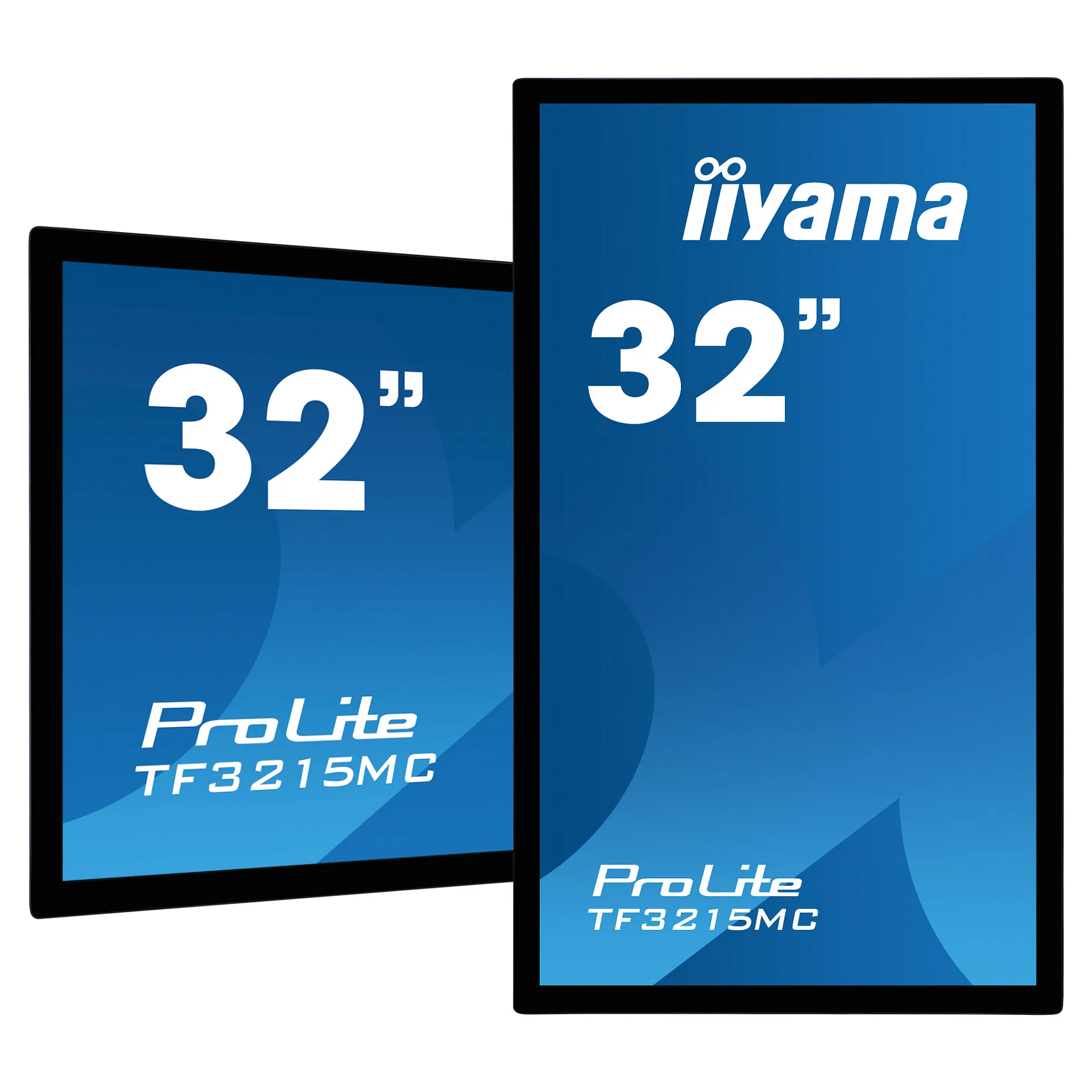

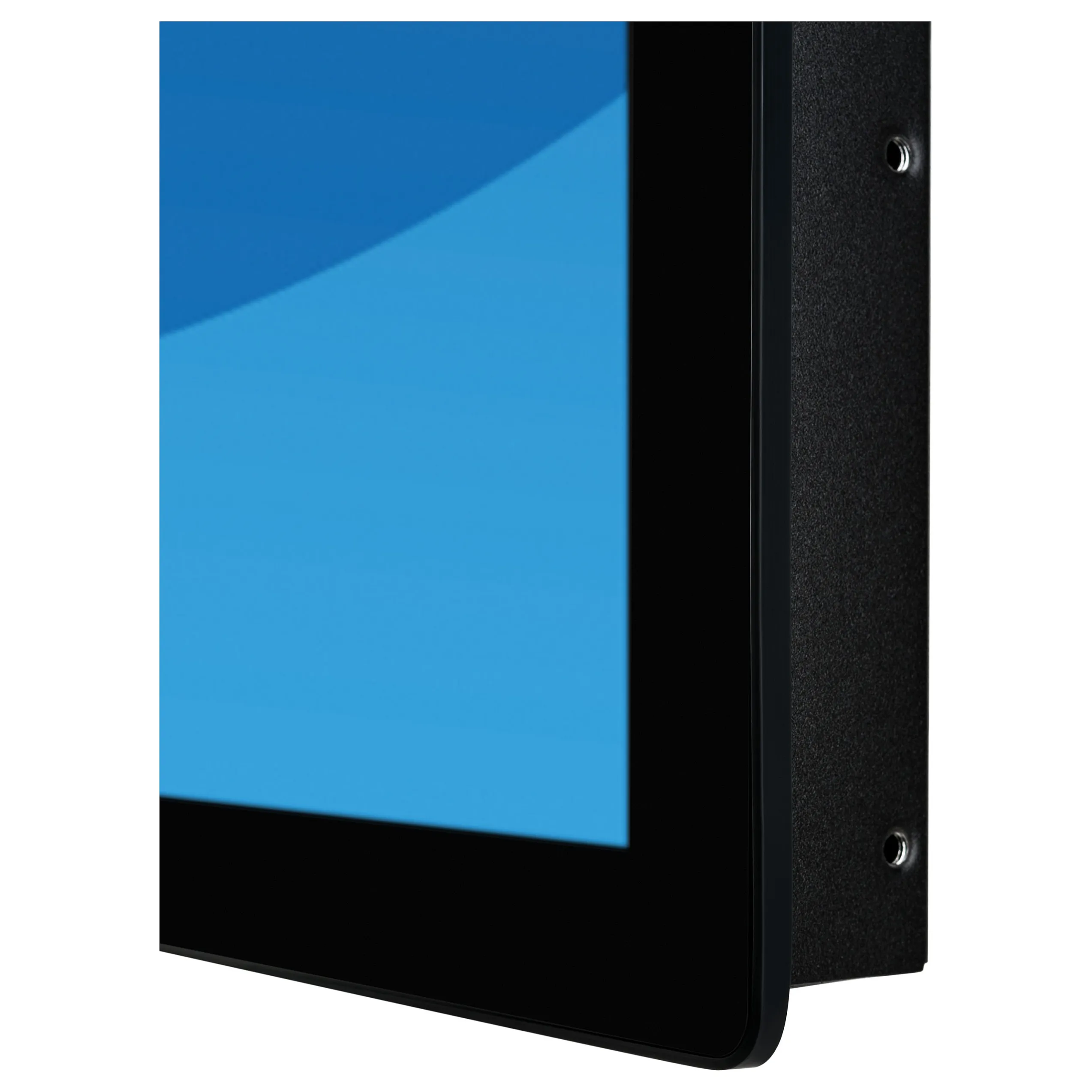

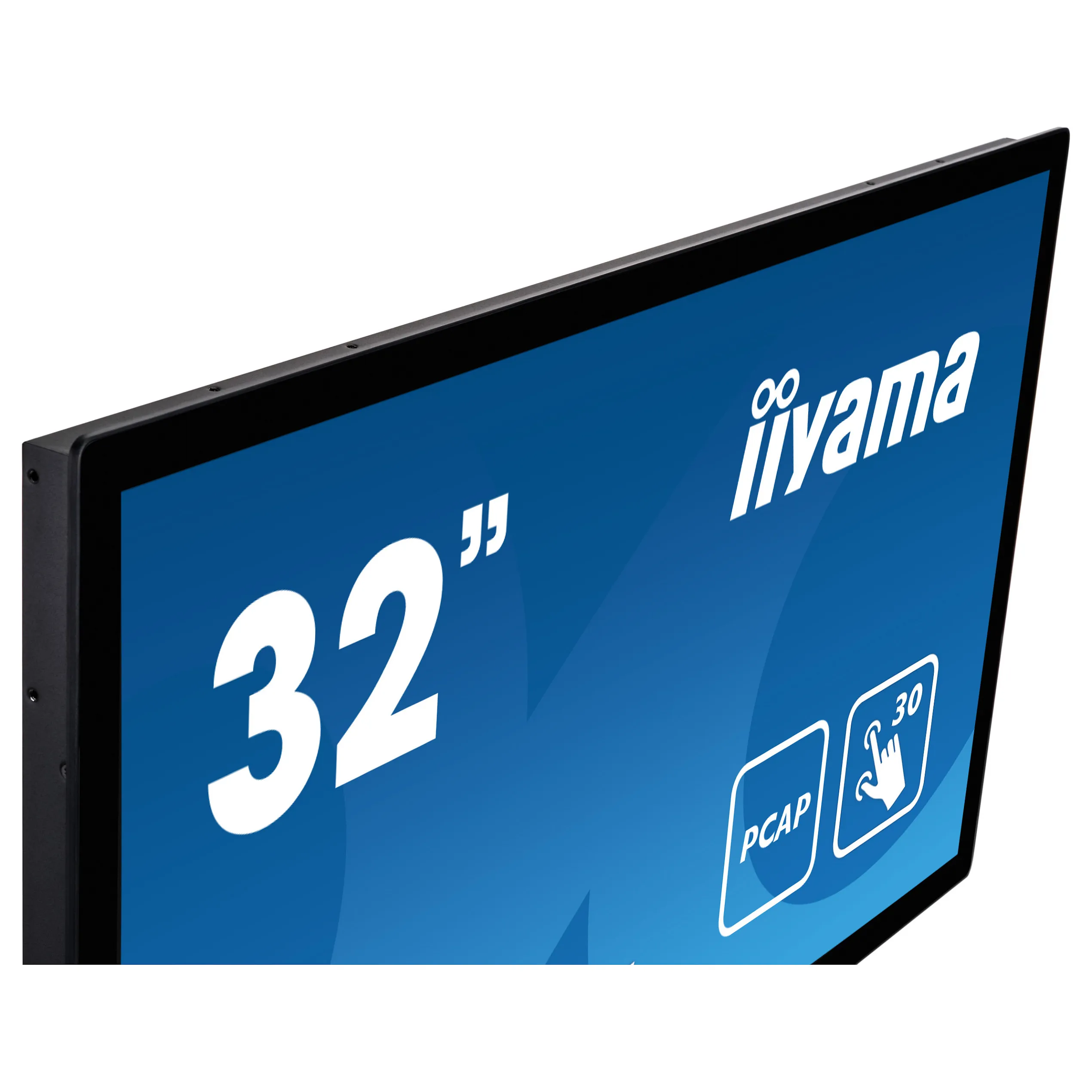

The ProLite TF3215MC-B2 with 30-point PCAP touch technology is a open frame monitor with an eye-catching edge-to-edge glass design. Thanks to this completely frame-less glass surface, it guarantees high durability and scratch resistance, making it perfect for kiosk systems and high-traffic public applications. The VA panel technology offers higher contrast and darker blacks. Equipped with a foam seal, the monitor supports seamless integration and the IP65 rating ensures dust and water resistance from the front. Portrait and landscape orientation ensures flexible mounting options for 24/7 operation in almost any installation. The TF3215MC-B2 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media applications.
Display
Display diagonal: 80 cm (31.5″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: VA
Feature: Touchscreen
Touchscreen type: Kiosk
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 30
Display brightness (peak): 500 cd/m²
Display brightness (typical): 500 cd/m²
Display brightness: 460 cd/m²
Response time: 8 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 3000:1
Contrast ratio (dynamic): 3000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.3637 x 0.3637 mm
Horizontal scan range: 30 – 68 kHz
Vertical scan range: 47 – 63 Hz
Viewable size, horizontal: 69.8 cm
Viewable size, vertical: 39.3 cm
Display diagonal (metric): 80 cm
Surface hardness: 7H
Colour depth: 8 bit
Performance
Operating hours (hours/days): 24/7
Design
Market positioning: Office
Product colour: Black
Housing material: Metal
Front bezel colour: Black
Glass thickness: 3 mm

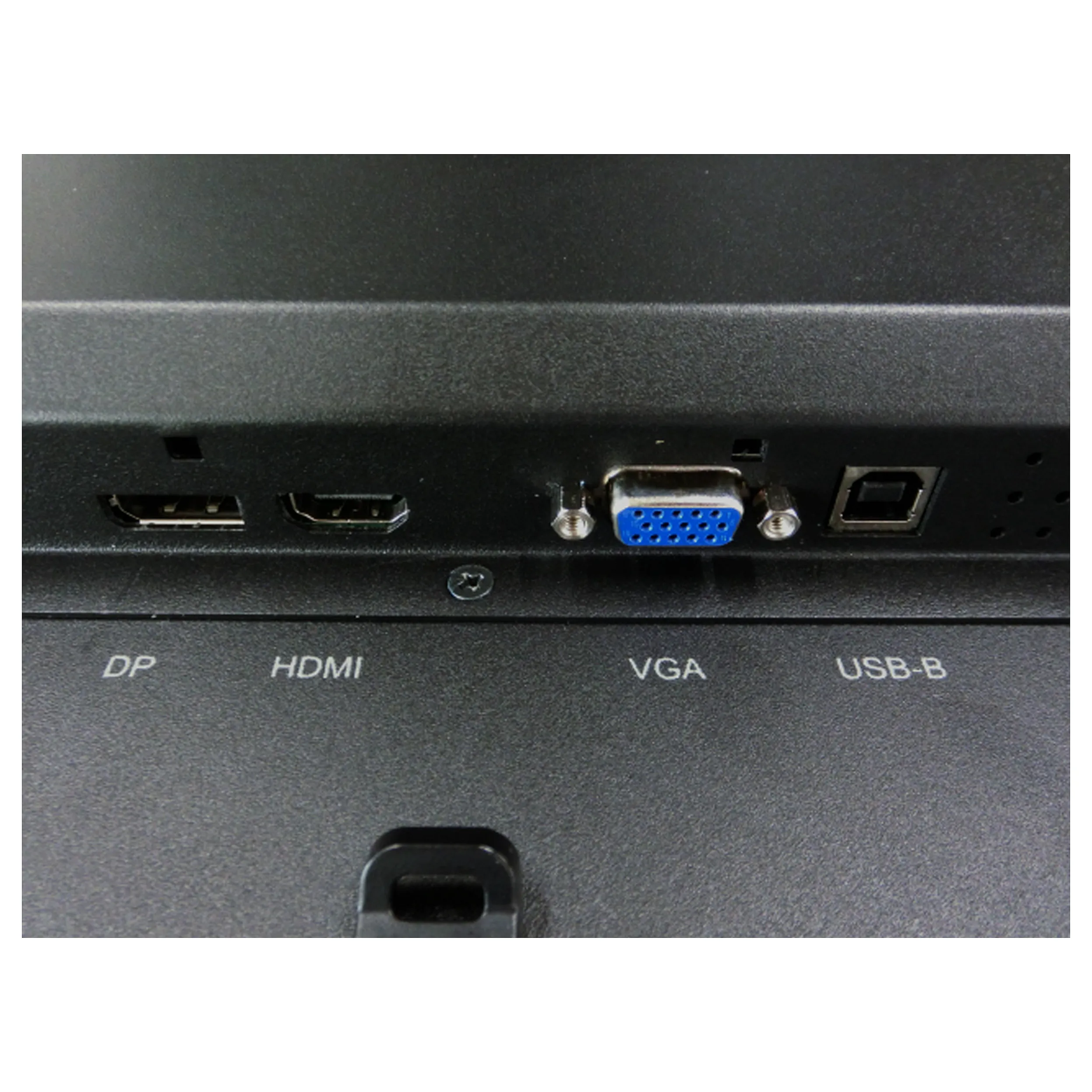

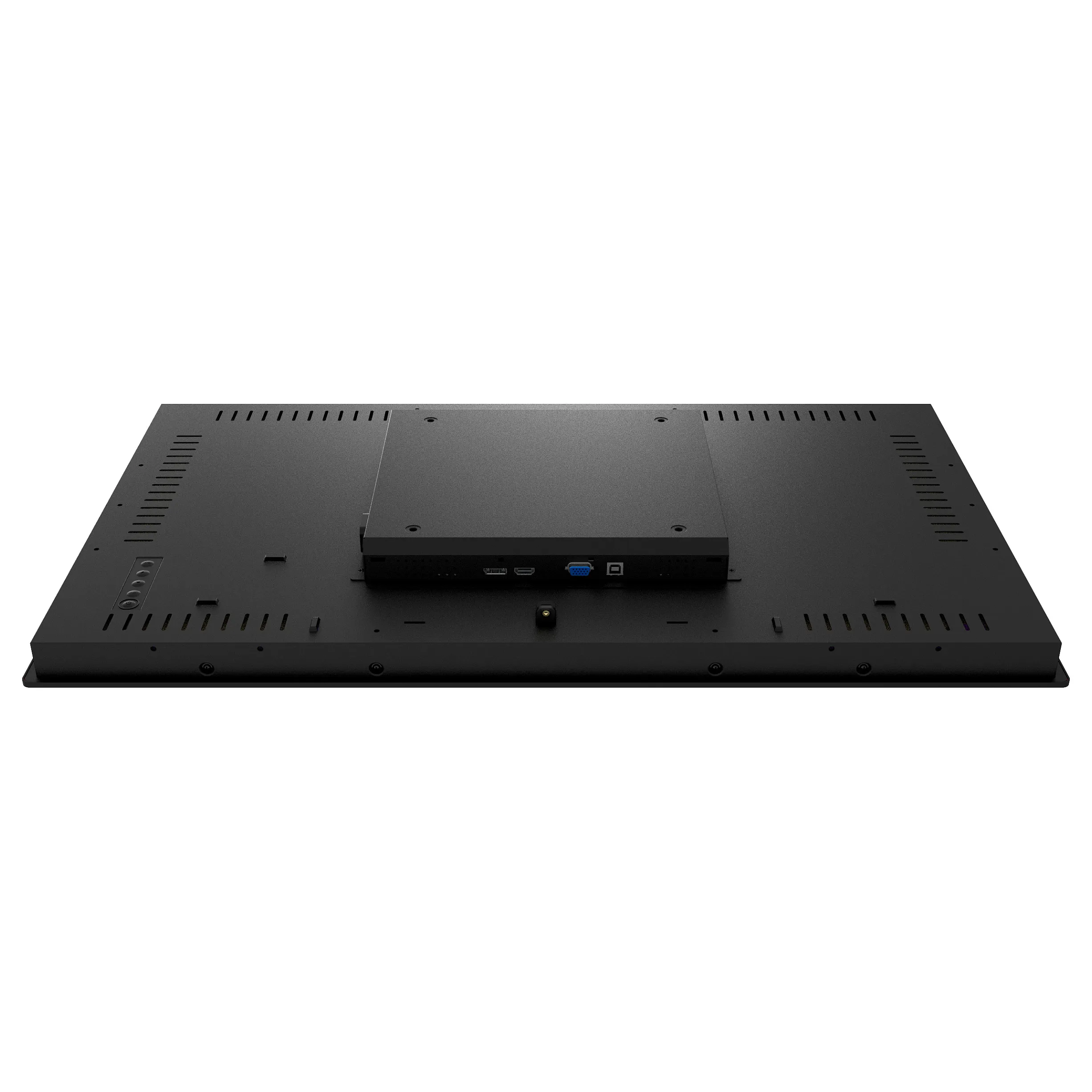

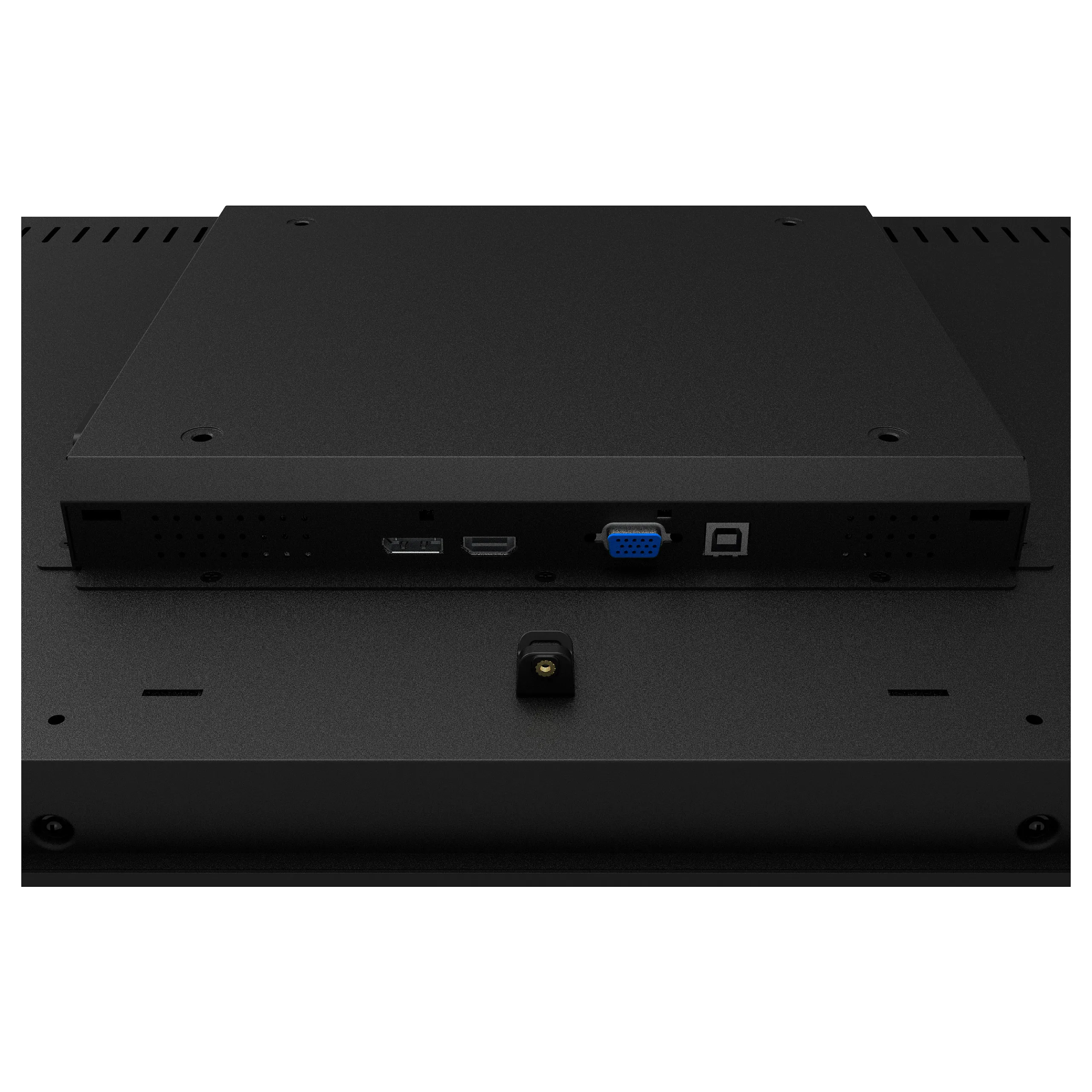

Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics

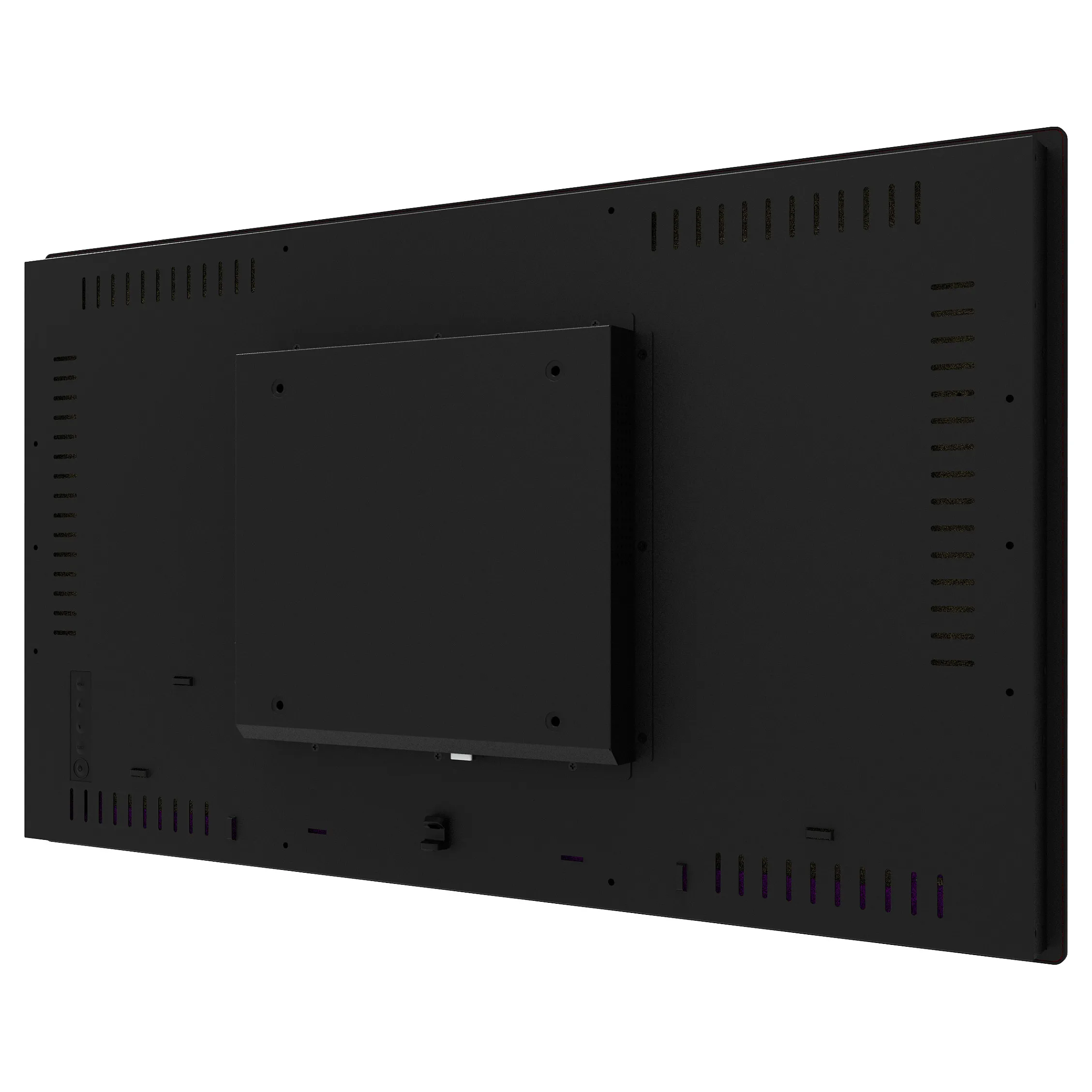

Feature: VESA mounting

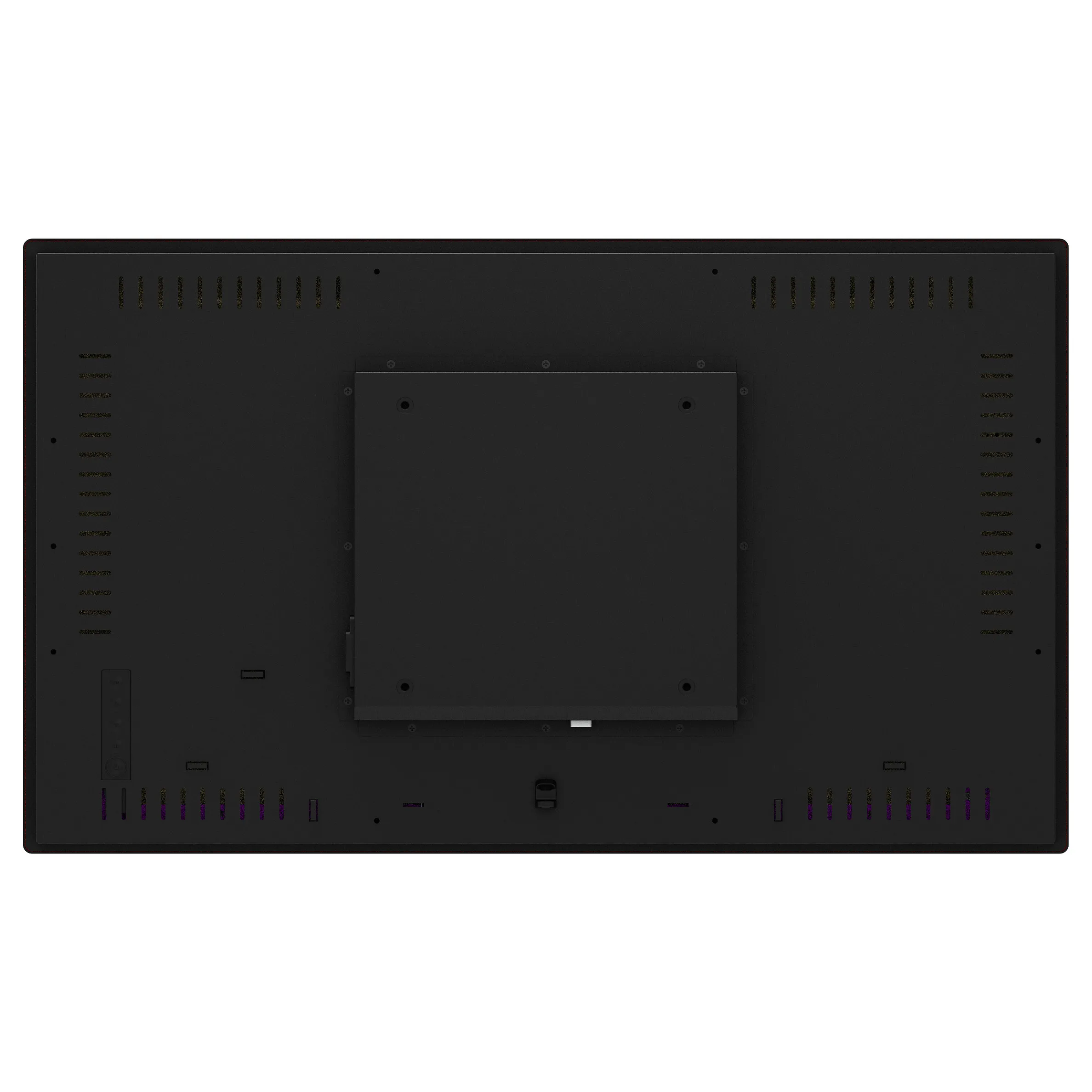

Panel mounting interface: 200 x 200 mm
Feature: Wall mountable
Feature: Cable management
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Feature: Plug and Play
Power

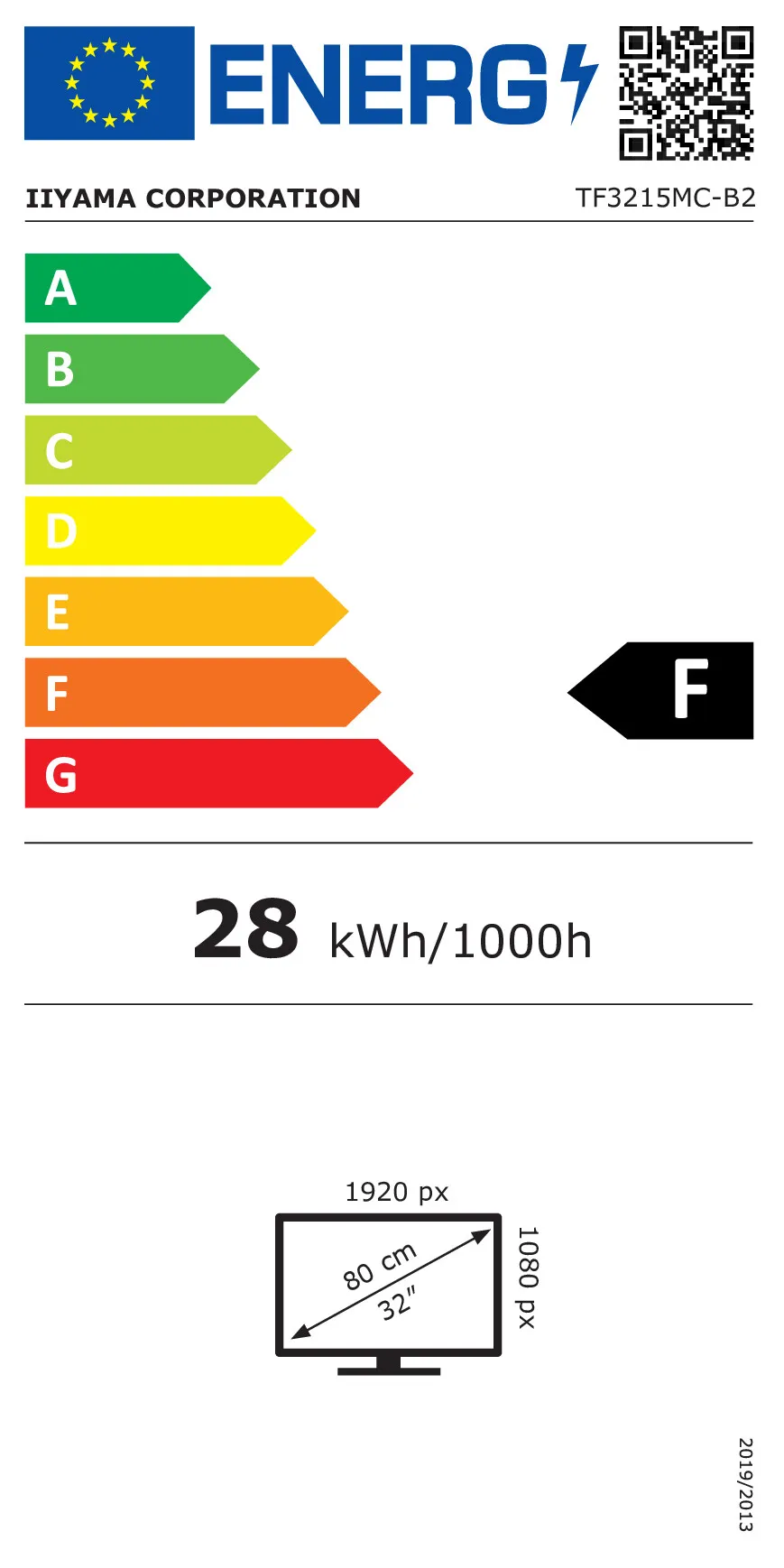

Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 27.5 kWh
Power consumption (typical): 32 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Weight & dimensions
Width (with stand): 743 mm
Depth (with stand): 61 mm
Height (with stand): 437 mm
Weight (with stand): 10 kg
Width (without stand): 742.5 mm
Depth (without stand): 61 mm
Height (without stand): 437 mm
Weight (without stand): 10 kg
Packaging data
Package width: 890 mm
Package depth: 155 mm
Package height: 630 mm
Package weight: 13.3 kg
Packaging content

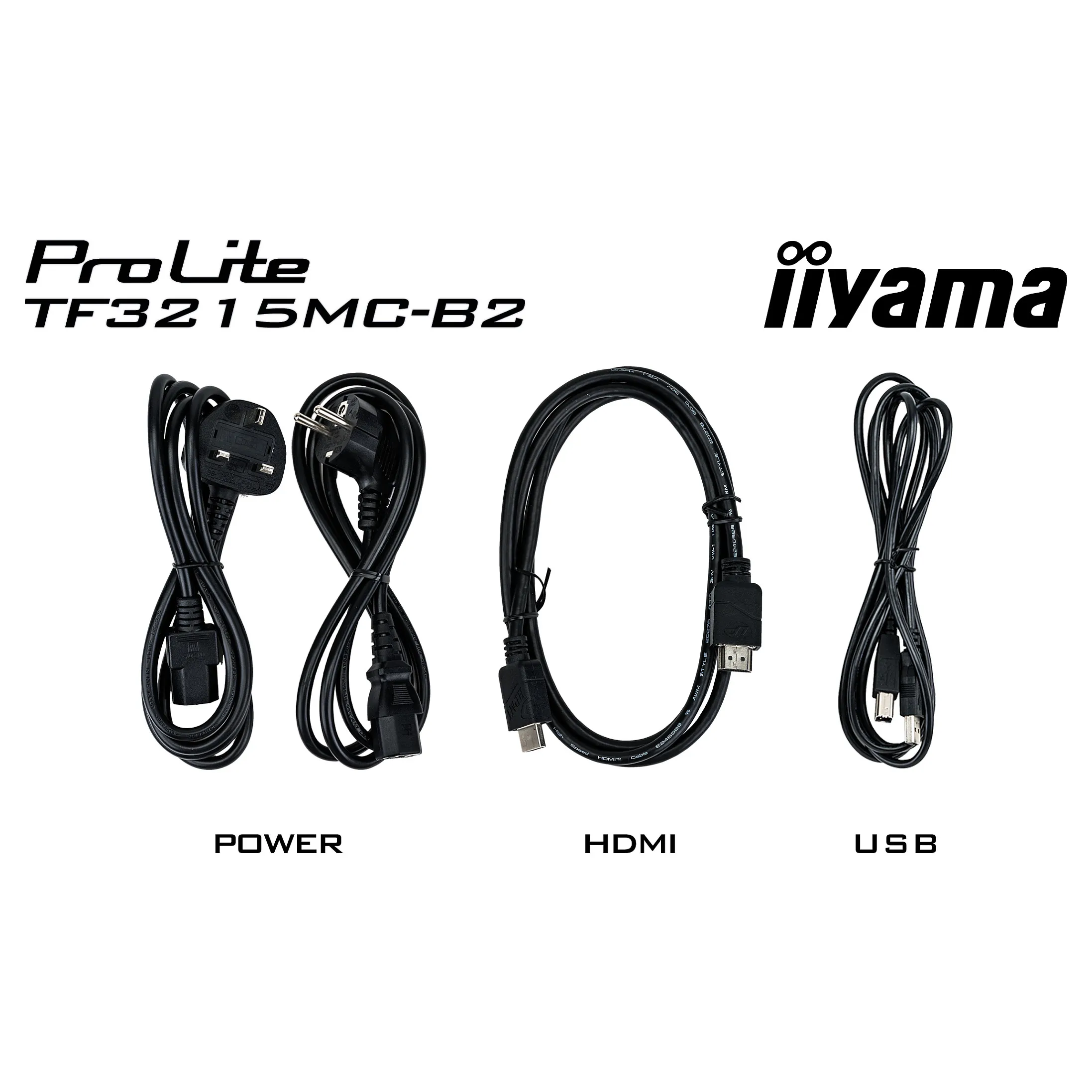

Cables included: AC, USB, HDMI
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Positional accuracy: 2 mm
Brightness: 460 cd/m²
Active display area (W x H): 698.4 x 392.8 mm
Touch method: finger, glove (latex), capacitive stylus
Weight: 10 kg
Height: 437 mm
Width: 743 mm
Depth: 61 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Supplied AC adapter type: AC
Technical details
Native refresh rate: 60 Hz
Display diagonal: 80 cm (31.5″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: VA
Feature: Touchscreen
Touchscreen type: Kiosk
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 30
Display brightness (peak): 500 cd/m²
Display brightness (typical): 500 cd/m²
Display brightness: 460 cd/m²
Response time: 8 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 3000:1
Contrast ratio (dynamic): 3000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.3637 x 0.3637 mm
Horizontal scan range: 30 – 68 kHz
Vertical scan range: 47 – 63 Hz
Viewable size, horizontal: 69.8 cm
Viewable size, vertical: 39.3 cm
Display diagonal (metric): 80 cm
Surface hardness: 7H
Colour depth: 8 bit
Performance
Operating hours (hours/days): 24/7
Design
Market positioning: Office
Product colour: Black
Housing material: Metal
Front bezel colour: Black
Glass thickness: 3 mm
Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Feature: Wall mountable
Feature: Cable management
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Feature: Plug and Play
Power
Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 27.5 kWh
Power consumption (typical): 32 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Weight & dimensions
Width (with stand): 743 mm
Depth (with stand): 61 mm
Height (with stand): 437 mm
Weight (with stand): 10 kg
Width (without stand): 742.5 mm
Depth (without stand): 61 mm
Height (without stand): 437 mm
Weight (without stand): 10 kg
Packaging data
Package width: 890 mm
Package depth: 155 mm
Package height: 630 mm
Package weight: 13.3 kg
Packaging content
Cables included: AC, USB, HDMI
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Positional accuracy: 2 mm
Brightness: 460 cd/m²
Active display area (W x H): 698.4 x 392.8 mm
Touch method: finger, glove (latex), capacitive stylus
Weight: 10 kg
Height: 437 mm
Width: 743 mm
Depth: 61 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Supplied AC adapter type: AC
Technical details
Native refresh rate: 60 Hz
