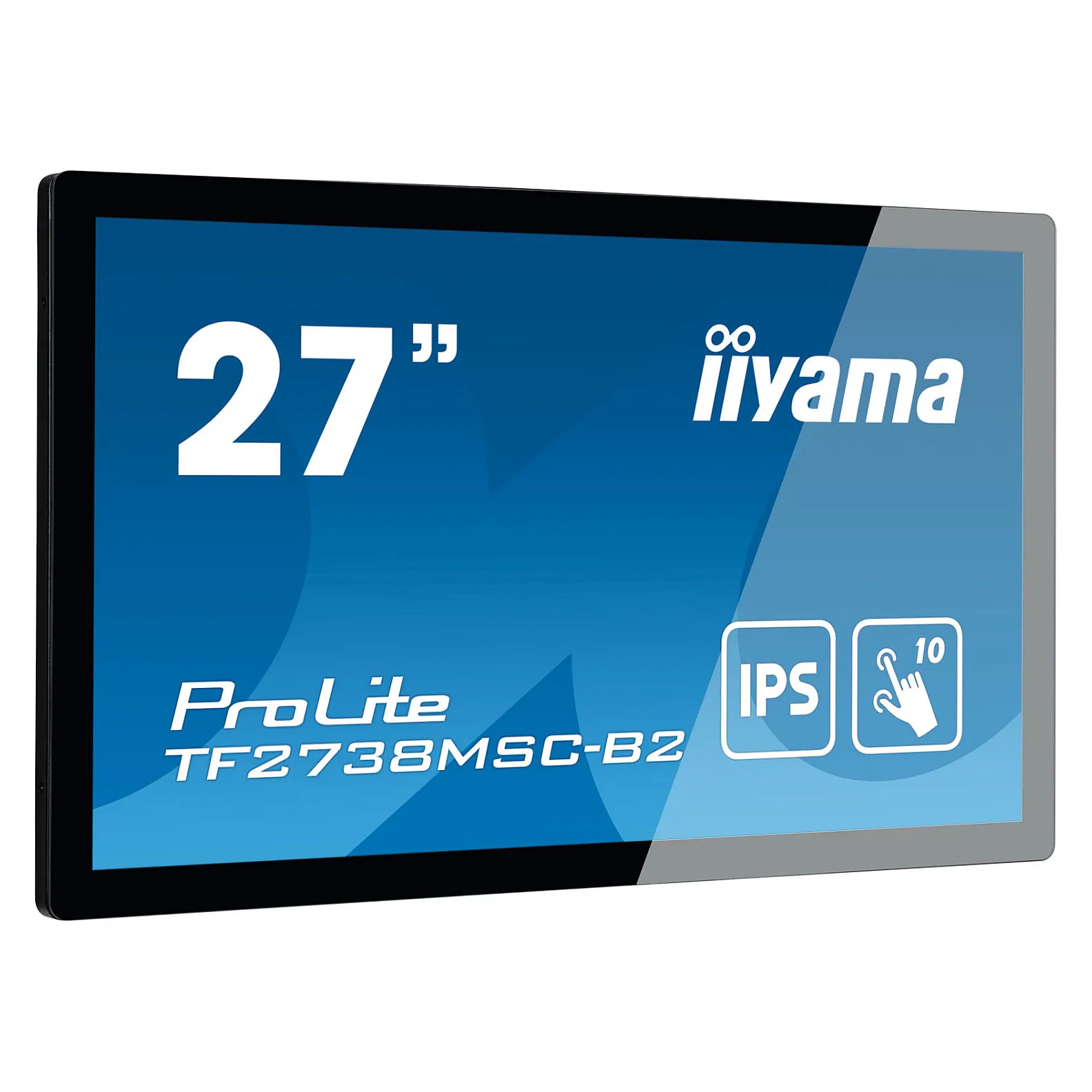

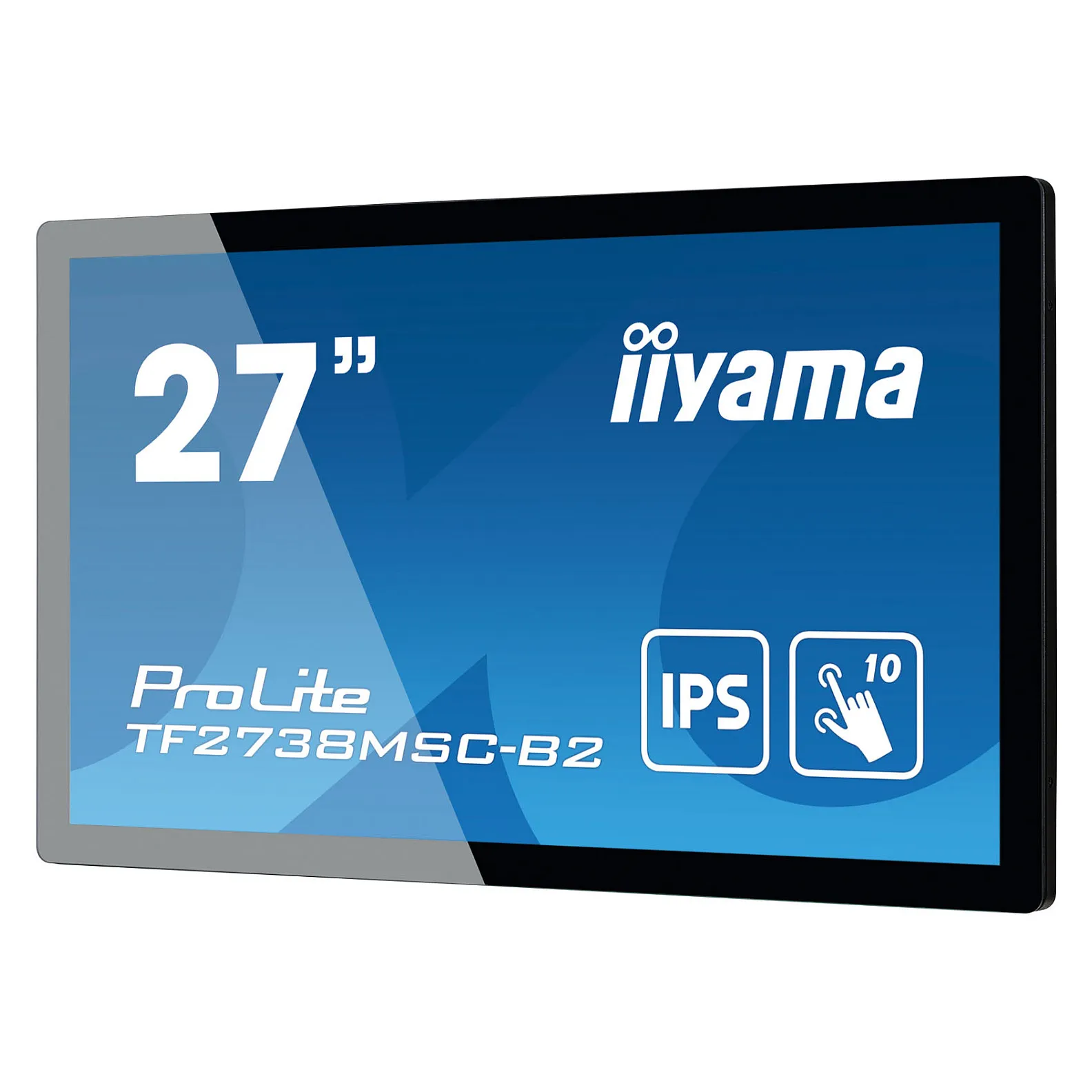

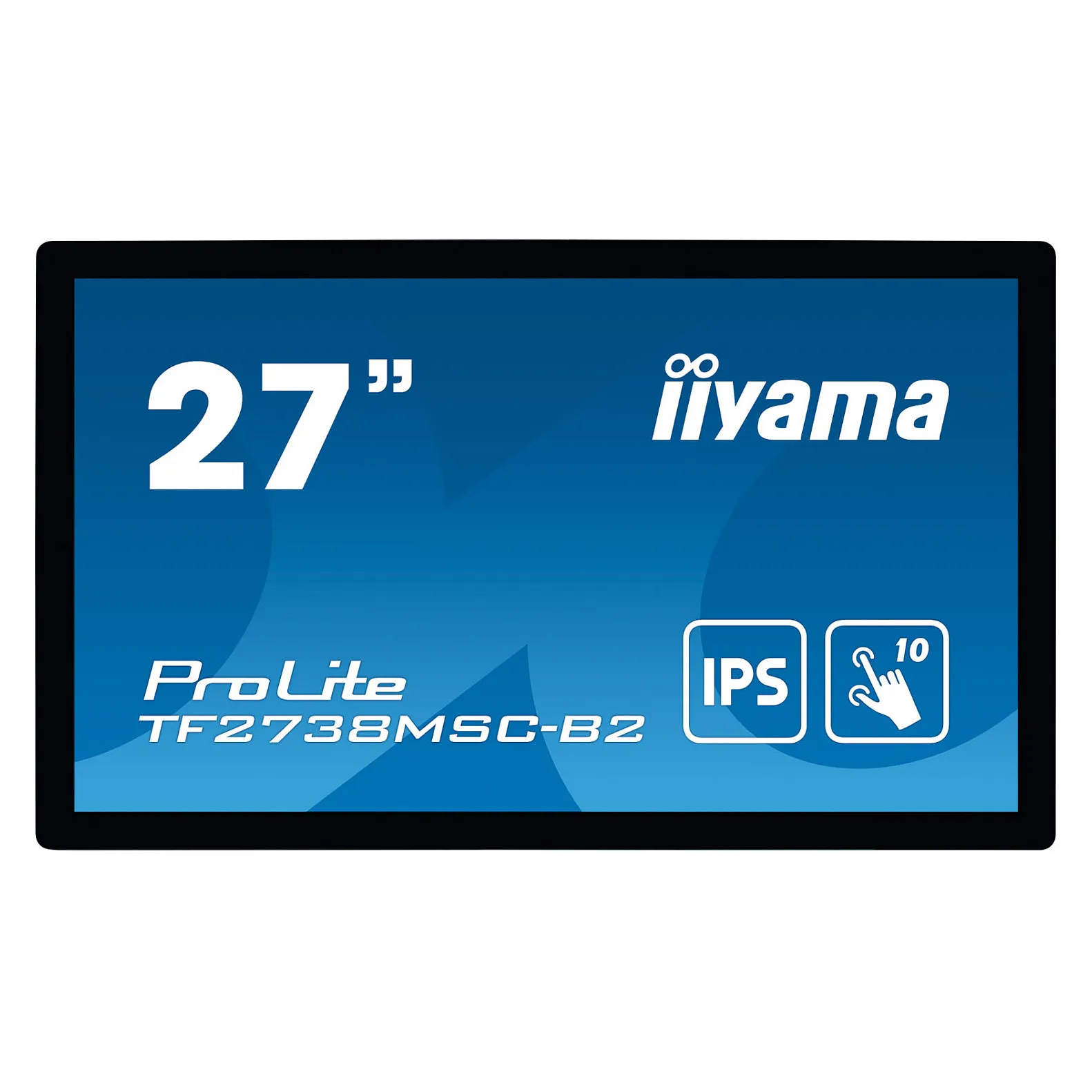

iiyama ProLite TF2738MSC-B2. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black
With 1920×1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite TF2738MSC-B2 delivers seamless and accurate touch response. Featuring IPS LED LCD Screen technology, it offers exceptional colour performance and wide viewing angles. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. In addition, the screen comes with an IPX1 rating, making it water resistant from the front. Equipped with speakers and triple digital input (DVI, HDMI and DisplayPort). The ProLite TF2738MSC-B2 is an ideal screen for kiosk integrators and a perfect solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.
Display
Display diagonal: 68.6 cm (27″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 500 cd/m²
Display brightness: 425 cd/m²
Response time: 5 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 12000000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.311 x 0.311 mm
Horizontal scan range: 30 – 80 kHz
Viewable size, horizontal: 59.8 cm
Viewable size, vertical: 33.6 cm
Display diagonal (metric): 68.6 cm
Surface hardness: 6H
Performance
Feature: Low Blue Light technology
Operating hours (hours/days): 16/7
Multimedia
Number of speakers: 2
RMS rated power: 6 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.6 mm

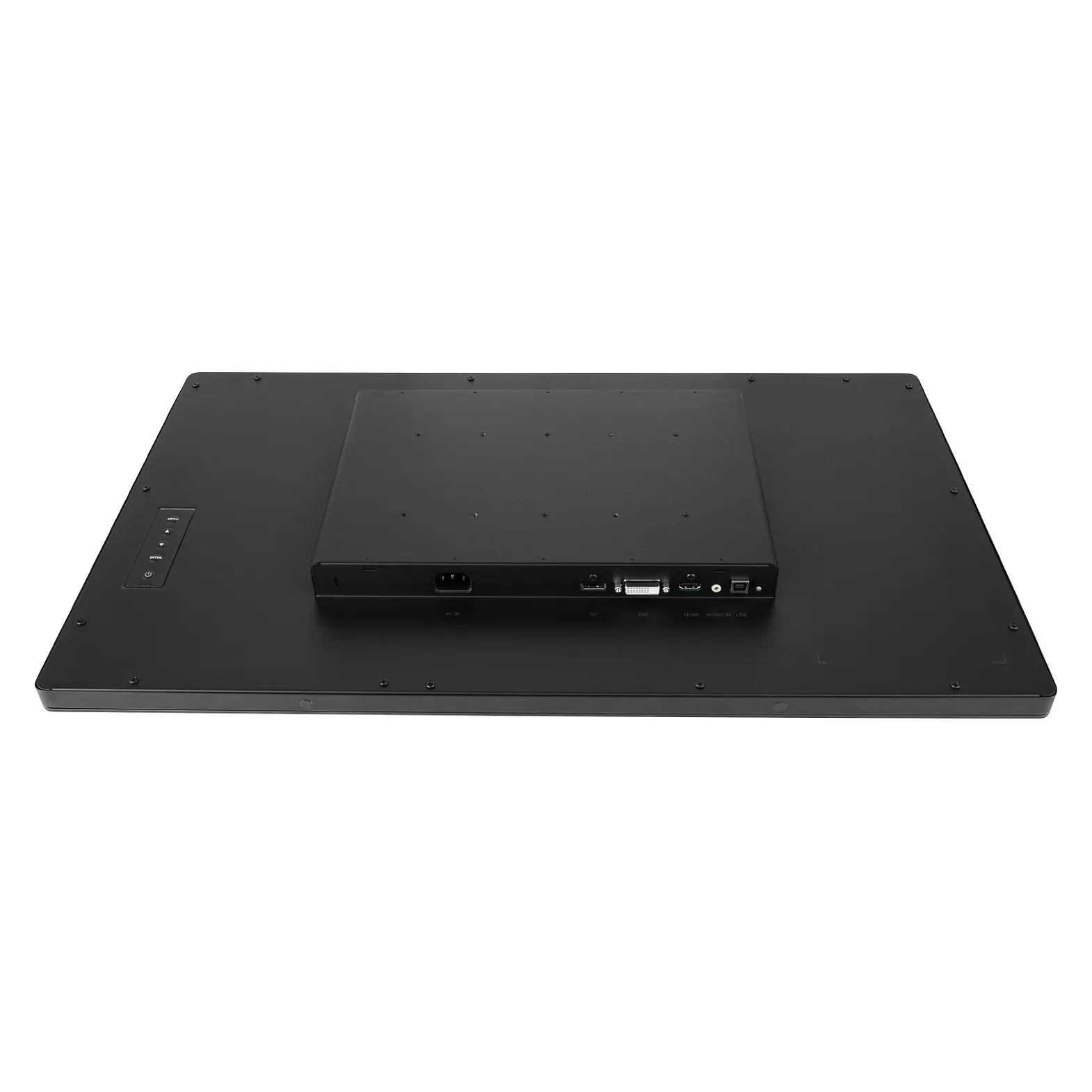

Ports & interfaces
Feature: USB Touch port
Feature: DVI port
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics

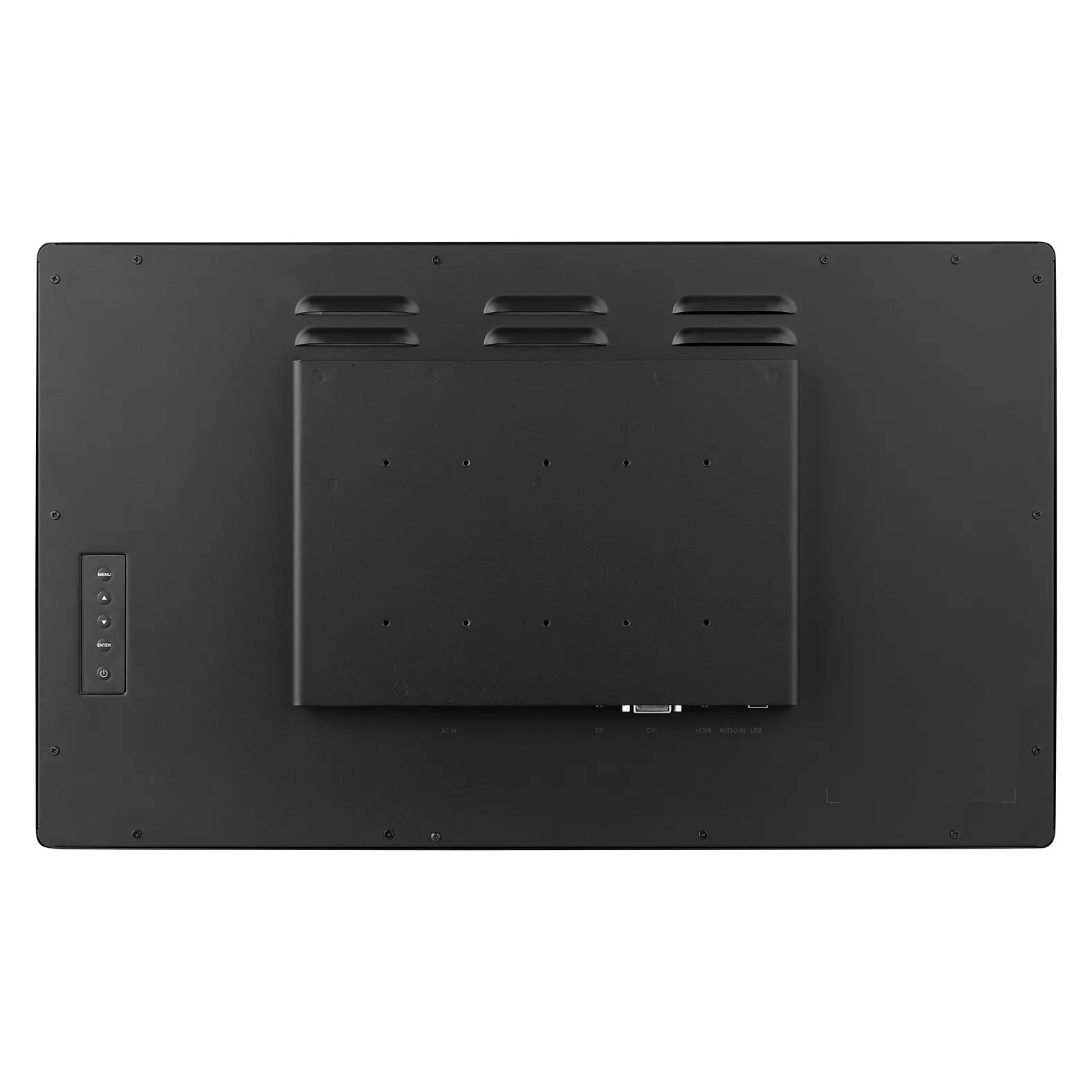

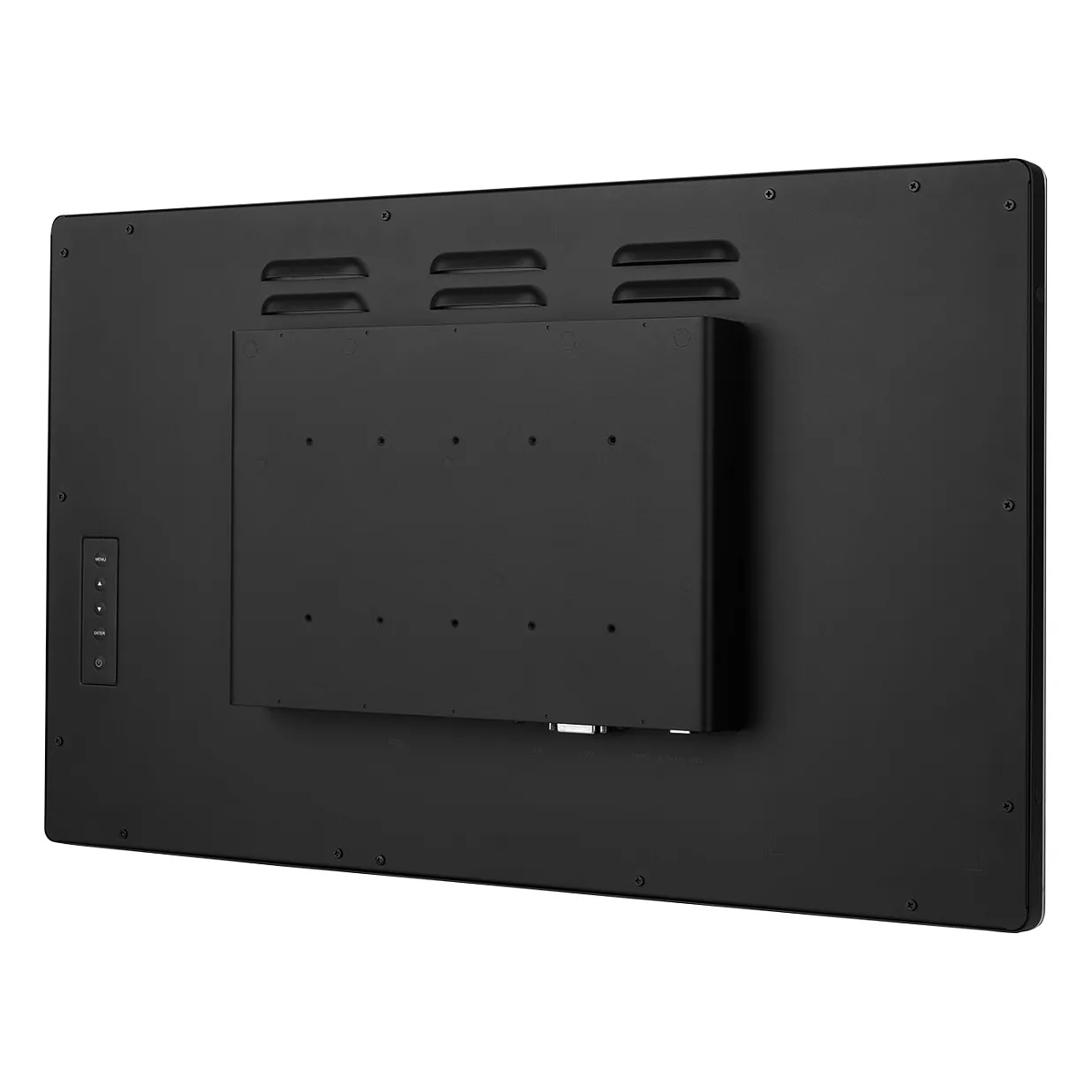

Feature: VESA mounting
Panel mounting interface: 100 x 100,200 x 100 mm
Feature: Wall mountable
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian
Number of OSD languages: 8
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 24 kWh
Power consumption (typical): 25 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 648.5 mm
Depth (with stand): 52 mm
Height (with stand): 386.5 mm
Weight (with stand): 8.3 kg
Width (without stand): 648.5 mm
Depth (without stand): 52 mm
Height (without stand): 386.5 mm
Weight (without stand): 8.3 kg
Bezel width (side): 2.45 cm
Bezel width (top): 2.4 cm
Bezel width (bottom): 2.4 cm
Packaging data
Package width: 746 mm
Package depth: 123 mm
Package height: 500 mm
Package weight: 9.4 kg
Packaging content
Cables included: AC, USB, HDMI, DisplayPort
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP1X
Display viewable area (HxV): 597.6 x 336.2 mm

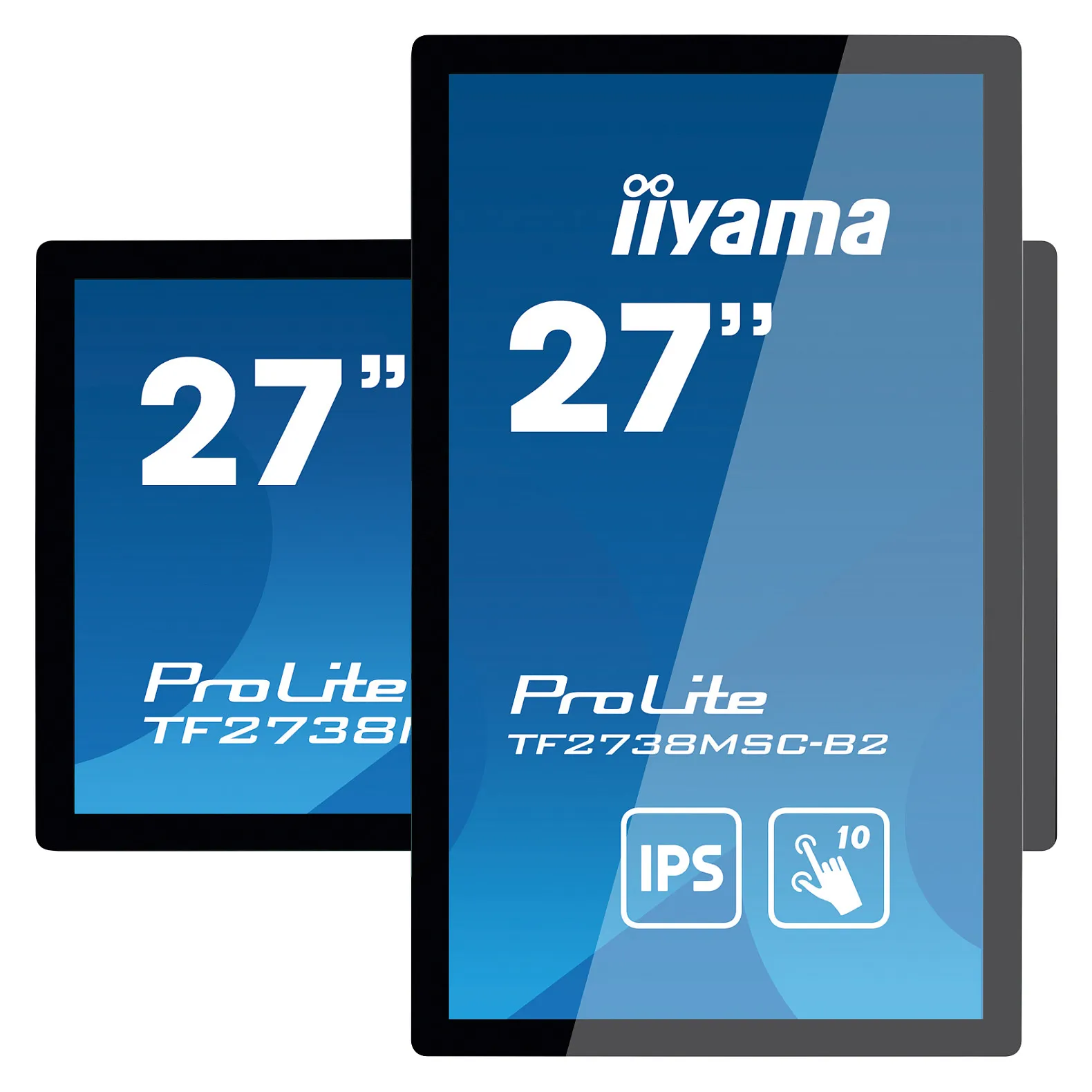

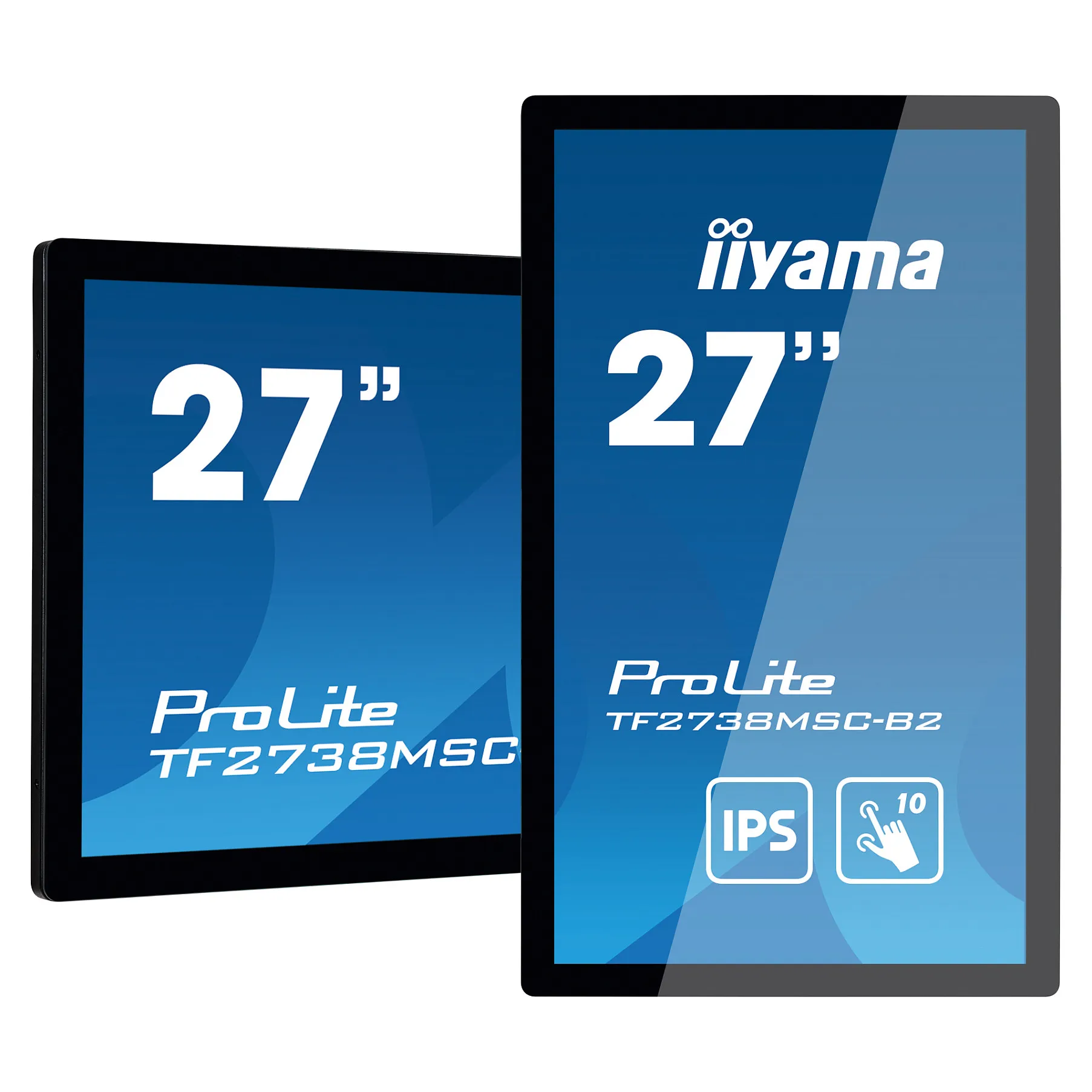

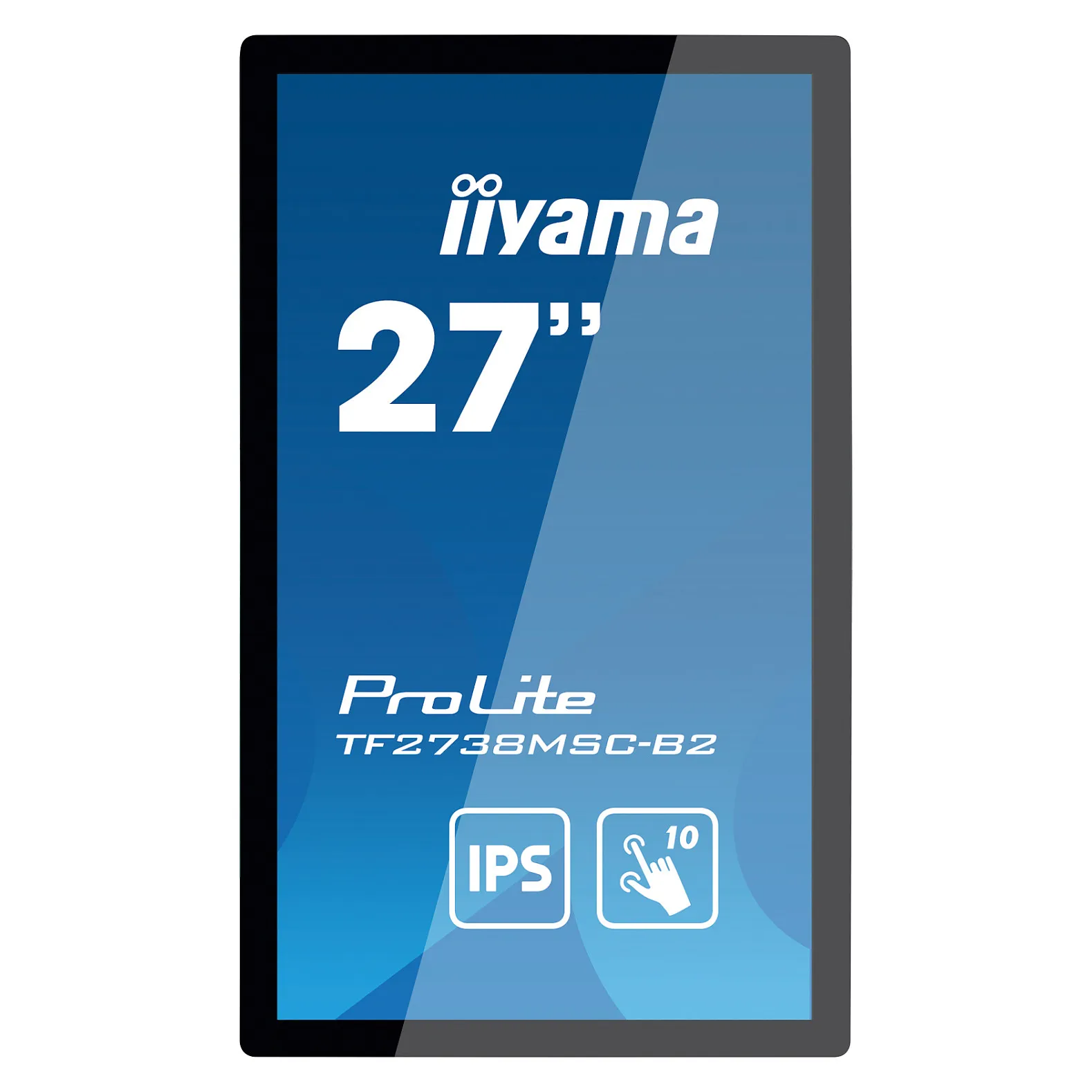

Placement supported: Horizontal/Vertical
Brightness: 425 cd/m²
Active display area (W x H): 597.6 x 336.2 mm
Touch method: stylus, finger, glove (latex)
Bezel width: 2.4 cm
Weight: 8.3 kg
Height: 386.5 mm
Width: 648.5 mm
Depth: 52 mm

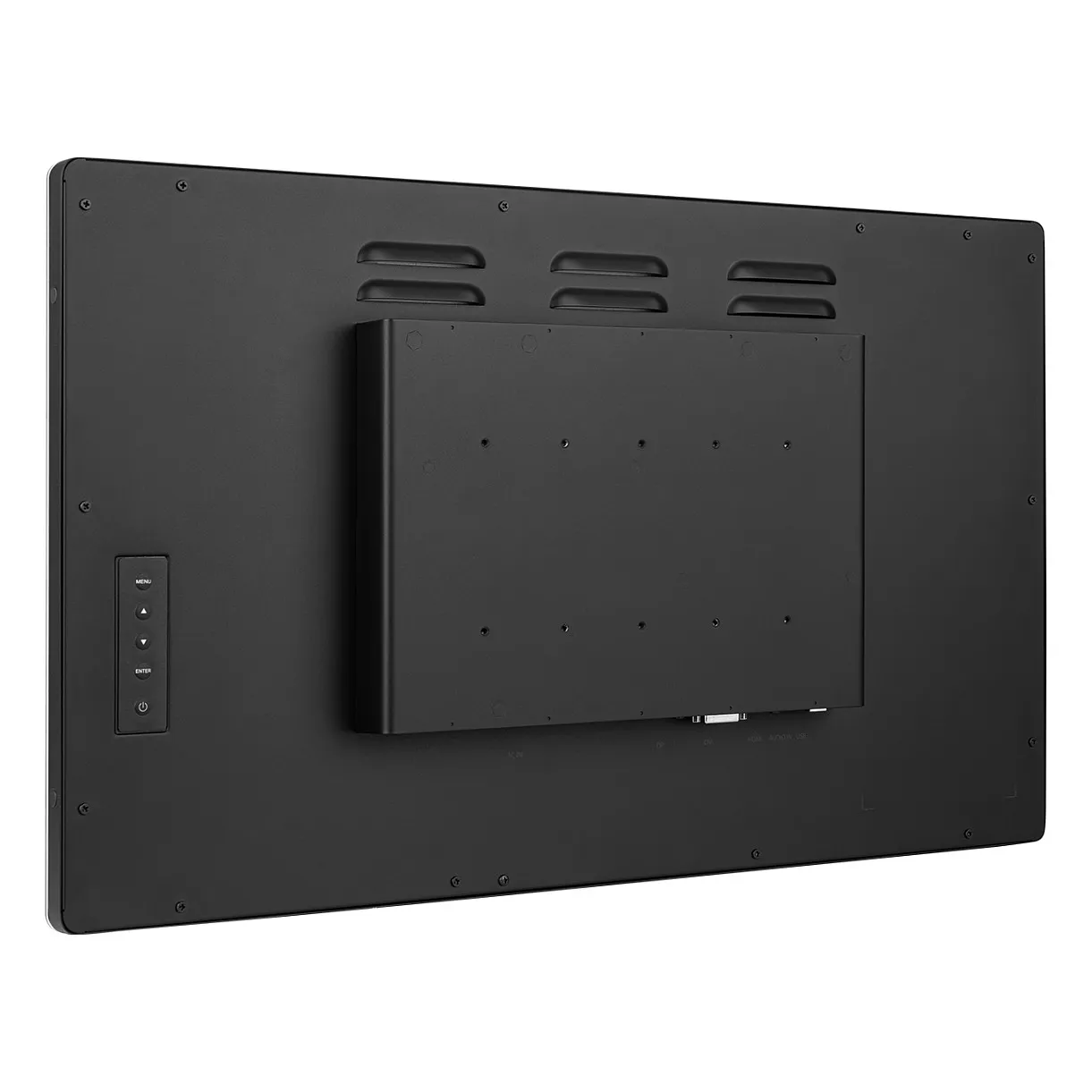

Control panel: Menu, Scroll up/ Audio, Scroll down/ i-Style colour, Select/ Input select, Power
Compliance certificates: CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Certification: CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Technical details
Native refresh rate: 60 Hz
Logistics data
Products per pallet: 36 pc(s)
Pallet net width: 74.7 cm
Pallet net length: 2 m
Pallet net height: 110.7 cm
Harmonized System (HS) code: 85285210
